Richmond GTR061 User manual

GTR061 Installation Manual: Rev 3 1
Sliding Gate Opener
User Manual GTR061
TECHNICAL SUPPORT
Instructions must be read before beginning installation. Please follow these instructions carefully,
incorrect installation could a󰀨ect gate operation. If you require more information, please contact
your local Richmond Wheel & Castor Co branch.
For installation or troubleshooting assistance visit richmondau.com/gate-motor-support/
AU: 03 9070 5713 NZ: 0800 61 71 81 International: [phone]
Please Note: This motor runs on AC Power as standard but can also be operated by DC Battery Backup or Solar Power.
Gate in closed position Gate in open position
Viewed from inside the property

GTR061 Installation Manual: Rev 3 2
Optional Accessories Available:
Additional Remotes (GTR179): Spare/Additional remotes for the automatic gate kit, these will
need to be paired to the motor.
Remote External Receiver (GTR197): Allows more remotes to be paired to the motor. Pair up
to 250 remotes with this accessory.
Wireless Keypad (GTR180): Allows secure access through the gate used with a user set code.
Wireless Push Button (GTR201): Allows access through the gate at the push of a button.
Hard Wire Push Button (GTR202): Allows access through the gate at the push of a button.
Reective Photocells (GTR208): Increase safety during opening/closing by preventing gates
from closing on vehicles/pedestrians.
Warning Light (GTR198): Alerts people near the gate and users that the gate is in operation.
Solar and Battery Backup Packs Available: Solar panels and more available to get this gate
kit running on solar power. Please contact your nearest authorised dealer for compatible solar
panels in your state/region.
Please refer to the relevant manual for each accessory for
instructions on wiring them to the GTR061 gate motor.

GTR061 Installation Manual: Rev 3 3
Contents:
Gate Opening Default Setting Information 4
General Safety 5
Parts List 6
Technical Specications 7
Motor Installation
Before you start 8
Tools Required / Example Sliding Gate Setup 9
Step 1 – Gate Preparation 10
Step 2 – Motor Pad Footing 11
Step 3 - Motor Position Installation 11
Step 4 – Drilling Holes for Anchor Bolts 12
Step 5 – Fitting the Mounting Plate & Motor 12
Step 6 – Gear Rack & Motor Alignment 13
Step 7 – Limit Travel Stops 15
Step 8 – Powering the Motor 17
Step 9 – Testing the Limit Travel Stops 18
Programming and Wiring
Control Board Diagrams 19
Dip Switch Adjustment 22
Further Settings and Programming 23
Battery/Solar Connection 26
Connecting Battery Backup (sold separately) 26
Connecting Solar Power (sold separately) 27
Troubleshooting 28
Clearing and Pairing Remotes 29
Additional Drawings and Diagrams 30
Maintenance 30
For accessories: please refer to the relevant accessory
manuals for instructions on wiring them to the GTR061 motor.

GTR061 Installation Manual: Rev 3 4
It is recommended that you allow a minimum 500mm bottom rail extension
from your inside gate post opening. This will enable you to have enough
room to secure your gear rack and placement for the motor.
Gate Opening Default Setting Information:
The gate motor will open the gate to the right-hand side as its default setting (refer to g 1).
MIN 500mm
MIN 500mm
Default operation:
Motor mounted on
the right-hand side
Left-Hand Opening:
Motor mounted on the
left-hand side
Fig 1
Before Installing: Test the motor by plugging it into a power source and pressing the remote. You will see the motor
cog turn. When it stops (after approx 1 minute), press the remote again to see it turn in the opposite direction. This will
give you an understanding of the way in which the motor will move the gate.
Press the rst/top button
on the remote.
Note: Ensure that the motor is unplugged before proceeding with installation. Please keep ngers away from the motor cog whilst it is turning.
Any works done to the motor must be completed whilst the power is o󰀨 and the motor is unplugged
The motor cog will turn counter-clockwise,
moving the gate frame.
The gate will then move in the set
direction. Default: right-hand open.
If your gate needs to open from the other direction (to the left, refer to g 2) your motor needs to be mounted on the left-hand side as
shown below, you will need to switch DIP SWITCH 5 from OFF to ON (refer to page 22).
Fig 2
It is recommended that you allow a minimum 500mm bottom rail extension
from your inside gate post opening. This will enable you to have enough
room to secure your gear rack and placement for the motor.

GTR061 Installation Manual: Rev 3 5
Thank you for choosing this sliding gate opener. Please read the manual carefully before assembling and using
the opener. Do not leave out the manual if you send this product to a third party. This product complies with the
recognised technical standards and safety regulations. Our company has the right to change this manual without
prior notice.
General Safety:
Warning: Incorrect or improper use of this product can cause damage to persons,
animals or properties.
• Warning: Incorrect or improper use of this product can cause damage to persons, animals or properties.
• Please ensure that the input voltage used matches with the supply voltage of gate opener (AC240V
• 50Hz).
• All modications to wiring or electrics, and any adjustment or maintenance to 240VAC MUST be done by a
qualied electrician.
• To avoid damaging gas, power or other underground utility lines, contact the relevant authority BEFORE
digging.
• All potential hazards and exposed pinch points of the gate must be eliminated or guarded prior to installation
of this gate motor.
• Never mount any device that operates the gate motor where the user can reach over, under, around or
through the gate to operate the controls. These must be placed at least 1.8m from any moving part of the
moving gate.
• Ensure power plug is disconnected from the power socket during installation or maintenance.
• Keep remote control and other control devices out of children’s reach, in order to avoid unintentional
• activation.
• Never allow anyone to hang onto the gate while moving.
• Please ensure a warning sign provided is tted to the structure.
• To ensure safety, before installing the main motor, mount a Gate End Stop (GTR017) and a Gate Stopper
(GTR017 or GTR018) at each end of the rail to prevent the gate travelling o󰀨 the track.
• If required, install infrared photocells (GTR096, sold separately) to detect obstructions and prevent injury or
damage.
• • Instruct all users about the control systems provided and the manual opening operation in case of
emergency.
• • Ensure that the power cable is connected to a RCD protected weatherproof power outlet installed by a
qualied electrician.
• Do not install the product in an explosive atmosphere or where there is any danger of ooding.
• This product was exclusively designed and manufactured for the use specied in the present documentation.
Any other use not specied in this documentation could damage the product and be dangerous.
• Only use original parts for any maintenance or repair operation. Richmond Wheel & Castor Co declines all
responsibility with respect to the automation safety and correct operation when other supplier’s components
are used.
• Do not modify the automation components, unless explicitly authorised by Richmond Wheel & Castor Co.
• The user must avoid any attempt to carry out any works or repairs on the motor, and should always request
the assistance of qualied personnel.
• This motor is suitable for use on one sliding gate only.
• Anything which is not expressly provided for in these instructions is not allowed and will void warranty.
• Dispose of all packing materials (plastic, cardboard, polystyrene etc.) according to current guidelines. Keep
plastic bags and polystyrene out of children’s reach.
Please save these instructions for future use.

GTR061 Installation Manual: Rev 3 6
Parts List:
No. Picture Name Quantity
1Main motor 1
2Motor Mounting Plate 1
3
Manual release keys
(These keys are needed during power
outage, keep on hand)
2
4Remote controls
(factory paired to motor) 2
5Gate Warning Signage
(must be  tted to gate) 1
6In the accessories box you will  nd
the items below: 1
6a Limit travel stops
(left hand & right hand) 2
6b Limit switch mounting
plate screws M6X18 4
6c M12 x 100mm masonry anchor bolts
(Drill bit size: M12 masonry) 4
6d Motor mounting set screws M10 x
50mm, spring &  at washers 4

GTR061 Installation Manual: Rev 3 7
Technical Specications:
Model GTR061
Power supply 240V/50Hz
Motor power 170W
Gate moving speed 16-18m/min
Maximum weight of gate 800 Kg
Remote control distance Up to 30m
Remote control mode Single button mode
Limit switch Spring limit switch
Noise Up to 58dB
Working duty S2, 20min (20 minutes continuous operation)
IP Rating IP54
Maximum Remote
Controls to be paired 25
Frequency 433.92 MHz
Working temperature -20°C ~ +70°C
Fig 03

GTR061 Installation Manual: Rev 3 8
Motor Installation:
Before you start
• The GTR061 Sliding Gate Motor is suitable for powering the opening and closing motion of gates up to
800kg in weight, and up to a length of 8m on level, at ground.
• Gate motion is achieved by the rotating cog of the gate motor driving the gear rack tted to the moving
gate (sold separately).
• The gate motor requires you to press the remote control once to open, and once again to close. This is
a safety feature to ensure safe operation.
• The gate motor itself must be tted within private property, never externally to a property’s boundary.
• This premium motor has a range of optional accessories which can be added, such as solar power,
battery backup, infrared photocells, keypads, push buttons, and warning light.
Power Supply: The GTR061 requires 1 x 10Amp AC240V 50Hz power supply (RCD Protected
Weatherproof PowerPoint). The GTR061 comes complete with a power lead and plug that is 1m long. If
you do not have a suitable RCD protected weatherproof power point within 1m of the gate motor you will
need to consult a licenced electrician.
Any works done to the motor must be completed whilst the power is o󰀨 and the motor is unplugged.
The gate motor will open the gate to the right-hand side as its default setting (refer to g 1).
Any modications/alterations/works to the 240V AC power components must only be completed by
a licensed electrician for your state/country.
Please Note:
• Your weatherproof power outlet should be no more than 1m from the electric gate motor.
• If your weatherproof power outlet is more than 1m from the gate motor, you will require a
• licensed electrician to t a new power cable.
• Any excess cable length should be cable tied and secured out of the way of moving objects.

GTR061 Installation Manual: Rev 3 9
For Installing Your Gate Motor, You Will Need:
• Power drill
• Tape measure
• Level
• 12mm Masonry Drill Bit (for the 4 motor masonry anchor bolts)
• Socket and Spanner Set
• Phillips Head Screwdriver
Example Sliding Gate Setup:
If you require any gate hardware, contact Richmond Wheel & Castor Co or an authorised reseller.
Gate Track and
Track Wheels
Gate Guide
Rollers
Gate End
Catch
Gate
Stopper
It is recommended that you allow a
minimum 500mm bottom rail extension
from your inside gate post opening. This will
enable you to have enough room to secure
your gear rack and placement for the motor.

GTR061 Installation Manual: Rev 3 10
Step 1 - Gate Preparation Before Adding
Your Sliding Gate Motor:
• Ensure that the sliding gate is correctly installed.
• The gate is horizontal and level and the gate can glide back and forth smoothly
when moved by hand before installing the Automatic Gate Opener.
• Wheels and guide rollers should rotate easily and be free from dirt/grime.
• Track should be at, level and rmly a󰀩xed.
• Any misalignment in the gate will a󰀨ect performance of the automatic gate opener.
Please ensure that the motor power cable is not plugged in at any stage before Step 8
RICHMOND WHEEL &
mm
THICKNESS:
Material <not specied>
D
E
F
C
1 2 3 4
B
A
321 5
C
D
4 6
GTR156 gate set up Incline
A
7
A3
B
12/02/2020
DP
TOM
Richmond Wheel & Castor Co.
SALES PERSON:
STATE:
218.95kg
12/02/2020
SHEET 1 OF 3
DWG NO.
TITLE:
REVISION:
DO NOT SCALE DRAWING
BREON
EDGES
FINISH:
\\Dataserver\sys4\db\dave\sketches\Gate parts\GTR1 56 set up\
DATE
SIGNATURE
NAME
DEBUR AND
TOLERANCES TO 0.25MM
Q.A
APPV'D
CHK'D
12/02/2020
BWM
DAVID
WEIGHT:
SY
UNLESS OTHERWISE SPECIFIED:
MATERIAL:
TM
SY
NAME:
8
BREAK SHARP
DIMENSIONS ARE IN MILLIMETERS
CASTOR CO.
IS PROHIBITED.
CUSTOMER APPROVAL:
SIGN:
MFG
COMPANY:
DRAWN
DATE:
PROPRIETARY ANDCONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF
Richmond Wheel & Castor Co.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
FILE LOCATION:
12/02/2020
RICHMOND WHEEL &
mm
THICKNESS:
Material <not specied>
D
E
F
C
1 2 3 4
B
A
321 5
C
D
4 6
GTR156 gate set up Incline
A
7
A3
B
12/02/2020
DP
TOM
Richmond Wheel & Castor Co.
SALES PERSON:
STATE:
218.95kg
12/02/2020
SHEET 1 OF 3
DWG NO.
TITLE:
REVISION:
DO NOT SCALE DRAWING
BREON
EDGES
FINISH:
\\Dataserver\sys4\db\dave\sketches\Gate parts\GTR1 56 set up\
DATE
SIGNATURE
NAME
DEBUR AND
TOLERANCES TO 0.25MM
Q.A
APPV'D
CHK'D
12/02/2020
BWM
DAVID
WEIGHT:
SY
UNLESS OTHERWISE SPECIFIED:
MATERIAL:
TM
SY
NAME:
8
BREAK SHARP
DIMENSIONS ARE IN MILLIMETERS
CASTOR CO.
IS PROHIBITED.
CUSTOMER APPROVAL:
SIGN:
MFG
COMPANY:
DRAWN
DATE:
PROPRIETARY ANDCONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF
Richmond Wheel & Castor Co.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
FILE LOCATION:
12/02/2020
Gate on a at, level surface
Suitable for
Installation
Not Suitable
for Installation
Gate on an incline/decline
For installation on sloping surfaces contact Richmond to discuss a suitable motor option

GTR061 Installation Manual: Rev 3 11
Step 2 - Motor Pad Footing (Minimum Requirement):
• The motor pad concrete footing requires an area of no less than 450mm long x 300mm
wide and a minimum depth of 200mm (Standard requirement).
• Ensure surface is level and parallel to the driveway
• Concrete pad should be min 20-25MPA (Rapid Set Concrete not recommended)
allow to cure for 7-10 days before drilling and securing the mounting plate into position.
Step 3 - Motor Position Installation:
• Insert the key and open the manual release bar to put the motor into manual mode, and check
that the motor cog rotates freely by hand (As per Fig 17).
• Place the motor and motor mounting plate on the concrete pad.
• Make sure the distance between the gate motor cog and gear rack position are aligned.
• Mark all four corners of the mounting plate on the concrete pad using a pencil, chalk or similar,
to ensure the mounting plate is in the correct position before drilling.
• Remove motor from the mounting plate.
Mounting Plate Dimensions:
Fig 4
Fig 5 Fig 6
21-17mm
53-57mm
Sliding Gate Frame (in open position)
Mark
corners
of the
mounting
plate with
a pencil,
chalk, or
similar.
Once the gate has been placed onto the gate motor the gate must move back
and forth freely at all times when in manual release mode
When mounting and positioning the motor ensure that the power cable is unplugged. The motor
cover will need to be removed to mount the motor to the mounting plate.

GTR061 Installation Manual: Rev 3 12
Step 4 - Drilling Holes for Anchor Bolts:
• Mark the (4) positions for your anchor bolts ready for drilling (refer to Fig 7).
• Remove Mounting plate.
• Using a M12 masonry drill bit, drill holes to a minimum depth of 120mm (Fig 8).
Fig 7
Fig 9
Fig 11
Fig 8
Fig 10
Fig 12 Fig 13 Fig 14
Step 5 - Fitting Mounting Plate & Motor:
• Fit motor mounting plate back into place and  t and tighten anchor bolts (as per  gures 9 and 10).
• Fit motor back on mounting plate, ensuring the power cord is positioned into the end slot of the mounting
plate in the direction of the power point, making sure there are no pinch points (as per  g 11).
• Slide rubber grommet along the power lead and into the end slot of the mounting plate (as per  gures 12 & 13).
• Bolt motor to the mounting plate using the M10 x 50mm bolts with spring and  at washers provided and
tighten as required (as per  gure 14).
208mm
135mm
Tighten bolts using
spanner or socket set
Insert the M10 x 50mm bolts
(Part 6d), spring washers,
and  at washers provided
through motor housing and
screw into welded nut on the
baseplate.
Hand-tighten set screws
before  nal adjustment of motor.
Once the gate has been placed onto the gate motor the gate must move back and
forth freely at all times when in manual release mode

GTR061 Installation Manual: Rev 3 13
Step 6 - Gear Rack & Motor Alignment:
• Insert the key and open the manual release bar to put the motor into manual mode,
and check that the motor cog rotates freely by hand (as per  g 17).
• Ensure that the gate drive cog has a minimum clearance of 1-2mm along the entire
length of gear rack  tted to the gate (as per Fig 15)
• Ensure cog and rack are correctly aligned. Under no circumstances should the gate
motor drive cog carry any weight of the gate. It is the task of the gate castors or
wheels to carry the weight of the gate. (As per Fig 16)
• If the gate doesn’t slide freely by hand, adjust gear racks height accordingly
until the full length of gate slides freely by hand
To put the gate motor into manual mode, insert the
key and open the manual release bar as shown
At this stage of  nal assembly, the cover is removed (not shown) and the power cable is still unplugged.
In manual mode, the gear can turn freely
and the gate can be operated by hand

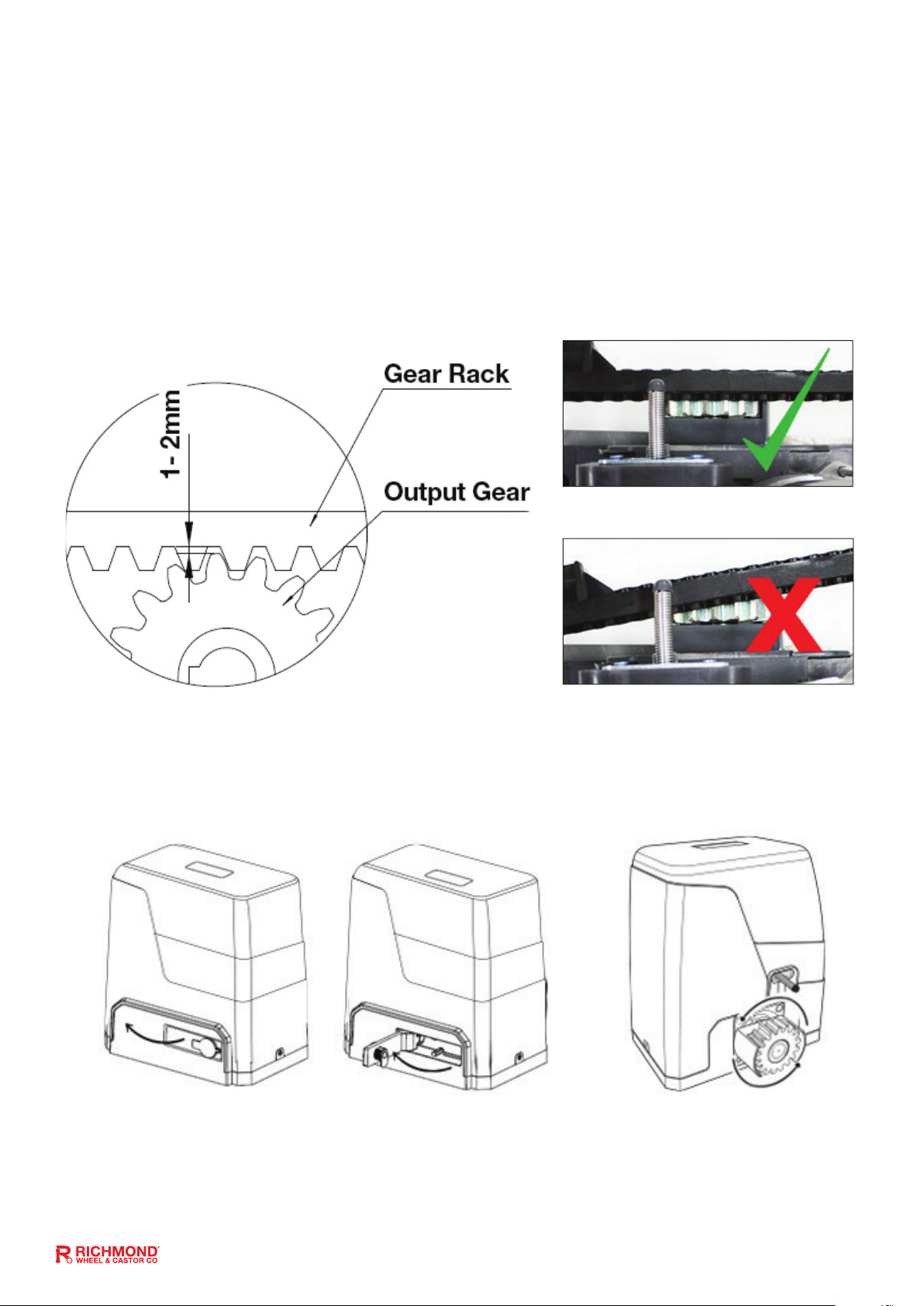

Gear rack correctly aligned at 90°
to the motor cog
Gear rack misaligned.
Do not attempt to use if misaligned.
Fig 17
Fig 15 Fig 16

GTR061 Installation Manual: Rev 3 14
Fig 18
At this stage of nal assembly, the cover is removed (not shown) and the power cable is still unplugged.

GTR061 Installation Manual: Rev 3 15
Step 7 - Limit Travel Stops:
Included in your gate motor kit are two limit travel
stops (Part 7a) which must be tted to the gear
racks on your gate to ensure safe operation.
The limit travel stops are designed to set the
desired opening and closing position of your
gate. These limit travel stops are designed to
come into contact with the spring limit switch.
Please note: gates can open and close in
di󰀨erent positions due to di󰀨erent weights of
gates, terrains, slopes (uphill or downhill). The
distance the gate will travel after contacting the
spring limit switch may vary.
Instructions on setting the limit travel
stops can be found on the next page
The installation of spring limit switch block is shown in Figure 20
Fig 19
Fig 20
M6 x
10mm
M6 x
10mm
GTR061
Motor
Gear
Rack
Limit
Travel
Stop
Motor
Gear
Cog
Spring
Limit
Switch
Mounting
Plate
This diagram
shows the gate
in the open
position
Fig 21

GTR061 Installation Manual: Rev 3 16
Test the spring limit travel stops by moving the gate manually until you hear a click, making sure contact is
made with the spring limit switch on the motor.
To Reset: When setting new limit travel stop positions please ensure that you turn the power o󰀨 and then on
again. Turning the power o󰀨 will reset the limit travel stop memory, allowing for new limit travel stop positions to
be recognised by the motor.
Once satis ed the gate is opening and closing to the test limit switch position. Set the limit travel stop positions
in place (see Step 8 and Step 9 for instructions on powering the motor and testing the limit switch positions).
Open Position:
• Position gate 150-200mm back from
the gate stopper open position. This
will help in making sure you do not
slam the gate into the end stop/catch
when setting the open position under
power.
• Fit limit travel stop onto the top of
gear rack at the point where it meets
the spring limit switch on the motor.
• Tighten locking screws.
Setting the Limit Travel Stops:
Fig 23
Fig 22
Closed Position:
• Position gate 150-200mm back from
the gate end catch closed position.
This will help in making sure you do
not slam the gate into the end stop/
catch when setting the closed position
under power.
• Fit limit travel stop onto the top of
gear rack at the point where it meets
the spring limit switch on the motor.
• Tighten locking screws.

GTR061 Installation Manual: Rev 3 17
Step 8 - Powering the Motor:
• Ensure that the outer cover has been tted and fastened back onto the motor housing.
• Before powering up the motor make sure the gate can travel by hand in manual mode (key unlocked).
• Slide the gate to between the middle of the posts, approximately (see below diagrams).
• Lock the key (key locked) in readiness for automatic mode.
• Plug the power cord from the low voltage power supply into the power outlet.
• Remote controls (Part 4) included in this kit are factory paired ready for use.
Please Note:
• The default setting is opening to the right.
• Press the remote control and the gate will open until the spring limit travel stop hits the spring limit
switch. Press the remote control again and the gate will close.
• Soft start/soft stop function - The GTR061 is set by default to provide the soft start/soft stop function.
We recommend this default position is always maintained.
Your motor is now set up for basic remote control operation. To set further
functions and settings, see pages 19-27
For accessories: please refer to the relevant accessory
manuals for instructions on wiring them to the GTR061 motor.

GTR061 Installation Manual: Rev 3 18
Step 9 - Testing the Limit Travel Stops:
Testing the closed position
• Ensure motor is plugged in as per step 8 and the gate is in
the open position.
• Press remote (remotes included in kit are factory paired to the
motor). The gate will begin to close.
• The limit travel stop will hit the spring limit switch and the gate
will stop.
• When the gate stops, measure the distance remaining
between the gate and the desired closed position.
• You have now determined the closed position of the gate
when the travel limit stop hits the spring limit switch.
• Adjust the limit travel stop from the measurement you have taken to
get your nal gate closed position. The ideal closed nal position for
the gate frame is 10-15mm from closed gate end catch (GTR019).
Testing the open position
• Press remote. The gate will begin to open.
• The limit travel stop will hit the spring limit switch and the
gate will stop.
• When the gate stops, measure the distance remaining
between the gate and the desired open position.
• You have now determined the open position of the gate when
the travel limit stop hits the spring limit switch.
• Adjust the limit travel stops from the measurement you have taken
to get your nal gate open position. The ideal open nal position for
the gate frame is 10-15mm from the gate stopper (GTR017).
To Reset: When setting new limit travel stop positions please ensure that you turn the power
o󰀨 and then on again. Turning the power o󰀨 will reset the limit travel stop memory, allowing
for new limit travel stop positions to be recognised by the motor.
Fig 24
Warning:
Please allow space to ensure the
gate does not impact against the
gate catch or the end stop. See g 24

GTR061 Installation Manual: Rev 3 19
Programming and Wiring: Control Board Wiring Diagram 01
Ensure power is o󰀨 before any modi cations are made
Dip Switches
J10 Terminal
J8 Terminal
J4 Terminal
J2 Terminal
24VDC BAT
Terminal
J7 Terminal
Fuse holder
J1 Terminal
Learn Button Potentiometers
Fig 25
+
_
Please refer to page 24 and 25 for added description of the terminals
Richmond Fuse
Part Number:
5GTR156SP002
Generic Fuse Part
Number: F10AL250V
See next page for
more details.

GTR061 Installation Manual: Rev 3 20
Programming and Wiring: Control Board Wiring Diagram 02
Ensure power is o󰀨 before any modications are made
Learn Button
Storage
Battery
24VAC
24VAC
Motor
24VDC
Infrared Sensor
COM
COM
COM
CLOSED
OPEN
Stop Button
Close Button
Open Button
~
Warning Lamp
M
Please refer to page 24 and 25 for added description of the terminals
Fig 26
+
_
Fuse Details:
Richmond Part Number
5GTR156SP002
Generic Part Number
F10AL250V
Fuse Type Glass Ferrule (3AG)
Fuse Speed Fast Acting
Amps 10
Voltage 250vAC
Length 20mm
Diameter 6.35mm
