Ricoh D129 Manual

1
AL-C2 Training
Slide 1
D129/D130
Service Training
AL-C2
Version 1.01
This training course provides service technician training for the AL-C2 series. It
only explains the differences from the AL-C1, so knowledge of that model is
required.
Version 1.01: Slide 12 (Copy Data Security Unit)

2
AL-C2 Training
Slide 2
D129/D130
Service Training
Product Overview
This section provides an overview of the machine, and the options that can be
installed.

3
AL-C2 Training
Slide 3
What Models are there in the Series?
AL-C2b (D129)
40 cpm
Available in a Basic model and an SP Model
» The basic model does not have a built-in hard disk or built-in
printer and scanner kits.
AL-C2c (D130)
50 cpm
Available in a Basic model and an SP Model
» The basic model does not have a built-in hard disk or built-in
printer and scanner kits.
All models contain a duplex unit and a bypass tray as
standard equipment.
ARDF
North America: All models have a built-in ARDF
Other regions: The ARDF is an option.
All models contain a color scanner.
Basic models can be upgraded to SP models.
No additional notes

4
AL-C2 Training
Slide 4
Differences between Basic and SP Models
StandardOptionalPDF direct
print
Standard; included on the
controller board
Standard; included on the
controller board
Data overwrite
security
1GB standard512MB standardMemory
160GB standardOptionalHDD
StandardOptionalVM card
StandardNot included; download from
web site after installing the
optional VM card
App2Me
Standard; included on the
controller board
Standard; included on the
controller board. Can be
activated after the optional
HDD is installed.
HDD
encryption
Copy, Printer (PCL), ScannerCopy (Printer and Scanner
are optional)
Function
Standard
Basic models
Standard
SP models
Duplex
Optional memory and hard disk
For a customer who has a basic model, install the optional HDD if the customer
wants to use the document box features.
When a customer wishes to upgrade a basic model with a printer/scanner or
printer enhance kit, the optional 512 MB must be installed.

5
AL-C2 Training
Slide 5
Appearance (1)
Either of the following paper tray options can be installed below the main unit.
Two-tray paper feed unit
Tandem LCT
If either of the above is installed, a 1200-sheet side LCT can also be installed.
A platen cover can be installed instead of the ARDF (except for the NA version).
ARDF
NA: Standard
EU/AA/CHN: Option
Optional two-tray feed
unit
Two paper trays
are standard
Duplex and bypass are
standard
8.5-inch WVGA
Color LCD
Optional Side LCT
Optional Finisher
(three types available)
No additional notes

6
AL-C2 Training
Slide 6
Appearance (2)
Three possible types of finisher
1000-sheet Finisher
2000-sheet Booklet Finisher
3000-sheet Finisher
Each finisher requires an optional bridge unit and either an optional
tandem LCT or two-tray paper feed unit.
1000-sheet Finisher 2000-sheet Booklet
Finisher 3000-sheet Finisher
No additional notes

7
AL-C2 Training
Slide 7
Appearance (3)
The gap between the operation panel and the paper trays can hold two
options.
Upper compartment: One-bin tray
Lower compartment: Bridge unit (required if an external finisher is
installed), shift tray, or side tray
Side Tray
One-bin Tray
Bridge Unit Shift Tray
No additional notes

8
AL-C2 Training
Slide 8
Options: Original Feed
Cover color changedAL-C1OR-C1, AP-C3, AT-C3NewPlaten cover (D593):
Platen Cover Type
3352
Cover color changedAL-C1, AP-
C2.5
AP-C3NewARDF (D630): DF3070
Also used with these
new models: NoteSimilar to:
No additional notes

9
AL-C2 Training
Slide 9
Options: Paper Feed and Finishing
AL-C1, AP-C2.5AP-C3New3000-sheet finisher
(D636): SR3120
AL-C1OR-C1, AP-C3, AT-C3New1000-sheet finisher
(D588): SR3090
AP-C3
AP-C3
AP-C3, AT-C3
AP-C3, AT-C3
AP-C3, AT-C3
AP-C3, AT-C3
AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
Also used with these
new models:
AP-C2.5NewPunch unit (D570):
Punch Unit PU3030
AL-C1, AP-C2.5New2000-sheet booklet
finisher (D637): SR3110
AP-C2.5NewSide tray (D635): Side
Tray Type C5502
Cover color changedAL-C1, AP-C2.5NewBridge unit (D634):
BU3060
Cover color changedAP-C2.5NewShift tray (D633):
SH3060
Cover color changed,
LED position changed
AL-C1, AP-C2.5NewOne-bin tray (D632):
BN3100
Cover color changedAL-C1, AP-C2.5NewSide LCT (D631):
RT3020
Cover color changedAL-C1, AP-C2.5NewTandem LCT (D581):
PB3140
Cover color changedAL-C1, AP-C2.5NewTwo-tray paper feed
unit (D580): PB3130
NoteSimilar to:
No additional notes

10
AL-C2 Training
Slide 10
Options: Printer, Scanner, & Fax Units
For the Remote Fax
feature (new function)
AL-C2 onlyNewD629: Fax Connection Unit
Type A
AL-C2 onlyNewD629: G3 Interface Unit Type
5002
Printer/scannerOR-C1D594: Memory Unit Type L
512MB
AL-C2 onlyNewD629: Fax Option Type 5002
AL-C2 onlyNewD640: Hard Disk Drive Option
Type 5002
For faxOR-C1, AP-C3, AT-C3G578: Memory Unit Type B
32MB
Color is differentAP-C3, AT-C3D645: Handset Type C5502
AL-C2 only
AL-C2 only
AL-C2 only
AL-C2 only
AL-C2 only
Also used with these
new models:
NewD641: IPDS Unit Type 5002
NewD641: PostScript3 Unit Type
5002
NewD641: Scanner Enhance
Option Type 5002
NewD641: Printer Unit Type 5002
NewD641: Printer/Scanner Unit
Type 5002
NoteSimilar to:
No additional notes

11
AL-C2 Training
Slide 11
Options: Controller
OR-C1, AP-C3, AT-C3D377: IEEE 802.11a/g
Interface Unit Type J
AL-C2 onlyNewD629: SD card for NetWare
printing Type K
AL-C2 only
AL-C2 only
OR-C1
OR-C1, AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
Also used with these
new models:
NewD640: VM Card Type U
NewD640: Browser Unit Type I
G874: Gigabit Ethernet
Board Type A
D377: IEEE 802.11g
Interface Unit Type K
B679: IEEE 1284 Interface
Board Type A
New type, uses USBNewD566: Bluetooth Interface
Unit Type D
NoteSimilar to:
No additional notes

12
AL-C2 Training
Slide 12
Options: Other
OR-C1, AT-C3
AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
OR-C1, AP-C3, AT-C3
Also used with these
new models:
D377: File Format
Converter Type E
D640: Copy Data
Security Unit Type G
B870: Optional Counter
Interface Unit Type A
D593: Card Reader
Bracket Type 3352
A674: Key Counter
Bracket Type H
NoteSimilar to:
No additional notes

13
AL-C2 Training
Slide 13
Controller Options
Printer/Scanner
The SP model already contains printer and scanner features.
No set-up is needed at installation.
The basic models can be upgraded as follows:
To the basic model, add a printer unit and 512 MB memory, to make a
copier/printer model.
Then, to the copier/printer model, you can add a scanner enhance option,
to make an SP model.
-or–
To the basic model, add a printer/scanner unit and 512 MB memory to
make an SP model.
-also-
To add Document Box to the basic model without upgrading to an SP
model, the optional hard disk must be installed.
The printer enhance option and the printer/scanner option both contain a
hard disk.
It is not possible to install a scanner option without the printer option.
NA models only: Note that the 512 MB memory is included in the printer
and printer/scanner upgrade kits.
The options mentioned on this slide are all new.
The next slide shows the above in a graphic format.
Printer drivers are PCL and PDF direct. Postscript 3 is an option. There is no
RPCS.
The procedures in the service manual for installing printer/scanner and printer
enhance options apply only to the basic model, and not the SP model.

14

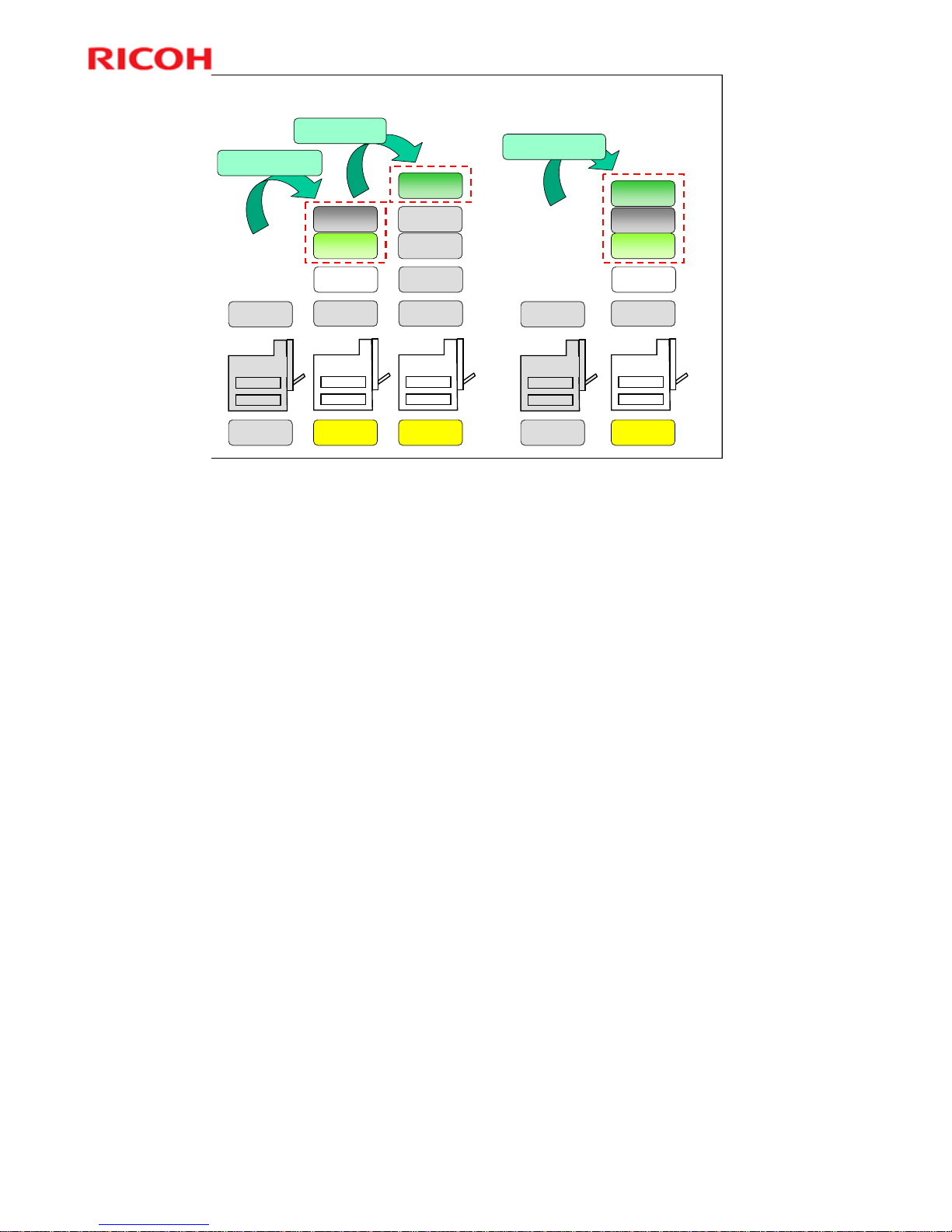

AL-C2 Training
Slide 14
Basic
512MB
standard
Basic
512MB
Standard
PCL
With PDF direct
HDD
Basic
512MB
Standard
Scanner
Basic Printer
enhanced SP
Basic
512MB
Standard
Basic
512MB
Standard
PCL
With PDF direct
HDD
Scanner
Basic SP
PCL
With PDF direct
HDD
Printer Unit
with PDF direct
Scanner enhance
option Printer/Scanner unit
with PDF direct
512MB
Option
512MB
Option 512MB Option
Controller Options
Printer/Scanner
NA models only: Note that the 512 MB memory is included in the printer and
printer/scanner upgrade kits.

15
AL-C2 Training
Slide 15
7
Basic model
Basic model
Copier
Copier
1
1Copy/Printer model
Copy/Printer model
Upgradeable
by Scanner upgrade option
Upgradeable
by Printer option
Alex-C2 (Basic Model -> SP Model)
SP model
SP model
Copy / Printer / Scanner
Copy / Printer / Scanner
2
2
Upgradeable by P/S option
Basic model
Basic model
Copier
Copier
1
1Copy/Printer model
Copy/Printer model
Upgradeable
by Scanner upgrade option
Upgradeable
by Printer option
Alex-C1 (Basic Model -> SP Model)
SP model
SP model
Copy / Printer / Scanner
Copy / Printer / Scanner
2
2
Upgradeable by P/S option
RPCS
option PCL option
Mono
Scanner
Mono
Scanner
Color
Scanner
Color
Scanner
Controller Options
Printer/Scanner
This slide compares the old system with the new one.

16
AL-C2 Training
Slide 16
Controller Options
Memory Upgrade Options for the Basic Model
Optional memory and hard disk
For a customer who has a basic model, install the
optional 160GB hard disk if the customer wants to
use the document box features.
When a customer wishes to upgrade a basic
model with a printer/scanner or printer enhance
kit, the optional 512 MB memory must be
installed.
There are no memory upgrades for the SP model.
No additional notes

17
AL-C2 Training
Slide 17
Controller Options
Fax Unit
In this fax unit, the FCU and MBU boards have been
combined. Because of this, the data backup procedure has
been changed.
The optional memory module is the same as previous
models.
The FCU contains the ROM, SRAM and NCU circuits.
Fax Options:
Handset (for the USA): This is a new model.
Extra G3 Interface option: This provides one more analog
line interface. This allows full dual access. Two extra G3
interface options can be installed.
Memory Expansion: This expands the SAF memory and the
page memory (used for image rotation); without this
expansion, the page memory is not big enough for image
rotation at 400 dpi, so transmission at 400 dpi is not
possible.
No additional notes

18
AL-C2 Training
Slide 18
Controller Options
SD Cards
Data Overwrite Security, HDD Encryption: Standard (included in the controller ROM)
VM card: New
SP models: Included on the printer/scanner SD card, which is shipped with the
machine in slot 1; contains App2Me
» App2Me must be enabled with user tools: Service Manual > Installation > Copier Installation >
Installation Procedure > App 2 Me Setting (SP Models only)
Basic models: Option (SD card slot 2 only). App2Me is not shipped with the machine.
To use App2Me, the VM card must be installed in slot 2 and App2Me must be
downloaded from a website. The VM card can be merged with the card in slot 1.
Printer/scanner unit: New
SP models: Included with the machine (in SD card slot 1). Contains VM, PDF Direct,
and App2Me. No installation or setup needed (except for App2Me; see above).
Basic models: Option (SD card slot 1). Contains PDF Direct
Printer unit: New
For basic models only. Contains PDF Direct . Goes in SD card slot 1
Scanner enhance unit: New
For basic models only. Goes in SD card slot.
Postscript 3: New
Contains PDF Direct. Goes in SD card slot 1.
IPDS unit: New
Goes in SD card slot 1.
Browser unit: New
Goes in SD card slot 1.
Remove after installation.
Slot 1 is the upper slot and slot 2 is the lower slot.
Basic models: App2Me is not shipped with the machine. It must be downloaded
from a website, and an VM card must be installed.

19
AL-C2 Training
Slide 19
Slots
1. USB-A: Both USB slots can be used
for the Bluetooth option or a card
authentication device.
2. USB-B: Built-in for connection of USB
devices (USB 2.0)
3. SD Card Slot 1 (upper slot)
4. SD Card Slot 2 (lower slot)
5. Ethernet, standard LAN connection
point for a 100BaseT LAN
6. ISDN: Jack for ISDN connection
(Japan Only)
7. Line 3: Jack for a 3rd optional Fax
Interface Unit.
8. Line 1: Jack for the main telephone
line from the outside for connection
to the Fax Option (D596).
9. TEL1: Jack for telephone connection
10. Line 2: Jack for a 2nd optional Fax
Interface Unit.
11. Board Slot: A slot for one optional
interface board.
Board Slot: One of the following can be installed.
¾File Format Converter Type E
¾Gigabit Ethernet Board Type A
¾IEEE 802.11a/g Interface Unit Type J or IEEE 802.11g Interface Unit Type
K
¾IEEE 1284 Interface Board Type A
The SD Card slots are discussed in more detail on the next few slides.

20
AL-C2 Training
Slide 20
SD Card Slots (1)
Slot 1 (upper slot) can be used for the following:
Use when installing the following options
» Basic model: Scanner/printer unit (with PDF Direct),
printer unit (with PDF Direct), scanner enhancement unit
»PostScript
»IPDS
» Browser unit
» SD card for Netware printing
» Copy data security unit
The SP model has the printer/scanner SD card in
slot 1 when shipped.
If the number of options that you wish to install is
more than the number of available SD card slots,
move them onto one SD card.
The manual for the printer/scanner unit shows the
contents of all SD cards used with the machine,
and which merging operations are allowed.
Printer/Scanner Unit Service manual, SD Card Appli Move
Note that PostScript 3 and PDF Direct can now be moved to another SD card. In
previous models, this is not possible because of licensing restrictions.
