Ricon M132 Installation instructions

RICOH Americas Corporation Content ID# 054904
Ver.2.0 Page 1 of 23 11/9/2012
Subject to change without notice
Product Support Guide
Model M132
Introduction
Model Type B/W Printer
Launch Date 11-12-2012
Serial Number
Prefix T42
Product Code M132
Brand/Model Name
Product Code Lanier Ricoh Savin
M132 SP 8300DN Aficio SP 8300DN SP 8300DN
Product Concept
Hardware
Productivity:
50ppm (A4,LT/LEF)
New features/functions:
Color of machine's outer frame changed to dark gray, in
accordance with New PDI design concepts.
4.3 inch LCD touch panel for easier machine operation
Note: From a hardware perspective,
This model is a fusion of the G179 and D129/D130.
Compared to these predecessor models, only minor changes
have been applied to the hardware and internal layout.
Connectivity/Software support
This is a Spring 2012 model, which has the same connectivity specification as Autumn 2011
models.
Security
There are no new security features.

Product Support Guide
Model M132
Ver.1.0 Page 2 of 23 11/9/2012
Subject to change without notice
Main Frame
Item Model Name EDP Code Notes
M132
Lanier
Ricoh
Savin
SP 8300DN
Aficio SP 8300DN
SP 8300DN
Comes Standard with
PS3
NOTE: Order Numbers are provided for reference purposes only. Please use your Pricing Guide for proper
order numbers to insure you receive the correct branding emblem.
Order Number
Options
Item Description EDP Code Product
Code Common / Unique Notes
IPDS Unit IPDS Unit Type 8300 407039 M416-00 U
Hard Disk
Drive Option
Hard Disk Drive Type
8300 407049 M416-10 U
Netware Option SD Card for Netware
Printing Type N 407047 M416-08 U
Java VM Card VM Card Type U 416163 D640-21 C (D131)
512MB
Memory Option
Memory Unit Type L
512MB 415806 D594-21 C (G179)
IEEE802.11a/g
Interface Unit
IEEE802.11a/g
Interface Unit Type J-L 403000 M344-01 C (D069)
IEEE 1284
Interface Board
IEEE 1284 Interface
Board Type A 411699 B679-17 C (D069)
Gigabit
Ethernet
Gigabit Ethernet Board
Type A 402547 G874-01 C (D069)
2 Tray Bank Paper Feed Unit
PB3130 415793 D580-17 C (D129)
1200 Sheet
LCT LCIT RT3020 415984 D631-17 C (D129)
1000 x 2 Sheet
LCT LCIT PB3140 415795 D581-17 C (D129)
Bridge Unit Bridge Unit BU3060 415988 D634-17 C (D129)

Product Support Guide
Model M132
Ver.1.0 Page 3 of 23 11/9/2012
Subject to change without notice
Item Description EDP Code Product
Code Common / Unique Notes
1000 Sheet
Finisher Finisher SR3090 415804 D588-17 C (D129)
3000 Sheet
Finisher Finisher SR3120 416008 D636-17 C (D129)
Punch Unit
(NA)
Punch Unit PU3030
NA 416325 D570-00 C (D129)
Output Jogger
Unit
Output Jogger Unit
Type 9002A 415903 B703-11 C (D131)
FAC56 Cabinet FAC56 Cabinet 416407 --- C (D129)
Supplies/Yields
Item Name Order Code Target Yield
ISO/IEC 3 P/J@5
%
Lanier
Toner Toner for LP150dn Black 820078/4800456 144K/4
carton
Maintenance Kit SP
8300A (PCU with
Developer)
Maintenance Kit SP 8300A
(PCU with Developer) 407057 160K
Maintenance Kit SP
8200B (Transfer
Belt Unit, Fuser
Unit)
Maintenance Kit SP 8200B (Transfer
Belt Unit, Fuser Unit) 402961 160K
Staple Type K for
SR3090 Staple Type K for SR3090 410801 1 x 5,000/Ctn.
Staple Type K Refill
for
SR3090/SR3120
Staple Type K Refill for
SR3090/SR3120 410802 3 x 5,000/Ctn
Ricoh
Toner Toner SP 8200A Black 820076 144K/4
carton
Maintenance Kit SP
8300A (PCU with
Developer)
Maintenance Kit SP 8300A (PCU with
Developer) 407057 160K
Maintenance Kit SP
8200B
(Transfer Belt Unit,
Fuser Unit)
Maintenance Kit SP 8200B
(Transfer Belt Unit, Fuser Unit) 402961 160K
Staple Type K for
SR3090 Staple Type K for SR3090 410801 1 x 5,000/Ctn
Staple Type K Refill
for
Staple Type K Refill for
SR3090/SR3120 410802 3 x 5,000/Ctn.

Product Support Guide
Model M132
Ver.1.0 Page 4 of 23 11/9/2012
Subject to change without notice
Item Name Order Code Target Yield
ISO/IEC 3 P/J@5
%
SR3090/SR3120
Savin
Toner Toner MLP150DN Black 820077/7913 144K/4
carton
Maintenance Kit SP
8300A (PCU with
Developer)
Maintenance Kit SP 8300A (PCU with
Developer) 407057 160K
Maintenance Kit SP
8200B
(Transfer Belt Unit,
Fuser Unit)
Maintenance Kit SP 8200B
(Transfer Belt Unit, Fuser Unit) 402961 160K
Staple Type K for
SR3090 Staple Type K for SR3090 410803/9858 1 x 5,000/Ctn
Staple Type K Refill
for
SR3090/SR3120
Staple Type K Refill for
SR3090/SR3120 410804/9859 3 x 5,000/Ctn.
Supply Yield Condition:
Starter Toner 36,000
Note: *Declared yield value in accordance with ISO/IEC 19752.
ACV 12K
Max CV 53K
1) ISO/IEC19752 & 3 page per job at 5% coverage is used to measure the above cartridge yields.
2) The condition is standard temperature and humidity.
3) This yield number may change depending on the circumstances and printing conditions.
4) Storage period for toner is 18 months.
5) Starter ink cartridge yield is ~400 prints, used primarily to initialize ink at installations.
The yield figures for the maintenance kits are based on the following conditions:
A4 (LT/SEF)
5% image coverage ratio
5 prints/job
6) Note: The only change made to the Maintenance Kit A for the M132 was the color of the outer frame (changed to
dark gray).

Product Support Guide
Model M132
Ver.1.0 Page 5 of 23 11/9/2012
Subject to change without notice
Option Compatibility
1 2 3 4 5 6 7 8
1. 2 Tray Ban
k
X
2. LCIT PB3140 X
3. LCIT RT3020 X
4.Bridge Unit M M M
5. Finisher SR3090 M
6.500 sheet Finisher M
7. Finisher SR3120 M M
8. FAC56 Cabinet X M
X: Cannot be installed together
M: Must be installed together in RAC Market
Branding Information
Branding is required as the machines are shipped as a generic version.
Ricoh version machines: You must attach the model label (provided) to the front cover.
Savin/Lanier: You must attach the model label (provided) to the front cover and set the Plug and Play name with
SP 5-907.
Configuration
Main Frame Configuration

Product Support Guide
Model M132
Ver.1.0 Page 6 of 23 11/9/2012
Subject to change without notice
MFP Options
Key : Symbol: U : Unique option, C : Option also used with other products
Item Callout Key Machine Code
Main
Frame M132
[1] - M132
External
Options
Two-Tray Paper Feed Unit [ 2 ]
C D580
2000-sheet LCT [3] C D581
1200-sheet LCT [4 ] C D631
Bridge Unit [5] C D634
1000-sheet Finisher (See Note 1) [ 6 ] C D588
3000-Sheet Finisher (See Note 1) [ 7 ] C D636
Punch Unit (See Note 2) - C
D570-00 (2/3-hole)
(NA)
Punch Unit (See Note 2) - C
D570-01 (2/4-hole)
(EU)
-Punch Unit (See Note 2) - C
D570-02 (4-hole)
(Scandinavia)
Output Jogger Unit (See Note 2) [ 8 ] C B703
Internal
Options
HDD
- U M416
Memory Unit 512 MB - C D594

Product Support Guide
Model M132
Ver.1.0 Page 7 of 23 11/9/2012
Subject to change without notice
Item Callout Key Machine Code
IPDS Unit - C M416
VM Card - C D640
Gigabit Ethernet - C
M394 (NA)
IEEE 802.11a/g, g - C M344
IEEE 1284 - C B679
NOTE:
1. The finisher requires the bridge unit and two-tray paper feed unit or 2000-sheet LCT. The 1000- sheet finisher and 3000-sheet
finisher cannot be installed together.
2. The punch unit and output jogger unit requires the 3000-sheet finisher
Feature Comparison To Previous Version
M132 G179
Controller Type GW+ Controller GW Controller
USB2.0/SD Slot Standard Not supported
SMC data SD card down load or printing Printing only
Safety Shut Down Function Available Not Available
PDF Direct Standard Not supported
Data Overwrite Security Standard Option
HDD Encryption Standard Option
Continuous print
speed
Single-Side 50ppm/A4 50ppm/A4
Double-Side 50ppm/A4 50ppm/A4
First Print Speed Less than 3.5 sec Less than 3.5 sec
Resolution 600 x 600 dpi 600 x 600 dpi
PDL Standard PCL5e, PCL6 Adobe PS3 PCL5e, PCL6 Adobe PS3
RPCS
Option IPDS (IBM) IPDS
CPU 533MHz 533MHz
RAM Standard 512MB 256MB
Max 1GB 512MB
HDD 120GB (opt) 40GB (opt)
Operation Panel 4.3” Touch Panel 4-line LCD
10 Key
Preview Screen Before Printing Yes No

Product Support Guide
Model M132
Ver.1.0 Page 8 of 23 11/9/2012
Subject to change without notice
M132 G179
Paper Input
Standard 550 Sheets x 2 trays 550 Sheets x 2 trays
Bypass 100 Sheets 100 Sheets
Max Capacity 4,400 Sheets 4,400 Sheets
Option
550 Sheets x 2 trays 550 Sheets x 2 trays
2000 Sheets x 1tray 2000 Sheets x 1tray
1200 Sheets x 1 tray 1200 Sheets x 1 tray
Paper Output
Standard 500 Sheets 500 Sheets
Max Capacity 3500 Sheets 3500 Sheets
Option 1000 Sheet Finisher 1000 Sheet Finisher
3000 Sheet Finisher 3000 Sheet Finisher
Paper Thickness
Standard 60—216 gsm 60—216 gsm
Bypass 52—220 gsm 52—220 gsm
Option 60—216 gsm 60—216 gsm
Double-Sided 52—169 gsm 52—169 gsm
Eco Night Sensor Yes No
Auto Off/On Timer Yes No
TEC value Less than 3.65Kwh 3.99kWh (NA)
Warm-up time Less than 25 sec Less than 25 sec
Recovery from sleep mode Less than 15 sec Less than 15 sec
Security
Mandatory hold print (w/opt HDD)
Changing print settings on panel (w/opt HDD)
Unauthorized copy control
No
No
No
Weight 160.9lbs (73kg) 160.9lbs (73kg)
Installation
Installation Requirements
Temperature Range: 10°C to 32°C (50°F to 90°F).
Humidity Range: 15% to 80% RH.
Ambient Illumination: Less than 1,500 lux (do not expose to direct sunlight).
Ventilation: Room air should turn at least 30 m3/hr/person.
Ambient Dust: Less than 0.10 mg/m3 (2.7 x 10/6 oz/yd3).
Avoid areas exposed to sudden temperature changes:
Areas directly exposed to cool air from an air conditioner.
Areas directly exposed to heat from a heater.
Do not place machine where it will be exposed to corrosive gas or vapor.
Do not install the machine at any location over 2,000m (6,500 ft.) above sea level.
Place the machine on a strong and level base. Inclination on any side should be no more than 5mm (0.2”).
Do not place the machine where it may be subject to strong vibrations.
Machine level
•Front to back: within 5mm (0.2”) of level.
•Right to left: within 5mm (0.2”) of level.

Product Support Guide
Model M132
Ver.1.0 Page 9 of 23 11/9/2012
Subject to change without notice
Power Requirements
Input voltage level: 110 - 127 V, 60Hz:more than 12A.
Do not place anything on power cord.
The required wall outlet is a NEMA 5-15R (receptacle).

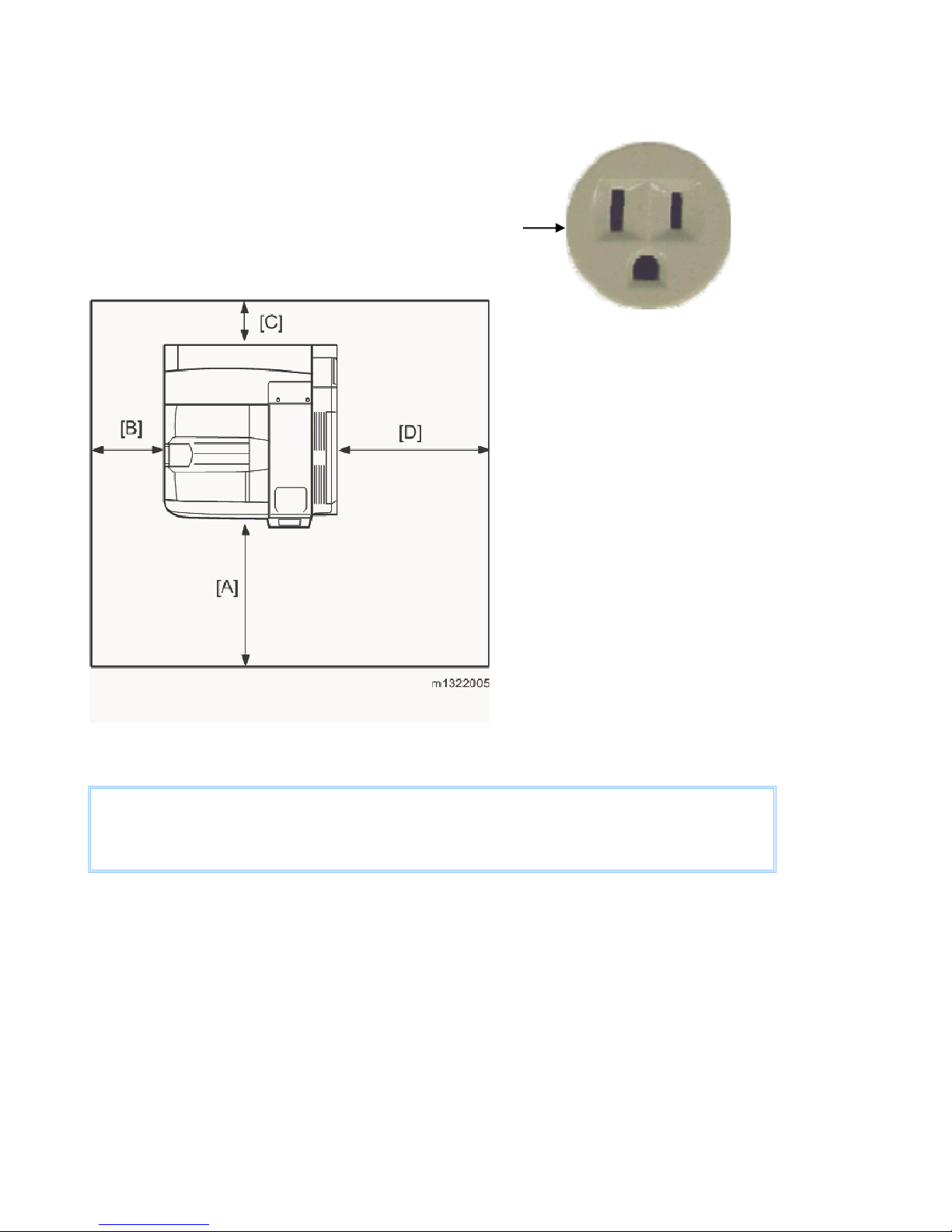

Space
Foot Print
A(Front) Over 750 cm (29.6”)
B(Left) 10 cm (4")
C (Rear) 10 cm (4")
D (Right) 55 cm (21.7")
The 75 cm (29.6” recommended for the space at the
front is for pulling out the paper tray only. If the
operator stands at the front of the main machine more
space is required.
Dimensions (W x D x H): 670 x 684 x 641 mm (26.38” x 26.93” x 25.24”)
NOTE: Measurement Conditions: printer only

Product Support Guide
Model M132
Ver.1.0 Page 10 of 23 11/9/2012
Subject to change without notice
Power Consumption / Noise Emission
Power Consumption
Power consumption BTU/hr
Max 1550W or less 5288.82
Energy Saving 3.5W or less 11.94
Noise Emission
Main Unit Compete System
Stand by Less than 48db (Guaranteed Value) Less than 48db (Guaranteed Value)
Printing Less than 72db (Guaranteed Value) Less than 76db (Guaranteed Value)
NOTE: The above measurements were made in accordance with ISO
7779. The measurements were taken from the normal position of
the operator.
Sound Pressure Level Bystander
Main Unit Compete System
Stand by Less than 42db (Guaranteed Value) Less than 42db (Guaranteed Value)
Printing Less than 66db (Guaranteed Value) Less than 70db (Guaranteed Value)
Installation Times
Unit
Installation
Time
(Minutes)
Unit Installation Time
(Minutes)
Bridge Unit
BU3060
10
IPDS Unit Type 8300 5
Paper Feed
Unit PB3130
10
VM CARD Type U 5
LCIT PB3140
(2000 sheets)
10
Memory Unit Type L
512MB
5
LCIT RT3020
(1200 sheets)
10
Gigabit Ethernet Board
Type C for NA
5
Finisher
SR3090 (1000
sheets)
10
Hard Disk Drive Option
Type 8300
5
Finisher
SR3120 (3000
sheets)
15
IEEE802.11a/g
Interface Unit Type L
5
Punch Unit
PU3030
15
IEEE1284 Interface
Board Type A
5
Output Jogger
Unit Type 9002A
15

Product Support Guide
Model M132
Ver.1.0 Page 11 of 23 11/9/2012
Subject to change without notice
Storage/Transportation
Storage Transportation
Mainframe
-30 ℃ to 40 ℃ (22
o
F to 104
o
F) 15% ～ 85%RH -30 ℃ to 50 ℃ (22
o
F to 122
o
F ) 15% ～ 95%
Toner* Under 50 ℃ (122
o
F) 15% ～ 80%RH Under 50 ℃ (122
o
F )15% ～ 80%RH
NOTE: Remarks for Toner:
* Store in a dry, dark place where temperature does not exceed 45
℃ on continuance storage/transportation
conditions.
* Do not store more than 12 hours under the temperature between 41 and 50
℃ .
* Do not store more than a month under the temperature between 36 and 40
℃ .
* Do not store more than 2 years under the temperature between 10 and 32
℃ .
* Ideal temperature of toner use is between 10
℃ and 32 ℃
*The definition of "Storage Period" : Starting from the timing of manufactured. The item must be unopened.
Parts / Special Tools / Maintenance
PM Parts / Yields
Mainframe
Unique/Common
U: Unique for this model
C: Common with listed model
*1PCU Service Ass’y M1322100
*2 Development section ass’y G1792303
*3 Transfer Unit ass’y G1793802
*4 Fusing Unit NA M1324102
Part Number Description Q’ty/
Unit PM Interval Unique or
Common
Around the drum
AD027012
*
1
Charge Roller 1 160K C (G147)
G7902329
*
1
Brush Roller – Cleaning 1 160K C (G147)
AD025021
*
1
Pick-off Pawl 2 160K C (G147)
D0092351
*
1
Cleaning Blade 1 160K C (G147)
D0099510
*
1
OPC Drum 1 160K C (G147)
Development
D0093086
*2
Development Filter 1 160K C (G147)
B2969640
*2
Developer Black 1 320K C (G147)
Transfer Belt Unit
A2323880
*3
Transfer Belt 1 160K C (G147)
AD041135
*3
Cleaning Blade - Transfer Belt 1 320K C (G147)
Fusing Unit
AE011132
*4
Hot Roller 1 160K C (G147)
AE020199
*4
Pressure Roller 1 160K C (G147)
AE044099
*4
Hot Roller Stripper 7 320K C (G147)
D0094177
*4
Fusing Thermistor (Center and
End)
1 160K C (G147)

Product Support Guide
Model M132
Ver.1.0 Page 12 of 23 11/9/2012
Subject to change without notice
Part Number Description Q’ty/
Unit PM Interval Unique or
Common
AE045099
*4
Cleaning Web 1 160K C (G147)
AE040099
*4
WEB Holder Roller 1 320K C (G147)
B0654247
*4
Brake Pad 1 320K C (G147)
Special Tools & Lubricants
Item Part Number Description Q’t
y
Unique or Common
1 A2309003 Adjustment Cam – Laser Unit 1 C (General)
2 B6455010 SD Card 128MB 1 C (General)
3 B6455020 SD Card 1GB 1 C (General)
4 G0219350 Loop Back Connector: Parallel
*Note 1
1 C (General)
5 A2579300 Grease Barrierta –S552R 1 C (General)
6 52039502 Silicon Grease G501 1 C (General)
7 B6795100 Plug - IEEE1284 Type C 1 C (General)
8 ---
Ricoh System Information Tool
(Support Tool Version 2)
- Basic version
- Mail version
- Rlogtool
(for use with GW controller)
1 C (General)
Note 1: Loop-back Connector – Parallel (item 4) requires Plug - IEEE1284 Type C (item 7).
Note 2: A PC (Personal Computer) is required for creating the Encryption key file to an SD card when replacing
the controller board for a model in which HDD encryption has been enabled.
Target Reliability
Model
Average Monthly Volume 12K ppm
Max. Monthly Volume
53K ppm
PM Interval
160K
Specifications / Documentation
M132
Speed Print Speed 50ppm (A4/LT LEF)

Product Support Guide
Model M132
Ver.1.0 Page 13 of 23 11/9/2012
Subject to change without notice
M132
First Print 3.5 sec or less (A4/LT LEF)
Warm-up 25 sec or less
Controller
Spec
Processor RM7035C-533L 533MHz
Memory STD/MAX STD: 512MB MAX: 1024MB
HDD 120GB (Option)
Resolution 600/300/200 dpi
Interface STD USB2.0(TypeA 2port & B) , Ethernet(100BASE-
TX/10BASE-T)
Option IEEE1284/ECP, IEEE802.11a/b/g, Gigabit
Ethernet
Language PCL5e/6, PostScript3, PDF direct print, Media print (JPEG/TIFF), IPDS
(Option)
Font PCL:45 fonts + International Fonts 13 fonts
PostScript3/PDF: 136 fonts
IPDS: 108 fonts (Option)
Operating Systems Windows XP/ Vista/ Server 2003/ Server 2008/ 7 (32bit)
Windows XP/ Vista/ Server 2003/ Server 2008/ Server2008R2/ 7
(64bit)
CPS-4.5 (32/64bit)/ XenApp 5.0 (32/64bit), 6.0 (32/64bit)
Mac OS X(Native), 10.4-107 or later
Network Protocols TCP/IP (IPv6), IPX/SPX (option), Bonjour
Security
Feature
Authentication Windows
Authentication
Yes
LDAP
Authentication
Kerberos
Yes
Yes *Not SASL Authentication but simple
Authentication is supported.
Basic
Authentication
Yes
User Code
Authentication
Yes
802.1.x Wired
Authentication
Yes
Wireless Security WEP, WPA, WPA2
Paper Input Paper Capacity (80g/m2,
bond 20lb)
Std Tray 1,100 sheets (550 x 2 trays)
Bypass 100 sheets
Option 2 Tray
Bank
1,100 sheets (550 x 2 trays)
LCIT #1 2,000 sheets (1,000 x 2 trays)
LCIT #2 1,200 sheets
Paper Size Std Tray Auto detection: A3 SEF, A4 SEF/LEF, A5 LEF, B4
SEF, B5 SEF/LEF, DLT SEF, Legal SEF, LT
SEF/LEF, Executive LEF
Manual setting: Foolscap SEF, Government LG
SEF, Folio SEF, F/GL SEF, G LT SEF/LEF, Eng
Quatro SEF, Executive SEF, Com10 LEF, C5 LEF,
DL Env LEF, 11"x15", 11"x14", 10"x15", 10"x14"
Bypass Auto detection: A3 SEF, A4 SEF/LEF, A5
SEF/LEF, A6 SEF, DLT SEF, LT SEF/LEF, HLT
SEF
Manual setting: B4 SEF, B5 SEF/LEF, B6 SEF,

Product Support Guide
Model M132
Ver.1.0 Page 14 of 23 11/9/2012
Subject to change without notice
M132
Legal SEF, Foolscap SEF, Government LG SEF,
Folio SEF, F/GL SEF, G LT SEF/LEF, Eng Quatro
SEF/LEF, Executive SEF/LEF, Com10 SEF/LEF,
Monarch SEF/LEF, C5 SEF/LEF, C6 SEF/LEF, DL
env SEF/LEF, 12"x18", 11"x15", 11"x14", 10"x15",
10"x14"
Option 2
Tray
Bank
Auto detection: A3 SEF, A4 SEF/LEF,
A5 LEF, B4 SEF, B5 SEF/LEF, DLT
SEF, Legal SEF, LT SEF/LEF,
Executive LEF
Manual setting: Foolscap SEF,
Government LG SEF, Folio SEF, F/GL
SEF, G LT SEF/LEF, Eng Quatro SEF,
Executive SEF, Com10 LEF, C5 LEF,
DL Env LEF, 11"x15", 11"x14", 10"x15",
10"x14"
LCT A4 LEF, LT LEF
LCIT A4 LEF, B5 LEF, LT LEF
Paper Handling Std/Option Tray 60-216g/m2 20lb bond
Bypass 52-216g/m2 20 lb bond
Duplex 60-169g/m2 20 lb bond
Paper Type Std Tray Plain Paper, Recycled Paper, Color
paper, Special Paper 1-3, Letterhead,
Preprinted, Prepunched, Bond paper 1-
2, Back side of Thick paper 1-2,
Envelopes,
Bypass Tray Plain Paper, Recycled Paper, Color
paper, Special Paper 1-3, Letterhead,
Preprinted, Prepunched, Bond paper 1-
2, Back side of Thick paper 1-2, Labels,
Envelopes,
2 Tray Bank Plain Paper, Recycled Paper, Color
paper, Special Paper 1-3, Letterhead,
Preprinted, Prepunched, Bond paper 1-
2, Back side of Thick paper 1-2,
Envelopes,
LCT/LCIT Plain Paper, Recycled Paper, Color
paper, Special Paper 1-3, Letterhead,
Preprinted, Prepunched, Bond paper 1-
2, Back side of Thick paper 1-2
Output Paper Capacity Face
Down
Main Unit 500 sheets (A4/LT) , 250 sheets (B4/LG)
Bridge
Unit
250 sheets (A4/LT) , 125 sheets (B4/LG)
3,000
sheets
Finisher
(Incl.
Bridge
Unit)
3,500 sheets

Product Support Guide
Model M132
Ver.1.0 Page 15 of 23 11/9/2012
Subject to change without notice
MFP Supported Environments
Windows Environments
OS Type PCL5e PCL6 PostScript3 XPS
Windows XP
Professional Y Y Y N
Home Edition Y Y Y N
Windows Server 2003
Standard Edition Y Y Y N
Enterprise Edition Y Y Y N
Datacenter Edition N N N N
Web Edition N N N N
Windows Server 2003
R2
Standard Edition Y Y Y N
Enterprise Edition Y Y Y N
Datacenter Edition N N N N
Web Edition N N N N
Windows VISTA
Home Basic Y Y Y Y*
Home Premium Y Y Y Y*
Business Y Y Y Y*
Enterprise Y Y Y Y*
Ultimate Y Y Y Y*
Windows Server 2008
Standard Edition Y Y Y Y
Enterprise Edition Y Y Y Y
Datacenter Edition N N N N
Web Edition N N N N
Windows Server 2008
R2
Standard Edition Y Y Y Y
Enterprise Edition Y Y Y Y
Datacenter Edition N N N N
Web Edition N N N N
Windows 7
Starter N N N N
Home Basic N N N N
Home Premium Y Y Y Y
Professional Y Y Y Y
Enterprise Y Y Y Y
Ultimate Y Y Y Y
*SP1 or later is recommended
Point & Print
Windows Environments
Server Client (Push to) PCL5e PCL6 PostScript3 XPS
Windows Server
2003/2003 R2
7 Y Y Y N
Vista Y Y Y N
XP Y Y Y N
W2K Pro N N N N
Windows Server 2008/
2008 R2
7 Y Y Y Y
Vista Y Y Y Y
XP Y Y Y N
W2K Pro N N N N
Windows Server 2000
7 Y Y Y N

Product Support Guide
Model M132
Ver.1.0 Page 16 of 23 11/9/2012
Subject to change without notice
Windows Environments
Professional Server &
Advanced Server
Vista Y Y Y N
XP Y Y Y N
W2K Pro N N N N
Windows XP
Professional
7 Y Y Y N
Vista Y Y Y N
XP Y Y Y N
W2K Pro N N N N
Windows Vista
7 Y Y Y Y
Vista Y Y Y Y
XP Y Y Y N
W2K Pro N N N N
Terminal Service & Citrix MetaFrame
Server Driver
PCL5e/6 PS
Windows Server 2008 Y Y
Windows Server 2008 R2 Y Y
Windows Server 2003 Y Y
Windows Server 2003 R2 Y Y
Windows Server 2002 N N
Windows 2003 + MetaFrame N N
Win 2000 Server + MetaFrame N N
Win 2003 Servers: Citrix
PresentationServer4.0
N N
Win 2000 Servers: Citrix
PresentationServer4.0
N N
Win 2003 Servers: Citrix
PresentationServer4.
Y Y
Win Server 2008 + XenApp5.0 Y Y
Win Server 2008 R2+ XenApp6.0 Y Y
Win server 2008 R2 + XenApp6.5 Y Y
*RPCS driver has been discontinued.
*XPS driver is not supported in the environment of terminal service and Citrix MetaFrame.
*Even "Yes" is put in the cell, there is a case driver is not supported under the combination of FR and Service Pack of Meta Frame.
*Following combinations of operating system and Citrix MetaFrame are supported.
Windows 2003 Server
1.Windows Terminal Service (RDP protocol)
2.Citrix PresentationServer4.5
Windows 2008 Server
1. Windows Terminal Service (RDP protocol)
2. Citrix XenApp5.0
Windows 2008R2 Server
1. Windows Terminal Service (RDP protocol)
2. Citrix XenApp6.0
3. Citrix XenApp6.5

Product Support Guide
Model M132
Ver.1.0 Page 17 of 23 11/9/2012
Subject to change without notice
Mac OS
PostScript3 Printer Utility for MAC
Mac OS 8.6 or later, Mac OS X classic N N
Mac OS X Native : v. 10.4 ~ 10.7 or later Y N
UNIX Filter
Unix Platforms Version
Sun Solaris 2.6 / 7 / 8 / 9 /10
HP-UX 10.x / 11.x / 11iv2/11iv3
Red Hat Linux Enterprise 4/5/6
SCO OpenServer 5.0.6 /5.0.7/6.0
IBM AIX 5L Version 5.3/6.1/7.1
Novell Netware
Netware Server Supported Version Netware 6.5
Client Supported OS Windows XP professional/Vista/2003/2008/7
* Netware option is required.
SAP/R3 Environment (Device Type / Barcode & OCR Package)
Device Type will be provided from SAP itself in SAP Printer Vendor Program.
Supported Barcode & OCR
Fonts*
Barcode Fonts Code 128, Code 39, Code 93, Codabar, 2 of 5
interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR Fonts OCR A, OCR B
Utility Software
Software Description
Smart Device Monitor for Admin This software enables you to manage and monitor printers and other
devices over the network.
DeskTopBinder – SmartDeviceMonitor
for Client
This software enables you to access networked printers to print,
monitor or to receive notifications. With DeskTopBinder Lite you can
connect client computers to I/O devices enabling you to efficiently
manage data.
Device Graphic Update Module
Device Graphic Update Module provides bitmap images used to represent
the various statuses of devices graphically within Smart Device Monitor or
Web Smart Device Monitor. Available on website.
PS Descriptions
PPD for Mac By interacting with the Adobe PostScript 3 controller in
the device, this PPD is able to produce an accurate representation
of the screen image.
Mac OS X PPD Installer
This PPD installer is used to install a PPD (Postscript Printer
Description) file on Mac OSX. PPD files contain descriptions of
printer capabilities such as paper sizes, number of input trays and
duplexing. Once the PPD file is installed on the system using the
PPD installer, the PS driver that comes bundled with Mac OS X can

Product Support Guide
Model M132
Ver.1.0 Page 18 of 23 11/9/2012
Subject to change without notice
Software Description
use the information in the PPD to control the print device and enable
full functionality. It supports the Mac OS X 10.1 or later. Please see
the Readme file for information about compatibility with versions of
Mac OS X.
PCL 6 Driver
Printer driver for B/W printing in Windows. It supports HP PCL XL
commands and is optimized for the Windows GDI. High
performance printing can be expected.
PCL 5e Driver Printer driver for printing in Windows. It supports HP PCL 5e
commands.
Post Script Driver
By interacting with the Adobe PostScript 3 controller in the device,
this driver is able to produce an accurate representation of the
screen image.
Print Driver Information
Model PCL 6 PCL
5e
PostScript3 XPS
Windows
XP/Vista/7
Mac OS
X
(Native),
10.4-10.7
or later
Job Binding N N N N N
Send to Document Server N N N N Y*1
Sample Print Y*1 Y*1 Y*1 Y*4 Y*1
Locked Print Y*1 Y*1 Y*1 Y*4 Y*1
Hold Print Y*1 N Y*1 Y*2*4 N
Schedule Print Y*1 N Y*1 Y*2*4 N
Stored Print Y*1 Y*1 Y*1 Y*4 Y*1
Stored Print (Shared) Y*1 Y*1 N N N
Store and Print N N N N N
Store and Print(Shared) N N N N N
Stored & Normal Print Y*1 Y*1 Y*1 Y*4 Y*1
Stored & Normal (Shared) Y*1 Y*1 N N N
Mask Type for Copying Y N Y N N
Data Security for Copying Y N Y N N
Encryption/Encoding Y Y N N N
Reduce/Enlarge (Scaling) Y Y*3 Y Y Y
Reduce/Enlarge Centering Y*3 N N N N
Fit to Paper size Y Y Y Y N
Collate Y Y Y Y Y
Custom Media Type Y Y N N N
Layout (N-up) Y Y Y Y Y
Poster Y N N N N
Duplex Y Y Y Y Y
Punch Y Y Y Y Y
Staple Y Y Y Y Y
Cover sheet(Front Cover) Y Y N N N
Front and Back Cover Y Y N N N

Product Support Guide
Model M132
Ver.1.0 Page 19 of 23 11/9/2012
Subject to change without notice
Model PCL 6 PCL
5e
PostScript3 XPS
Windows
XP/Vista/7
Mac OS
X
(Native),
10.4-10.7
or later
Slip Sheet Y Y N N Y
Chaptering (Page Layout) Y Y N N N
Chaptering (Single Page Insert) Y Y N N N
Chaptering(Page Block Insert) Y Y N N N
User Defined Pages N Y N N N
Tab Stock Printing N N N N N
Mirror Image Print N N Y N N
Negative Image Print N N Y N N
Dithering N N Y Y N
Edge Smoothing Y Y Y Y N
Toner Saving Y Y Y Y Y
Black Over Print N N N N N
Gray Reproduction N N N N N
CLP Color Simulation N N N N N
Watermark Y Y Y Y N
Unauthorized Copy Control Y Y Y Y N
Form Overlay N N N N N
Header/Footer N N N N N
Adjust image position N N N N N
Binding Margins N N Y N N
User ID Y Y Y Y Y
User Code Y Y Y Y Y
Billing Code Y Y N N N
User Authentication Y Y N N N
Classification Code Y Y N N N
Limitation setting N Y N N Y
Rotate Print Y Y Y Y Y
Reverse Order Print Y N Y Y Y
Do not print Blank pages N N N N N
Banner Page Print Y Y Y Y N
Edge to Edge Print Y Y Y Y N
Y: supported
N: not supported
*1: HDD is required
*2: This function is available on Mac OS 10.5 or later.
*3: "Centering" feature cannot be selected from PCL driver. However PCL has this feature as the original function. When printing with
Reduce/Enlarge(Zoom) feature of PCL driver, the output will be automatically centered by the PCL's original centering function
*4:If HDD is not installed on printer, this function can be selected from PS(Mac) driver, but the print job will be cancelled when printing with this function.

Product Support Guide
Model M132
Ver.1.0 Page 20 of 23 11/9/2012
Subject to change without notice
Other MFP Support Information
Not Applicable
Counters
 User Tools / Printer Features / List/Test Print / Configuration page / unit prints the
configuration page and the total counter in on the top right
 If SP 5-930-001 is set to ON (1), UT / Counter / it will display counter. To print counter
select start. It will print the counter page
 Maximum 8 digits
Paper
Recommended Throughput Material
Not Applicable
Non Recommended Throughput Material
Refer to pages in the Operators Instructions Hardware Guide.
Do not use any of the following kinds of paper or a fault might occur:
•Aluminum Foil, Carbon paper,
•Conductive paper
•Paper meant for an inkjet printer
•Bent, folded, or creased paper
•Torn paper
•Thermal fax paper
•Art paper
•Paper with perforated lines
•Hemmed-edge paper
•Tab stock
•Slippery paper
•Perforated paper
•Rough paper
•Thin paper with little stiffness
•Paper with a dusty surface
Special Paper
Not Applicable
