RIDLEY 7E2 User manual

Helium SLA Disc
frame passport
type : 7E2
last update: 26/09/2017

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 2
INDEX
0. FOREWORD ........................................................................................... 3
1. PART CODES ......................................................................................... 3
2. MATERIAL ............................................................................................. 3
3. WEIGHT ................................................................................................. 3
3.1. Frame................................................................................................................................... 3
3.2. Fork....................................................................................................................................... 3
4. GEOMETRY............................................................................................ 4
5. COMPATIBILITY..................................................................................... 4
6. PARTS ................................................................................................... 5
6.1. Fork....................................................................................................................................... 5
6.1.1. Material................................................................................................................................................................ 5
6.1.2. Dimensions ......................................................................................................................................................... 5
6.1.3. Part codes ........................................................................................................................................................... 5
6.2. Headset ............................................................................................................................... 5
6.3. Seat post............................................................................................................................. 6
6.4. Bottom bracket ................................................................................................................. 6
6.5. Brakes.................................................................................................................................. 6
6.6. Derailleur ............................................................................................................................ 6
6.6.1. Front ..................................................................................................................................................................... 6
6.6.2. Rear....................................................................................................................................................................... 6
7. WHEELS AND TIRES.............................................................................. 7
7.1. Frame................................................................................................................................... 7
8. WARRANTY INFORMATION................................................................... 7
8.1 Maximum rider weight .................................................................................................... 7

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 3
0. FOREWORD
Our frames, forks and components are in a continuous state of upgrade and development. We
strongly advise checking our website for new updates before reading this document.
1. PART CODES
All the Helium SLA frames have a specific part code composed by the letters “FRAHSARID...”, follo-
wed by 3 numbers. The three numbers change depending on the design and size of the frame. Due
to the big number of frames we don’t list all the numbers but you can contact your local dealer for
more information if needed.
2. MATERIAL
The helium SLA Disc is built out of high quality 6061 triple butted heat-treaded aluminum.
3. WEIGHT
3.1. FRAME
(*) Weight of painted frame, real weight may differ from the weight mentioned above by ± 10 %.
3.2. FORK
The weight of the 4ZA helium SLA Disc fork is around: 433 g (*)
(*) Weight of painted fork, real weight may differ from the weight mentioned above by ± 10 %.
size weight (*)
XXXS 1020 grams
XXS 1060 grams
XS 1100 grams
S 1140 grams
M 1180 grams
L 1220 grams
XL 1270 grams

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 4

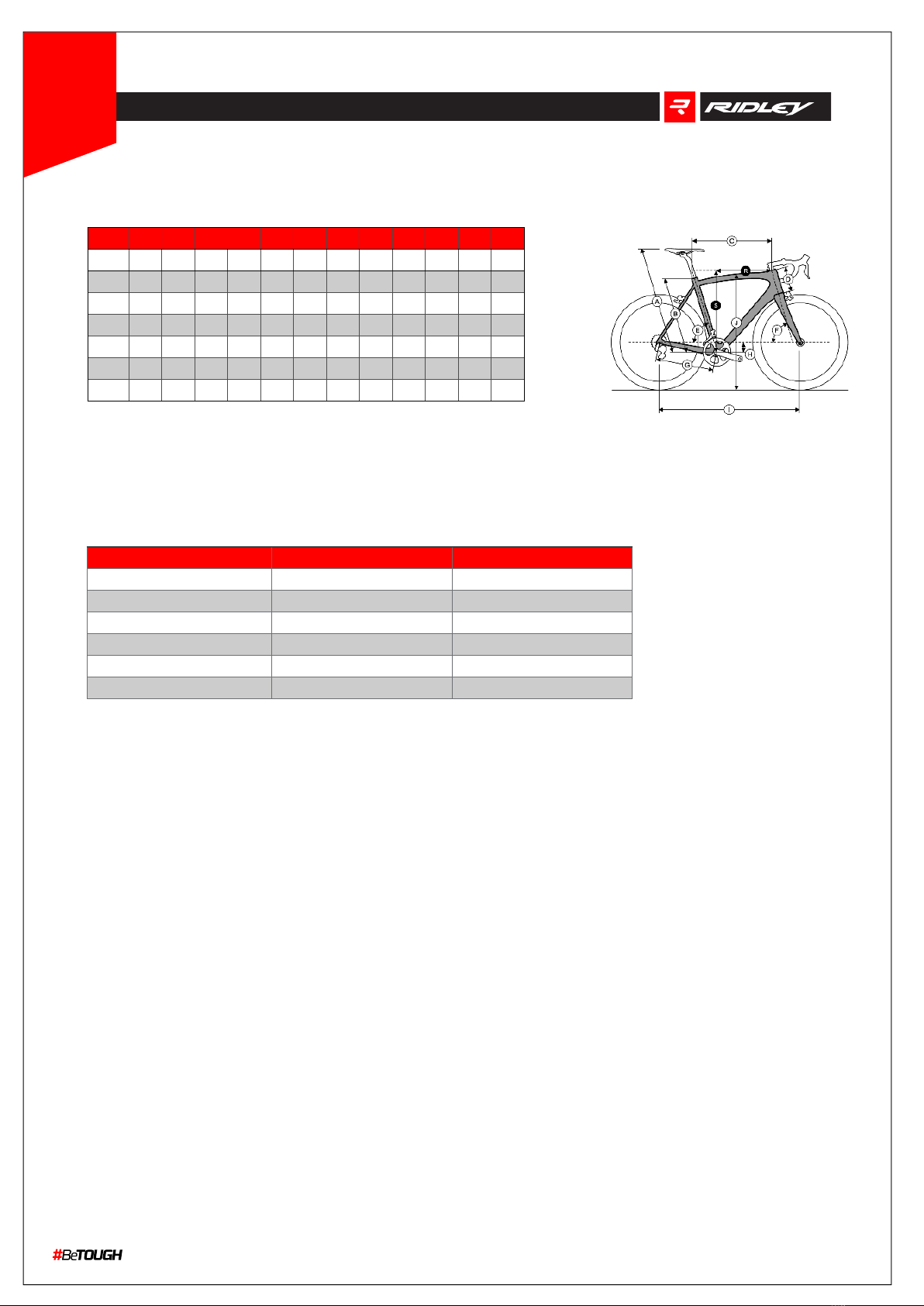

4. GEOMETRY
(*) J: Stand over height
5. COMPATIBILITY
The helium SLA Disc is compatible for mechanical group sets only.
SIZE A B C D E F G H I J* S R
XXXS 685 390 500 107 75.5 70.0 405 67 976 708 500 371
XXS 745 450 515 107 75.0 71.8 405 68 970 726 507 379
XS 775 480 525 127 74.0 72.0 405 68 970 751 527 374
S 805 510 545 142 73.5 73.0 405 66 977 774 573 384
M 835 540 565 172 73.0 73.5 405 66 987 804 573 390
L 865 570 585 202 72.5 73.5 405 63 1005 834 599 396
XL 895 600 600 227 72.5 74 408 63 1014 861 625 403
part part code Location
end cap with liner CABSTIJAG037 Head tube right
end cap with liner CABSTIJAG037 head tube left
Rain and dirt protector CABSTIJAG038 seat tube
Rain and dirt protector CABSTIJAG038 Chainstay
end cap with liner CABSTIJAG035 Chainstay
Ridley BB cable guide cbgrcerid002 bottom bracket

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 5
6. PARTS
6.1. FORK
The Helium SLA Disc comes with the Helium SLA Disc fork. It is a full carbon monocoque fork with
tapered steerer
6.1.1. MATERIAL
฀ Forklegs:24&30tonhighModulusCarbon
฀ Steerertube:24&30tonhighModulusCarbon
6.1.2. DIMENSIONS
฀ Steerertubelength:300mm
 Headset:11/8”upperring11/2”lowerring฀
Fork rake: 45 mm
฀ OLD(OverLocknutDistance):100mm
6.1.3. PART CODES
All the Helium SLA Disc forks have a specific part code composed by the letters “FORCFR4ZA...”, Fol-
lowed by 3 numbers. The three numbers vary depending on model and graphic design. Due to the big
number of forks we don’t list all the numbers but you can contact your local dealer for more infor-
mation if needed.
6.2. HEADSET
45° Oversized angular contact bearing (S.H.I.S.: IS42/28,6|IS52/40):
฀ Lower bearing: 1 1/2”
฀ Upper bearing: 1 1/8”
Recommended headsets:
ridley part code type brand
HSERACDEE002 HDIN85ASUJR DEDA
HSERACFSA008 NO.42/ACB-A-H6091 FSA

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 6
6.3. SEAT POST
The Helium SLA frame is developed to use a 27,2 mm seat post. To fix the seat post the 4ZA 31,8 mm
(Part Code: SPCSNGNOB001) seat post clamp can be used.
6.4. BOTTOM BRACKET
bottom bracket is BSA threaded and has a width of 68 mm to fit standard BSA68 cups.
6.5. BRAKES
The Helium SLA Disc is compatible with most standard disc brakes available in the market.
Fork:
Type: Flat mount
Thru axle: D 12mm, L 120mm, Picth 1.5mm
Max. rotor size: 160mm*
Frame:
Type: Flat mount
Thru axle: D 12mm, L 167mm, Pitch 1.5mm
Max. rotor size: 160mm*
* Fork and frame are designed to use a 140 mm rotor. A 160 mm rotor can be mounted by use of an
adapter.
6.6. DERAILLEUR
6.6.1. FRONT
The frame is designed to use a clamp on derailleur for a 31,8 mm seat tube.
Also a braze on derailleur can be mounted by using the 4ZA 34,9 mm front derailleur clamp (Part
code: FDCNOB4ZA004).

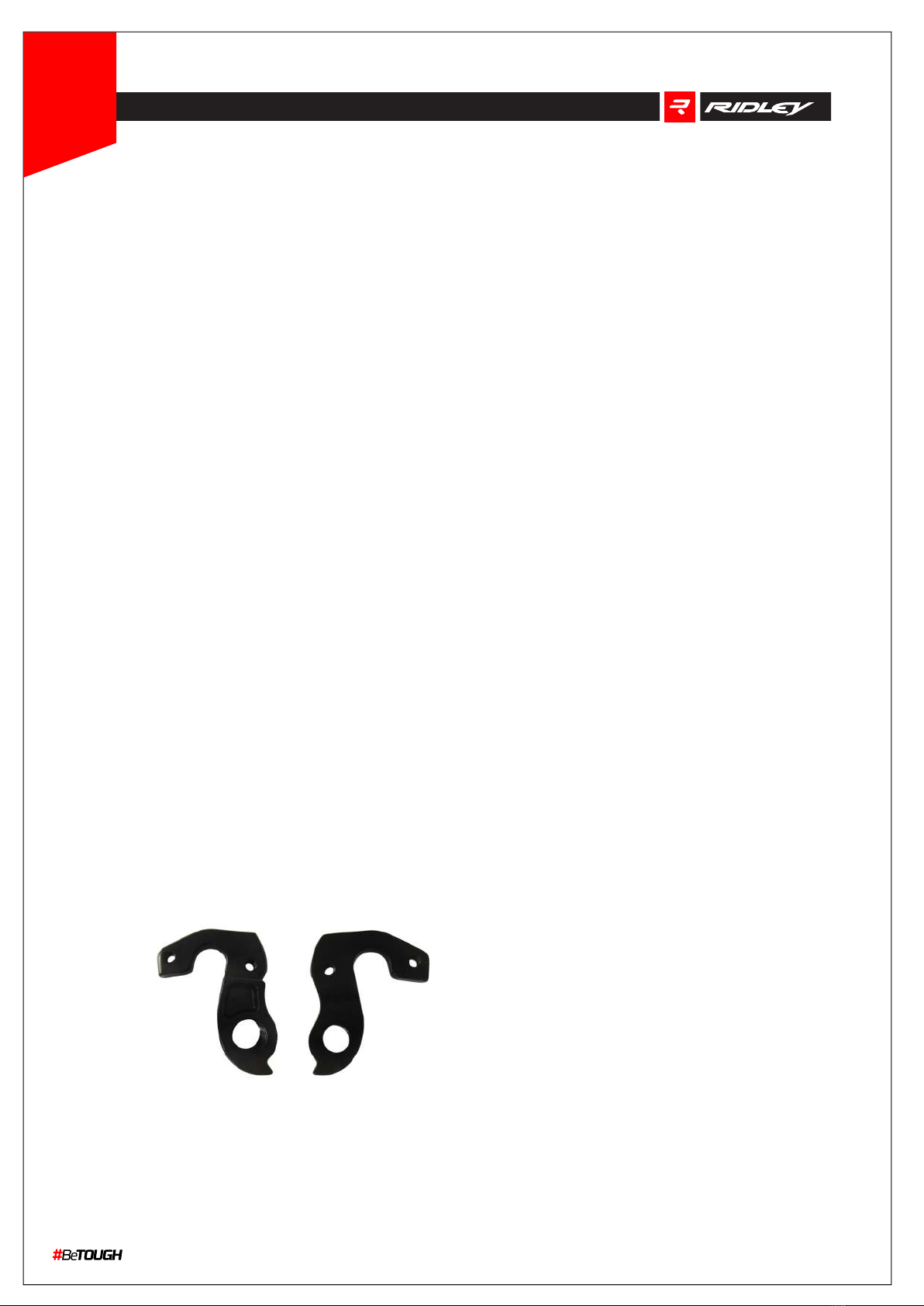

6.6.2. REAR
The hanger used for the Helium SLA Disc is the HANRCERID039.

Helium SLA Disc
frame passport
helium SLA Disc | frame passport | 7
7. WHEELS AND TIRES
7.1. FRAME
The frame is developed for 700C race wheels with a build in width of 100mm front and 142 mm rear.
7.3. TIRES
We recommend a maximum tire width of 28 mm with a maximum rim width of 28 mm.
Please note that not all tire manufacturers use the same sizing standard so we recommend to do as-
sembly check and confirm clearances.
8. WARRANTY INFORMATION
8.1 MAXIMUM RIDER WEIGHT
The maximum advised rider weight is 110 kg.
