RIDLEY 7E3 User manual

Frame passort · Noah Fast · type 7E3 · Englisch
~ Last update: 09/10/2018 ~

Noah Fast Disc | Type 7E3
2
INDEX
0. UPDATES ............................................................................................................................................... 3
1. GENERAL .............................................................................................................................................. 3
1.1. PART CODES ........................................................................................................................................ 3
2. MATERIAL ............................................................................................................................................. 3
3. WEIGHT ................................................................................................................................................ 3
3.1. FRAME ................................................................................................................................................. 3
3.2. FORK .................................................................................................................................................... 3
4. GEOMETRY ............................................................................................................................................ 4
5. CABLE ROUTING .................................................................................................................................... 4
5.1. COMPATIBILITY ................................................................................................................................... 4
5.2. MECHANICAL CABLE ROUTING ........................................................................................................... 4
5.3. ELECTRONIC CABLE ROUTING ............................................................................................................ 5
6. PARTS ................................................................................................................................................... 6
6.1. FORK .................................................................................................................................................... 6
6.1.1. MATERIAL ....................................................................................................................................... 6
6.1.2. DIMENSIONS ................................................................................................................................... 6
6.1.3. PART CODES ................................................................................................................................... 6
6.2. HANDLEBAR ........................................................................................................................................ 6
6.2.1. MATERIAL ....................................................................................................................................... 6
6.2.2. DIMENSIONS ................................................................................................................................... 6
6.2.3. PARTS ............................................................................................................................................. 7
6.3. HEADSET ............................................................................................................................................. 7
6.4. SEAT POST ........................................................................................................................................... 7
6.5. BOTTOM BRACKET .............................................................................................................................. 8
6.6. BRAKES ............................................................................................................................................... 8
6.7. DERAILLEUR ........................................................................................................................................ 8
6.7.1. FRONT ............................................................................................................................................. 8
6.7.2. REAR ............................................................................................................................................... 8
6.8. DROP-OUTS ......................................................................................................................................... 9
7. WHEELS AND TIRES ............................................................................................................................. 9
7.1. FORK .................................................................................................................................................... 9
7.2. FRAME ................................................................................................................................................. 9
7.3. TIRES ................................................................................................................................................... 9
8. WARRANTY INFORMATION .................................................................................................................. 9
8.1. MAXIMUM RIDER WEIGHT .................................................................................................................. 9

Noah Fast Disc | Type 7E3
3
0. UPDATES
The development of frames, forks and components is a continuous running process. Therefore, we
strongly advise before reading this information sheet check our website for new updates.
1. GENERAL
1.1. PART CODES
All the Noah Fast frames have a particular part code composed by the letters “FRANFDRID…”, added
by 3 numbers. The three numbers change depending on the design and size of the frame. Due to the big
amount of frames we don’t list all the numbers. You can contact your local dealer for more information
if needed.
2. MATERIAL
Used frame materials:
-50 ton High Modulus Carbon
-40 ton High Modulus Carbon
-30 ton High Modulus Carbon
-Stainless steel (drop out protection plates)
3. WEIGHT
3.1. FRAME
Size
weight (*)
XS
980 grams
S
990 grams
M
1010 grams
L
1050 grams
XL
1090 grams
(*) Weight of painted frame, real weight may differ from the weight mentioned above by ± 10 %.
3.2. FORK
The weight of the Noah Fast is around 435 g (*).
(*) Weight of painted fork, real weight may differ from the weight mentioned above by ± 10 %.

Noah Fast Disc | Type 7E3
4
4. GEOMETRY
(*) Max saddle height for 350/400 mm seat post. The bike is standard
delivered with 350 mm seat post.
5. CABLE ROUTING
5.1. COMPATIBILITY
The Noah Fast is compatible for:
-Mechanical groupsets
-Electronic groupsets: Shimano Di2, Campagnolo EPS & SRAM eTap
5.2. MECHANICAL CABLE ROUTING
Below you can find the parts needed for a mechanical groupset:
no.
part
part code
quantity
1
SEAT POST COVER
FRPSEPRID001
1
2
PLUG
FRPGROJAG002
1
3
PLUG
FRPGRORID007
1
4
BOTTOM BRACKET COVER
FRPBBRRID001
1
5
BOLT
BLTNOBNOB059
1
6
FOAM
CABFOAJAG001
3
7
CABLE GUIDE
FRPCBGRID001
1
SIZE
A(*)
B
C
D
E
F
G
H
I
J
S
R
XS
745/795
455
526
117
74
72
405
68
975
754
516
378
S
770/820
480
545
140
73,5
73
405
66
977
785
541
385
M
795/845
505
565
164
73
73,5
405
66
987
811
565
393
L
820/870
530
587
194
72,5
73,5
408
63
1007
838
591
401
XL
845/895
555
603
218
72,5
74
408
63
1017
864
616
409

Noah Fast Disc | Type 7E3
5
(*) In case of using a groupset without integrated cable adjuster at the front derailleur, a cable
stopper (FRPSTORID007) and inline adjuster (CABSTIJAG056) will have to be used to adjust the tension
of the front derailleur cable.

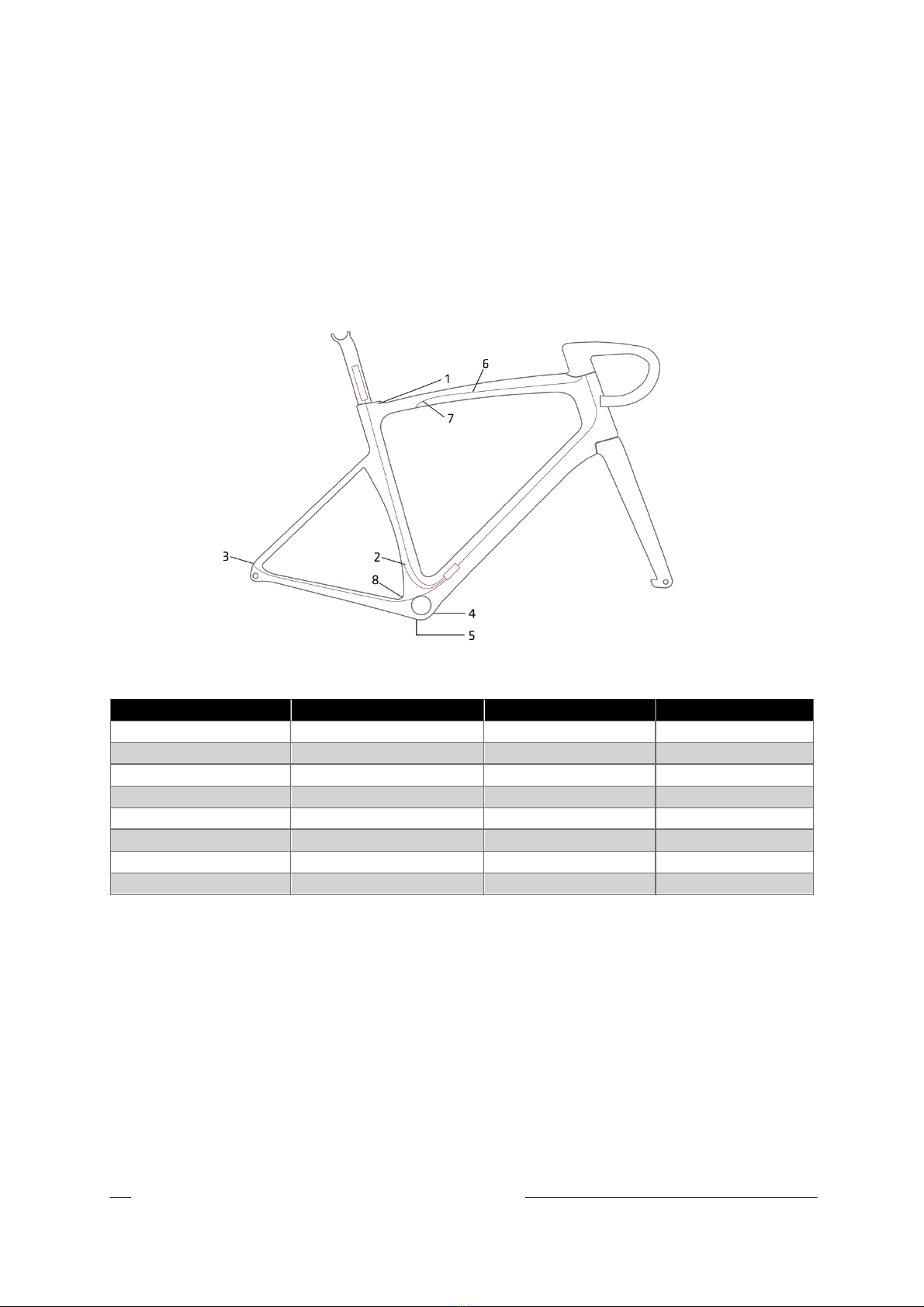

5.3. ELECTRONIC CABLE ROUTING
Below you can find the parts needed for an electronic groupset:
no.
part
part code
quantity
1
SEAT POST COVER
FRPSEPRID001
1
2
PLUG
FRPGROJAG003
1
3
PLUG
FRPGRORID007
1
4
BOTTOM BRACKET COVER
FRPBBRRID001
1
5
BOLT
BLTNOBNOB059
1
6
FOAM
CABFOAJAG001
1
7
CABLE GUIDE
FRPCBGRID001
1
8
PLUG
FRPGROJAG002
1

Noah Fast Disc | Type 7E3
6
6. PARTS
6.1. FORK
This bike uses the Noah Fast aero fork.
6.1.1. MATERIAL
-Fork legs: Carbon
-Steerer tube: Carbon
6.1.2. DIMENSIONS
-Steerer tube length: 300 mm
-Headset: 1 1/8” upper ring – 1 1/4” lower ring
-Fork rake:
oS, M, L and XL frame size: 45 mm
oXS frame size: 50 mm
-OLD (OverLock nut Distance): 100 mm
6.1.3. PART CODES
All the Noah Fast forks have a particular part code composed by the letters “FORCFR4ZA”, added by 3
numbers. The three numbers, depending on the design. Due to the big amount of forks we don’t list all
the numbers but you can contact your local dealer for more information if needed.
6.2. HANDLEBAR
6.2.1. MATERIAL
The Noah Fast handlebar is a full carbon handlebar.
6.2.2. DIMENSIONS
-Drop: 130 mm
-Reach: 75 mm
The handlebar is available in multiple sizes:
Stem length
Bar width
90
400
100
400
110
420
120
440

Noah Fast Disc | Type 7E3
7
6.2.3. PARTS
All parts belonging to the handlebar are shown below:
no.
part
part code
quantity
1
Bolts + nut
HBPAER4ZA001
1 set
2
Stem plug
HBPGRORID001
2 pcs
3
Top cap
HBPAER4ZA002
1 pc
4
Top cap plug
HBPGRORID002
1 pc
5
Aero spacer 3 mm
SPAAER4ZA001
3 pair
6
Aero spacer 5 mm
SPAAER4ZA002
2 pair
7
Aero spacer 10 mm
SPAAER4ZA003
2 pair
8
Integrated cone spacer
SPAAER4ZA004
1 pc
6.3. HEADSET
45° Oversized angular contact bearing (S.H.I.S.: IS42/28,6|IS47/33):
-Lower bearing: 1 1/4"
-Upper bearing: 1 1/8" Recommended headsets:
ridley part code Type brand
HSERACFSA014 NO.44/CF w/o H6063 FSA
HSERACDEE004 HDIN84ASUJR Deda
2
1
3
4
5
6
7
8
“The maximum allowed stack of spacers below the handlebar is 39 mm.”
for more information on the cable routing and how to assemble the handlebar, please check our assembly manual https://www.ridley-
bikes.com/wp-content/uploads/2018/02/Noah-SL-Disc-Aero-_-Cable-Management-System-_-Assembly.pdf

Noah Fast Disc | Type 7E3
8
ridley part code
description
compatibility
SACWCSRIT003
Saddle Clamp 7x7mm
Standard round alloy rail
SACWCSRIT004
Saddle Clamp
7x9,6mm
Fizik oval carbon rail
SACWCSRIT005
Saddle Clamp
8x8,5mm
Standard oval carbon rail
6.6. BOTTOM BRACKET
The bottom bracket is designed for press fit 30 cups with a diameter of 46 mm and width of 68 mm. Below
bottom bracket cups are being used for the standard assembled bikes.
part code
brand
description
compatible cranksets
BBRPF3SRA001
SRAM
PRESS FIT 30 CUPS
SRAM 30 MM CRANKSETS
BBRPF3SRA003
SRAM
SRAM PF30 TO BSA ADAPTER 68MM
SHIMANO BSA 68 CRANKSETS
SRAM BSA 68 CRANKSETS
BBRPF3CAM002
CAMPAGNOLO
ULTRA TORQUE™ OS-FIT™
INTEGRATED CUPS BB30
68X46
CAMPAGNOLO ULTRA TORQUE
CRANKSETS
BBRPF3CAM003
CAMPAGNOLO
POWER TORQUE™ OS-FIT™
INTEGRATED CUPS BB30
68X46
CAMPAGNOLO POWER TORQUE
CRANKSETS
6.7. BRAKES
The Noah Fast is designed to use direct mount brakes.
6.8. DERAILLEUR
6.8.1. FRONT
The Noah Fast frame uses a braze on clamp for the front derailleur.
6.8.2. REAR
For the rear derailleur, the Noah Fast frame uses a replaceable hanger (HAARCERID033).
6.4. SEAT POST
The Noah Fast frame is developed to use the Noah Fast aero seat post. To fix the seat post, the internal seat
post clamp (SPCAER4ZA005) has to be used. Pay attention to not exceed the maximum torque of 8 Nm for
the clamp and to respect a minimum insert of 10 cm for the seat post!
6.5. SADDLE CLAMP
There are three saddle clamps available:

Noah Fast Disc | Type 7E3
9
6.9. DROP-OUTS
The carbon drop-outs have stainless steel inserts for extra protection
7. WHEELS AND TIRES
7.1. FORK
The fork is developed for 28C race wheels with a build in width of 100 mm and a quick release system
with a maximum diameter of 9mm
7.2. FRAME
The frame is developed for 28C race wheels with a build in width of 130 mm and a quick release
system with a maximum diameter of 10mm
7.3. TIRES
We recommend 28 mm as a maximum tire size. Please note that not all tire manufacturers use the same
sizing standard so we recommend to do an assembly check and confirm clearances
8. WARRANTY INFORMATION
8.1. MAXIMUM RIDER WEIGHT
The maximum advised rider weight is 110 kg.
