Riello INSIEME EVO 32 B/100 S User manual

cod. 20113830 rev. 1 04/2016
INSIEME EVO 32 B/100-32 B/100 S
EN USER MANUAL

2
Dear Customer,
Thank you for preferring a Rheating unit, a modern,
high-quality product that is able to guarantee your maximum
well-being for a long period of time, with high levels of relia-
bility and safety. In particular, if working together with a Tech-
nical Assistance Service R that is specically prepared and
trained to perform periodic maintenance, your unit will remain
at maximum efciency levels at minimum operating costs and if
required, replacements with original spare parts can be made.
This instruction manual contains important instructions and
precautions that must be observed to ensure the trouble-free
installation and efcient functioning of your INSIEME EVO 32
B/100-32 B/100 S boiler.
Please accept our renewed thanks for your purchase.
Riello S.p.A.
CONFORMITY
INSIEME EVO 32 B/100-32 B/100 S boilers conform to the following
directives:
−Directive 92/42/EEC on efciency requirements
−Electromagnetic Compatibility Directive 2004/108/EC
−Low Voltage Directive 2006/95/EC
−Ecodesign Directive 2009/125/CE for energy-related prod-
ucts
−Energy Labelling Directive 2010/30/EU
−Delegated Regulation (EU) N. 811/2013
−Delegated Regulation (EU) N. 813/2013
−Delegated Regulation (EU) N. 814/2013
9 This product must only be used for the purpose for which it
is designed and made, as specied by R. Rdeclines
all responsibility, contractual or other, for damage to prop-
erty or injury to persons or animals caused by improper in-
stallation, adjustment, maintenance or use.
ENGLISH

3
This manual, Code 20113830 - Rev. 1 (04/2016)
comprises 16 pages.
CONTENTS
The following symbols are used in this manual:
9 CAUTION! = Identies actions that require caution and
adequate preparation.
0 STOP! = Identies actions that you MUST NOT do.
This manual, Code
- Rev.
comprises
pages.
1 GENERAL INFORMATION ............................4
1.1 General Safety Information ......................4
1.2 Precautions ..................................4
1.3 Description of the appliance .....................5
1.4 Safety devices ................................5
1.5 System layout.................................6
1.6 Control panel .................................8
2 USE.................................................9
2.1 Putting into service ............................9
2.1.1 Preliminary operations..........................9
2.1.2 Start-up.....................................9
2.1.3 Ignition failure ............................... 10
2.1.4 Resetting the burner and safety thermostat......... 10
2.2 Temporary shutdown...........................11
2.3 Preparing for extended periods of disuse............11
2.4 Cleaning and servicing the boiler ................. 12
2.5 External cleaning ............................. 12
2.5.1 Annual cleaning.............................. 12
2.6 Troubleshooting .............................. 13
3 RECYCLING AND DISPOSAL ........................14

4
GENERAL INFORMATION
1 GENERAL INFORMATION
1.1 General Safety Information
9 This product must be installed by a legally qualied heat-
ing engineer. On completion of the installation, the install-
er must issue the owner with a declaration of conformity
conrming that the installation has been completed to the
highest standards in compliance with the instructions pro-
vided by Rin this instruction manual, and that it con-
forms to all applicable laws and standards.
9 This product must only be used for the purpose for which it
is designed and made, as specied by R. Rdeclines
all responsibility, contractual or other, for damage to prop-
erty or injury to persons or animals caused by improper in-
stallation, adjustment, maintenance or use.
9 The room where the boiler is installed must be proper-
ly ventilated to ensure a sufcient supply of air for correct
combustion.
9 If you notice any water leaks, disconnect the boiler from the
mains electricity supply and shut off the water supply.
9 The boiler must be serviced at least once a year.
9 Periodically check that pressure in the central heating cir-
cuit, when cold, is approximately 1.5 bar and below the
maximum limit specied for the boiler. If necessary, top up
through the lling cock or contact the RTechnical Assis-
tance Service or a qualied heating engineer.
9 If the boiler is not going to be used for an extended peri-
od of time, perform the operations described later in this
manual.
9 This manual is an integral part of the equipment and there-
fore must be stored carefully and must ALWAYS accompany
the boiler even if it is sold to another Owner or User or trans-
ferred to another plant. If it is damaged or lost, request an-
other copy from your local Technical Assistance Service R.
1.2 Precautions
The operation of any appliance that uses fuel, electrical power
and water demands that a number of fundamental safety pre-
cautions be respected:
0 Do not allow children or inrm persons to operate the sys-
tem unsupervised.
0 It is forbidden to use electrical devices or equipment, such
as switches, appliances, etc. if there is a smell of gas or un-
burnt products. If so:
−Ventilate the room, opening doors and windows
−Close the fuel shut-off cock.
0 Do not touch the boiler while barefoot or wet.
0 Never clean or service the boiler without rst disconnect-
ing it from the mains electricity supply by turning the mains
power switch and the control panel switch OFF.
0 Do not tamper with or adjust the safety or control devices
without prior authorisation and instructions from the man-
ufacturer.
0 Never pull, disconnect, or twist the electrical cables coming
from the appliance even if it is disconnected from the mains
electricity supply.
0 Do not obstruct or restrict the vents in the room where the
boiler is installed. Adequate ventilation is essential for cor-
rect combustion.
0 Do not expose the boiler to the elements. It is not designed
for use outdoors.
0 It is prohibited to leave inammable substances and con-
tainers in the room where the boiler is installed.
0 Do not dispose of packaging material into the environment,
or leave it within the reach of children, since it can become
a potential hazard. Dispose of packaging material in com-
pliance with applicable legislation.
0 It is forbidden to operate the boiler without water.

5
GENERAL INFORMATION
1.3 Description of the appliance
The INSIEME EVO 32 B/100-32 B/100 S boiler produces hot water
for central heating and also produces domestic hot water in an
integrated 95 litre storage cylinder.
It can function at low temperature and is oil fuelled.
The single stage oil burner has a horizontal steel combustion
chamber.
Model INSIEME EVO 32 B/100 S (unlike model INSIEME EVO 32
B/100) has a sealed chamber.
The boiler body is thoroughly and effectively insulated with a
layer of high density glass wool.
The INSIEME EVO 32 B/100-32 B/100 S boiler's control logic in-
corporates a total shutdown function to minimise energy con-
sumption:
−In "Summer" mode ("Summer/Winter" selector turned to
Summer position), the burner only starts up to restore
the setpoint temperature of the water in the storage
cylinder. In "Winter" mode ("Summer/Winter" selector
turned to Winter position), the burner starts up either in
response to a request for heat from the heating system
(i.e. when the room thermostat switches the heating on)
or to restore the setpoint temperature of the water in the
storage cylinder (DHW heat requests are prioritised over
central heating requests).
1.4 Safety devices
INSIEME EVO 32 B/100-32 B/100 S boilers incorporate the follow-
ing safety and control devices:
−A manual reset safety thermostat that forces a safe-
ty shutdown if boiler temperature exceeds the safety
threshold (100°C). The sensor used to monitor this tem-
perature is located on the body of the heat exchanger;
−A minimum temperature thermostat that enables the
central heating pump only if boiler temperature exceeds
the minimum permissible (50°C);
−A maximum temperature thermostat that shuts down
the burner if boiler temperature reaches or exceeds the
default maximum limit ( 82°C) during the heating of do-
mestic hot water in the storage tank;
−An electronic burner controller that monitors the correct
functioning of the selected burner program and sends
a lockout signal to the control panel in the event of an
error.
9 The intervention of a safety device indicates a potentially
dangerous malfunction in the system. Contact the manu-
facturer’s Technical Assistance Service immediately.
9 Safety devices must only be replaced by the manufacturer's
Technical Assistance Service using original spare parts. Refer
to the spare parts catalogue supplied with the boiler.
0 Do not use the boiler if any of its safety devices are faulty.
Always check that the boiler is functioning correctly after repairs
have been made.

6
GENERAL INFORMATION

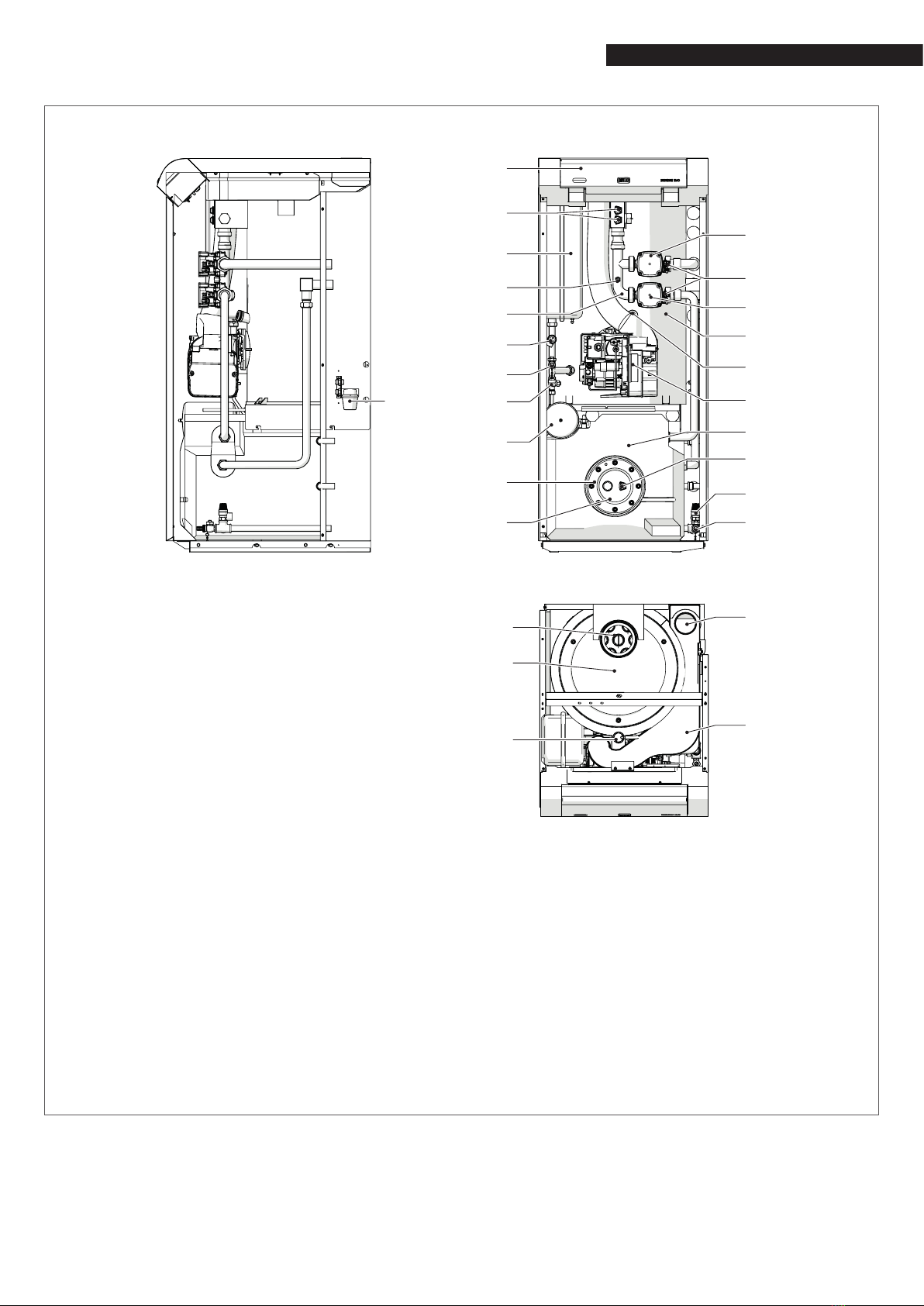

1.5 System layout
INSIEME EVO 32 B/100
5
6
4
7
8
9
10
2
3
11
12
23
24
25
13
15
16
17
18
14
19
20
21
22
1
1 Fuel oil lter
2 Control panel
3 Boiler sensor socket
4 Central heating circuit expansion vessel
5 Capillary pressure gauge tting
6 Distribution manifold
7 Central heating circuit safety valve
8 Boiler drain cock
9 Storage cylinder ll cock
10 Storage cylinder expansion vessel
11 Storage cylinder inspection ange
12 Storage cylinder ange insulation
13 Central heating circuit pump
14 Non-return valve
15 Boiler circulator
16 Boiler body
17 Flame inspection window
18 Oil burner
19 Storage cylinder with insulation
20 Storage cylinder sensor socket
21 Storage cylinder safety valve
22 Storage cylinder drain cock
23 Flue gas exhaust tting
24 Flue gas box cover
25 Automatic bleed valve

7
GENERAL INFORMATION
INSIEME EVO 32 B/100 S
1
23
24
25
5
6
4
7
8
9
10
2
3
11
12
13
15
16
17
18
14
19
20
21
22
27
26
1 Fuel oil lter
2 Control panel
3 Boiler sensor socket
4 Central heating circuit expansion vessel
5 Capillary pressure gauge tting
6 Distribution manifold
7 Central heating circuit safety valve
8 Boiler drain cock
9 Storage cylinder ll cock
10 Storage cylinder expansion vessel
11 Storage cylinder inspection ange
12 Storage cylinder ange insulation
13 Central heating circuit pump
14 Non-return valve
15 Boiler circulator
16 Boiler body
17 Flame inspection window
18 Oil burner
19 Storage cylinder with insulation
20 Storage cylinder sensor socket
21 Storage cylinder safety valve
22 Storage cylinder drain cock
23 Flue gas exhaust tting
24 Flue gas box cover
25 Automatic bleed valve
26 Air intake tting
27 Air box

8
GENERAL INFORMATION
1.6 Control panel
INSIEME EVO 32 B/100-32 B/100 S
20
40
60
80
100
0120
20
40 60 80
100
4
321
0
0120
1
2
3
4
5
6
9
8
7
10
11
1 Function selector
0 Off
IOn
II Burner reset
2 Boiler temperature gauge
Displays the temperature of the central heating water
3 Boiler pressure gauge
Displays the pressure in the central heating circuit
4 Boiler thermostat
Allows you to set the temperature of the central heating water
(setting range 55-82°C)
5 Electrical power indicator (green)
Lights to show that the boiler is receiving electrical power
6 Burner lockout indicator (red)
Lights to show that the burner locked out
7 Summer (I) / Winter (II) selector
8 Storage cylinder temperature gauge
Displays the temperature of the domestic hot water in the storage
cylinder
9 Manual reset for safety thermostat
Allows you to reset the boiler if the safety thermostat trips. Unscrew
the protective cover to access the reset button
10 Storage cylinder thermostat
Allows you to set the temperature of the domestic hot water (setting
range 0-70°C)
11 Protective cover over control panel
55
82
0
70

9
USE
2 USE
2.1 Putting into service
Have the RTechnical Assistance Service start up your INSIEME
EVO 32 B/100-32 B/100 S boiler for the rst time. Once this has
been done, the boiler can be left to function automatically.
Under certain circumstances, such as after long periods of dis-
use, the user may need to re-start it without involving the Tech-
nical Assistance Service.
2.1.1 Preliminary operations
Perform the following checks before starting up the boiler:
−Check that the fuel shut-off cock and heating system
shut-off cock are open
−check that the central heating circuit pressure gauge
shows a pressure over 1,5 bar with the system cold. Check
also that the circuit is properly de-aerated
20 100
4
40 60 80
321
0
0120
2.1.2 Start-up
Once you have completed all the checks listed above, proceed as
follows to start up the boiler for the rst time:
−Turn the boiler’s mains power switch ON
−Set the room thermostat to the required temperature (~
20°C) or, if the system has a timer or timer-thermostat,
make sure that this is switched “ON” and adjusted to the
required temperature (~ 20°C).;
−Open the control panel access door;
−Adjust the boiler and storage cylinder thermostats to
about the middle of the section with three lines;
−Turn the Summer/Winter selector to (II) Winter;
20
40 60 80
100
4
321
0
0120 20
40
60
80
100
0120
−turn the function selector to (I) ON and make sure that
the green power indicator lights.
20 100
4
40 60 80
321
0
0120
The boiler now starts up and the burner remains lit until the
temperature setpoint is reached.

10
USE
2.1.3 Ignition failure
If any ignition errors or malfunctions occur, the burner enters
“LOCKOUT”. This is shown by the red button light on the burner
and by the warning light on the control panel.
4
321
0
0120
9 If a “LOCKOUT SHUTDOWN” occurs, wait about 30 seconds be-
fore resetting the burner.
2.1.4 Resetting the burner and safety thermostat
To restore normal startup conditions, open the protective cover
over the control panel and turn the function selector to posi-
tion (II) "Reset burner" for at least 1 second before returning it to
position (I). Wait for the burner to complete the entire ignition
cycle again, up to the ignition of the ame.
20 100
4
40 60 80
321
0
0120
If boiler temperature becomes too high, the manual reset safety
thermostat trips.
9 No warning signal is given if the safety thermostat trips, but
the fact that is has tripped can be seen from the boiler tem-
perature gauge (T>100°C).
Proceed as follows to reset the safety thermostat:
−Wait until boiler temperature falls below 80°C;
−Open the control panel cover;
−Unscrew the cap over the safety thermostat reset button;
−Press the reset button;
−Replace the cap.
20 100
4
40 60 80
321
0
0120
9 Eliminate the cause of the overheating before restarting the
boiler. Contact R’s Technical Assistance Service.

11
USE
2.2 Temporary shutdown
To switch the boiler off for short periods with outdoor temper-
ature ABOVE ZERO:
−Open the control panel access door;
−Turn the control panel power switch to (0) OFF and make
sure that the green power indicator goes out;
20 100
4
40 60 80
321
0
0120
−switch the boiler OFF at the mains power switch;
9 Do NOT perform this procedure if outdoor temperature might
fall below ZERO (risk of freezing).
Then proceed as follows:
−Adjust the boiler thermostat to its minimum setting;
20 100
4
40 60 80
321
0
0120
−Turn the room thermostat to about 10°C or select the frost
protection function.
−Turn the storage cylinder thermostat to about the middle
of the section with one line.
20
40
60
80
100
0120
2.3 Preparing for extended periods of disuse
If the boiler is not going to be used for an extended period of
time, proceed as follows to prepare it for shut-down
−Open the control panel access door;
−Turn the control panel power switch to (0) OFF and make
sure that the green power indicator goes out;
20 100
4
40 60 80
321
0
0120
−switch the boiler OFF at the mains power switch;
−Close the fuel shut-off cocks.
9 Drain the central heating circuit and domestic hot water cir-
cuit if there is any risk of freezing.

12
USE
2.4 Cleaning and servicing the boiler
Please remember that THE PERSON RESPONSIBLE FOR SYSTEM MAN-
AGEMENT MUST ENSURE THAT PROFESSIONALLY QUALIFIED HEATING
ENGINEERS UNDERTAKE PERIODIC MAINTENANCE AND COMBUSTION
EFFICIENCY MEASUREMENTS.
R’s Technical Assistance Service is qualied to satisfy these
legal requirements and can also provide useful information on
MAINTENANCE PROGRAMMES designed to guarantee:
−greater safety
−compliance with applicable legislation
−freedom from the risk of nes in the event of spot checks.
Regular maintenance is essential for the safety, efciency and
durability of the boiler.
Servicing is a legal requirement and must be performed at least
once a year by a professionally qualied heating engineer.
2.5 External cleaning
Clean the boiler’s casing panels and control panel with a soft
cloth damped in soapy water.
To remove marks from the boiler casing, use a cloth damped in a
50% mix of water and denatured alcohol or a suitable cleaning
product.
Wipe the boiler dry after cleaning it.
0 Do not use abrasive products, petrol or triethylene.
2.5.1 Annual cleaning
At least once a year, the user must have the boiler served by
R's Technical Assistance Service or by a qualied heating en-
gineer.

13
USE
2.6 Troubleshooting
FAULT CAUSE SOLUTION
There is a smell of fumes Fumes escaping into the air −Contact your local Technical Assistance
Service
The boiler gets dirty very quickly
Burner badly adjusted −Contact your local Technical Assistance
Service
Blockage in stack −Contact your local Technical Assistance
Service
Burner air intake dirty −Contact your local Technical Assistance
Service
The generator is at temperature but the
heating system is cold
Air in the circuit −Contact your local Technical Assistance
Service
Pump malfunctioning −Contact your local Technical Assistance
Service
Minimum temperature thermostat faulty −Contact your local Technical Assistance
Service
The boiler does not reach its tempera-
ture setpoint
Boiler dirty −Contact your local Technical Assistance
Service
Burner capacity insufcient −Contact your local Technical Assistance
Service
Problem with boiler control thermostat −Contact your local Technical Assistance
Service
The generator triggers a thermal safety
block
Problem with boiler control thermostat −Contact your local Technical Assistance
Service
No water −Contact your local Technical Assistance
Service
The central heating safety valve opens
frequently
Incorrect central heating circuit pressure −Contact your local Technical Assistance
Service
CH expansion vessel −Contact your local Technical Assistance
Service
The central heating pump is not working
Pump seized
Electrical connections
−Contact your local Technical Assistance
Service
No heat request from −Contact your local Technical Assistance
Service

14
RECYCLING AND DISPOSAL
FAULT CAUSE SOLUTION
The storage cylinder safety valve keeps
opening
Storage cylinder safety valve −Contact your local Technical Assistance
Service
Incorrect DHW circuit pressure −Contact your local Technical Assistance
Service
DHW circuit expansion vessel −Contact your local Technical Assistance
Service
Insufcient domestic hot water
Supply pressure too high −Contact your local Technical Assistance
Service
Flow rate too high −Contact your local Technical Assistance
Service
Limescale and/or sludge in storage cyl-
inder
−Contact your local Technical Assistance
Service
−Contact your local Technical Assistance
Service
−Contact your local Technical Assistance
Service
−Contact your local Technical Assistance
Service
−Contact your local Technical Assistance
Service
The central heating or DHW pump is not
working
Pump seized
Electrical connections
−Contact your local Technical Assistance
Service
No heat request from thermostats −Contact your local Technical Assistance
Service
3 RECYCLING AND DISPOSAL
Packaging materials from RINSIEME EVO 32 B/100-32 B/100
Sboilers must be disposed of through appropriate channels in
order to permit recovery and recycling. At the end of its useful
life, dispose of the boiler in compliance with applicable legis-
lation.

15

RIELLO S.p.A.
37045 Legnago (VR) - Italy
Tel. [phone] - Fax [phone] - www.riello.it
The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specications, standard equipment
and accessories are therefore liable to modication without notice.
