Riello GS10 Quick start guide

20008491 (1) - 11/2008
Installation, use and maintenance instructions
Instrucciones para la instalación, uso y mantenimiento
Forced draught gas burner
Quemador de gas de aire soplado
CODE - CÓDIGO MODEL - MODELO TYPE - TIPO
20007527 GS10 554T80
GB
E
One stage operation
Funcionamiento de una llama

1 20008491
GB
Index
1. Burner description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.1 Burner equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.2 Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.1 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 Overall dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.3 Firing rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.4 Correlation between gas pressure and burner output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.1 Boiler fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Probe-electrode positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.3 Gas feeding line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.4 Electrical wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4. Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4.1 Combustion head setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4.2 Air damper setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.3 Combustion check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.4 Burner start-up cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.5 Start-up cycle diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4.6 Resetting the control box and using diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5. Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6. Faults / Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6.1 Burner starting difficulties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6.2 Normal operation / Flame detection time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7. Safety warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.1 Burner identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.2 Basic safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

20008491 2 GB
1 Burner description
Gas burner with one stage working.
³The burner is approved for intermittent operation as per Directive EN 676.
³The burner meets protection level of IP X0D (IP 40), EN 60529.
1 – Air damper
2 – Screws for fixing the air damper
3 – 7 pole socket for electrical supply
and control
4 – Cable grommet
5 – Screw for fixing the cover
6 – Air pressure switch
7 – 6 pole socket for gas train
8 – Control box
9 – Reset button with lock-out lamp
10 – Flange
NOTES:
– Gas train can be installed on the right or on the left of the burner.
– The cable grommet (4) Fig. 1 and the screw for fixing the cover (5) supplied with the burner, must be fitted
to the same side of the gas train.
1.1 Burner equipment
Insulating gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
Screws and nuts for flange to be fixed to boiler. . . . . . . . . No. 4
Cable grommet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
Screw for fixing the cover . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
7 pin plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No. 1
1.2 Accessory
Kit interface adapter RMG to PC Code 3002719
2
1
2
D4182
5 4 3
9
8
6
7
10
Fig. 1

3 20008491
GB
2 Technical description
2.1 Technical data
2.2 Overall dimensions
2.3 Firing rate
Thermal power (1) 42 – 116 kW - 36,000 – 100,000 kcal/h
Natural gas (Family 2) Net heat value: 8 – 12 kWh/Nm3-7,000 – 10,340 kcal/Nm3
Pressure: min. 16 mbar - max. 100 mbar
Electrical supply Single phase, 220V ±10% ~60Hz
Motor 220V / 1.1A
Capacitor 2.5 µF
Ignition transformer Primary 220V / 1.25A - Secondary 8 kV / 25 mA
Absorbed electrical power 0.2 kW
(1) Reference conditions: Temp. 20°C - Barometric pressure 1013 mbar – Altitude 0 m above sea level.
O
Combustion head extension, supplied separately.
FlangeBurner
305 110 346 185
33 61
45°
ø
105
262
160
Rp 3/4
204
142
O
170
D4251
130
11
45°
Fig. 2
Thermal power
D5256
0.8
0
0.2
0.4
0.6
40,000 50,000 60,000 70,000 kcal/h
1206050 70 80 kW
1.0
110
80,000
1.2
90 100
90,000
1.4
40
1.6
100,000
Pressure in the combustion
chamber – mbar
Fig. 3

20008491 4 GB

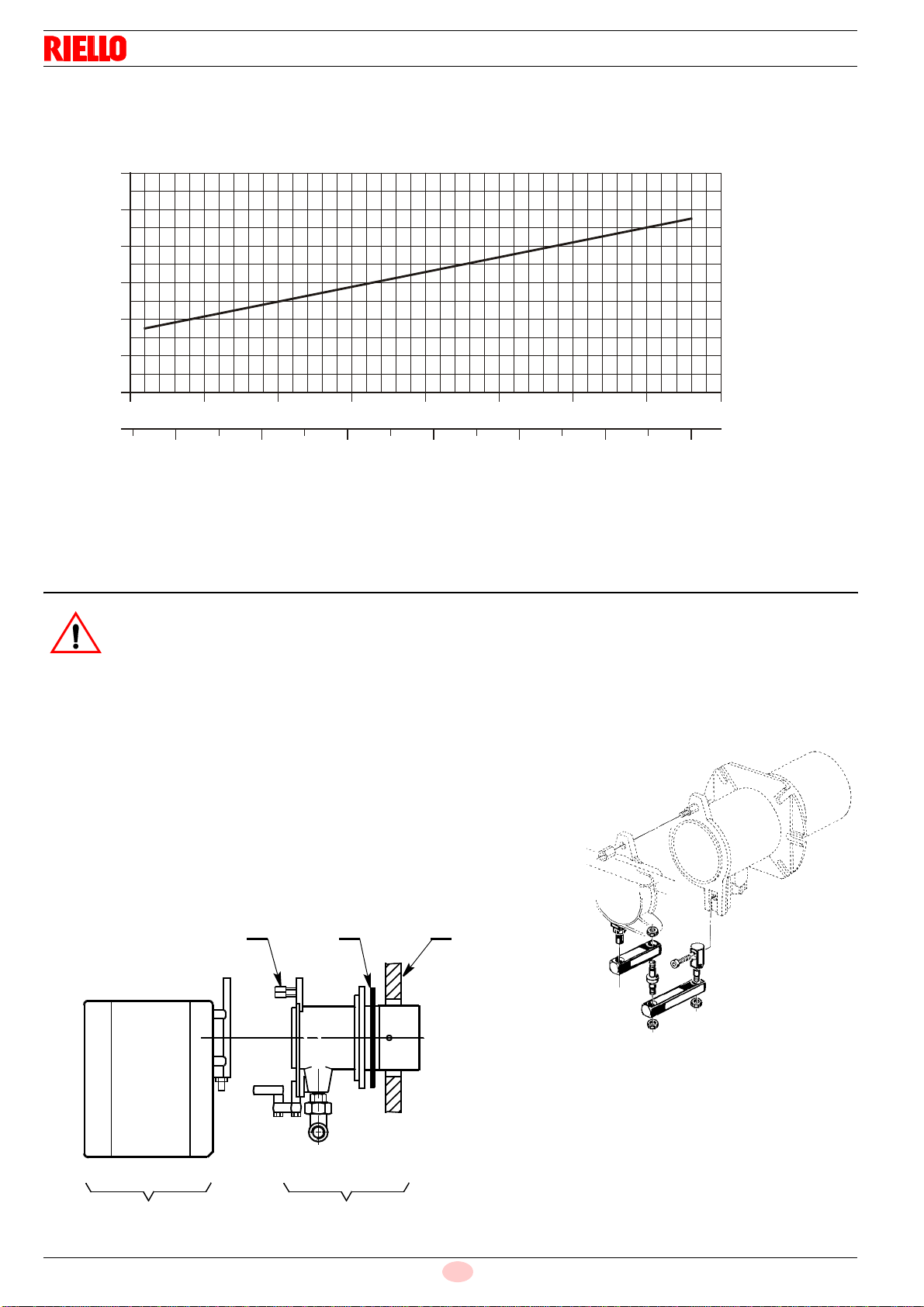

2.4 Correlation between gas pressure and burner output
To obtain the maximum output, a gas head pressure of 5.8 mbar is measured with the combustion chamber at
0 mbar using gas G20 with a net heat value of 10 kWh/Nm3(8,570 kcal/Nm3).
3 Installation
THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL
STANDARDS.
3.1 Boiler fixing
Boiler door must have a max. thickness of 90 mm, refractory lining
included.
If thickness is greater (max. 150 mm), a combustion head exten-
sion must be fitted, which is supplied separately.
OSeparate the combustion-head assembly from the burner body
by removing nut (1) and removing group (A) Fig. 6.
OFix the head assembly group (B) Fig. 6 to the boiler (2) insert the
supplied insulating gasket (3).
4
1
2
3
5
6
7
Gas pressure in the
combustion head – mbar
40,000 50,000 60,000 70,000 kcal/h
1206050 70 80 kW
Thermal power
D5257
110
80,000
90 100
90,000
40
100,000
Fig. 4
WARNING
S7392
HINGE ASSEMBLY
Fig. 5
132
AB
D5108
Fig. 6

5 20008491
GB
3.2 Probe - electrode positioning
3.3 Gas feeding line
D5104
Ignition electrode
WARNING
2 – 3 mm
Ionization probe
Probe Electrode
2.2
~
40 mm
Diffuser
=
=
Fig. 7
1– Gas supply pipe
2– Manual cock
3– Filter
4– Pressure governor
5– Pressure test point
6– Gas pressure switch
7– Safety valve
8– Adjustment valve
9– Pressure coupling test point
1
D5949
6432
9
578
Fig. 8

20008491 6 GB
3.4 Electrical wiring
KEY TO LAY-OUT
B4 – Working signal
CN3 – Connector
h1 – Hour counter
PG – Minimum gas pressure switch
S3 – Remote lock-out signal
(220V - 0.5 A max.)
T6A –Fuse
TB – Burner earth
TL – Limit thermostat
TS – Safety thermostat
V10 – Safety valve
V11 – Adjustment valve
X6 – 6 pin plug
X7 – 7 pin plug
XP6 – 6 pole socket
XP7 – 7 pole socket
Ionization probe Ignition transformer
Electrode
Motor
Capacitor
220V ~ 60Hz
Air pressure
White
Blue
Brown
Control box
D9128
Connector
Black
switch
CARRIED-OUT
IN THE FACTORY
³Do not swap neutral and phase over, follow the diagram shown carefully and carry out a good earth
connection.
³The section of the conductors must be at least 1mm². (Unless requested otherwise by local standards and leg-
islation).
³The electrical wiring carried out by the installer must be in compliance with the rules in force in the country.
³Verify that the burner stops by operating the boiler control thermostats and that the burner locks out by separating
the red ionisation probe lead connector.
NOTES
The burners have been type-approved for intermittent operation. This means they must stop at least once every 24 hours in
order to allow the electrical control box to check its efficiency on start-up.
The boiler limit thermostat (TL) normally ensures the burner halts. If this does not happen a time switch halting the burner at
least once every 24 hours must be applied in series to limit thermostat (TL).
WARNING
TO BE DONE BY
THE INSTALLER

7 20008491
GB
Electrical wiring with gas leak control device (DUNGS VPS 504)
4 Working
4.1 Combustion head setting
Loose the screw (A) Fig. 9.
Move the elbow (B) so that the rear
plate of the coupling (C) coincides with
the set point.
Tighten the screw (A).
Example:
The burner is installed on a 81 kW boiler
with an efficiency of 90%, the burner
input is about 90 kW using the diagram,
the combustion set point is 3.
The diagram (Fig. 10) is to be used only
for initial settings, to improve air pressure
switch operation or improve combustion,
it may be necessary to reduce this set-
ting (set point toward position 0).
KEY TO LAY-OUT
X6 – 6 pin plug
X7 – 7 pin plug
B4 – Working signal
h1 – Hour counter
PG – Minimum gas pressure switch
S3 – Remote lock-out signal
(220V - 0.5 A max.)
T6A –Fuse
TL – Limit thermostat
TS – Safety thermostat
V10 – Safety valve
V11 – Adjustment valve
220V ~ 60Hz
D4199
TO BE DONE BY
THE INSTALLER
S7015
C
A
B
Fig. 9
01 32
120
90
80
70
60
50
100
80,000
70,000
60,000
50,000
40,000
kcal/h kW
D5258
45
40
110
90,000
100,000
Set point
Fig. 10

20008491 8 GB

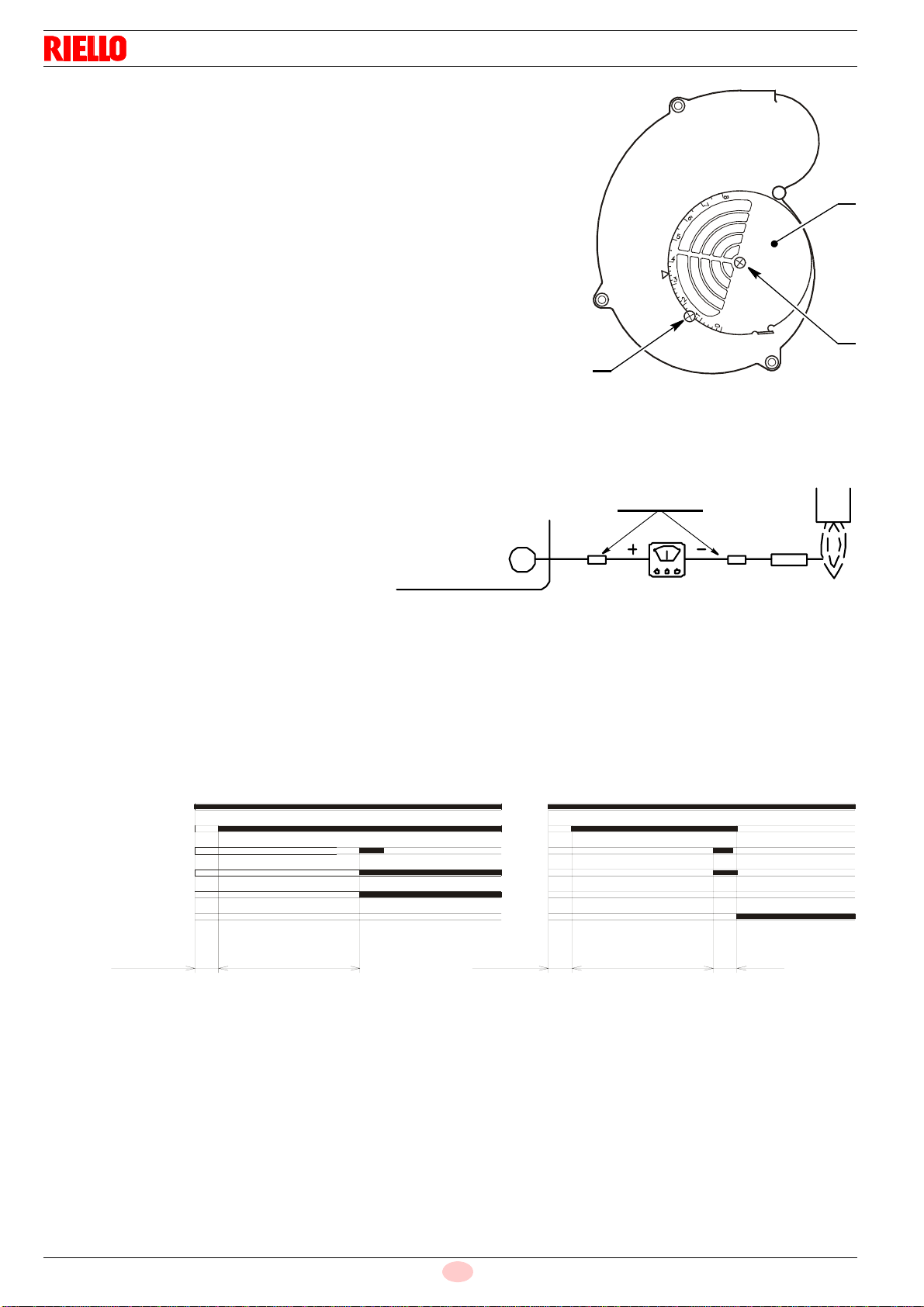

4.2 Air damper setting
The regulation of the air-rate is made by adjusting the air damper (1)
Fig. 11, after loosing the screws (2).
When the optimal regulation is reached, screw tight the screws (2).
4.3 Combustion check
CO2It is advisable to not exceed 10% of CO2(natural gas), in order
to avoid the risk that small changes of the adjustments due, for
instance, at draught variation, may cause combustion with
insufficient air and consequently formation of CO.
CO Not exceeding 100 mg/kWh (93 ppm).
IONIZATION CURRENT
The minimum current necessary for the
control box operation is 3 µA.
The burner normally supplies a higher cur-
rent value, so that no check is needed.
However, if you want to measure the ioni-
zation current, you must open the
connector fitted to the red wire and insert a
microammeter.
4.4 Burner start-up cycle
When flame-failure occurs during working, shut down takes place within one second.
1
D5231
2
2
Fig. 11
Probe
Connector
Terminal board
of control-box
D5006
10
Fig. 12
3s40s40smax. 2s max. 2s
D4172
Lock-out, due to ignition failureNormal
Thermostat
Motor
Ignition transformer
Valves
Flame
Lock-out
Fig. 13

9 20008491
GB
4.5 Start-up cycle diagnostics
During start-up, indication is according to the followin table:
4.6 Resetting the control box and using diagnostics
The control box features a diagnostics function through which any causes of malfunctioning are easily identi-
fied (indicator: RED LED).
To use this function, you must wait at least 10 seconds once it has entered the safety condition (lock-out),
and then press the reset button.
The control box generates a sequence of blinks (1 second apart), which is repeated at constant 3-second
intervals.
Once you have seen how many times the light blinks and identified the possible cause, the system must be
reset by holding the button down for between 1 and 3 seconds.
The methods that can be used to reset the control box and use diagnostics are given below.
RESETTING THE CONTROL BOX
To reset the control box, proceed as follows:
³Hold the button down for between 1 and 3 seconds.
The burner restarts after a 2-second pause once the button is released.
If the burner does not restart, you must make sure the limit thermostat is closed.
VISUAL DIAGNOSTICS
Indicates the type of burner malfunction causing lock-out.
To view diagnostics, proceed as follows:
³Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light blinks to tell you the operation is done.
Release the button once the light blinks. The number of times it blinks tells you the cause of the malfunc-
tion, indicated in the table below.
SOFTWARE DIAGNOSTICS
Reports the life of the burner by means of an optical link with the PC, indicating hours of operation, number
and type of lock-outs, serial number of control box etc ...
To view diagnostics, proceed as follows:
³Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light blinks to tell you the operation is done.
Release the button for 1 second and then press again for over 3 seconds until the yellow light blinks again.
Once the button is released, the red LED will flash intermittently with a higher frequency: only now can the
optical link be activated.
COLOUR CODE TABLE
Sequences Colour code
Pre-purging 
Ignition phase 11111
Operation, flame ok vvvvvvvvvvvv
Operating with weak flame signal. v1v1v1v1v1
Electrical supply lower than ~170V 
Lock-out 
Extraneous light vvvvv
Index: 1Off Yellow vGreen Red
       
Press reset
for > 3s 3sBlinks Blinks
RED LED on
wait at least 10s Interval Lock-out

20008491 10 GB
Once the operations are done, the control box’s initial state must be restored using the resetting procedure
described above.
The sequence of blinks issued by the control box identifies the possible types of malfunction, which are listed
in the table below.
BUTTON PRESSED FOR CONTROL BOX STATUS
Between 1 and 3 seconds Control box reset without viewing visual diagnostics.
More than 3 seconds Visual diagnostics of lock-out condition:
(LED blinks at 1-second intervals).
More than 3 seconds starting from
the visual diagnostics condition Software diagnostics by means of optical interface and PC (hours of operation, malfunctions etc. can be viewed)
SIGNAL PROBABLE CAUSE
2blinks

The flame does not stabilise at the end of the safety time:
– faulty ionisation probe;
– faulty or soiled gas valves;
– neutral/phase exchange;
– faulty ignition transformer
– poor burner regulation (insufficient gas).
3blinks

Minimum air pressure switch does not close:
– make sure VPS trips to produce lockout;
– air pressure switch faulty;
– air pressure switch incorrectly regulated;
– fan motor does not run;
– maximum air pressure switch operating.
4blinks

Min. air pressure switch does not open or light in the chamber before firing:
– air pressure switch faulty;
– air pressure switch incorrectly regulated.
7blinks

Loss of flame during operations:
– poor burner regulation (insufficient gas);
– faulty or soiled gas valves;
– short circuit between ionisation probe and earth.
10 blinks


– Wiring error or internal fault.

11 20008491
GB
5 Maintenance
The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity
with legislation and local standards.
Maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and con-
sequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to the burn-
er acting on the main switch of the system.
THE BASIC CHECKS ARE:
Leave the burner working without interruption for 10 min., checking the right settings of all the components
stated in this manual. Then carry out a combustion check verifying:
CO2(%) content Smoke temperature at the chimney CO content (ppm).
6 Faults / Solutions
Here below you can find some causes and the possible solutions for some problems that could cause a fail-
ure to start or a bad working of the burner.
A fault usually makes the lock-out lamp light which is situated inside the reset button of the control box (9)
Fig. 1.
When lock out lamp lights the burner will attempt to light only after pushing the reset button.
After this if the burner functions correctly, the lock-out can be attributed to a temporary fault.
If however the lock out continues the cause must be determined and the solution found.
6.1 Burner starting difficulties
Signal Problem Possible cause Recommended remedy
2 blinks

Once the pre-purging
phase and safety time
have passed, the
burner goes into lock-
out without the
appearance of the
flame
The operation solenoid lets little gas
through Increase
One of the two solenoid valves does not
open Replace
Gas pressure too low Increase pressure at governor
Ignition electrode incorrectly adjusted Adjust
Electrode grounded due to broken
insulation Replace
High voltage cable defective Replace
High voltage cable deformed by high
temperature Replace and protect
Ignition transformer defective Replace
Incorrect valve or transformer electrical
wiring Check
Defective control box Replace
A closed valve upline the gas train Open
Air in pipework Bleed air
Gas valves unconnected or with interrup-
ted coil Check connections or replace coil

20008491 12 GB
3 blinks

The burner does not
switch on, and the
lockout appears
Air pressure switch in operating position Adjust or replace
The burner switches
on, but then stops in
lockout
Air pressure switch inoperative due to
insufficient air pressure:
Air pressure switch incorrectly adjusted. Adjust or replace
Pressure switch pressure test point
pipe blocked Clean
Poorly adjusted head Adjust
High pressure in the furnace Connect air pressure switch to
fan suction line
Lockout during pre-
purging phase
Defective motor control contactor (only
three-phase version) Replace
Defective electrical motor Replace
Motor lockout (defective electrical motor) Replace
4 blinks

The burner switches
on, but then stops in
lockout
Flame simulation Replace the control box
Lockout when burner
stops Permanent flame in the combustion head or flame simulation Eliminate persistence of flame or replace control box
7 blinks


The burner goes into
lockout immediately
following the appear-
ance of the flame
The operation solenoid lets little
gas through Increase
Ionisation probe incorrectly adjusted Adjust
Insufficient ionisation (less than 5 µA) Check probe position
Earth probe Withdraw or replace cable
Burner poorly grounded Check grounding
Phase and neutral connections inverted Invert them
Defective flame detection circuit Replace the control box
Burner goes into lock-
out during operation Probe or ionisation cable grounded Replace worn parts
10 blinks


The burner does not
switch on, and the
lockout appears
Incorrect electrical wiring Check
The burner goes into
lockout
Defective control box Replace
Presence of electromagnetic disturban-
ces in the thermostat lines Filter or eliminate
Signal Problem Possible cause Recommended remedy

13 20008491
GB
N.B.: If problems still occur after all of the above checks have been made, check the electrical connections
on the plug and sockets, the damper and burner motor, gas control wiring ignition transformer and
external interlocks, if the burner still fails to function, replace the control box.
No blink
The burner does not
start
No electrical power supply Close all switches
Check connections
A limiter or safety control device is open Adjust or replace
Line fuse blocked Replace
Defective control box Replace
No gas supply Open the manual valves
between contactor and train
Mains gas pressure insufficient Contact your GAS COMPANY
Minimum gas pressure switch fails
to close Adjust or replace
The burner continues
to repeat the start-up
cycle, without lockout
The gas pressure in the gas mains lies
very close to the value to which the mini-
mum gas pressure switch has been set.
The sudden drop in pressure after valve
opening causes temporary opening of the
pressure switch itself, the valve immedia-
tely closes and the burner comes to a
halt.
Pressure increases again, the pressure
switch closes again and the ignition cycle
is repeated. And so on.
Reduce the minimum gas pres-
sure switch intervention pres-
sure.
Replace the gas filter cartridge.
Ignition with pulsa-
tions
Poorly adjusted head Adjust
Ignition electrode incorrectly adjusted Adjust
Incorrectly adjusted fan air damper:
too much air Adjust
Output during ignition phase is too high Reduce
Signal Problem Possible cause Recommended remedy

20008491 14 GB
6.2 Normal operation / Flame detection time
The control box has a further function to guarantee the correct burner operation (signal: GREEN LED perma-
nently on).
To use this function, wait at least ten seconds from the burner ignition and then press the control box button for a
minimum of 3 seconds.
After releasing the button, the GREEN LED starts flashing as shown in the figure below.
The blinks of the LED constitute a signal spaced by approximately 3 seconds.
The number of blinks will measure the probe DETECTION TIME since the opening of gas valves, according to the
following table:
7 Warnings and safety
The dimension of the boiler’s combustion chamber must respond to specific values, in order to guarantee a
combustion with the lowest polluting emissions rate.
The Technical Service Personnel will be glad to give you all the imformation for a correct matching of this
burner to the boiler.
This burner must only be used for the application it was designed for.
The manufacturer accepts no liability within or without the contract for any damage caused to people, ani-
mals and property due to installation, adjustment and maintenance errors or to improper use.
7.1 Burner identification
The Identification Plate on the product gives the serial number, model and main technical and performance
data. If the Identification Plate is tampered with, removed or missing, the product cannot be clearly identified
thus making any installation or maintenance work potentially dangerous.
7.2 Basic safety measures
³Children or inexpert persons must not use the appliance.
³Under no circumstances must the intake grids, dissipation grids and ventilation vents in the installation
room be covered up with cloths, paper or any other material.
³Unauthorised persons must not attempt to repair the appliance.
³It is dangerous to pull or twist the electric leads.
³Cleaning operations must not be performed if the appliance is not disconnected from the main power supply.
³Do not clean the burner or its parts with inflammable substances (e.g. petrol, alcohol, etc.). The cover
must be cleaned with soapy water.
³Do not place anything on the burner.
³Do not block or reduce the size of the ventilation vents in the installation room.
³Do not leave containers and inflammable products in the installation room.
SIGNAL FLAME DETECTION TIME This is updated in every burner start-up.
Once read, the burner repeats the start-up
cycle by briefly pressing the control box
button.
WARNING
If the result is > 2s, ignition will be retarded.
Check the adjustment of the hydraulic brake
of the gas valve, the air damper and the
combustion head adjustment.
1 blink
0.4s
2 blinks
 0.8s
6 blinks
 2.8s
       
Press button
for > 3s 3sBlinks Blinks
GREEN LED on
wait at least 10s Interval

1 20008491
E
Índice
1. Descripción del quemador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.1 Material suministrado . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.2 Accesorio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. Técnicos descripcíon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.1 Datos técnicos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 Dimensiones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.3 Campo de trabajo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.4 Correlación entre presión del gas y potencia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3. Instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.1 Fijación a la caldera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Posicionamiento sonda electrodo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.3 Línea de alimentación del gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.4 Instalación eléctrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4. Funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4.1 Regulación cabezal de combustión . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4.2 Regulación del registro del aire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.3 Control de la combustión. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.4 Programa de puesta en marcha. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.5 Diagnóstico del programa de puesta en marcha. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4.6 Desbloqueo de la caja de control y uso de la función de diagnóstico . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5. Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6. Anomalias / Soluciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6.1 Dificultad de puesta en marcha y sus causas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6.2 Funcionamiento normal / Tiempo de detección llama . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7. Advertencias y seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.1 Identificación quemador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.2 Reglas fundamentales de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

20008491 2 E
1 Descripción del quemador
Quemador de gas de una llama de funcionamiento.
³Nivel de protección del quemador IP X0D (IP 40) según EN 60529.
³El quemador está homologado para el funcionamiento intermitente según la Normativa EN 676.
1 – Registro de aire
2 – Tornillos de fijación del registro
del aire
3 – Conector hembra de 7 contactos
para alimentación eléctrica y man-
dos a distancia
4 – Anillo pasacable
5 – Tornillo de fijación del envolvente
6 – Presóstato aire
7 – Conector hembra de 6 contactos
para rampa de gas
8 – Caja de control
9 – Botón de rearme con señalización
de bloqueo
10 –Brida
NOTAS:
– La rampa de gas se puede instalar tanto a la derecha como a la izquierda del quemador.
– El anillo pasacable (4) Fig. 1 y el tornillo para la fijación del envolvente (5) entregados de serie, se insta-
lan en la misma parte que la rampa de gas.
1.1 Material suministrado
Junta aislante . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N° 1
Tornillos y tuercas para brida fijación a la caldera. . . . . . . . N° 4
Anillo pasacable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N° 1
Tornillos de fijación envolvente . . . . . . . . . . . . . . . . . . . . . . . N° 1
Bisagra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N° 1
Conector macho de 7 contactos . . . . . . . . . . . . . . . . . . . . . . N° 1
1.2 Accesorio
Kit interface adapter RMG to PC Código 3002719
2
1
2
D4182
5 4 3
9
8
6
7
10
Fig. 1

3 20008491
E
2 Técnicos descripcíon
2.1 Datos técnicos
2.2 Dimensiones
2.3 Campo de trabajo
Potencia térmica (1) 42 ÷ 116 kW - 36.000 ÷ 100.000 kcal/h
Gas natural (Familia 2) Pci: 8 ÷12 kWh/Nm3-7.000 ÷ 10.340 kcal/Nm3
Presión: mín. 16 mbar – máx. 100 mbar
Alimentación eléctrica Monofasica, 220V ±10% ~60Hz
Motor 220V / 1,1A
Condensador 2,5 µF
Transformador de encendido Primario 220V / 1,25A - Secundario 8 kV / 25 mA
Potenza eléctrica absorbida 0,2 kW
(1) Condiciones de referencia: Temperatura 20°C - Presión barométrica 1013 mbar – Altitud 0 m sobre nivel del mar.
O
Cabezal de combustión larga que se debe pedir por separado.
BridaQuemador
305 110 346 185
33 61
45°
ø
105
262
160
Rp 3/4
204
142
O
170
D4251
130
11
45°
Fig. 2
Potencia térmica
D5256
0,8
0
0,2
0,4
0,6
40.000 50.000 60.000 70.000 kcal/h
1206050 70 80 kW
1,0
110
80.000
1,2
90 100
90.000
1,4
40
1,6
100.000
Sobrepresión cámara
combustión – mbar
Fig. 3

20008491 4 E
2.4 Correlación entre presión del gas y potencia
Para obtener la potencia máxima se requieren 5.8 mbar medidos en el manguito con cámara de combustión
a 0 mbar y gas G20 - Pci = 10 kWh/Nm3(8.570 kcal/Nm3).
3 Instalación
EL QUEMADOR SE DEBE INSTALAR DE CONFORMIDAD CON LAS LEYES Y NORMATIVAS
LOCALES.
3.1 Fijación a la caldera
La puerta de la caldera debe tener un grosor máximo de 90 mm in-
cluido el revestimiento refractario.
En el caso en que el grosor fuera mayor (máx. 150 mm) es ne-
cesario utilizar una extensión para la tobera, que se debe pedir
por separado.
OSepare el cabezal de combustión del resto del quemador qui-
tando la tuerca (1) y extraiga el grupo (A) Fig. 6.
OFije el grupo (B) Fig. 6 a la placa (2) de la caldera, interpo-
niendo la junta aislante (3) suministrada de serie.
4
1
2
3
5
6
7
40.000 50.000 60.000 70.000 kcal/h
1206050 70 80 kW
Potencia térmica
D5257
110
80.000
90 100
90.000
40
100.000
Fig. 4
Presión del gas al cabezal
de combustión - mbar
ATENCIÓN
S7392
MONTAJE DE LA BISAGRA
Fig. 5
132
AB
D5108
Fig. 6
