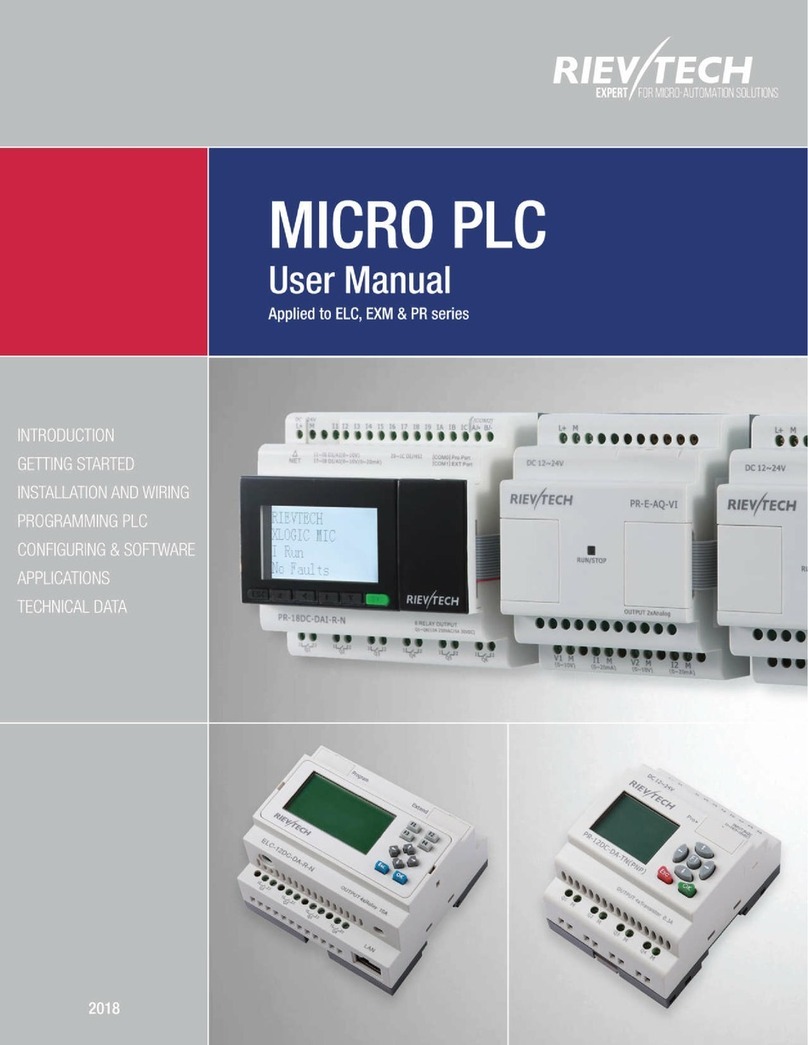

Rievtech Xlogic elc series User manual

Applied to ELC&PR series Ver: 3.0

Programmable Relay User's Manual

Rievtech Electronic Co.,Ltd

Contents

Introduction

Getting started

Installation and wiring

Programming xLogic

Configuring &software

Applications

Technical data

Introduction

Congratulations with your xLogic Micro PLC provided by Rievtech Electronic Co., Ltd.

The xLogic Micro PLC is a compact and expandable CPU replacing mini PLCs, multiple timers, relays and

counters.

The xLogic Micro PLC perfectly fits in the space between timing relays and low-end PLCs. Each CPU

incorporates not only a real-time clock and calendar, but also provides support for optional expansion I/O

modules to enhance control and monitoring applications. Data adjustments can easily be performed via

the keypad, the LCD display, or through the Rievtech-to-use xLogic soft. DIN-rail and panel-mounted

options are both available, offering full flexibility to the various installation needs of your application.

The xLogic Micro PLC is available in 120V/240V AC or 12V and 24V DC versions, making it the ideal

solution for relay replacement, or simple control applications as building and parking lot lighting,

managing automatic lighting, access control, watering systems, pump control, ventilation systems,

home automation and a wide field of other applications demanding low cost to be a primary design issue.

We strongly recommended taking the time to read this manual, before putting the xLogic Micro PLC to

work. Installation, programming and use of the unit are detailed in this manual. The feature-rich xLogic

Micro PLC provides a for off-line operation mode, allowing full configuration and testing prior to in-field

service commissioning. In reviewing this manual you will discover many additional advantageous product

properties, it will greatly simplify and optimize the use of your xLogic Micro PLC.

Valid range of this manual

The manual applies to devices of ELC series and PR series modules . For more information about EXM

series module(GSM and WIFI module) ,please refer to the x-Messenger user's manual.

Safety Guideline

This manual contains notices you have to observe in order to ensure your personal safety, as well as to

prevent damage to property. The notices referring to your personal safety are highlighted in the manual

by a safety alert symbol; notices referring to property damage only have no safety alert symbol. The

notices shown below are graded according to the degree of danger.

Caution

Indicates that death or severe personal injury may result if proper precautions are

not taken

Caution

With a safety alert symbol indicates that minor personal injury can result if proper

precautions are not taken.

Caution

Without a safety alert symbol indicates that property damage can result if proper

precautions are not taken.

Attention

Indicate that an unintended result or situation can occur if the corresponding

notice is not taken into account.

If more than one degree of danger is present, the warning notice representing the highest degree of

danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a

warning relating to property damage.

Qualified Personnel

The device/system may only be set up and used in conjunction with this documentation. Commissioning

and operation of a device/system may only be performed by qualified personnel. Within the context of

the safety notices in this documentation qualified persons are defined as persons who are authorized to

commission, ground and label devices, systems and circuits in accordance with established safety

practices and standards. Please read the complete operating instructions before installation and

commissioning.

Rievtech does not accept any liability for possible damage to persons, buildings or machines, which occur

due to incorrect use or from not following the details.

Prescribed Usage

Note the following:

Warning

This device and its components may only be used for the applications described in the catalog or the

technical description, and only in connection with devices or components from other manufacturers

which have been approved or recommended by Rievtech. Correct, reliable operation of the product

requires proper transport, storage, positioning and assembly as well as careful operation and

maintenance.

Trademarks

All names identified by xLogic are registered trademarks of the Rievtech. The remaining trademarks in

this publication may be trademarks whose use by third parties for their own purposes could violate the

rights of the owner.

The distribution and duplication of this document or the utilization and transmission of its contents are

not permitted without express written permission. Offenders will be liable for damages. All rights,

including rights created by patent grant or registration of a utility model or design, are reserved.

Disclaim of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However,

the information in this publication is reviewed regularly and any necessary corrections are included in

subsequent editions.

Additional support

We take pride in answering your question as soon as we can:

Please consult our website at www.rievtech.com for your closest point of contact or email us at

sales@rievtech.com

Contents

Contents...........................................................................................................................................................................................6

Chapter 1 General Introduction to xLogic........................................................................................................................11

1.1 Overview............................................................................................................................................................................... 11

1.2 Highlight feature................................................................................................................................................................ 11

Chapter 2 Hardware models and resources.................................................................................................................... 16

2.1 Naming Rules of ELC&PR Series.................................................................................................................................. 16

2.2 Hardware model selection.............................................................................................................................................. 17

2.3 Structure & dimension..................................................................................................................................................... 19

Chapter 3 Installing/removing xLogic............................................................................................................................... 23

3.1 DIN rail mounting.............................................................................................................................................................. 24

3.2 Wall-mounting.....................................................................................................................................................................25

3.3 wiring xLogic........................................................................................................................................................................28

3.4.1 Connecting the power supply............................................................................................................................28

3.4.2 Connecting xLogic inputs....................................................................................................................................29

3.4.3 Connecting xLogic Outputs................................................................................................................................ 33

3.4.4 Communication port instructions:...................................................................................................................35

Chapter 4 Parameters modification HMI operation..................................................................................................38

4.1 Overview of xLogic menu............................................................................................................................................... 38

4.2 LCD panel instruction....................................................................................................................................................... 39

4.3 Select function page......................................................................................................................................................... 42

4.3.1 How to switch Run/Stop......................................................................................................................................44

4.3.2 Set parameter......................................................................................................................................................... 44

4.3.3 Set password........................................................................................................................................................... 47

4.3.4 How to set address of CPU and expansion module..................................................................................51

4.3.5 Set LCD (backlight and Contrast)....................................................................................................................54

4.3.6 Set communication parameters....................................................................................................................... 56

4.3.7 Modification of System Time............................................................................................................................. 58

Chapter 5 Configuring & Programming software.......................................................................................................... 60

5.1 xLogic Functions.................................................................................................................................................................61

5.2 General Input & Output functions............................................................................................................................... 61

5.2.1 Inputs......................................................................................................................................................................... 61

5.2.2 Cursor keys.............................................................................................................................................................. 62

5.2.3 Outputs...................................................................................................................................................................... 62

5.2.4 Permanent logical levels HI and LO................................................................................................................63

5.2.5 Panel Key.................................................................................................................................................................. 63

5.2.6 Shift register bits................................................................................................................................................... 64

5.2.7 Analog inputs...........................................................................................................................................................64

5.2.8 F (digital flag)..........................................................................................................................................................65

5.2.9 AF (Analog flag)......................................................................................................................................................66

5.3 Basic functions list – GF.................................................................................................................................................. 66

5.3.1 AND............................................................................................................................................................................. 67

5.3.2 AND with edge evaluation.................................................................................................................................. 68

5.3.3 NAND.......................................................................................................................................................................... 69

5.3.4 NAND with edge evaluation............................................................................................................................... 70

5.3.5 OR................................................................................................................................................................................ 71

5.3.6 NOR............................................................................................................................................................................. 72

5.3.7 XOR............................................................................................................................................................................. 72

5.3.8 NOT..............................................................................................................................................................................73

5.3.9 Boolean Function....................................................................................................................................................74

5.4 Basics on special functions.............................................................................................................................................75

5.4.1 Designation of the inputs....................................................................................................................................75

5.4.2 Time response.........................................................................................................................................................76

5.4.3 Backup of the real-time clock........................................................................................................................... 76

6.4.4 Retentivity.................................................................................................................................................................77

5.4.5 Parameter protection............................................................................................................................................77

5.4.6 Calculating the gain and offset of analog values...................................................................................... 77

5.5 Special functions list – SF...............................................................................................................................................79

5.5.1 On-delay....................................................................................................................................................................83

5.5.2 Off-delay....................................................................................................................................................................85

5.5.3 On-/Off-delay.......................................................................................................................................................... 86

5.5.4 Retentive on-delay................................................................................................................................................ 87

5.5.5 Wiping relay (pulse output)...............................................................................................................................89

5.5.6 Edge triggered wiping relay...............................................................................................................................90

5.5.7 Asynchronous pulse generator......................................................................................................................... 91

5.5.8 Random generator.................................................................................................................................................92

5.5.9 Stairway lighting switch...................................................................................................................................... 94

5.5.10 Multiple function switch.................................................................................................................................... 96

5.5.11 Weekly timer......................................................................................................................................................... 97

5.5.12 Yearly timer.........................................................................................................................................................102

5.5.13 Up/Down counter..............................................................................................................................................107

5.5.14 Hours counter.....................................................................................................................................................109

5.5.15 Threshold trigger.............................................................................................................................................. 111

5.5.16 Latching relay.....................................................................................................................................................113

5.5.17 Pulse relay........................................................................................................................................................... 114

5.5.18 Message text.......................................................................................................................................................115

5.5.18.1 How to change parameters of blocks in displayed message ?............................................124

5.5.19 Softkey..................................................................................................................................................................125

5.5.20 Shift register.......................................................................................................................................................127

5.5.21 Analog comparator...........................................................................................................................................129

5.5.22 Analog threshold trigger................................................................................................................................ 132

5.5.23 Analog amplifier................................................................................................................................................ 134

5.5.24 Analog value monitoring................................................................................................................................ 135

5.5.25 Analog differential trigger..............................................................................................................................137

5.5.26 Analog multiplexer........................................................................................................................................... 139

5.5.27 System cover......................................................................................................................................................141

5.5.28 Pulse Width Modulator (PWM)..................................................................................................................... 142

5.5.29 Analog Ramp...................................................................................................................................................... 145

5.5.30 Analog Math........................................................................................................................................................ 147

5.5.31 Analog math error detection........................................................................................................................ 149

5.5.32 Modbus Read...................................................................................................................................................... 151

5.5.33 Modbus Write......................................................................................................................................................157

5.5.34 Modbus read write............................................................................................................................................161

5.5.35 Data latching relay........................................................................................................................................... 167

5.5.36 PI controller.........................................................................................................................................................169

5.5.37 Memory write..................................................................................................................................................... 180

5.5.38 Memory Read......................................................................................................................................................184

5.5.39 Word to Bit.......................................................................................................................................................... 187

5.5.40 Bit to Word.......................................................................................................................................................... 189

5.5.41 Stopwatch............................................................................................................................................................ 190

5.5.42 Analog filter.........................................................................................................................................................192

5.5.43 Max/Min................................................................................................................................................................ 193

5.5.44 Average value.....................................................................................................................................................196

5.5.45 Device Reset....................................................................................................................................................... 197

5.5.46 Comport Status................................................................................................................................................. 199

5.5.47 Astronomical clock............................................................................................................................................202

5.5.48 Cam Control........................................................................................................................................................ 204

5.5.49 Angular Cam Timer.......................................................................................................................................... 205

5.5.50 Pumps Management........................................................................................................................................ 206

5.5.51 Defrost.................................................................................................................................................................. 208

5.5.52 Comparison of 2 values..................................................................................................................................209

5.5.53 Multicompare...................................................................................................................................................... 210

5.5.54 Compare in zone............................................................................................................................................... 211

5.5.55 Conversion Word bits...................................................................................................................................... 212

5.5.56 Conversion bits Word...................................................................................................................................... 213

5.5.57 Demultiplexer..................................................................................................................................................... 213

5.5.58 Multiplexing.........................................................................................................................................................214

5.5.59 Multiplexer........................................................................................................................................................... 215

5.5.60 Square Boot........................................................................................................................................................ 216

5.5.61 Sin Cos.................................................................................................................................................................. 216

5.5.62 Absolute Humidity............................................................................................................................................ 217

5.6 xLogicsoft........................................................................................................................................................................... 218

5.7 Main Functions..................................................................................................................................................................224

5.8 Operation Instructions...................................................................................................................................................224

5.8.1 Menu Bar.................................................................................................................................................................225

5.8.1.1 File.................................................................................................................................................................225

5.8.1.2 Edit................................................................................................................................................................226

5.8.1.3 Tools..............................................................................................................................................................226

5.8.1.4 SMS...............................................................................................................................................................227

5.8.1.5 View.............................................................................................................................................................. 228

5.8.1.6 Help...............................................................................................................................................................228

5.8.2 Toolbar..................................................................................................................................................................... 228

5.8.3 Programming Toolbar.........................................................................................................................................229

5.8.4 Simulation Tool and status window..............................................................................................................230

5.9 Basic Operation................................................................................................................................................................ 233

5.9.1 Open File.................................................................................................................................................................233

5.9.1.1 Open New File...........................................................................................................................................233

5.9.1.2 Open Existed Document....................................................................................................................... 235

5.9.2 Edit Function Diagram Program.................................................................................................................... 236

5.9.2.1 Place Function Block...............................................................................................................................236

5.9.2.2 Edit Property of Function Block..........................................................................................................236

5.9.2.3 Setup link................................................................................................................................................... 237

5.9.2.4 Delete Function Block or Delete Link...............................................................................................239

5.9.2.5 Change block index................................................................................................................................ 240

5.10 Simulation Running......................................................................................................................................................240

5.11 Save and Print................................................................................................................................................................242

5.12 Modify Password and transfer the Program....................................................................................................... 243

5.13 On-line monitoring/test circuit program..............................................................................................................245

Chapter 6 How to configure the Ethernet CPU ?........................................................................................................ 251

6.1 How to separate the new version and old version?...................................................................................251

6.2 How to Configure the Network parameters through program software?..........................................252

6.3 How to view and configure the Ethernet parameters through LCD panel?...................................... 257

6.4 How to create the communication between the CPU and PC through Ethernet?.......................... 261

6.4.1 CPU works as TCP server......................................................................................................................... 261

6.4.2 CPU works as TCP Client.......................................................................................................................... 265

6.4.2 CPU works as UDP Server........................................................................................................................270

6.5 How to log on the built-in Web server............................................................................................................ 271

6.5.1 How to enable the webserver?...............................................................................................................272

6.5.2 How to log on the webserver?............................................................................................................... 273

6.6 How to establish the communication between new Ethernet CPUs?.................................................. 281

6.6.1 Example1: One master CPU(TCP server) connect with 3 slave CPUs(TCP Clients)....... 282

6.6.2 Example2: One master CPU(TCP Client) connect with 3 slave CPUs(TCP Servers).......289

6.6.3 Example3: One master CPU(UDP Server) connect with 3 slave CPUs(UDP clients)......297

6.6.4 Example4: One master CPU(UDP Client) connect with 3 slave CPUs(UDP Servers)..... 303

6.7 Configuration with DeviceManager...................................................................................................................311

6.8 Establish communication between CPU and xLogicSoft/SCADA via Ethernet..............................321

6.9 How to establish the communication among CPUs via Ethernet ?...................................................... 323

Chapter 7 Applications.......................................................................................................................................................... 335

7.1 Dual-function switch...................................................................................................................................................... 335

7.1.1 Standard solution ...............................................................................................................................................335

7.1.2 The scheme of xLogic........................................................................................................................................ 337

7.2 Automatic gate................................................................................................................................................................. 338

7.2.1 Standard solution................................................................................................................................................ 339

7.2.2 The scheme of xLogic........................................................................................................................................ 340

7.3 Ventilation system...........................................................................................................................................................342

7.3.1 Standard solution................................................................................................................................................ 342

7.3.2 The scheme of xLogic........................................................................................................................................ 343

7.4 Factory door...................................................................................................................................................................... 345

7.4.1 Standard solution................................................................................................................................................ 345

7.4.2 The scheme of xLogic........................................................................................................................................ 346

7.5 Daylight lamp system....................................................................................................................................................348

7.5.1 Standard solution................................................................................................................................................ 349

7.5.2 The scheme of xLogic........................................................................................................................................ 349

7.6 Rainwater pump...............................................................................................................................................................351

7.6.1 Standard solution................................................................................................................................................ 352

7.6.2 The scheme of xLogic........................................................................................................................................ 353

Chapter 8 Modbus function code and Register addresses...................................................................................... 354

8.1 xLogic modbus function code ....................................................................................................................................354

8.2 Register addresses of xLogic...................................................................................................................................... 355

Appendix.....................................................................................................................................................................................364

A Technical data.......................................................................................................................................................................364

A.3 Switching capacity and service life of the relay outputs................................................................................. 390

Chapter 1 General Introduction to xLogic

1.1 Overview

xLogic is a universal logic module made by Rievtech.

xLogic , a compact, expandable CPU that can replace mini PLC, multiple timers, relays and counters,

Splitting the difference between a timing relay and a low-end PLC, Each CPU has a real-time clock and

calendar, and supports optional expansion I/O modules to enhance your control and monitoring

applications . Data adjustments can be done via the on-board keypad and LCD display, or with xLogicsoft.

It can be either DIN-rail or panel mounted, depending upon the needs of your application, and it is

available in 120V/240V ac as well as 12V and 24V dc versions, and it is the ideal solution for relay

replacement applications, simple control applications such as building and parking lot lighting, managing

automatic lighting, access control, watering systems, pump control, or ventilation systems in factory, and

home automation and applications in which cost is a primary design issue.

1.2 Highlight feature

4-lines, 16-characters per line, backlight display.

Multiple value display and input via keypad and LCD display.

70 kinds of function Blocks can be used in a circuit program in maximum

Standard Modbus RTU/ASCII/TCP communication protocol supported.

It’s optional for xLogic to act as slave or master in certain Modbus communication network.

(easy connect to other factory touch screen by RS232 cable, RS485 module)

CAN BUS protocol based expansion modules(PR-18/PR-24 series CPU)

Expandable up to 16 linked IO expansion modules reaching 282 I/O points in maximum

Optional RS232, RS485 and Ethernet connectivity

Multiple channels analog inputs available with DC 0-10V signal ,PT100 signal& 0/4….20mA.

Default Real Time Clock (RTC) and summer/winter timer is available

Backup at Real Time Clock (RTC) at 25 °C:20 days

4 channels high-speed counting

Pre-configured standard functions, e.g. on/ off-delays, pulse relay and softkey

2 PWM channels(10KHz in maximum)

Retentive memory capability (Not applied to PR-6&PR-12-E series CPU)

RS232 and USB communication download cable with photo-electricity isolation

Programmable capability up to 1024 function blocks(PR-18/PR-24);512 function

blocks(PR-12&ELC-12-N) and 64 function blocks for PR-6&PR-12-E

Mounting via modular 35mm DIN rail or screw fixed mounting plate

On-line monitor capability(Free charge SCADA for all series xlogic)

Datalogging

Kinds of analog signals process capacity (DC 0..10V ,0/4...20mA and PT100 probe inputs and DC

0..10V and 0/4...20mA outputs)

Low cost

Some of the things xLogic can do for you?

The xLogic Micro PLC provides solutions for commercial, industrial, building and

domestic applications such as lighting, pumping, ventilation, shutter operations or

in switching cabinets. The application field is widespread and these are just a few to mention.

Using the RS485 bus and Ethernet connectivity allows the user to realize various extensive (real-time)

monitoring and control applications.

Special versions without operator panel and display unit are available for series production applications

in small machine, installation and cabinet building environments to further slash cost.

xLogic devices：

xLogic Basic is available in two voltage classes:

*Classes 1:DC12-24V: i.e.: PR-6DC Series, PR-12DC series, PR-18 series, PR-24DC series.

*Classes2: AC110-240V: i.e.: PR-6AC Series, PR-12AC series, PR-18AC series , PR-24AC series.

In the versions:

* With Display: with “-HMI” model, such as PR-12DC-DA-R-HMI

* Without Display: PR-6 series and with “-CAP” model, such as PR-12DC-DA-R-CAP. Only PR-12 has -CAP

version. PR-18,PR-24 all have display in default.

Expansion modules:

PR-E (applied to PR-18/PR-24 CPU)

* xLogic digital modules are available for operation with 12…24V DC, and 110.. .240 V AC, and are

equipped with eight inputs and eight outputs.

* xLogic analog modules are available for operation with 12…24 V DC and are equipped with six digital

and 4 analog inputs.

Communication cable and module:

xLogic:RS232 communication cable (Model:ELC-RS232)

It is kind of universal cable with photoelectricity isolation which can be directly connected to standard

9-pin port of PC, also kind of interface module which can enable user’s program to be downloaded into

xLogic CPU through xLogicsoft for running. It also is the connection cable between CPU and third party

device with the RS232 port(just like HMI) in modbus communication system.

xLogic: USB communication cable (Model: ELC-USB).

It is kind of communication cable with photoelectricity isolation through which PC with USB port only can

be connected to xLogic main module, moreover, it has same features as ELC-RS232 module, so it is

quite convenient for user whose computer has no standard serial port.

xLogic: PRO-RS485 cable (Model: PRO-RS485).

It is kind of converter cable with photoelectricity isolation to make the program port serves as RS485

port.

xLogic: RS485 module（Model：PR-RS485）

isolated 485 converter,used to bring out the terminals of RS485 port built-in PR-18,PR-24 series CPU for

connection with third party devices.

Communication / Network

xLogic offers different ways to communicate within the system.

RS485 port

The RS485 port is used for communication between the CPU and various devices or equipments which

have the standard RS485 port. Communicate using Modbus RTU/ASCII protocol.

Note：PR-RS485 module is required to connect the CPU to RS485 BUS.

RS232 or USB port (ELC-ES232/ ELC-USB needed)

If there is no network required and only one main module with some expansion modules is needed for the

application, the down- and upload of the project to and from the main module happens over the standard

RS232 or USB port. It allows system maintenance like monitoring too.

Note：PR-E-RS485 module is required to connect the CPU to RS485 BUS.

Ethernet network

If the application requires a system where more than one main module is needed and these main

modules have to communicate, each Ethernet CPU will be connected directly to the Ethernet by the

built-in LAN port. The project down- and upload to and from the main modules and the communication

between the CPU happens over the Ethernet network. Furthermore the our free of charge SCADA can be

also established connection with Ethernet CPU

Note

xLogic CPU may be equipped with expansion modules of the different voltage class, but expansion

module must be supplied the correct power corresponding to its type.

Each xLogic CPU provides the following connections for the creation of the circuit program, regardless of

the number of connected blocks:

Digital inputs I1 to I4(PR-6), I1 to I8(PR-12), I1 to IC（ELC-18），I1 to IE(PR-24). I11-I18(Expansion

with address 1)...I161--I168(Expansion with address 16)

Analog inputs I1 to I6(PR-18/PR-24), I1 to I4(PR-12), I11 to I14(PR-E expansion with address

1),....AI161 to AI164(PR-E expansion with address 16)

Digital outputs Q1 to Q6（PR-18), Q1 to Q4(PR-12),Q1 to QA(PR-24);Q11 to Q18((PR-E expansion

with address 1), Q161 to Q168(PR-E expansion with address 16)

Digital flag blocks F1-F32(PR-6,PR-12-E), F1-F256(PR-12/PR-18/PR-24) ;

-F8 : Startup flag

-F64: Backlight control bit(to control the backlight of LCD and backlight of ELC-43TS)

-F63: Buzzer of ELC-43TS control bit

Analog flag blocks AF1 to AF256(PR-12/PR-18/PR-24);AF1-AF32(PR-6/PR-12-E)

Shift register bits S1 to S8

Chapter 2 Hardware models and resources

2.1 Naming Rules of ELC&PR Series

1.Series name: ELC series; PR series.

2.Points of input and output

3.Supply power AC or DC

4.Digital/Analog D: digital DA: digital/analog

5.Output type R: relay T: transistor TN = “PNP” transistor; TP= “NPN” transistor

6. E: economic mode

7. N: Ethernet port built-in

Note:

The model end with “-HMI” means the CPU has LCD and panel keys on it;

The model end with “-CAP” means the CPU has no LCD on it.

Model name (expansion module ,plus with PR-18/PR-24 CPU together to use):

1.Series name

2.E: expansion module

3.Points of input and output

4.Supply power AC or DC

5.Digital/Analog D: digital DA: digital/analog

6.Output type R: relay TP: “NPN” transistor；TN :“PNP” transistor

2.2 Hardware model selection

PR-6 Series CPU Units (None expandable)

Model

Expansion

Supply voltage

Inputs

Outputs

High-speed

count

PWM

HMI

RTC

PR-6AC-R

AC110~AC240V/

DC110-DC240V

4 digital

2 relays (10A)

yes

PR-6DC-DA-R

DC12-24V

4 digital/4(0...10V)

2 relays (10A)

yes

PR-12 Series CPU Units(None expandable)

Model

Expansio

Supply voltage

Inputs

Outputs

High-speed count

PWM

HMI

RTC

PR-12AC-R-HMI

AC110~AC240V

8 digital

4 relays (10A)

yes

PR-12AC-R-E-CAP

AC110~AC240V

8 digital

4 relays (10A)

yes

PR-12DC-DA-R-HMI

DC12-24V

4(0...10V)+4 digital

4 relays (10A)

4(I5-I8)(60KHZ)

yes

PR-12DC-DA-R-E-CAP

DC12-24V

4(0...10V)+4 digital

4 relays (10A)

yes

PR-12DC-DA-TN-HMI

DC12-24V

4(0...10V)+4 digital

4Transistor(0.3A/

PNP)

4 (I5-I8)(60KHZ)

Yes(10KHZ)

yes

PR-14 Series CPU Units(Expandable)-built-in RS485 port

Model

Expansion

Supply voltage

Inputs

Outputs

High-speed count

PWM

HMI

RTC

PR-14AC-R-HMI

yes

AC110~AC240V

/DC110-DC240V

10 digital

4 relays (10A)

yes

PR-14DC-DA-R-HMI

yes

DC12-24V

6(0...10V)/6digit

al+4 digital

4 relays (10A)

4(I7-IA)(60KHZ)

yes

PR-18 Series CPU Units(Expandable)

Model

Expansion

Supply voltage

Inputs

Outputs

High-speed count

PWM

HMI

RTC

PR-18AC-R-HMI

yes

AC110~AC240V

/DC110-DC240V

12 digital

6 relays (10A)

yes

PR-18DC-DA-R-HMI

yes

DC12-24V

6(0...10V)/6digit

al+6 digital

6 relays (10A)

4(I9-IC)(60KHZ)

yes

PR-18DC-DA-RT-HMI

yes

DC12-24V

6(0...10V)/6digit

al+6 digital

4 relays (10A)+

2 transistor(0.3A)

4(I9-IC)(60KHZ)

yes(10khz)

yes

PR-24 Series CPU Units(Expandable)-built-in RS485 port

Model

Expansion

Supply voltage

Inputs

Outputs

High-speed

count

PWM

HMI

RTC

PR-24AC-R-HMI

yes

AC110~AC240V

16 digital

10 relays (10A)

yes

PR-24DC-DA-R-HMI

yes

DC12-24V

6(0...10V)/6digital

+8 digital

10 relays (10A)

4(I9-IC)(60KHZ)

yes

PR-24DC-DAI-RTA

yes

DC12-24V

2(0/4...20mA)+

4(0...10V)/4digital

+8 digital

relays(10A)+2Transistor(0.3

A/PNP)+1(0...10V)/(0...20m

4(I9-IC)(60KHZ)

YES(10khz)

yes

Expansion Modules(For PR-18,PR-24 series)

Model

Supply voltage

Inputs

Outputs

PR-E-16AC-R

AC110~

AC240V

8 digital

4 relays（10A）+4 relays(3A)

PR-E-16DC-DA-R

DC12-24V

4digital+4analog(0..10V)/digital

4 relays（10A）+4 relays(3A)

PR-E-16DC-DA-TN

DC12-24V

4digital+4analog(0..10V)/digital

8 transistors(PNP)(0.3A)

PR-E-PT100

DC12-24V

3 Channels PT100, resolution: 0.5°), temperature range : -50℃- 200℃

none

PR-E-AQ-VI

DC12-24V

none

2 Channels (DC 0…10V/0...20mA)

PR-E-AI-I

DC12-24V

4 Channels (0/4…..20 mA), Current Signal

none

PR-RS485

DC12-24V

isolated 485 converter,used to bring out the terminals of RS485 port built-in PR-18&PR-24 series CPU for connection with third

party devices.

Accessories

ELC-RS232

RS232 communication module /download cable between PC and xLogic CPU units

ELC-USB

USB communication module /download cable between PC and xLogic CPU units

ELC-COPIER

ELC-COPIER can be used to save user program and download program into xLogics.(including all the ELC series and EXM series PLC)

ELC-MEMORY

Real time data-logging device with a mini-SD card slot for ELC&EXM series CPUs. The history data( IO status , analog value, current value of registers)
