Rigel SafeTest 60 User manual

Innovating Together
RIGEL SafeTest 60
electrical safety analyser
Copyright © 2016SEAWARD GROUP
Last Update: 20th April 2016
Instruction Manual
410A568 Revision 1.2

Limited Warranty & Limitation of Liability
Rigel Medical, part of the SEAWARD GROUP guarantees this product for a period of 1
year. The period of warranty will be effective at the day of delivery.
Calibration Statement
The Rigel SafeTest 60 hand-held electrical safety analyser is fully calibrated and found to
be within the specified performance and accuracy at the time of production. The Seaward
Group provides its products through a variety of channels, therefore it may be possible that
the calibration date on the provided certificate may not represent the actual date of first use.
Experience has indicated that the calibration of this instrument in not effected by storage
prior to receipt by the user. We therefore recommend that the recalibration period be based
on a 12 month interval from the first date the unit is placed in to service.
Date received into service; / / .
© Copyright 2016
All rights reserved. Nothing from this edition may be multiplied, or made public in any form
or manner, either electronically, mechanically, by photocopying, recording, or in any
manner, without prior written consent from the SEAWARD GROUP. This also applies to
accompanying drawings and diagrams.
Due to a policy of continuous development the SEAWARD GROUP reserves the right to
alter the equipment specification and description outlined in this publication without prior
notice and no part of this publication shall be deemed to be part of any contract for the
equipment unless specifically referred to as an inclusion within such contract.

Rigel SafeTest 60 Instruction Manual –Revision 1.22

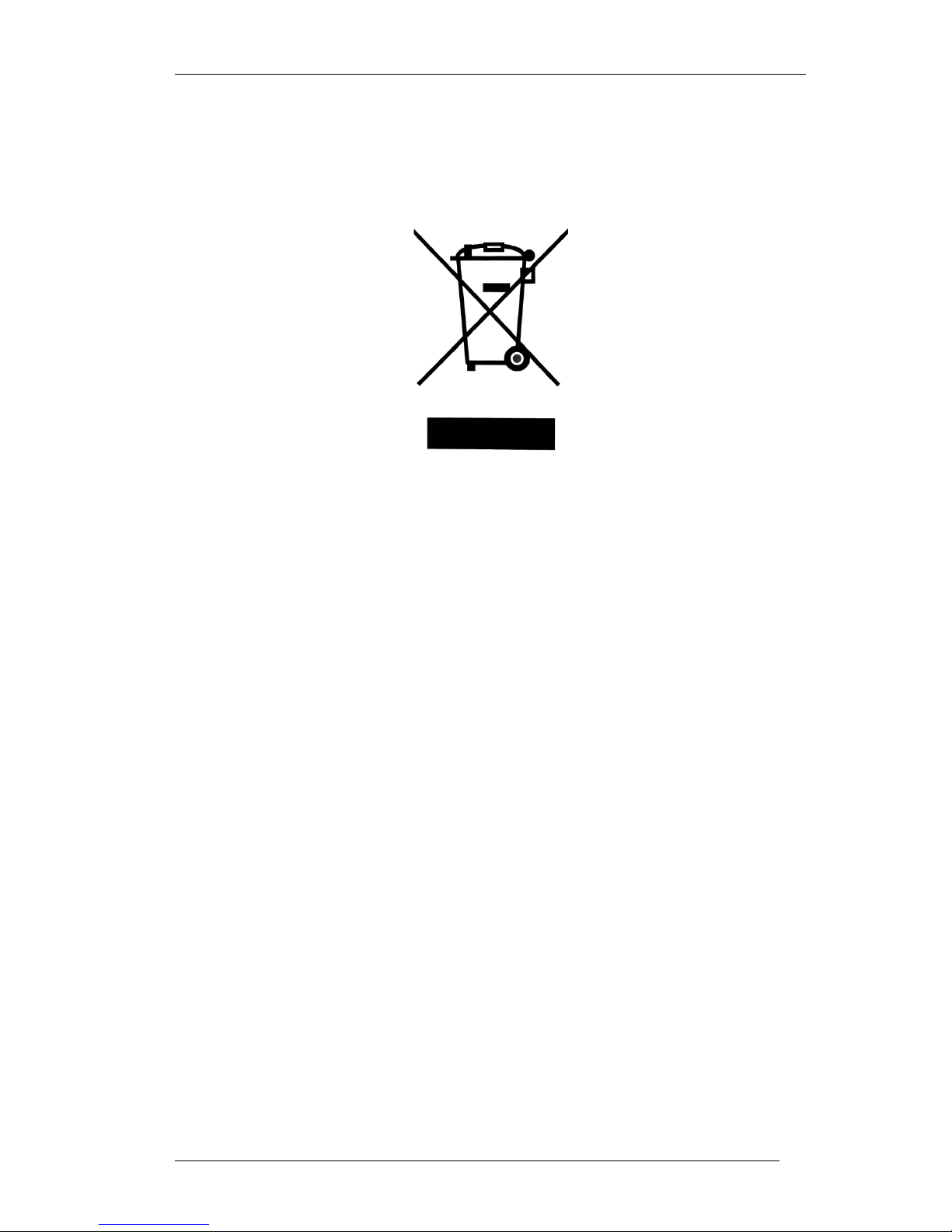

Disposal of old product
The Rigel SafeTest 60 has been designed and manufactured with high quality
materials and components, which can be recycled and reused.
Please familiarise yourself with the appropriate local separate collection system
for electrical and electronic products or contact your local supplier for further
information.
Please dispose of this product according to local regulations. Do not dispose of
this product along with normal waste material. By offering your old products for
recycling, you will help prevent potential negative consequences for the
environment and human health.

Rigel SafeTest 60 Instruction Manual –Revision 1.23
Statement of Conformity
This product is manufactured by:
Seaward Electronic Ltd, Bracken Hill, South West Industrial Estate, Peterlee, County
Durham, SR8 2SW, UK
As the manufacturer of the apparatus listed, we declare under our sole responsibility
that the product:
Rigel SafeTest 60 - Electrical Medical Safety Analyser
Conforms with the relevant Directives and conformity is indicated by the symbol ,
i.e. “Conformité Européenne”
Seaward Electronic Ltd. is registered under BS EN ISO9001 Certificate No.: Q05356.
A copy of the Declaration of Conformity and a copy of our ISO certificate are available
in the Support & Resources area of the Seaward website www.seaward.co.uk".

Rigel SafeTest 60 Instruction Manual –Revision 1.24
Index
1Introduction_____________________________________________________ - 6 -
1.1 Key Features ______________________________________________________ - 6 -
1.2 Rigel SafeTest 60 includes: ___________________________________________ - 6 -
1.3 Interfaces_________________________________________________________ - 7 -
1.4 Optional Accessories________________________________________________ - 8 -
1.5 Unique use of ICONS________________________________________________ - 8 -
2Getting Started _________________________________________________ - 10 -
2.1 Setting your language and preferred test standard ______________________ - 10 -
3Earth bond testing_______________________________________________ - 11 -

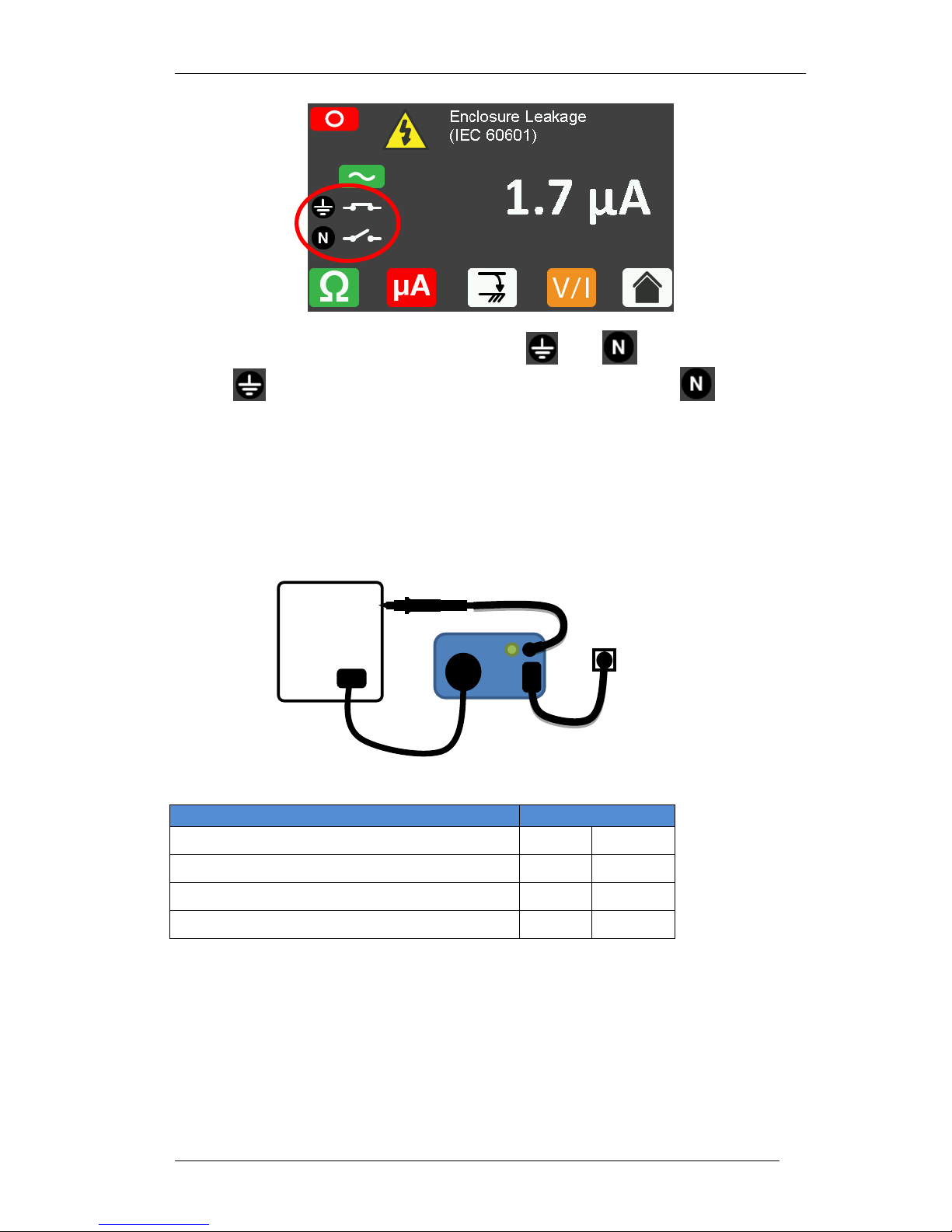

4IEC 60601 LEAKAGE testing________________________________________ - 13 -
4.1 Displaying mains voltage, frequency and load current ____________________ - 15 -
5IEC 62353 LEAKAGE testing________________________________________ - 15 -

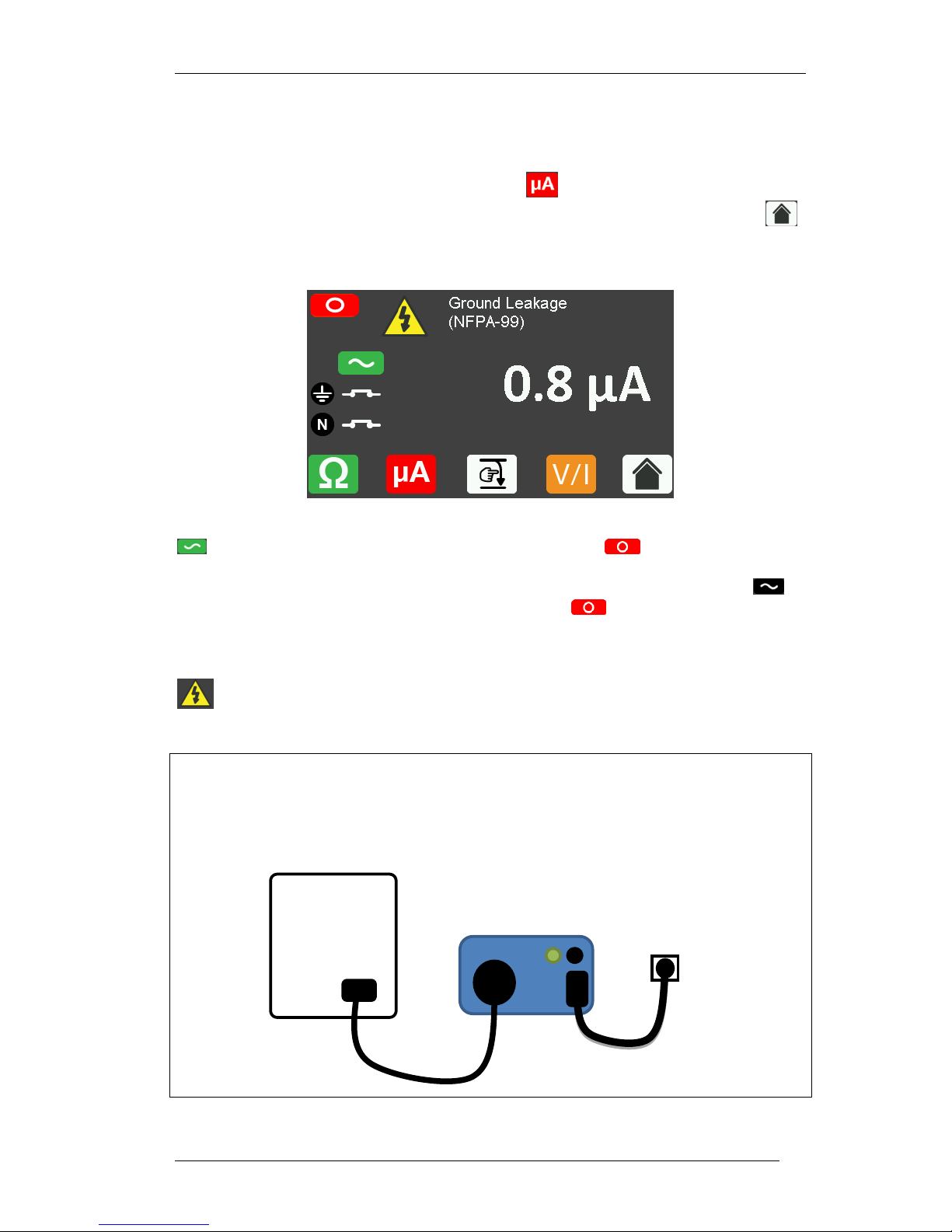

6NFPA-99 LEAKAGE testing_________________________________________ - 17 -

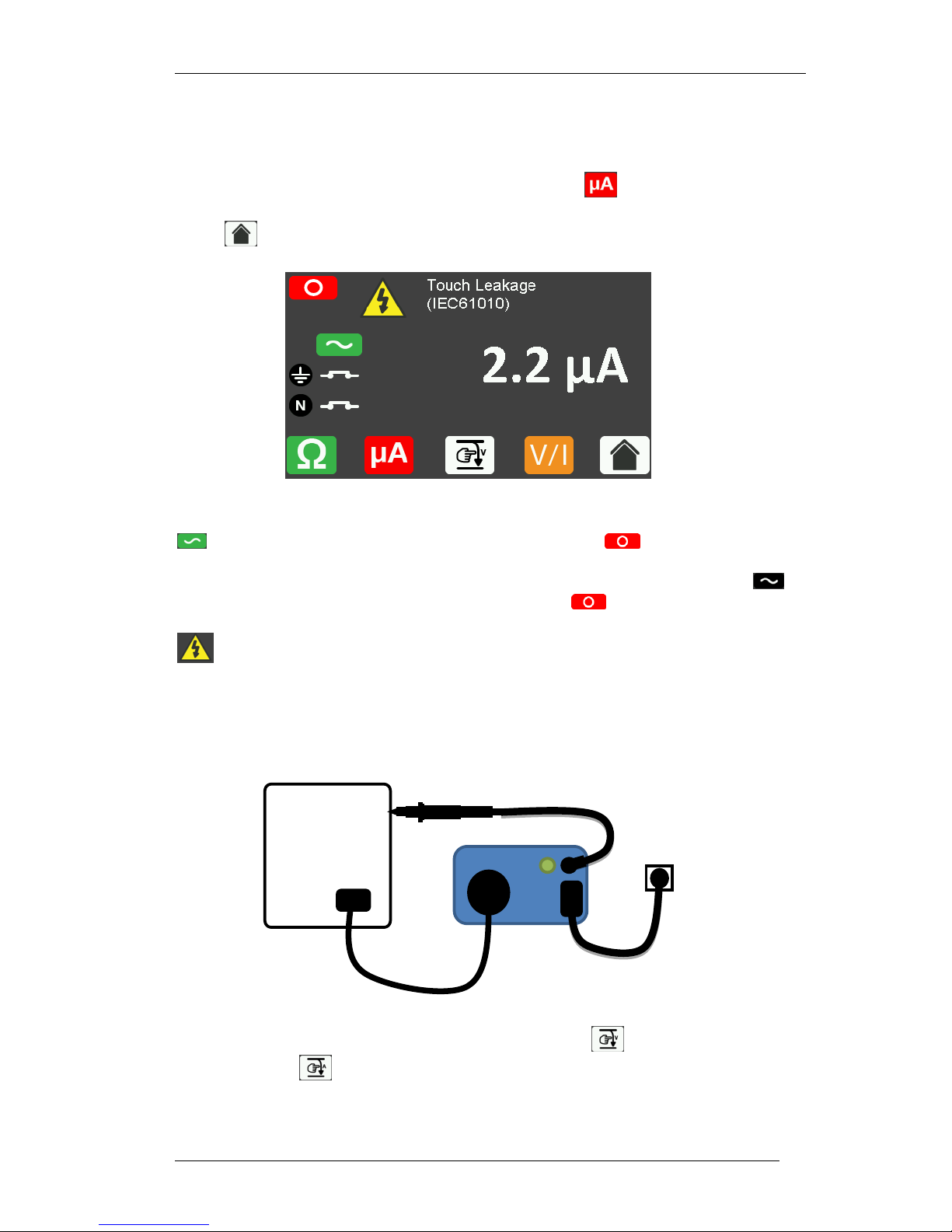

7IEC 61010 TOUCH LEAKAGE & VOLTAGE testing _______________________ - 19 -
8Minimise your power breaks in IEC 60601 ____________________________ - 21 -
9Insulation testing _______________________________________________ - 22 -
10 POINT TO POINT testing __________________________________________ - 23 -
11 WARNING MESSAGES ____________________________________________ - 24 -
12 About _________________________________________________________ - 25 -
13 Maintaining the Rigel SafeTest 60 __________________________________ - 26 -
13.1 Cleaning the Analyser ______________________________________________ - 26 -
13.2 User Maintenance_________________________________________________ - 26 -
13.3 Return Instructions. _______________________________________________ - 26 -
10 Technical Specifications __________________________________________ - 28 -
Appendix A Pass / Fail Limits of IEC 60601-1 ____________________________ - 30 -
Appendix B Pass / Fail limits of IEC 62353 ______________________________ - 31 -
Appendix C Pass / Fail limits of IEC 61010 ______________________________ - 32 -
Appendix D IEC 60601-1 Measuring Device _____________________________ - 33 -

Rigel SafeTest 60 Instruction Manual –Revision 1.25
User Notes
These operating instructions are intended for the use of adequately trained
personnel.
Environmental Conditions
The SafeTest 60 has been designed to be operated in a dry environment, at a
temperature of 0 to 40 degrees C without moisture condensation, and at an operating
altitude 0 –2000m.
The SafeTest 60 has a protection rating of IP40 and is rated for operation at pollution
degree 2 according to IEC 60529.
The following symbols are used in these operating instructions and on the
Rigel SafeTest 60.
Safety Notes
If the SafeTest 60 is used in a manner not specified by these operating instructions then
the protection provided may be impaired.
Only accessories recommended or approved by the manufacturer should be used with
the SafeTest 60.
Do not connect the SafeTest 60 to electrical circuits with nominal voltage greater than
CAT II 300 V AC/DC.
Do not touch test probes beyond the hand barrier on the test probe.
The SafeTest 60 may apply high voltage or mains power to the appliance under test.
Do not touch conductive parts of the appliance while tests are active.
Do not open the SafeTest 60, no user serviceable parts.
Do not operate the SafeTest 60 in an explosive gas or dust environment.
The SafeTest 60 and all associated cables and leads must be checked for signs of
damage before equipment is operated. Do not use if there are signs of damage.
Where safe operation of the SafeTest 60 is no longer possible it should be immediately
shut down and secured to prevent accidental operation.
It must be assumed that safe operation is no longer possible:
- if the instrument or leads show visible signs of damage or
- the instrument does not function or
- after long periods of storage under adverse environmental conditions.
To verify the correct operation of the unit, perform test functions using a known
appliance or checkbox or return the unit to an approved agent for service.
Symbol used for tips and guidance notes in this manual.

Rigel SafeTest 60 Instruction Manual –Revision 1.26
1 Introduction
The Rigel SafeTest 60 is a dedicated medical safety analyser, ideal for testing high volumes of
basic medical and laboratory equipment. A robust and reliable design ensures that the SafeTest
60 can withstand a busy schedule of testing medical equipment that does not require patient
lead testing, such as beds, hoists, infusion pumps, CPAP’s and centrifuges etc.
With a large colour display and a colour-coded user interface, it’s easy to select the required
tests with a single key press, whilst a fast step-through of the test routine makes the testing
process speedy and dependable. Whilst small, the SafeTest 60 includes a range of safety tests
to enable compliance with a range of international safety standards, including leakage testing to
IEC 60601, 62353 and 61010, earth bond testing to 62353 and 61010 (Annex F).
Full manual control offers the benefit of executing only those specific tests that are required and
provide the user with full control of the power cycles, making testing simple, easy and fast. An
automatic warning of secondary earth/ground paths ensures users are made aware when invalid
readings are made, thus ensuring correct and accurate test results first time, every time.
1.1 Key Features
Compact, robust and portable design
Fast step-through of test routines with minimised power breaks
Manual control of fault conditions
Tests to a range of international standards including IEC 60601, 62353, 61010 and
NFPA-99
Insulation testing to IEC 62353
Large colour display with clear read-out
Secondary earth warnings to ensure valid test setup
Accurate high current, low energy earth bond testing
Supplied with free, protective carry case
Multi voltage - operates on any mains supply between 90-264V / 48-64Hz

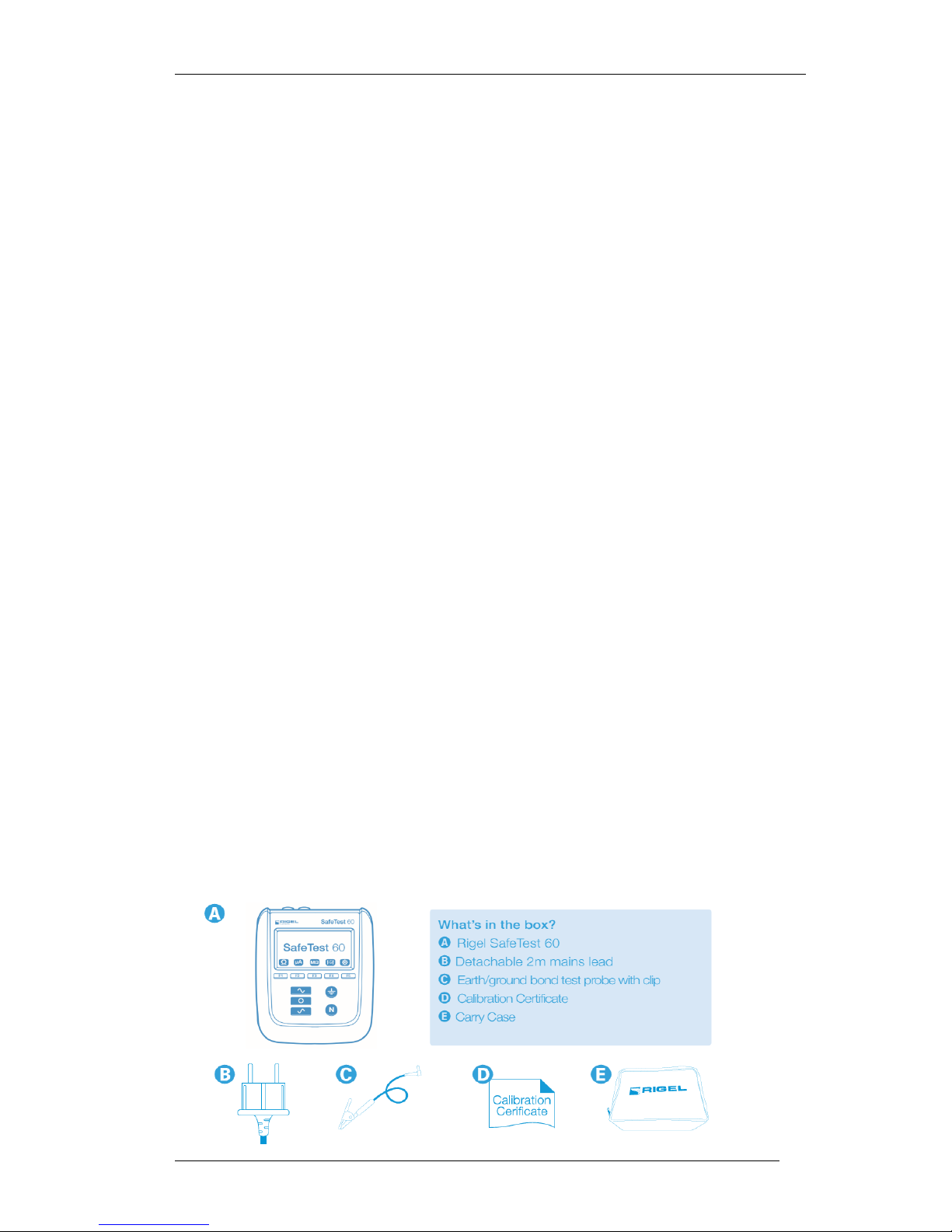

1.2 Rigel SafeTest 60 includes:
Calibration certificate
Carrying case
Bond test probe with clip
Detachable mains cable
Electronic instruction manual (from website)
Quick start guide

Rigel SafeTest 60 Instruction Manual –Revision 1.27
1.3 Interfaces
DUT socket,
16A –230 VAC
Earth bond and
Enclosure
leakage probe.
Mains inlet
90-264 VAC
48-64Hz
Point to point
auxiliary probe.
EUT socket,
90-264 VAC,
48-64Hz
Mains START, STOP,
REVERSED keys
Single Fault OPEN
EARTH –OPEN
NEUTRAL
Function keys
F1-F5

Rigel SafeTest 60 Instruction Manual –Revision 1.28
1.4 Optional Accessories
Earthbond cable 44B154
Carry case 410A950

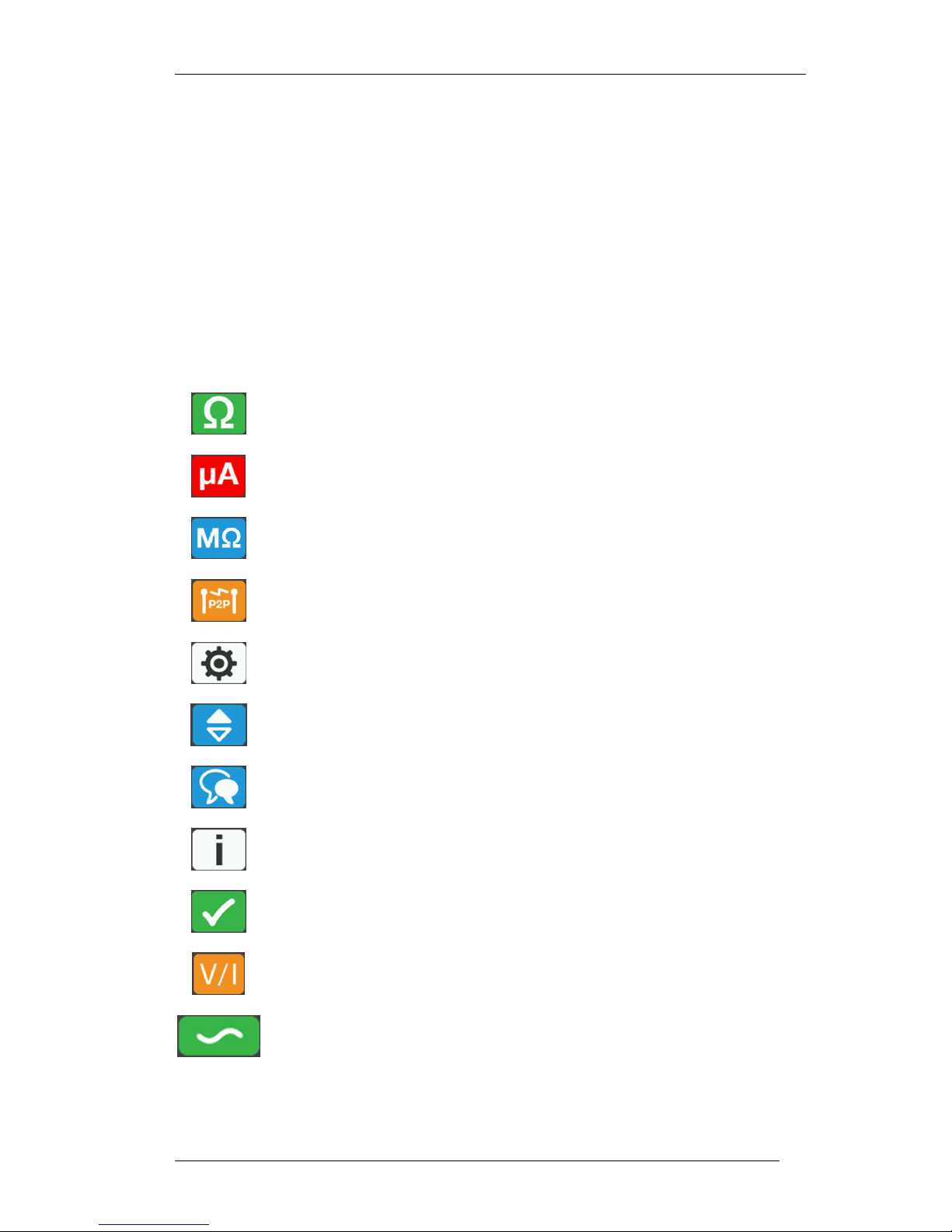

1.5 Unique use of ICONS
The Rigel SafeTest 60 features a hi resolution colour graphic back lit display provides a
unique user experience and to help guide the user through the different test steps.
Below are of some of the icons used in the Rigel SafeTest 60:
Select EARTH BOND TESTING
Select LEAKAGE TESTING
Select INSULATION TESTING
Select POINT TO POINT TESTING
Select SETTINGS menu (change LANGUAGE and TEST STANDARD)
Select to the required standard
Change to the required language
Product information, serial number
Confirm / OK
Display Line voltage, frequency and load current
Applies normal mains to EUT

Rigel SafeTest 60 Instruction Manual –Revision 1.29
Interrupts mains to EUT
Applies reversed mains to the EUT
Warning, EUT socket live
Warning, 500VDC supplied to EUT
Select Earth leakage (in IEC60601 setting)
Select Enclosure leakage (in IEC60601 setting)
Select Touch Leakage (in IEC61010 setting)
Select Touch Voltage (in IEC61010 setting)
Open EARTH single fault condition key
Open NEUTRAL single fault condition key
Earthbond test lead compensated
Earthbond test running
Go to HOME SCREEN

Rigel SafeTest 60 Instruction Manual –Revision 1.210
2 Getting Started
The Rigel SafeTest 60 is pre-programmed to perform electrical safety tests in
accordance with a variety of international standards. To get started, simply
follow these instructions;
Switch ON:
To switch on the Rigel SafeTest 60, please insert the mains cable to the power
inlet, the SafeTest 60 will automatically power up in the HOME SCREEN.
2.1 Setting your language and preferred test standard
From the home screen, select SETTINGS to select the required language and
test standard;
SETTINGS MENU
Press from HOME screen to enter SETTINGS menu;
Press the key to change to the required language
Press the key to change to the required test standard

Rigel SafeTest 60 Instruction Manual –Revision 1.211
Press the key to view the firmware and hardware information
Press the key confirm and return to the HOME menu
The Rigel SafeTest 60 will store the most recent settings in the
SETTINGS MENU.

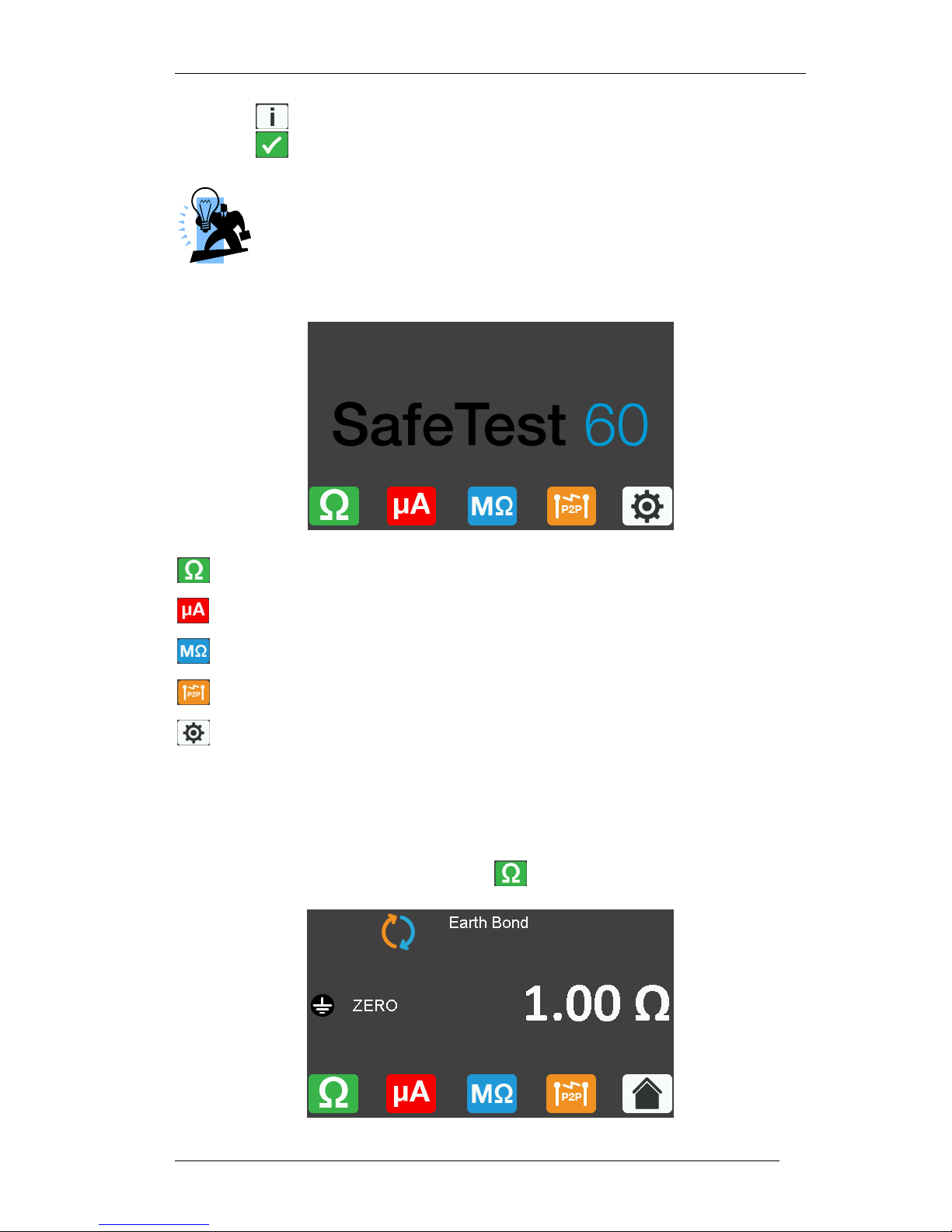

From the home screen, select the required test;
To select EARTH BOND TESTING
To select LEAKAGE TESTING
To select INSULATION TESTING
To select POINT TO POINT TESTING
To select SETTINGS menu (change LANGUAGE and TEST
STANDARD
3 Earth bond testing
To perform an earthbond test, select the icon from HOME screen.

Rigel SafeTest 60 Instruction Manual –Revision 1.212
The SafeTest 60 will automatically start the test when it is selected and will
automatically stop by pressing the LEAKAGE, INSULATION, POINT TO POINT
or HOME icon.
Connection between EUT and SafeTest 60;
EARTHBOND TESTING
Each time the earthbond probe is placed on a new test point, the
zap circuit will be reactivated, ensuring accurate readings at
every measurement point.
Do not exceed the maximum permitted voltage of 30 V AC/DC with
respect to earth potential! Electric Shock danger!
To compensate for the test cable resistance, connect the test cable between the
black earthbond socket and the EUT earth, then press the button on the
front panel.
When the lead compensation is activated, the icon will appear on the
screen.
To remove the lead compensation, remove the probe and press the button.
When different earthbond cables are used, the NULL function must
be repeated for each different cable.
Switching off the Rigel SafeTest 60 will not cancel the ‘probe zero’.
M
ai
n
s
in
M
ai
n
s

Rigel SafeTest 60 Instruction Manual –Revision 1.213

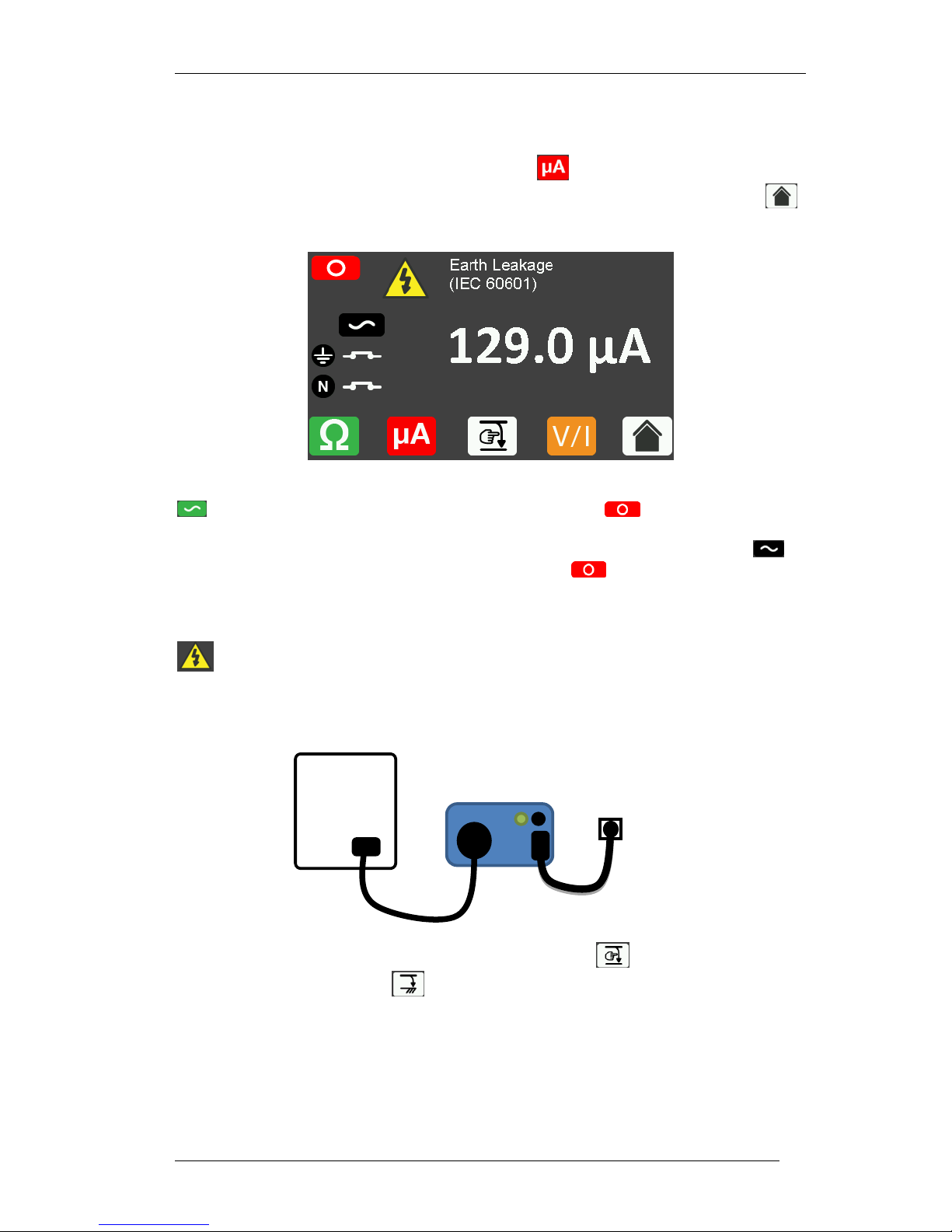

4 IEC 60601 LEAKAGE testing
To perform an IEC 60601 leakage test, press from HOME screen to enter
LEAKAGE test. If the required test standard needs to change, please press
HOME and see 2.1.
To apply mains voltage in NORMAL POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To apply mains in REVERSED POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To minimise the power breaks during your tests, please see 8.
will appear on the screen when the DUT socket is activated.
Connection between EUT and SafeTest 60;
EARTH LEAKAGE
When the SafeTest 60 is set to test to IEC 60601, the will go to
ENCLOSURE leakage and to EARTH leakage.

Rigel SafeTest 60 Instruction Manual –Revision 1.214
To activate single fault conditions, use the and buttons on the front
panel. opens the EARTH fault condition relay whilst the opens the
NEUTRAL fault condition relay.
The leakage screen will indicate the current state of the selected fault conditions;
Connection between EUT and SafeTest 60;
ENCLOSURE LEAKAGE
ALL Applied Parts
Leakage Current Type
NC
SFC
Earth Leakage (3rd edition)*
5mA
10mA
Earth Leakage (General)
0.5mA
1mA
Enclosure Leakage
0.1mA
0.5mA
* The pass fail limit for Earth Leakage in the 3rd edition of IEC 60601 has been increased from
500μA under normal condition to 5000μA for class I equipment with NO exposed metal parts that
may become live when a fault appears.
M
ai
n
s
i
n
M
ai
n
s

Rigel SafeTest 60 Instruction Manual –Revision 1.215
4.1 Displaying mains voltage, frequency and load current
During a leakage test, the mains voltage, frequency and load current can be
displayed by pressing the .
5 IEC 62353 LEAKAGE testing
To perform an IEC 62353 leakage test, press from HOME screen to enter
LEAKAGE test. If the required test standard needs to change, please press
HOME and see 2.1.
To apply mains voltage in NORMAL POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To apply mains in REVERSED POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To minimise the power breaks during your tests, please see 8.

Rigel SafeTest 60 Instruction Manual –Revision 1.216
will appear on the screen when the DUT socket is activated.
When the SafeTest 60 is set to test to IEC 62353, the SINGLE FAULT buttons
and are deactivated in order to perform the test as per IEC 62353
requirements.
Connection between EUT and SafeTest 60;
EQUIPMENT LEAKAGE IEC 62353
Current in µA (RMS)
ALL APPLIED PART
Equipment leakage –direct method.
–Class I Equipment
–Class II Equipment (touch current)
0.5mA
0.1mA
M
ai
ns
in
M
ai
ns

Rigel SafeTest 60 Instruction Manual –Revision 1.217
6 NFPA-99 LEAKAGE testing
To perform an NFPA-99 leakage test, press from HOME screen to enter
LEAKAGE test. If the required test standard needs to change, please press
HOME and see 2.1.
To apply mains voltage in NORMAL POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To apply mains in REVERSED POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To minimise the power breaks during your tests, please see 8.
will appear on the screen when the DUT socket is activated.
Connection between EUT and SafeTest 60;
GROUND LEAKAGE NFPA-99
M
ai
ns
in
M
ai
ns

Rigel SafeTest 60 Instruction Manual –Revision 1.218
When the SafeTest 60 is set to test to NFPA-99, the will go to CHASSIS
leakage and to GROUND leakage.
To activate single fault conditions, use the and buttons on the front
panel. opens the EARTH fault condition relay whilst the opens the
NEUTRAL fault condition relay.
The leakage screen will indicate the current state of the selected fault conditions;
Connection between EUT and SafeTest 60;
CHASSIS LEAKAGE NFPA-99
For all applied parts
Leakage Current Type
NC
SFC
Ground Leakage
0.3mA
1mA
Chassis Leakage
0.1mA
0.5mA
M
ai
ns
in
M
ai
ns

Rigel SafeTest 60 Instruction Manual –Revision 1.219
7 IEC 61010 TOUCH LEAKAGE & VOLTAGE testing
To perform an IEC 61010 touch leakage test, press from HOME screen to
enter LEAKAGE test. If the required test standard needs to change, please
press HOME and see 2.1.
To apply mains voltage in NORMAL POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
To apply mains in REVERSED POLARITY and START the test, press the
button on the front panel. The test will run until the button is pressed.
will appear on the screen when the DUT socket is activated.
Connection between EUT and SafeTest 60;
TOUCH LEAKAGE AND TOUCH VOLTAGE IEC 61010
When the SafeTest 60 is set to test to IEC 61010, the will go to TOUCH
VOLTAGE and to TOUCH LEAKAGE.
M
ai
ns
in
M
ai
ns
