RIGHT ANGLE HSTVMT User manual

www.raproducts.com
Page1 OF 4
Read all the instructions before beginning.
Instruction # 53578
K&A Manufacturing
Hardware Pack # 53577
Version Dated:10/19/15
6703 Zinser Street
Schofield, WI 54476
Phone: [phone]
Fax: [phone]
HSTVMT Monitor/TV Hover
Mount Assembly Instructions

5
Step 1a
3
1
Step 1b
1
5
3
Page 2 OF 4
K&A Manufacturing
6703 Zinser Street Schofield, WI 54476
Phone: [phone]
Fax: [phone]
www.raproducts.com

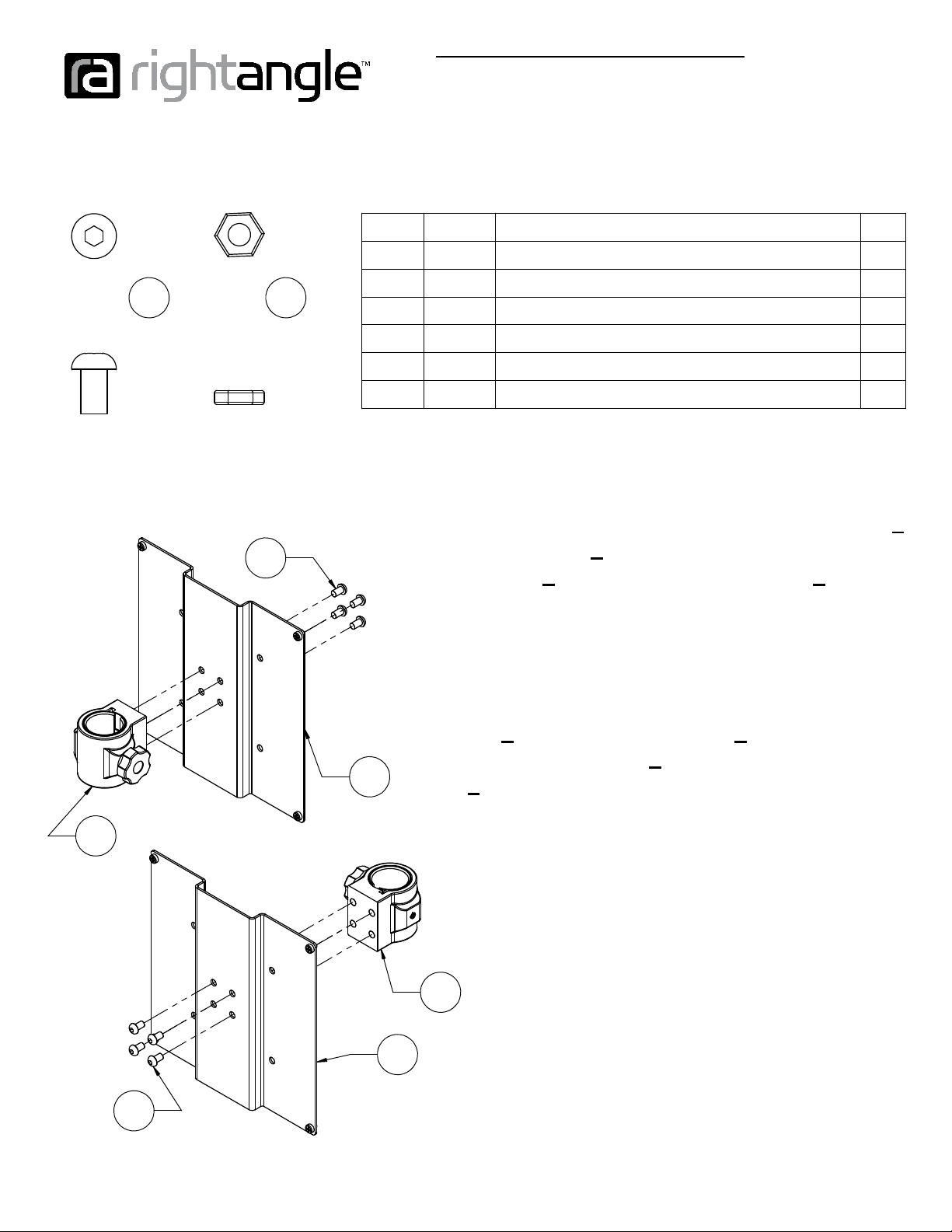

Tools Required for Assembly:
Power Driver W/Adjustable Torque
5/32" Hex Head Driver Bit or
Allen Wrench
10mm Wrench or Socket
Hardware Pack# 53577
Is Drawn Actual Size
Instruction # 53578
ITEM # PART # DESCRIPTION QTY.
1 801507 Monitor/TV Ho er Mounting Plate 1
2 801508 Monitor/TV Ho er Side Wing 2
3 52721 M6-1.0x8mm Truss Head Machine Screw 8
4 53252 M6-1 Hex Jam Nut 3mm Thick 4
5 801510 Monitor/TV Ho er Mount Pole Joint 1
6 52743 Ho er 27.6" Pole 1
52721 53252
3 4
Step 1a: If you are mounting a small TV or monitor
with 100mm distance between the mounting holes,
use Step 1a. This setup will not use the side wings 2.
Attach the pole joint 5to the raised side of the
mounting plate 1using (4) machine screws 3. Fully
tighten.
Step 1b: If you are mounting a large TV or monitor
with 200mm or 400mm distance between the
mounting holes, use Step 1b. This setup will use the
side wings 2. Attach the pole joint 5to the recessed
side of the mounting plate 1using (4) machine
screws 3. Fully tighten

Instruction # 53578 Page 3 OF 4
K&A Manufacturing
6703 Zinser Street Schofield, WI 54476
Phone: [phone]
Fax: [phone]
www.raproducts.com
Step 2: Do this step only if you have a large
TV or monitor with 200mm or 400mm between
the mounting holes. Insert (4) machine
screws 3through the holes in the narrow
flange of the side wings 2and the outermost
holes in the mounting plate 1. Thread (4)
nuts 4onto the screws and fully tighten.
Step 3a: Place your monitor on a protected
surface face down. Attach the mounting plate
assembly to your monitor or small TV using (4)
machine screws (not included) through the
inner holes that are 100mm apart in the
mounting plate 1. Fully tighten.
Step 3b: Place your TV or large monitor on a
protected surface face down. Attach the side
wings 2to the back of your TV or large monitor
using either the holes that are 200mm or
400mm apart. Use (4) machine screws (not
included). Fully tighten.
2
Step 3a
3
4
Step 2
1
2
Step 3b
1
1

6703 Zinser Street Schofield, WI 54476
Page 4 OF 4
K&A Manufacturing
Instruction # 53578
Phone: [phone]
Fax: [phone]
www.raproducts.com
Step 4: Attach the pole 6to the worksurface using
the instructions that came with it.
Step 5: With the help of an assistant, place the
mounting assembly's pole joint 5onto the pole 6.
Set it at the height desired and tighten the clamp
on the pole joint. This step is the same whether
or not the side wings 2are used.
5
6
2
