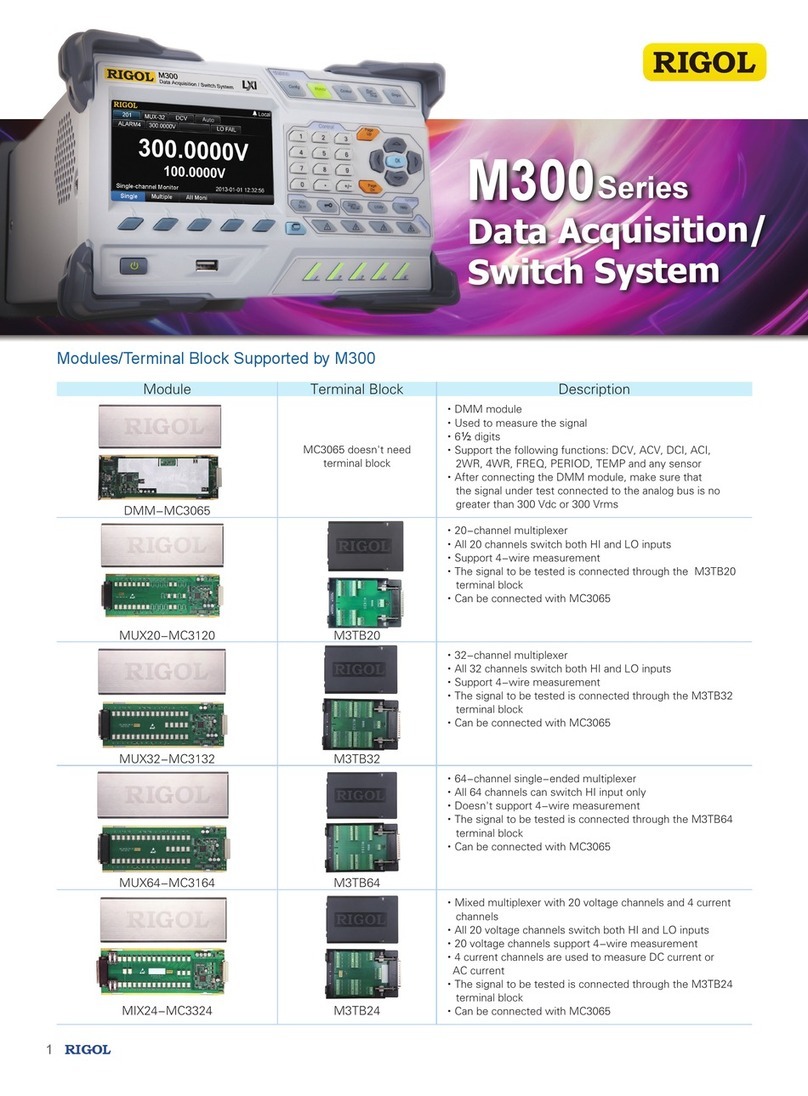

Rigol M300 Series User manual

RIGOL
User’s Guide
M300 Series
Data Acquisition/Switch System
Dec. 2014
RIGOL Technologies, Inc.

RIGOL
M300 User’s Guide I
Guaranty and Declaration
Copyright
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
UGC07110-1110
Software Version
00.02.00.04.19
Software upgrade might change or add product features. Please acquire the latest
version of the manual from RIGOL website or contact RIGOL to upgrade the
software.
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
Information in this publication is subject to change without notice.
RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use or performance of this manual as well as
any information contained.
Any part of this document is forbidden to be copied, photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards
in China as well as the ISO9001:2008 standard and the ISO14001:2004 standard.
Other international standard conformance certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this manual,
please contact RIGOL.
E-mail: [e-mail]
Website: www.rigol.com

RIGOL
II M300 User’s Guide
Safety Requirement
General Safety Summary
Please review the following safety precautions carefully before putting the
instrument into operation so as to avoid any personal injury or damage to the
instrument and any product connected to it. To prevent potential hazards, please
use the instrument only specified by this manual.
Use Proper Power Cord.
Only the power cord designed for the instrument and authorized for use within the
local country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord.
To avoid electric shock, it is essential to connect the earth terminal of the power
cord to the Protective Earth terminal before connecting any inputs or outputs.
Connect the Probe Correctly.
If a probe is used, do not connect the ground lead to high voltage since it has
isobaric electric potential as the ground.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe all ratings and markers on the instrument
and check your manual for more information about ratings before connecting the
instrument.
Use Proper Overvoltage Protection.
Make sure that no overvoltage (such as that caused by a thunderstorm) can reach
the product, or else the operator might be exposed to the danger of electrical
shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.

RIGOL
M300 User’s Guide III
Do Not Insert Anything Into the Holes of Fan.
Do not insert anything into the holes of the fan to avoid damaging the instrument.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered.
Do Not Operate With Suspected Failures.
If you suspect damage occurs to the instrument, have it inspected by RIGOL
authorized personnel before further operations. Any maintenance, adjustment or
replacement especially to circuits or accessories must be performed by RIGOL
authorized personnel.
Keep Well Ventilation.
Inadequate ventilation may cause an increase of instrument temperature which
would cause damage to the instrument. So please keep the instrument well
ventilated and inspect the intake and fan regularly.
Do Not Operate in Wet Conditions.
In order to avoid short circuiting to the interior of the device or electric shock,
please do not operate the instrument in a humid environment.
Do Not Operate in an Explosive Atmosphere.
In order to avoid damage to the device or personal injuries, it is important to
operate the device away from an explosive atmosphere.
Keep Product Surfaces Clean and Dry.
To avoid the influence of dust and/or moisture in the air, please keep the surface of
the device clean and dry.
Electrostatic Prevention.
Operate the instrument in an electrostatic discharge protective environment to
avoid damage induced by static discharges. Always ground both the internal and
external conductors of cables to release static before making connections.

RIGOL
IV M300 User’s Guide
Proper Use of Battery.
If a battery is supplied, it must not be exposed to high temperature or in contact
with fire. Keep it out of the reach of children. Improper change of battery (note:
lithium battery) may cause explosion. Use RIGOL specified battery only.
Handling Safety.
Please handle with care during transportation to avoid damage to buttons, knob
interfaces and other parts on the panels.

RIGOL
M300 User’s Guide V
Safety Terms and Symbols
Terms Used in this Manual. These terms may appear in this manual:
WARNING
Warning statements indicate conditions or practices that could result in
injury or loss of life.
CAUTION
Caution statements indicate conditions or practices that could result in
damage to this product or other property.
Terms Used on the Product. These terms may appear on the Product:
DANGER
It calls attention to an operation, if not correctly performed, could
result in injury or hazard immediately.
WARNING It calls attention to an operation, if not correctly performed, could
result in potential injury or hazard.
CAUTION It calls attention to an operation, if not correctly performed, could
result in damage to the product or other devices connected to the
product.
Symbols Used on the Product. These symbols may appear on the product:
Hazardous
Voltage
Safety
Warning
Protective
Earth
Terminal
Chassis
Ground
Test
Ground

RIGOL
VI M300 User’s Guide
Allgemeine Sicherheits Informationen
Überprüfen Sie diefolgenden Sicherheitshinweise
sorgfältigumPersonenschädenoderSchäden am Gerätundan damit verbundenen
weiteren Gerätenzu vermeiden. Zur Vermeidung vonGefahren, nutzen Sie bitte das
Gerät nur so, wiein diesem Handbuchangegeben.
Um Feuer oder Verletzungen zu vermeiden, verwenden Sie ein
ordnungsgemäßes Netzkabel.
Verwenden Sie für dieses Gerät nur das für ihr Land zugelassene und genehmigte
Netzkabel.
Erden des Gerätes.
Das Gerät ist durch den Schutzleiter im Netzkabel geerdet. Um Gefahren durch
elektrischen Schlag zu vermeiden, ist es unerlässlich, die Erdung durchzuführen. Erst
dann dürfen weitere Ein- oder Ausgänge verbunden werden.
Anschluss einesTastkopfes.
Die Erdungsklemmen der Sonden sindauf dem gleichen Spannungspegel des
Instruments geerdet. SchließenSie die Erdungsklemmen an keine hohe Spannung
an.
Beachten Sie alle Anschlüsse.
Zur Vermeidung von Feuer oder Stromschlag, beachten Sie alle Bemerkungen und
Markierungen auf dem Instrument. Befolgen Sie die Bedienungsanleitung für weitere
Informationen, bevor Sie weitere Anschlüsse an das Instrument legen.
Verwenden Sie einen geeigneten Überspannungsschutz.
Stellen Sie sicher, daß keinerlei Überspannung (wie z.B. durch Gewitter verursacht)
das Gerät erreichen kann. Andernfallsbestehtfür den Anwender die
GefahreinesStromschlages.
Nicht ohne Abdeckung einschalten.
Betreiben Sie das Gerät nicht mit entfernten Gehäuse-Abdeckungen.
Betreiben Sie das Gerät nicht geöffnet.
Der Betrieb mit offenen oder entfernten Gehäuseteilen ist nicht zulässig. Nichts in
entsprechende Öffnungen stecken (Lüfter z.B.)
Passende Sicherung verwenden.
Setzen Sie nur die spezifikationsgemäßen Sicherungen ein.
Vermeiden Sie ungeschützte Verbindungen.
Berühren Sie keine unisolierten Verbindungen oder Baugruppen, während das Gerät

RIGOL
M300 User’s Guide VII
in Betrieb ist.
Betreiben Sie das Gerät nicht im Fehlerfall.
Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät
wieder betreiben, dass eine Untersuchung durch RIGOL autorisiertem Personal
durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am
Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal
durchgeführt werden.
Belüftung sicherstellen.
Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen
Schäden am Gerät führen. Stellen Sie deswegen die Belüftung sicher und
kontrollieren regelmäßig Lüfter und Belüftungsöffnungen.
Nicht in feuchter Umgebung betreiben.
Zur Vermeidung von Kurzschluß im Geräteinneren und Stromschlag betreiben Sie das
Gerät bitte niemals in feuchter Umgebung.
Nicht in explosiver Atmosphäre betreiben.
Zur Vermeidung von Personen- und Sachschäden ist es unumgänglich, das Gerät
ausschließlich fernab jedweder explosiven Atmosphäre zu betreiben.
Geräteoberflächen sauber und trocken halten.
Um den Einfluß von Staub und Feuchtigkeit aus der Luft auszuschließen, halten Sie
bitte die Geräteoberflächen sauber und trocken.
Schutz gegen elektrostatische Entladung (ESD).
Sorgen Sie für eine elektrostatisch geschützte Umgebung, um somit Schäden und
Funktionsstörungen durch ESD zu vermeiden. Erden Sie vor dem Anschluß immer
Innen- und Außenleiter der Verbindungsleitung, um statische Aufladung zu entladen.
Die richtige Verwendung desAkku.
Wenneine Batterieverwendet wird, vermeiden Sie hohe Temperaturen bzw. Feuer
ausgesetzt werden. Bewahren Sie es außerhalbder Reichweitevon Kindern auf.
UnsachgemäßeÄnderung derBatterie (Anmerkung: Lithium-Batterie) kann zu einer
Explosion führen. VerwendenSie nur von RIGOLangegebenenAkkus.
Sicherer Transport.
Transportieren Sie das Gerät sorgfältig (Verpackung!), um Schäden an
Bedienelementen, Anschlüssen und anderen Teilen zu vermeiden.

RIGOL
VIII M300 User’s Guide
Sicherheits Begriffe und Symbole
Begriffe in diesem Guide. Diese Begriffe können in diesem Handbuch auftauchen:
WARNING
Die Kennzeichnung WARNING beschreibt Gefahrenquellen die leibliche
Schäden oder den Tod von Personen zur Folge haben können.
CAUTION
Die Kennzeichnung Caution (Vorsicht) beschreibt Gefahrenquellen die
Schäden am Gerät hervorrufen können.
Begriffe auf dem Produkt. Diese Bedingungen können auf dem Produkt
erscheinen:
DANGER
weist auf eine Verletzung oder Gefährdung hin, die sofort
geschehen kann.
WARNING
weist auf eine Verletzung oder Gefährdung hin, die möglicherweise
nicht sofort geschehen.
CAUTION
weist auf eine Verletzung oder Gefährdung hin und bedeutet, dass
eine mögliche Beschädigung des Instruments oder anderer
Gegenstände auftreten kann.
Symbole auf dem Produkt. Diese Symbole können auf dem Produkt erscheinen:
GefährlicheS
pannung Sicherheits- Hinweis Schutz-erde Gehäusemasse Erde

RIGOL
M300 User’s Guide
IX
General Care and Cleaning
General Care
Do not store or leave the instrument where it may be exposed to direct sunlight for
long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions. To clean the
exterior surface, perform the following steps:
1. Disconnect the instrument from all power sources.
2. Clean the loose dust on the outside of the instrument with a lint-free cloth (with
a mild detergent or water). When cleaning the LCD, take care to avoid scarifying
it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic liquids.
WARNING
To avoid injury resulting from short circuit, make sure the instrument is
completely dry before reconnecting to a power source.
Environmental Considerations
The following symbol indicates that this product complies with the applicable WEEE
Directive 2002/96/EC.
Product End-of-Life Handling
The equipment may contain substances that could be harmful to the environment or
human health. In order to avoid release of such substances into the environment and
harm to human health, we encourage you to recycle this product in an appropriate
system that will ensure that most of the materials are reused or recycled
appropriately. Please contact your local authorities for disposal or recycling
information.

RIGOL
X M300 User’s Guide
M300 Overview
The M300 series data acquisition/switch system provides 5 slots to accept any
combination of 8 kinds of plug-in modules, including a DMM module, multiple
multiplexers, an actuator, a matrix switch module and a multifunction module. With
its modular structure, it combines precision measurement capability with flexible
signal connections and can provide versatile solutions for the applications that
require multiple points or signals to be tested. This can be especially useful in
product performance testing during the R&D phase, and automatic test during
production process.
It comes with a 4.3 inch high-resolution color LCD, user-friendly interface design,
easy-to-use keyboard layout as well as clear key backlight and operation prompts.
The M300 is extremly flexible and easy to use. For remote control versatility, it comes
with RS232, USB, LAN and GPIB interfaces standard.
Main Features:
Up to 320 switch channels per mainframe (with very low cost per channel)
Can run independently without PC
USB data logging
Interval scanning with storage of up to 100,000 time-stamped readings
8 modules supported
6½ digit DMM can be inserted into any slot. It also supports multiple
measurement functions, including DCV, DCI, ACV, ACI, 2WR, 4WR, PERIOD,
FREQ, TEMP (Thermocouple, Thermistor and RTD) and any sensor.
Standard multiple communication interface: USB Device, USB Host, GPIB,
LAN(LXI Core 2011 Device) and RS232
Standard SCPI commands for remote programming capability
Math statistics function: AVG, MAX, MIN and SDEV
Friendly interface
Built-in help system
Multiple system language
4.3 inch color LCD
PC control and analysis software

RIGOL
M300 User’s Guide
XI
Document Overview
Main topics in this manual:
Chapter 1 Quick Guide
This chapter introduces the front panel, rear panel, user interface and plug-in
modules of the M300 as well as the precautions when using it for the first time.
Chapter 2 Front Panel Operations
This chapter introduces in details the front panel operation methods and functions of
M300.
Chapter 3 To Use External DMM
This chapter illustrates the method of connecting external DMM and configuring scan
list to scan.
Chapter 4 Remote Control
This chapter introduces how to control the M300 remotely.
Chapter 5 Troubleshooting
This chapter introduces the commonly encountered failures and their solutions.
Chapter 6 Specifications
This chapter provides the performance specifications and general technical
parameters of the M300.
Chapter 7 Appendix
This chapter provides the accessory list of the M300 as well as service and support
information.

RIGOL
XII M300 User’s Guide
Format Conventions in this Manual:
1. Key:
The front panel key is denoted by the format of “Text Box + Button Name (Bold)”.
For example, Utility denotes the Utility key.
2. Menu:
The menu is denoted by the format of “Character Shading + Menu Word (Bold)”.
For example, System denotes the system menu item of the Utility function
key.
3. Operation Steps:
The next step of operation is denoted by an arrow “”. For example, Utility 
System denotes pressing Utility at the front panel and then pressing System.
User Manuals of This Product:
The main user manuals of this product include the Quick Guide, User’s Guide,
Programming Guide and Data sheet. Users can download the desired manual from
www.rigol.com.

Contents RIGOL
M300 User’s Guide
XIII
Contents
Guaranty and Declaration.........................................................................I
Safety Requirement................................................................................II
General Safety Summary...........................................................................II
Safety Terms and Symbols ........................................................................V
Allgemeine Sicherheits Informationen........................................................VI
Sicherheits Begriffe und Symbole............................................................VIII
General Care and Cleaning.......................................................................IX
Environmental Considerations...................................................................IX
M300 Overview........................................................................................X
Document Overview............................................................................... XI
Chapter 1 Quick Guide........................................................................1-1
General Inspection ................................................................................ 1-2
Appearance and Dimensions................................................................... 1-3
Front Panel........................................................................................... 1-4
Rear Panel............................................................................................ 1-8
Power On Inspection ............................................................................1-12
User Interface......................................................................................1-13
To Input Filename ................................................................................1-14
Plug-in Module Overview.......................................................................1-16
Outside View Drawing of the Module................................................1-16
Insert the Module into the Mainframe ..............................................1-17
Module Overview...........................................................................1-18
To Use the Built-in Help System.............................................................1-20
Measurement Connections ....................................................................1-21
To Replace the Fuse .............................................................................1-25
Menu Quick Navigation .........................................................................1-26
Config ..........................................................................................1-26
Monitor.........................................................................................1-27
View Switch Key ............................................................................1-27
Control .........................................................................................1-28
Alarm Channel Setting Keys ............................................................1-28
Chapter 2 Front Panel Operations ......................................................2-1
Scan Configuration................................................................................ 2-2
Scan List........................................................................................ 2-2
Trigger Mode.................................................................................. 2-8
Channel Configuration....................................................................2-12
Channel Configuration When Using External DMM.............................2-21
Measurement Parameter Configuration ............................................2-22
Digital Input..................................................................................2-35
Totalizer........................................................................................2-37

RIGOL Contents
XIV M300 User’s Guide
Configuration Copy........................................................................2-39
Channel Monitor...................................................................................2-44
Single-channel Monitor...................................................................2-44
Multi-channel Monitor ....................................................................2-46
All Channel Monitor........................................................................2-46
Module Control ....................................................................................2-47
To Control MC3120 ........................................................................2-48
To Control MC3132 ........................................................................2-51
To Control MC3164 ........................................................................2-54
To Control MC3324 ........................................................................2-56
To Control MC3416 ........................................................................2-59
To Control MC3534 ........................................................................2-61
To Control MC3648 ........................................................................2-64
Alarm Channel Setting..........................................................................2-66
View Switch.........................................................................................2-68
Scan History Information................................................................2-68
Channel Status Table .....................................................................2-70
Measurement Curve.......................................................................2-70
Channel Information......................................................................2-72
Store and Recall...................................................................................2-73
File Type.......................................................................................2-74
Internal Storage ............................................................................2-75
External Storage............................................................................2-75
To Save a File................................................................................2-76
Utility..................................................................................................2-77
System Setting..............................................................................2-78
I/O Configuration ..........................................................................2-86
System Information .......................................................................2-92
Detect..........................................................................................2-92
System Update..............................................................................2-93
Chapter 3 To Use External DMM......................................................... 3-1
To Connect Instruments..........................................................................3-2
To Configure the Instruments..................................................................3-4
Scan Control Method..............................................................................3-5
Chapter 4 Remote Control ................................................................. 4-1
User-defined Programming .....................................................................4-2
To Use PC Software................................................................................4-6
To Control M300 through GPIB..........................................................4-6
To Control M300 through USB...........................................................4-8
To Control M300 through RS232........................................................4-9
To Control M300 through LAN.........................................................4-11
Chapter 5 Troubleshooting ................................................................ 5-1
Chapter 6 Specifications .................................................................... 6-1
DC Characteristics..................................................................................6-1

Contents RIGOL
M300 User’s Guide
XV
AC Characteristics.................................................................................. 6-3
Frequency and Period Characteristics ...................................................... 6-6
Temperature Characteristics ................................................................... 6-8
Module Specifications ...........................................................................6-10
MC3120/MC3132/MC3164/MC3324/MC3416/MC3648 ........................6-10
MC3534........................................................................................6-12
General Specifications...........................................................................6-13
Chapter 7 Appendix............................................................................7-1
Appendix A: Accessories and Options List ................................................ 7-1
Appendix B: Definitions of the Pins of the 78-pin Interface of the Plug-in
Modules ............................................................................................... 7-2
MC3120......................................................................................... 7-2
MC3132......................................................................................... 7-3
MC3164......................................................................................... 7-4
MC3324......................................................................................... 7-5
MC3416......................................................................................... 7-6
MC3534......................................................................................... 7-7
MC3648......................................................................................... 7-8
Appendix B: Warranty............................................................................ 7-9
Index .......................................................................................................1

Chapter 1 Quick Guide RIGOL
M300 User’s Guide
1-1
Chapter 1Quick Guide
This chapter guides users to quickly get familiar with the front/rear panels, user
interface as well as the measurement connections of the M300.
Topics in this chapter:
General Inspection
Appearance and Dimensions
Front Panel
Rear Panel
Power On Inspection
User Interface
To Input Filename
Plug-in Module Overview
To Use the Built-in Help System
Measurement Connections
To Replace the Fuse
Menu Quick Navigation

RIGOL Chapter 1 Quick Guide
1-2 M300 User’s Guide
General Inspection
1. Inspect the shipping container for damage.
Keep the damaged shipping container or cushioning material until the contents
of the shipment have been checked for completeness and the instrument has
passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to instrument resulting
from shipment. RIGOL would not be responsible for free maintenance/rework
or replacement of the unit.
2. Inspect the instrument.
In case of any damage, or defect, or failure, notify your RIGOL sales
representative.
3. Check the Accessories
Please check the accessories according to the packing lists. If the accessories
are incomplete or damaged, please contact your RIGOL sales representative.
