RIKA Eco User manual

The soul of your home
RI A WOODBURNING STOVES
M A N U A L
E C O
All manuals and user guides at all-guides.com
all-guides.com

2

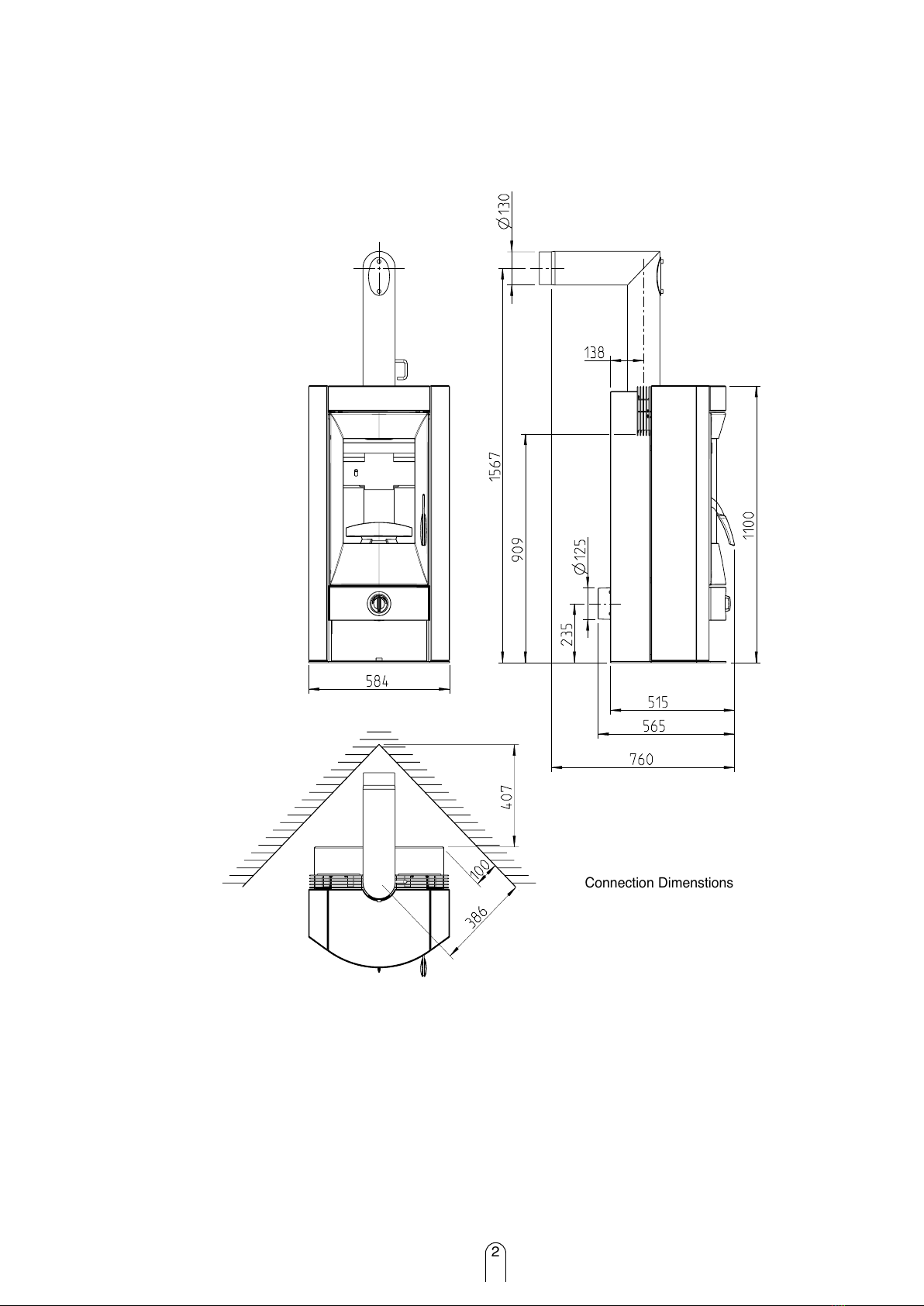

Connection Dimenstions
All manuals and user guides at all-guides.com

Combustion Chamber door
3
Combustion
Chamber
All manuals and user guides at all-guides.com

4

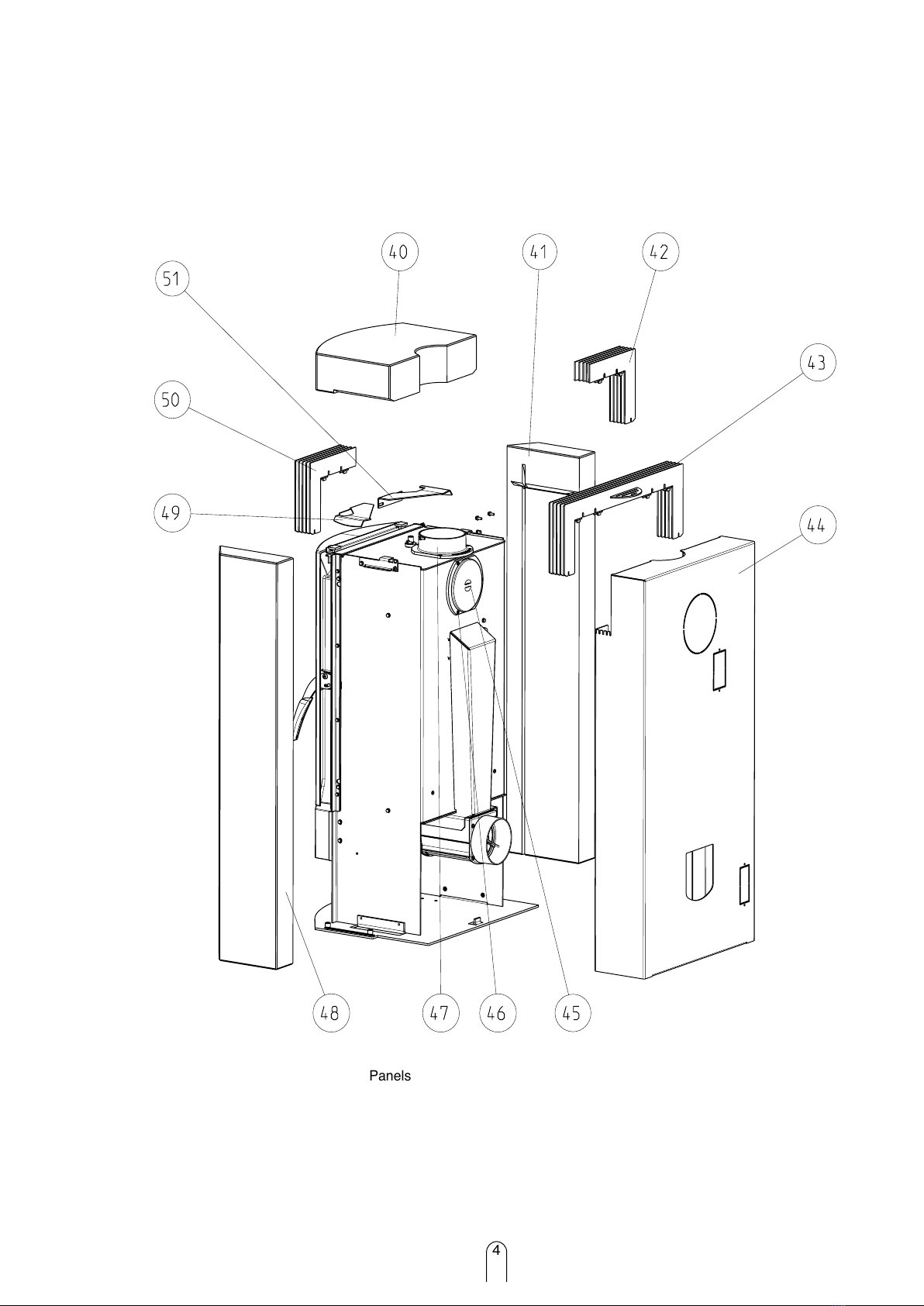

Panels
All manuals and user guides at all-guides.com

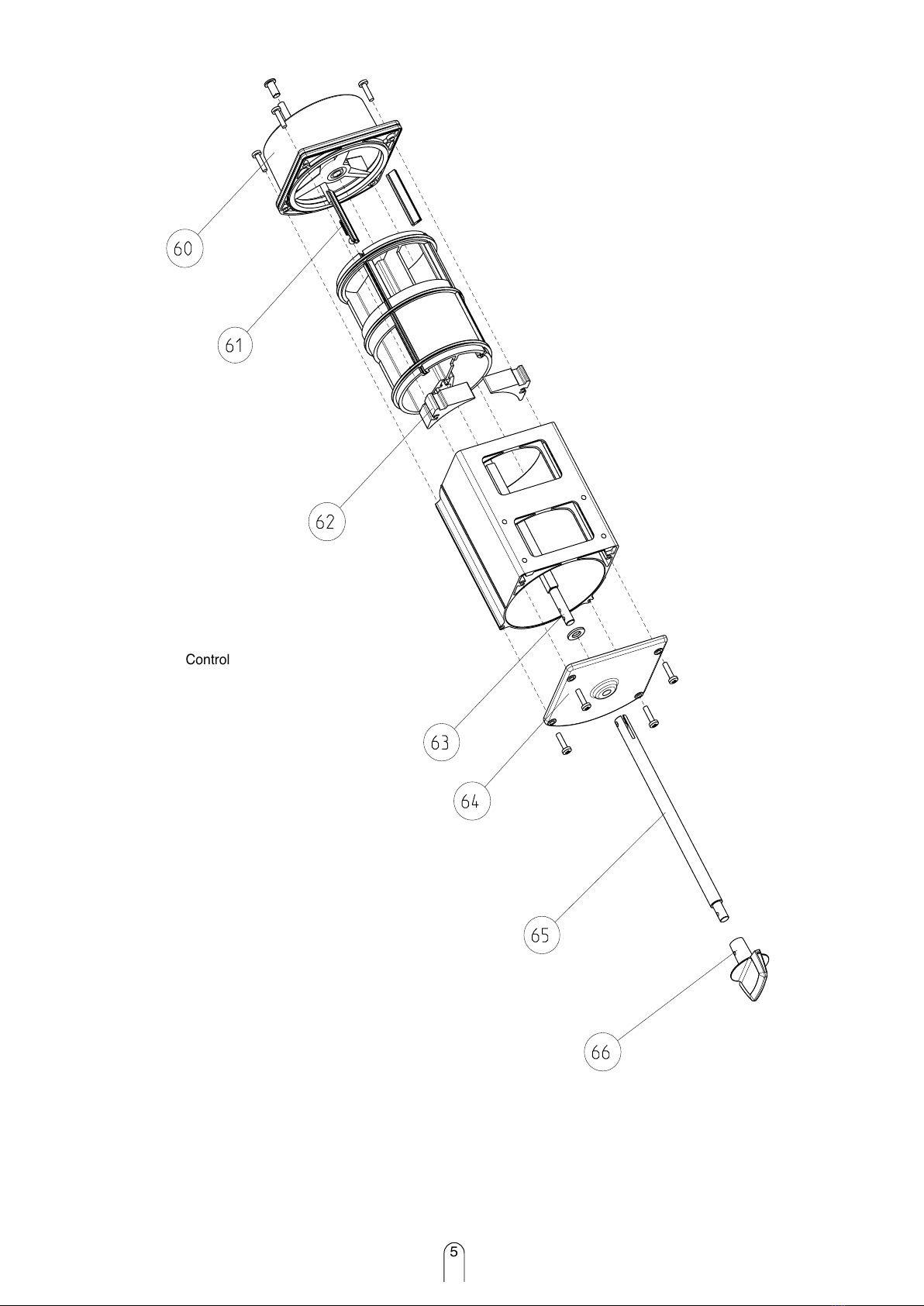

Control
5
All manuals and user guides at all-guides.com

D R A W I N G E X P L A N A T I O N
1. IMPORTANT INFORMATION

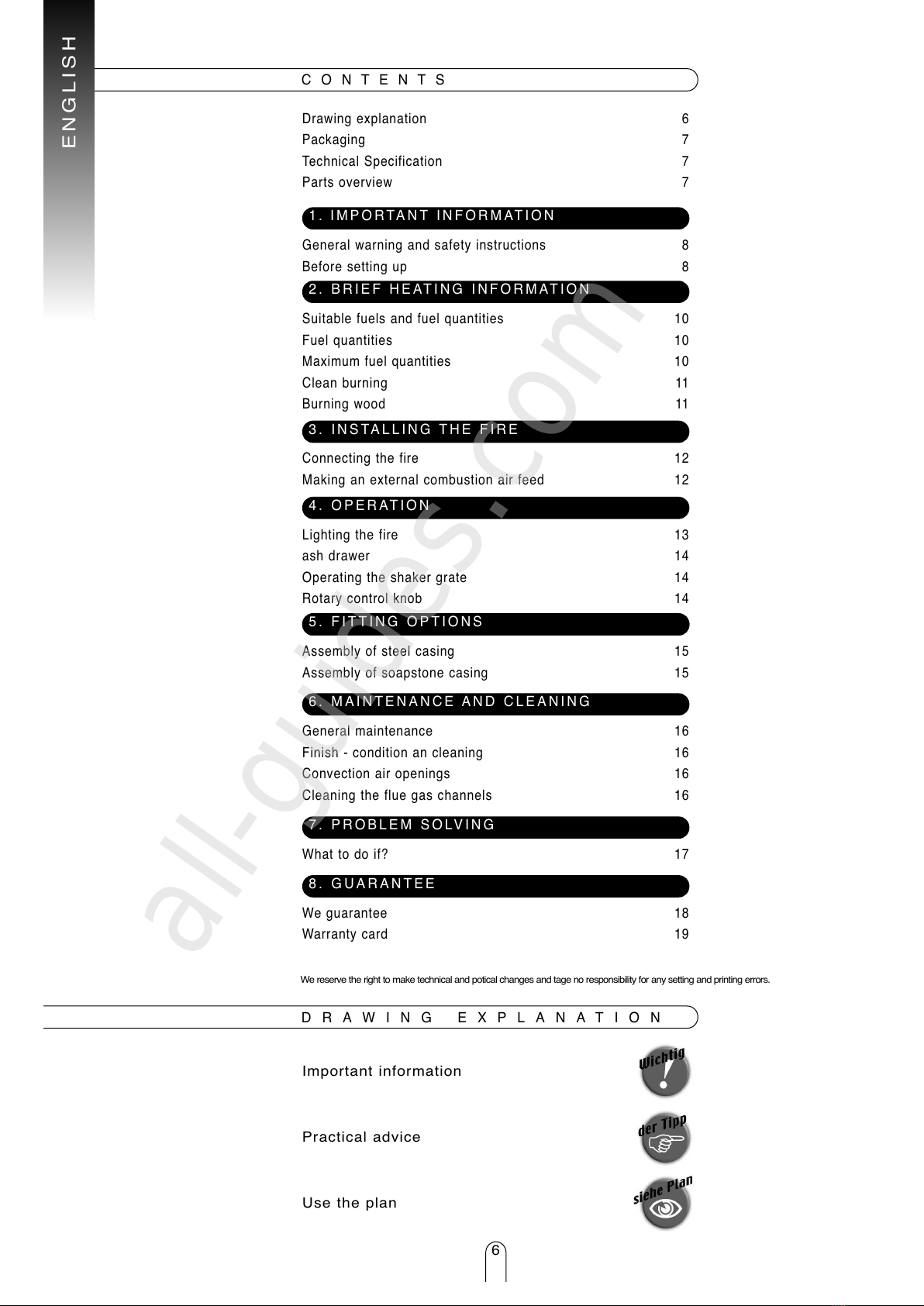

C O N T E N T S
Important information
Practical advice
Use the plan
6
Drawing explanation 6
Packaging 7
Technical Specification 7
Parts overview 7
General warning and safety instructions 8
Before setting up 8
2. B R I E F H E AT I N G I N F O R M AT I O N
Suitable fuels and fuel quantities 10
Fuel quantities 10
Maximum fuel quantities 10
Clean burning 11
Burning wood 11
3. INSTALLING THE FIRE
Connecting the fire 12
Making an external combustion air feed 12
4. OPERATION
Lighting the fire 13
ash drawer 14
Operating the shaker grate 14
Rotary control knob 14
Assembly of steel casing 15
Assembly of soapstone casing 15
5 . F I T T I N G O P T I O N S
6. MAINTENANCE AND CLEANING
General maintenance 16
Finish - condition an cleaning 16
Convection air openings 16
Cleaning the flue gas channels 16
7. PROBLEM SOLVING
What to do if? 17
8. GUARANTEE
We guarantee 18

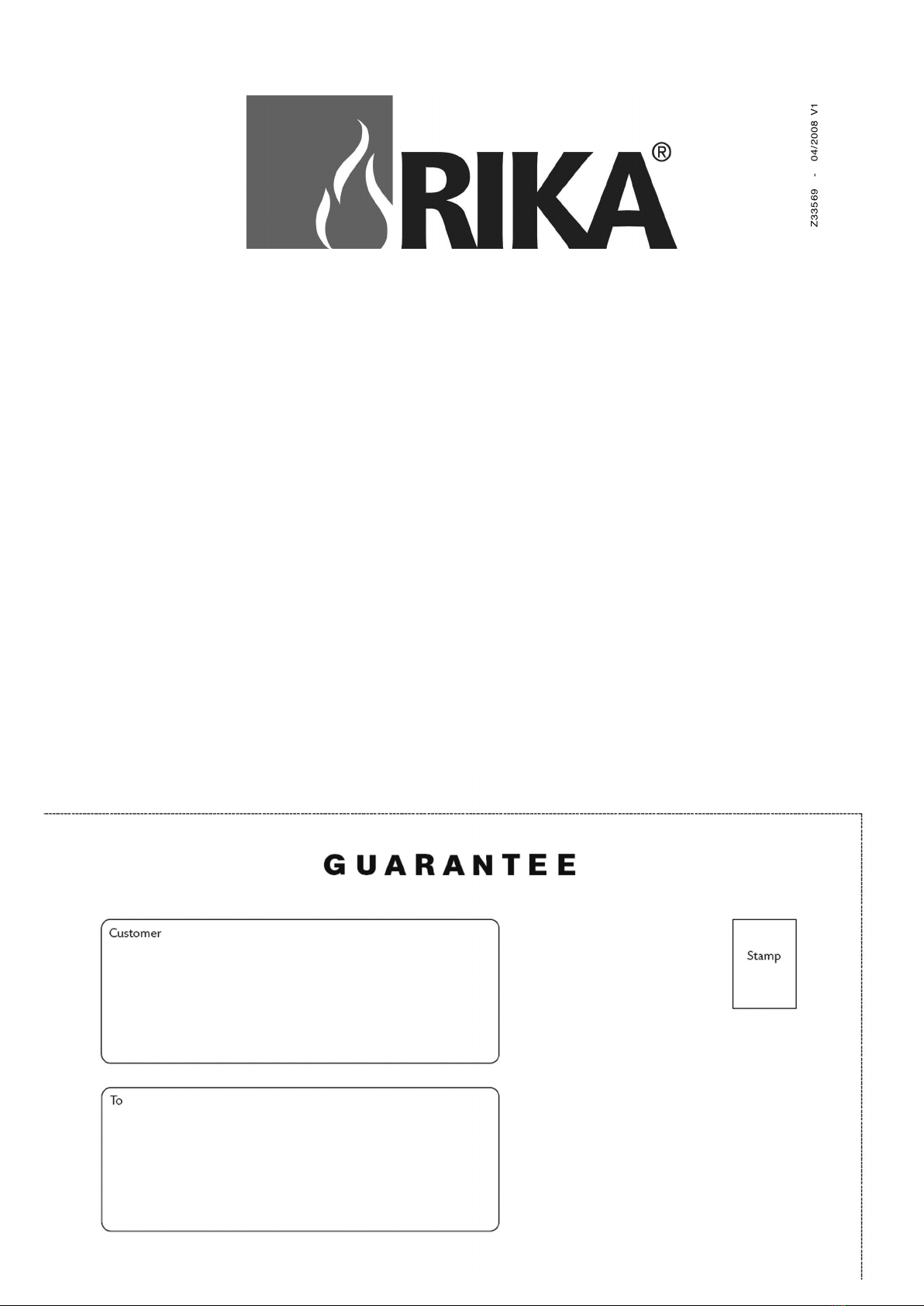

Warranty card 19
E N G L I S H
We reserve the right to make technical and potical changes and tage no responsibility for any setting and printing errors.
All manuals and user guides at all-guides.com
all-guides.com

TECHNICAL SPECIFICATION
This is a Design 1 fire and has a connec-
tion for fitting to a chimney that is equipped
for other fires and boilers for solid and
liquid fuels, insofar as the chimney dimen-
sions are in accordance with DIN 4705,
Part 3.
The owner of the small heating system or the aut-
horised person for the small heating system must
keep the technical documentation in a safe place
and present it to the local authority or the chimney
sweep.

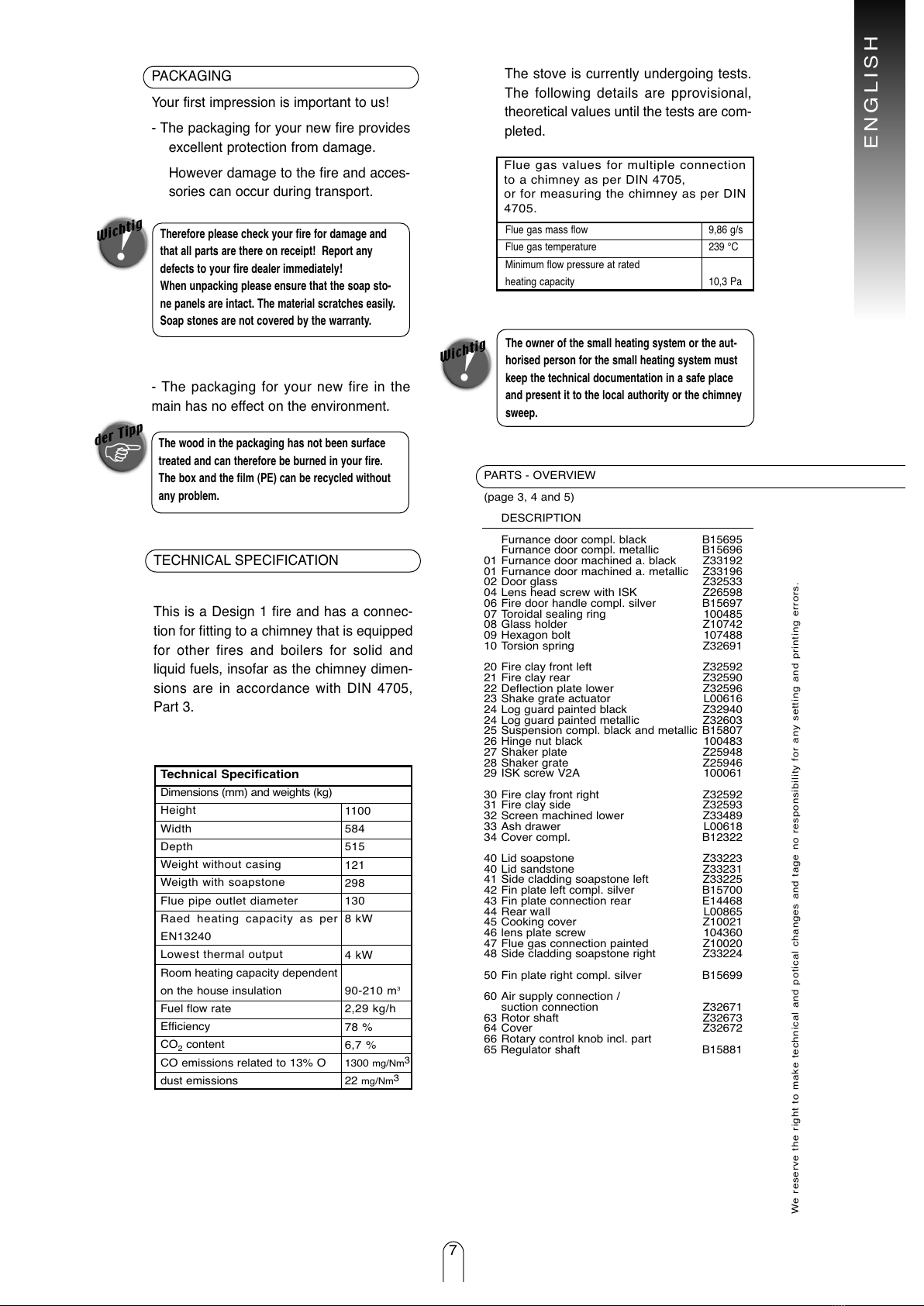

PAC AGING
Your first impression is important to us!
- The packaging for your new fire provides
excellent protection from damage.
However damage to the fire and acces-
sories can occur during transport.
Therefore please check your fire for damage and
that all parts are there on receipt! Report any
defects to your fire dealer immediately!
When unpacking please ensure that the soap sto-
ne panels are intact. The material scratches easily.
Soap stones are not covered by the warranty.
- The packaging for your new fire in the
main has no effect on the environment.
PARTS - OVERVIEW
(page 3, 4 and 5)
DESCRIPTION
Furnance door compl. black B15695
Furnance door compl. metallic B15696
01 Furnance door machined a. black Z33192
01 Furnance door machined a. metallic Z33196
02 Door glass Z32533
04 Lens head screw with IS Z26598
06 Fire door handle compl. silver B15697
07 Toroidal sealing ring 100485
08 Glass holder Z10742
09 Hexagon bolt 107488
10 Torsion spring Z32691
20 Fire clay front left Z32592
21 Fire clay rear Z32590
22 Deflection plate lower Z32596
23 Shake grate actuator L00616
24 Log guard painted black Z32940
24 Log guard painted metallic Z32603
25 Suspension compl. black and metallic B15807
26 Hinge nut black 100483
27 Shaker plate Z25948
28 Shaker grate Z25946
29 IS screw V2A 100061
30 Fire clay front right Z32592
31 Fire clay side Z32593
32 Screen machined lower Z33489
33 Ash drawer L00618
34 Cover compl. B12322
40 Lid soapstone Z33223
40 Lid sandstone Z33231
41 Side cladding soapstone left Z33225
42 Fin plate left compl. silver B15700
43 Fin plate connection rear E14468
44 Rear wall L00865
45 Cooking cover Z10021
46 lens plate screw 104360
47 Flue gas connection painted Z10020
48 Side cladding soapstone right Z33224
50 Fin plate right compl. silver B15699
60 Air supply connection /
suction connection Z32671
63 Rotor shaft Z32673
64 Cover Z32672
66 Rotary control knob incl. part
65 Regulator shaft B15881
The wood in the packaging has not been surface
treated and can therefore be burned in your fire.
The box and the film (PE) can be recycled without
any problem.
We reserve the right to make technical and potical changes and tage no responsibility for any setting and printing errors.
Technical Specification
Dimensions (mm) and weights (kg)
Height
Width
Depth
Weight without casing
Weigth with soapstone
Flue pipe outlet diameter
Raed heating capacity as per
EN13240
Lowest thermal output
Room heating capacity dependent
on the house insulation
Fuel flow rate
Efficiency
CO2content
CO emissions related to 13% O
dust emissions
1100
584
515
121
298
130
8 kW
4 kW
90-210 m3
2,29 kg/h
78 %
6,7 %
1300 mg/Nm3
22 mg/Nm3
Flue gas mass flow
Flue gas temperature
Minimum flow pressure at rated
heating capacity
Flue gas values for multiple connection
to a chimney as per DIN 4705,
or for measuring the chimney as per DIN
4705.
E N G L I S H
7
9,86 g/s
239 °C
10,3 Pa
The stove is currently undergoing tests.
The following details are pprovisional,
theoretical values until the tests are com-
pleted.
All manuals and user guides at all-guides.com

1. IMPORTNANT INFORMATION
GENERAL WARNING AND SAFETY
INSTRUCTIONS
The general introductory warning informa-
tion must be followed.
➧Read the whole of the manual thoroug-
hly before commissioning the fire.
➧Only approved transport aids with ade-
quate load bearing capacity must be used
for transporting your fire.
➧Your fire is not suitable for use as a lad-
der or scaffold
➧Thermal energy is produced by burning
fuel; this leads to the surface of the fire,
the doors, the door and operating hand-
les, the door glasses, the flue pipes and
possibly the front wall of the fire becoming
very hot.
Avoid touching these parts without wea-
ring the relevant protective clothing or
using the relevant means (cold hand).
➧Make children aware of the danger and
keep them away from the fire when in use.
➧Only burn the approved fuel listed in the
chapter “Clean Burning”.
➧Burning or inserting easily combustible
or explosive materials, such as empty
spray cans and suchlike in the fire, as well
as storage of the same close to the fire is
prohibited due to risk of explosion.
➧When reheating, no wide or easily com-
bustible clothing should be worn.
➧Setting down of non heat resistant
objects on the fire or nearby is prohibited.
➧Do not lay washing on the fire to dry.
➧Stands for drying items of clothing or
suchlike must be set up at an adequate
distance from the fire – fire hazard!
➧Working with easily combustible and
explosive materials in the same or adjoi-
ning room to the fire is prohibited when the
fire is on.
SAFETY CLEARANCES (Minimum clearances)
1. From non-combustible items
a > 400 mm b > 100 mm
2. From combustible items and supporting walls
made from reinforced concrete construction
a > 800 mm b > 200 mm
BEFORE SETTING UP
1.1 Ground load bearing capacity:
Before setting up, ensure that the suppor-
ting construction has a load bearing capa-
city that will support the weight of the fire.
Commissioning details are shown on the
sticker on the Ceran area.
The stove must not be modified in any
way as this will invalidate the guaran-
tee and warranty.
E N G L I S H
8
Safety clearances
Read the instructions before installing and commis-
sioning your stove. Pay particular attention to the
national regulations and legislation, as well as any
local directives and rules.
All manuals and user guides at all-guides.com

1.8
The fire door must only be opened for
adding fuel and must then be closed
again, as this could otherwise lead to a
danger to other fires that are also connec-
ted to the chimney.
1.8.1
When the fire is not in operation, the fire
door must be kept closed.
1.9
When using wet fuel and if operation is
throttled too much, the chimney can soot
up, i.e. easily combustible materials such
as soot and tar can be deposited and this
can lead to a chimney fire.
Should this happen, close all air inlet sli-
des and flaps. Call the fire brigade and get
your self and all other occupants to safety.
1.10
The primary and/or secondary air supply
must be open before you open the com-
bustion chamber door.
ATTENTION: The size of the fire door means that,
particularly when reheating blazing flames, the
door must not be opened abruptly, in order to pre-
vent the flames from springing out.
9
E N G L I S H

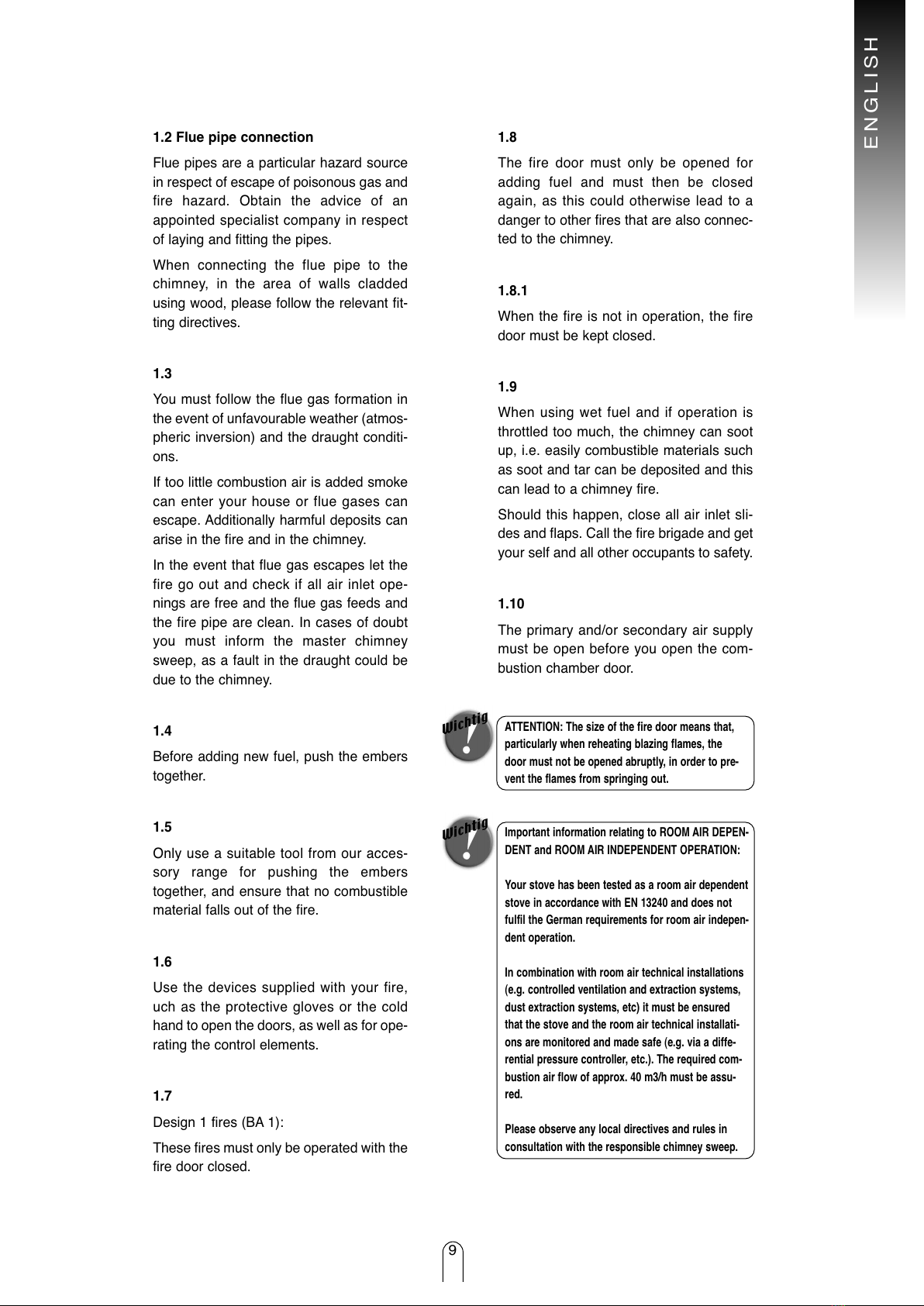

1.2 Flue pipe connection
Flue pipes are a particular hazard source
in respect of escape of poisonous gas and
fire hazard. Obtain the advice of an
appointed specialist company in respect
of laying and fitting the pipes.
When connecting the flue pipe to the
chimney, in the area of walls cladded
using wood, please follow the relevant fit-
ting directives.
1.3
You must follow the flue gas formation in
the event of unfavourable weather (atmos-
pheric inversion) and the draught conditi-
ons.
If too little combustion air is added smoke
can enter your house or flue gases can
escape. Additionally harmful deposits can
arise in the fire and in the chimney.
In the event that flue gas escapes let the
fire go out and check if all air inlet ope-
nings are free and the flue gas feeds and
the fire pipe are clean. In cases of doubt
you must inform the master chimney
sweep, as a fault in the draught could be
due to the chimney.
1.4
Before adding new fuel, push the embers
together.
1.5
Only use a suitable tool from our acces-
sory range for pushing the embers
together, and ensure that no combustible
material falls out of the fire.
1.6
Use the devices supplied with your fire,
uch as the protective gloves or the cold
hand to open the doors, as well as for ope-
rating the control elements.
1.7
Design 1 fires (BA 1):
These fires must only be operated with the
fire door closed.
Important information relating to ROOM AIR DEPEN-
DENT and ROOM AIR INDEPENDENT OPERATION:
Your stove has been tested as a room air dependent
stove in accordance with EN 13240 and does not
fulfil the German requirements for room air indepen-
dent operation.
In combination with room air technical installations
(e.g. controlled ventilation and extraction systems,
dust extraction systems, etc) it must be ensured
that the stove and the room air technical installati-
ons are monitored and made safe (e.g. via a diffe-
rential pressure controller, etc.). The required com-
bustion air flow of approx. 40 m3/h must be assu-
red.
Please observe any local directives and rules in
consultation with the responsible chimney sweep.
All manuals and user guides at all-guides.com

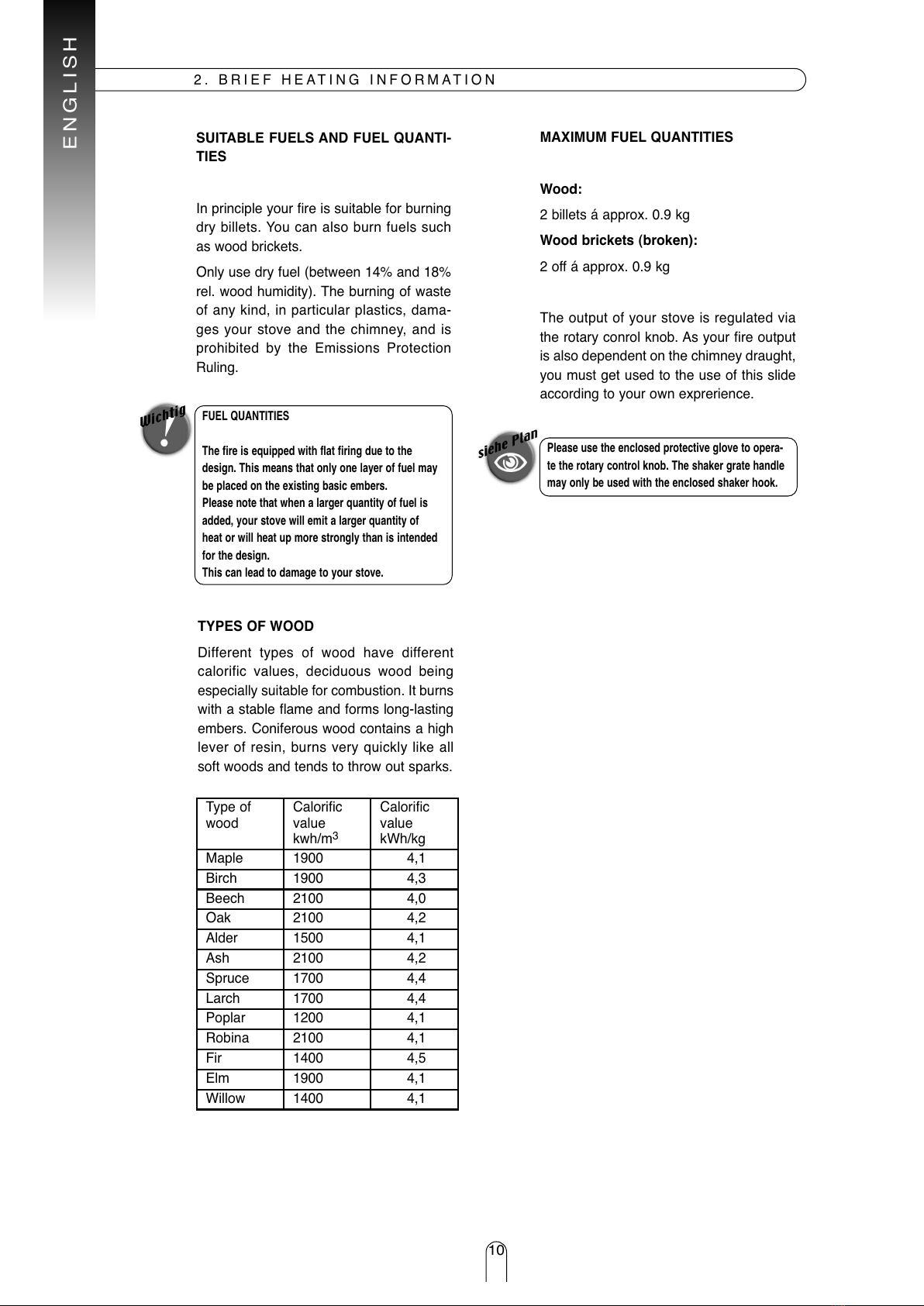

SUITABLE FUELS AND FUEL QUANTI-
TIES
In principle your fire is suitable for burning
dry billets. You can also burn fuels such
as wood brickets.
Only use dry fuel (between 14% and 18%
rel. wood humidity). The burning of waste
of any kind, in particular plastics, dama-
ges your stove and the chimney, and is
prohibited by the Emissions Protection
Ruling.
MAXIMUM FUEL QUANTITIES
Wood:
2 billets a approx. 0.9 kg
Wood brickets (broken):
2off a approx. 0.9 kg
The output of your stove is regulated via
the rotary conrol knob. As your fire output
is also dependent on the chimney draught,
you must get used to the use of this slide
according to your own exprerience.
Please use the enclosed protective glove to opera-
te the rotary control knob. The shaker grate handle
may only be used with the enclosed shaker hook.
E N G L I S H
10
2. BRIEF HEATING INFORMATION
FUEL QUANTITIES
The fire is equipped with flat firing due to the
design. This means that only one layer of fuel may
be placed on the existing basic embers.
Please note that when a larger quantity of fuel is
added, your stove will emit a larger quantity of
heat or will heat up more strongly than is intended
for the design.
This can lead to damage to your stove.
TYPES OF WOOD
Different types of wood have different
calorific values, deciduous wood being
especially suitable for combustion. It burns
with a stable flame and forms long-lasting
embers. Coniferous wood contains a high
lever of resin, burns very quickly like all
soft woods and tends to throw out sparks.
Type of
wood
Calorific
value
kwh/m3
Calorific
value
kWh/kg
Maple 1900 4,1
Birch 1900 4,3
Beech 2100 4,0
Oak 2100 4,2
Alder 1500 4,1
Ash 2100 4,2
Spruce 1700 4,4
Larch 1700 4,4
Poplar 1200 4,1
Robina 2100 4,1
Fir 1400 4,5
Elm 1900 4,1
Willow 1400 4,1
All manuals and user guides at all-guides.com

A fire is not a „waste incineration plant". The war-
ranty will become null and void if rubbish or non-
approved material, such as plastic, treated wood
etc. is burned.
Further consequences are damage or soiling of the
fire and chimney as well as the environment!
The challenges of the present day and
age mean that everyone must act respon-
sibly. One of most important matters of
concern is retaining our natural world. Our
products are developments that comply
with the most recent state of the art tech-
nology. This is an essential prerequisite
for a clean, efficient and perfect functio-
ning of our fires.
CLEAN BURNING
The following is important for clean bur-
ning:
1. THE FIREWOOD MUST BE DRY AND
UNTREATED.
➧Recommended value between 14%
and 18% rel. wood humidity.
➧Dry and well ventilated stored wood
that has been stored for 2-3 years.
2. CORRECT FIREWOOD QUANTITY
AND FIREWOOD SIZE
➧Too much firewood causes overhea-
ting. This causes the material to burn
too heavily and your fire will produce
poor flue gas values.
➧Too little firewood or too large billets
have the effect that the fire does not
reach the optimum temperature. The
flue gas values are poor here.
➧The correct firewood quantity means:
for wood 2 kg (2 billet - 25 cm long)
per layer (recommended value) at rated
thermal output.
At the smallest thermal output 1 kg (2
billets - 25 cm long)
Note:
Only wood and wood brickets must be burned in
your fire. Plastic, treated wood materials (e.g. chip-
board), hard coal or textiles must not be burned.
BURNING WOOD
Clean burning of wood corresponds to the
same chemical process as natural decay,
i.e. that the CO2(carbon dioxide) released
does not increase or contaminate the ori-
ginal CO2content – household of the
atmosphere.
Plant
growth
Wood decomposition
or
Wood burning
Wood CO2- content of
atmosphere
11
E N G L I S H
All manuals and user guides at all-guides.com
all-guides.com

Before first commissioning or after changing the
location of the fire, cleaning and service work, ensu-
re that the flue plate, as well as the log guard (Fig.
Combustion chamber, Part 23) is in the correct posi-
tion.
When using a flue pipe with throttle valve, the thrott-
le valve must be open.
Care must be taken with this fire that the flue
draught reaches at least the prescribed value (10
Pa).
Should problems arise here, please contact your
master chimney sweep.
CONNECTING THE FIRE
Proceed as follows when fitting a connec-
tion to a bricked chimney:
1. Measure and draw in the chimney
connection (taking a possible floor pla-
te thickness into account) as per the
natural dimension
2. Chisel out (drill) the holes in the wall
3. Brick in wall lining
First seal the wall lining using mineral wool
insulation. Afterwards plaster using heat resi-
stant cement mortar or equivalent.
4. After the mortar has hardened, and
after plastering and painting, position
the floor plate including the floor pro
tection (carton).
5. The fire can now be lifted onto the floor
plate carefully.
The fire must not be pushed along an unpro-
tected floor.
Strong corrugated cardboard, carton, or an old
carpet are excellently suited as an installation
aid and an underlay. The fire can also be pushed
on this underlay.
We recommend original flue pipes from
the RI A flue pipe range for professional
connection.
The connecting piece must not project into
the chimney shaft! Seal the gap between
the flue pipe and wall lining using a cera-
mic seal.
MA ING AN EXTERNAL COMBUSTION
AIR FEED
➧Tighten the suction connector (part 60)
the pipe Ø125 (e.g. spiral pipe or HD pipe)
and attach with a hose clip (not included
in delivery!)
➧The line should not be longer than 4 m
and have no bends in order to guarantee
adequate air feed.
➧Should the pipe lead into the open air it
must end with a cowl.
The installation must comply with the respective
safety and construction regulations.
Please contact your master chimney sweep in
this respect – he will be happy to give you infor-
mation.
E N G L I S H
12
3 . I N S T A L L I N G T H E F I R E
If you use a system chimney (e.g. glazed fireclay),
we would ask you to follow the manufacturerʼs
connection regulations exactly.
All manuals and user guides at all-guides.com

Please do not use glossy paper or paper from
magazines. It does not burn well and the print
colours produce very poisonous substances in the
flue gas.
3.
Now light the paper. Wait until the soft wood
chips are burning well.
Turn the rotary control knob 90° to the left a
few minutes later. The primary air is now
closed and the secondary air is completely
open. A few minutes later set the rotary con-
trol knob to the ideal position (See item:
“Rotary control knob”)
4.
After this has burned, lay approx 2 kg wood
(2 billets) on the fire. Open the shaker grate
handle and the primary air slide until the
wood is burning well (approx. 2 mins).
Proceed in the same manner for each furt-
her layer.
When laying fuel onto a thin bed of
embers ensure that the primary air and
the shaker grate actuator are open,
otherwise there is a danger of explosion.
For safety reasons we recommend star-
ting a new heating cycle.
5.
The mineral parts of the wood (approx. 1%)
remain on the bottom of the combustion
chamber as combustion residue.
This ash is – because it is a natural product
- an excellent fertiliser for all plants in the
garden. However the ash should be left to
settle beforehand and doused with water.
13
E N G L I S H
4 . O P E R A T I O N
STARTING THE FIRE
In order to keep exhaust emissions as low
as possible, we would ask you to keep to
the following starting instructions.
1.
If the fire and chimney are still cold or if
there is atmospheric low pressure, then
burning some paper at the start is reco
mended, in order to “drive” the cold out of
the fire and chimney.
2.
To start heating first lay untreated paper
on the floor of the combustion chamber,
on top of that 0.5 kg soft wood chip and 1
kg wood (3 small billets).
Turn the rotary control knob (page 14) to
the right in the start heating position, pri-
mary and secondary air are completely
open (See item: “Rotary control knob”).
All manuals and user guides at all-guides.com

THE FIRE PAINT ONLY HARDENS PROPERLY
AFTER HEATING UP DURING USE.
- Do not touch the surface during heating. It is still
soft.
- Our paints are completely harmless in accordan-
ce with the TÜV-certificate; there is no danger to
health. In spite of that we recommend that the
house is well ventilated several times after first
heating.
- Heat the fire up well – this will reduce the harde-
ning time.
- Hardening of the surface is complete after
several proper periods of heating.
All details on the nature of the fire wood and cor-
rect heating can be found in Chapter 2.
ASH DRAWER
(Page 3, Part 33)
The ash drawer must be emptied regular-
ly to prevent excessive heating of the fire
grid.
Never heat the fire with the ash drawer open
→
→
danger of overheating
→
→
loss of warranty.
Caution: Embers could remain in the ash. Only
fill the ash into non-flammable containers and
do not put the ash onto flammable surfaces.
E N G L I S H
14
OPERATING THE SHA ER GRATE
(Page 3, Part 23)
The ash is moved from the fire into the ash
drawer by moving the shaker grate handle
to and fro. This frees up room for the pri-
mary feed air that is required for the hea-
ting phase in the fire.
The shaker grate should remain closed
except for wood that is too damp and bri-
quettes.
It is not necessary to operate the shaker
grate during heating.
ROTARY CONTROL NOB
Fuel Wood/Wood Brickets
Primary air closed (0 %)
Secondary air 2/3 open (66 %)
Shaker grate closed
The position “Primary air completely open”
may only be used as a starting position.
As you fire output is also dependent on
the chimney draught and the weather con-
ditions, you must get used to the use of
this secondary control slide according to
your own experiende.
Zero position Starting position
IDEAL POSITION
Secondary air 66% open
Primary air closed (0%)
MINIMUM POSITION
Secondary air 33% open
Primary air closed (0%)
ZERO POSITION
Secondary air closed (0%)
Primary air closed (0%)
MAXIMUM POSITION
Secondary air 100% open
Primary air closed (0%)
Infinitely variable control of
the primary air,
secondary air remains
100% open
STARTING POSITION
Primary air 100% open
Secondary air 100% open
Rotary control
button marking
ROTARY CONTROL NOB
Rotary control
button marking
All manuals and user guides at all-guides.com

5. FITTING OPTIONS
E N G L I S H
15
CHANGING FLUE PIPE CONNECTION
ABOVE TO CONNECTION AT REAR
(Page 4)
- Remove the soapstone cover (part 40).
- Now remove the two soapstone side sec-
tions.
- Loosen the two hexagonal screws and
remove the plate fins (part 42, 50).
- Cut out the pre-stamped, round section
in the rear wall (part 44) using a hacksaw.
- Swap the flue gas connector and the hob
(part 45, 47) with each other.
- Fit the new plate fins (part 43 - must be
optionally ordered) and the soapstone
sections in the reverse order.
(Make sure your fingers do not become
trapped)
Please remember when changing the flue pipe
connection that the individual parts of the soapsto-
ne panelling weigh about 40 kg. In addition the sur-
face of the soapstone should be protected to pre-
vent scratching.
All manuals and user guides at all-guides.com

6. MAINTENANCE AND CLEANING
GENERAL MAINTENANCE
Your Eco has been designed by our deve-
lopment team with mainimal maintenance
in mind and for a very long service life.
Certain cleaning activities and checkin the
seals are however necessary from time to
time.
The time periods between the inspection
intervals are above all dependent on the
fire wood quantity used and the frequeny
of use.
All maintenance and cleaning work must only be
carried out when the fire is completely cooled
down.
ONCE MORE
Only use wood that has been stored
properly and is dry and untreated.
Feed the correct quantity of wood into
the fire.
Should the fuel be poor, the number om necessary
maintenance activities can more than double.
FINISH - CONDITION AND CLEANING
The door glass can be cleaned using
RI A class cleaner. The RI A glass clea-
ner can be obtained from your specialist
fire dealer. Should the glass become hea-
vily sooted the possible cause could be
damp wood.
The fire finish is highly refractory and must
only be cleaned using a cloth (damp if
necessary).
Only use original paint for touch up work,
this is available from your specialist dea-
ler as an accessory.
Under no circumstances must the paint
be cleaned before heating for the first
time!
CONVECTION AIR OPENINGS
Regularly clean dust deposit from the con-
vection air openings. The fire should be
cleaned thoroughly before the start of the
new heating season, in order to prevent
strong odours.
CLEANING THE FLUE GAS CHANNELS
(1 x annually)
- Removing the flue pipes
- Brush off any soot and dust deposits in
the fire and in the flue pipes and vacu-
um.
- Check the seals on the fire door or the
ash drawer before the beginning and
end of the heating period.
Should they be damaged or excessive-
ly worn, then please order the relevant
replacement.
E N G L I S H
16
Only intact seals guarantee the perfect function of
your fire.
All manuals and user guides at all-guides.com
all-guides.com

7 . P R O B L E M S O L V I N G
E N G L I S H
17
1. Ceramic glass
pane soots up too
quickly
2. Fire not pulling
correctly
3. Fire does not start
correctly
4. Fire smells stron
gly and is smo-
king outside
5. Paint not drying
out
6. Flue gas escapes
when fuel is
added and during
the heating phase
What to do if?
Problem Reason Solution
- Poor draught
- Incorrect regulation
- Too much fuel
- feuchtes Holz
- Chimney draught inade-
quate
- Fire is sooted up on the
inside
- Weather influences
- Incorrect starting
- Burning in phase
- Fire is dusty / sooted up
- Burning in phase not com-
pleted properly
- Chimney draught too low,
flue gas connection leaking
Should you not be able to find the correct solution to your problem, then please contact your spe-
cialist dealer or your chimney sweep.
In principle: From time to time
(dependent on use), each glass
pane must be cleaned with RI A
glass cleaner.
Clarify this with the chimney
sweep (if necessary increase
height of chimney)
Regulation must be carried out
as per the operating instructions
using the rotary control knob (if
secondary air is closed, the
glass pane will soot up very
quickly, but this can be burnt off
again by correct use.
See item: “Max. Fuel quantities”
See item: “Clean burning”, if
necessary use wood brickets
(these dry evenly)
See item: „Brief Heating
Information“
See item: “Maintenance and
Cleaning”
See item: „Lighting the fire“
See item: “Lighting the fire“
See item: „Operation“ (harde-
ning of the paint)
See item: “Convection air ope-
nings”
See item: “Operation” (harde-
ning of the paint)
Check the connection points and
reseal if necessary
All manuals and user guides at all-guides.com

WE GUARANTEE
Five years for the welded corpus and two
years for electrical components. The gua-
rantee comprises only material and manu-
facturing faults.
A pre-condition for claiming under the gua-
rantee is that the device is installed and
operated according to the Rika user
instructions current on the date of purcha-
se. Connection must be carried out by a
technician trained in the installation of the
stove.
The guarantee does not cover WEAR
PARTS such as glass, paint, surface coa-
tings (e.g. handles, facings), seals, fire
pans/grates, draw plates, grate linings
(e.g. firebricks), ceramics, natural stone,
ignition elements, sensors, etc.
Also excluded is DAMAGE that arises or
is caused by non-observance of the manu-
facturerʼs instructions for operation of the
stove (e.g. overheating, use of non-per-
mitted fuels, missing parts or faulty instal-
lation of a backflow lift or undershooting of
the dew point in water flow devices, incor-
rect servicing of the device, electrical over-
voltage, incorrect chimney draught on the
stove, missed or inadequate maintenance
and cleaning, incorrect operation by owner
or a third party, etc.).
Use only spare parts recommended or
provided by RI A. Non-observance could
lead to loss of guarantee.
To ensure prompt limitation of damage the
GUARANTEE CLAIM must be submitted
by the claimant to a Rika dealer with the
invoice and details of the purchase date,
model name, nameplate number, serial
number as well as the grounds for the
complaint in writing.
REPLACEMENT UNDER THE GUARAN-
TEE comprises the free delivery of repla-
cement parts. Hours worked and travelling
time are not covered under the manufac-
turerʼs guarantee.
All other costs (e.g. transport, repairs, tra-
velling time, … ) incurred by the manufac-
turer due to an unjustified guarantee claim
will be borne by the claimant.
This guarantee does not affect your statu-
tory rights.
E N G L I S H
18
8 . G U A R A N T E E
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

Z33569 - 04/2008 V1
All manuals and user guides at all-guides.com
