Portwell WEBS-35C6 User manual

WEBS-35C6
Fan-less Embedded System
AS5-3522
User's Manual
Version 1.0
Copyright © Portwell, Inc., 2018. All rights reserved.
All other brand names are registered trademarks of their respective owners.

Table of Contents
How to Use This Manual
Chapter 1 System Overview.......................................................................................................1-1
1.1 Introduction ....................................................................................................... 1-1
1.2 Check List........................................................................................................... 1-2
1.3 Product Specification........................................................................................ 1-2
1.4 Mechanical Dimension..................................................................................... 1-3
Chapter 2 System Installation....................................................................................................2-1
2.1 CPU and Memory module Installation.......................................................... 2-1
2.2 HDD Installation ............................................................................................... 2-4
2.3 PCIe/PCI Add-on Card Installation .............................................................. 2-5
2.4 I/O Interfaces .................................................................................................... 2-8
2.4.1 Rear View .................................................................................................. 2-8
2.5 Getting Started................................................................................................. 2-10
Chapter 3 BIOS Setup Information..........................................................................................3-11
3.1 Entering Setup ................................................................................................. 3-11
3.2 Main .................................................................................................................. 3-12
3.3 Configuration .................................................................................................. 3-13
3.4 Security ............................................................................................................. 3-38
3.5 Boot ................................................................................................................... 3-39
3.6 Save & Exit ....................................................................................................... 3-40
Chapter 4 Important Instructions ..............................................................................................4-1
4.1 Note on the Warranty....................................................................................... 4-1
4.2 Exclusion of Accident Liability Obligation ................................................... 4-1
4.3 Liability Limitations / Exemption from the Warranty Obligation............ 4-1
4.4 Declaration of Conformity............................................................................... 4-1
Chapter 5 Frequent Asked Questions.......................................................................................5-1

How to Use This Manual
The manual describes how to configure your WEBS-35C6 system to meet various
operating requirements. It is divided into four chapters, with each chapter
addressing a basic concept and operation of Fan-less Embedded System.
Chapter 1: System Overview. Present what you have in the box and give you an
overview of the product specifications and basic system architecture for this fan-less
embedded system.
Chapter 2: System Installation. Show the definitions and locations of all the
interfaces and describe a proper installation guide so that you can easily configure
your system.
Chapter 3: BIOS Setup Information. Specify the meaning of each setup parameters,
how to get advanced BIOS performance and update new BIOS. In addition, POST
checkpoint list will give users some guidelines of trouble-shooting.
Chapter 4: Important Instructions. Indicate some instructions which must be
carefully followed when the fan-less embedded system is used.
The content of this manual is subject to change without prior notice. These changes
will be incorporated in new editions of the document. The vendor may make
supplement or change in the products described in this document at any time.
Revision History
Revision
Date
Details of Change(s)
V1.0
2018/10/30
Initial Release

System Overview
WEB-35C3 User’s Manual 1-1
Chapter 1
System Overview
1.1 Introduction
Portwell announces WEBS-35C6, a high performance fan-less Box PC. Powered by
the 6th generation Intel Core processor (formerly codenamed Skylake-S) with
integrated Intel Gen9 graphics engine, the WEBS-35C6 system supports
high-resolution triple-display output, serving as an ideal platform for performance
and graphics-demanding applications.
Portwell's WEBS-35C6 is designed to be power-optimized and value-optimized.
Instead of adopting a mobile CPU like a traditional embedded system, WEBS-35C6
utilizes a 35W Intel desktop CPU and Intel Q170 chipset, which is more economical
compared to its mobile counterpart and provides great efficacy as well as low power
consumption; this makes WEBS-35C6 not only competitive but outstanding in the
market. The system further takes advantage of the 6th generation Intel Core
processor technologies supporting dual-channel DDR4 memory up to 32GB.
Furthermore, the WEBS-35C6 Box PC includes rich I/O interfaces and fast
connectivity with three independent display (DisplayPort/HDMI/VGA) interfaces
with resolution up to 4K, two Gigabit Ethernet ports, two RS-232/422/485 ports, four
RS-232 ports, two USB 2.0 and four USB 3.0 ports, one 8 bits GPIO port, and
Mic-in/Line-in/Line-out. Optional wireless, 3G or LTE modules can be added via a
Mini PCIe slot or M.2 socket.
In addition, the embedded board that drives the WEBS-35C6 system features an
innovative PCI/PCIe expansion module. Users can easily maintain or replace the
PCI/PCIe module via a unique gold finger design or extended from 1x PCIex16 slot.
Expansion interfaces include 2x PCIe x1, 1x PCI and 1x PCIe x1, and 2x PCIe x8. So
There are two system part number for customer to choose suitable solution. They are
AS5-3459 with 2x PCIe x1 or 1x PCI + 1x PCIe x1 by assembly to order and AS5-3463
with 2x PCIe x8.
The rugged, fan-less design makes the WEBS-35C6 durable in harsh environment
applications, such as factory automation and industrial automation. Portwell’s
WEBS-35C6 has already passed a vibration test of 5Grms/ 5~500Hz and a shock test
of 50G, assuring its solidity and reliability.
In addition, the system accepts a wide input voltage range from 12V to 36V. This
power-source flexibility enables product usage in a variety of situations. Moreover,
the WEBS-35C6 is more than a robust and dependable embedded system with high
performance and graphics efficacy, its stylish mechanical design enhances the
system’s artistry. Potential applications include kiosk, intelligent digital security, IVI,
factory automation and surveillance applications, and many more.

System Overview
WEB-35C3 User’s Manual 1-2
1.2 Check List
The WEBS-35C6 package should cover the following basic items:
✓One WEBS-35C6 Fan-less Embedded System
✓One Wall Mount Kit
✓Other Accessories
If any of these items is damaged or missing, please contact your vendor and keep all
packing materials for future replacement and maintenance.
1.3 Product Specification
System
M/B
WADE-8017-WS
System Chipset
Intel®Q170 chipset
CPU
Intel®Core™i7-6700TE Processor. 2.4 GHz. Up to 3.4 GHz.
8M L2 Cache. 35W TDP. (4C/8T)
Intel®Core™i5-6500TE Processor. 2.3 GHz. Up to 3.3 GHz.
4M L2 Cache. 35W TDP. (4C/4T)
Intel®Core™i3-6100TE Processor. 2.7 GHz.
4M L2 Cache. 35W TDP. (2C/4T)
Intel®Pentium®G4400TE Processor. 2.9 GHz.
3M L2 Cache. 35W TDP. (2C/2T)
Intel®Celeron®G3900TE Processor. 2.3 GHz.
2M L2 Cache. 35W TDP. (2C/2T)
BIOS
AMI uEFI BIOS (SPI ROM)
System Memory
Dual 260-pin UB-DIMM sockets support DDR4 2133/1866
Non-ECC up to 32GB
Storage
2x 2.5”SATA HDD/SSD, 1x mSATA(via mini PCIe socket)
Watchdog Timer
Programmable via S/W from 1 sec. to 255 sec.
H/W Status Monitor
-Temperature (CPU & System)
-Speed (CPU Fan & System Fan)
-Voltage (CPU Vcore, 12V, 5V, 3.3V, VDIMM)
Expansion
-1x M.2 socket (type E) with PCIe x1, USB 2.0, SDIO, UART,
or I2C signal, 1x Mini-PCIe socket
-Expansion slots:
1x PCIe x 8 slot (with PCIe x8 signal)
2x PCIe x 4 slots (with PCIe x4 signal)
2x PCIe x 4 slots (with PCIe x1 signal)
External I/O
Series Ports
2x RS-232/422/485 selectable by BIOS & 4x RS-232
Display
1x VGA, 1x DP, 1x HDMI
USB
4x USB 3.0, 4x USB 2.0
Audio
Line-in/Line-out/MIC (ALC886)

System Overview
WEB-35C3 User’s Manual 1-3
LAN
2x Gigabit Ethernet (Intel®I219LM + I211AT)
GPIO
1x Programmable 8-bit digital I/O
Other
-2x Antenna holes for WIFI, 3G/GPS or 4G LTE module
-1x EXT Power switch
Power Supply Unit
Power Supply
DC 12~36V with 3-pin terminal block connector
Environment
Operating
Temperature
-20℃to 50℃with Turbo boost Disabled in BIOS (Default)
-20℃to 40℃with Turbo boost Enabled in BIOS
Storage Temperature
-40℃to 80℃
Relative Humidity
95% @ 40℃, non-condensing
Operating Vibration
5Grms/5~500Hz, IEC 60068-2-6
Operating Shock
50G, 11 msec, IEC 60068-2-27
Mechanical
Dimension (WxDxH)
253 x 255 x 210 mm
Weight
9 kg
Mounting
Wall Mount
1.4 Mechanical Dimension
Front view of the WEBS-35C6 system

System Overview
WEB-35C3 User’s Manual 1-4
Rear view of the WEBS-35C6 system

System Overview
WEB-35C3 User’s Manual 1-5

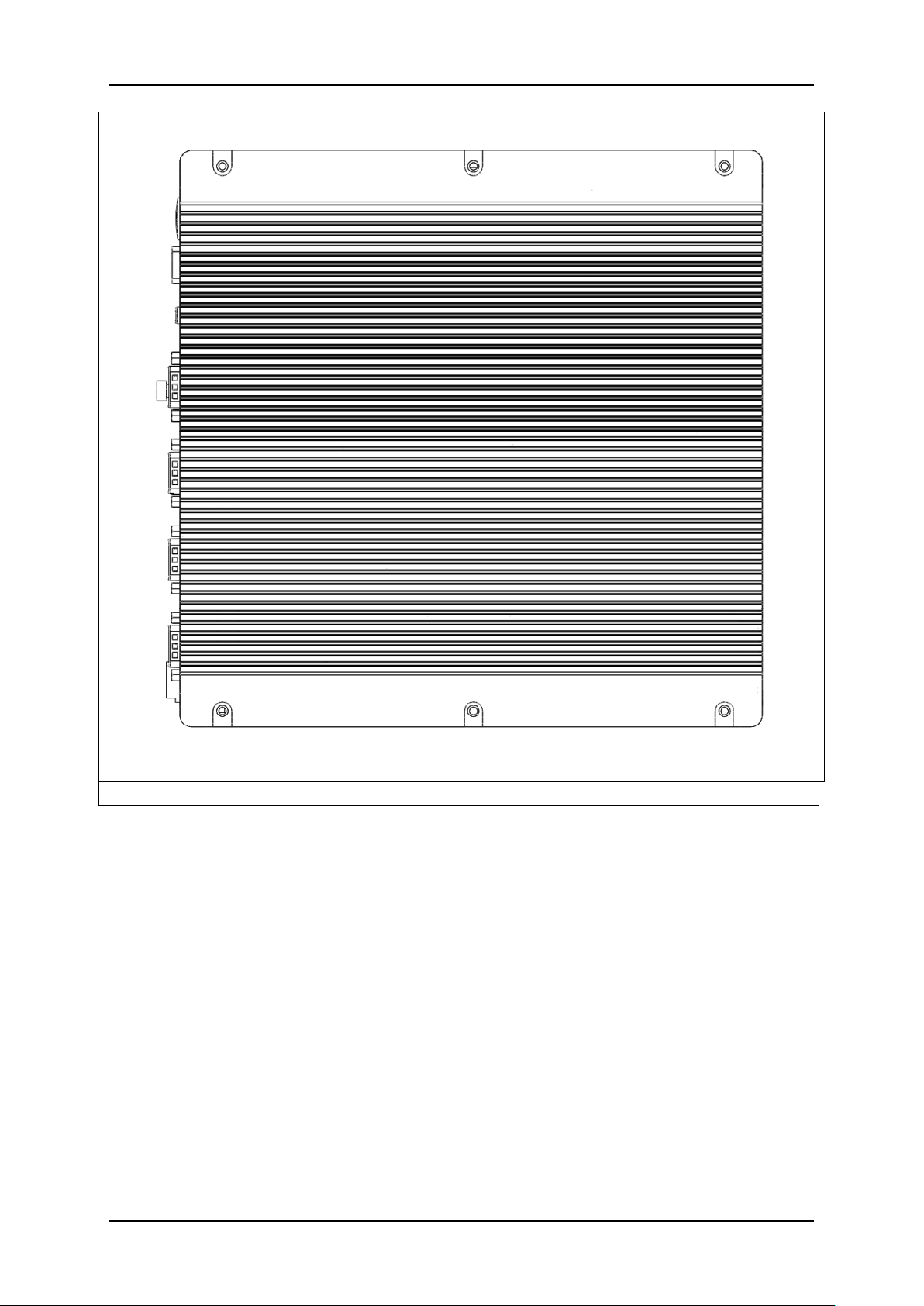

Top view of the WEBS-35C6 system

System Installation
WEB-35C3 User’s Manual 2-1
Chapter 2
System Installation
This chapter provides you with instructions to set up your system. Definitions
and locations of all the interfaces are described so that you can easily configure
your system. For more detailed PIN assignment and jumper setting, please refer
to user’s manual of WADE-8017.
2.1 CPU and Memory module Installation
Equipped with CPU and Memory module by yourself if you purchase CPU or
Memory module locally.
Step 1. Loosen the screws of top
heatsink (there are 4 screws)
Step 2. Check system inside
Step 3. Open CPU Socket before
installing CPU.
Step 4. Remove CPU socket protection
cover

System Installation
WEB-35C3 User’s Manual 2-2
Step 5. Install CPU. Please locate
notches on both side and pin one of
CPU first
Step 6. Install CPU successfully
Step 7. Remove film of thermal pad on
heat spreader
Step 8. Remove film of thermal pad on
heat spreader
Step 9. Assemble CPU heat spreader
Step10. Install DDR4 Long DIMM
Memory Module on the system

System Installation
WEB-35C3 User’s Manual 2-3
Step11. Make sure CPU and Memory
module are installation successfully
Step12. Fixed the screws of top
heatsink (there are 4 screws)

System Installation
WEB-35C3 User’s Manual 2-4
2.2 HDD Installation
Unique design of the HDD tray allows easy installation and maintenance of 2.5”
HDD/SSD. RAID function is supported with dual HDD/SSD design. (The height
must be less than 10mm)
Step 1. Loosen the screws of the
expansion cover
Step 2. Draw out the HDD tray from the
system

System Installation
WEB-35C3 User’s Manual 2-5
2.3 PCIe/PCI Add-on Card Installation
Equipped with an innovative PCIe expansion module, user can easily install and
replace their own expansion cards.
There are three types of riser cards:
⚫2x PCIe x4 slots (with PCIe x1 signal)
⚫1x PCIe x 8 slot (with PCIe x8 signal) & 2x PCIe x 4slots (with PCIe x4 signal)

System Installation
WEB-35C3 User’s Manual 2-6
Install PCIe/PCI add-on card on 2x PCIe x4 riser card or 1x PCI and 1x PCIe x4
riser card.
Step 1. Loosen the screws of the
expansion cover
Step 2. Insert PCIe add-on card

System Installation
WEB-35C3 User’s Manual 2-7
I
Add-on card dimension limitation:
Max dimension of add-on card in WEBS-35C6 is 176.65 x 113.9 mm.

System Installation
WEB-35C3 User’s Manual 2-8
2.4 I/O Interfaces
2.4.1 Rear View
DC in 12-36V via 3-pin terminal block connector:
Provide power connection of the system to the main power source via DC power
cable or AC/DC power adapter.
ANT1 & ANT2 hole:
Antenna holes for WiFi or 3G/GPS module
GPIO:

System Installation
WEB-35C3 User’s Manual 2-9
Pin
Signal
Pin
Signal
1
GPIO0
2
GPIO4
3
GPIO1
4
GPIO5
5
GPIO2
6
GPIO6
7
GPIO3
8
GPIO7
9
GND
10
VCC5
Audio:
Connectors for Mic-In, Line-In and Line-Out
LAN:
Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports by using Intel®
I219LM & Intel® I211AT GbE Ethernet Controller
USB3.0 & USB 2.0:
Support six USB (Universal Serial Bus) ports, four USB 3.0 and two USB 2.0.
VGA:
VGA –CRT display output
DP:
DP (Display Port) display output
HDMI:
Type A HDMI display output
COM port:
⚫RS-232
Pin
Signal
1
DCD#
2
RXD#
3
TXD#
4
DTR#
5
GND
6
DSR#
7
RTS#
8
CTS#
9
RI#
⚫RS-232/4222/485
*Note: RS-232/422/485 configuration is determined by BIOS setting. Check
BIOS setting for details.
Pin
Signal
1
DCD#/DT-

System Installation
WEB-35C3 User’s Manual 2-10
2
RXD#/DT+
3
TXD#/422R+
4
DTR#/422R-
5
GND
6
DSR#
7
RTS#
8
CTS#
9
RI#
2.5 Getting Started
It is easy to get the system started.
Step 1. Make sure the power supply
(12~36V) is connected properly
Step 2. Press the power button to turn
on the system

System Installation
WEB-35C3 User’s Manual 3-11
Chapter 3
BIOS Setup Information
WEBS-3585 system adopts WADE-8017 mother board. WADE-8017 is equipped
with the AMI BIOS stored in Flash ROM. These BIOS has a built-in Setup
program that allows users to modify the basic system configuration easily. This
type of information is stored in CMOS RAM so that it is retained during
power-off periods. When system is turned on, WADE-8017 communicates with
peripheral devices and checks its hardware resources against the configuration
information stored in the CMOS memory. If any error is detected, or the CMOS
parameters need to be initially defined, the diagnostic program will prompt the
user to enter the SETUP program. Some errors are significant enough to abort the
start-up.
3.1 Entering Setup
Power on the computer and the system will start POST (Power on Self Test) process. When the
message below appears on the screen, press <Delete> or <ESC> key will enter BIOS setup screen.
Press<Delete> or <ESC> to enter SETUP
If the message disappears before responding and still wish to enter Setup, please restart the system
by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>,
<Alt>, and <Delete> keys on keyboard simultaneously.
Press <F1> to Run General Help or Resume
The BIOS setup program provides a General Help screen. The menu can be easily called up from
any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for
the highlighted item. Press <Esc> to exit the Help Screen.

System Installation
WEB-35C3 User’s Manual 3-12
3.2 Main
Once you enter WADE-8017 AMI BIOS CMOS Setup Utility, a Main Menu is
presented. The Main Menu allows user to select from eleven setup functions and
two exit choices. Use arrow keys to switch among items and press <Enter> key to
accept or bring up the sub-menu.
This setup page includes all the items in standard compatible BIOS. Use the arrow
keys to highlight the item and then use the <PgUp>/<PgDn> or <+>/<-> keys to
select the value or number you want in each item and press <Enter> key to certify
it.
Follow command keys in CMOS Setup table to change Date, Time, Drive type,
and Boot Sector Virus Protection Status.
Feature
Description
Options
System Date
The date format is <Day>, <Month> <Date> <Year>. Use
[＋] or [－] to configure system Date.
System Time
The time format is <Hour> <Minute> <Second>. Use [＋]
or [－] to configure system Time.
System Data
System date in the format [MM/DD/YYYY]. Use <Enter> or <Tab> to switch
through the fields. Adjust the
values with <+> and <->.
System Time
System Time is in 24-Hour format [hh:mm:ss]. Use <Enter> or <Tab> to switch
through the fields. Adjust the
values with <+> and <->.
