Ring Mekanikk Steens Physical User manual

User manual and technical specifications
24.08.2012
GB
Manufacturer:
Ring Mekanikk AS
Norway
E-mail: [e-mail]
Web adress: WWW.ringmek.com
Tel: [phone] / Fax: [phone]

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
1
Introduction :
This user manual for your lat-pulley is ment to guide you to the best use of the apparatus, and
ensure that the patient safety is taken care of.
This user manual is for: 1. Art.nr. 180110-10 - RM art. 702876 - lat pulley 50 kg
2. Art.nr. 180110-20 - RM art. 702965 - lat pulley 80 kg
3. Art.nr. 180110-30 - RM art. xxxxxx - lat pulley 100 kg
Read the user manual carefully before using the apparatus.
Content in this manual:
Chapter
Text
Page
a)
Declaration of conformity
2
b)
User manual
3
c)
Maintenance
4
d)
Precautions
4
e)
Limitations
4
f)
Adjustment/settings
5
g)
Areas of use
5
h)
Repairs
5
i)
Drawings
6-8
j)
Technical specifications
9
k)
Additional equipment
9(8)
CE –labelling is done in accordance with the machine directive 89/392/EEC

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
2
A.
_________________________________________________________________________________________
EC DECLARATION OF CONFORMITY FOR
MACHINERY
_________________________________________________________________________________________
Manufacturer: Ring Mekanikk AS
Adress: Industriveien 10, 2390 Moelv, NORWAY
Herewith declares that:
Apparatus with number 180110-10,180110-20,180110-30 is in conformity with the provisions of the Machinery
Directive(directive 89/392/EEC), as amended, and with national implementing legislation.
Moelv, Norway 24.08.2012
John-Erling Nygård
John-Erling Nygård
Development manager and CE-responsible

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
3
B. User manual:
1. Installation and unwrapping.
Inspect the wrapping carefully when receiving the pulley, and if there are signs of
damage, you must contact your forwarder immediately for damage claims.
2. Do NOT remove straps on the pulleys weight stack, before you have placed the
equipment where it is supposed to be used.
3. For mounting the pulley to a wall:
a. Place the apparatus where it should stand, and remove straps around the weights
stack.
b. Mark of holes up and down, against wall. see drawing page.6. If concrete wall,
drill Ø10 holes for plugs enclosed.
c. When attachment to tree/chipboard/plaster, You must find proper attachment for
nails, or use other attachment equipment that is ment for this area of use.
d. When attachment to module frame, use attachment holes up and down that
compares with the holes in the module frame. For this attachment use bolts that
are enclosed in this shipment.
e. For mounting of gallow on top of the apparatus, it can be mounted in 3 different
heights. Attachment of rope and rope shortener see drawing on page 6.
C. Maintenance:
1. Check the rope every week for damage, if there are damage it must be replaced. Use
only the same rope.
2. Check the carabinhook for damage, it there are damage, it must be replaced. Use only
the same type.
3. The gliding tube on the weight stack must be cleaned and smeared with silicone spray.
4. If the apparatus is attached to wall, the wall bearings must be checked regularely to
maintain the users safety.
5. Note. when ordering parts, contact the dealer and see for part no. on page 7.

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
4
D. Precautions:
The pulley is only ment to be used for specific theraputic and training excercises, and
with the additional equipment we have described. see page 8 and 9.
E. Limitations:
1. One must not push or pull the apparatus using the gliding rods, this can cause damage to
the functioning of the gliding of weights.
2. One must not load the apparatus with more weights or kg’s than the weights that are
attached to the weight stack, this can cause damage on both apparatus and user.
3. Apparatus is ment for indoors use only.
4. Apparatus must not be placed in rooms with haigh humidity or in rooms with connection
to swimming pools. This can cause corrotion and/or rust.
F. Adjustments/settings:
1. When setting the desired weight, set the weight pin for the right weight on the weight
stack, see scale.
2. Too adjust the length of the rope, use the little metal piece that are attached to the rope.
Lift this up and pull the rope until you have the desired length. Then release the rope for
locking, see drawing on page 6 no.1.

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
5
G. Area of use:
The pulley is ment to be used for training or treatment in different categories.
To get the best use of the apparatus, it should be used according to instructions from
instructor or therapeut.
H. Repairs:
1. If any problems occur during use, try to correct it using this manual.
2. Note. When replacing parts, use only the original parts that you can order from your
dealer. Use the partslist drawing on page 7.
3. If there is still a problem, take contact with your dealer. Remember to take note of the
production year, serial no., and art. no., before calling the dealer.

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
6

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
7

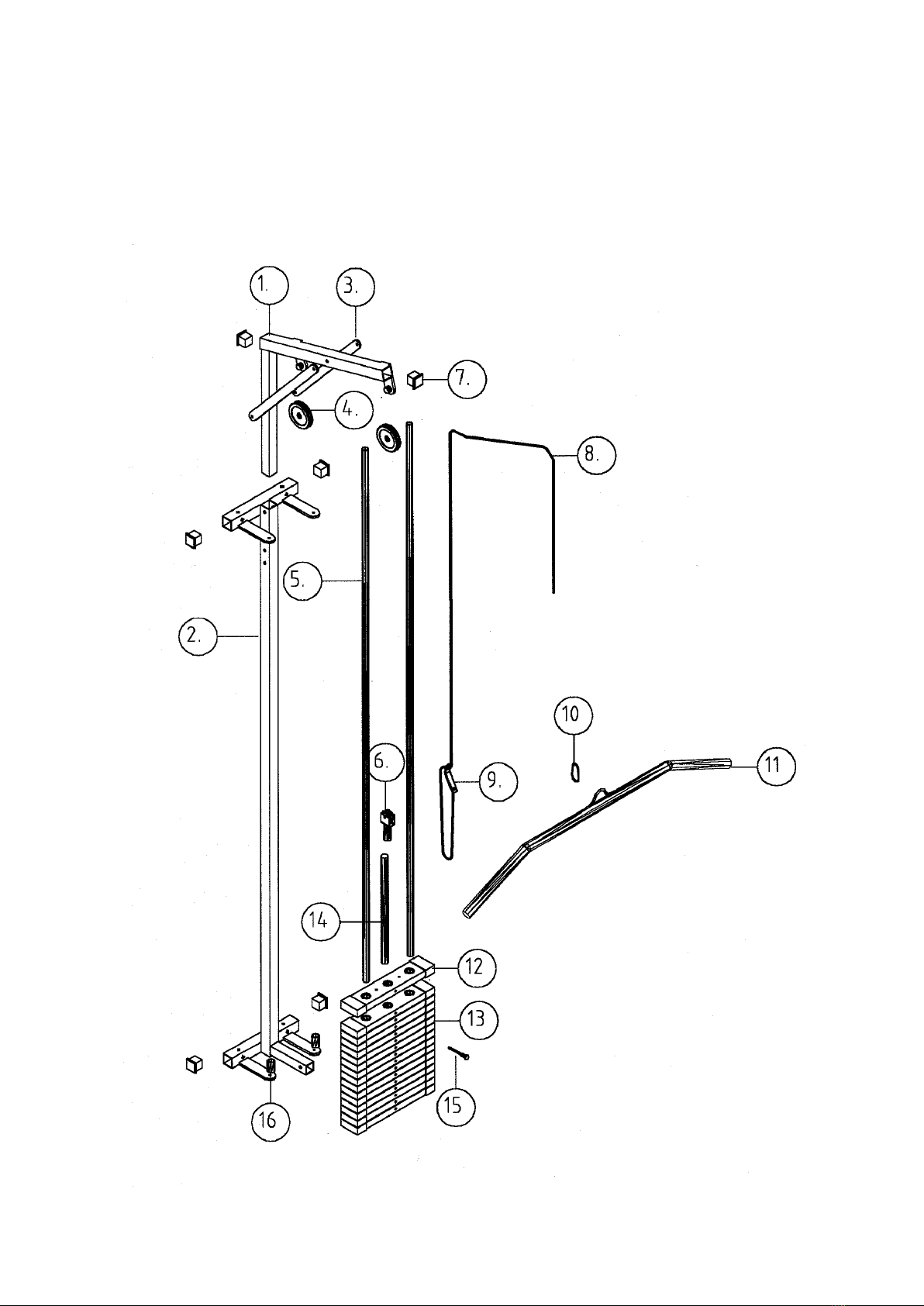

I.

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
8
I.

Ring Mekanikk AS
Instruction manual for equipment
Steens Physical
date: 24.08.2012 page
9
J. Technical specifications:
Max height: 255cm
Min height : 235cm
Depht : 24cm
Width : 35cm
Weightstack types: 50 kg art.no. 180110-10 –RM art. 702876
80 kg art.no. 180110-20 –RM art. 702965
100 kg art.no. 180110-30 –RM art. xxxxxx
Type of rope: Roblon Admiral 2000 8mm nylon with kevlar core.
Lenght 3,8 m.
K. Additional equipment:
Item description
Item no.
1. 2.5 Kg weight for lat pulley
180119-10
2. Deload device lat pulley-bent
180115-50
3. Deload device lat pulley-streight
180115-60
4. Step stool
180113
5. Handgrip for rowing
180 875-10
6. Device for rowing
180 115-20
7. Device for up-pull
180 115-10
8. Stool for lat pulley
180115-30
9. Rotary triceps rod-streight
180 888-20
10. Triceps rod 35cm-streight
180 888
11. Triceps rod 35cm-bent
180 888-10
For more information on additional equipment , take contact with dealer.
If ordering additional equipment, always rember to give up the art.no.
you are ordering for , and the production year of your apparatus.
