Rinnai RDT-400-SR User manual

MODEL ：RDT-400-SR
型 号
Gas TUMBLE DRYER
燃气滚筒式干衣机
OPERATING INSTRUCTIONS
使用说明书

− 1 −

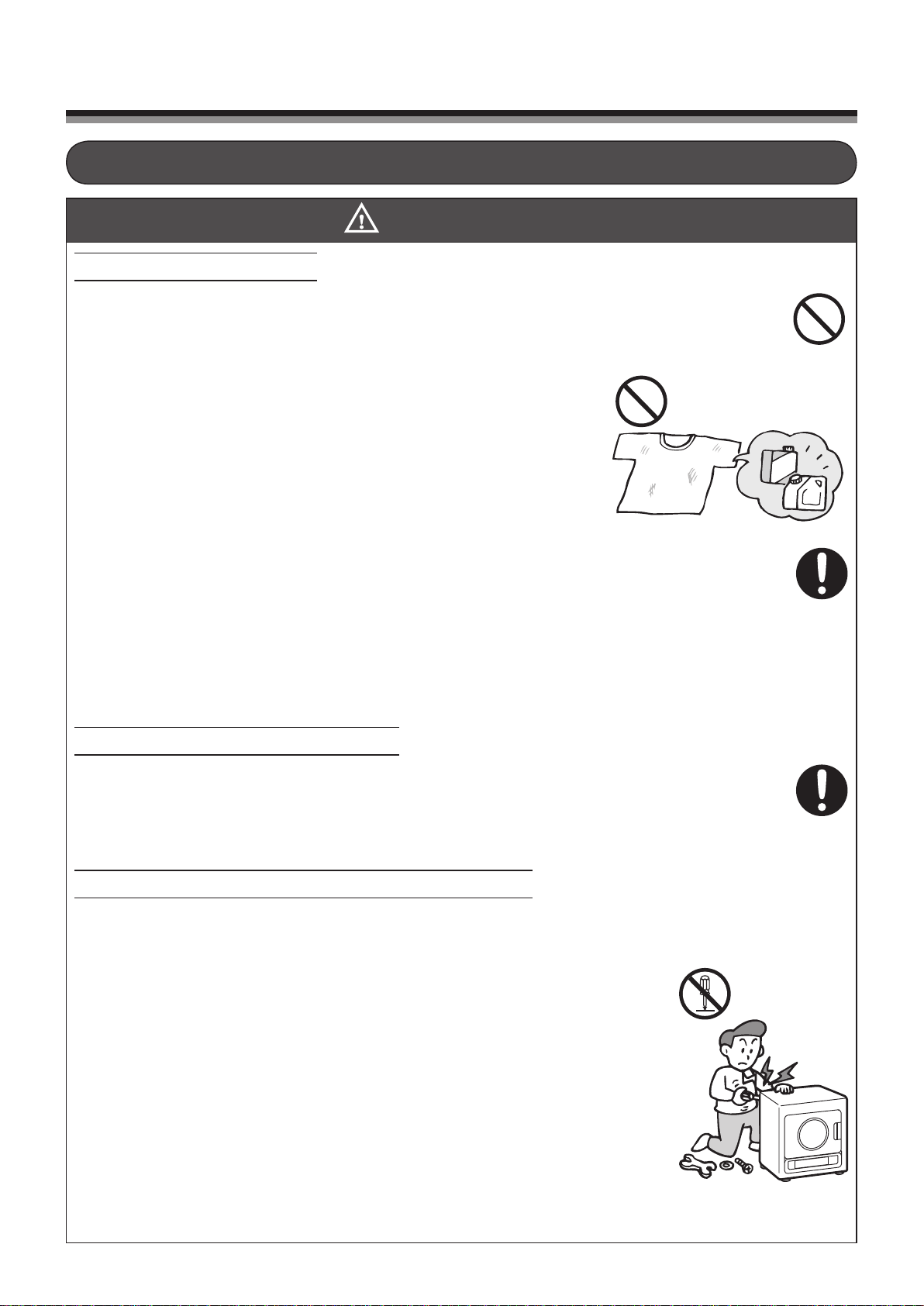

Warning 警告
Attention on safety 安全注意事项
Caution on Use 使用时注意事项
Fire Prevention 防止火灾
• Don’t put or use volatile and flammable goods like spray, benzene and gasoline close
to the dryer during operation.
•
本干衣机进行操作时，请勿在旁使用或放置喷雾剂、石油或汽油等易燃物品，这是导致火
灾的原因。
•Don’t dry clothes which are stuck with oil, petrol, dry-cleaning
liquid and perm liquid with the dryer.
•
若衣物本身附有油渍、汽油、干洗液、电发液等，即使洗衣后，不
可进行干衣。
※Oil oxidation heat may cause spontaneous ignition and inflammation
of clothes.
※油份的气化热能，有导致自然起火或引起火灾的危险。
• Confirm flammable things like a lighter and matches are not inside pockets . This may
cause fire.
•
请确定衣服口袋里没有存放打火机，火柴等易燃物品，这是导致火灾的原因。
•
Don’t dry clothes or materials contain flammable substances like polyfoam, polyurethane etc.
User should pay attention to the clothes label.
•
切勿把含有易燃物料的衣物干衣，如乳胶，海绵等等。使用干衣机时需要注意衣物标签上的指示。
Care for Ventilation 注意空气流通
• A lot of fresh air is required for complete combustion of gas. Don’t use the dryer in a
closed room.
•为充分燃烧煤气，必须有大量的空气作助燃之用。请勿在密闭的房间使用本干衣机。
Dismantlement Prohibition 禁止擅自拆开本产品
• Don’t disassemble, maintain and convert the dryer by unauthorised personnel.
•
除了维修的专业技术人员外，切勿拆开本干衣机，进行修理或改装。

− 2 −
Caution 注意
Attention on safety 安全注意事项
Caution for Burn 注意灼伤
•Don’t take clothes out until the operation finishes completely. It
may cause burn injury due to high temperature around the drum
during the operation.
•
干衣机操作期间，切勿取出衣物。因在操作过程中，干衣鼓周围的
溫度会变得非常高，可能导致灼伤。
•
In case unusual stop occurs during drying, open the door and let the temperature inside
the drum cools down before taking the clothes out from the dryer. If the clothes are taken
out immediately, burn injury may be caused.
•
若因本产品在干衣过程中，异常地停止运作，请打开机门，待干衣鼓內的溫度完全下降后，才可拿
出衣物。立即取出衣物可能会导致灼伤。
Usage 有关用途
• Don’t spray water on and wash the dryer body and drum. Fire may
occur due to electrical shock, electric leakage and short circuit.
•
请勿用水噴洒或清洗机身或干衣鼓以免导致触电、漏电及短路，引发
火灾。
•Don’t cover the dryer with blankets and clothes. Fires and
unexpected accidents may occur.
•
请勿在干衣机頂盖上毛巾或衣物，此乃导致火灾或意外的原因。
• Don’t use the dryer other than the purpose of drying clothes. It may
cause fires and unexpected accidents.
•
除用作烘干衣物外，切勿使用本干衣机作其他用途。此乃导致火灾或意外的原因。
• Remove metallic powders and things from clothes as electrical shock may be resulted.
•
请移走衣物上的金属粉、金属片，这些物品会导致触电的危险。

− 3 −

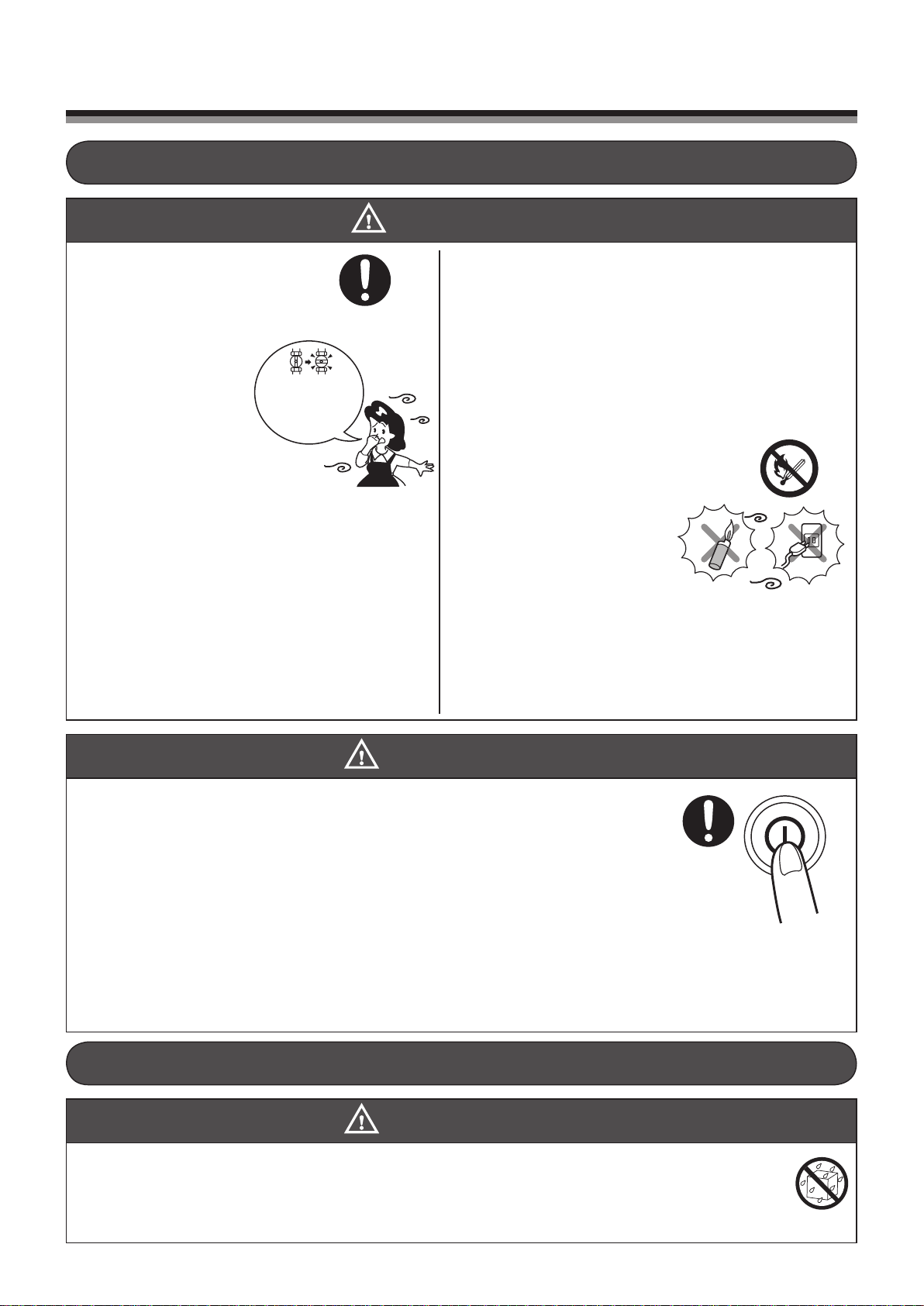

Warning 警告
Procedures at Unusual Case 异常情况处理
•In case of unusual combustion, bad smell and unusual sound or
earthquakes and fires etc. during the operation, stay calm and turn the
power switch off. If the dryer is continuously operating under the same
condition, explosion and fire may occur.
If you feel an unusual condition, refer to trouble shooting list(page 22).
For further information, please contact Service Hotline：[phone]
•
当使用本产品时，若出现不寻常状况如不正常燃烧、发出异味、不正常声
音等，或遇到地震、火灾等紧急情况，切勿慌张，请关掉电源。若任由情
况变坏而不加处理，这是导致爆炸或火灾的原因。
 常出现异常情况时，请参阅“常见故障识别”（22页）。若仍有问题，请
致电上海林内安装维修咨询热线：400-699-0606
Attention on safety 安全注意事项
Turn off the Power switch.
关掉电源
Warning 警告
Caution on Installation 安装时注意事项
• Don't install in bathroom, highly humid place or place exposed to a rainstorm. It might
cause an electric shock, electric leakage or a fire.
•
请勿安装【干衣机】于浴室等湿度极高、或可被风雨吹袭之地方。将干衣机安装于以上地
点可导致电击、漏电甚至火灾。
Danger 危险
• When a gas leak is noticed:
1.Stop use immediately
2.Close the gas valve
3.Open windows
and doors
4.Call Emergency
Service from the
nearest outside
telephone
• 若发现有燃气泄漏
1.立即停止使用
2.关闭燃气阀
3.打开窗户
4.请使用室外的电话联絡紧急服务。
• Never do the following during a gas leak:
- Do not ignite fire
- Do not turn on or off any electrical appliance
- Do not insert/remove power plugs
- Do not use nearby telephones and mobile
telephones
- Do not use fire to find source of gas leak
- Do not press nearby door bells located on
the same floor
- Do not reopen the gas valve until gas is no
longer leaking
Gas may ignite from fire/
sparks, causing a fire as a result.
•发生漏气时，禁止以下事项
- 请不要点明火
- 不要开关电器产品
- 不使用插拔电源插头
- 不使用周围的电话、手机
- 禁止使用火测试是否漏气
- 禁止按位于相同楼层附近的门铃
- 禁止在漏气处理完毕之前再次打开燃气阀
明火及火花会引起着火，导致火灾
关闭燃气阀
Close the gas valve!

− 4 −

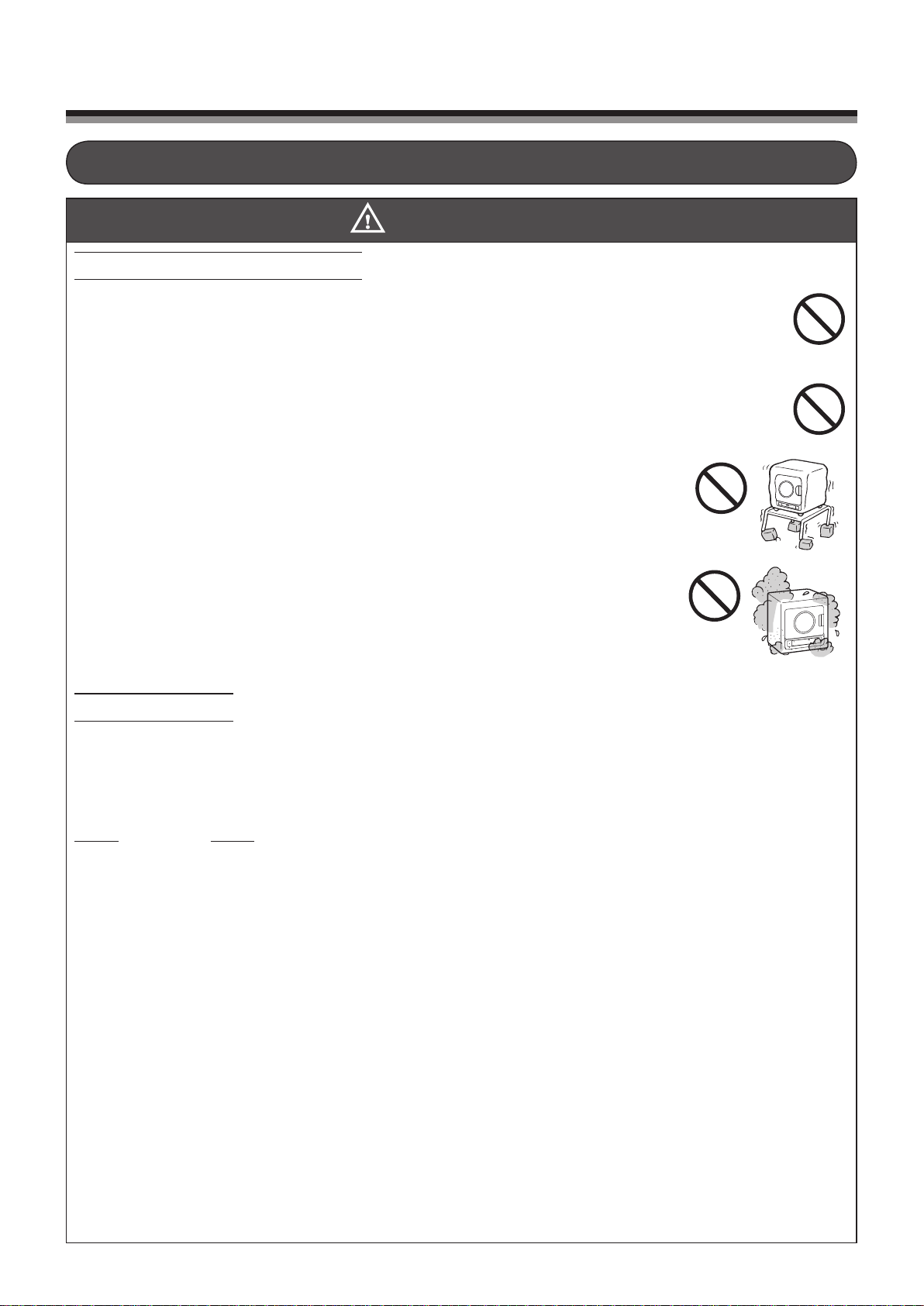

Attention on safety 安全注意事项
Caution 注意
Caution on Installation 安装时注意事项
Installation Position 安装位置
• Don’t put dangerous things, flower and pets nearby gas dryer. Flowers and pets may
die due to the exhaust gas and steam come out from the humidity duct.
•
由于排湿口会排出废气和水蒸气，切勿将干衣机放置在危险物品、盆栽、宠物附近等地
方，这可能引起植物枯死或动物死亡。
•
Don’t install dryer at places which affect other residents.
•
避免将干衣机放在影响邻居的位置。
•Choose the place which can support the weight of dryer and will not
amplify noise and vibration which may damage building structure and
create noise.
•
安装产品时，必须选择能充分承受干衣机重量的位置，并不会因操作而带来
更大的噪音或震动，否则便会造成建筑物损毁或造成噪音。
• Don’t use it at place where a lot of lint dust exist, which may cause
damages to dryer.
•
切勿在绵纱、灰尘多的地方使用干衣机，这是造成故障的原因。
Ventilation 通风
• For safe operation, the room in which the dryer is placed must be well ventilated. This includes
an openable window or equivalent#which must be opened during use.
摆放干衣机的房间必须通风良好以确保安全运行。通风设备包括可开启的窗户后类似设施，使用干
衣机时必须开启此设施。
Note / 注意
# Alternative acceptable forms of opening include adjustable louver, hinged panel or other means of ventilation that open directly to outside air.
 其他可接受的通风形式包括可调节的百叶窗，连铰链盖板、或其他直接连接室外的通风设施。

− 5 −
Attention on safety 安全注意事项
Caution for Children 幼儿注意事项
Warning 警告
• Don’t let children use the dryer alone or place it at location reachable
by children. This may cause burning or electrical shock if misused.
• 切勿让幼童独自使用干衣机，或将干衣机放在幼儿可触及的地方。这会有
烧伤、触电或损伤的危险。
Caution on Installation 安装时注意事项
Caution 注意
Humidity Duct Installation 安装排湿口
• For optimal function of the machine, the length of dia. 80mm humidity duct is recommended not
to exceed 6m and 1 bend. Reduce 2m when adding one bend.
•
为确保干衣机能在最佳状态下运行，直径80毫米的排湿口的长度不应超过6米及一个弯头。每增加
一个弯头需将排湿口缩短2米。
•
Maximum allowable length is 11m and 1 bend (equivalent to 5m and 4 bends) for dia. 80mm
humidity duct. Reduce 2m when adding one bend. Under this condition, the machine still functions
safely and normally, however, the drying time and the frequency of lint filter cleaning may increase.
• 直径80毫米的排湿口长度上限为11米及1个弯头（相当于5米4个弯头）。每增加一个弯头需将排湿
口缩短2米。在这个情况下，干衣机仍然正常和安全地运转，但干衣时间及清洁过滤网的次数则可
能相对增加。
Sheltered Balcony Installation 安装于有顶露台
In case of balcony installation, please follow the caution for the installation.
如把干衣机安装于露台时，请依照以下的注意事项。
•
Dryer should be installed under a fully sheltered location and not being irradiated by sunlight, sprayed by
rain or other water sources from direct above.
(Otherwise will damage appliance components)
•
干衣机应安装在一个能被完全遮盖的位置，并应避免被阳光、雨水或其他水源直接溅射于机身上。
（否则将会引起机件故障）

− 6 −
Attention on safety 安全注意事项
Confirm
確定
Usual Care 注意事项
Installation Place 放置的地方
• Don’t install the dryer at unstable place which may cause accident by falling off.
•
切勿把本干衣机放在不稳定的地方，这可能引起产品翻到，造成人身伤害。
• Don’t install the dryer under a shelf or place with falling off objects which may damage
the dryer.
•
切勿把本干衣机放在棚架下或有物品坠落的危险地方，这是造成故障的原因。
• Don’t use the dryer at place which need dehumidification since the exhaust flue
contains moisture.
•
本干衣机排出的气体含有湿气，请勿把本产品放于需要抽湿的地方使用。
•Don’t install the dryer on the electrical carpet or hot water mat which will cause
accident.
•
切勿把本干衣机放在电热毯或暖水毯上，这是造成故障的原因。
• Install the dryer with enough distance from the flammable objects such as furniture,
wall and shelf etc.
•
切勿把本干衣机靠近易燃物品安放（家具、墙壁、棚架等），否则会有火灾的危险。
General Home Appliances 一般家用产品
• Dryer is for domestic use only. Do not use for commercial application. It may shorten
the life time.
•
本干衣机只供一般家庭使用，切勿作商业用途，这会缩短机器的寿命。

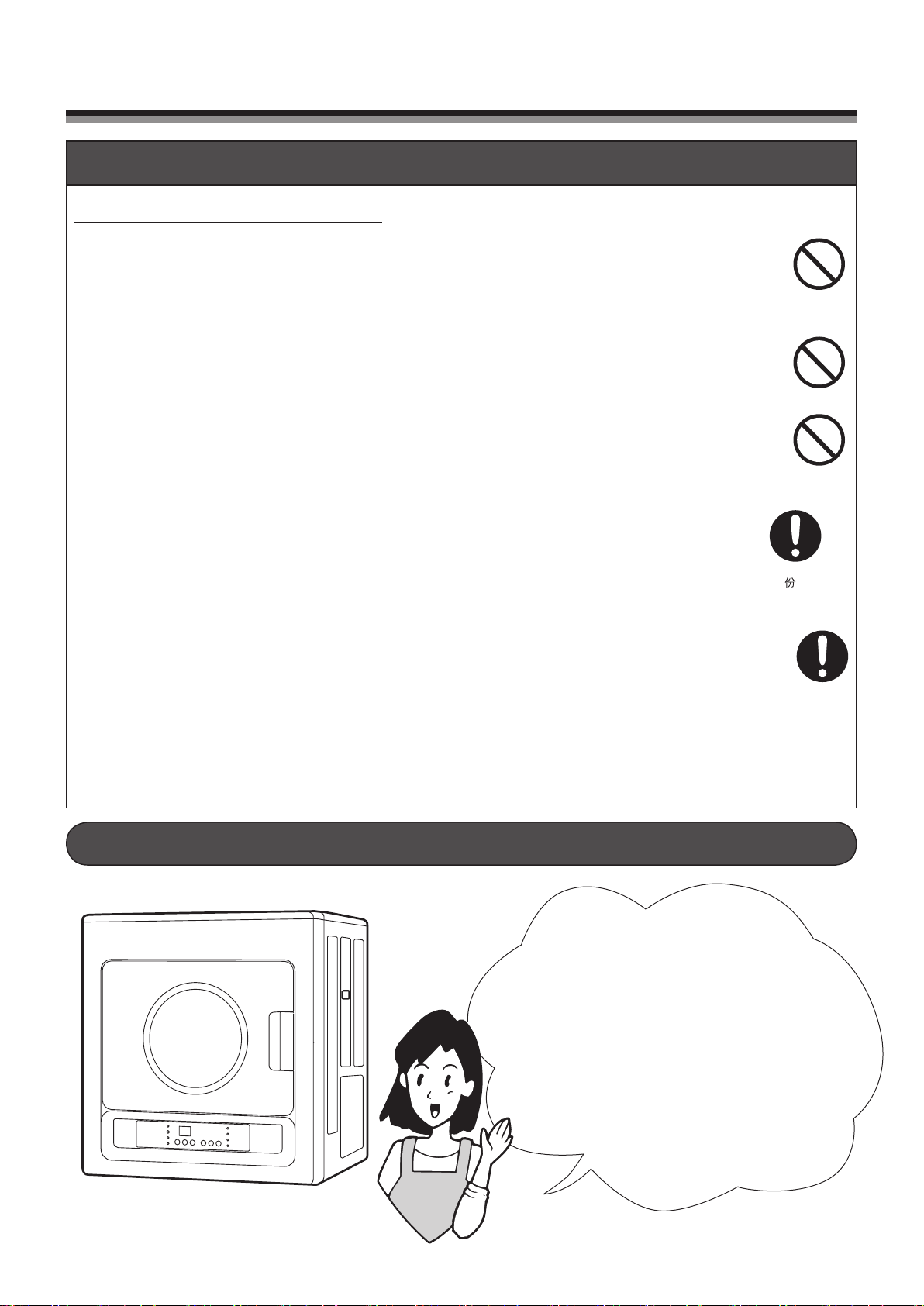

Cautions for Drying 烘干衣物时注意事项
•Neither add extra clothes nor open the door during drying. Clothes
may become unevenly dry.
•为避免造成干衣效果不均匀，切勿在烘干进行途中，打开机门或添加衣物。
•Don’t put heavy things or hang down the door by children. It may
cause damages.
•切勿让小孩悬吊在机门或把重物悬挂在机门上。这是造成机器故障的原
因。
• In case of a power failure during operation, restart the dryer after the power is resumed.
•遇到操作时停电的情况，请在重新通电后，再一次启动操作。

− 7 −
Attention on safety 安全注意事项
The domestic gas
dryer is economical
and easy to use. Please
experience its various
functions and features.
经济易用的家庭燃气干衣机。
请亲自体验它的多样化功能和
特长。
FUNCTIONS & FEATURES 功能和特點
Usual Care 注意事项

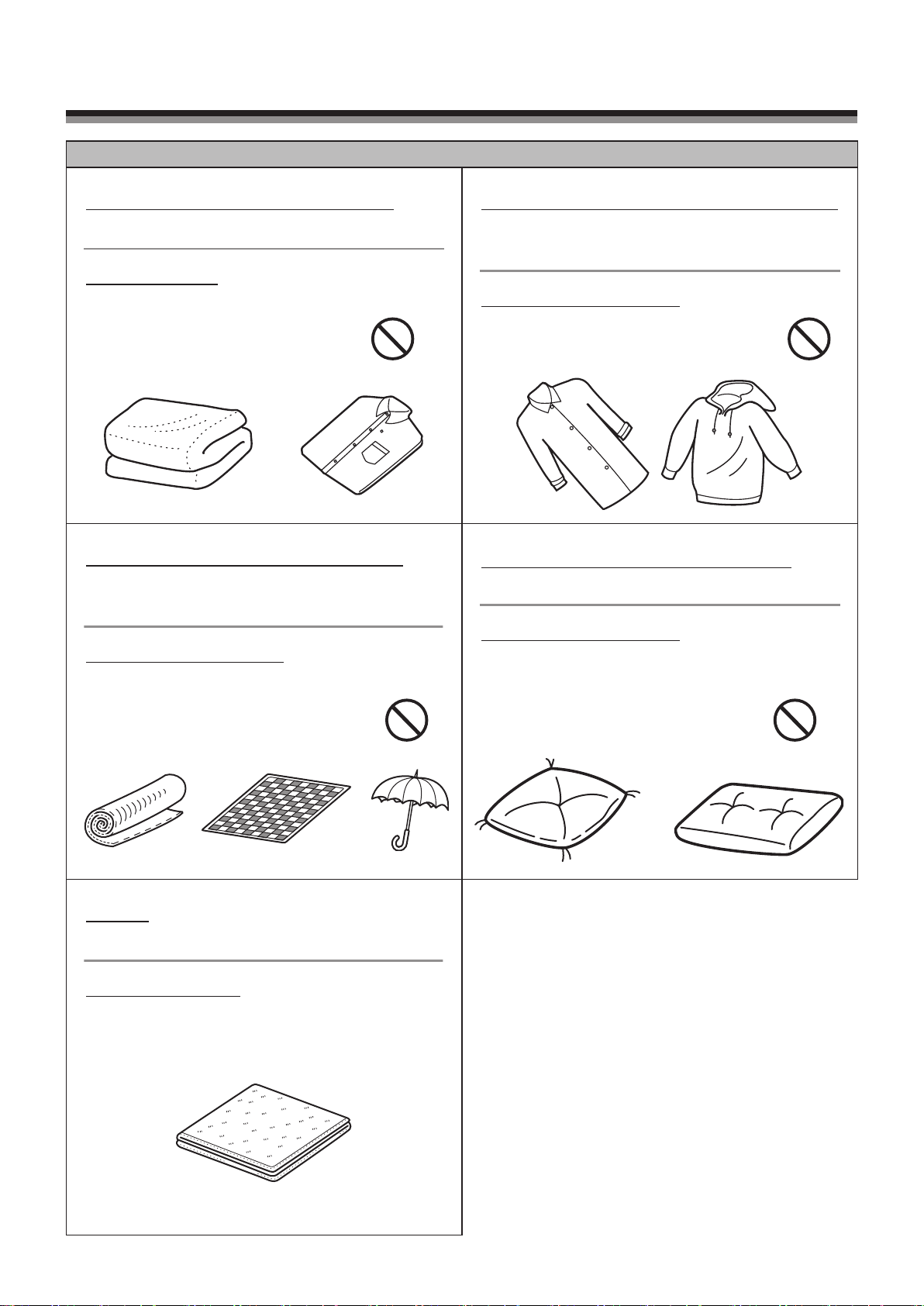

How to handle clothes 衣物处理
• Too much clothes cause uneven drying and trouble. In case the spin-dry clothes are
over-loading into the dryer, divide them into 2 batches and dry separately.
•
放入过量衣物，是造成干衣效果不均匀，衣物损坏或故障的原因。若脱水后的衣物，出现
装满干衣鼓的情况，请将其分开两次烘干。
•
Wet clothes kept inside the dryer may cause corrosion and trouble due to the moisture.
•
请不要把濡湿的干衣物，放进干衣鼓内而不加理会，因湿气时导致机器生锈或故障的原
因。
• Don’t dry the glued clothes which may cause blocking at the filter. Use the glued spray
after drying.
•
切勿把浆过的衣服，放进本机烘干，这是导致滤网孔口堵塞的原因。如需要浆衣，可于衣
物烘干后，使用“浆衣喷雾剂”等产品。
•
Enough spin dry by washing machine is required before using the dryer. If not
properly dehydrated, the drying time may take longer, and result in damages to
the dryer and leakage of electricity.
•
准备烘干的衣物，必须在洗衣机中充分脱水。未能完全脱水，是导致烘干时间延
长、机器故障或漏电的原因。
•
When using chlorine bleach on clothes, they should be fully rinse before drying. If the
chlorine bleach remains, it may cause damages.
•
当使用含酸碱盐素的漂白剂时，必须全面洗涤干净后，才可进行干衣，残留的盐素，是导
致机器故障的原因。
•
Clothes stuck between front door and dryer drum may cause trouble to the drum turning and this
is dangerous.
•
當衣物給機門夾著時，乾衣機便不可運作。那會阻礙乾衣鼓轉動並造成危險。
Enough Dehydration
充脫水

− 8 −

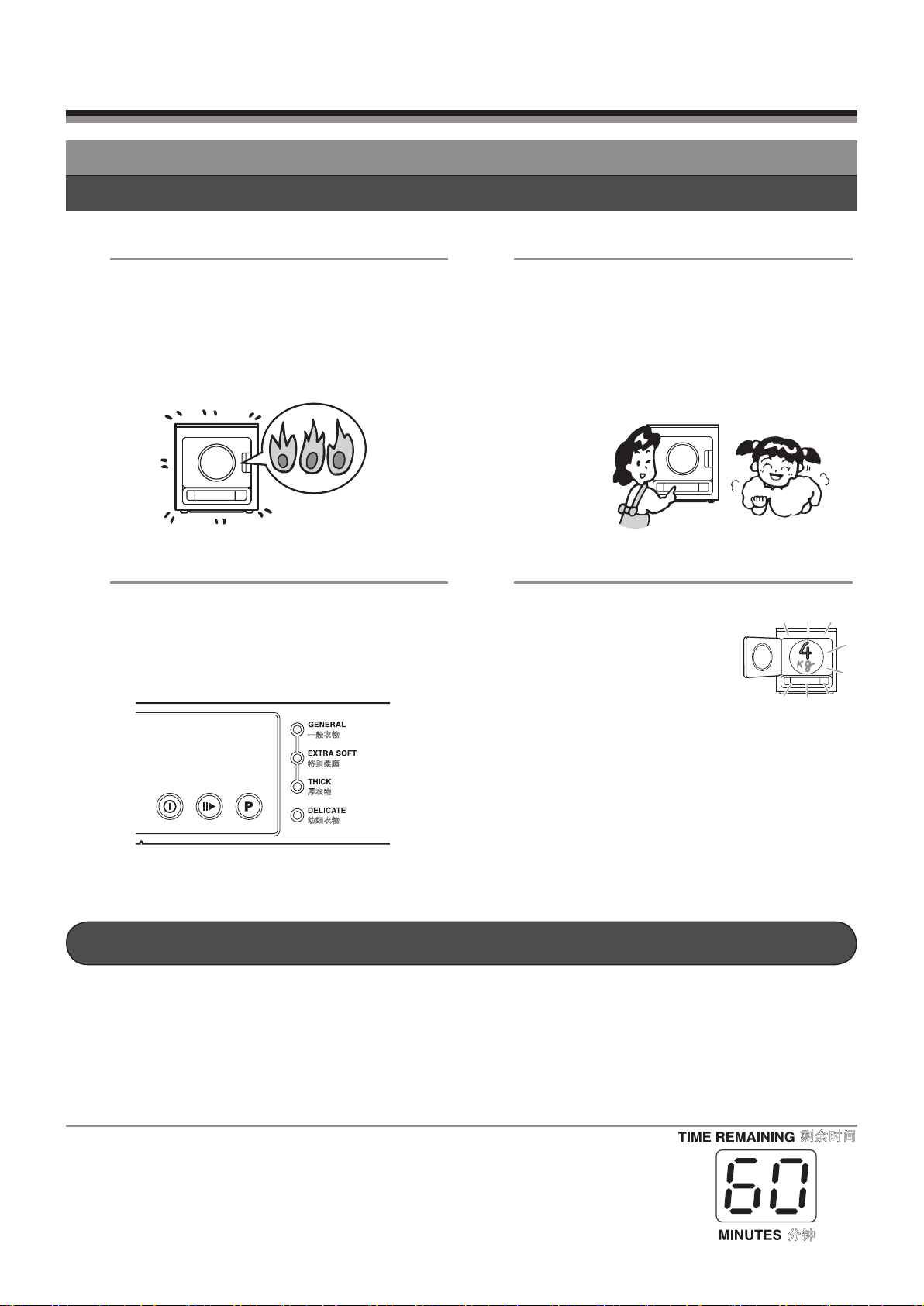

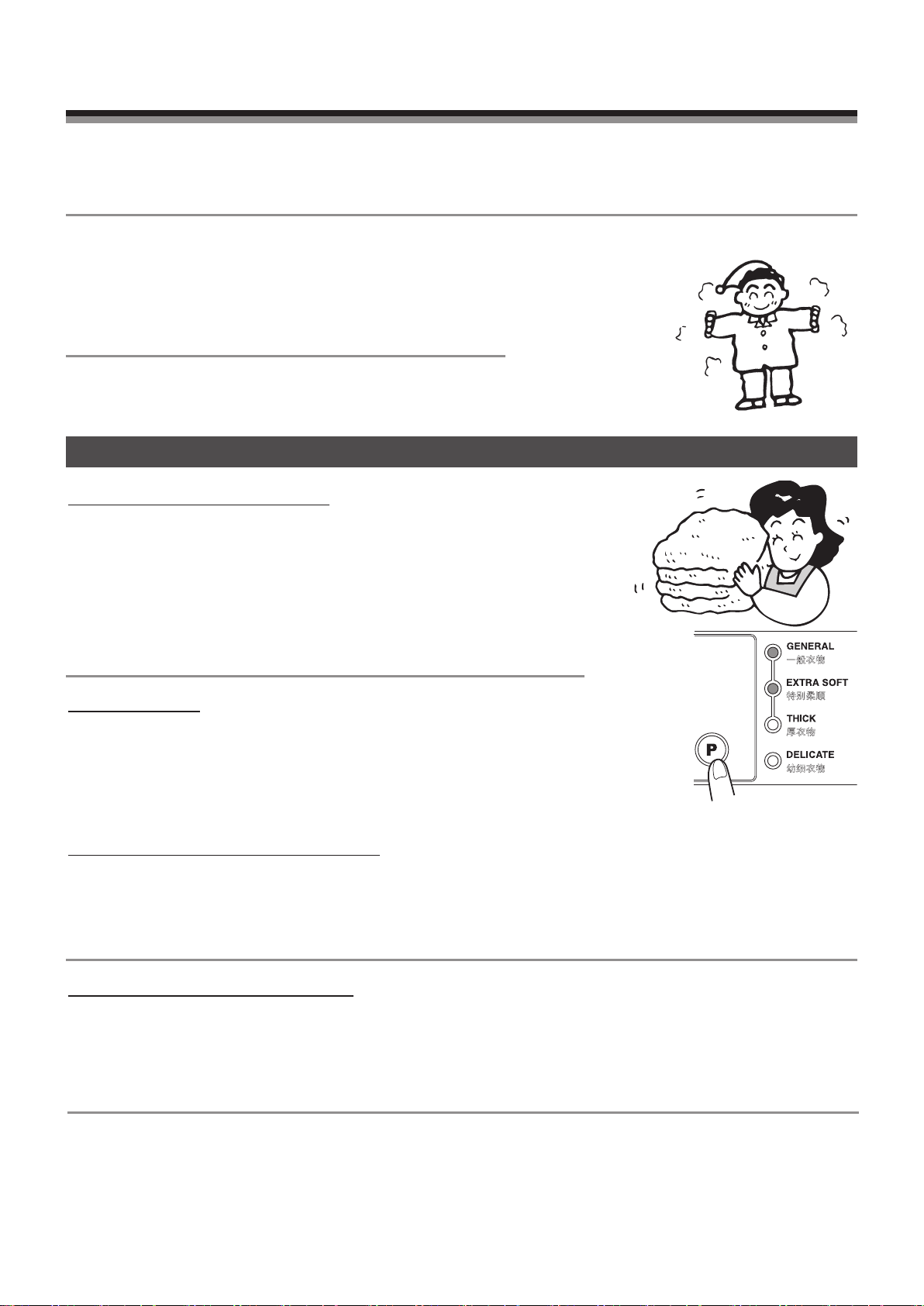

1Quick Drying
高速干衣
High speed, powerful gas heated drying. Drying
time is reduced by 1/2 compared with electric
dryer.
利用燃气的强力热能，可迅速干衣，比用电气干衣
机缩短一半时间。

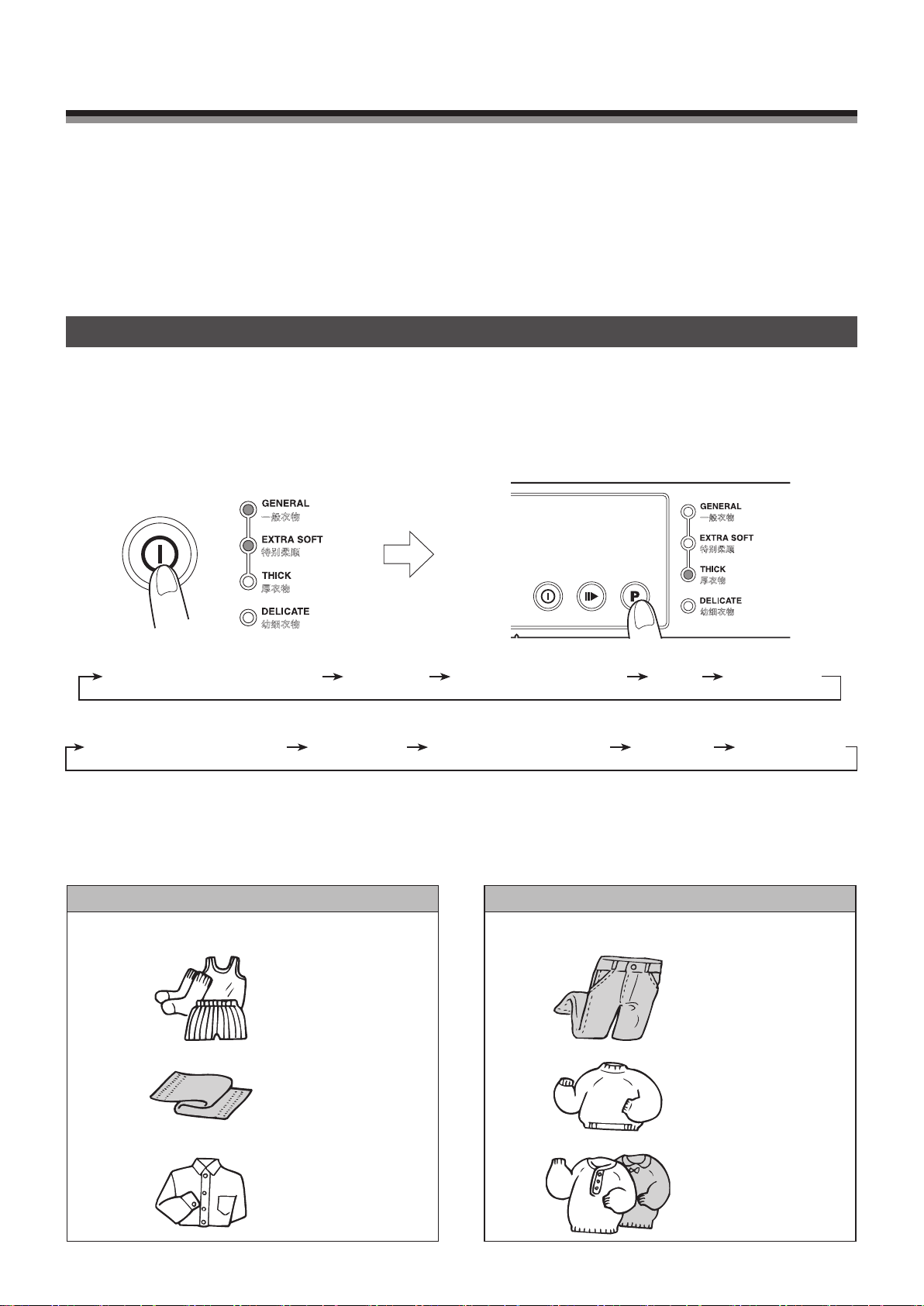

3Operation Cycle
运行程序
Choose the operation cycle according to type of
clothes.
配合多种衣料的需要，可选择不同的干衣程序。
Main Features
主要特点
ϔ㠀㸷⠽
⡍߿ᶨ乎
㸷⠽
ᑐ㒚㸷⠽
4
4kg Loading Capacity & Compactness
4公斤干衣容量和轻巧机身
Easy installation at narrow
space.
即使地方狭窄，也可轻易安装。
2
Soften Finished by Easy Operation
简单操作 效果卓越
Convenient automatic system. Just press a start
button, the dryer stops automatically after drying
is completed. Heated by gas makes clothes
soften finished.
全自动式，方便使用，只要轻按启动键，便一切运
行自如，操作简便，燃气的热能，令干衣效果特别
轻柔。
FUNCTIONS & FEATURES 功能和特点
Indicate the remaining time in accordance with the clothes volume at 2 minutes after the operation
starts. ( the remaining time is reduced for every 5 minutes.)
In case of the delicate cycle, it does not indicate the remaining time for a while.
All the time displayed is only estimated time and there is some difference with the actual finishing
time.
The remaining time may not be indicated properly if the filter clean lamp is on.
启动后2分钟，干衣机便会根据衣物量，显示大约的剩余时间。（以5分钟递减）
进行“幼细衣物”程序时，剩余时间显示需一段时间才呈现。
上述的时间表示都是个位数，有时会和实际终止时间有所不同。
此外，当过指示灯亮起时，所呈现的剩余时间显示有可能不准确。
Indication of the remaining time 剩余时间显示
分钟
剩余时间

− 9 −
PART NAMES 各部件名称及说明
BODY 本体
ACCESSORY 附件
Plastic Cover×3pcs
遮盖用胶贴（3块）
Used when changing door opening direction
当需要改变机门开关方向时，可使用胶贴。
Drum
干衣鼓
Air Inlet Filter
protects the burner from lint
鲜风隔滤器
防止灰尘进入燃烧部分
Back Cover
背 板
Gas Inlet Connection
燃气接口
Power Cord
电 线
Lint Filter
stops the lint from being
blown from the dryer
过滤网
防止布屑、灰尘飞出机外

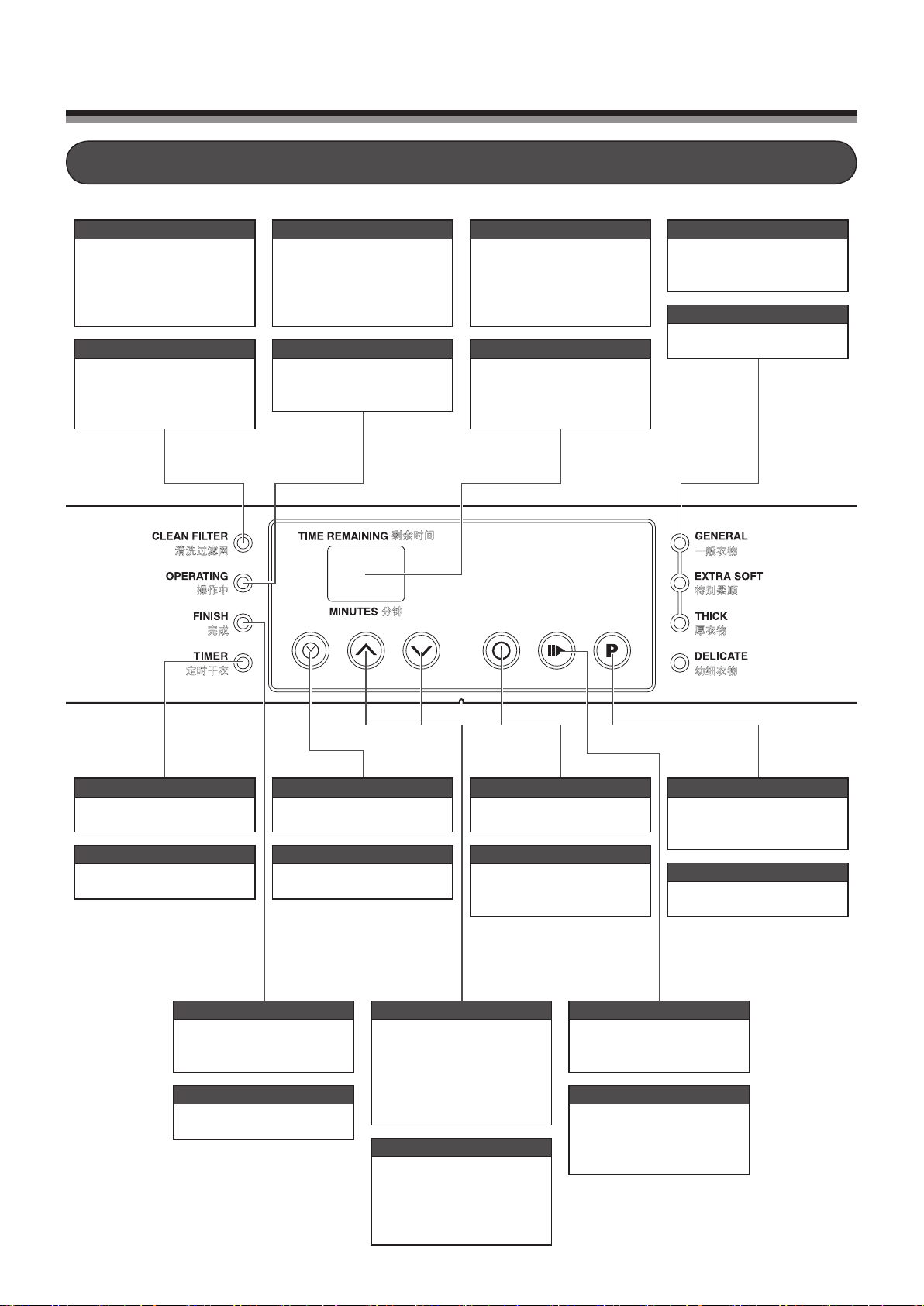

Operation Indicator
操作显示
Data Plate
铭 牌
Discharge Duct
排湿口
Handle
把 手
Inspection Door
检查门
Front Door
compatible to open from left
or right
机 门
可安装向左、右任何一方打
开
