Rinnai RDT-90-RM-S User manual

Model Name:
RDT-90-RM-S
Operating Instructions
Gas Clothes Dryer
Thank you for buying this Gas Clothes Dryer.
Read This Document Thoroughly to Ensure Safe Use
• Before you use this dryer, thoroughly read these Operating Instructions to ensure safe and correct use.

1
large 9
kg
loads oF Clothes also Can bedried
• Leave large loads that have been batch washed up to the drier to dry.
You can dry clothes easily in a single operation by the THICK course.
QuiCK
D
rying
• You can dry clothes quickly when you are hurried in the morning or you want
to wash your clothes in as short a time as possible after returning home.
powerFul
W
arm
A
ir
R
eduCes the
M
usty
O
dor oF
H
alF-
D
ried
C
lothes!
• Laundry that is left to dry indoors may not dry properly and can be left with a musty odor.
Warm air inhibits the growth of odor-causing Moraxella bacteria (See Note).*1
It even takes care of odors that cannot be removed by drying outside or disinfecting with
sunlight.
Note: A type of bacteria that exists in various places in the home. It feeds on remaining proteins, etc., and
multiplies, causing a foul rag-like odor.
SELFCLEAN C
ourse, For
T
o
S
teriliZe
D
rum
• Before drying, the inside of the drum is sterilized with warm air of 80ºC or higher.*2
This function is useful if you have used the equipment to dry items other than clothes
and you want to clean the inside of the drum before using it again.
eCo C
ourse, For
M
ore
E
ConomiCal
D
rying
• This is the perfect course for those who want to save on gas costs, even
though the drying time is longer. With this course, clothes are first dried
using the air blowing operation, and are then finished up using the warm
air operation.
Drying Is Now a Joy to Do and Feel!
*1, *2 As tested by the School of Pharmacy, Aichi Gakuin University

2
Table of contents
To Ensure Safe Use
Safety Precautions
(Be Sure to Follow These Precautions) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3
Safety Precautions
(Installation)∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5
Safety Precautions (Actual Use)∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9
Safety Precautions (Notes)∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙15
Introduction

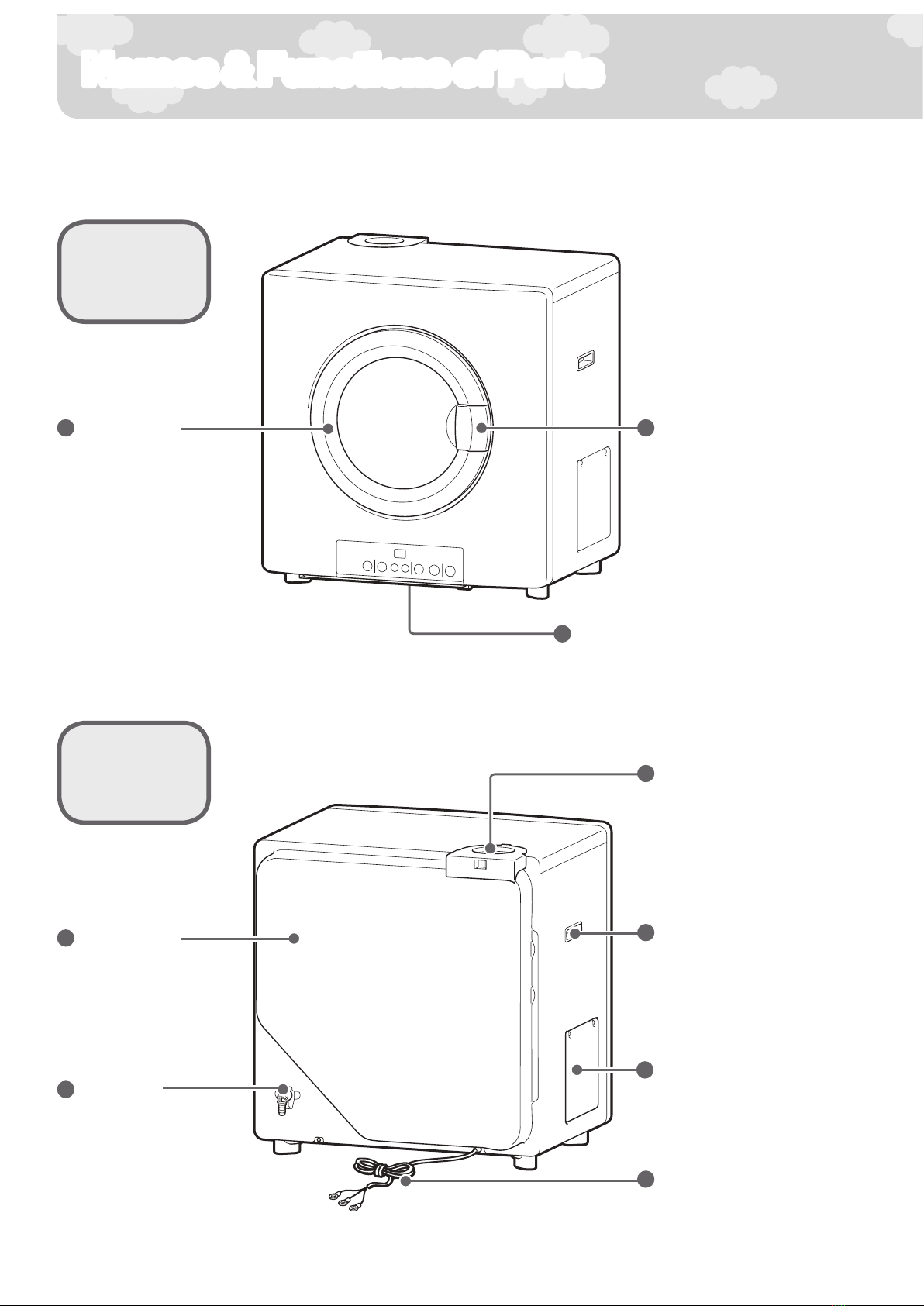

Names & Functions of Parts∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 19
Before Using the Equipment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23
Flow of Operations∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23
Items You Must Not Dry∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙24
Operation
How to Select Courses ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 25
How to Use Drying Course Operation∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙27
How to Use Timer Operation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙31
How to Use SELF-CLEAN Operation∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 33
Buzzer Functions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 36
Advanced Operation∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙37
To Ensure Prolonged Operation
Daily Inspection and Maintenance∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 39
Maintenance Methods∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙40
Troubleshooting ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 43
Displayed Messages ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 45
Specifications and Dimensional Diagram∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 49
Four Courses to Choose From
1. GENERAL course
For drying 9 kg of clothes such as underwear and shirts
2. THICK course
For drying 9 kg of thick clothes
3. ECO course
Recommended when you want to save on gas costs even if
drying time is longer than GENERAL course.
4. SHEET/BLANKET course
For drying sheets, blankets, and other items that roll up and
are hard to dry
easy Filter removal
• The filter can be easily removed with your fingers,
which makes maintenance and cleaning easy to do.
exCellent Durability Allowing
Use in Barbershops, Hair
Salons and Other FaCilities

3

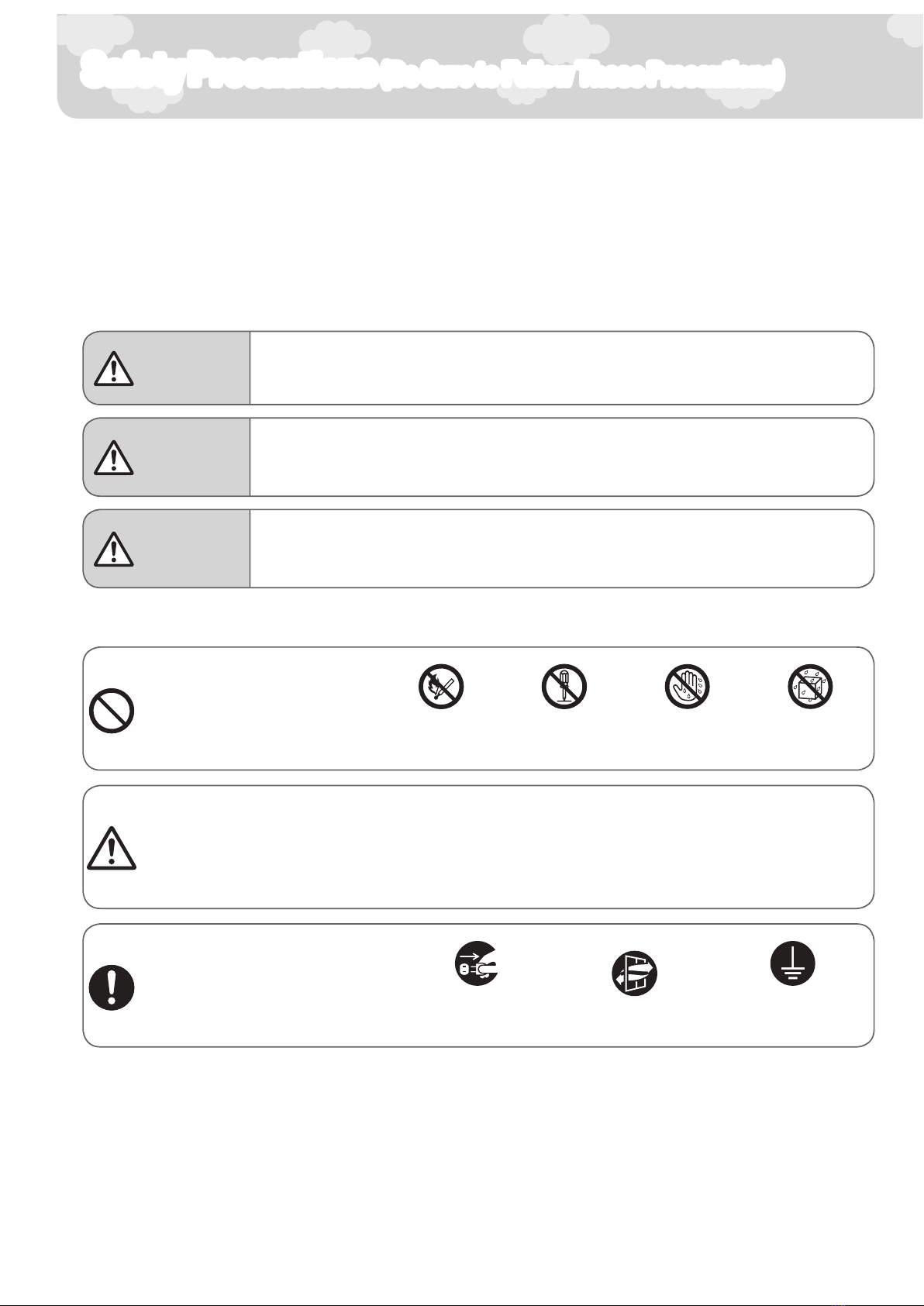

Safety Precautions (Be Sure to Follow These Precautions)
•The following describes precautions that must be followed to ensure the
same use of the product and to prevent injury to the customer or others and
damage to property.
•Fully understand the meaning of the following symbols before reading this
document.
• The meanings of pictograph symbols used in this manual are as follows.
This pictograph symbol indicates an “alert” for items
you should be careful of.

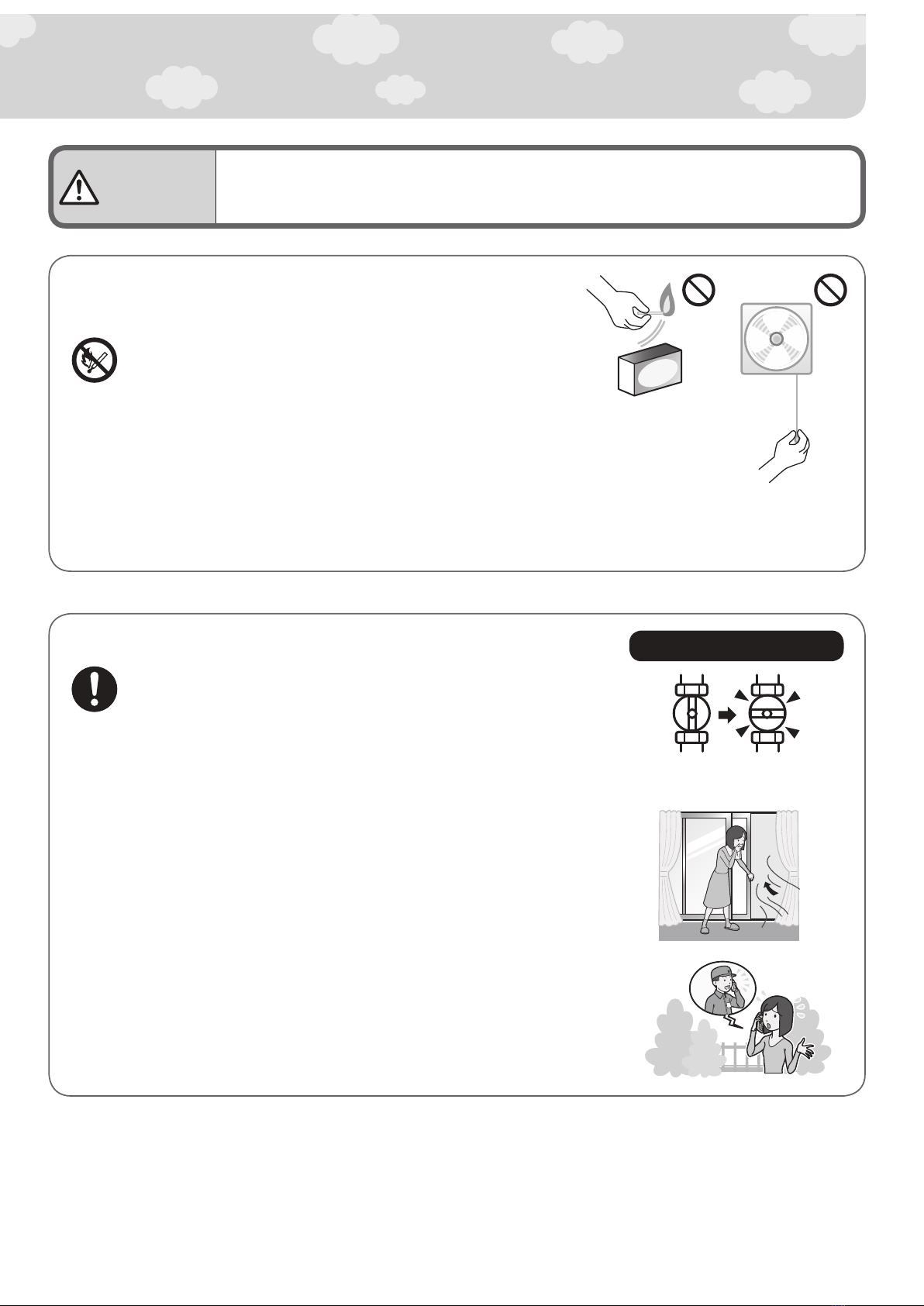

Danger
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or a fire hazard.
Warning
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or might cause the risk of fire.
Caution
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in slight injury or might cause property damage.
This pictograph symbol indicates
a “prohibited action” that must
not be done. Naked Flames
Prohibited
Disassembly
Prohibited
Wet Hands
Prohibited
Splashing With
Water Prohibited
This pictograph symbol indicates
a “compulsory action” that you
must do. Remove power plug
from power outlet Ventilation required Be sure to connect ground lead

4
Danger
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or a fire hazard.
Use is prohibited during a gas leak
• If you notice a gas leak, immediately stop use of the
product
1. Close the gas cock on the product and the gas cock on the meter.
In the case of gas cocks without a knob, remove the connector from
the gas cock. Close the gas valve!
Gas cock (example)
Match
The following actions are prohibited
when there is a gas leak:
• Never light a fire
• Do not turn electrical apparatus switches on or off
• Do not remove or insert power plugs
• Do not use telephones in the immediate area
• Do not use fire to find source of gas leak
• Do not press nearby door bells located on the same floor
• Do not reopen the gas valve until gas is no longer leaking
Flames or sparks might ignite the gas and cause an explosion.
2. Open doors and windows to allow gas to escape to the outside.
3. Call the 24-hour Emergency Hotline from the nearest outside
telephone.
Naked
Flames
Prohibited

5
Fire Prevention Equipment in Surrounding Area
• Allow sufficient space between the equipment
and flammable objects such as furniture, walls and
shelves.
– Allow at least the standard installation dimensions (in figure
at right) in consideration of maintenance management and
works. Failure to do so might result in fire or the equipment
overheating and cause burns.
300
250 500
45
100
Standard installation dimensions
(Unit: mm)
Checking gas and power supply used
• Use the equipment with only the gas type (gas group)
and power supply (power voltage/frequency) indicated
on the data plate on the equipment.
Do not use with other gas types or
power supplies.
– Do not use the equipment when gas and
power supply used does not match the
gas and power supply indicated on the
data plate. Then, incomplete combustion
may cause carbon monoxide poisoning, or
cause explosive ignition or equipment to
malfunction.
Data plate (example)
Model
For GAS
Pressure IN.W.G
Input Btu/hr
Voltage V
Cycle Hz
Serial No.
Model Name
Product date (year/month)
Lower 2 digits of production year
Production month indicated at 2 digits
Check gas type
Safety Precautions (Installation)
Warning
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or might cause the risk of fire.
Remodeling/Disassembly Prohibited
• Users must never use tools to install, move, disassemble,
repair, or remodel the equipments themselves.
– Doing so may cause carbon monoxide poisoning or fire, and cause the
equipment to malfunction.
– Installation, moving, disassembly, repair, or remodeling of the equipment
requires highly special knowledge.
Disassembly
Prohibited

6
Ventilation
• If no humidity duct (venting hose) is fitting, the room shall be provided with air vents
which communicate directly with outside air and are sized in accordance with the
following table:
Room Volume (m3)< 5 5 – 10 > 10
Minimum permanent
opening free area (cm2)100 50*Nil
*If the room has a door which opens directly to outside, no permanent opening is required.
• If humidity duct is connected, air vent is not necessary.
Splashing
With Water
Prohibited
Installation Site
• Do not install the equipment in hot and humid locations
such as bathrooms or in locations (excluding
veranda installations) that are exposed to wind and rain.
Doing so may cause a short circuit, and result in electric shock or fire.
This may also cause the equipment to malfunction.
• When using the equipment outdoors, such as on a
veranda or in the space under the eaves, attach a roof
like a sunshade above the equipment, and install the
optional discharge top.
Water or rainfall directly splashing the equipment may cause a
short circuit, and result in electric shock or fire. This may also
cause the equipment to malfunction.
Discharge top
(option)
Power cord
• Do not pass the power cord under or allow it to come in
contact with the equipment.
Doing so might damage the power cord, and result in electric shock or
fire.
Power cord

7

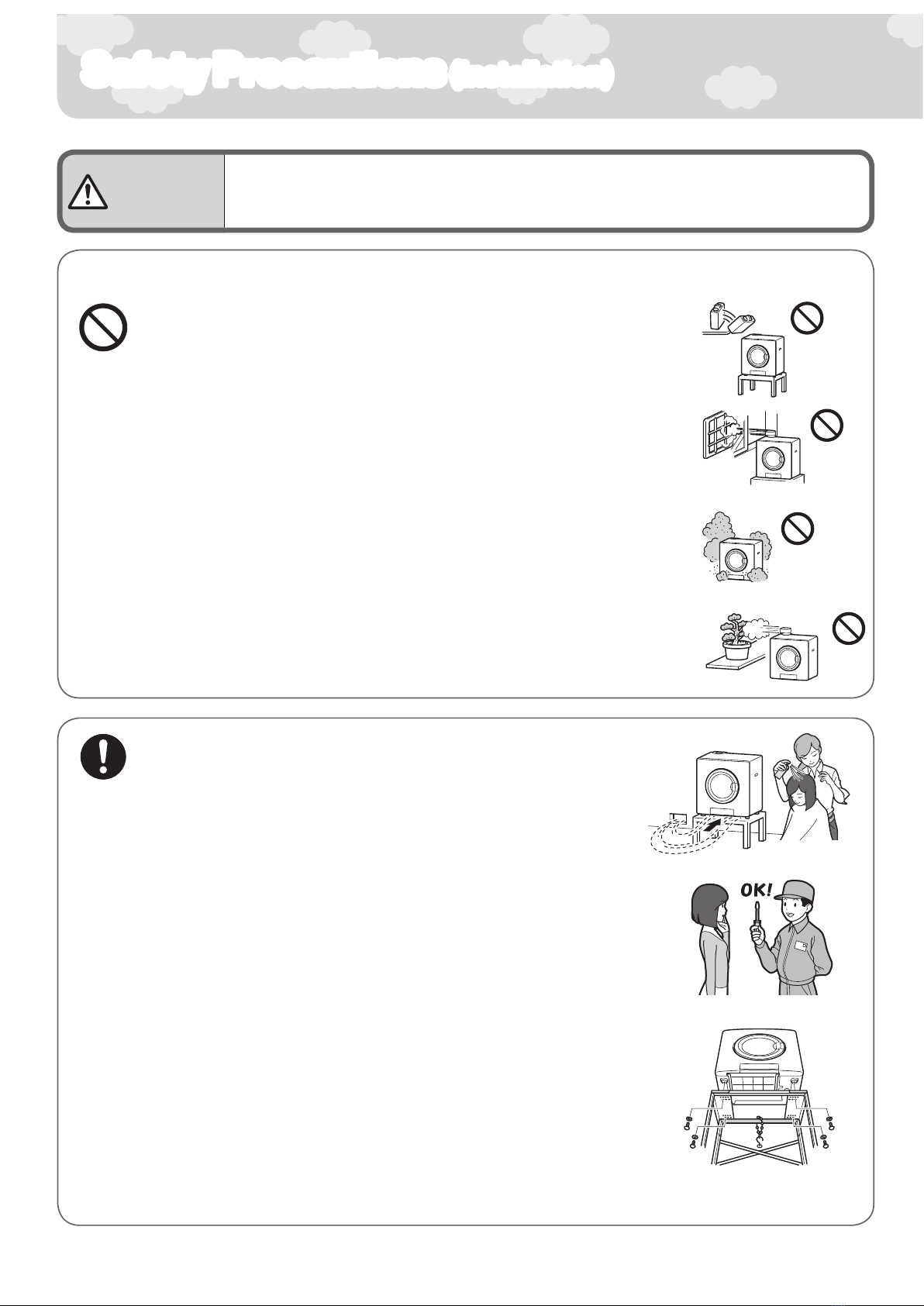

Installation Site
• Do not use the equipment where there is the risk of objects falling
such as under shelves.
Falling objects may cause a fire or equipment to malfunction.
• Do not use the equipment at locations where lots of steam, noise,
etc. from the discharge top might annoy neighbors.
This may cause condensation or noise.
• Do not use the equipment at locations where there is lots of cotton
dust.
This may cause the equipment to malfunction.
• Do not direct discharged exhaust gas or steam from the discharge
top at pets, potted plants, etc.
Doing so might result in the pets death or cause plants to wither.
Safety Precautions (Installation)
• When installing the equipment in a barbershop, hair salon
or dry cleaning store, ensure an air intake passage is in
place to avoid
The corrosive gas is hair spray, cleaning solvents, ammonia, chlorine, etc.
• Ask the store of purchase or a contractor to install and move the
equipment and perform incidental work, and get them to install
the equipment properly at a safe location.
Defective installation performed by users themselves might result in fire, carbon
monoxide poisoning or gas leaks.
• When using the equipment placed on an exclusive stand, install
the exclusive stand immediately in front of a wall, and join the
exclusive stand to a wall or pillar by chains (provided with the
exclusive stand). Also, secure the equipment by screwing it onto
the exclusive stand.
If there is no wall behind the equipment, or the chains are not joined sufficiently or
the equipment is not sufficiently screwed onto the exclusive stand, the equipment
might tip over and cause an injury.
Caution
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in slight injury or might cause property damage.

8
Discharge of Humidity
• Do not directly connect the discharge tube to a ventilator,
etc.
Insufficient air flow from the ventilator might block air discharge and stop
the equipment to stop, and cause humidity to leak or mold to form.
• For optimal function of the machine, the length of dia. 80 mm humidity duct is
recommended not to exceed 8 m and 2 bend. Reduce 2 m when adding one bend.
• Maximum allowable length is 12 m and 1 bend (equivalent to 8 m and 2 bends) for dia.
80 mm humidity duct. Reduce 2 m when adding one bend. Under this condition, the
machine still functions safely and normally, however, the drying time and the frequency
of lint filter cleaning may increase.
• According to the real situation, in case it is not necessary to install the humidity duct,
please use the exhaust humidity top to install at exhaust outlet.
• Use the equipment at a flat, stable and sturdy
location, a location that can sufficiently withstand
the weight of the dryer, and a location that is not
subject to excessive noise or vibration. Using a
spirit level, make sure that the equipment is level.
If the equipment is used at an unstable or tilted location, the
safety interlock might not function properly or the equipment
might tip over and cause an injury. Also, if the equipment is used
tilted towards the front, the front door might open with force and
cause an injury.
This might also damage the building or cause noise.

9

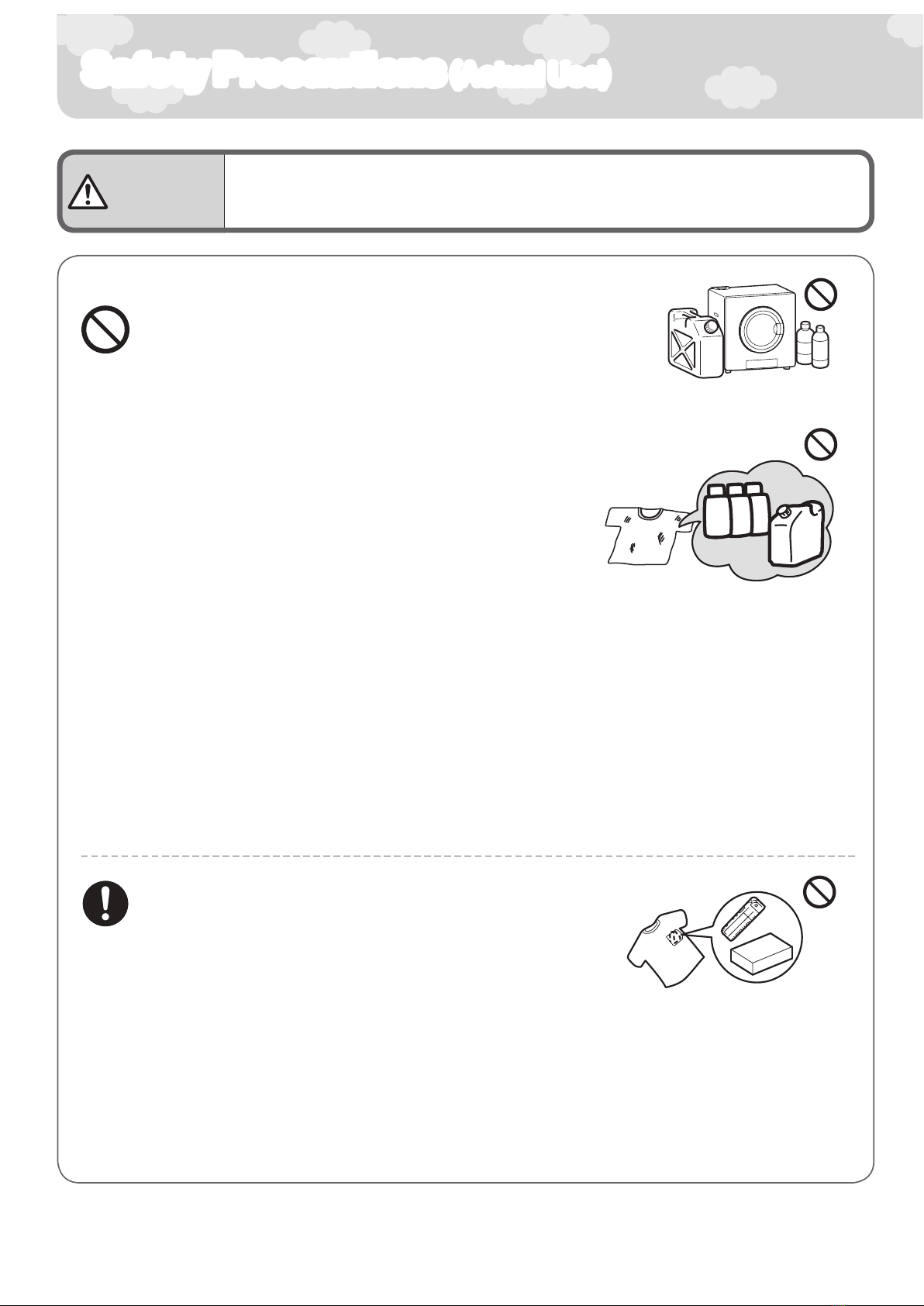

Safety Precautions (Actual Use)
Warning
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or might cause the risk of fire.
Fire Prevention
• Do not use objects that might ignite near the equipment.
Do not place or use objects, etc. such as aerosols, gasoline or benzine that
might ignite. Doing so may cause an explosion or ignition which will result in a
fire.
• Never dry clothes made of polypropylene fiber or
clothes with the following oils on them after they have
been washed.
When temperature rises, clothes made of polypropylene fiber may
ignite spontaneously. Also, oil, etc. is hard to remove completely
even by washing. So, heat generated by oil combustion may cause
it to ignite spontaneously or catch fire.
– Edible oil, machine oil, animal oils
– Dry-cleaning fluids, perm solutions
– Beauty treatment oils (body oils, beauty salon oils, etc.)
– Benzine, paint thinner, gasoline
– Resins (cellulose type)
• Do not stop operation by removing the power plug.
This may cause the equipment to overheat. Oil , etc. adhering to clothes also
may cause spontaneous combustion due to heat generated by oil combustion.
• Make sure that there are no flammable objects such as
cigarette lighters or matches in your pocket.
These may cause a fire.
• Remove clothes after drying ends. In particular, be sure to
remove clothes immediately when the equipment has been
stopped immediately before or after drying ends.
Oil, etc. adhering to clothes may cause spontaneous combustion from heat
generated by oil combustion if clothing is left for a long period of time.
Match
Oil
Benzine Thinner
Gasoline
Gasoline
Thinner Benzine

10

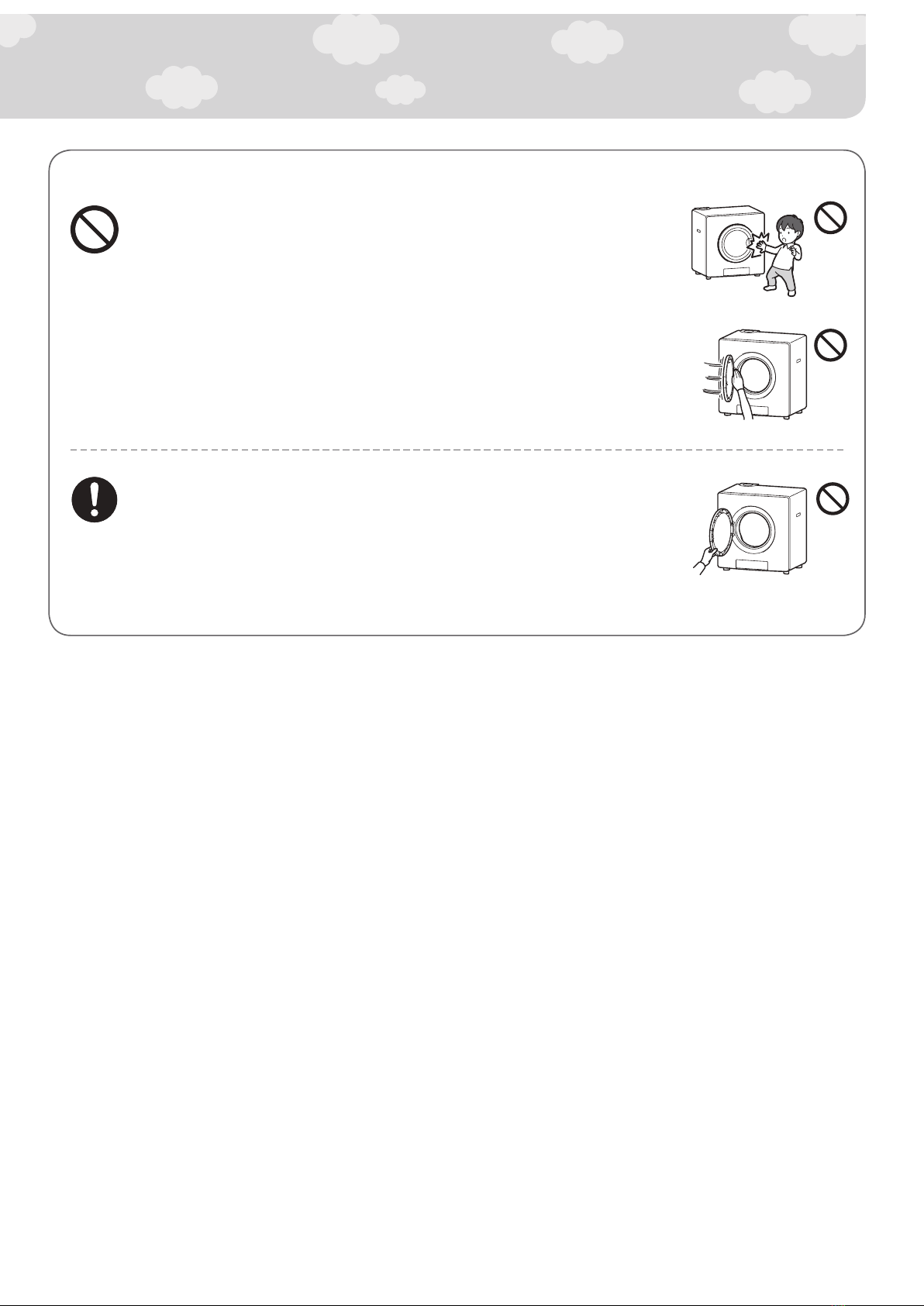

When Using the Gas Dryer
• Do not allow unaccompanied small children to use the gas
dryer by themselves, and do not use the gas dryer within the
reach of infants.
Doing so might cause burns, electric shock or injury.
• When opening or closing the front door, do not bring your hand
or fingers close to the door hinge.
Doing so might result in your hand or fingers being nipped and cause an injury.
• Before opening or closing the front door, make sure that there
are no people or obstacles in the immediate surrounding area,
and gently open or close with your hand on the door.
Opening or closing the door with excessive force may cause an injury, damage
the equipment or cause it to tip over. The dead weight of the front door or the
affect of wind may cause the front door to open with force and cause an injury.

11
Power Cord and Plug
• Do not remove or insert with wet hands.
This may cause electric shock or injury.
• Do not extend power cords by cutting them.
Install the equipment within reach of the power cord to the power outlet.
This may cause electric shock or injury.
• Do not connect damaged power cords or plugs to power outlets or use power outlets
with loose connections.
Doing so may cause an electric shock or generate heat, and result in fire.
• Do not remove the power plug by pulling the power cord.
When removing the power plug, do not pull it by its power cord but remove it by holding the power plug.
Tugging the power cord may damage it, which may result in an electric shock, short circuit or fire or cause the
equipment to malfunction.
• Do not use the equipment above the rating of the power outlet or wiring appliance. Use
the equipment with only a 240V alternating current (AC) power supply. Do not use with
other power supplies.
When the designated rating is exceeded, for example, by using a multi-outlet extension cord, this may
generate heat, and result in fire.
• Do not exert unnecessary force or place heavy objects on the power cord, or use the
power cord in a bundled state.
This may cause electric shock or injury.
Safety Precautions (Actual Use)
Wet Hands
Prohibited
• Firmly insert power plugs into power outlets as far as they can go.
Failure to do so may cause an electric shock or generate heat, and result in fire.
• Periodically remove dust, etc. from power plugs.
Remove the power plug and wipe clean with a dry cloth. Accumulation of dust on the power plug may cause
power insulation resulting from moisture, etc. or cause fire.

12
Remedies for Abnormal Operation
• If operation is abnormal, immediately stop use of the equipment, close the gas cock, and
remove clothes.
1. If gas does not light, or if you sense abnormal combustion or temperature, smell abnormal odor, or
hear abnormal noise during operation, immediately perform steps 1 to 4 in the figure below. Leaving the
equipment in this state may cause an explosion or a fire.
1. Press the “Start /
Pause” switch.
2. Open the front door
and hold down the
“Power” switch until
you hear a beep.
3. Close the gas valve. 4. Remove the clothes.
Beep Beep
Press the switch with the
front door open until you
hear a beep.
2. If you sense that operation is abnormal, follow instructions given in “Troubleshooting” and “Displayed
Messages.” (See pages 43 to 48.)
3. If even the above steps do not remedy the problem, immediately stop use of the equipment, contact the
store of purchase or call Customer Services Hotline.
• In the event of an earthquake, fire or similar event, immediately stop use of the
equipment, and close the gas cock and gas cock on the meter.
(In the case of gas cocks without a knob, remove the connector from the gas cock.)
Warning
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in death or serious injury or might cause the risk of fire.

13

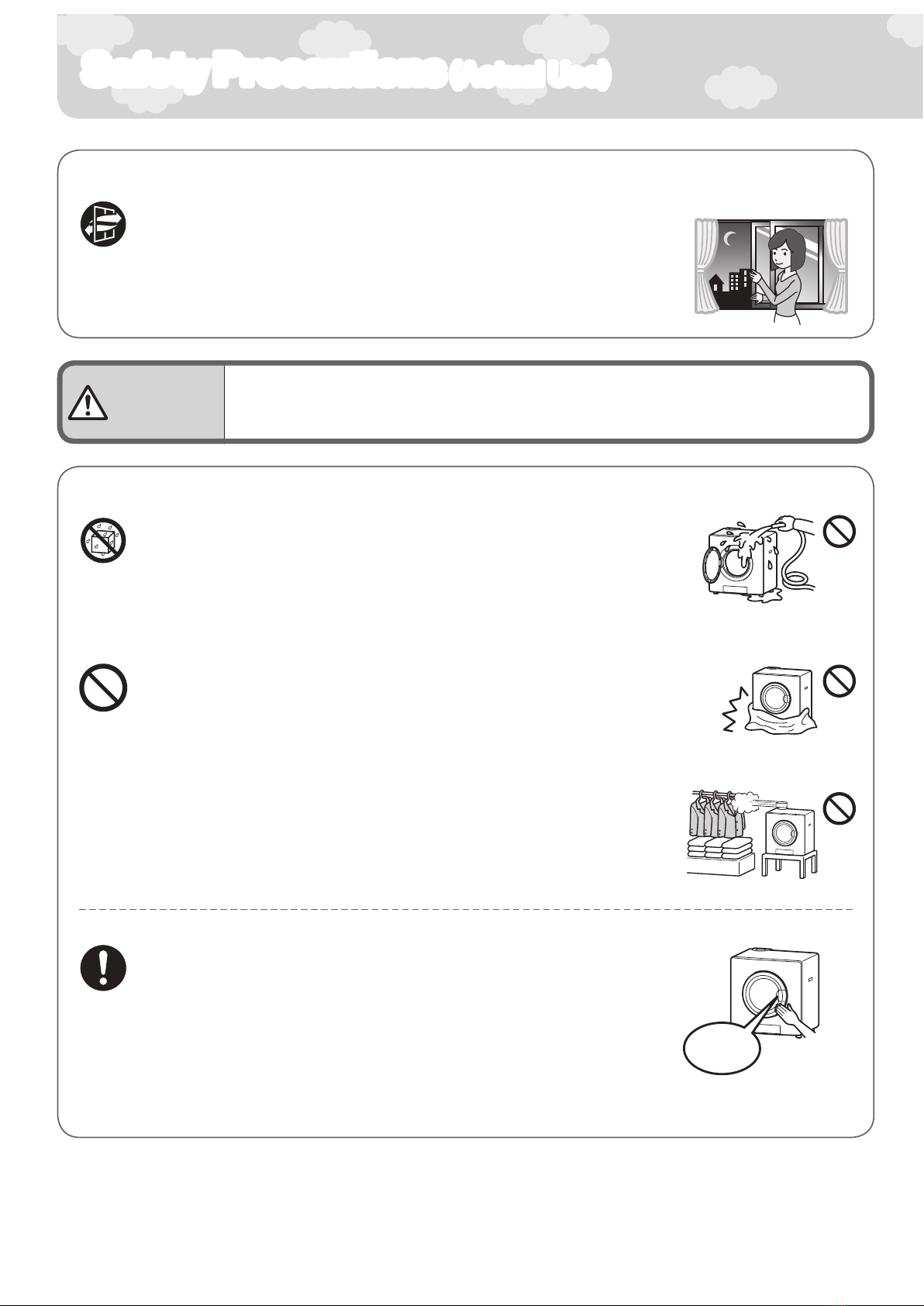

Safety Precautions (Actual Use)
Ventilation
• During use, ventilate the room, for example, by opening
the window.
Not ventilating the room will cause incomplete combustion which might
result in carbon monoxide poisoning.
Ventilation
Required
When Using the Gas Dryer
• Do not splash the body or drum with water or wash with water.
Doing so may cause an electric shock or a short circuit which will result in a fire.
• Do not block the air inlet with a curtain or similar heavy material
or clothing.
This will cause incomplete combustion or the equipment to overheat which will
result in burns or equipment malfunction.
• Do not use the equipment at locations that are susceptible to
humidity.
Clothes, etc. are sometimes damaged by the humidity contained in the
discharged exhaust gas.
Splashing
With Water
Prohibited
• Make sure that the front door is closed.
If the equipment is operated with the front door open, this may result in the
equipment malfunctioning or clothes flying out.
• Before putting clothes in the dryer, check clothes for metal
powder or metal pieces attached or in pockets.
These may cause burns or equipment malfunction.
Clicks
in place
Caution
This symbol indicates that ignoring the accompanying explanation and mishandling the
product might result in slight injury or might cause property damage.

14

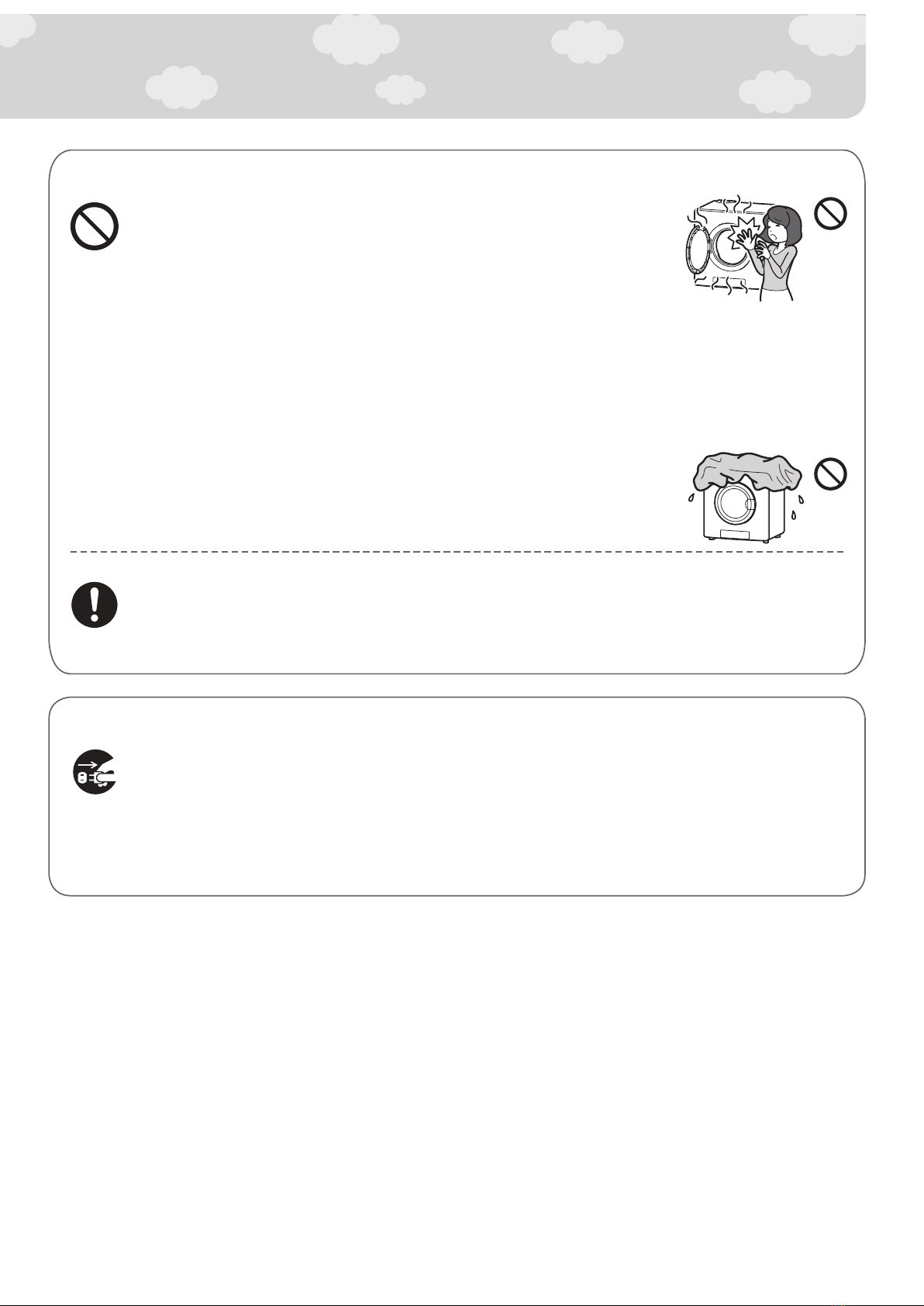

Fire Prevention, Be Careful of Burns
• Do not remove clothes during operation.
The inside of the drum, front door and clothes are hot. Do not touch these
directly with your hands. Doing so might cause burns. Wait for operation to end
before removing clothes.
• Use the equipment only for drying clothes (including fabric
footwear). Do not use it for any other purpose.
This may cause a fire.
• Do not cover the top of the dryer with a blanket or clothes.
This may cause a fire. This may also deform the equipment or cause the
equipment to malfunction.
• If the equipment stops abnormally during drying, allow the temperature inside of the
drum to drop before removing clothes.
Removing clothes immediately may cause burns.
Power Cord and Plug
• Before inspecting and performing maintenance on the equipment, be sure to remove
the power plug.
Failure to do so may cause electric shock or injury.
Remove
Power Plug
from Power
Outlet

15

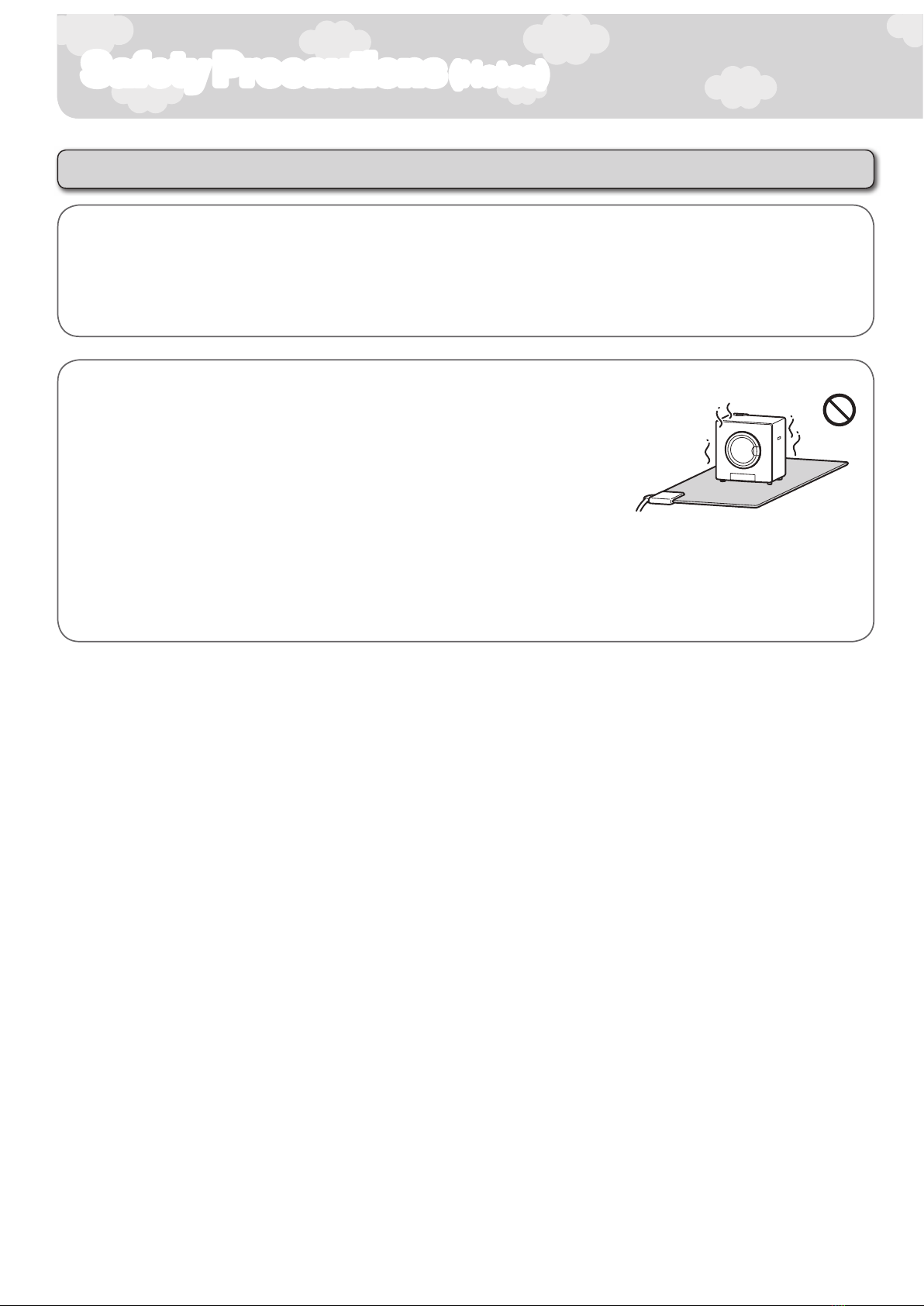

Notes
Checks Before Use
• Remove paper padding or packing material from each of the parts on the equipment, and check
the contents of the package and accessories against the Packing List.
(See page 20.)
Checking the Installation Site
• Do not install the equipment on electric carpets or hot water
heating mats. The weight of the equipment may cause electric
carpets or hot water heating mats to malfunction. Also, the heat
from the electric carpets or hot water heating mats may disrupt
equipment control.
• This equipment can be used up to an elevation of 1000 meters
above sea. If it is used above this elevation, this may cause
defective lighting.
Safety Precautions (Notes)

16

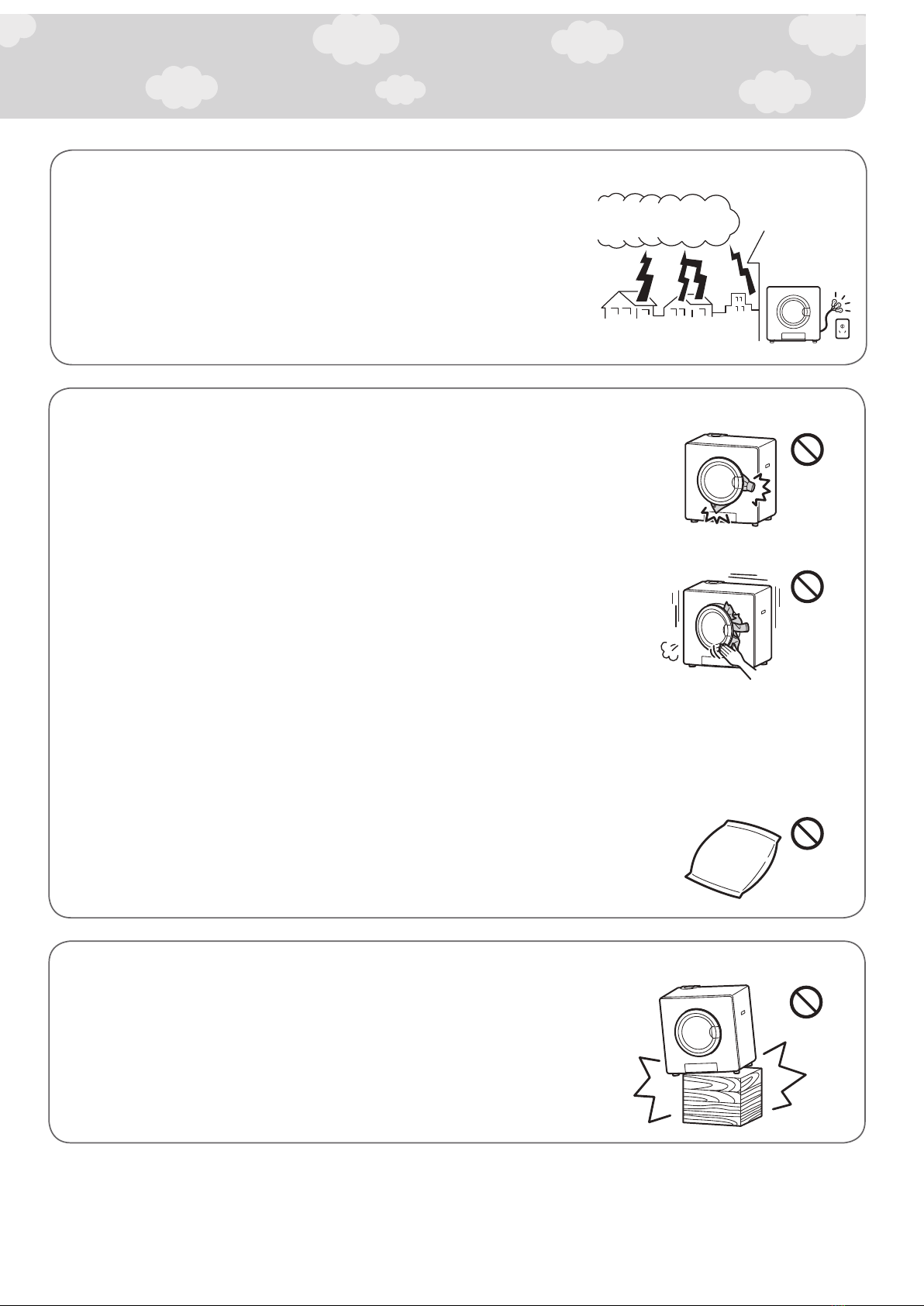

Cautions During Thunderstorms
• When a thunderstorm starts up, promptly stop operation, and
remove the power plug from the power outlet. Lightning from
thunderstorms causes an overcurrent to flow momentarily
which may damage electronic components.
Handling Clothes
• Do not operate the equipment with clothes trapped in the front
door. Doing so is dangerous as it interferes with drum rotation.
• Do not put too many clothes into the equipment. This may
cause uneven drying, damage clothes or cause equipment
malfunction. When the drum is entirely filled with spun-dried
clothes, dry the clothes in two separate batches.
• Do not leave moist washed clothes or put clothes containing
seawater inside the equipment. Moisture or seawater may
cause the equipment to rust or malfunction.
• Do not dry starched clothes. Starch may block the filter. For
starching clothes, use “spray starch” after drying the clothes.
Laundry
starch
Accessories & Options
• Use only the accessories provided with the equipment or the
designated options. Do not use other accessories or options.
Doing so may cause the equipment to malfunction or cause
unexpected accidents.

17

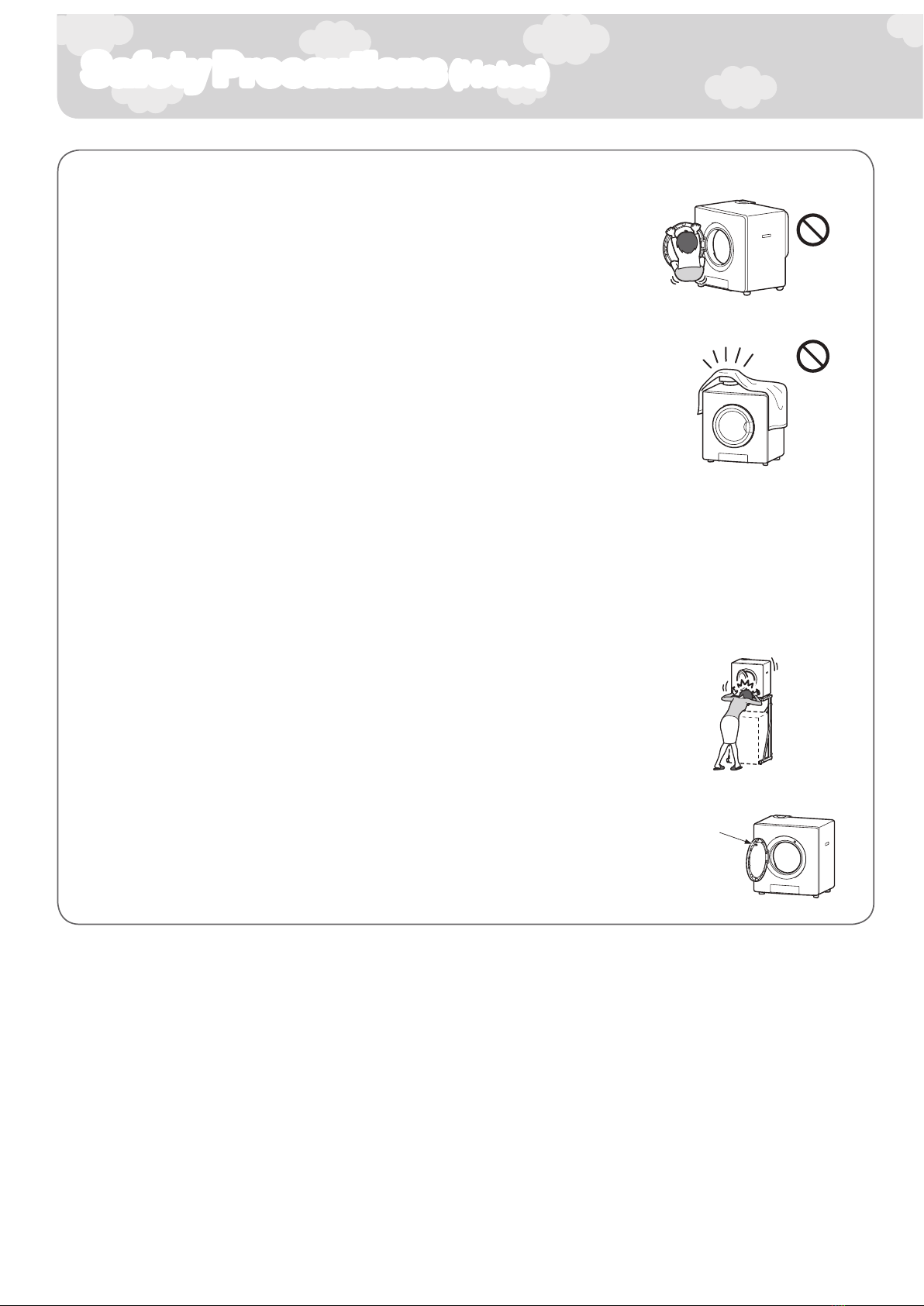

Safety Precautions (Notes)
Handling the Equipment
• Do not hang down from or hang heavy objects on the equipment
or front door. Doing so may cause injury or burns. This may also
cause the equipment to tip over, cause gas leaks or incomplete
combustion as a result of equipment deformation, or cause other
equipment malfunctions.
• Do not block or put things inside the discharge duct. Doing so
may increase the drying time, or cause abnormal equipment
overheating or equipment malfunction.
• If there is a power outage during use or operation is stopped by
removing the power plug by mistake, repeat equipment operation
after power is the resumed.
• Do not use aerosols containing silicon such as hair spray or
antiperspirant spray near the equipment. White powder from the
silicon sometimes sticks to the equipment.
• Take care not to bump your head on the front door or exclusive
stand when taking laundry from the washing machine.
• Please exercise caution around the front door, which contains
protruding parts that press the switch to detect whether the door is
open or closed.
Protruding parts

18
Checking Ignition and Forgetting to Turn Pilot Light Out
• Check ignition during use, and check that the pilot light is out after use.
• Before going out or going to bed, check to see if you have not forgotten to turn the pilot light
out.
• After use, be sure to check that the pilot light is out. Before you go out or plan not to use the
equipment for a long time, be sure to close the gas cock. (In the case of gas cocks without a
knob, remove the connector from the gas cock.)
Drying Cautions
• Clothes must be sufficiently spun-dried in a washing machine
before they are dried in this equipment.
Insufficient spin-drying may increase the drying time, or cause
abnormal equipment malfunction or a short circuit.
• If chlorine-based bleaching agents have been used in washing the
clothes, thoroughly rinse before drying. Chlorine remaining in the
clothes may cause the equipment to malfunction.
• Do not put wet dripping clothes in the equipment. Doing so might
cause electric shock.
• Do not open the front door or put in extra clothes midway during
drying. This may cause uneven drying.

19
Handle
Power cord and plug
Back cover
Gas inlet
connection
Inspection door
Discharge duct
This is where the optional
discharge materials are attached.
Air inlet filter
This prevents dust from entering the
combustion area. (See page 40.)
Front door Front door handle
This is used for opening and
closing the front door. Press here
to close the door.
Note: Open and close the front
door gently.
Figure shows a left-opening door.
Front
Rear
Names & Functions of Parts
