Rise Vision HOUSERACER User manual

© 2017 RISE, a Hobbico company. RISE0207 FPV RTF v1.1 RISE0208 FPV-R v1.1
WARNING
INSTRUCTION
MANUAL
Please read and understand this manual, the operation and all safety aspects
required for the safe operation of the product. Before use, if you feel that this
product is not for you, please return it to the place of purchase.
Manual Specications and Description Changes
The instruction manual, warranties, and other associated documentation are
subject to change without notice. Hobbico assumes no responsibility for
inadvertent errors to this manual.
™
explore-rise.com

2
INTRODUCTION
Thank you for purchasing the VUSION HOUSE RACER. We want the time you
spend with your new R/C quadcopter to be fun and successful so please read
the entire manual before beginning setup. If for any reason you think this R/C
model is not for you, return it to the dealer immediately. Your dealer cannot accept
returns on any model after final assembly.
For the latest technical updates or manual corrections for the VUSION HOUSE
RACER please visit the RISE web site at www.explore-rise.com. If there is any new
technical information, changes or important updates to this model a “tech notice”
box will appear on the page. Click the “tech notice” box to learn more.
SAFETY PRECAUTIONS
Failure to follow these safety precautions
may result in injury to yourself and others.
●Keep your face and body as well as all spectators away from the rotating plane
of the blades whenever the battery is connected. Keep loose clothing, shirt
sleeves, ties, scarfs, long hair or loose objects such as pencils or screwdrivers
that may fall out of shirt or jacket pockets away from the rotors. The spinning
blades of a model quadcopter can cause serious injury. When choosing a
flying site for your VUSION HOUSE RACER, stay clear of obstacles, trees and
power lines. AVOID flying in or near crowded areas. DO NOT fly close to
people or pets. Maintain a safe distance from the quadcopter.
●Your VUSION HOUSE RACER should not be considered a toy. Because of its
performance capabilities, the VUSION HOUSE RACER, if not operated correctly,
could cause injury to you or spectators and damage to property.
●DO NOT alter or modify the model. Doing so may result in an unsafe or unflyable
model.
●When and if repairs are necessary you must correctly install all components
so that the model operates properly on the ground and in the air. Please check
the operation of the model before every flight to insure that all equipment is
operating and that the model has remained structurally sound. Be sure to check
the propellers before each flight. Replace them if they show any signs of wear
or fatigue.
KNOW BEFORE YOU FLY
As a new owner of an unmanned aircraft system (UAS), you are responsible for
the operation of this vehicle and the safety of those around you. Please contact
your local authorities to find out the latest rules and regulations.
knowbeforeyouy.org faa.gov/uas

3
FCC License
Operation of the VUSION HOUSE RACER does not require that the pilot have a
Technician’s license (HAM) from the FCC. If you would like more information, please
visit the following link.
http://wireless.fcc.gov/services/index.htm?job=licensing_2&id=amateur
AMA
We urge you to join the AMA (Academy of Model Aeronautics) and a local R/C
club. The AMA is the governing body of model aviation and membership is
required to fly at AMA clubs. Though joining the AMA provides many benefits,
one of the primary reasons to join is liability protection. Coverage is not limited
to flying at contests or on the club field. It even applies to flying at public
demonstrations and air shows. Failure to comply with the Safety Code may
endanger insurance coverage. Additionally, training programs and instructors
are available at AMA club sites to help you get started the right way. There are
over 2,500 AMA chartered clubs across the country. Contact the AMA at the
address or toll-free phone number that follows.
Academy of Model Aeronautics Tele. [phone]
5151 East Memorial Drive Fax [phone]
Muncie, IN 47302-9252
Or via the Internet at: www.modelaircraft.org
IMPORTANT: Two of the most important things you can do to preserve the radio
controlled aircraft hobby are to avoid flying near full-scale aircraft and avoid
flying near or over groups of people.
BATTERY WARNINGS
●ALWAYS unplug your battery from either the charger or quadcopter after use.
NEVER store your quadcopter with the battery plugged into the quadcopter.
●DO NOT attempt to charge your battery if it becomes swollen or hot.
●It is best to store your batteries in a cool, dry location at 1/2 charge (3.8V).
Storing a fully discharged battery may cause irreversible damage to the battery.
●NEVER disassemble, puncture or modify the battery pack in any way.
●NEVER allow the battery temperature to exceed 150° F [65° C].
●If your battery begins to swell or “puff” during charge or discharge or becomes
damaged in any way, stop using it.
WARRANTY
RISE™ guarantees this kit to be free from defects in both material and workmanship
at the date of purchase. This warranty does not cover any component parts
damaged by use or modification. In no case shall RISE’s liability exceed the

4
original cost of the purchased kit. Further, RISE reserves the right to change or
modify this warranty without notice. In that RISE has no control over the final
assembly or material used for final assembly, no liability shall be assumed nor
accepted for any damage resulting from the use by the user of the final user-
assembled product. By the act of using the user assembled product, the user
accepts all resulting liability. If the buyer is not prepared to accept the liability
associated with the use of this product, the buyer is advised to return this kit
immediately in new and unused condition to the place of purchase.
To make a warranty claim, send the defective part or item to Hobby Services at
this address.
Hobby Services 217-398 -8970 ext#6
3002 N. Apollo Dr., Suite 1 [e-mail]
Champaign, IL 61822 USA
Include a letter stating your name, return shipping address, as much contact
information as possible (daytime telephone number, fax number, e-mail address),
a detailed description of the problem and a photocopy of the purchase receipt.
Upon receipt of the package the problem will be evaluated as quickly as possible.
CONTENTS
FPV RTF Version (RISE0207)
●RISE Vusion House Racer Quadcopter
●2.4GHz 6-Channel Transmitter
●Extra Props
●FPV Goggle with Monitor
●Monitor Antenna
●Goggle Foam Liner
●650mAh 1S LiPo
●USB LiPo Charger
●USB Charge Cable for the Monitor
●Wall Guards
●Screwdriver
●Instruction Manual
FPV-R Version (RISE0208)
●RISE Vusion House Racer
Quadcopter
●650mAh 1S LiPo
●USB LiPo Charger
●Extra Props
●Wall Guards
●Instruction Manual

5
FEATURES
●Entry Level 120 class indoor
racing quad
●Ready to Fly, no building required
●Wall Guards to increase stability
●Flip Button
●Flight Controller is pre-
programmed with two stability
modes and a rate mode
●600TVL FPV Camera
●25mW VTX
DIMENSIONS
Size: 120 mm (4.7 in) diagonally motor to motor
Width: 165 mm (6.5 in)
Length: 165 mm (6.5 in)
Height: 52 mm (2.0 in)
Prop: 58 mm (2.3 in)
Empty Weight: 51.7g (1.82 oz.) without battery
SETUP
The VUSION HOUSE RACER is completely assembled. If you have the FPV RTF
version, please read the manual for the FPV monitor before setting up and flying
the House Racer.

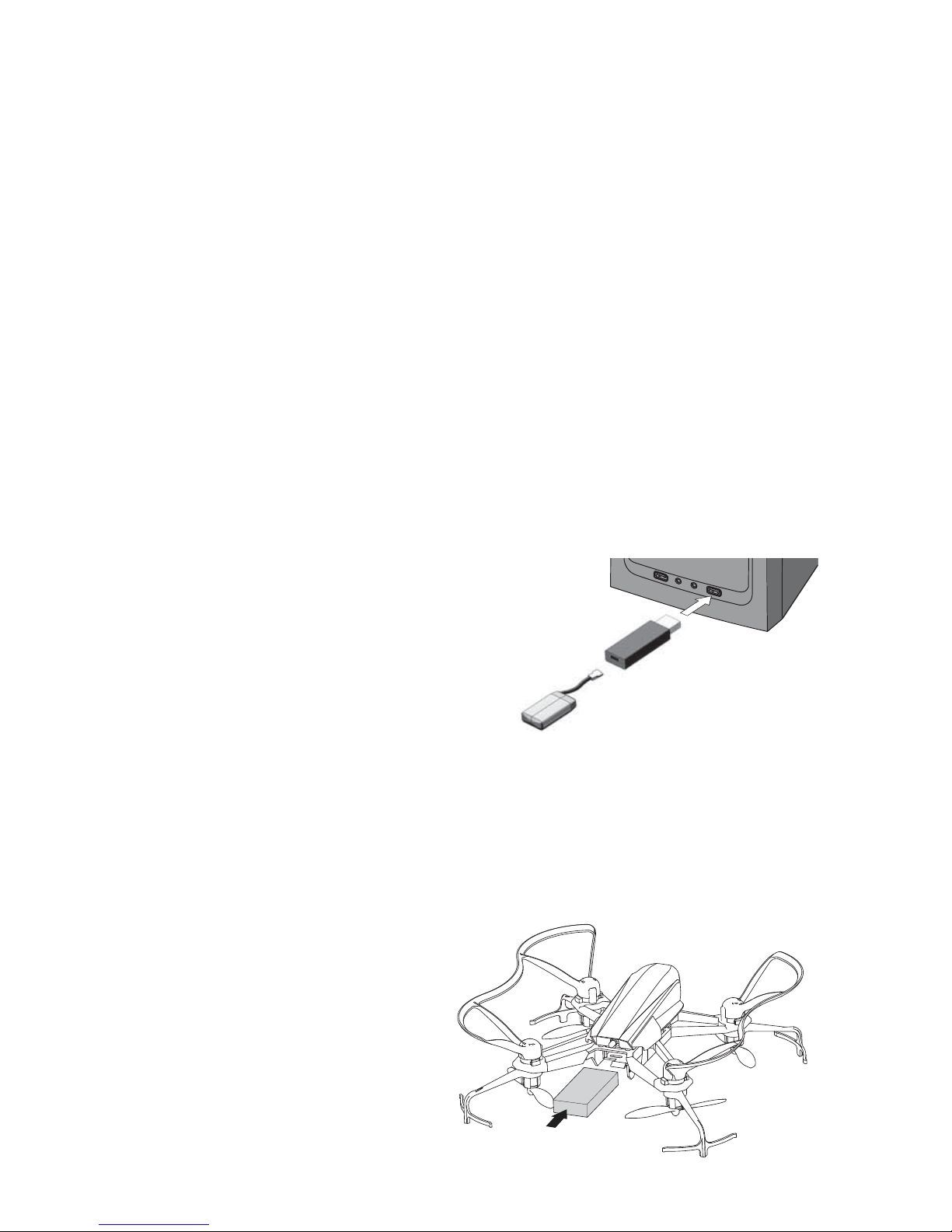

Battery Charging
Plug charger into USB port or AC adapter
(DIDP1125 not included) as shown and
connect the battery. The red LED will flash
slowly while the battery is charging. The LED
will be steady when the battery is fully charged.
●NEVER leave the battery unattended while charging.
●DO NOT allow the USB port to power down while the charger is connected
to the battery.
●ALWAYS unplug the charger from the USB port and the battery when
charging is complete.
●The battery connector will only fit in one way.
●For best results use a USB source that is 1 amp or greater.
Battery Installation
Slide the battery into the battery
tray on the bottom of the frame.

6

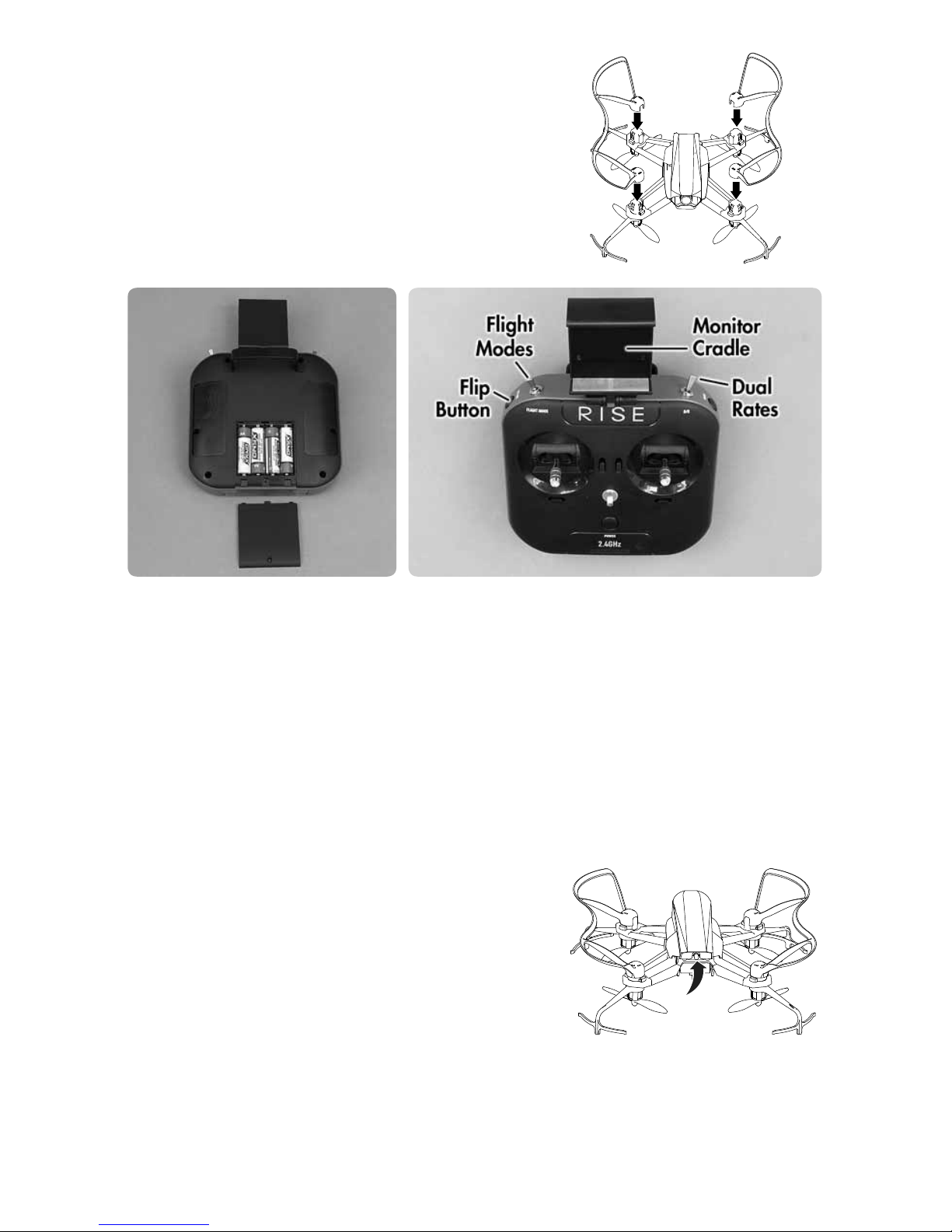

Wall Guard Installation
The House Racer has wall guards to help prevent
the House Racer from flipping over when it makes
contact with other objects. Push them onto the
tops of the motors.
Radio System
Remove the screw from the battery
door. Insert 4 AA batteries in the
battery compartment in the back
of the transmitter.
Turn on the transmitter and connect the battery
to the Vusion. The quadcopter should beep once
when it is linked to the transmitter.
NOTE: Always turn the transmitter on first.
FLYING
1. Turn on the transmitter.
2. Plug in the quad.
3. Immediately set the quad on a flat surface for 10 seconds.
Status LED
Rapid Flash – No signal is being received
from the transmitter.
Steady – With a single beep from the
House Racer, the flight
controller is linked with the
transmitter.
Medium Flash – With slow beeping from the House Racer, flight battery is
almost depleted, land immediately.
Slow Flash – With slow beeping from House Racer, lost signal from
controller (lost model beacon).

7

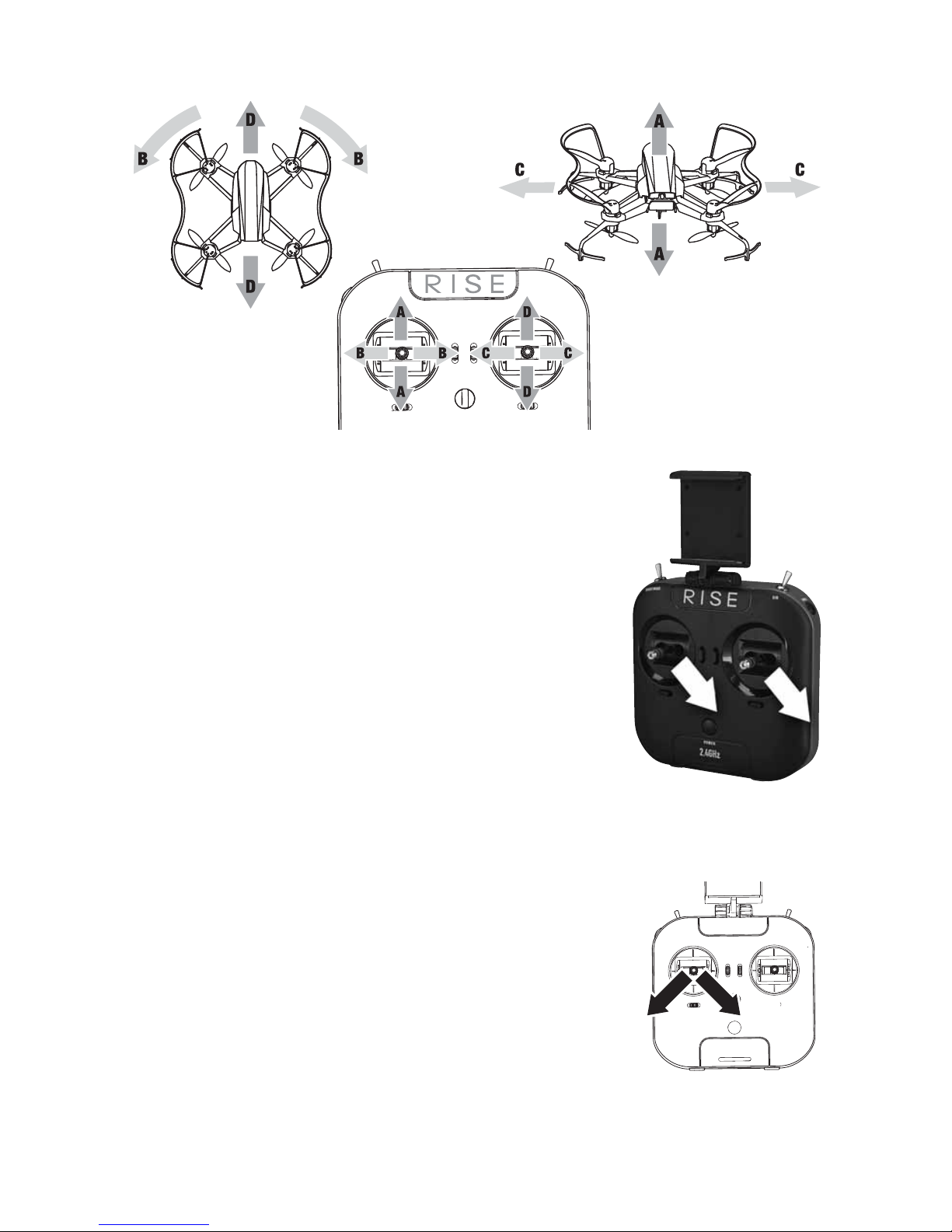

Controls
Sensor Calibration
1. Calibrate the sensors before the first flight. Turn on
the transmitter. Center all the trim adjustments. To
center the trim settings, hold down one side of the
trim button until you hear a long beep. If the
controller stops beeping, release the trim button
and hold down the other side.
2. Plug in the House Racer and place it on a level
surface.
3. Hold the right stick in its lower right corner.
4. Move the left stick down and to the right. When
the LEDs on the House Racer start to flash, release
both sticks. The LEDs will stop flashing when the calibration is complete.
Motor Arming
While the throttle is at its lowest setting, hold the
yaw control to the right to arm the motors. Holding
the yaw control to the left while the throttle is at
its lowest setting will disarm the motors. The motors
will also shut off if the throttle is at its lowest setting
for more than 3 seconds.
ArmArmDisarm

8
Flight Modes
The Vusion has 3 flight modes.
Mode 1 – This mode has
autolevel, mild roll rates and
limited tilt angles. Ideal for the
pilot that is moving up from
an entry level quadcopter.
Mode 2 – This mode still has autolevel, but has higher roll rates and higher control
sensitivity. This mode is for the more experienced pilot.
Mode 3 – This mode (rate mode) has no limits on tilt and faster roll rates. The
quad will not autolevel in this mode. This mode offers the most maneuverability
and the ability to manually roll and flip, but requires the pilot to be able to control
the attitude of the quadcopter at all times.
It normally takes a week or two of practice to learn to fly rate mode. Start by
flying Line of Sight (no FPV) until you can comfortably control the quad. When
you are comfortable making a manual flip, you should be ready to fly FPV in
this mode.
Takeoff and Landing

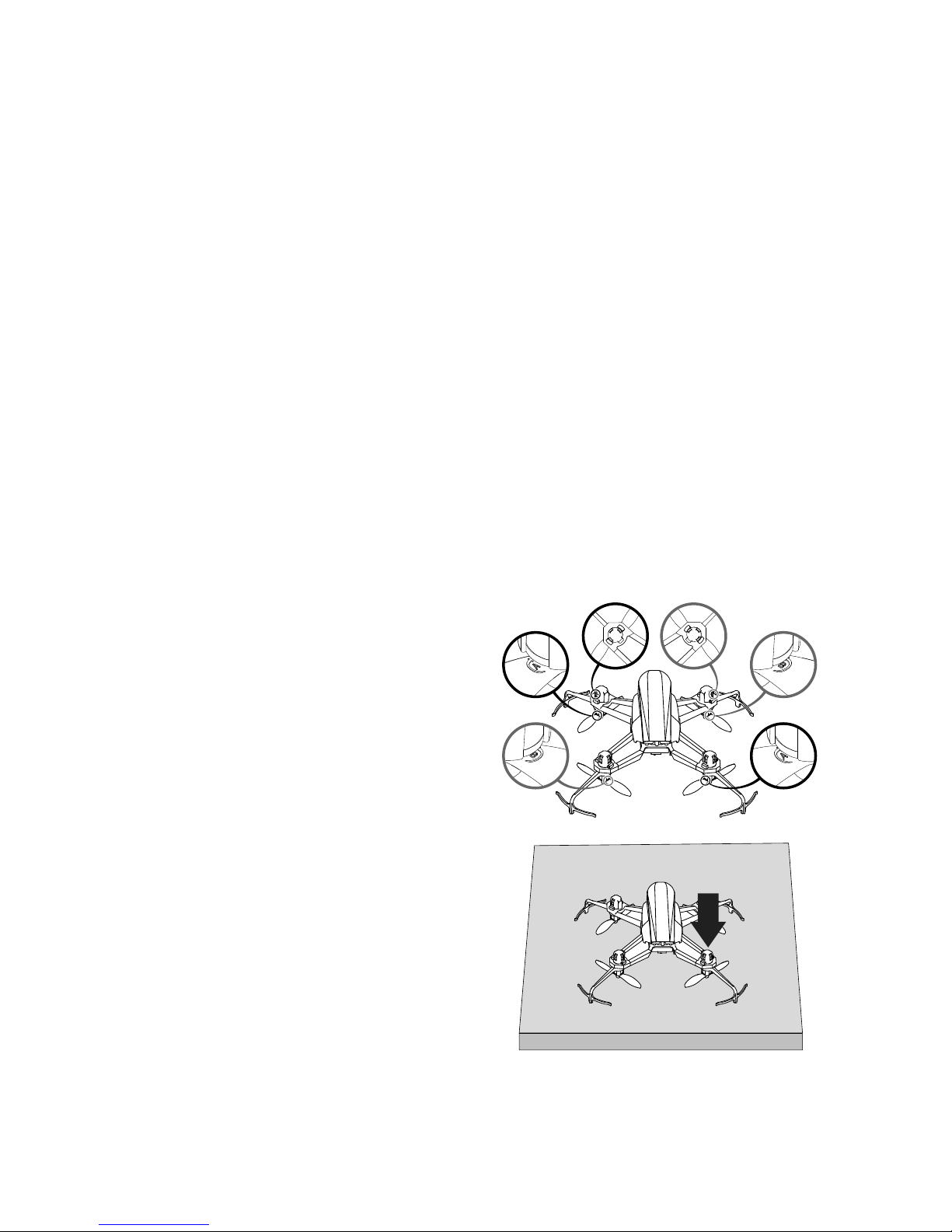

Turn on the transmitter and connect the flight battery to the VUSION HOUSE
RACER. Place the quadcopter on a level surface and let it sit for 10 seconds to
let the flight controller set up the gyros.
To take off, arm the motors and advance the throttle at a moderate speed until the
House Racer is at least 3 feet above the ground.
To land, hover the Vusion over the landing spot and slowly reduce the throttle.
When the quadcopter is on the ground, disarm the motors.
IMPORTANT! Always unplug the battery as soon as you land.
Recharge before next use.
Auto-Flip
The House Racer can auto-flip when in Flight Mode 2.
1. Press the button on the left side of the controller.
2. Move the right stick in the desired flip direction.
3. Release the stick and button as soon as the flip starts so the controller is
ready for use when the flip is completed.
Switch
Position
Away
Middle
Forward
Tilt
Angle
30
45
360
Roll
Rate
Low
Medium
High
Stability
Mode
Stability
Stability
Rate
Mode 1
Mode 2
Mode 3
FLIGHT
MODES

9
FPV
The House Racer has a
built in FPV camera and
40 channel VTX that
transmits on the A, B, E,
F and R bands.
1. Power up the
House Racer.
2. Attach the FPV monitor antenna and turn on the monitor.
3. If the monitor is not displaying a signal from the House Racer, hold the “B”
button on the monitor for 2 seconds and release it. The monitor will scan
all the channels and lock onto the closest signal.
4. Place the monitor in the cradle on the transmitter or inside the goggle.

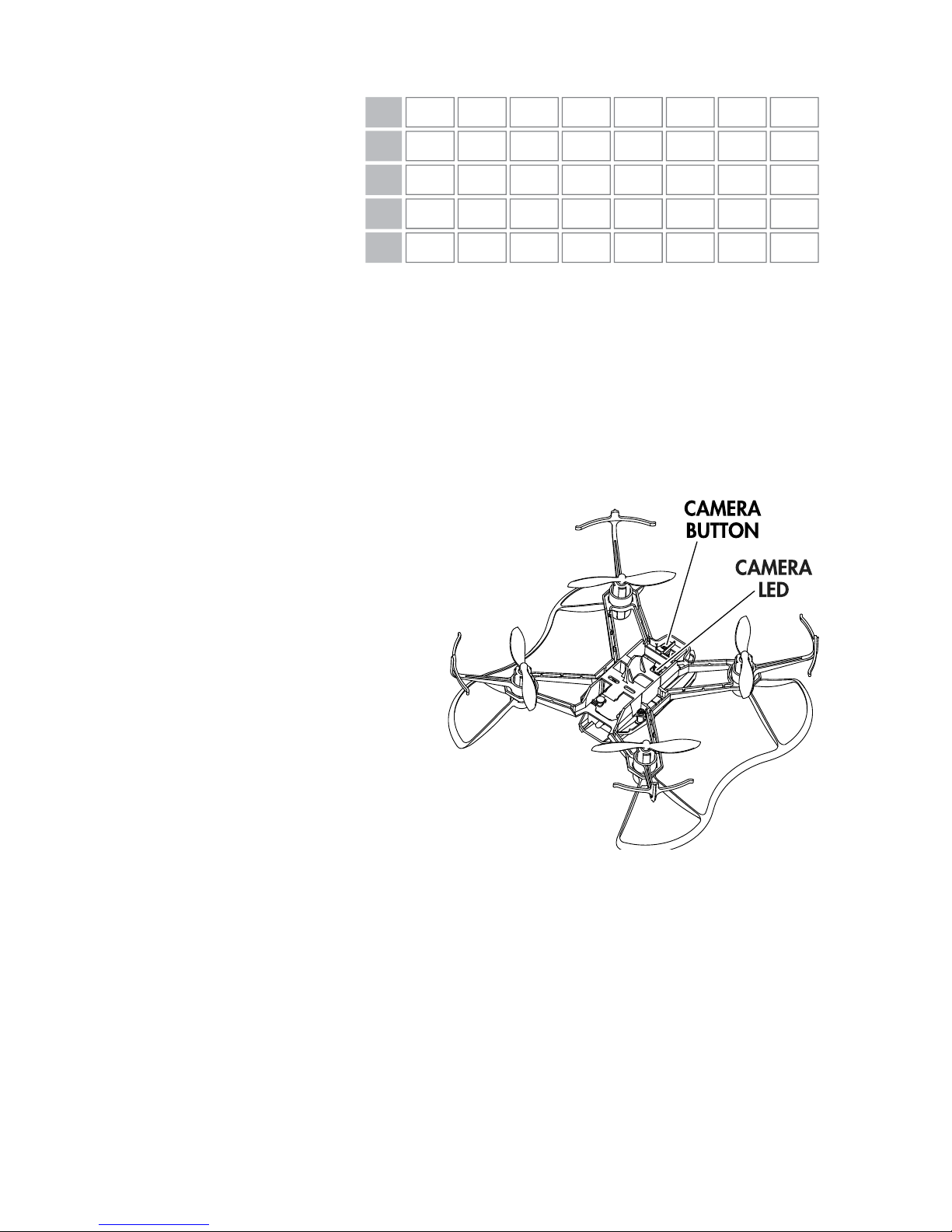

If the VTX channel must be changed, hold the camera button for a second to
change the band. A quick tap on the button will change the channel.
The LED will display a letter for the
band and a number for the channel
that is selected.
Lines and static on the feed from the
FPV camera are normal and will be
more frequent as the House Racer
gets farther from the pilot. The
typical FPV range is 50 to 75 yards
depending on how close sources of
interference like Wi-Fi routers are
to the flying area. If you have access
to large open area to fly, replacing
the antenna on the monitor with a
circular polarized antenna like the
Tactic FPV Cloverleaf Antenna
(TACZ5305) will increase the FPV range.
Flying FPV is more difficult than normally (Line of Sight) because it is difficult to
determine altitude with just the camera.
Practice with a spotter so they can provide warnings and assist with locating the
quad when it crashes. If possible, fly in an open area with grass.
Stay low until you can control the House Racer’s height without assistance.
When you are comfortable flying in an open area, practice flying a pre-set course.
5865 5845 5825 5805 5785 5765 57255745
123456 87
5733 5752 5771 5790 5809 5828 58665847
5705 5685 5665 5645 5885 5905 59455925
5740
A
BAND
FPV FREQUENCIES
B
E
F5760 5780 5800 5820 5840 58805860
5658
R5695 5732 5769 5806 5843 59175880

10
FAILSAFE / BEACON
The House Racer will autoland and start beeping when the signal from the transmitter
is lost. This feature can be used as a beacon to help locate the quadcopter when
it has crashed. Simply turn off the transmitter.
BATTERIES
The VUSION HOUSE RACER uses a 650mAh single cell LiPo. Typical flight time
is 5 to 7 minutes depending on the flying style. Always unplug the battery after
your flight!
The flight controller does have a low voltage cutoff to protect the LiPo from damage.
The rear LED will flash and the House Racer will start beeping when the battery
voltage drops to 3.4V. You should land the quadcopter as soon as possible when
you hear or see the alarm to avoid damaging the battery. The House Racer will
autoland when the battery voltage gets below 3.2V.
The flight battery should always be recharged before it is stored.
WARNING: Your battery life will be reduced and the battery can be damaged
any time the battery voltage drops below 3.0V. Charging a battery that is damaged
in any way can pose a fire hazard.
MAINTENANCE
Propeller Installation
Each arm and propeller on the House
Racer is marked with the letter “A” or “B”
and an arrow indicating proper rotation.
The propeller must be installed on an arm
with the same letter or the quadcopter will
not be able to fly.
Carefully pry the damaged propeller off
of the motor with a flat blade screwdriver.
Install the new propeller on the motor
shaft and push it up a far as possible.
Place the bottom of the propeller on a
flat surface and push down on the arm.
You will feel the propeller “pop” into
place when it is completely installed on
the motor shaft.
Link Transmitter
If the House Racer does not respond to the controller, your transmitter may need
to be relinked to the quadcopter. Before starting this procedure, please make sure
that there are no other R/C transmitters operating nearby.
PUSH
DOWN
A
B
Propeller A
Matched to Arm A
Propeller B
Matched to Arm B

11
If you are using the House Racer/Vusion stock controller,
1. Turn off the transmitter and unplug the battery from the House Racer for at
least 15 seconds.
2. Connect the battery to the House Racer.
3. Turn on the controller within 10 seconds.
The status LED should be steady and the House Racer should beep once to indicate
that it is linked to the controller.
An SLT transmitter like the Tactic TTX650 can also be linked to the House Racer.
Before linking the transmitter, make sure that servo reverse settings and the switch
assignments match the following table.
CHANNEL ASSIGNMENTS
Channel
Aileron
Elevator
Throttle
Rudder
Gear
AUX
Direction
normal
normal
normal
normal
normal
normal
Dual Rates
70/100
70/100
70/100
Expo
- 30/ - 15
- 30/ - 15
- 30/ - 15
End Points
100/100
100/100
100/100
100/100
100/100
100/100
SWITCH ASSIGNMENTS - Ch 6
AUX
AUX
AUX
100%
0%
- 100%
Stability 1
Stability 2
Rate
SWITCH ASSIGNMENTS - Ch 5
Gear
Gear
- 100%
100%
Normal
Flip
1. Turn off the transmitter and unplug the battery from the House Racer for at
least 15 seconds.
2. Turn on your transmitter.
3. Connect the battery to the House Racer.
After a few seconds, the status LED should be steady and the House Racer should
beep once to indicate that it is linked to the controller.
NOTE: After the initial linking procedure is completed, always turn on the controller
before connecting the battery to the House Racer.
Replacing a Motor
Removing a motor on the House Racer is very easy.
1. Unplug the motor wire connector from flight controller with a small flat
blade screwdriver.
2. Pull the motor wire from the arm.
3. Remove the propeller and prop guard.
4. Twist the motor cap to unlock it from the arm and remove it.
5. Push the motor up and out of the motor housing.
Before installing the new motor, make sure the wire colors are the same as on the
old motor.

12
BATTERY PRECAUTIONS
The VUSION HOUSE RACER uses a lithium polymer (LiPo) battery. Follow these
precautions to ensure safe and trouble-free operation.
• ALWAYS disconnect the battery from the quadcopter when not in use.
• Do not attempt to use this charger with NiCd or NiMH battery packs.
• Do not attempt to use a damaged battery.
• This product contains a LiPo battery that must be recycled or disposed
of properly.
• Do not leave the charger unattended while charging. Disconnect the battery
and unplug the charger immediately if either becomes hot! However, it is
normal for the charger to get warm.
• Disconnect the battery from the charger and carefully move the battery to a
fireproof location if the battery begins to swell or smoke!
• Never allow the battery temperature to exceed 140° F [60° C].
• Do not attempt to charge a battery if it is swollen or hot.
• Do not place the charger or any battery on a flammable surface or near
combustible materials while in use.
• Never disassemble or modify pack wiring in any way or puncture cells.
• Never charge inside a vehicle.
• Always disconnect the battery and unplug the charger when not in use.
• Land your model immediately when the LEDs flash to indicate that the battery
power is low. Recharge the battery before attempting another flight. A dangerous
situation can occur when attempting to recharge an over-discharged battery!
• ALWAYS keep a supply of sand accessible when charging. Dumping sand on
the battery will extinguish a LiPo chemical fire.
• ALWAYS KEEP OUT OF REACH OF CHILDREN
For additional information about recycling rechargeable batteries in the US and
to locate a local collection point, please visit the Call2 Recycle website at
http://www.call2recycle.org/
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACD BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
FCC IC PRECAUTIONS
IC RSS Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

13
IC Radiation Exposure Statement
This equipment complies with IC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
FCC Radiation Exposure Statement
This device complies with part 15.249 of the FCC rules. Changes or modifications
not expressly approved by Tactic will void the user’s authority to operate this Tx.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
• This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
RISE J2000 Transmitter FCC ID: IYFJ2000
RISE 25mW VTx FCC ID: IYF2051
CE COMPLIANCE INFORMATION
FOR THE EUROPEAN UNION
Instructions for Disposal of Waste Equipment by Private
Users in the European Union
Correct Disposal of this product. This symbol on the product or
packaging indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible

14
harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources.
For more information about where to recycle this product, please contact your
local city office, household waste disposal service or the location where the
product was purchased.
Declaration of Conformity
Product: RISE 2.4GHz 6-Channel Tx Rx
Item number: RISJ2000 J2000
Equipment class: 1
J2000 transmitter: The objects of the declaration described here are in conformity
with the requirements of the specifications listed below, following the provisions
of the European 2006/95/EC Low Voltage Directive:
EN 60950-1:2013 Safety
The objects of the declaration described here are in conformity with the requirements
of the specifications listed below, following the provisions of the European R&TTE
directive 1999/5/EC:
EN300 328 V1.9.1.
Technical requirements for radio equipment
ETSI EN 300 328 V1.9.1 (2015-02); ETSI EN 301 489-1 V1.9.2 (2011-09); ETSI
EN 301 489-3 V1.6.1 (2013-08); EN 62479:2010 General EMC requirements for
radio equipment
Product: RISE 5.8GHz 25mW VTx
Technical requirements for radio equipment
ETSI EN 300 440-2 V1.4.1 (2010-08); ETSI EN 301 489-1 V1.9.2 (2011-09); ETSI
EN 301 489-3 V1.6.1 (2013-08); EN 62479:2010 General EMC requirements for
radio equipment
Hobbico, Inc.
2904 Research Road
Champaign, IL USA 61822

15
Part # Description
1 RISE2050 Canopy
2 RISE2051 Camera Board & Antenna
3 RISE2052 Camera Case
4 RISE2053 Screw Set (6)
5 RISE2054 Motor Cap (4)
6 RISE2055 Main Motor CW L/F, R/R (2)
14 RISE2056 Main Motor CCW R/F, L/R (2)
7 RISE2057 Prop Guards (4)
8 RISE2058 Main Frame
9 RISE2059 Props (4)
10 RISE2060 Control Board w/ Dampers
11 RISE2061 Dampers (4)
12 RISE2062 Wall Guards (2)
13 RISP2065 650 mAh LiPo Battery
RISP2066 USB Charger
RISJ2000 Transmitter 6-channel
TACZ1003 MicroUSB Charge Cord
Goggle Parts
TACZ 5200 FPV-G1 Goggles w/o Monitor
T
ACZ 5610 FPV-G1 Head Strap
T
ACZ 5612 FPV-G1 Face Plate Foam
FPV Monitor Parts & Accessories
T
ACZ 5160 FPV-RM2 40ch 5.8 GHz Monitor
T
ACZ 1010 4G Class 10 Micro Memory Card
T
ACZ 5300 FPV 5.8 GHz RP-SMA Tx Antenna
Short 110 mm 3dBi
T
ACZ 5305 FPV 5.8 GHz Cloverleaf Antenna 3dBi
T
ACZ 5600 FPV-RM2 Sun Shield
T
ACZ 5602 FPV-RM2 Tripod Mount
Other Optional Parts & Accessories
T
ACZ 5604 USB Micro SD Card Reader
TACJ2650 TTX650 6-channel SLT Computer Transmitter
* The Ring Gates come with genuine 3M™ Command™ strips
so they can be mounted on a wall or ceiling.
OPTIONAL RACING GATE SYSTEM
SPARE PARTS
Checkered Flag Gate Elevated Gate Pylon GateRISP0003 RISP0005 RISP0004
Arch Gate LED Ring Gate* Ring Gate*RISP0006 RISP0007 RISP0002
Command™ and 3M™ are trademarks of 3M, Inc.

16

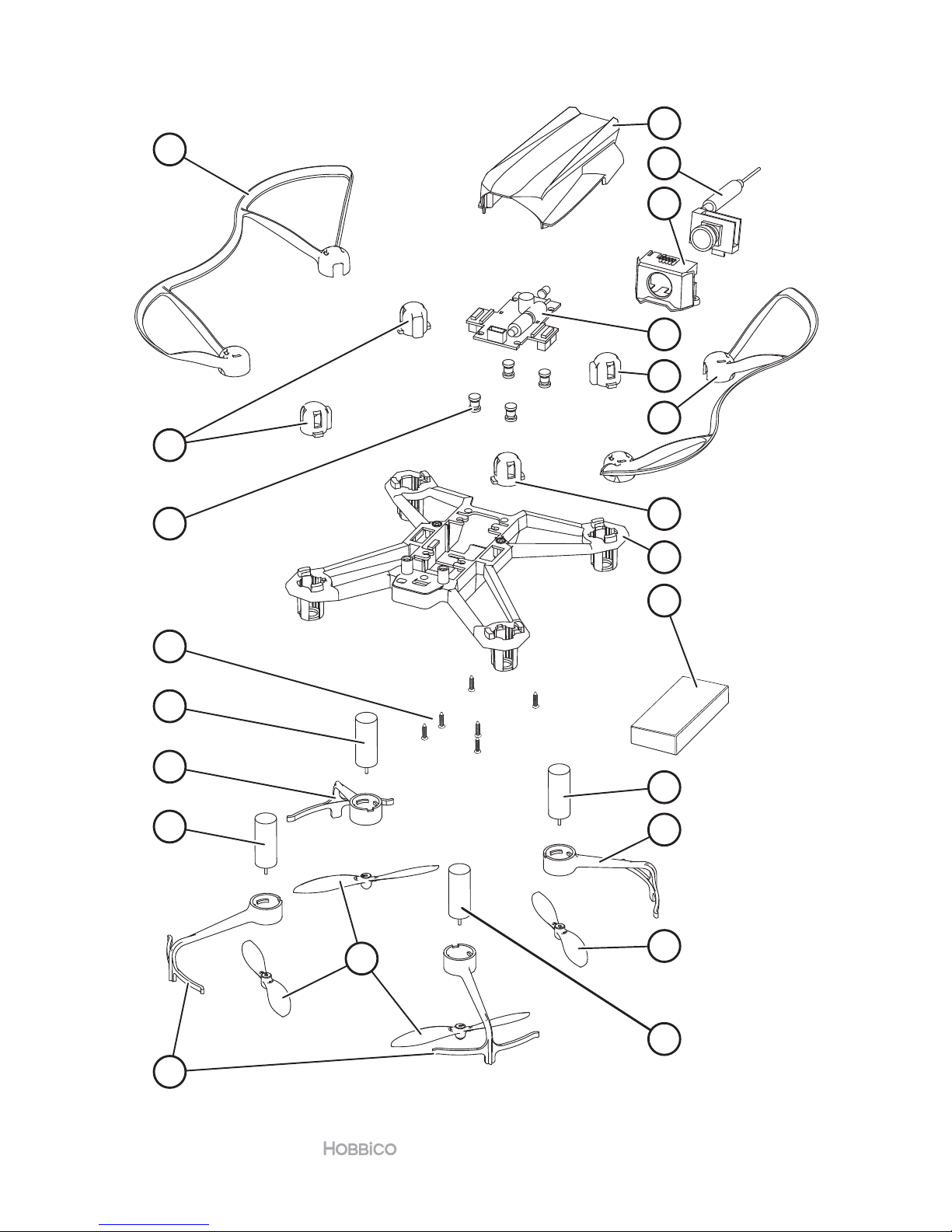

HOUSE RACER EXPLODED VIEW
1
2
3
10
5
12
5
8
13
14
7
9
9
14
7
7
6
4
12
5
11
6
© 2017 RISE, a Hobbico company. RISE0207 FPV RTF v1.1 RISE0208 FPV-R v1.1
™
