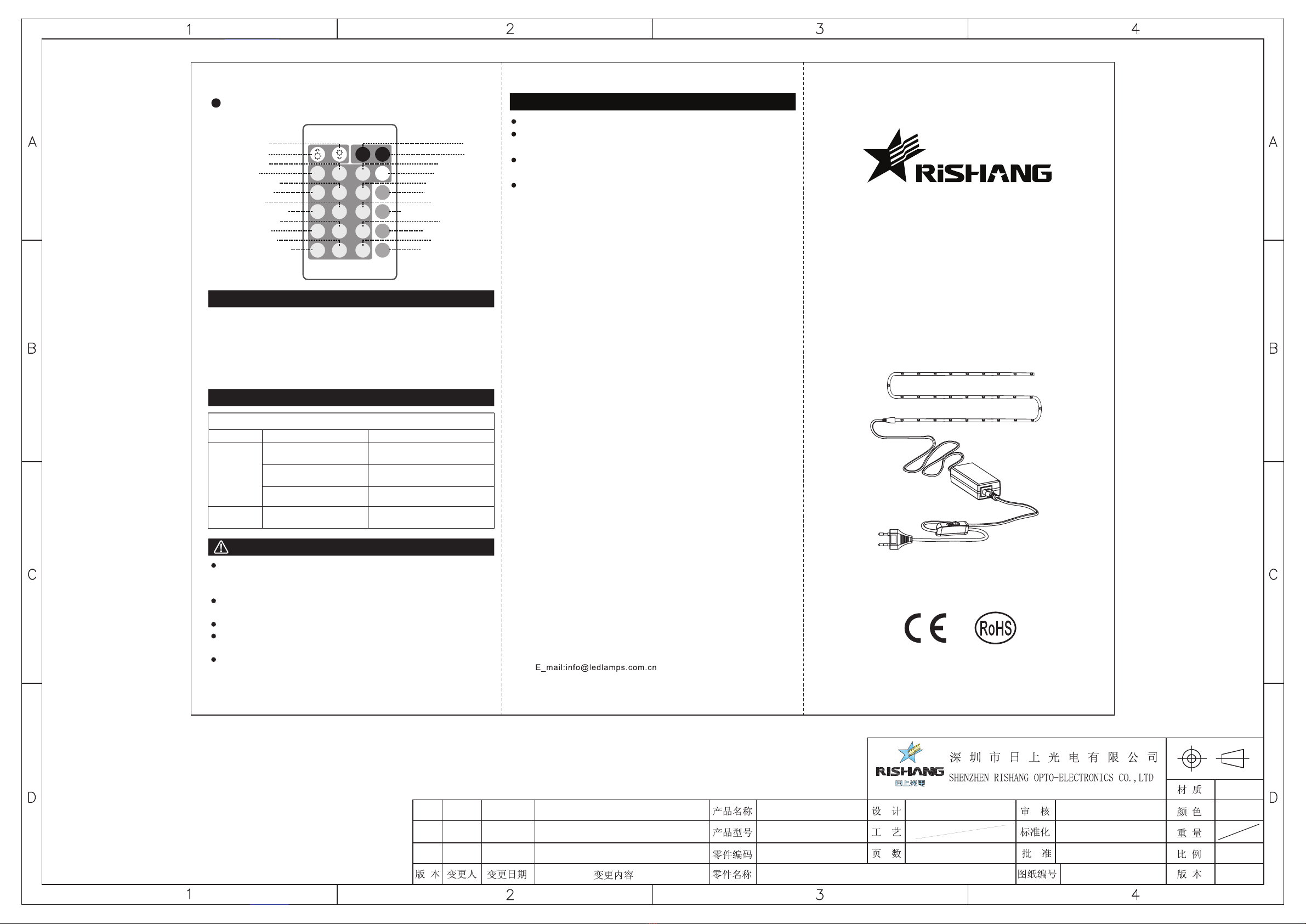

Rishang Crystal Series User manual

6 0 G书纸
灰度印刷
共 2 页 第 1 页
V0
1:1
备注：
1.尺寸：297*2 1 0 m m；
2.材质：6 0 G书纸；
3.公差：± 1 m m；
4.灰度双面印刷；
5.虚线不印刷，来料必须从虚线处折好。
说明书正面
R0860BA R8060BA R0030AA
R8030AA R0030AQ R8030AQ
升级灯带
产品说明书（非中性 英文）
方艳平 2012.03.30
RD-R0860BA-BZ024
308-02-065
李建洲 2 0 1 2 . 0 3 . 3 0
NOTE
1.Installation Notes
Make sure that you keep the surface clean before installing strips.
2. Notes for Optional Supplies
1)Forbid using any acid and alkali adhesive to fix the strips.
2)No adhesive on LED surface during installing the strips to
avoid damaging the LEDs.
Malfunction & Solution Table
WARNING
The product can only be used in indoor light box and channel
letter. Forbid exposing it to the outdoor or semi-outdoor
environment directly.
Do not disassemble or modify the module and touch LED surface
with sharp stuff.
Turn power off before installing the strips.
Forbid using any acid and alkali adhesive or glue to fix the
product.
Please use neutral glass glue to fix the product, and cannot seal
the light box or channel letter until the glue is solidified in the
open environment.
09The controller works with a remote control, and the instruction
details of the controller is shown as follows.
OFF ON
R
G B W
FLASH
FADE
SMOOTH
STROBE
Brightness + On
Static green Static blue
Static red Static white
Static pale green Static dark blue
Static orange 7-color skipping
Static cyan Static brown
Static light blue Static pink
Static yellow 7-color smooth
Static sky blue Static purple
Static straw yellow 3-color skipping
Static dark yellow White color fade and change
Brightness - Off
Declaration
If the luminaire is damaged, please contact the manufacturer or his
service agent.
All the data and pictures in this manual are subject to actual
products.
Warranty: 1 year or 4,000 hours, whichever comes first.
Information provided is subject to change without notice.
V1.0
Read this manual carefully before using this product and keep it!
Crystal Series Flex LED Strip
Manual
TEL:[phone]
FAX:[phone]
Web:www.ledlamps.com.cn
ADD:FI.3 to 5,block 2,hongfa jiateli high-tech park,tangtou
ave,Shiyan,bao’an,shenzhen,g.d.518108,CHINA.
RISHANG OPTOELECTRONICS CO.,LTD
R0860BA R8060BA R0030AA
R8030AA R0030AQ R8030AQ
Malfunction & Solution Table for Flex Strips
Malfunctions Possible Causes Solutions
None LED
works
LEDs blinking
1,Power supply doesn’t get
primary power. Power on.
2,Power supply Plug is
connected wrongly.
Switch on power supply.
3,Power supply is switched
off.
1,Intermittent connections. Find the intermittent points and
remove any malfunctions.
Connected it to the power again.

6 0 G书纸
灰度印刷
产品说明书（非中性 英文）
方艳平
共 2 页 第 2 页
2012.03.30
V0
1:1
备注：
1.尺寸：297*2 1 0 m m；
2.材质：6 0 G书纸；
3.公差：± 1 m m；
4.灰度双面印刷；
5.虚线不印刷，来料必须从虚线处折好。
说明书背面
李建洲 2 0 1 2 . 0 3 . 3 0
05 The strips can be bent on the
mounting surface.
Note: Don't bend it to right angle.
06 Plug the interface of the strip
into the Power Supply.
Note: Forbid operating with
power on!
Unit:mm[in]
Dimension and Connection Illustration
Model and Specification
Clean the mounting surface and
keep it clean.
Input Voltage : AC100~240
DC12
Operating Temperature -25～60[-13~140]
-40～70[-40~158]
(V)
Working Voltage(V):
(℃[°F]):
(℃[°F]): Storage Temperature
01
03 Peel off the adhesive tape
gradually, and stick them on the
mounting surface.
Note: Forbid peeling the
adhesive tape once to avoid
the strips sticked together.
04 Locate the mounting position
and stick the strips on the
mounting surface.
Note: Don't press the LEDs.
Cut the strips to achieve the
desired length.
Note: Please cut the strips at the
printed marks.
02
Color
Model
R Wated Power( )
Series
24 9
Monochrome
R0860BA R8060BA R0030AA R8030AA R0030AQ R8030AQ
1.Monochromatic Strips：
Installation and Use
Installation Procedures
Power supply
with switch control
Tools required:
Scissors
07 Turn off the switch, and energize
the power supply, then you can
control the LED strip with the
switch.
Note: Keep the power supply with
switch control out of reach of
children!
Controller
Crystal series: 5m[196.9in]
01
The installing steps from ~ are same as monochromatic strips.
05
06 Plug the interface of the strip into
the controller.
07Connect the controller to Power
Supply.
08Turn off the switch, and energize
the power supply, then you can
control the LED strip with the
switch.
Note: Keep the power supply with switch
supply and controller out of reach of
children, and place the connector of
controller in the open environment.
28
Red Green Blue
9 9
Crystal Series
RGB
Monochrome
2.RGB Strips：
The length of the line
The length of the line
1.Instruction of Monochromatic Strips：
2.Instruction of RGB Strips：
Product parts and Tools Required:
Installation Procedures
Power supply
with switch control
Tools required:
Scissors
Crystal series: 5m[196.9in]
Product parts and Tools Required:
R0860BA R8060BA R0030AA
R8030AA R0030AQ R8030AQ
