Ritelite RITE-POWER 3850 User manual

This user manual covers the Rite-Power 3850 / 7700
industrial portable power generators with the following product options:
110V | 230V | Type F | T60309 sockets
The information contained in this manual is based on products manufactured up to the time of publication.
Ritelite (Systems) Ltd reserves the right to change any of this information without notice.
No part of this manual may be reproduced in any form or by any means, electronic or mechanical without express written
permission from Ritelite (Systems) Ltd.
Any type of reproduction or distribution not authorized by Ritelite (Systems) Ltd represents an infringement of valid copyrights,
and violators will be prosecuted. We expressly reserve the right to make technical modifications, even without due notice,
which aim at improving our products or their safety standards.
Product Resources
RITE-POWER 3850 / 7700 | 2500W | 110V / 230V
Operator’s Manual

2
IMPORTANT INFORMATION ABOUT YOUR
RITE-POWER
PORTABLE BATTERY POWERED GENERATOR
Use this page to record important information about your RITE-POWER unit.
This information can be found on your RITE-POWER data plate which is found next to the mains outlet socket
on the side of the units.
NOTE: Below is an example of a RITE-POWER data plate.
UNIT PRODUCT REFERENCE
UNIT SERIAL NUMBER
You will be required to supply the products serial number when contacting Ritelite (Systems) Ltd or one of
Ritelite’s approved dealers about parts and service.

3
CONTENTS
SECTION TITLE PAGE NUMBER
Section 1: Introduction & applications for use 4
Section 2 : Safety rules 5
Section 3: Technical specifications 9
Section 4: Setting up the RITE-POWER generator 12
Section 5: Operating instructions 13
5a) Pre-operation inspection 13
5b) Using the RITE-POWER generator 15
5c) Recharging the RITE-POWER generator 18
5d) Optional ‘Pass through’ power transfer system 20
5e) Packing away and transport 22
5f) Storage / transport mode 22
Section 6: Troubleshooting 23
Section 7: Maintenance 25
7a) Advice on disposal 25
7b) Disclaimer of warranty 25

4
Section 1: INTRODUCTION & APPLICATIONS FOR USE
The RITE-POWER generator is designed as an industrial portable power generator supplying continuous AC
mains power up to 2500W for equipment requiring 230V AC 50hz or 110V AC 60hz, depending on
model chosen.
It uses bespoke Lithium batteries with a dedicated battery management system to supply a pure sine wave
inverter producing a clean reliable supply, powering most equipment up to 2500W.
It is housed in a ruggedised waterproof case with industrial input and output sockets for charging and taking
power from the unit.

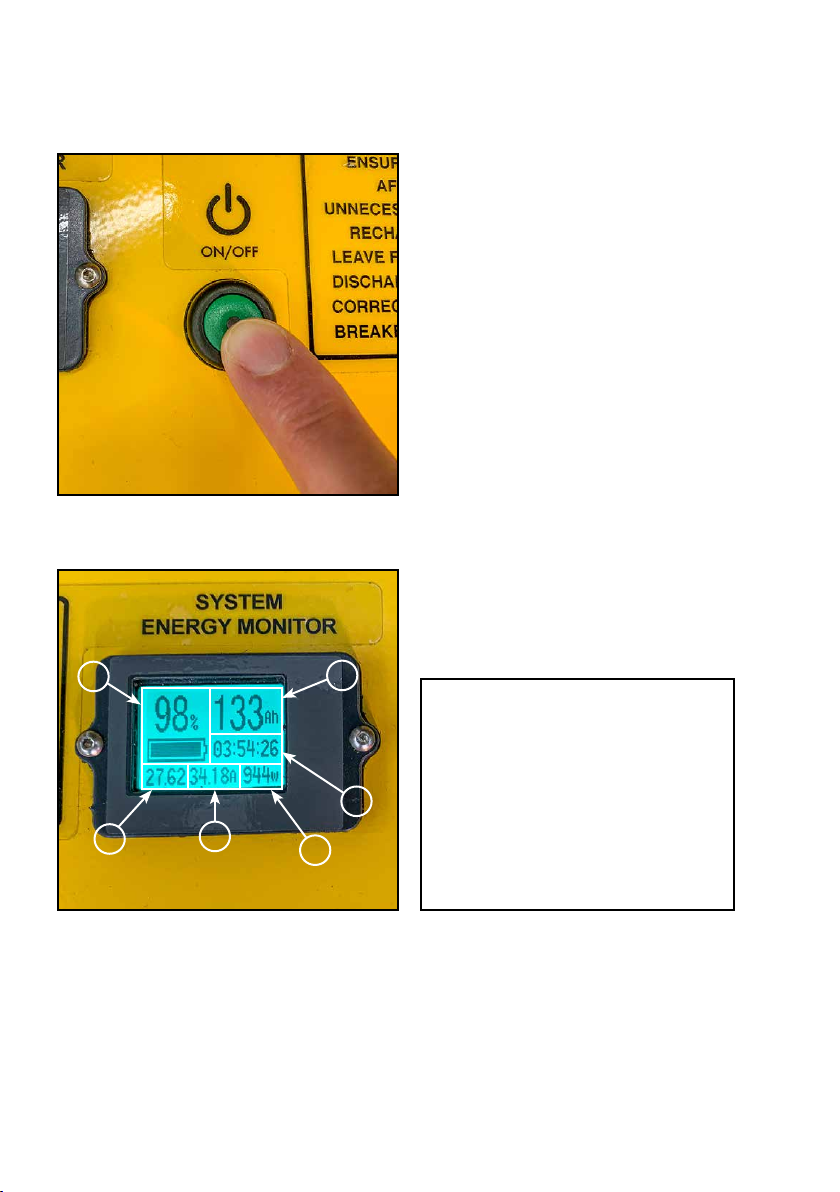

In addition, a display on the outer case indicates run times based on the current load, recharge time based on
the current charger connected and other information pertaining to the battery voltage, current, state of charge
and capacity. A single switch turns the system on and off and contains a red warning LED to indicate any fault
conditions including low battery supply, over temperature, overload and short circuit.
All users must read, understand and obey any instructions and information contained herein these operating
instructions before use. Only trained or competent personnel should use the RITE-POWER generator.
This Manual should always stay with the RITE-POWER generator.
APPLICATIONS FOR USE
The RITE-POWER generator is designed for use in the following applications only. It should not be used for any
other purpose. If in any doubt about applications for use, please contact either Ritelite (Systems) Ltd or Ritelite
(Systems) Ltd’s distributor for more information.
• Powering resistive load equipment up to a max continuous load of 2500W.
• Powering capacitive load equipment up to a max continuous load of 2500W.
• Avoid Powering Inductive loads (Items with motors in) or limit their load to 500W Max. Note some loads
may fail to run at all from the RITE-POWER Generator or cause the inverter system within the generator to
behave abnormally causing it to shut down, if this happens disconnect the load and don’t attempt
to retry.
Failure to follow the instructions and safety rules in this manual may result in death or
serious injury.

5
Section 2: SAFETY RULES
It is important that every user understands and observes the safety rules
before setting up or using the RITE-POWER Portable Battery
Powered Generator.
The Manufacturer, Ritelite (Systems) Ltd cannot anticipate every possible circumstance that might
involve a hazard. The warnings in this manual and on labels affixed to the RITE-POWER generator
will therefore not cover every eventuality. If using a procedure or operating method not specifically
recommended by the manufacturer then the user must verify that it is safe for others and that it does not
make the equipment unsafe.
Throughout this manual and on labels on the RITE-POWER generator, DANGER, WARNING and
CAUTION blocks are used to alert personnel to special instructions about a particular operation that
may be hazardous if performed incorrectly or carelessly. Observe them carefully. Their definitions are
as follows:
Indicates a hazardous
situation which, if not
avoided, will result in
death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in
death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in
minor or moderate injury.
These safety alerts cannot eliminate the hazards that they indicate.
Common sense and strict compliance with the instructions within this
manual are essential to preventing accidents.

6
When using the RITE-POWER generator indoors or outdoors, basic safety
precautions should always be followed to reduce the risk of fire, electric shock and
personal injury including the following:
a) Ensure the IP rating of the connecting plug to coupler application is suitable
for the prevailing conditions.
b) Read and understand the implications from the MSDS (Material
Safety Data Sheet) for the product, for both use and transport/
shipping. The MSDS can be viewed the following link or by
scanning the QR code on the right:
https://ritelite.co.uk/product-resources/rite-power/
c) Do NOT allow the RITE-POWER generator to become submersed under
water or allow any liquid to enter inside the product.
d) Use only with an extension cord appropriate for outdoor use.
e) Do NOT use damaged cables or connectors.
f) All cables and equipment must be double insulated.
GENERAL SAFETY RULES & POTENTIAL HAZARDS WHEN
SETTING UP AND USING THE RITE-POWER PORTABLE
POWER GENERATOR
FALL HAZARDS
• Do NOT place the RITE-POWER generator anywhere it could fall on to personnel.
• Do NOT stand on the RITE-POWER generator or use it as any form of step.
TIP OVER HAZARDS
• Where ground or the area is uneven place the RITE-POWER generator on its base to ensure it
can’t fall over.
• Prior to setting up check the area for any possible hazardous conditions.
• Do NOT place ladders or scaffolding against any part of the RITE-POWER generator.
• Do NOT use the RITE-POWER generator on a moving or mobile surface without strapping it
down to prevent unexpected movement.

7
• Use the integrated handles or optional trolley (SLK1770BP/TROLLEY) to safely carry/move
the RITE-POWER generator.
• Do NOT use the RITE-POWER generator for any purpose other than that for which it
is designed.
ELECTROCUTION HAZARDS
• Do NOT allow the inside of the RITE-POWER generator to come into contact with water or
any other liquids.
• Ensure the RITE-POWER generator is not being set up in a potentially explosive environment
– the RITE-POWER generator is not an ATEX approved product.
• The RITE-POWER generator is not designed to be submersed under water.
• Do NOT use if any parts become significantly damaged which may compromise the IP rating
of the product.
• Do NOT use if any damage to the sockets on the product occurs.
• If any significant damage occurs the RITE-POWER generator must be returned to Ritelite
(systems) Ltd or one of its authorized dealers for repair.
• Do NOT use plugs or cables that are cut or damaged in any way.
• Do NOT connect the RITE-POWER generator to any other mains supply system such as a grid
or generator supply, it is not designed for grid tie systems, it will damage
the unit.
• Do NOT allow minors or persons of reduced competency to use the RITE-POWER generator,
it is NOT a toy.
• Do NOT connect the RITE-POWER generator charger between its charge input and mains
outlet sockets, it will damage the unit.
BODILY INJURY HAZARDS
• It is recommended that the user wears gloves whilst manoeuvring or connecting up the RITE-
POWER generator.
• In slippery or uneven terrain, it is recommended that two people manoeuvre the product at
all times.
• The RITE-POWER generator is designed to be simple to operate by one person however
there may be situations where it is recommended that two people manoeuvre the product.
• Do not manoeuvre the RITE-POWER generator product for long distances in
extreme temperatures.
• Where possible the RITE-POWER generator should be set up away from personnel or
moving vehicles.

8
CRUSHING HAZARDS
• Ensure the RITE-POWER generator is set up on a firm and horizontal flat surface.
• Keep hands and fingers away from any potential pinch points.
• Never place the RITE-POWER generator above personnel where it could fall on them.
COLLISION HAZARDS
• Use common sense and planning when transporting/carrying the RITE-POWER generator on
any incline or slope.
• On slippery or uneven terrain, it is recommended that two people manoeuvre the product at
all times.
• Make sure when loading the RITE-POWER generator into a vehicle or trolley that it is securely
mounted/retained so it cannot fall off or move in such away that it could harm other items
or personnel.
DAMAGED MACHINE HAZARDS
• Do NOT use a damaged RITE-POWER generator or one that isn’t working properly.
• Conduct a thorough pre-operation inspection prior to each use.
• Be sure that all labels are in place and legible.
• Do NOT use if there are any visible damaged parts. Contact your original point of purchase or
Ritelite (Systems) Ltd to arrange for spares or repair options.
• Do NOT use any type of abrasive or strong chemicals to clean the
RITE-POWER generator.
• Do NOT attempt to defeat / modify any of the wiring or protection fuses.
IMPROPER USE HAZARD
• Never leave an RITE-POWER generator unattended unless a full risk assessment for the
application it is being used for has been undertaken by a competent person. Unauthorized
personnel could attempt to operate the RITE-POWER generator without proper instruction
potentially causing injury to themselves or others.
• The RITE-POWER generator is to be used only for its prescribed purpose. Any use other than
that mentioned is considered to be a case of misuse.
• The user/operator, and not the manufacturer shall be liable for any damage or injury resulting
from such cases of misuse.
• It is imperative to observe the local accident prevention regulations.
• The same applies for the general rules of occupational health and safety.
• The manufacturer is not liable for indirect consequential damage and financial loss.
• The manufacturer shall not be liable for any changes made to the device nor for any damage
resulting from such changes.
• The RITE-POWER generator is not designed to be setup/used on a live public highway.

9

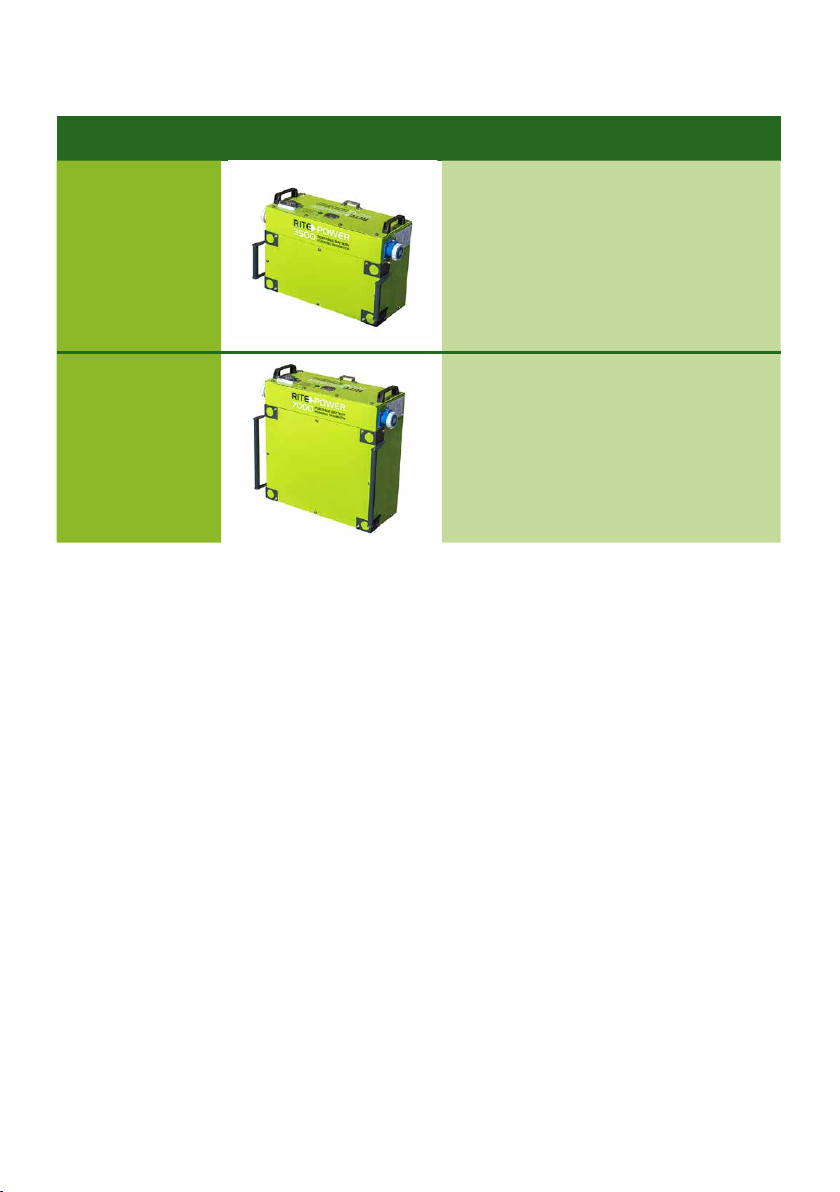

RITE-POWER MODEL KEY SPECIFICATION
3850
3850 watt hour battery capacity
2500W continuous power output
Pure sine-wave inverter energy
110V / 230V options
3 charger options
52kg
Dimensions: 715 x 370 x 470mm
Rated IP44
7700
7700 watt hour battery capacity
2500W continuous power output
Pure sine-wave inverter energy
110V / 230V options
3 charger options
91kg
Dimensions: 715 x 370 x 680mm
Rated IP44
Section 3: TECHNICAL SPECIFICATIONS
PHYSICAL
Case Material: Powder coated aluminium
Protection Class: IP44 - (Subject to the product being set up vertically on its supporting feet and
not submersed in liquid).
Operating Ambient Temperature range: 0 deg - +30ºC
Recommended Storage Temperature: 0 to +25ºC
ELECTRICAL
Output - 110V 60HZ 2500W Max or 230V 50HZ 2500W Max AC (depending on model selected)
Output voltage tolerance +/- 5%
THD < 3%
Efficiency > 90%
Power Factor 0.99
Mains output socket
CEE 110V 16A 3P IP67 Socket
or
CEE 230V 16A 3P IP67 Socket
or
SCHUKO OUTLET SOCKET 250V 16A 3P IP68 -F

10
CHARGING

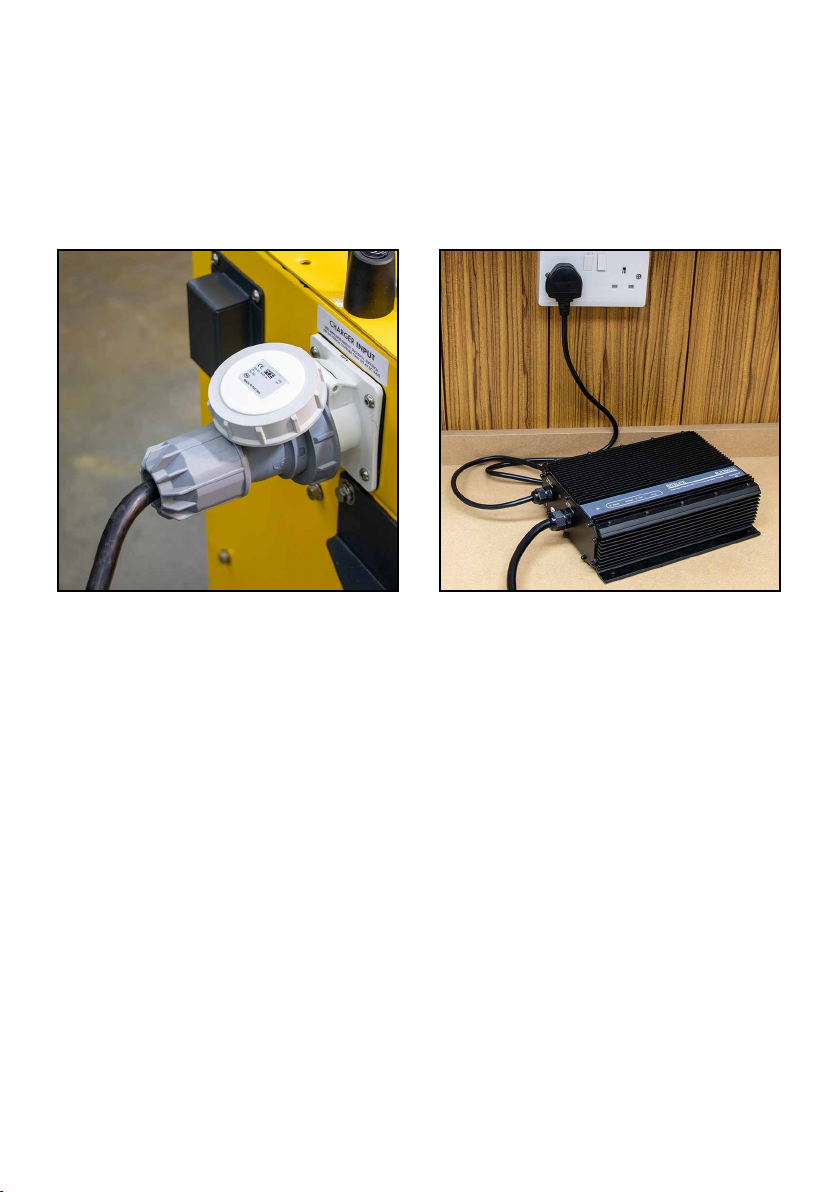

Via CEE 32A 2P IP67 Socket – use only the following Ritelite (Systems) Ltd model range –
SLK350CH, SLK750CH & SLK1000CH.
Note this socket is only for charging and must NOT be used for discharging or any other purpose
than the sole connection of the SLK350CH, SLK750CH & SLK1000CH
model chargers.
PROTECTION SYSTEMS
• Short Circuit Protection – The RITE-POWER Generator will shut down until the fault is
removed. It will signal this by flashing the red LED continuously and a beeper will be heard.
• Overload Protection – The RITE-POWER Generator will shut down until the load is reduced.
It will however allow small overloads up to 120% for short periods of time up to a minute. It
will signal this by flashing the red LED continuously 5 times which will then be repeated and a
beeper will be heard until the fault condition is removed.
• Over Temperature Protection – The RITE-POWER Generator will shut down until it has cooled
sufficiently to allow it to function again It will signal this by flashing the red LED continuously 4
times which will then be repeated and a beeper will be heard until the fault condition
is removed.
• Low Battery Voltage – The RITE-POWER Generator will shut down until the battery has been
recharged sufficiently It will signal this by flashing the red LED continuously and a beeper will
be heard until the unit is switched off or recharged.
• Low Battery Capacity Shut Off – The RITE-POWER generator has shut down due to insufficient
battery capacity. It will signal this by flashing the red LED continuously twice which will then
be repeated and a beeper will be heard until the unit is switched off or recharged.
• Automatic shut down - The RITE-POWER Generator will automatically switch the inverter
output off if no load or a small load is detected aer 12 hours. Switch power button off then
on to reset unit to resume normal function.
• Over Voltage Protection – The RITE-POWER Generator will shut down if the voltage from
the battery/charger rises above a particular threshold, if this happens this would suggest a
permanent fault in the charging system or an incompatible charger has been connected, the
issue should be investigated by a competent person – please contact Ritelite (Systems) Ltd or
its authorised distributor. It will signal this by flashing the red LED continuously 3 times which
will then be repeated and a beeper will be heard until the fault condition is removed.
Note in most cases the inverter will automatically reset itself aer a fault condition has been
removed, in some cases it may be necessary to switch off then back on the power switch to
reset the unit.

11
The RITE-POWER Generator is fitted with an appropriate 110V or 230V 30mA RCBO to add an
additional layer of protection over that mentioned above. However, all these protection systems
can’t mitigate against all dangers and situations. Please see the HSE document 482/2 https://
www.hse.gov.uk/foi/internalops/ocs/400-499/oc482_2.htm which should be strongly
considered and the appropriate risk assessments made to protect all users and those likely to
come in to contact with the mains power generated by the RITE-POWER Generator. There is
particular onus on regular inspection of cables, plugs, sockets and equipment connected by a
competent person to make sure any likely hazards are significantly reduced. Appropriate cables,
plugs, sockets and equipment must be used for the environment in which the RITE-POWER
Generator is to be used.
GUIDANCE ON EARTHING AND PROTECTING USERS
The RITE-POWER battery generator references the neutral to the earth system. This allows the
RCBO fitted help protect users as much as reasonably possible in the event of a fault occurring
with cables and/or equipment connected to the output.
In addition, there is an external earth point (Next to the outlet socket) on the product that can
be connected to true earth using a suitable recognised earth cable, please seek the advice of a
qualified electrician if this is to be done. Feasible methods for true earth connections are:
1) An earth rod driven to a depth of not less than 1 metre.
2) The earth terminal of an adjacent fixed installation.
3) Permanent Structural steelwork.
4) Exposed reinforcement bars in concrete foundations or structures.
5) A suitable metal structure known to be earthed.
It should be stressed that it is paramount to use equipment and cables suitable for the
environment they are to be used in to make sure a user can be afforded the maximum protection
against the likelihood of electrical shocks especially in harsh environments where cables and
equipment are subjected to far more physical damage.
Consideration should be given for environments where water is present or could be present
from rain or other liquids from elsewhere. Equipment and cables, plugs and sockets should be
examined regularly for signs of damage, both physically or through water ingress. Regular PAT
(Portable Appliance Testing) should be done according to the associated risks in the environment
the equipment is to be used.
The RITE-POWER Generator and equipment powered from it should be inspected before and
aer use and those inspections documented. If any damage or concerns are highlighted, then
the RITE-POWER Generator and/or equipment must be taken out of service and marked up
accordingly so it can’t be used until repair/inspected by a suitable qualified person.

12
Section 4: SETTING UP THE RITE-POWER GENERATOR
Inspect the proposed area for use.
An inspection of the proposed area in which to set up the RITE-POWER generator is necessary to
ensure it is suitable for safe operation. This inspection should be performed by the operator prior
to using the RITE-POWER generator.
The area should be free from moving vehicles, machinery, pedestrians or other factors which may
mean the RITE-POWER generator could form a hazard.
Set the RITE-POWER generator up in such a way that it cannot obstruct walkways or areas that
form emergency exit routes.
Do not leave unattended if there is potential for minors or non-competent persons to tamper with
the RITE-POWER generator whilst in use.
Operators should be aware of the following possible hazardous situations. The operator
should also remember these hazards, watch and avoid them while moving, setting up and
operating the RITE-POWER generator.
• Forming a trip hazard
• Mains electricity at 110V AC or 230V AC (depending on model) is produced by
this product.
• Minors or non-competent persons
• Debris either on proposed site or on route to site
• Inadequate surface support to withstand the RITE-POWER generator weight
• Water which could allow the RITE-POWER generator to be submersed
• All other possible unsafe conditions

13
Section 5: OPERATING INSTRUCTIONS
Do not use the RITE-POWER generator for any purpose other than that for which it is designed – as
a portable mains electricity generator.
If more than one operator is expected to set up or use a RITE-POWER generator at different times,
each operator is required to follow all safety rules and instructions in the operator’s manual. That
means every new operator should perform a pre-operation inspection and function tests before
using the unit.
5a) PRE-OPERATION INSPECTION
Always perform a pre-operation inspection.
The Pre-operation inspection is a visual inspection performed by the operator prior to each use of
the RITE-POWER generator. This inspection is designed to discover if anything is obviously wrong
with a unit prior to use.
A damaged or modified RITE-POWER generator must never be used. If any damage is discovered
the RITE-POWER generator must be removed from service until it has been repaired and
appropriate clear labelling added to warn and prevent its use.
Maintenance and repairs can be executed only by authorised personnel. If any person maintaining
or repairing the device is in any doubt, they should contact their supplying dealer or Ritelite
(Systems) Ltd.
Check the following parts or areas for any signs of damage or missing parts.
• Cables (for kinks, frays, abrasions, bare conductors showing)
• Plugs and Sockets for physical damage
• Catches and locking mechanisms.
• Make sure the case is free from cracks or areas of damage where water could enter
• Make sure all labels and warnings are present and readable on the product as detailed on the
following pages.

14
RITE-POWER 3850
RITE-POWER 7700
Note All labels shown above show one voltage only. Labels will differ between 110V and 240V
units. Units with built in chargers will have slightly different labels to include extra weight and
different basic instructions for use.

15
5b) USING THE RITE-POWER GENERATOR
1. Check there is sufficient battery capacity for the
task in hand, this is indicated by the display on the
front of the unit showing the battery capacity in a
percentage, where 100% is full capacity.
3. Make sure the RITE-POWER generator is
switched off via the button next to the display. The
display will automatically light up when the unit is
switched on and go dark when the unit is switched
off to conserve power when not in use.
4. Make connections to the mains output socket at
the rear of the RITE-POWER generator. Making sure
the output voltage of the RITE-POWER generator
is within the constraints of the equipment to be
powered from it.
2. If necessary, recharge the RITE-POWER
generator. As a point of note it is good practice to
always recharge the unit to full aer every use.
Chose a suitable location, heeding the warnings in sections 4 & 5 of this manual.

16
5. Check the device to be powered is within the maximum constraints of the RITE-POWER generator, see
technical specifications contained within this manual and on the RITE-POWER generator. Heed the notes in
the section Applications and Restrictions of use with regard to Inductive, Resistive and capacitive loads and
their limitations.
6. Once everything is connected press the power on
button. The display will light up and a red LED should
light in the middle of the switch to indicate that mains
power is on and everything is ok.
7. Note the estimated run time on the display, this will
vary according to the load driven by the RITE-POWER
generator. In the example here the display indicates 3
hours, 54 minutes remaining at the current
power drawn.
SYSTEM ENERGY MONITOR KEY
1. State of charge
2. Battery voltage (V)
3. Current draw (A)
4. Wattage (W)
5. Estimated run / recharge time
6. Battery capacity (Ah)
6
5
4
3
2
1
The display also shows various other parameters such as wattage, this can be a useful gauge to understand
what different powers are consumed by different equipment and the runtime that might be expected.

17
8. Certain equipment such as some lighting can be
dimmed, this can be useful to extend the runtime
required while still potentially providing enough
light for the task in hand.
9. In use note the fall of the battery capacity so
power isn’t suddenly lost unexpectedly. Once the
RITE-POWER generator gets towards the end of the
available capacity a beeping will be heard from the
unit and the red LED in the middle of the switch will
flash to denote the low power level, depending on
the size of the load being drawn will dictate how
soon until the load is then switched off.
10. Once the load has been switched off from the
depleted power pack the switch should be pressed
to switch the system off and the pack placed on
charge as soon as possible.
Note – If the battery is le to run completely
empty aer the low battery warning has
been indicating so for a while, the battery will
completely shut down and the display turn
completely off to preserve it’s lifetime. Please
ensure it is then recharged within 12 hours.
See note under charging.

18
5c) RECHARGING THE RITE-POWER GENERATOR
1. The RITE-POWER generator should be placed on charge to return it to full capacity once used. Choose
a suitable location to recharge the unit away from any aforementioned hazards. Ideally the RITE-POWER
generator should be charged in a cool ventilated environment.
Note – It is good practice to always keep the RITE-POWER generator fully charged up so it is always ready
for use.
3. Plug the charger into a suitable mains supply and
switch the power on.
Note – charger connections to the RITE-POWER
generator should always be done with the mains
power off to the charger, once connected the mains
supply to the charger can then be switched on.
2. Plug in either the SLK350CH, SLK750CH
or SLK1000CH charger into the RITE-POWER
Generator via the white 32A industrial connector,
turn the plug locking ring to secure the plug to the
socket and aid a secure connection.

19

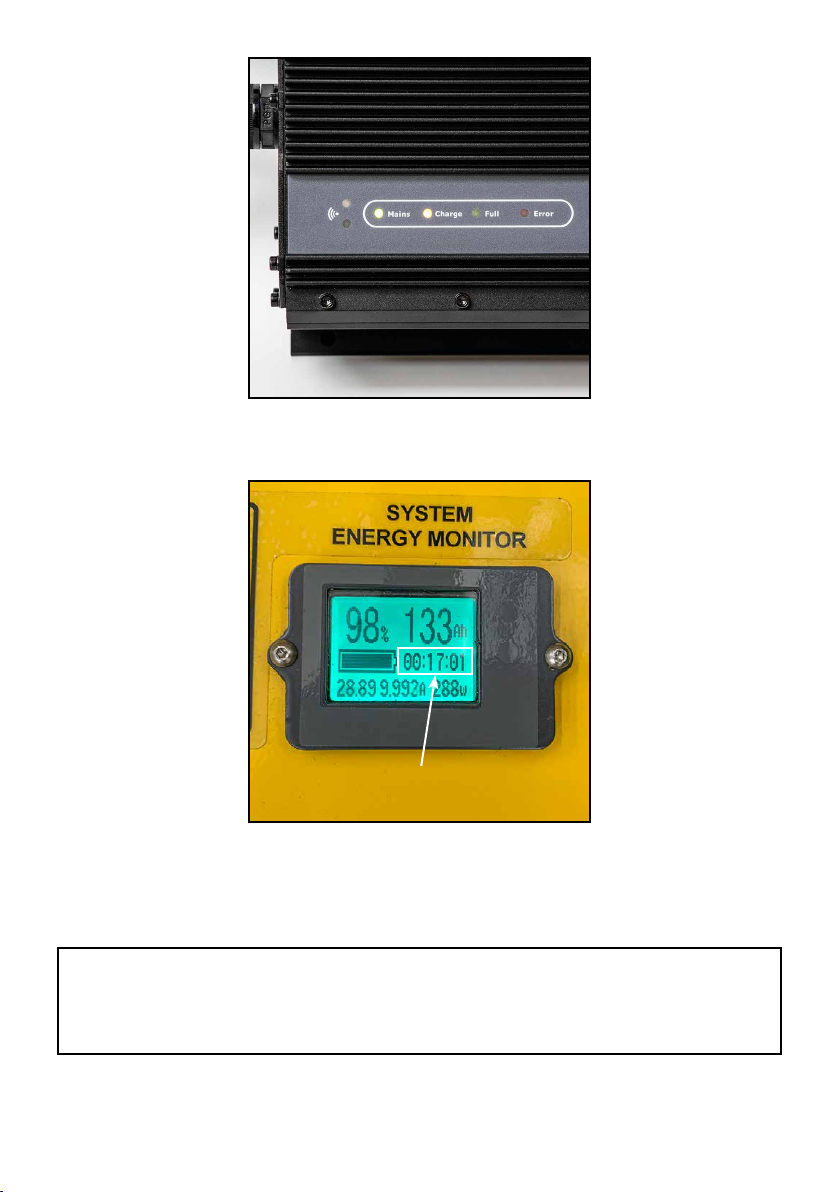

5. Check the display on the RITE-POWER generator, once the charger is connected and everything is ok
the display will blink slowly as energy flows into the battery to recharge it. You can monitor progress on the
display, the capacity percentage will gradually rise as will the capacity in AH and the voltage. The run time
display will now show an estimated time to complete the charge process. You may notice the energy go in
slowly to start with, this depends on the state of discharge of the battery.
4. The charger will display via its LED indication once powered up, see the instruction manual for the charger
for a full guide to it’s operation.
ESTIMATED RECHARGE TIME TO
FULL 100%
Note – If the display is blank or no energy appears to be flowing into the battery on the display, switch
the power button on, this should wake up the battery to start charging - this only happens if the battery
has been le in an over discharged stage. Once energy is seen to be flowing in the power button can be
switched off - make sure any mains plugs are disconnected from the output.

20
6. Once the display shows 100% the power pack is fully recharged, the charger can be switched off and
disconnected from the power pack. Make sure the power pack is always switched off via the button next to
the display when not in use to prevent any unnecessary discharge.
5d) OPTIONAL ‘PASS THROUGH’ POWER TRANSFER SYSTEM
If this option is fitted this allows a 3850 or 7700 battery generator to receive mains power in from either a 110V
or a 240V AC source (the source must be the same voltage rating as the battery generator) and pass it through
to the output socket of the battery generator to drive a load. The load must be not greater than the max output
of the battery generator as per its specifications and limitations as detailed in ‘Applications For Use’ on page 4
of this manual.
This option is useful if a simple mains failure back up is needed to provide power in the event of a grid failure or
power failure from a traditional petrol or diesel generator.
In addition, you can link multiple battery generators together which have this same functionality, effectively
this will give a longer duration to run the load and as the first supplying battery generator runs out of charge
this will automatically cause the next in line to take over and so on. All that’s required is a 3 core mains cable
with a male plug to female coupler in the appropriate voltage type linking the packs. Switch over time is
typically less than 20 milliseconds.
Setting up a system
To set up a system connect a suitable power cable from the mains outlet of a fixed installation or generator to
the battery generator input socket. Use appropriate connectors with the same IP67 locking system to provide
a secure and watertight connection. Use an appropriate outdoor cable with the connectors such as a rubber
HO7RN-F with a 2.5mm cross section cable, an earth conductor MUST be used to afford the safest setup
and allow any RCBO’s to work effectively. Note – Ritelite (Systems) Ltd can supply suitable cables as required,
please contact the sales office for information.
Before connecting any output loads to the battery generator turn the red battery isolator switch to ‘On’, then
switch on the battery generator by depressing the green button, the LED on the green button should now
show a constant red (if it flashes this indicates a fault condition, please see ‘Protection Systems’ page 10 and
‘Troubleshooting’ page 23 in this manual if this occurs).
