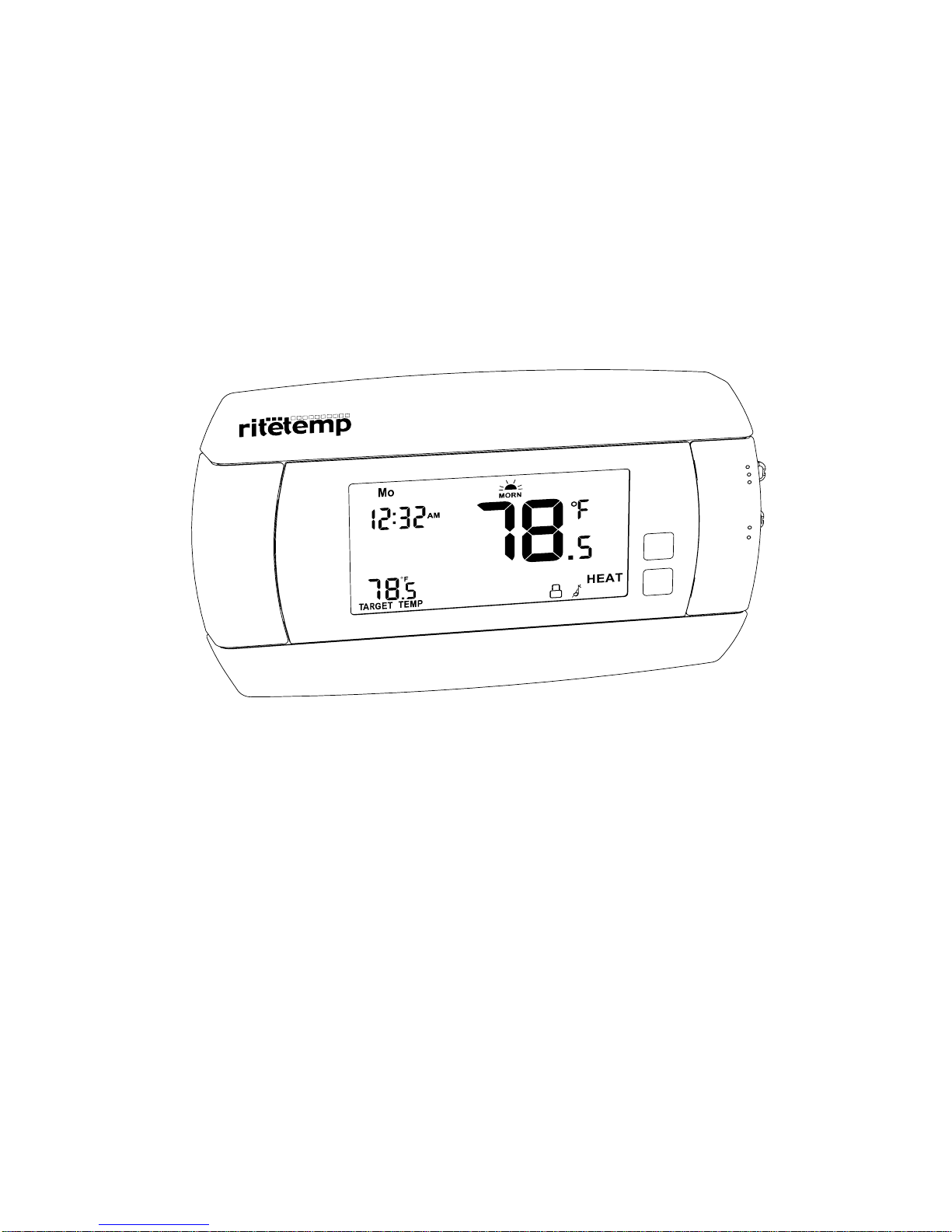

ritetemp 6030 User manual

• Your thermostat is a precise instrument, handle it with care.
• Turn off electricity to the appliance before installing or
servicing thermostat or any part of the system. 
• Do not turn electricity back on until work is completed.
• Do not short (jumper) across electric terminals at control on
furnace or air conditioner to test the system. This will damage
the thermostat and void your warranty.
• All wiring must conform to local codes and ordinances.
• This thermostat is designed for use with 24 voltAC and
millivolt systems. The thermostat should be limited to a
maximum of 1.0 amps; higher amperage may cause damage
to the thermostat.
Caution
Install guide 6030
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON
ENGLISH

Location
Caution
Tools
To avoid electrical shock and to prevent damage to the furnace, air conditioner,
and thermostat, disconnect the power supply before beginning work.
This can be done at the circuit breaker, or at the appliance.
Replacement installations - mount the new thermostat in place of the old one.

New installations - follow the guidelines listed below.
• Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor, and
in a room that is used often.
• Do not install it where there are unusual heating conditions, such as: in direct
sunlight; near a lamp, radio, television, radiator register, or fireplace; near hot
water pipes in a wall; near a stove on the other side of a wall.
• Do not locate in unusual cooling conditions, such as: on a wall separating an
unheated room; or in a draft from a stairwell,
door, or window.
• Do not locate in a damp area. This can
lead to corrosion that will shorten thermostat
life.
• Do not locate where air circulation is poor,
such as: in a corner or an alcove; or behind
an open door.
• Do not install the unit until all construction
work and painting has been completed.
• This thermostat does not require leveling.
You will need a small Phillips screwdriver and possibly a drill
with 3/16-in. (4.8mm) bit for wall mounting.
Good
5ft.
(1.5m)
PG 1
PG 2
Install guide 6030

Remove old unit
Prepare wires
IMPORTANT : LABEL ALL WIRES 
BEFORE DISCONNECTING THEM!
• Switch electricity to the furnace and
air conditioner OFF; then proceed with the
following steps.
• Remove cover from old thermostat. Most are
snap-on types and simply pull off. Some have
locking screws on the side or front. These must
be loosened. Note the letters printed near the terminals.
Attach labels (enclosed) to each wire for identification.
• Label the wires one at a time. You must label all the wires before
you proceed. With all wires labeled, remove them from the old unit.
• Make sure the wires do not fall back inside the wall. You can wind
them around a pencil to keep them from falling.
• Loosen all screws on the old thermostat and remove it from the wall.
• Fill wall opening with non-combustible insulation to prevent drafts.
PG 3
PG 4
B
G
W
Caution
Read instructions carefully before removing any wiring from existing thermostat.
Wires must be labeled before they are removed. THERE IS NO STANDARD
COLOR CODE. When removing wires from their terminals, ignore the color of
the wires since these may not comply with any standard.
• You will need at least 2.6" of wire for each
of your connections to the 6030.
• If you do not have enough wire, splice
additional wire to allow enough slack.
• Fan out wires below the hole as shown.
From Wall
G
CYRH
W
Trim
2.6"

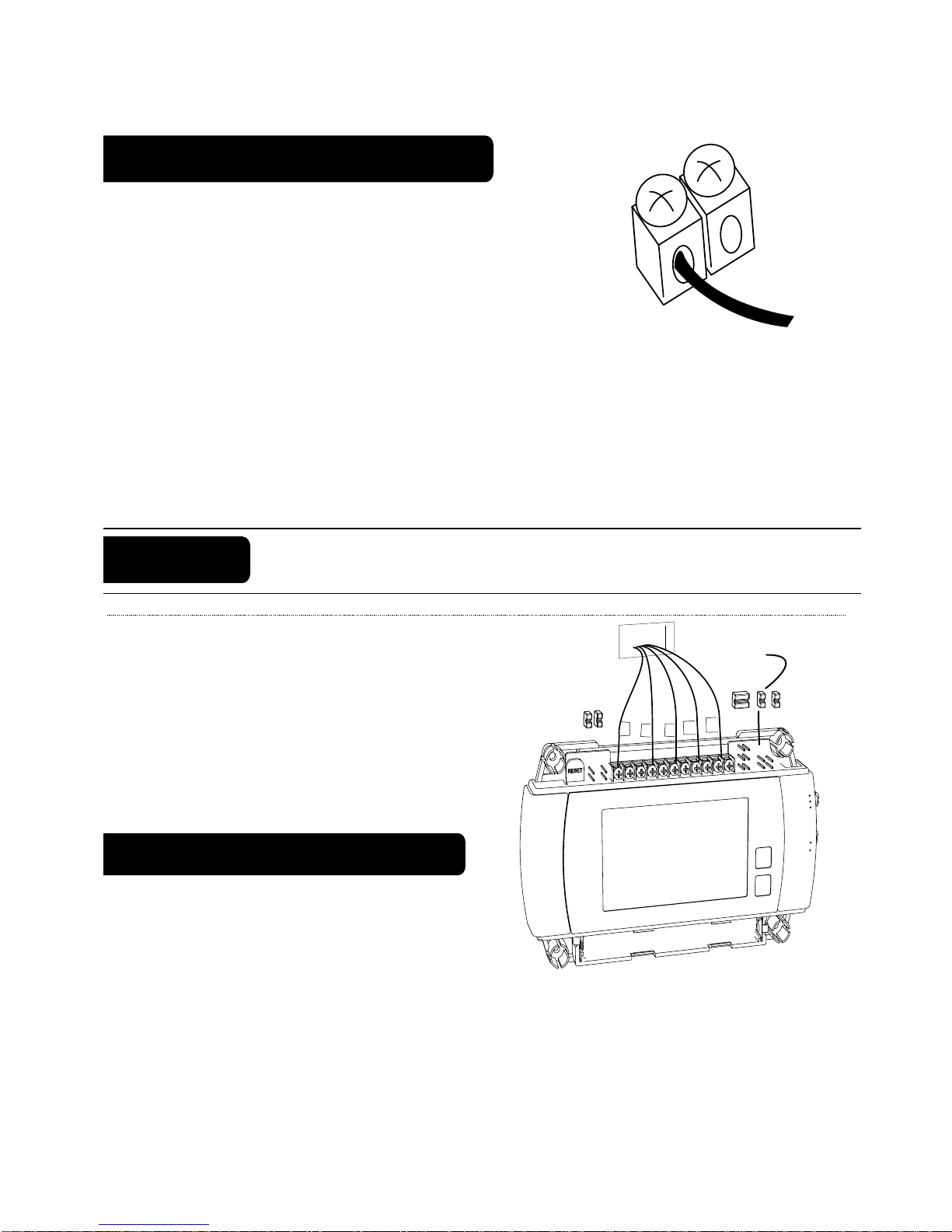

Before you Connect Wires
Caution Do not allow wires to touch each other or parts on thermostat.
Please follow these guidelines for safe and secure
wire connections.
• Easy Terminals do not require stripping the wire.
• Clip any bare wire from previous installation.
• Take care not to damage the labels for each wire in handling.
• Fan wires out as illustrated with 6030 below the wall opening.
• Wires will dress behind the 6030 and up over the terminal area.
• Use the Step-By-Step diagram as your guide.
• Do not bunch wires behind 6030. Feed slack back into the wall opening.
• Connect labeled wires only to a terminal with corresponding letter.
• Insert the wire in the terminal and tighten
the screw securely.
• You will need to set Configuration
Jumpers per the Step-By-Step
diagram. A needle-nose plier may be
required to modify jumper positions
PG 5
PG 6
Determine which step-by-step wiring
diagram below you should use. Make
sure your wires are labeled. This may
require you to find the 'other end' connection for each wire on your heating or
air conditioning equipment and read the label there.
If you have a wire marked "C" it is optional. If you do connect it, the
thermostat will draw power from the C wire. This extends battery life.
What wires do you have?
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON
Jumpers
From
Furnace
G
CYRH
W 2

• If your combination of wires is not above you can use the
wiring table on pages 24-25 to determine your connections,
or call our USA support line at 1-877-505-2353 for help.
• Find the referenece page with your wiring
diagram and jumper set-up information.
Remember, the Cwire is optional.
Find the set-up diagram for your system
PG 7
PG 8
Go To Page 18Go To Page 17Go To Page 16
Go To Page 21
Go To Page 19
G
RH
C W2 W Y Y2 RHG
2 stage Cool
2 stage Heat
From
Furnace
Y
2
CWY
W2
G
C W Y RH RC G
5 Wire
Heat/Cool
From
Furnace
RC
CYRH
W
C W Y RH G
4 Wire
Heat/Cool
From
Furnace
G
CYRH
W
C W RH G
3 Wire
Heat
From
Furnace
CRH G
W
From
Furnace
C
W
C W RH
RH
2 Wire
Heat
From
Furnace
WRH
A
W RH A
3 Wire
Zoned
Hot Water
Go To Page 20
C Bor O W2Y RHG
5 Wire
Heat Pump
w/ Aux Heat
From
Furnace
RH
CO
or
W2
B
G
Y
G
C Bor O Y RHG
4 Wire Heat Pump
w/o Aux Heat
From
Furnace
RH
CO
or
Y
B
Go To Page 15
Go
To
P AGE 22
WIRES
WIRES WIRES
WIRES WIRES WIRES
WIRES
WIRES

PG 9
PG 10
Install AAA Batteries
• The 6030 requires 2 AAA batteries to operate .
• Switch MODE switch to OFF and the FAN switch to AUTO.
• Install 2 AAA alkaline batteries according to the polarity noted in
the compartment. LCD segments will go on.
• Press the RESET button (under top cover) to clear transient
program memory. NOTE: Replace the batteries when this LOW
battery indicator appears on the display or once a year.
• Replace top and bottom covers on unit.
Wall
Wires
6030
Wall anchor
• Hold the 6030 against the wall, with the wires coming over
the top above terminal block. The 6030 will cover the hole
in the wall.
• Position 6030 for best appearance. Use the optional stand-
offs if more space for wires is needed behind the 6030.
• Attach the base to the wall with the screws provided.
• If you are mounting the base to sheet rock or if you are
using the old mounting holes, use the plastic anchors
provided. Drill a 3/16-in.(4.8mm) hole for
the insert at each screw location, then
mount the base.
Mount the 6030
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON
AAA
+-AAA
+-
G
YRH
W
C
G
CYRH
W

NOTE: If you have labeled your wires, follow the correct Step-By-Step, and
these Check procedures do not operate your system call support at 
1-877-505-2353
Check Unit
Follow these procedures to verify you
have correctly installed the 6030.
To check Fan: (If you connected the G wire - fan relay)
• Switch the FAN switch to the ON
position. Verify that air is blowing from the
system. Return to AUTO position for
normal operation.
To check HEAT mode:
• Set the mode switch to HEAT. 
• Set the fan switch to AUTO.
• Touch the room temperature and the heat target temperature will be
displayed. Use the UP arrow to raise the target temp to 90F. Allow the
system 2 minutes to respond then verify that heat is blowing from the system.
To check COOL mode: 
• Set the mode switch to COOL.
• Touch the room temperature and the cool target temperature will be
displayed. Use the DOWN arrow to lower the target temperature to 50F.
Allow the system 2 minutes to respond
• Verify that cool air is blowing from the system.
Congratulations, you have successfully installed your unit.
Please proceed to the OPERATING Guide to initialize the 6030.
PG 11
PG 12

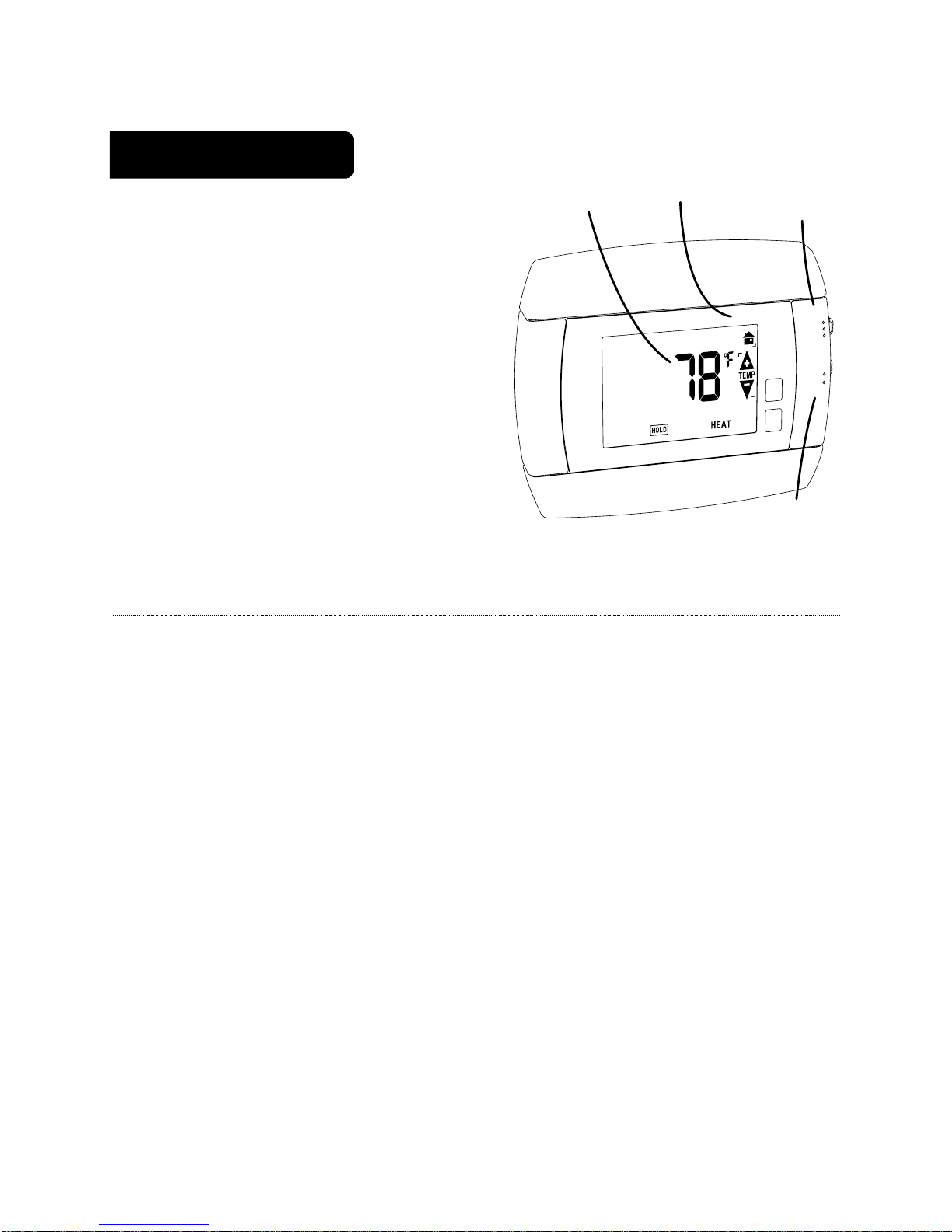

Temperature
UP/DOWN
Arrows
Touch
Temperature
Display Mode
Switch
Fan
Switch
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON

BATTERIES ONLY - This thermostat can run on batteries only using 2AAA
alkaline batteries. The batteries will last at least 1 year; replace the batteries
once a year or when the low battery icon comes on the display. If the batteries
are not replaced, the thermostat will shut off the HVAC and then stop working.
24VAC - This thermostat can run on the HVAC 24VAC (C wire) if available.
As shown in the wiring diagrams, the C wire is the other side of the 24VAC
heating transformer and can be found where the other thermostat wires
connect at the wall or at the furnace. Do not use the common or ground side
of the line voltage. If the C wire is used, the batteries are then for back-up in
case of power loss only and will last much longer. With the C wire connected,
the thermostat will continue to work if the batteries die or are removed.
Power Options
PG 14
PG 13
NOTE:Your thermostat comes from the factory calibrated to +/- 1oof actual
temperature. It is an accurate instrument. If you want your thermostat to
display the same temperature as another thermometer in your home, you
can adjust its calibration.
To change the calibration:
Push the MENU button; the present room
temperature is displayed. To change it, use the
up/down arrows and change the displayed room
temperature as you wish +/- 6F. Your change
will also be displayed on the lower left as the
DELTA T factor or number of degrees changed. Push HOME icon or wait 60
seconds. The new room temperature will now be displayed on the HOME
screen.

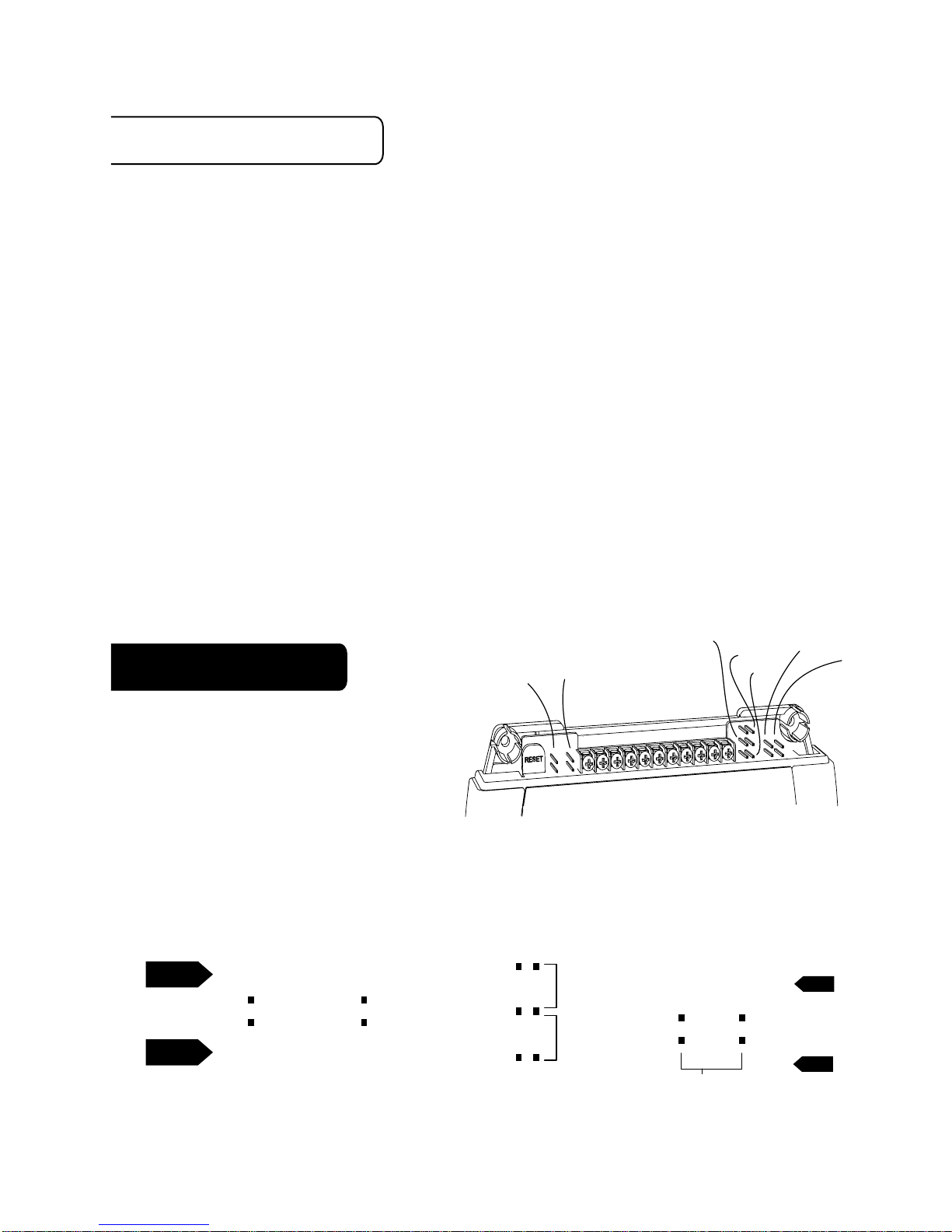

Calibration
Calibrate controls
AM

PG 15

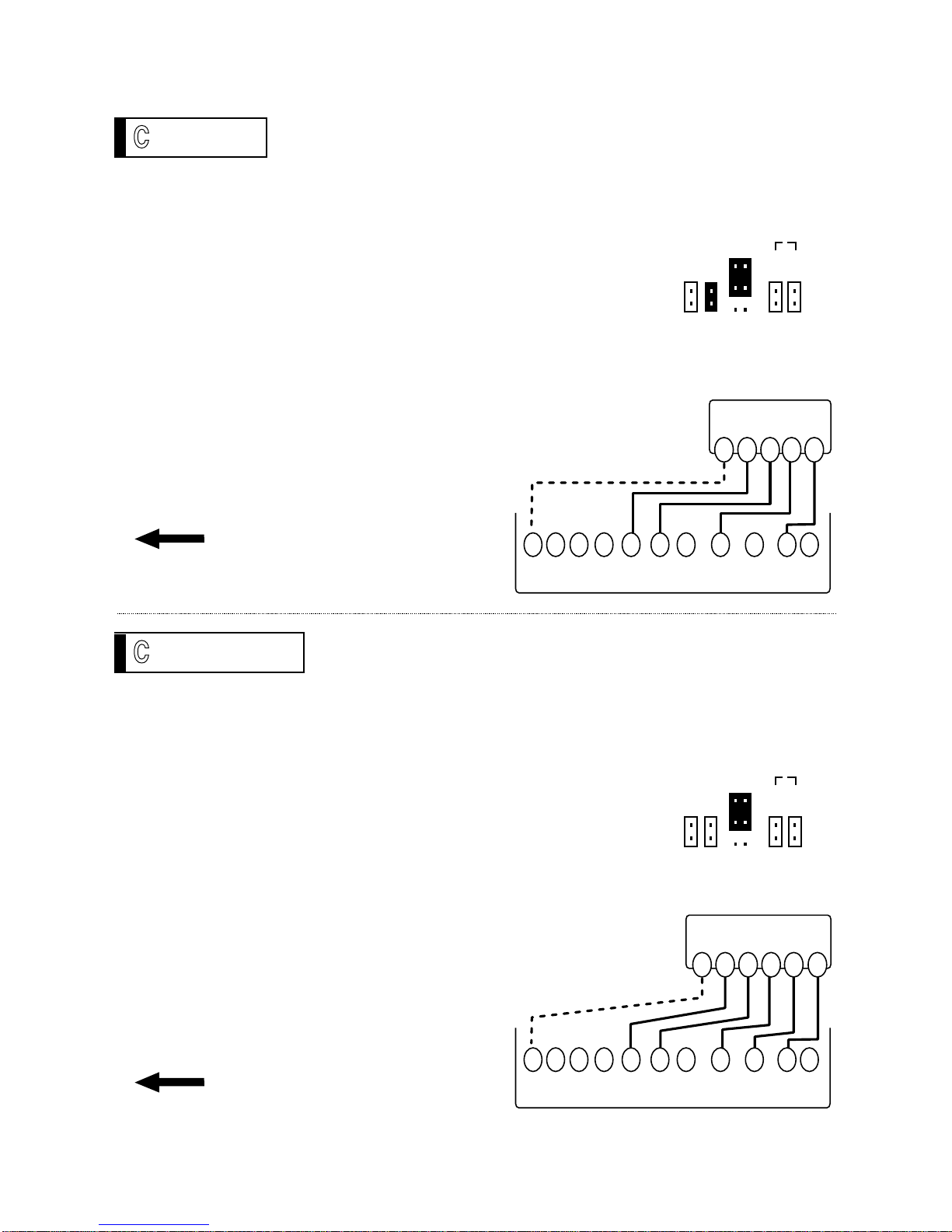

2 WIRE HEAT Heating GAS MILLIVOLT or 24vac
NOTE: Wires marked with
dotted line are optional.
PG 16
3 Wire Heat
6030
W R C
GAS Milivolt Heat
C B O W2 W YY2RH RC G A
C B O W2 W YY2RH RC G A
6030
W R G C
HVAC SYSTEM
STEP 1 - Connect the R(or RH) wire to the RH terminal on
the 6030. This connects the Heater Power to the thermostat.
STEP 2 - Connect the Wwire to the Won the 6030.
This connects the heater control line to the 6030.
STEP 3 - Set Config jumpers per this diagram.
Your Heater is now connected to the 6030.
Please Go To Page 9
STEP 1 - Connect the R(or RH) wire to the RH terminal
on the 6030. This connects to the Heater Power .
STEP 2 - Connect the Wwire to the Wterminal on the
6030. This connects the heater control line to the 6030.
STEP 3 - Connect the Gwire to the Gterminal on the
thermostat. This connects the Fan to the 6030
STEP 4 - Set Config jumpers per this diagram. If you
have Electric heat set 4, if you have Gas or Oil set 5.
Your system is now connected to the 6030.
Please Go To Page 9
OPTIONAL POWER
OPTIONAL POWER
WIRES WIRES
SET
JUMPERS
SET JUMPERS
or
1 2 4 5
3B
A
1 2 4 5
3B
A

STEP 1 - Connect the Wwire to the Wterminal on the
thermostat. This connects to the heater control line.
STEP 2 - Connect the Y wire to the Yterminal on the
6030. This connects to the Cooler compressor.
STEP 3 - Connect the RH wire to the RH terminal and the
RC wire to the RC terminal on the 6030. This connects
the Heater and Cooler Power.
STEP 4 - Connect the G wire to the Gterminal on the
Thermostat. This connects to the Fan.
STEP 5 - Set Config jumpers per this diagram. If you
have Electric heat set 4, if you have Gas or Oil set 5.
Your HVAC system is now connected
to the 6030.
Please Go To Page 9
STEP 1 - Connect the Wwire to the Wterminal on the
thermostat. This connects to the heater control line.
STEP 2 - Connect the Y wire to the Yterminal on the
6030. This connects to the Cooler compressor.
STEP 3 - Connect the RH or Rwire to the RH terminal on
the thermostat. This connects the Heater/Cooler Power.
STEP 4 - Connect the G wire to the Gterminal on the
Thermostat. This connects to the Fan.
STEP 5 - Set Config jumpers per this diagram. If you
have Electric heat set 4, if you have Gas or Oil set 5.
Your HVAC system is now connected
to the 6030.
Please Go To Page 9
W Y RH G
PG 17
4 Wire Heat/Cool
6030
Terminals
Y W R G C
HVAC SYSTEM
OPTIONAL POWER
WIRES
W Y RH RC G
PG 18
5 Wire Heat/Cool
6030
Terminals
Y W
RH RC G
C
HVAC SYSTEM
OPTIONAL
WIRES
C B O W2 W YY2RH RC G A
C B O W2 W YY2RH RC G A
SET JUMPERS
SET JUMPERS
or
1 2 4 5
3
B
A
or
1 2 4 5
3
B
A

STEP 1 - Connect O wire to the O terminal or B wire to the B terminal on
the 6030. (If you have both Oand B - connect Owire to Oterminal 
DO NOT connect Bto Bterminal - see pg 24 Trane for Bwire terminal) 
This connects the change-over valve.
STEP 2 - Connect the Ywire to Y on the 6030.
This connects the Compressor.
STEP 3 - Connect the R wire to RH on the 6030.
This connects to the 24vac power.
STEP 4 - Connect the G wire to the Gterminal on the
6030. This connects the Fan.
STEP 5 - Set Config jumpers per this diagram.
Your HVAC system is now connected
to the 6030.
  Please Go T o Page 9
B or O Y R G
PG 19
PG 20
4 Wire Heat Pump w/o Aux
OPTIONAL POWER
WIRES
STEP 1 - Connect O wire to the O terminal or B wire to the B terminal on
the 6030. (If you have both Oand B -connect Owire to Oterminal DO NOT
connect Bto Bterminal - see pg 24 Trane for Bwire terminal)
STEP 2 - Connect the W2 wire to W2 on the 6030.
STEP 3 - Connect the Ywire to Y on the 6030.
STEP 4 - Connect the R wire to RH on the 6030.
STEP 5 - Connect the G wire to Gon the 6030.
STEP 6 - Set Config jumpers per this diagram.
Set jumper 1 if you have Gas or Oil aux heat.
Your HVAC system is now connected
to the 6030.
  Please Go T o Page 9
B or O W2 Y RH G 5 Wire Heat Pump w/ Aux Heat
WIRES
6030
Terminals
YB R G C
HEAT PUMP SYSTEM
O
C B O W2 W YY2RH RC G A
C B O W2 W YY2RH RC G A
SET
JUMPERS
or or
SET
JUMPERS
6030
Terminals
Y
W2
B R G C
HEAT PUMP SYSTEM
O
OPTIONAL POWER
or or
?
1 2 4 5
3
B
A
1 2 4 5
3
B
A

W R A
Motor Valve
PG 22
W RH [A?] 3 Zoned Hot Water - Motor Valve
Step 1 - based on your valve type
Motor driven Valve- Connect the R(or RH) wire to the RH
terminal on the 6030. Connect the Wwire to the Wterminal
on the 6030. Connect the remaining wire to the Aterminal.
Solenoid valve -Connect the R(or RH) wire to the RH
terminal on the 6030. Connect the Wwire to the Aterminal
on the 6030. Connect the remaining wire to the Wterminal.
STEP 2 - Set Config jumpers per this diagram.
Your system is now connected to the 6030.
  Please Go T o Page 9
WIRES
STEP 1 - Connect the Wwire to the Wterminal and W2 to
W2 on the 6030. This connects 2 stages of heat.
STEP 2 - Connect the Y wire to the Yterminal and Y2 wire
to Y2 on the 6030. This connects 2 stages of cool.
STEP 3 - Connect the RH or Rwire to the RH terminal on
the thermostat. This connects the Heater/Cooler Power.
STEP 4 - Connect the G wire to the Gterminal on the
Thermostat. This connects to the Fan.
STEP 5 - Set Config jumpers per this diagram. If you
have Electric heat set 4, if you have Gas or Oil set 5.
Your HVAC system is now connected
to the 6030.
Please Go To Page 9
W2 W Y Y2 RH G
PG 21
2 Stage Heat and Cool
6030
Terminals
6030
Terminals
Y2 W2
W Y
RH RC G
C
HVAC SYSTEM
OPTIONAL
POWER
WIRES
C B O W2 W YY2RH RC G A
C B O W2 W YY2RH RC G A
SET JUMPERS
SET JUMPERS
or
1 2 4 5
3
B
A
1 2 4 5
3
B
A

This thermostat can be used with all millivolt and 24VAC heating and cooling systems. It
cannot be used with line voltage systems. This thermostat is digital and your desired heat or
cool temperatures can be easily be set on the large touch screen with the UP/DOWN arrows.
A minimum 4 minute off time protects heating and cooling systems from damage. 
This thermostat uses a new technique called sequential staging for more comfort with
faster reaction to requested temperature changes.
When using a heat pump with Auxiliary heat, if the
heat pump cannot keep up and/or is defective, touch
the MENU button, then touch PUMP; the PUMP OFF
icon will come on.. The aux heat will then be your only
source of heat. When the heat pump is again
operational, be sure to turn the heat pump back on by
touching MENU and then PUMP (off icon goes out) as
the aux heat is more expensive than pump heat.
6030 Features
Wire Reference
Your Wires Ritetemp Terminal
R or V or VR RH and RC Single power for HEA T and COOL
RH or 4   RH Power for HEAT (RH not connected to RC)
RC  RC Power for COOL (RH not connected to RC)
W  W Heat control
W2  W2 2nd stage HEAT or heat pump auxiliary heat
?   A 3rd wire for zoned hot water heat (see zoned)
Y  Y COOL control
Y2  Y2 2nd stage COOL control
G or F G FAN control
C or X C Common 24VAC power (to power thermostat)
E  Emergency heat (do not connect, tape of f)
L  System monitor (do not connect, tape of f)
T  Outdoor sensor (do not connect, tape of f)
B or  B Heat pump changeover (cool to heat, powered in heat)
O  O Heat pump changeover (heat to cool, powered in cool)
B and O  SEE NOTE 
PG 23
PG 24
B and O
NOTE: If
there are both
B and O wires
(Trane pump
products)
DO NOT
CONNECT B
to B terminal,
connect B to C
terminal
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON

OPEN
Configuration jumpers allow your
6030 to be adapted to many
different HVAC control applications.
Wire Reference cont
Your Wires Ritetemp Terminal

Lennox Heat Pump
V or VR or R RH
M or Y  Y
Y or W or W2 W2
F or G  G
R or O  O
X or X2 or C C
Trane Products [American Standard]
B  C
W or W1W2
Zoned Systems
Your Wires Ritetemp Terminal
2 wire Zoned Hot Water
R    RH
W    W
3 Wire Zoned Hot Water
Motor Driven Valves
R    RH
W    W
Y (the 3rd wire)A
3 Wire Zoned Hot Water
Solenoid Valves
R    RH
W    A
Y (the 3rd wire) W
SINGLE
POWER(R)
RESET UNITAFTER CHANGING JUMPERS
POWER RH
POWER RC
HP-AUX
TYPE
HVAC
POWER
1 2
PG 25
PG 26
Jumper Reference
FAN CONTROL
GAS or
OIL
ELECTRIC
or H-PUMP
NO FAN
4
3
A
B5
CLOSED
OPEN
CLOSED
GAS/OIL
ELECT
123AB45
HEAT
PUMP
GAS/OIL
HEAT
HEAT TYPE

1611-024
Customer Support: 877-505-2353 or
Visit our website www.ritetemp-thermostats.com
MENU
PROG
HEAT
COOL
OFF
FAN
AUTO
ON
