Ritron 7 Series User manual

S ERIES
BASE RADIO
OWNER’S MANUAL
Models for licensed VHF and UHF Part 90 operation
License-free VHF Part 95 MURS models for USA
License-free UHF GMRS models for Canada
Expanded Field Programming capability
DTMF encode and decode capability
NOAA Weather Radio feature built-in to all VHF models
Ritron Pub. 14500087 Rev. C
10/18
© 2018 Ritron, Inc. All rights reserved. Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call
and Quick Assist are registered trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus
are trademarks of Ritron, Inc.
Call 800-USA-1-USA
For the right Wireless Solutions for your communication needs.
P.O. Box 1998 ·Carmel, Indiana 46082-1998 · Ph: 317-846-1201 · Fax: [phone]
Email: [email protected] · www.ritron.com
7

7-Series Base Station User Manual
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 0
TABLE OF CONTENTS
INTRODUCTION
Base Radio Model Numbers.....................................................1
Basic Features..........................................................................1
JBS-147M and PBS-147M .......................................................2
JBS-447D-CANADA-GMRS and PBS-447D-CANADA-GMRS 2
Optional Replacement Accessories..........................................2
Exposure to Radio Frequency Energy......................................3
2013 Narrowband Mandate......................................................3
Observe Caution in the Following Environments to Maximize
the Life of Your Radio Equipment.............................................3
RADIO OPERATION
Radio Controls..........................................................................4

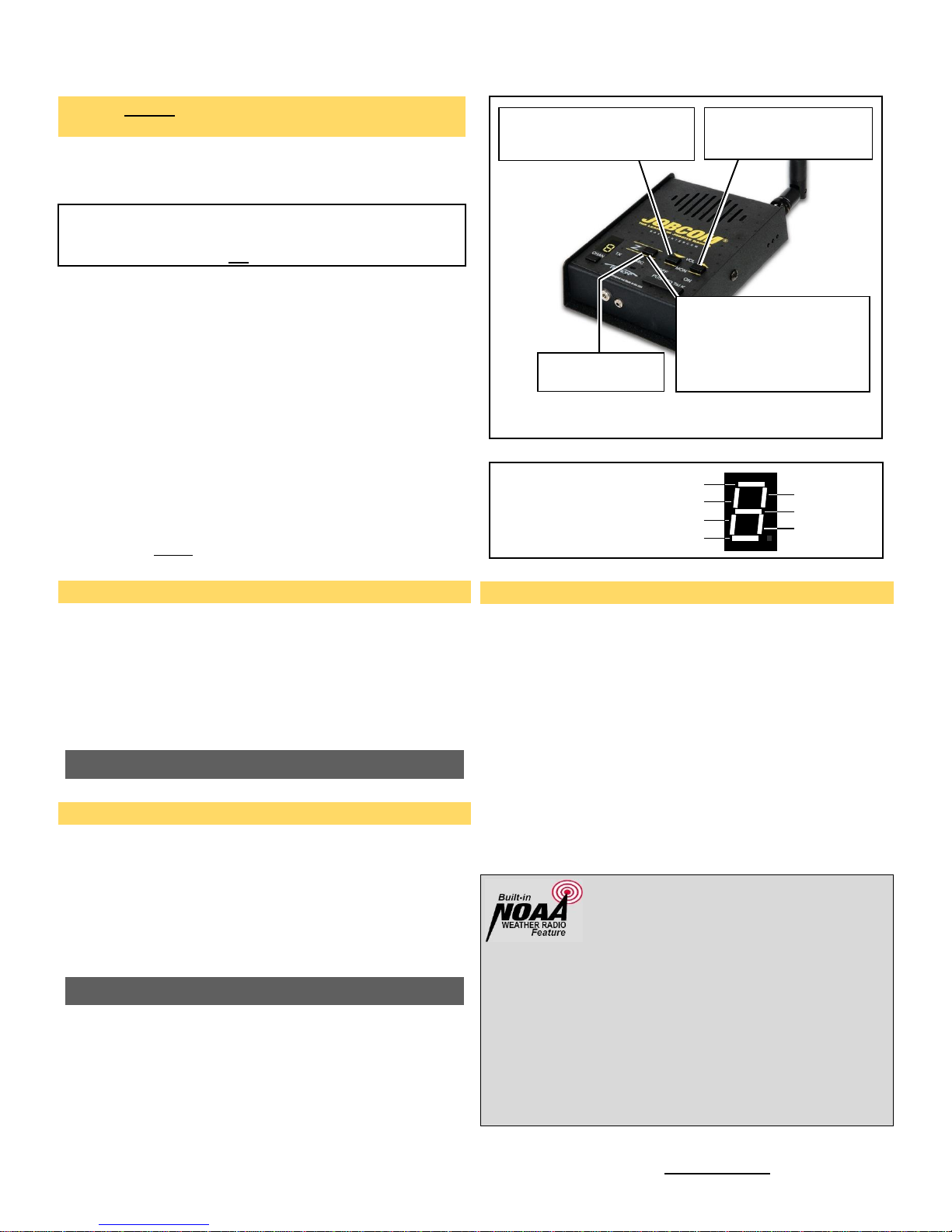

FIG-1: Radio Controls and Connectors ....................................4
ON-OFF / Volume Adjust..........................................................5
FIG-2: Volume Level Indicator..................................................5
Channel Selection ....................................................................5
Receive ....................................................................................5
QC and DQC Tone Codes (Interference Eliminator Codes).....5
Squelch Modes.........................................................................5
Transmit ...................................................................................6
FIG-3: Transmit Busy Lamp......................................................6
Radio Alert Tones.....................................................................6
Channel Scan Operation ..........................................................6
Paging Decode Operation ........................................................7
FIG-4: Paging Call Alert............................................................7
“Z” Button - Programmable Soft Key ........................................7
NOAA WEATHER RADIO FEATURE
How to Select Your Local NOAA Weather Frequency..............9
NOAA Weather Feature ...........................................................9
NOAA Weather Alert Feature.................................................. 9
FIG-5: Selecting Your Local NOAA Weather Frequency..........9
FIG-6: NOAA Frequencies .......................................................9
Using the “Z” Button to Access NOAA Weather .......................9
RADIO PROGRAMMING
JBS Field Programming Overview..........................................10
How to Readout Field Programmed
Frequency & Tone Codes.......................................................11

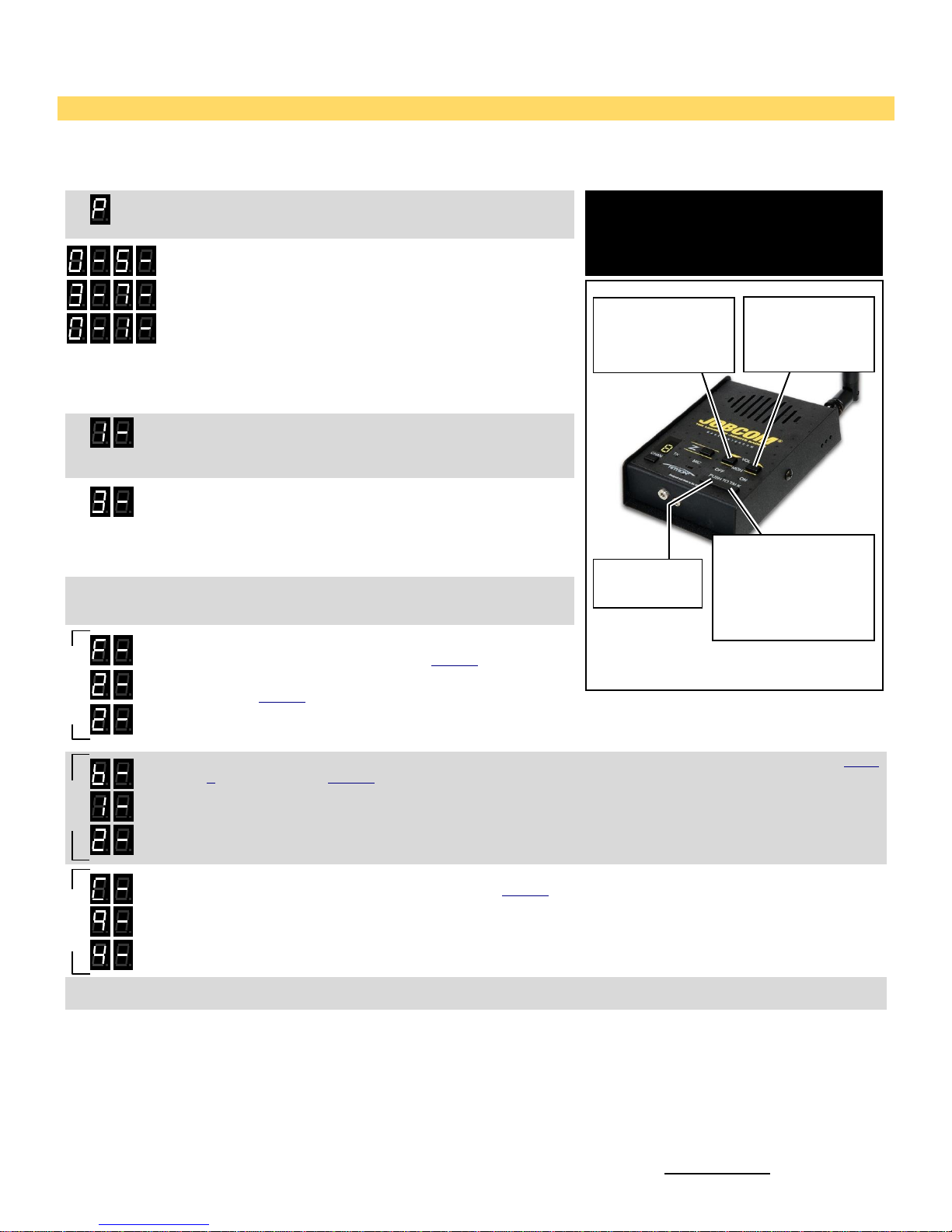

FIG-7: How to Place the Radio in Program / Readout Mode..11
How to Field Program Frequency and
Tone Codes............................................................................12
Table 1: Programmable Frequency Codes.............................13
Canadian Frequency Codes...................................................14
Table 2: Programmable QC Tone Codes...............................14
Table 3: Programmable Digital DQC Tone Codes..................14
How to Field Program 2-Tone, DTMF or Selcall Encode
(Transmit) Operation...............................................................15
How to Field Program 2-Tone, DTMF or Selcall Decode
(Receive) Operation................................................................16
Table 4: 2-Tone, DTMF and Selcall Codes............................18
How to Field Program Advanced Feature Codes....................19
Table 5: Advanced Feature Codes........................................20
PC Programmable JBS base Radio Features ........................21
Table 6: PC Programmable Features....................................21
2-Tone, DTMF or Selcall Decode (Receive) Settings.............23
SPECIAL APPLICATION
Ritron GateGuard®Systems...................................................24
JBS-147D-A and JBS-447D-A Auto Turn On When Power
Restored.................................................................................24
TROUBLESHOOTING ...........................................................25
FCC & IC LICENSE REQUIRED
FCC Licensing........................................................................26
How to Obtain an FCC Radio License....................................26
Industry Canada Regulations .................................................26
Safety Standards....................................................................26
Service....................................................................................26
WARRANTY ..........................................................................27
FIGURES:
1. Radio Controls and Connectors.........................................4
2. Volume Level indicator..................................................... 5
3. Transmit / Busy Lamp....................................................... 6
4. 2-Tone Call Alert................................................................7
5. Selecting Your Local NOAA Weather Frequency..............9
6. NOAA Frequencies............................................................9
7. How to Place the Radio in Program / Readout Model .....12
THANK YOU FOR CHOOSING RITRON
Congratulations on your purchase of the RQX Base Radio
Your new radio is the culmination of RITRON’s 40 years of
designing, manufacturing, and supplying reliable,
professional wireless communication products. Ritron
wireless products will improve the operation, safety, and
profitability of any organization by providing instant voice
communications between employees throughout the
workplace.

7-Series Base Station User Manual INTRODUCTION
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 1
BASE RADIO MODEL NUMBERS
Due to FCC Rules please be advised that the new VHF 7-
Series Base Station Radio is offered in 2 models, license-
free MURS Part 95 frequency models and the licensed
Part 90 VHF frequency models. Please verify the
frequencies you need and order the appropriate model.
MURS Part 95 license-free models can only operate on
the following MURS frequencies, whereas licensed Part 90
VHF radios cannot operate on the MURS frequencies.
Ritron MURS Color
Code Frequency Dot BW
01 154.600 MHz Green Dot 25.0
02 154.570 MHz Blue Dot 25.0
19 151.820 MHz MURS 12.5
20 151.880 MHz MURS 12.5
21 151.940 MHz MURS 12.5
22 154.600 MHz MURS 12.5
23 154.570 MHz MURS 12.5
License-Free VHF MURS MODELS FOR USA:
JBS-147M (Jobcom) (2.0W, 7 Ch)
PBS-147M (Ritron) (2.0W, 7 Ch)
Licensed VHF MODELS FOR USA:
JBS-147D (Jobcom) (2.5W, 10 Ch)
PBS-147D (Ritron) (2.5W, 10 Ch)
Licensed UHF MODELS FOR USA:
JBS-447D (Jobcom) (2.0W, 10 Ch)
PBS-447D (Ritron) (2.0W, 10 Ch)
Licensed VHF MODELS FOR CANADA:
JBS-147D-CANADA (Jobcom) (2.5W, 10 Ch)
PBS-147D-CANADA (Ritron) (2.5W, 10 Ch)
Licensed UHF MODELS FOR CANADA:
JBS-447D-CANADA (Jobcom) (2.0W, 10 Ch)
PBS-447D-CANADA (Ritron) (2.0W, 10 Ch)
Licensed-Free UHF MODELS FOR CANADA:
JBS-447D-CANADA-GMRS (Jobcom) (2.0W, 10 Ch)
PBS-447D-CANADA-GMRS (Ritron) (2.0W, 10 Ch)
The model number located on the back of the radio case
indicates its operating band.
VHF radios are designed to operate on up to ten channels
within the 24 MHz band between factory standard 150 and
174 MHz.
UHF radios are designed to operate on up to ten channels
within the 20 MHz band between factory standard 450 and
470 MHz.
BASIC FEATURES
This manual covers Ritron JBS/PBS base radios. A rugged, programmable two-
way desktop base radio designed to operate in a professional FM communications
band (VHF or UHF business available). Each radio is equipped with these features:
Push-button Operating Controls. The Push-To- Talk (PTT), Channel, On /
Volume Up, Volume Down / Off and the special feature “Z” button controls are
conveniently located on the face of the radio.
10-channel Capability. Up to 10 channels can be programmed to contain a
unique set of operating frequencies and options.
Channel Display. The LED display will show the current operating channel,
and contains a transmit / busy lamp. The display is also used to indicate
volume level and paging decode status on radios programmed for DTMF,
Selcall or 2-Tone paging operation.
QC (Quiet Call) and DQC (Digital Quiet Call) Interference Eliminator
Codes. Each channel can be programmed from a list of 50 QC sub-audible or
104 DQC digital privacy codes.
Field programming. The JBS/PBS base radio allows you to quickly select and
program each channel individually while in the field without the need for a PC
programmer. Each channel can be programmed to one of 27 VHF or 114 UHF
channel table frequencies and one of 50 QC or 104 DQC interference
eliminator codes, or you can delete a channel altogether.
NOTE: JBS-147M and PBS-147D MURS radios are limited to the 7 VHF
MURS frequencies. JBS-447D-CANADA-GMRS is limited to the 15
GMRS frequencies.
Channel Scanning. Channel Scan allows scanning of all channels
programmed into the radio, and can be turned On and Off through Field
programming. The scan channel has many features, including Priority Scanning
and Busy Channel Blocking.
Special Feature “Z” button. The “Z” button is capable of performing one of a
variety of functions. These functions can be PC programmed by your dealer
OR assigned to the “Z” button by the end user.
“Z” button functions: Channel Scan, Weather Channel, Monitor, Send 2-Tone
Code, Send Call Tone, Send DTMF or Selcall ANI.
2-Tone Decode. Each channel can be programmed for 2-Tone paging decode
within a frequency range of 300-1500 Hz. Additional 2-tone paging features
include Group Call, All Call, automatic reset, and transpond alert.
2-Tone Encode. Each channel can be programmed for 2-Tone paging encode
within a frequency range of 300-1500 Hz.
DTMF or Selcall ANI. Each channel can be programmed to transmit a unique
DTMF or Selcall ANI string with the “Z” button programmed for DTMF or Selcall
ANI.
Alert Tones. Each channel is programmable for a variety of alert tones that
include RX courtesy beep, TX clear to talk beep, busy channel lockout alert,
last active channel marker, and channel scanning indicator.
Additional features require special PC programming:
See your Ritron dealer or contact Ritron directly for PC programming of these
optional features.
Squelch Adjustment. Squelch sensitivity can be programmed on a per
channel basis to meet your specific needs.
Weather Channel. VHF models can be programmed to
receive your local NOAA weather radio broadcast. The
Weather channel can be turned On and Off through Field
Programming.
Weather Alert. VHF models can be programmed to alert
you when the National Weather Service detects
threatening weather conditions. The Weather Alert feature
can be turned On and Off through Field Programming.

7-Series Base Station User Manual INTRODUCTION
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 2
JBS-147M AND PBS-147M
Ritron models JBS-147M AND PBS-147M are license-free radios sold only in the USA. These models can only operate on the 5
MURS frequencies available through Field or PC programming.
JBS-447D-CANADA-GMRS AND PBS-447D-CANADA-GMRS
Ritron models JBS-447D-CANADA-GMRS and PBS-447D-CANADA-GMRS are license-free radios sold only in Canada. These
models can only operate on the 15 GMRS frequencies available through Field or PC programming.
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
This radio transmitter (1084A-RIT37447G) has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (1084A-RIT37447G) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
AFB-1545 (included with radio) -2 dBi gain max
RAM-1545 (optional magnet-mount antenna) 2 dBi gain max
O PTIONAL R EPLACEMENT A CCESSORIES
TO ORDER CALL 800-USA-I-USA
AFB-1545....Molded Flex, Dual-band Replacement Antenna
RAM-I545....Magnet-mounted, Dual-band Antenna w / BNC
RPS-IB ........Replacement 110 VAC Power Supply
CCL-M.........12 VDC, Cigarette Lighter Adaptor
JBSK-I2.......12 VDC, Adaptor Kit
REP-2..........Low Profile Earphone
RHD-IX........Single Ear Headset
RHD-4X.......Dual Ear Headset
RHD-6X.......Lightweight Behind-the-head Earset w / In-line PTT
RHD-8X.......Lightweight Earbud w / mic and In-line PTT
RSM-3XA ....Remote Speaker Microphone
RM-7............Hand Microphone & Hang-up Bracket
RSP-5..........External Speaker w / 5 Watt Audio Capability
JBS-MMK....Mobile Mounting Kit
(Does not include screws to mount bracket to wall or vehicle)
Call RITRON for a complete listing.
JBSK-12 RHD-6X
12-Volt Adapter Kit Behind the Ear Headset
RHD-8X
Single Earbud Ram-1545
Magnet-mounted
Dual-band Antenna
RSP-5 RM-7
5-Watt External Speaker Hand Microphone

7-Series Base Station User Manual INTRODUCTION
Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 3
EXPOSURE TO RADIO FREQUENCY ENERGY
These products generate radio frequency (RF) energy when the PTT button
on the front of the unit is depressed. The product has been evaluated for
compliance with the maximum permissible exposure limits for RF energy at
the maximum power rating of the unit when using antennas available from
RITRON. Antennas other than those mentioned below have not been tested
for compliance and may or may not meet the exposure limits at the distances
given. Higher gain antennas are capable of generating higher fields in the
strongest part of their field and would, therefore, require a greater separation
from the antenna.
JBS-147D, JBS-147D-CANADA, PBS-147D, PBS-147D-CANADA: Using
the AFB-1545 antenna (included with the product) in a vertical orientation at
the 20 cm (7.9 inches) minimum expected separation distance and greater,
the maximum RF exposure is well below the General Population/
Uncontrolled limits. Antennas other than those available from RITRON have
not been tested for compliance and may or may not meet the exposure limits
at the distances given. Higher gain antennas are capable of generating
higher fields in the strongest part of their field and would, therefore, require a
greater separation from the antenna. This product is not to be used by the
general public in an uncontrolled environment unless compliance with the
Uncontrolled/General Population limits for RF exposure can be assured.
JBS-447D, JBS-447D-CANADA, PBS-447D, PBS-447D-CANADA: Using
the AFB-1545 (included with the product) antenna in a vertical orientation at
the 20 cm (7.9 inches) minimum expected separation distance and greater,
the maximum RF exposure is well below the General Population
/Uncontrolled limits. Antennas other than those available from RITRON have
not been tested for compliance and may or may not meet the exposure limits
at the distances given. Higher gain antennas are capable of generating
higher fields in the strongest part of their field and would, therefore, require a
greater separation from the antenna. This product is not to be used by the
general public in an uncontrolled environment unless compliance with the
Uncontrolled/General Population limits for RF exposure can be assured.
JBS-447D-CANADA-GMRS, PBS-447D-CANADA-GMRS
Using the AFB-1545 antenna (included with the product) in a vertical
orientation at the 20 cm (7.9 inches) minimum expected separation distance
and greater, the maximum RF exposure is well below the General
Population/Uncontrolled limits. When using the RAM-1545 (optional magnet-
mount antenna with 25’cable) in a vertical orientation a 27.24 cm separation
distance is required. Antennas other than those available from RITRON have
not been tested for compliance and may or may not meet the exposure limits
at the distances given. Higher gain antennas are capable of generating
higher fields in the strongest part of their field and would, therefore, require a
greater separation from the antenna. This product is not to be used by the
general public in an uncontrolled environment unless compliance with the
Uncontrolled/General Population limits for RF exposure can be assured.
To limit exposure to RF energy to levels below the limit, please observe the
following:
•Use only the antenna(s) available from RITRON for these models. DO
NOT operate the radio without an antenna.
•DO NOT transmitter more than 50% of the time.
•When transmitting, make certain that the distance limits for the particular
model in use are observed.
•DO NOT allow children to operate the radio.
When used as directed, this series of radios is designed to comply with the
IC’s RF exposure limits for “Uncontrolled/General Population”. In addition,
they are designed to comply with the following Standards and Guidelines:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR §§ 2 sub-part J.
• American National Standards Institute (ANSI) / Institute of Electrical and
Electronic Engineers (IEEE) C95. 1-1992.
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition.
Copyright Telecommunications Industry Association
2013 FCC N ARROWBAND M ANDATE
On January 1, 2013, pursuant to the FCC Narrowband
mandate, Ritron will no longer be allowed to
manufacture wide band (25 kHz) capable radio
equipment that operates in the frequency bands from
150 MHz to 512 MHz. All Ritron Base Radios are FCC
certified for narrowband operation, so the only change
required is the elimination of wideband operation.
To meet the FCC narrowband mandate by Jan 1, 2013,
Ritron will initiate the transition process of manufacturing
narrowband only compliant radio equipment beginning
July 1, 2012. After that date, customer orders will begin
to be filled with radios manufactured for FCC
narrowband compliance, with no provisions for wideband
operation except where allowed by FCC rule. These
radios will be clearly marked as “FCC Narrowband
Compliant”. The narrowband manufacturing process will
proceed gradually on a model by model basis, with all
models narrowband compliant by the January 1, 2013
deadline.
For a complete list of Ritron radios capable of
narrowband operation; a Ritron FAQ on the subject, and
various links on the FCC website dealing with
Narrowbanding go to:
www.ritron.com/narrowband
If you have any questions contact us at 1-800-872-1872
OBSERVE CAUTION IN THE FOLLOWING
ENVIRONMENTS TO MAXIMIZE THE LIFE OF YOUR
RADIO EQUIPMENT
LOCATION: Be aware that this radio and / or antenna
may create interference with, or be interfered with, by
nearby electronic equipment such as computers,
monitors, keyboards, electronic telephones and other
sensitive devices. Either move the equipment or use a
remote antenna to separate components sufficiently to
stop or reduce interference.
MOISTURE: Ritron base radios are not waterproof. DO
NOT directly expose them to rain or excessive moisture.
CHEMICALS: Detergents, alcohol, aerosol sprays or
petroleum products can damage the radio case. DO
NOT use petroleum solvents of any kind; use a soft cloth
moistened with water to clean the case.
EXTREME HEAT: High temperatures can damage the
radio and its components. DO NOT expose the units to
extreme heat or leave them in direct sunlight.
EXCESSIVE TRANSMISSIONS: DO NOT hold the
Push-To-Talk switch down longer than necessary during
transmission intervals.
VIBRATION / SHOCK: Although your Ritron base radio
is designed to be rugged, it will not survive excessive
abuse. Avoid dropping the radio.
