Rittling RH-24 Owner's manual

UNIT HEATERS
For Steam or Hot Water
Installation, Operation & Maintenance
General Information:
Installation and service instructions in this manual are
applicable to the steam/hot water unit heaters which should
be installed in their proper applications for their most
effective function as overhead heating units. The copper coils
are warranted for operation at steam or hot water pressures
up to 180 psig, and/or temperatures up to 360°F. National
Electric Code (NEC) or Canadian Electric Code (CEC)
ignition temperature rating T3B for grain dust.
DO NOT REMOVE OUTLET FAN GUARD FROM
MODEL RV UNITS.
INSTALLER’S RESPONSIBILITY
Installer Please Note: This equipment has been test fired
and inspected. It has been shipped free from defects from
our factory. However, during shipment and installation,
problems such as loose wires, leaks, or loose fasteners
may occur. It is the Installer’s responsibility to inspect
and correct any problems that may be found.
Inspect unit upon arrival. In case of damage, report1.
immediately to transportation company and your local
Rittling Sales Representative.
Check rating plate on unit and motor to verify that power2.
input and motor specification meet available electric
power at point of installation.
Inspect unit received for conformance with description3.
of product ordered (including specifications where
applicable).
Inspection on Arrival:
1
Rittling Unit Heaters - Installation, Operation & Maintenance

S
UNIT SUSPENSION
Horizontal Delivery Units, Model RH Series
All horizontal delivery units have two tapped holes (3/8"-
16) in the top for unit suspension. Piping support hangers or
clamps are recommended and should be placed as close to
the unit heater as possible. For other models, independent
suspension can be made with threaded rods, pipes, or
ceiling hanger brackets.
Vertical Delivery Units, Model RV Series
Models RV-42 through RV-161 have 4 tapped holes (1/2”-
13) on the top surface for unit suspension. Suspension
can be made with threaded rods, pipes, or ceiling hanger
brackets. Models RV-193 through V-610 have angle-iron
frame mounting brackets for heavy-duty installation with
applicable hardware.
Installation:
Do not install unit above recommended maximum
mounting heights or below the minimum height of eight
feet. The height at which unit heaters are installed is
critical. Maximum mounting heights for all units are listed
below. Maximum mounting heights for Model RV is given
for units with or without air diffusion accessories. Locate
horizontal delivery unit heaters so air streams of individual
units wipe the exposed walls of the building with either
parallel or angular flow without blowing directly against
the walls. Heaters should be spaced so the air stream from
one supports the air stream from another heater. Locate
vertical delivery unit heaters in the center area of the space
to be heated, using horizontal delivery unit heaters along
the walls where heat loss is usually greatest. See Mounting
Height.

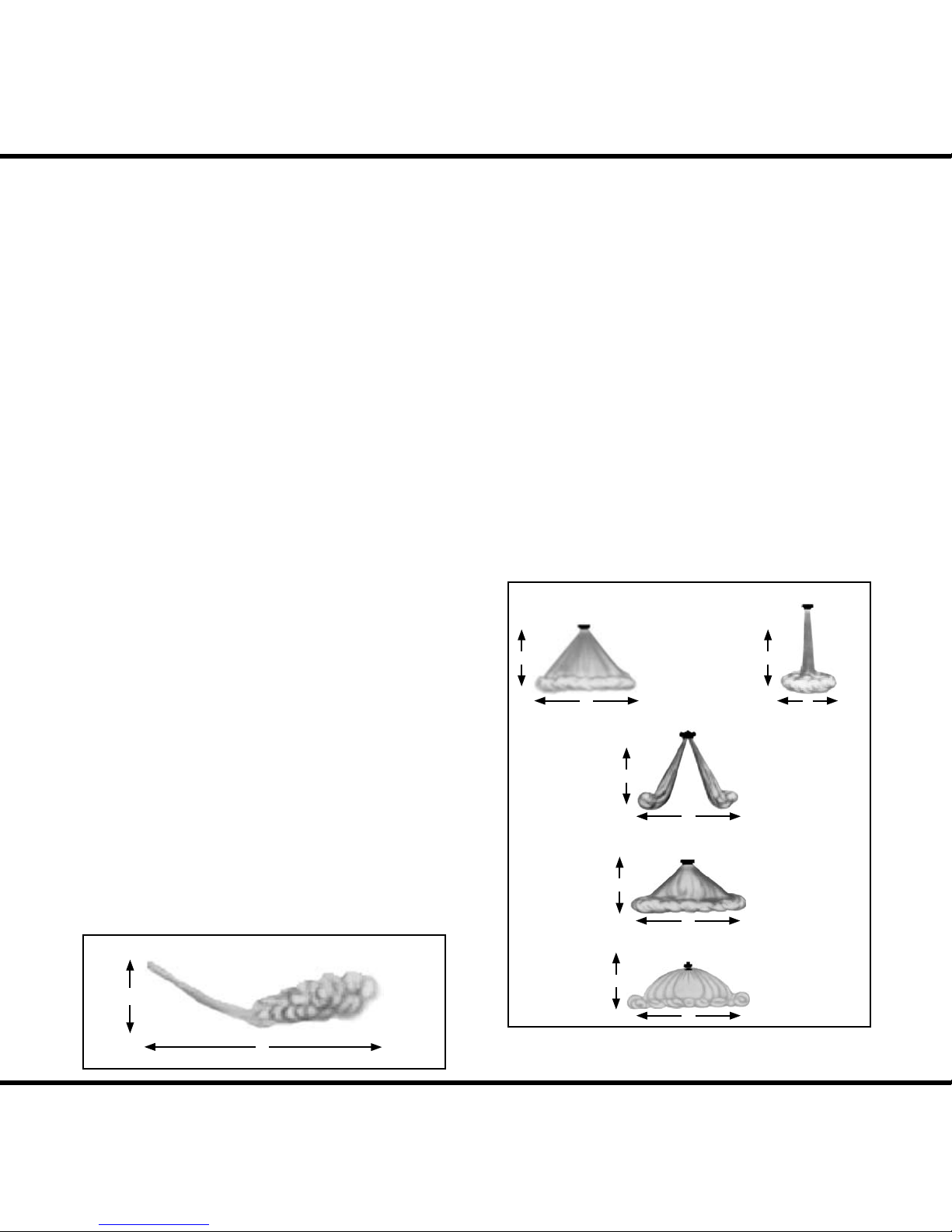

Unit Heater Mounting Height:
Vertical Air Delivery
No Deflector Cone-Jet
Two-Way Louver
4-Cone Anemostat
Truncone
S
S
S
H
H
S
H
H
H
Horizontal Air Delivery
S
H
SPECIAL PRECAUTIONS
Disconnect power supply before making wiring1.
connections to prevent electrical shock and equipment
damage. All units must be wired strictly in accordance
with wiring diagram furnished with unit.
Units should not be installed in atmospheres where2.
corrosive fumes or sprays are present.
Units with power codes 01, 02, or 05 must not be3.
installed in potentially explosive or flammable
atmospheres.
Be sure no obstructions block air intake or air discharge4.
of unit heater.
Do not install unit above recommended maximum5.
mounting heights or below the minimum height of
eight feet.
2
Rittling Unit Heaters - Installation, Operation & Maintenance

Horizontal Type Vertical Type
Model
Number
Model
Number
No
Deflector Cone-Jet Truncone
One-Way
Louvers
Two-Way
Louvers
3-Cone
Anemostat
4-Cone
Anemostat
Height - Ft. Height - Ft. Height - Ft. Height - Ft. Height - Ft. Height - Ft. Height - Ft. Height - Ft.
HS HSHSHSHSHSHSHS
RH-18 9 17 RV-42 11 17 15 11 8 19 13 11 8 22 8 22 8 28
RH-24 9 18 RV-59 13 20 18 13 9 25 16 14 10 28 9 28 8 35
RH-33 10 20 RV-78 14 22 19 14 11 26 17 15 11 30 11 30 8 30
RH-47 12 25 RV-95 16 24 21 16 11 26 17 15 11 30 11 30 8 30
RH-63 14 29 RV-139 18 27 24 18 13 32 21 18 13 36 13 36 9 45
RH-86 15 31 RV-161 21 31 28 21 14 35 23 20 14 40 14 40 10 50
RH-108 15 32 RV-193 23 34 31 23 16 39 25 22 15 44 16 44 12 55
RH-121 16 33 RV-212 25 37 33 25 16 39 25 22 15 44 16 44 12 55
RH-165 17 34 RV-247 26 39 34 26 17 46 30 26 18 52 17 52 13 65
RH-193 18 37 RV-279 30 45 37 30 18 53 35 30 21 60 18 60 13 75
RH-258 19 40 RV-333 30 45 37 30 17 53 35 30 21 60 17 60 13 75
RH-290 20 44 RV-385 30 45 36 30 17 53 35 30 21 60 17 60 13 75
RH-340 20 46 RV-500 37 56 44 37 19 65 42 37 26 74 19 74 13 93
RV-610 36 54 43 36 19 63 41 41 25 72 ----
MAXIMUM MOUNTING HEIGHTS
Suggested Piping Arrangements
PIPING INSTALLATION
Horizontal and Vertical Unit Heaters
Note: Only make piping connections using two (2) pipe
wrenches. One wrench is used as a “back-up” while the
other wrench is used for applying force necessary to tighten
the fitting.
The illustrations, on right, suggest four (4) different piping
configurations. Refer to the ASHRAE Guide & Specialty
Manufacturer for selection of filter, piping traps and other
specialty sizing. Piping is typical for unit heaters.
Wiring Instructions
Disconnect power supply before making wiring
connections to prevent electrical shock and equipment
damage. All units must be wired strictly in accordance with
wiring diagram.
Installation: All wiring must be done in accordance with the National
Electric Code and applicable local codes. In Canada,
wiring must conform to the Canadian Electric Code. It is
recommended that all wiring be adequately grounded.
Electric wiring must be sized to carry the full load amp
draw of the motor, starter, and any controls that are
used with the unit heater. All units with power code
05 (polyphase motors) must be provided with suitable
overcurrent protection in circuit supplying heater at
installation. Overcurrent protectors should be sized based
on motor current rating shown on the unit serial plate, and
applicable national electric code procedures.
All units should be installed with an electrical junction
box. Junction boxes are either integral to the motor or to
be attached to the unit casing. Units with explosion-proof
motors have an explosion-proof junction box attached to
the motor. Any damage to or failure of Rittling units caused
by incorrect wiring of the units is not covered by Rittling’s
standard warranty.
3
Rittling Unit Heaters - Installation, Operation & Maintenance

Hot Water Systems
Standard Wiring Schematic - 120V Power Source
Balancing
Valve Gate
Valve
Return Supply
Gate
Valve
Drain
Valve
Return Supply
Automatic Air
Vent or Petcock
Pitch Down
Gate
Valves
Pitch Down
Balancing
Valve
Horizontal Unit Heater Connected to
Overhead Hot Water Mains
Vertical Unit Heater Connected to
Lower Hot Water Mains
Prior to Operation
Check all electrical connections to assure they are1.
secure.
Check rigidity of unit mounting. Tighten all fasteners,2.
if necessary.
Inspect piping, strainers, traps, fittings, etc.3.
Initial Start-Up
Set thermostat to lowest position.1.
Turn on power supply to unit.2.
Open return gate valve, and then open supply gate3.
valve to unit.
Raise thermostat setting to desired position.4.
Adjust louvers (if provided) for desired heat5.
distribution.
To ensure proper sequence of operation, cycle unit on6.
and off a few times by raising and lowering thermostat
setting.
Check for proper rotation of fan. All fans must rotate7.
in a counterclockwise direction when viewed from the
back (RH) of the unit heater.
Operation:
4
Rittling Unit Heaters - Installation, Operation & Maintenance

Steam Systems
Pitch Down
Gate Valve Steam Supply
Main
Condensate
Main Return
A High Pressure
Thermostatic Trap
May Be Used For
Automatic Venting
Union
Strainer
6” Long
Full Size
Dirt Pocket
Inverted
Bucket
Trap
Union
Petcock For Air
Removal Usually
Slightly Open
Swing
Check
Valve
Gate
Valve
Float and
Thermostatic
Trap
Pitch Down
Gate Valve
Steam Supply
Main
Condensate
Main Return
Strainer
6” Long
Full Size
Dirt Pocket
Gate
Valve
10” Min.
Unit Heater Connection for
High Pressure Steam
Unit Heater Connection for
Low Pressure Steam -
Open Gravity or Vacuum Return System
Maintenance:
Inspect Regularly
Under average conditions, it is recommended that unit heaters be
inspected before every heating season — more often in locations
where air is contaminated with corrosive fumes, dust, soot or
oil spray. Check for dirty, clogged coils, excessive vibration and
loose connections. Inspect piping, strainers, traps, fittings, etc.
MOTORS
A. Cleaning
Remove grease and dirt on motor during each inspection or
lubrication. Open frame motors should be blown clean every
heating season, or whenever coils are cleaned, whichever is
sooner.
B. Lubrication
Motors do not have oil fittings. These motors are lubricated for
long life and do not require further lubrication.
C. Overload Protection
A change in line voltage higher or lower than motor nameplate
rating may cause overheating and serious motor damage. Check
plant voltage conditions. A separate manual starter with thermal
overload protection device is recommended for those units that
do not have motors with built in overload protection.
CASINGS
A. Cleaning
Periodic cleaning of casings is recommended to remove dirt,
grease and corrosive substances that may injure finish. Rusted or
corroded spots should be cleaned and repainted.
B. General Inspection
Tighten fan guard and
motor bracket. Check
fan for proper clearance,
free rotation and firm
connection to shaft. When
servicing is complete, tag
unit to indicate date of
inspection and cleaning.
5
Rittling Unit Heaters - Installation, Operation & Maintenance

Hydro-Air Components, Inc., manufacturer of the
Rittling product line, guarantees this product to be
free from defects in material and workmanship for
a period of two years from date of shipment from
our Buffalo, New York factory.
Should there be any defects in the good(s), the
purchaser should promptly notify Hydro-Air
Components, Inc. and upon receipt of written
consent from Hydro-Air Components, Inc., the
purchaser shall return the defective good(s) to
the factory for inspection with freight prepaid. If
inspection shows the goods to be defective,
Hydro-Air Components, Inc. will at its discretion
repair or replace the said item(s).
Defects arising from damage due to shipment,
improper installation, negligence or misuse by
others are not covered by this warranty.
This warranty is extended only to the original
purchaser from Hydro-Air Components, Inc.
WARRANTY
£ääÊ,ÌÌ}ÊÛ`°ÊÊUÊÊÕvv>]Ê 9Ê£{ÓÓä
*i\ÊÇ£ÈnÓÇÈx£äÊÊUÊÊ>Ý\ÊÇ£ÈnÓÇÈxÓÎÊÊ
Toll-Free: 800-FIN-TUBE (800-346-8823)
>\ÊÃ>iÃJÀÌÌ}°VÊÊUÊÊÜÜÜ°,ÌÌ}°VÊ Ê UH_IOM_0309
Hydro-Air Components Inc., in it’s continuous product
improvement program, reserves he right to change any and all
information provided in this document without notice.
Maintenance: (con’t.)
COILS
A. Cleaning
Clean coil at least once a year, more often under unfavorable
conditions. Unless coil is kept reasonably free of dirt, lint and
grease, its original heating capacity will be reduced — possibly to
a serious degree, and motor damage may result. Two commonly
used cleaning methods are:
Loosen dirt by brushing fins on side where air enters coil and1.
then turn on fan to blow dirt from unit.
Use high-pressure air hose to loosen dirt by blowing from2.
side where air leaves coil (side adjacent to louvers on blow-
through units (RH); side adjacent to fan on draw-through
units (RV)). For thorough cleaning of coil, remove motor
and fan and spray a mild alkaline cleaning solution over the
coil. After a few minutes, follow by a hot water rinse. (A
steam gun can be used for spraying cleaning solution and hot
water.) Coils subjected to corrosive fumes should be checked
and cleaned frequently.
B. Internal Corrosion Safeguards
Provide controlled water treatment — don’t use excess of boiler
compounds. Contact your boiler compound supplier for proper
usage or the services of a water treatment laboratory. Periodic
internal flushing of the coils is recommended in areas where
water supply is suspected of causing scale. Use an alkaline-
chelant solution and introduce it at the main pump of the
hydronic system. Flush thoroughly.
WARNING: USING INORGANIC OR MINERAL ACIDS SUCH AS
MURIATIC (HYDROCHLORIC) ACID, EVEN THOUGH INHIBITED, MAY
LEAD TO SEVERE DAMAGE, INCLUDING CORROSION AND LEAKAGE.
De-aerate boiler feed-water (particularly if large amount of new
water is used). Ensure rapid continuous and adequate condensate
drainage by properly sized and installed traps and piping. Check
traps for sticking. Clean strainers ahead of traps. (When traps
don’t work, condensate accumulates in unit heater coil; water
hammer results.) Adequately vent each unit. Use low-pressure
steam when possible.
THE EQUIPMENT COVERED IN THIS MANUAL SHOULD BE
INSTALLED, MAINTAINED AND SERVICED BY A QUALIFIED LICENSED
TECHNICIAN. FOR SERVICE, CONTACT YOUR LOCAL LICENSED
QUALIFIED INSTALLATION AND SERVICE CONTRACTOR OR
APPROPRIATE UTILITY COMPANY.
