Riva RC1100M User manual

1
www.rivatech.de
RC1100M
Installation Guide

2
www.rivatech.de
INFORMATION TO USER
CAUTION
RISK OF ELECTRIC SHOCK,
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL.
This symbol is intended to alert the user to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
!
!

3
www.rivatech.de
Table of Contents
1. FEATURES ................................................................................5
2. PACKAGE CONTENTS .................................................................6
3. PART NAMES............................................................................7
3.1. Rear View.....................................................................................7
3.2. Bottom View .................................................................................8
4. INSTALLATION.........................................................................10
4.1. Using a lens................................................................................10
4.2. Setting the Image Attribute ...........................................................11
4.3. Installing a Wireless USB Adapter (Optional).....................................11
5. CONNECTIONS.........................................................................12
5.1.Connectors..................................................................................13
6. CONFIGURATION ......................................................................16

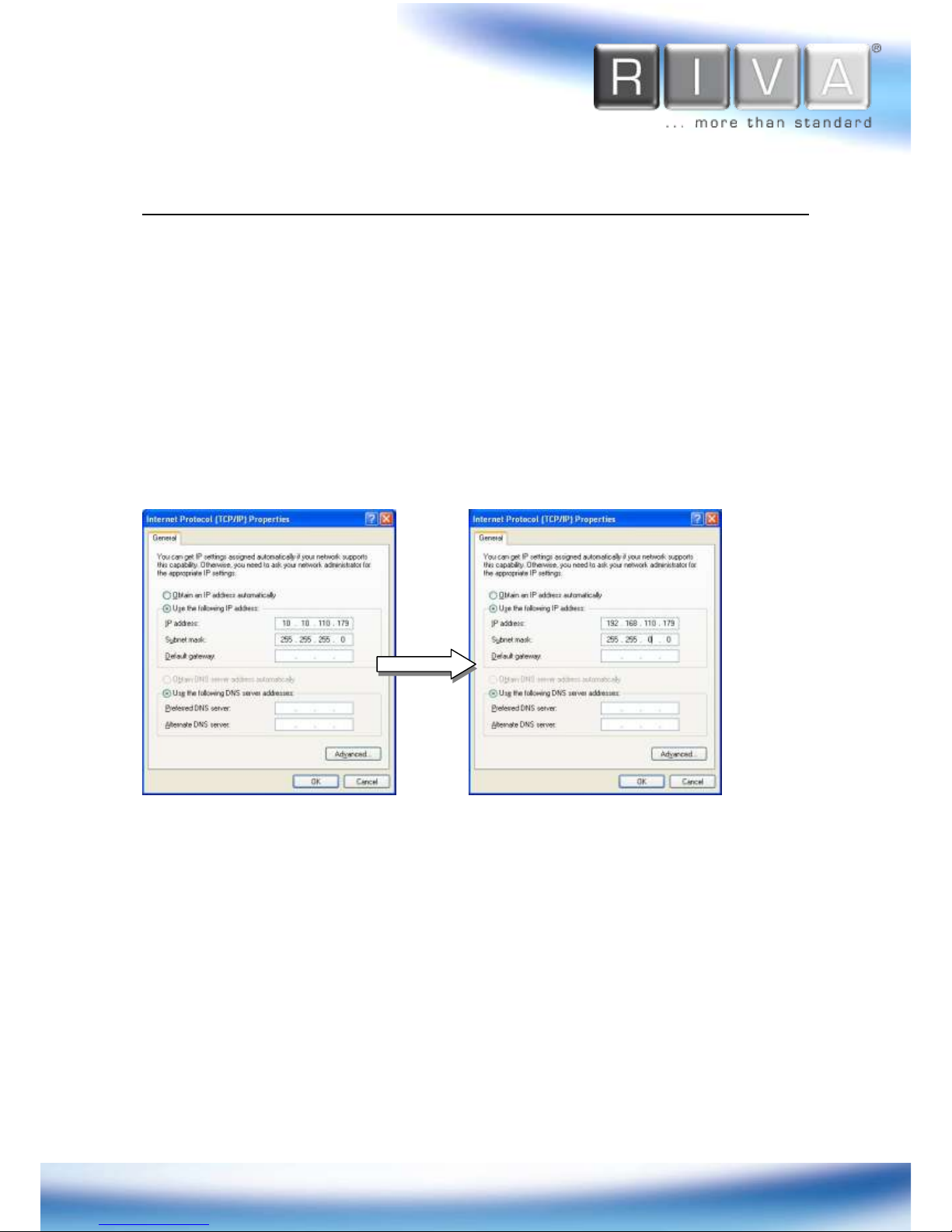

6.1.Set up network environment ...........................................................16
6.2. View video on web page ................................................................16
6.2.1. View video using IPAdmin Tool..................................................17
6.2.2. View video using IP address .....................................................18
6.3. Reset ........................................................................................18
6.4. Factory Default............................................................................18
APPENDIX (A): SPECIFICATIONS......................................................19
Summary ..........................................................................................19
Resolutions per Codec Frame rate.........................................................20
Electrical Characteristics......................................................................20
Environment Condition .........................................................................21
Mechanical Condition ..........................................................................21
APPENDIX (B): POWER OVER ETHERNET .........................................22

4
www.rivatech.de
PoE compatibility.................................................................................22
Power classification.............................................................................22
APPENDIX (C): DIMENSIONS ..........................................................23
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE .............25
REVISION HISTORY .......................................................................26

5
www.rivatech.de
1. FEATURES
Camera
Box type IP Megapixel Camera
Aptina (Micron) 1/3.2" (4:3) CMOS 2M pixels
Streaming
Dual streaming mode (such as different codec/resolution/bit rate and so on.)
De-interlacing on DSP
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Megapixel Compression: H.264, MJPEG, Up to 1600 x 1200
Video compression: H.264/MPEG/MJPEG (Dual Stream@D1)
Audio compression: G.711(µLaw, aLaw)/PCM
Video Motion Detection supported
Two-way mono audio supported
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
RS-485 supported
USB 2.0 supported (Local storage, Wireless LAN)
Micro SD card slot supported for the snapshot recording.
PoE supported
Built-in Video Content Analysis
OSD supported
SDK (Software Development Kit) provided
VCA (Video Content Analysis)
VCA Presence (Included as basic)
VCA Surveillance (Optional)

6
www.rivatech.de
2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Camera
DC power adaptor
Mount ring
9 Pin terminal block
Rubber cap (for protecting CCD)
Hex wrench driver
Adaptor for mounting the camera
Screws
Quick Installation Guide
DC Jack Adaptor Cable
The above contents are subject to change without prior notice.
Note
i

7
www.rivatech.de
3. PART NAMES

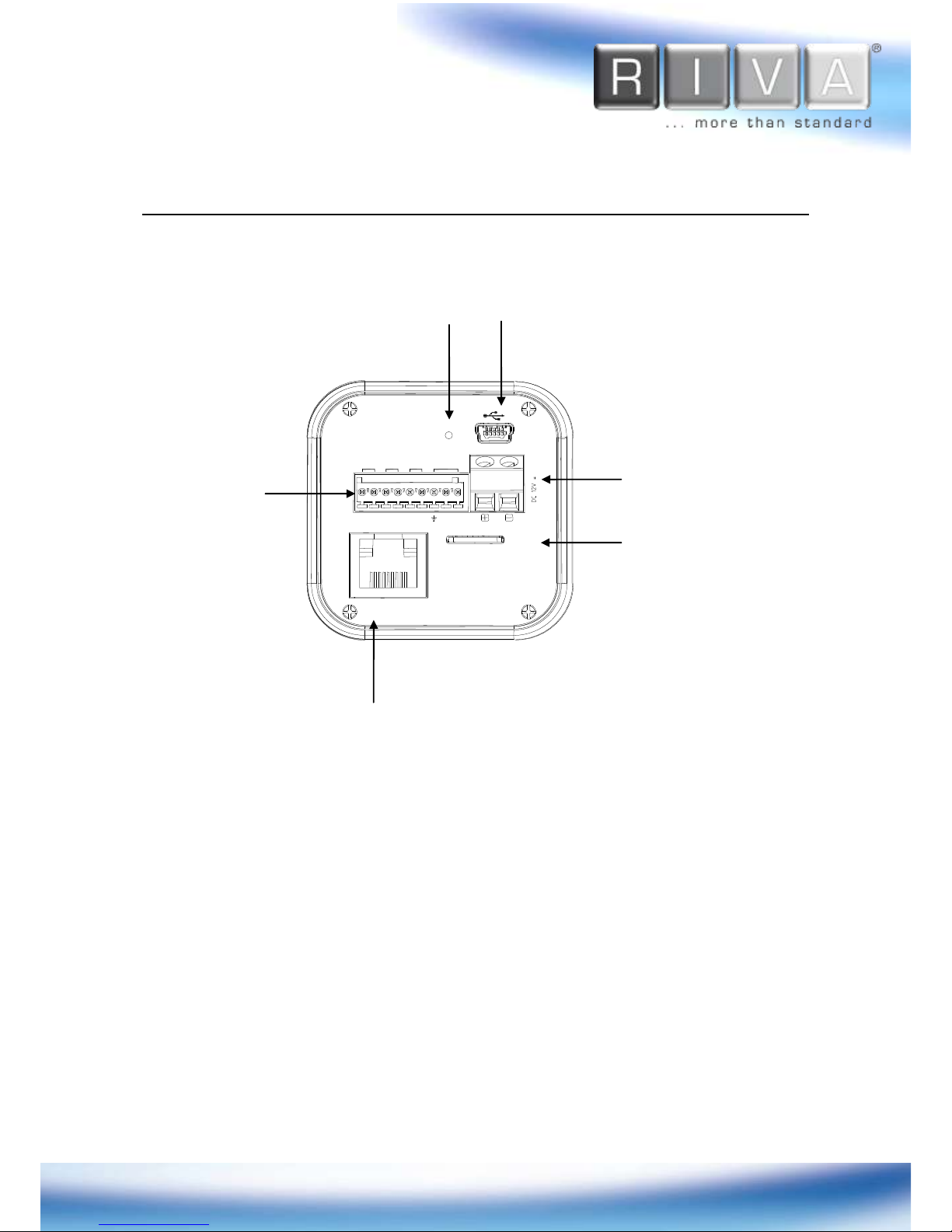

3.1. Rear View
6
5
1
2
4
①
ETHERNET
Micro SD
RESET
RS-485
DO
DI
AUDIO
-
+
C
1
C
1
Out
In
3

8
www.rivatech.de
3.2. Bottom View
1Reset
Reset switch is used for restarting or resetting the camera as Factory Default (FD).
Refer to the section “6.3. Reset”for more specific information.
2USB connector
Insert a USB storage device or Wi-Fi devices. (Ralink RT73 or RT3070 chipset
based wireless device is available.)

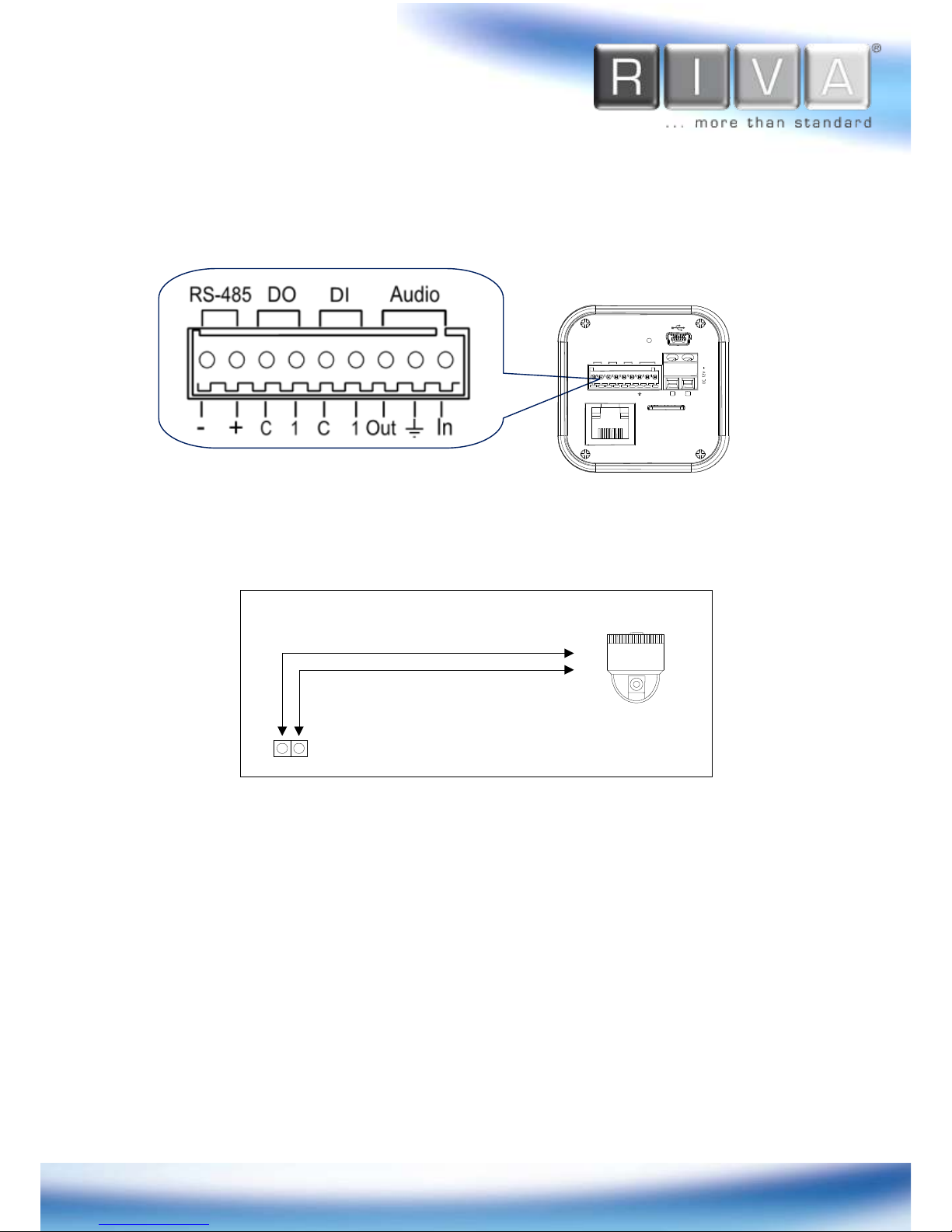

39 pin terminal block for D/I, D/O, audio, and serial communication
Refer to the section “5.1.Connectors”for more specific information.
4Power Adaptor Connector (DC 12V)
The camera needs a DC12V for power supply. Refer to the section “Power Adaptor
Connector (DC 12V)”for more specific information.
7
+
-

9
www.rivatech.de
Make sure the polarity is correct. Incorrect connection may cause
malfunction or damage to the IP device.
5Micro SD Card slot
It is a memory card slot for local storage of snapshot recording. The AVI file
recording is not supported due to the lack of hardware resource..
6LAN Connector (Ethernet)
This is a RJ45 LAN connector for 10/100 Base-T Ethernet.
This LED lights up as orange and turns green when the encoder is powered on.
LED operation setting:
For the factory default setting, LED 2 blinks for the heartbeat and LED 1 turns on for
video signal. To change its setting, refer to the section 4.5.11. LED Setting of the
NVC Web Page User’s Manual.

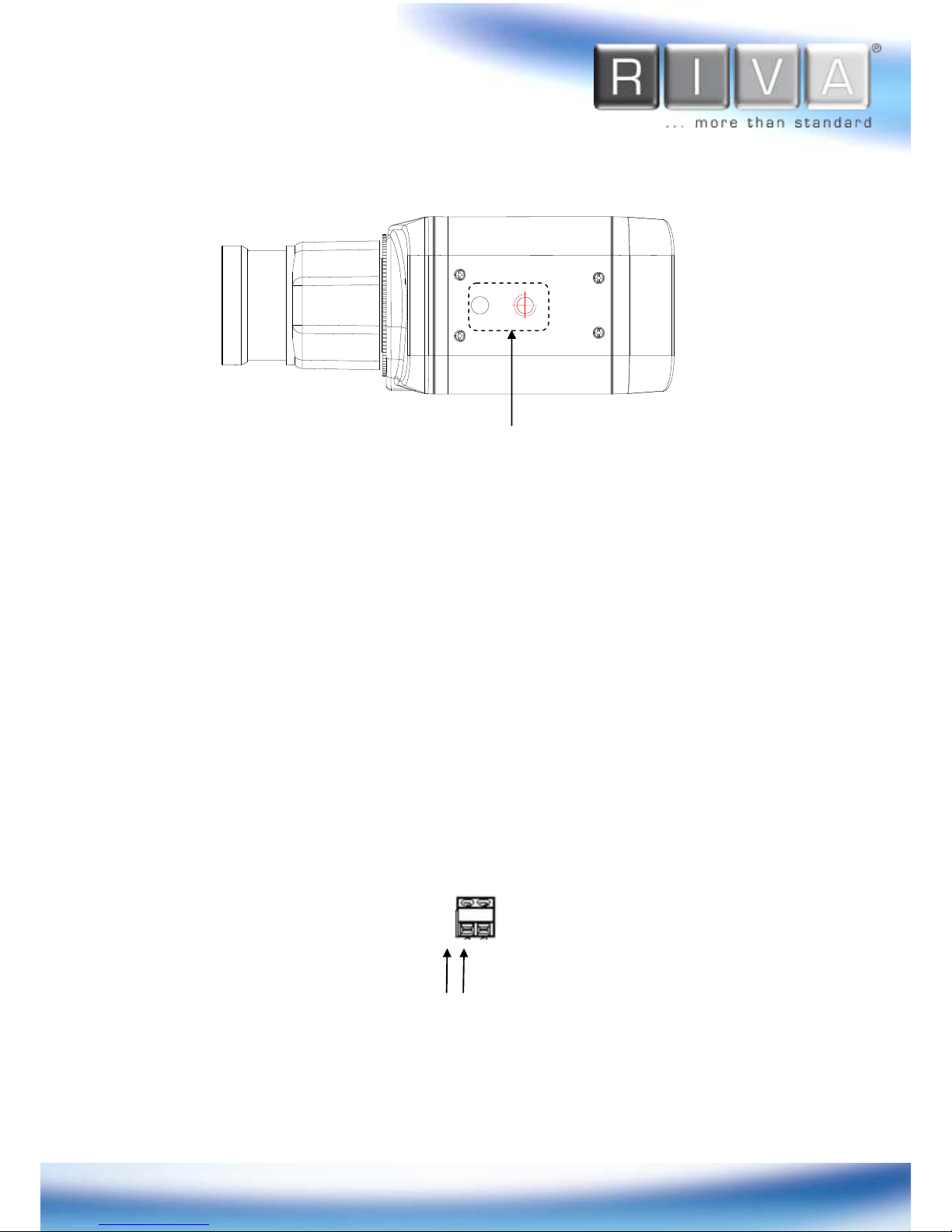

7Adaptor for mounting the camera
Mounting points adaptor is provided on the bottom (or the top) of the camera for
mounting the camera on a bracket or tripod.
Caution
!
LED1 LED2

10
www.rivatech.de
4. INSTALLATION
4.1. Using a lens
To have the full resolution of a megapixel camera, use a megapixel lens with manual
iris. Installing a standard definition to a megapixel camera may create poor image
quality.
If a camera with a high zoom lens is subjected to an environment with temperature
variation (approximately 10 ˚C, but dependable on the zoom level), there may be a
focus shift causing a blurry image. Make sure to consider the installation environment
when you use a high zoom lens.

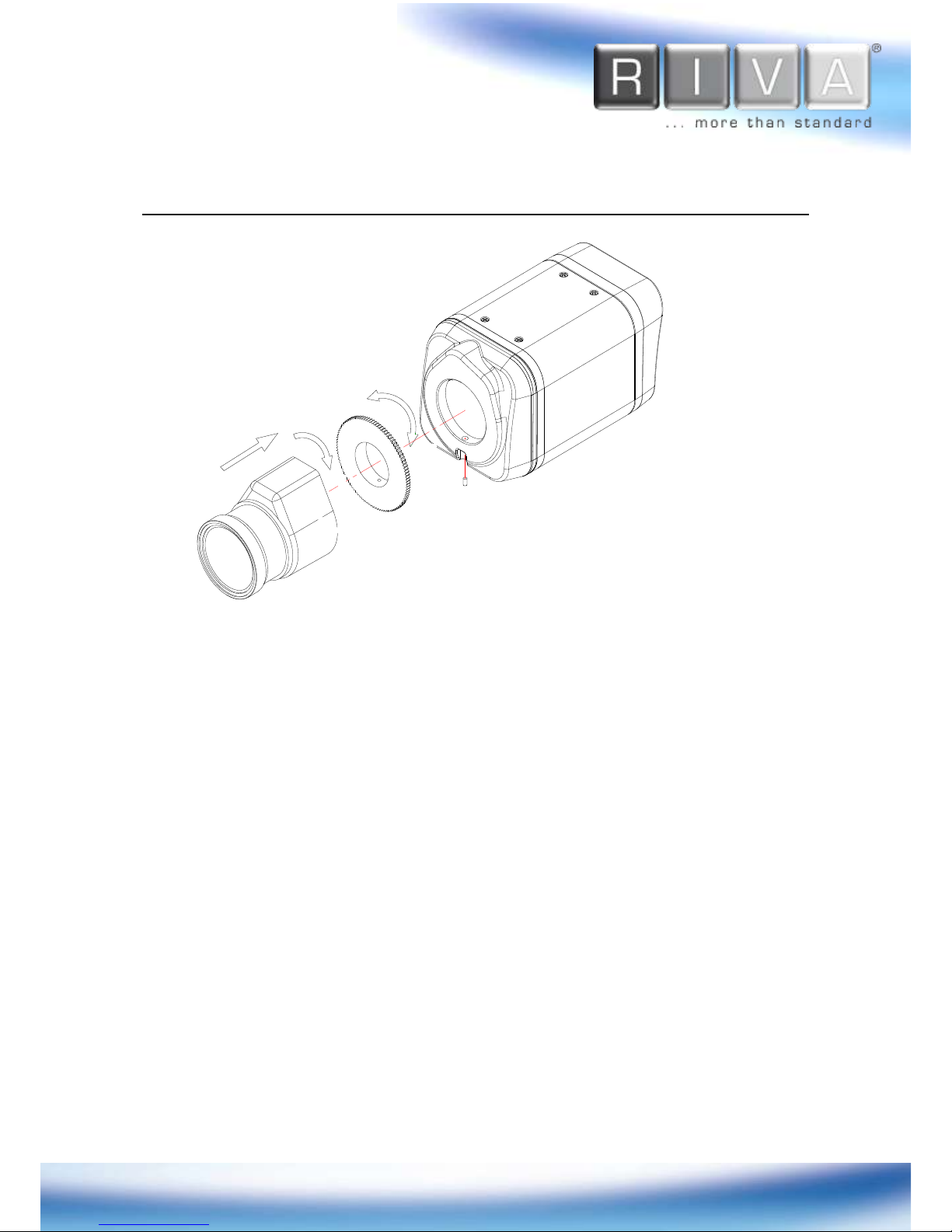

To install a C/CS mounting lens,
1. Remove the protective rubber cap from the front of the camera.
2. Install the mount ring for lens and adjust the mount ring to fit C or CS lens.
3. Tighten the setscrews using the hex wrench in the package.
CW
SET SCREW
Set Screw
CCW
CW
*Lens is optional.
