Riva RC2102HD-5511 User manual

1
www.rivatech.de
RC2102HD-5511
Installation

2
01A.03
www.rivatech.de
INFORMATION TO USER
CAUTION
RISK OF ELECTRIC SHOCK,
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL
PARTS.
This symbol is intended to alert the user the presence of un-
insulated “dangerous voltage” within the product’s enclosure,
which may be sufficient magnitude to constitute a electric shock
risk to persons.
This symbol is intended to alert the user the presence of
important operating and maintenance (servicing) instructions
within the guide manual.
!
!

3
01A.03
www.rivatech.de
Table of Contents
1. FEATURES ................................................................................ 4
2. PACKAGE CONTENTS ................................................................. 5
3. PART NAMES ........................................................................... 6
4. INSTALLATION .......................................................................... 8
4.1. Option A. Semi-Flush Mount ............................................................ 8
4.2. Option B. Flush Mount ................................................................. 10
4.3. Setting the Image Attribute........................................................... 12
5. CONNECTIONS ........................................................................ 13
6. CONFIGURATION...................................................................... 16
6.1.Set up network environment .......................................................... 16
6.1.1. Generic IP Environment .......................................................... 16
6.1.2. Custom IP Environment .......................................................... 17
6.2. View video on web page ............................................................... 18
6.2.1. View video using IPAdmin Tool ................................................. 20
6.3. Reset........................................................................................ 21
6.4. Factory Default ........................................................................... 21
APPENDIX (A): SPECIFICATIONS ..................................................... 22
Summary.......................................................................................... 22
Environment Condition ........................................................................ 23
Mechanical Condition.......................................................................... 23
APPENDIX (B): POWER OVER ETHERNET ......................................... 24
PoE compatibility................................................................................ 24
Power classification............................................................................ 24
APPENDIX (C): DIMENSIONS.......................................................... 25
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ............. 26
REVISION HISTORY....................................................................... 27

4
www.rivatech.de
1.FEATURES
Camera
Full HD indoor fisheye IP camera (Vandal proof)
High quality compression in real time streaming
1/2.7” 1080p CMOS Image Sensor
180˚wide and 160˚vertical angle
Remote Zoom/Focus Control(One Click AF)
Streaming
Dual streaming mode (such as different codec/resolution/bit rate and so
on.)*
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Video compression: H.264/MJPEG, up to 30FPS@1080p*
Audio compression: G.711(µLaw, aLaw)/PCM
Analog video out (for installation only)
Video motion detection supported
Two-way mono audio supported
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
Micro SD card support
PoE support
Built-in Video Content Analysis
SDK (Software Development Kit) provided
* When VCA is activated, frame rate is limit to max15fps@1080p. Limitations are
based on V.1.5.0 firmware release and could be changed without notice.

5
www.rivatech.de

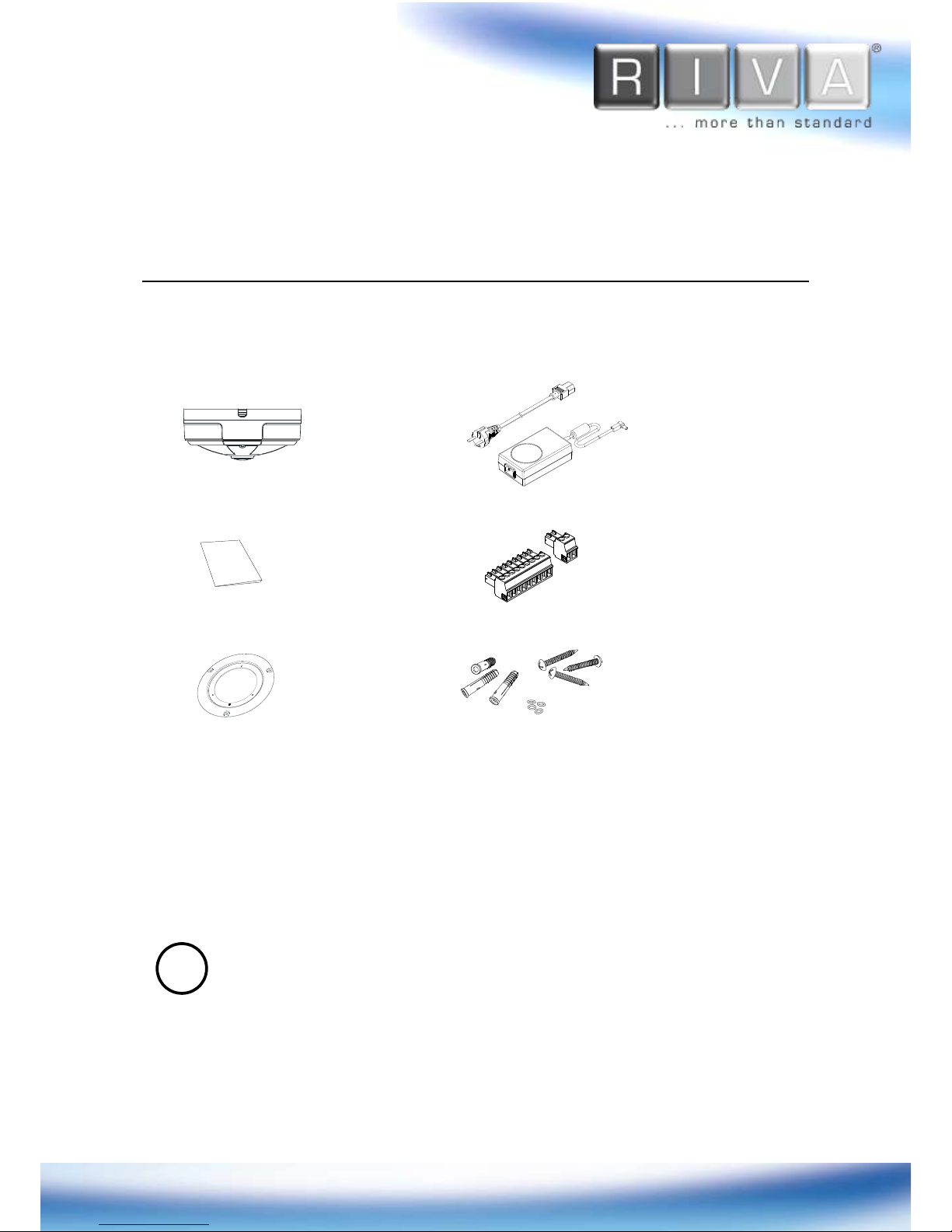

2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Camera
DC power adapter
Quick installation guide
9-pin and 2-pin terminal blocks
FMB mount (for flush mount)
Screws and anchors
The above contents are subject to change without prior notice.
Note
i

6
www.rivatech.de

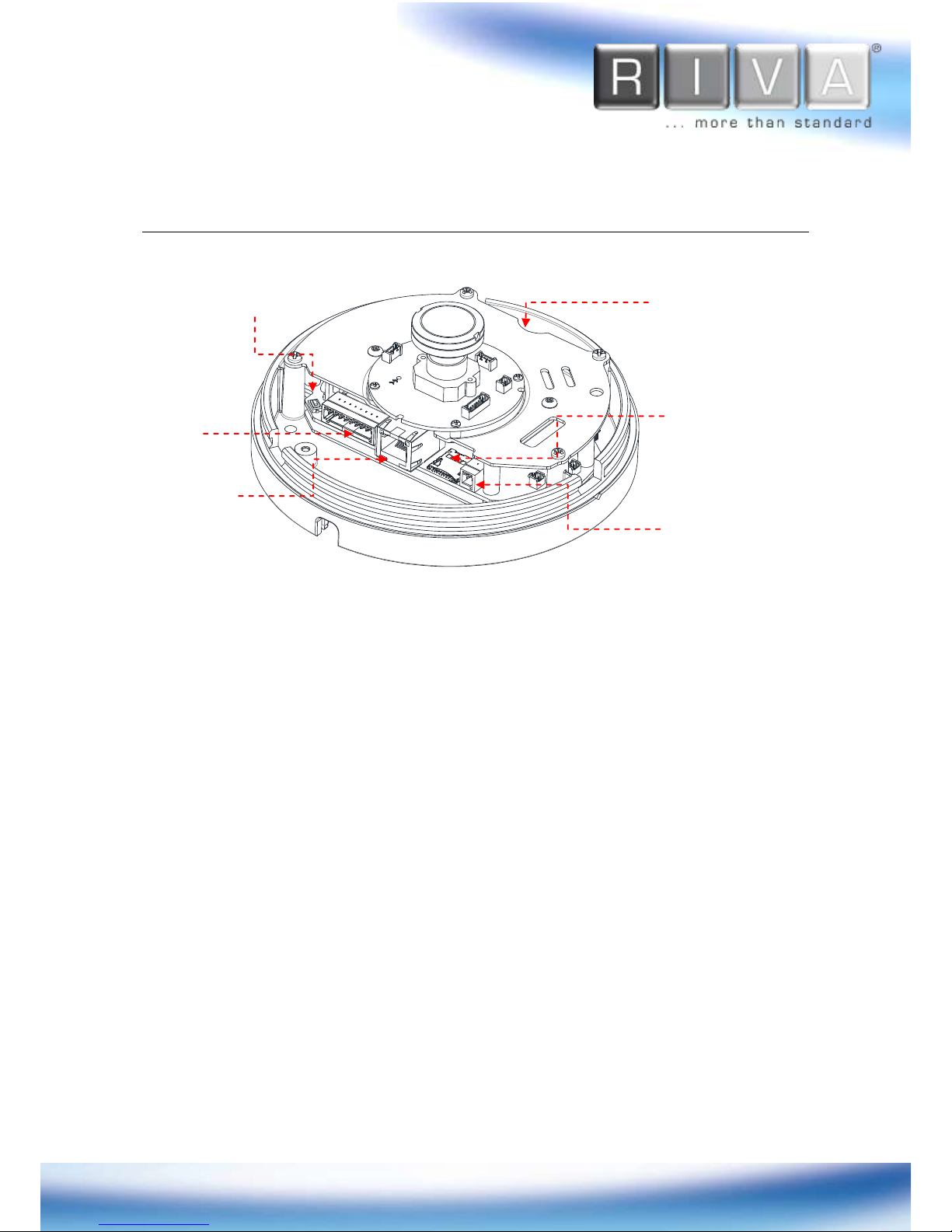

3. PART NAMES
1. Reset button
The reset button can be used for restarting the device or resetting it to Factory
Default.
2. PAL/NTSC button
Pressing the button cycles through PAL, NTSC, and no video output mode: No video
output -> PAL->NTSC . Please note that the analog video signal is only 3 minutes
present and go back automatically to none video output mode (only installation
process).
3. Video, Audio, and IO terminal connector
Connector for cable connection of audio input/output and digital input/output. Refer
to section.
②
③
⑤
⑥
* Models and their appearance are subject to change without any prior
notice.
④
①
*This button is located under
PCB.

7
www.rivatech.de
5. Connections for more details. Video out is used only for installation and works for
3 minutes when PAL/NTSC button is pushed.
4. LAN connector
RJ45 LAN connector for 10/100 Base-T Ethernet.
5. MicroSD Slot
Slot for the MicroSD card
6. Power Adapter Connector
DC 12V adapter for power supply.

8
www.rivatech.de
4. INSTALLATION
4.1. Option A. Semi-Flush Mount

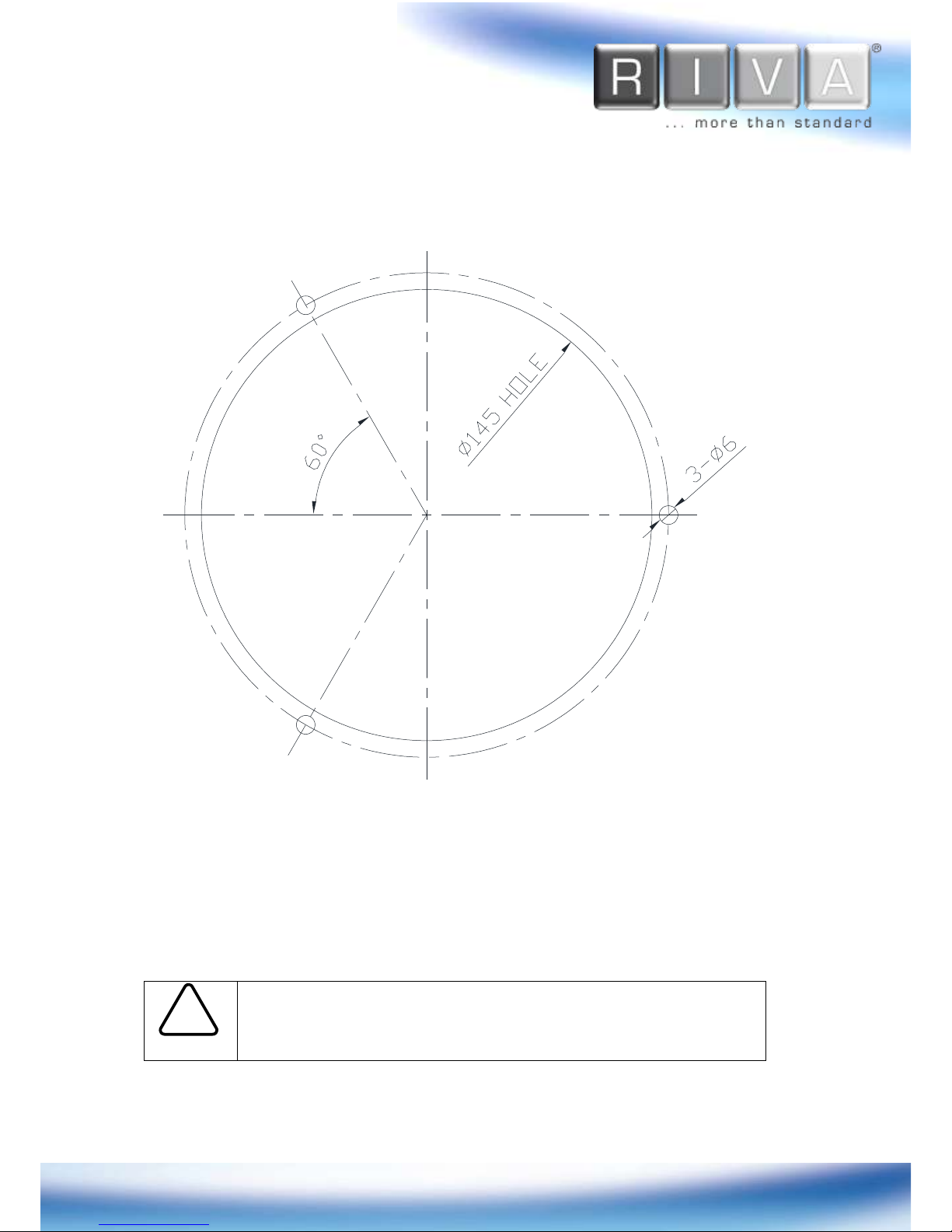

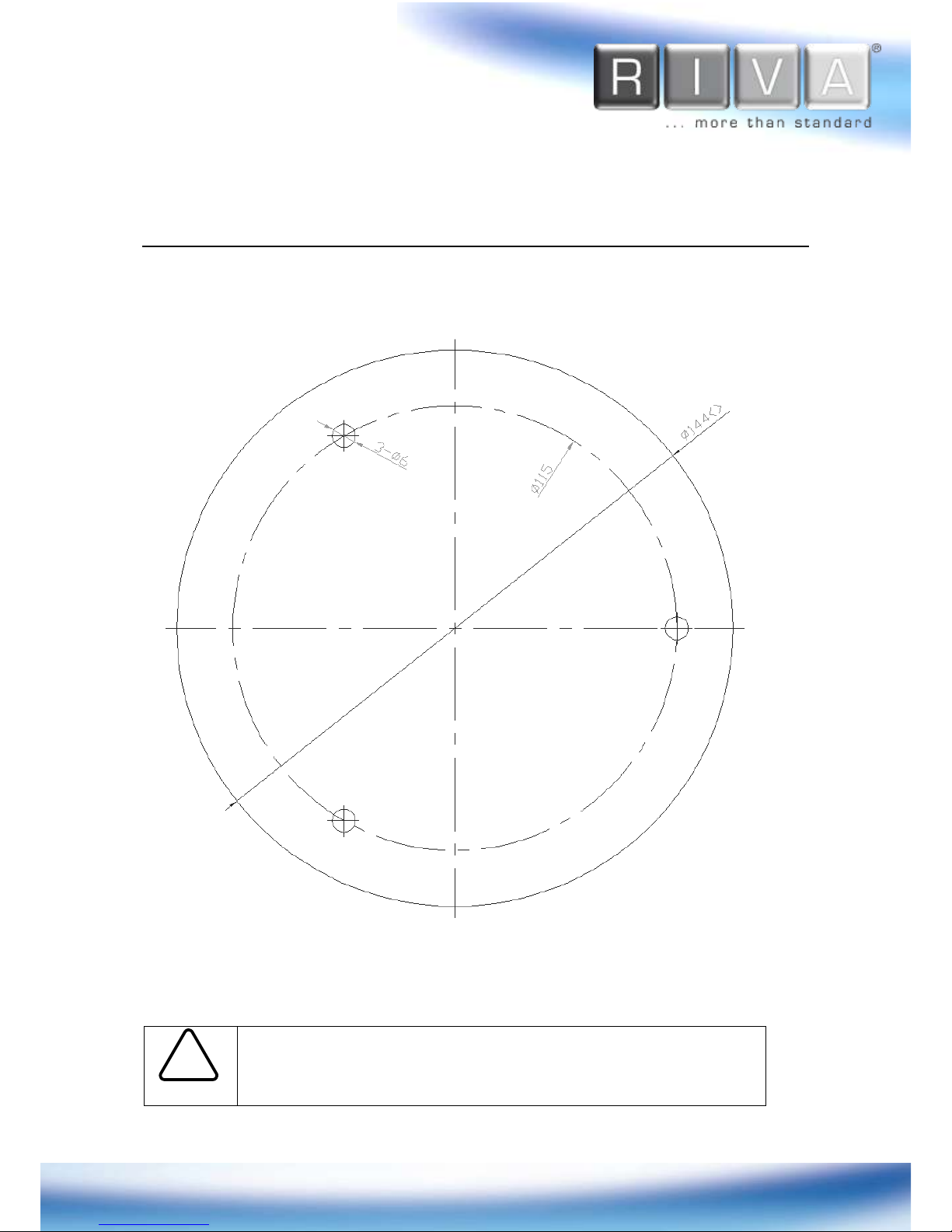

Installation template image’s size scale in this installation guide is
not 1:1.
The correct-size template design paper can be found inside the
package separately.
Caution
!

9
www.rivatech.de
1) Place the installation template
on a surface where camera is
going to be installed and mark
the anchor block placements.
2) Drill and insert anchor blocks on
a marked surface.
3) Mount the main camera body by
aligning the anchor blocks and hold
against the mounting surface..
4) Tighten the anchor blocks with
screws
5) Connect all the appropriate
cables to the device
6) Attach the dome cover on main
body and lock it up by rotating.
When placing the dome cover, look for carved triangle mark on
both dome cover and main body. Both triangles should be aligned
together when placing the cover. Once the cover has been placed,
rotate the dome cover for a secure lock. To detach the cover,
rotate the dome cover and align two triangle marks, and pull the
cover.
To prevent products from damaging, place the camera on stable
and non-vibrating surfaces. If the stability is in doubt, consult with
safety personnel for reinforcements, and then proceed with the
installation.
Caution
!
Caution
!

10
www.rivatech.de
4.2. Option B. Flush Mount
Installation template image’s size scale in this installation guide is
not 1:1.
The correct-size template design paper can be found inside the
package separately.
Caution
!
Installation template (FMB)
21 V1.0
