RJE AquaGuard User manual

QUICK REFERENCE GUIDE
The following is a “quick reference” guide to operating your AquaGuard Pool Alarm System. Refer
to OPERATING THE AQUAGUARD SYSTEM on page 10 of this manual for detailed instructions to
operate, monitor and maintain the system.
Function At Detector Unit At Remote Unit
To turn the system on Enter your access code on the keypad.
•The Detector Unit sounds 10 short
beeps, followed by one long beep,
indicating the system is “armed.”
The red LED begins flashing.
•Not applicable
To place the system in “SWIM” mode Enter your access code on the keypad.
•The red LED on the Detector Unit
turns off. This indicates the system
is not armed.
Press the OK button three times.
•The green LED stops blinking; the
red LED blinks slowly.
To place the system in “ARMED”
mode
Press the OK button on the keypad two
times.
•The Detector Unit sounds 10 short
beeps, followed by one long beep,
indicating the system is “armed.”
The red LED begins flashing.
Press the OK button two times,
•The red LED stops blinking; the
green LED blinks slowly.
To place the system in “SERVICE”
mode (to allow for pool maintenance)
Enter __________ on the keypad.
•The system is deactivated for 30
minutes.
Not applicable
To cancel an active alarm Press any key on the keypad. Press the OK button once.
To turn the system off for an
extended period
Enter your access code followed by *99
on the keypad.
Not applicable.
OWNER’S MANUAL
Revision A
RJE Technologies, Inc.
15375 Barranca Parkway, Suite B-107, Irvine, CA 92618
Ph: [phone] • Fax: [phone]
www.aquaguardpoolalarm.com

AquaGuard Owner’s Guide RJE Technologies, Inc.
i
TABLE OF CONTENTS
INTRODUCTION ......................................................................................................... 1
About This Manual.................................................................................................. 1
Contacting RJE Technologies................................................................................. 1
SAFETY PRECAUTIONS ........................................................................................... 1
General Swimming Pool Safety Guidelines ............................................................ 2
ABOUT THE AQUAGUARD POOL ALARM SYSTEM .............................................. 2
System Components .............................................................................................. 3
Controls and Indicators ........................................................................................... 3
Swimming Pool Alarm Operation ............................................................................ 4
ASSEMBLING THE AQUAGUARD SYSTEM ............................................................ 4
Installing the Batteries ............................................................................................ 4
Assembling the Detector Base Unit and Sensor Tube ............................................ 5
INSTALLING THE AQUAGUARD SYSTEM............................................................... 5
Installation Considerations...................................................................................... 5
Tools Required ....................................................................................................... 6
Installation............................................................................................................... 6
Installing Two Detector Units ................................................................................ 10
OPERATING THE AQUAGUARD SYSTEM............................................................. 10
Setting System Parameters .................................................................................. 10
Operating the System ........................................................................................... 11
Managing the System ........................................................................................... 12
MAINTAINING THE AQUAGUARD SYSTEM .......................................................... 13
Replacing the Batteries......................................................................................... 14
Testing the System ............................................................................................... 15
Special Considerations During Winter .................................................................. 15
The Anti-Theft System .......................................................................................... 15
TERMS AND CONDITIONS OF WARRANTY .......................................................... 17
FCC REGULATIONS
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference with
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Per FCC Part 15.21, any changes or modification not expressly approved by RJE Technologies, Inc. could
void the user's authority to operate the equipment.
The minimum separation distance between the antenna and any part of human bodies should be 2.5 cm.
RJE Technologies, Inc. AquaGuard Owner’s Guide
17
TERMS AND CONDITIONS OF WARRANTY
The AquaGuard™ Pool Alarm System manufactured by RJE Technologies, Inc. is warranted to be free from defects
in workmanship and materials under normal use and service when correctly installed (by an AquaGuard™ Certified
Technician), used and maintained. This limited warranty is subject to the following conditions and qualifications.
Duration of the Warranty:
Aqua-Guard™ products are warranted for a period
of two (2) years from the original date of installation,
which must be performed by an Aqua-Guard™
Certified Technician. RJE Technologies shall, at its
option, repair or replace defective products free of
charge within the two-year period. Warranty
replacements or repairs will not extend the two-year
period.
Scope of Warranty:
This limited warranty is effective on Aqua-Guard™
products only. It does not cover any product,
component, part or accessory, which Aqua-Guard™
determines to have become defective through abuse
or neglect. In addition, the limited warranty will be
voided if the equipment has been modified, altered,
or contains components, parts, or other accessory
products that are not part of the Aqua-Guard™
product line.
RJE Technologies shall not be responsible to
customers or any third party for loss, damage, or
injury caused by, resulting from, or in any way
attributable to the use or operation of Aqua-Guard™
products or any special, indirect, incidental or
consequential damages arising from the use of
SonarGuard products.
Purchaser’s sole remedy for any Aqua-Guard™
product found to be defective will be to have it
repaired or replaced by an Aqua-Guard technician.
Please contact the Aqua-Guard™ Customer Service
Department for instructions or assistance.
Exclusions (That is not covered):
The above warranties do not apply to:
•Conditions resulting from a defect in a
component part which is not part of Aqua-
Guard™.
•Conditions resulting from failure to provide
reasonable and necessary maintenance in
accordance with Aqua-Guard™ Owner’s Manual.
•Conditions resulting from misuse, abuse,
negligence, accident or alteration.
•Normal discoloration, fading and minor
deterioration of exterior surfaces resulting from
exposure to the elements, except conditions that
do or will affect performance.
•Conditions resulting from improper pool
maintenance, water level, and pool equipment
usage.
•Items consumed through use.
Warranty Disclaimers and Additional
Information:
The warranty set forth above is in lieu of, and RJE
Technologies hereby disclaims and excludes, all
other warranties, express or implied, including
without limitation, any warranty of merchantability or
fitness for a particular use. RJE Technologies is not
liable for, and purchaser waives any right of action if
has or may have against RJE Technologies for any
consequential or special damages arising out of any
breach of warranty, and for any damages purchaser
may claim for damages to any property or injury or
death to any person arising out of it’s purchase of
the use, operation or maintenance of the product.
RJE Technologies will not be liable for any damage
done by unauthorized repair work, unauthorized
replacement parts, from any misapplication of them,
or from damage due to accident, abuse, rodents,
weather, conditions creating improper pool use of
maintenance, or acts of god.
RJE Technologies will not be responsible for
damages or events from overheating, incorrect wire
runs, improper electrical supply, or by running the
filtration pump outside the published minimum and
maximum specifications. In no event shall RJE
Technologies by liable for loss damage, or expense
directly or indirectly arising from the use of the
Aqua-Guard™, or from any other cause, except as
expressly stated in this warranty.

AquaGuard Owner’s Guide RJE Technologies, Inc.
16
RJE Technologies, Inc. AquaGuard Owner’s Guide
1
INTRODUCTION
Thank you for choosing the AquaGuard Pool Alarm System. You have taken an important step in
creating a safer environment for your children. RJE Technologies, the maker of AquaGuard, has
over 20 years experience providing sonar equipment to the military. We have brought our vast
experience into the swimming pool market with the AquaGuard Pool Alarm System.
About This Manual
This manual will help you install and operate your AquaGuard Pool Alarm System properly. Read
this manual carefully and completely before installing and operating your AquaGuard system.
The AquaGuard Pool Alarm System is a powerful safety addition to your swimming pool or spa.
However, the system can help protect your family only when it is used properly, and in conjunction
with other safety devices and precautions, including:
•Door and gate alarms
•Security fences
•Pool covers
•Safety training
Contacting RJE Technologies
Please feel free to write or call us with your comments or questions at the address below. We have
a trained staff available between 8:00 AM and 5:00 PM (Pacific Time), Monday through Friday.
RJE TECHNOLOGIES
15375 Barranca Parkway, Suite B-107
Irvine, CA 92618
[phone]
www.poolalarm.com
SAFETY PRECAUTIONS
Important! The AquaGuard system is a pool alarm; not a life-saving device. It should be used
along with other safety equipment and precautions. It is intended to provide an additional level of
security to your pool and/or spa.
This device is not intended to replace any other safety consideration; that is, adult supervision,
lifeguards, fences, gates, pool covers, locks, and so forth, and some devices may not detect
gradual entry.
Always observe the following safety guidelines:
•DO NOT allow children to operate the AquaGuard system without adult supervision.
•This system is a protection device that sounds an alarm to indicate a potential
EMERGENCY situation. When the alarm sounds, PROMPT ACTION by a responsible adult
is essential to preventing serious injury or death.
•Be sure a RESPONSIBLE ADULT is present to observe swimming activities whenever the
AquaGuard system is turned off.

AquaGuard Owner’s Guide RJE Technologies, Inc.
2
General Swimming Pool Safety Guidelines
•NEVER leave children unattended in or around the swimming pool or spa. Children under
five years of age are at GREATEST RISK for injury or death in pool-related accidents.
•DO NOT assume that swimming pool safety devices replace the need for adult supervision.
ALWAYS have a responsible adult present to ensure safety. Give extra attention when
several people are swimming at the same time.
•Teach your children to swim at an EARLY age.
•Instruct ALL pool and spa users in the location and proper operation of safety features. BE
SURE that pool maintenance personnel understand and can properly operate the
AquaGuard system.
•Keep RESCUE EQUIPMENT (such as a rubber life preserver and/or rescue pole)
within easy reach.
•Keep a TELEPHONE close to the pool so it can be easily accessed in case of an
emergency.
•Learn CPR (cardiopulmonary resuscitation) and other life-saving techniques.
•Keep the pool area CLEAR of toys and other obstructions. Keep the water CLEAN and
uncontaminated.
•Keep security gates CLOSED when the pool is unattended.
IF AN ACCIDENT OCCURS
•Get the person out of the pool as QUICKLY as possible.
•IMMEDIATELY call for help, and follow the advice given.
•Administer CPR (cardiopulmonary resuscitation) as directed or a necessary.
•Remove wet clothes and replace with warm covers.
ABOUT THE AQUAGUARD POOL ALARM SYSTEM
The AquaGuard Pool Alarm System is designed to detect a child, pet or object of a minimum size
falling into a pool or spa. The system monitors the movement of water caused by a fall into the pool
or spa by detecting changes in water pressure. When a change in water pressure is great enough
to indicate a fall may have occurred, a siren sounds at the Detector Unit (by the pool or spa) and at
the Remote Unit (inside the house).
AquaGuard technology has been extensively tested to the most rigorous standard in the world for
pool alarms (AFNOR) as well as the U.S. ASTM standard. What does all this mean? It means,
finally, there is a consumer-installed pool alarm system that provides excellent performance
features combined with high immunity to wind, rain and other water surface disruptions.
RJE Technologies, Inc. AquaGuard Owner’s Guide
15
•Hold the Remote Unit near the Detector Unit. Press the Remote Unit OK button 10 times,
then pause; the Remote Unit will beep once. Press the Remote Unit OK button two times;
the Remote Unit will beep twice to confirm the radio link between the Detector Unit and the
Remote Unit is established.
If the Remote Unit sounds one low beep, it indicates the radio link is not established. Make
sure you have enabled the radio link at the Detector Unit, move the Remote Unit closer to
the Detector Unit, and repeat the procedure.
Testing the System
It is strongly recommended that a System Test be performed periodically, using the procedure
described in Installation , STEP 5 on page 8.
Special Considerations During Winter
The AquaGuard system will not operate if the water in your pool becomes frozen. Additionally,
allowing water to freeze in the Sensor Tube can damage the system’s sensing mechanism.
If your pool is located in an area in which freezing normally occurs, and you do not intend to
maintain your pool in a heated state throughout the winter season, you should remove the Detector
Unit before freezing occurs. Store the unit indoors, under cover, and re-install when the water has
thawed.
Be sure to remove the batteries from the Detector Unit when placing the unit in storage for a
prolonged period. Corrosion may occur if the batteries are left in the unit during storage.
The Anti-Theft System
When the AquaGuard Detector Unit is installed and initialized, its internal “anti-theft” system is
enabled. Any attempt to dismantle or remove the Detector Unit without first turning the system off
will cause the alarm siren to sound. To turn off the “anti-theft” alarm, enter 1234*99 on the Detector
Unit keypad.
Be sure to turn the system “off” before removing the Detector Unit for maintenance or storage by
entering 1234*99 on the Detector Unit keypad.

AquaGuard Owner’s Guide RJE Technologies, Inc.
14
•Sensor Tube Check: Check the sensor tube monthly to ensure it is secure and damage-
free (no cracks, breaks, deformation, etc.). Make sure the bottom of the sensor tube is 5 - 6
inches (13 – 15 cm) below the surface of the water. Add water to the pool, or install a
Sensor Tube Extension (see System Components on page 3 for more information) if
needed.
•System Test: Perform a monthly System Test to ensure the system can detect a body of
weight falling into the pool (see Testing the System on page 15 for details).
•Storage During Winter: If the water in your pool normally freezes during the winter months,
the Detector Unit must be removed for storage before freezing occurs (see Special
Considerations During Winter on page 15 for more information).
Replacing the Batteries
Replace the Detector Unit or Remote Unit batteries whenever a low battery is indicated (see
Managing the System on page 12 for a description of the low battery indication).
Be sure to turn the system off whenever replacing the Detector Unit batteries. If the unit is
not turned off, the unit’s Anti-Theft System will sound the alarm (see The Anti-Theft System
on page 15 for more information).
Detector Unit:
1. Press 1234*99 on the Detector Unit keypad to turn the system “off.”
2. Remove the two screws at the rear of the Detector Unit. Lift up slightly at the rear of the
Detector Unit housing, and slide the unit forward off of the base plate.
3. Remove the old batteries from the battery compartment. Install four “D” size batteries in the
battery compartment.
4. Place the Detector Unit housing over the base plate. Lift up slightly on the rear of the
housing. Slide the tab on the front of the base plate into the slot in the nose of the Detector
Unit housing; then lower the housing onto the base plate.
5. Re-install the two screws at the rear of the Detector Unit.
6. The system will now start the arming sequence. The Detector Unit will emit 10 short beeps,
followed by one long beep, indicating that the system is armed. The rear LED will begin
flashing.
Remote Unit:
1. Remove the four screws on the back of the Remote Unit, and remove the back cover.
2. Remove the old battery from the battery clip.
3. Install a new 9-volt battery in the battery compartment by snapping the battery clip onto the
battery posts.
4. Place the back cover onto the Remote Unit, and re-install the four screws.
Re-establish the radio link:
Whenever the batteries are replaced in either the Detector Unit or the Remote Unit, you must re-
establish the radio link.
•Press 1234*7001 on the Detector Unit keypad to enable the radio link.
RJE Technologies, Inc. AquaGuard Owner’s Guide
3
System Components
Your AquaGuard Pool Alarm System is
shipped with the following components:
•Detector Unit (1)
•Remote Unit (1)
•AC Adapter (1)
•Sensor Tube (1)
•Sensor Tube Extensions (2)
•Installation Kit (1)
•Owner’s Manual (not shown)
You will also need the following items NOT SUPPLIED with the system:
•“D” cell batteries (4) to power the Detector Unit
•9-volt battery (1) to power the Remote Unit when not connected to an AC source
Controls and Indicators
Each AquaGuard Pool Alarm System includes a main Detector Unit and a wireless Remote Unit
with transformer. The system can be operated from either unit using the controls and indicators
described below.

AquaGuard Owner’s Guide RJE Technologies, Inc.
4
Swimming Pool Alarm Operation

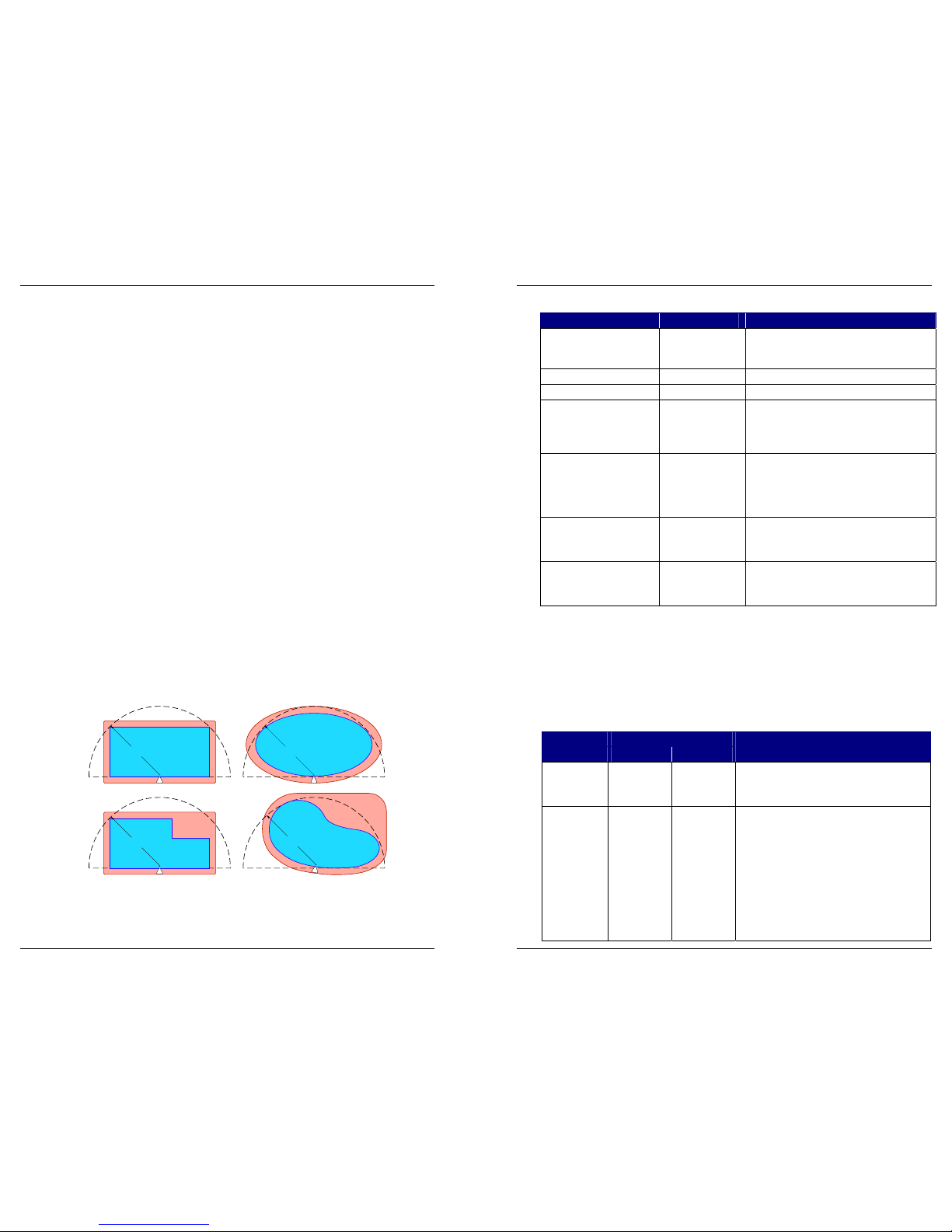

One AquaGuard Pool Alarm System will cover a typical 16 X 32 foot (4.9 X 9.8 meter) rectangular
or kidney-shaped swimming pool. If the pool is larger, or irregularly shaped, two systems will be
needed (consult your AquaGuard dealer or call us directly with questions). When using two
systems, two Detector units can be operated by one wireless Remote Unit. A spa will require a
separate system.
The AquaGuard Pool Alarm System is operated using the keypad on the Detector Unit, or the OK
button on the Remote Unit. An audible "beep" sounds when you press a key on the Detector Unit
keypad:
•Short "beep" for valid entry
•Long "beep" when an error is detected
The AquaGuard Pool Alarm System provides ease of use and intuitive "messaging" that lets you
know the status of the system. When you wan to use the pool, you simply enter your access code
at the Detector Unit's keypad (or from the Remote Unit) putting the system in "swim standby"
mode. A short while after everyone has left the pool, the system will automatically re-arm. We felt
that it is important for you to know the status of the system (whether it is "armed" or on "swim
standby" mode) or when a low battery condition was present. For this purpose, the Detector Unit
has a large red LED visible of the rear of the unit that shows system status (the Remote Unit does
the same). Whenever the system "re-arms", an audible "beep" sounds at the Detector Unit and the
Remote Unit.
ASSEMBLING THE AQUAGUARD SYSTEM
Installing the Batteries
It is recommended that you use “long life” Alkaline batteries in both the Detector Unit and the
Remote Unit.
Detector Unit:
1. Remove the two screws at the rear of the Detector Unit.
2. Turn the unit upside down. Lift up slightly on the base
plate (see photo). Slide the base plate toward the back
of the unit, and remove the base plate from Detector
Unit housing.
3. Install four “D” size batteries in the battery compartment.
4. Slide the tab on the front of the base plate into the slot in
the nose of the Detector Unit housing; then lower the
base plate into place.
5. Reinstall the two screws at the rear of the Detector Unit.
6. The system will now start the arming sequence. The
Detector Unit will emit 10 short beeps, followed by one
long beep, indicating that the system is armed. The rear
LED will begin flashing.
RJE Technologies, Inc. AquaGuard Owner’s Guide
13
Alert and Fault Signal Indications
Indication
Condition Detector Unit Remote Unit Response
Fall or activity in
the pool while
system is in
“ARMED” mode.
Siren sounds. Siren sounds. •Press any key on the Detector Unit keypad;
or
Press the OK key on the Remote Unit once.
•Immediately determine whether an accident has occurred,
and provide aid as necessary.
Anti-Theft alarm
activated (Detector
Unit opened
without turning unit
off)
Siren sounds. Siren sounds. •Enter your access code on the Detector Unit keypad.
NOTE: The Anti-Theft alarm can be cancelled only at the
Detector Unit.
Low battery in
Detector Unit
Red LED blinks
rapidly, and
audible beeps
sound
Red LED shows a
steady series of
single flashes
(one per second)
+ audible beeps
•Press the OK key on the Detector Unit keypad to cancel
the audible beeps (BATTERY indicator will continue
flashing until batteries are replaced).
•Replace Detector Unit batteries as soon as possible to
avoid an interruption in protection (see Replacing the
Batteries on page 14 for details).
Low battery in
Remote Unit
NONE RED LED shows
a steady series of
flashes (two per
second) + audible
beeps
•Replace Remote Unit batteries as soon as possible (see
Replacing the Batteries on page 14 for details) or connect
Remote Unit to AC power source.
Detector fault or
“rough” condition
in pool (accurate
detection cannot
be assured due to
disturbance in
water)
Red LED off Green LED off;
red LED blinks
slowly
•Check to see if water is agitated due to recent swimming
activity or by environmental “noise” (wind, rain, etc.). If so,
allow 6 to 12 minutes for water to settle and unit to “arm.”
NOTE: In case of “rough” condition, it may be necessary to
temporarily disable the system to prevent a “false” alarm. Be
sure to monitor activity around the pool whenever the alarm
is disabled. Be sure to re-activate the alarm when the “rough”
condition is no longer present.
•Make sure the end of the Sensor Tube is at least six
inches below the water surface. If necessary, add water to
pool, or install Extension Tube on Sensor Tube (see The
Remote Unit must always be powered by the AC
adapter. The battery is for back-up and
emergency use only.
•Assembling the Detector Base Unit and
Sensor Tube on page 5 for details).
•If problem cannot be corrected, contact your reseller.
General system
fault
Red LED flashes
rapidlky and
permanently.
RED LED flashes
rapidly and
permanently.
■The AquaGuard system is not functional.
■Contact your reseller immediately.
MAINTAINING THE AQUAGUARD SYSTEM
Once installed, your AquaGuard system requires very little maintenance. To ensure trouble-free
system operation, perform the following maintenance functions at regular intervals:
•Battery Replacement: Replace the Detector Unit batteries (see Replacing the Batteries on
page 14 for battery replacement procedures) whenever a low battery is indicated (see
Managing the System on page 12 for a description of the low battery indication).

AquaGuard Owner’s Guide RJE Technologies, Inc.
12
AquaGuard Operating Modes
Indication
Condition Detector Unit Remote Unit Response
“SWIM” Mode
(continued)
Once you have placed the system in SWIM Mode, you must
enter the pool within nine minutes, or the system will return to
“ARMED” Mode automatically. You can also manually
reactivate the alarm as described below.
Alarm Reactivation Red LED blinks
slowly, and
audible beeps
sound for 10
seconds before
the system returns
to “ARMED” mode
NONE After swimming, the AquaGuard system will automatically
return to “ARMED” Mode after nine minutes. If desired, you
can manually return the system to “ARMED” Mode.
NOTE: If the water has not calmed, the alarm may be
triggered when you place the system in “ARMED” Mode.
To reactivate the alarm:
•From the Detector Unit: Press the OK button on the
Detector Unit keypad twice.
•From the Remote Unit: Press the Remote Unit OK
button two times.
Alarm Condition Siren sounds. Siren sounds. When a potential accident or another activity in the pool is
detected, the alarm sounds. YOU MUST RESPOND
IMMEDIATELY. Press any key on the Detector Unit keypad
to silence the alarm.
NOTE: The alarm will turn off automatically one minute and
30 seconds after activation.
OFF Mode NONE NONE You can turn the AquaGuard system OFF to change the
Detector Unit batteries, or to perform other pool maintenance
activities.
NOTE: Be sure a RESPONSIBLE ADULT is present to
observe swimming activities whenever the system is turned
OFF.
To turn the system OFF: Enter XXXX*99 on the Detector Unit
keypad (where XXXX is your Access Code).
To turn the system ON: Enter your Access Code on the
Detector Unit keypad.
NOTE: Whenever the system has been turned off, then
turned back on, you must perform a functional test of the
system (see Testing the System on page 15 for details).
Managing the System
You can use the LED indicators and alarm siren on the Detector Unit or the Remote Unit to monitor
the current state of your AquaGuard system. The following table shows a list of possible system
conditions, the indications associated with each condition, and the proper responses/remedies to
restore normal system operation.
Be sure to correct system faults promptly to avoid an interruption in protection. If a fault
cannot be corrected, contact your reseller for assistance.
RJE Technologies, Inc. AquaGuard Owner’s Guide
5
Remote Unit:
1. Remove the four screws on the back of the Remote Unit, and remove the back cover.
2. Install one 9-volt battery in the battery compartment by snapping the battery clip onto the
battery posts.
3. Place the back cover onto the Remote Unit, and re-install the four screws.
The Remote Unit must always be powered by the AC adapter. The battery is for back-up and
emergency use only.
Assembling the Detector Base Unit and Sensor Tube
You must assemble the Sensor Tube and Detector Unit before installing the unit at poolside.
1. Remove the screw from the front fitting of the Detector Unit.
Make sure the o-ring is installed on the front
fitting of the Detector Unit before installing
the Sensor Tube.
2. Slide the short end of the Sensor Tube onto
the front fitting of the Detector Unit. Twist the
Sensor Tube back and forth slightly while
applying firm pressure to slide the tube onto
the fitting.
3. Line up the hole at the top of the Sensor Tube
with the mating hole in the front fitting of the
Detector Unit; then re-install the screw to
secure the tube in place.
Depending on the installation site for the
Detector Unit (see Installation on page 6 for
details), you may need to install one or more
Sensor Tube Extensions. If so, simply slide
the Extension(s) onto the end of the Tube.
The Tube must penetrate the water by 5-6
inches (13-15 cm).
INSTALLING THE AQUAGUARD SYSTEM
Installation Considerations
There are a number of features that can affect AquaGuard’s “detection” abilities. Keep the following
system limitations in mind to ensure optimum performance of your AquaGuard system:
•The AquaGuard alarm must be audible from inside your home. Be sure to verify the alarm
can be heard inside your home when testing the system during installation. Care should be
taken to place the Remote Unit in an accessible location, preferably plugged into a standard
wall outlet. This way you know where it is, and that it is powered.
•Pool cleaners (sweepers) that move around the pool, climb the pool walls, and fall back into
the pool can look like a small child to the AquaGuard system. False alarms can occur if the
pool sweeper hits the Sensor Tube.

AquaGuard Owner’s Guide RJE Technologies, Inc.
6
•Water movement caused by high velocity/high flow filtration systems can affect
AquaGuard’s “detection” sensitivity.
•Extreme environmental conditions (strong wind, heavy rain) can affect AquaGuard’s
“detection” sensitivity. The time required to return to “armed” mode under these conditions
may be longer than normal.
•In order to properly detect and signal a potential, the AquaGuard Detector Unit must be
installed within 22 feet (6.7 meters) of all possible fall locations. Larger pools should be
equipped with an additional Detector Unit to meet this requirement.
•Pools with perimeter overflow are not compatible with AquaGuard.
•Vanishing edge (Infinity or zero edge) pools typically require two AquaGuard Detector Units.
Tools Required
You will need the following tools and materials to install and test the AquaGuard system:
•Marking pen •Flat-head screwdriver
•Drill •2.5 (19.5 liter) gallon water container
•¼” (7 mm) Masonry drill bit •Rope
•Phillips-head screwdriver
Installation
STEP 1 - Choose the Detector Unit Installation Site
•The Detector Unit must be installed within 22 feet (6.7 meters) of all possible fall
locations, and must have direct view of the rest of the pool. In most cases, this location
will be at the middle of the longest side of your pool. Typical examples of installation are
shown below.
22 FEET
(6.7 METERS)
22 FEET
(6.7 METERS)
22 FEET
(6.7 METERS)
22 FEET
(6.7 METERS)
•Be sure that the Detector Unit is not installed next to any pool features (jets, water
features, etc.) that may cause disturbance.
•Be sure that the Detector Unit can be accessed easily.
RJE Technologies, Inc. AquaGuard Owner’s Guide
11
User-Configurable Parameters
Parameter Key Combination Allowable Values
Access Code XXXX*01YYYY XXXX = Current access code
YYYY = New access code
Default Value = 1234
Enable Radio Link XXXX*7001 XXXX = Access code
Disable Radio Link XXXX*7000 XXXX = Access code
Radio channel used – this
parameter can be changed to
remedy a “weak signal” condition
(see Managing the System on
page 11 for more information)
XXXX*70NN XXXX = Access code
NN = radio channel; allowable values are 11 through 26
Default Value = 11
Radio address for the AquaGuard
devices – an AquaGuard system
may use more than one Detector
Unit and/or Remote Unit; each
component must be set to the
same radio address)
XXXX*71NN XXXX =- Access code
NN = radio address; allowable values are 00 through 99
Default Value = 00
Radio Test – tests radio
transmission from the Detector
Unit and reception by the Remote
Unit
XXXX*72M XXXX = Access code
M= Test Mode; 0 for transmission, 1 for reception
Reset System Parameters Press and hold 1 and 3
keys while replacing
Detector Unit batteries
ALL user-configurable values are reset to the factory
defaults. If system parameters are reset, you must re-
establish the radio link (see Installation, STEP 4, on page
7 for details)
Operating the System
Your AquaGuard system has five operating modes or states. This section describes the
AquaGuard modes of operation, and provides the procedures for entering and/or exiting each
mode. You can control and monitor your AquaGuard system from either the Detector Unit or the
Remote Unit. Refer to Controls and Indicators on page 3 for general instructions on using system
controls and indicators.
AquaGuard Operating Modes
Indication
Condition Detector Unit Remote Unit Response
“ARMED” Mode Red LED blinks
once every two
seconds
Green LED shows
a steady series of
single blinks.
“ARMED” Mode is the normal operating mode for the
AquaGuard system. When the AquaGuard system is in
“ARMED” Mode, an alarm sounds whenever a fall is detected
(or there is similar activity in the pool).
“SWIM” Mode Red LED is off Green LED is off;
red LED blinks
slowly
You must place the AquaGuard system in “SWIM” Mode
whenever you wish to use your swimming pool. When the
AquaGuard system is in “SWIM” Mode, activity in the pool will
not trigger the alarm. Be sure a RESPONSIBLE ADULT is
present to observe swimming activities whenever the system
is place in “SWIM” Mode.
To place the system in “SWIM” Mode:
•From the Detector Unit: Enter your Access Code on the
Detector Unit keypad.
•From the Remote Unit: Press the Remote Unit OK
button three times.

AquaGuard Owner’s Guide RJE Technologies, Inc.
10
Installing Two Detector Units
The AquaGuard Pool Alarm System can be configured with two Detector Units when required due
to pool size or to accommodate a vanishing edge (Infinity) type design, as shown on the following
page.
22 FEET
(6.7 METERS)
22 FEET
(6.7 METERS)
•Assemble and position the Detector Units as described in STEP 1 and STEP 2.
•Establish the radio link between the Remote Unit and both Detector units as described
in STEP 4.
Be sure to set both Detector Units to the same radio channel; e.g., press 1234*7001 on
Detector Unit 1 and Detector Unit 2.
OPERATING THE AQUAGUARD SYSTEM
Refer to Controls and Indicators on page 3 for a description of the controls and indicators used to
operate and monitor your AquaGuard system. Once your AquaGuard system has been installed,
and the radio link established, you can control and monitor the system from either the Detector Unit
or from the Remote Unit.
A “Quick Reference” guide to operating your AquaGuard system is provided on the back cover of
this manual. For detailed operating instructions, see the following paragraphs:
•Refer to Setting System Parameters on page 10 for instructions on setting user-configurable
operating parameters for your AquaGuard system.
•Refer to Operating the System on page 11 for procedures to switch system operating
modes, cancel an active alarm, and turn the system ON and OFF.
•Refer to Managing the System on page 12 for descriptions of “alert” and “fault” indications
and corrective actions.
Setting System Parameters
The AquaGuard system has several user-configurable parameters. Each parameter has a factory-
set default value. You can leave these parameters at their default values, or modify the parameters
to “personalize” your system. The following table shows a list of user-configurable system
parameters, the key combination used to modify the parameter, and the allowable values for each
parameter.
All user-configurable parameters must be modified at the Detector Unit. Refer to Controls and
Indicators on page 3 for general instructions on using the Detector Unit keypad.
RJE Technologies, Inc. AquaGuard Owner’s Guide
7
STEP 2 - Position the Detector Unit at the Chosen Site
•Place the Detector Unit at the installation site so the Sensor Tube extends into the
water.
•Make sure the bottom of the Sensor Tube is between 5 - 6 inches (13 – 15 cm) below
the water’s surface.
If the Sensor Tube is too short, install a Tube
Extension on the Sensor Tube to meet the
required depth (see Assembling the Detector
Base Unit and Sensor Tube on page 5 for
details).
If the Sensor Tube is too long, it may be
necessary to cut the Tube to the proper length.
BE SURE the water in the pool is at its normal
level before measuring. Fill the pool if
necessary. BE SURE to measure carefully
before cutting the Tube.
If the tube end is at less than 5 inches (15 cm), unwanted alarms may occur. If the tube
end is deeper than 6 inches (15 cm), the unit’s “detection” sensitivity will be lessened.
STEP 3 - Choose a Location for the Remote Unit
•The Remote Unit must be placed within 150 feet of the Detector Unit.
The Selected location should have as few obstructions between the Remote Unit and
the Detector Unit as possible. Interior and exterior walls or other obstacles will reduce
the range of the Remote Unit.
•Choose a location that will allow the Remote Unit alarm to be heard throughout the
house.
•Choose a location that is near an AC outlet to allow the Remote Unit to be powered by
the AC adapter.
The Remote Unit must always be powered by the AC adapter. The battery is for back-up
and emergency use only.
STEP 4 - Establish the Radio Link
The AquaGuard system uses a radio transmitter/receiver to allow communication between
the Detector Unit and the Remote Unit. You must establish the radio link to use the Remote
Unit to monitor and control your AquaGuard system.
•Ensure that the Detector Unit is on (the red LED on the rear of the Unit flashes slowly
when the Unit is on).
•Press 1234*7001 on the Detector Unit keypad to enable the radio link.
•Hold the Remote Unit near the Detector Unit. Press the Remote Unit OK button 10
times, then pause; the Remote Unit will beep once. Press the Remote Unit OK button
two times; the Remove Unit will beep twice to confirm the radio link between the
Detector Unit and the Remote Unit is established.
5 - 6 INCHES
(13 - 15 CM)

AquaGuard Owner’s Guide RJE Technologies, Inc.
8
If the Remote Unit sounds one low beep, it indicates the radio link is not established.
Make sure you have enabled the radio link at the Detector Unit, move the Remote Unit
closer to the Detector Unit, and repeat the procedure.
STEP 5 - Test the System for Detection
Prepare a Test Simulator
•Fill a 2.5-gallon (19.5 liter) water container with enough water to weigh approximately 15
pounds (6.8 kg).
•Tie a 6-foot (1.8 meter) length of rope to the container handle.
Perform Test One
•Make sure both the “ARMED” LED on the Detector Unit and the “green” LED on the
Remote Unit are on.
If the LEDs are not on, the system is not “armed”. Allow additional time for the water in
the pool to settle enough to allow the Detector Unit to “arm.”
•Place the test simulator on the edge of the pool, 4 - 6 feet (1.2 – 1.8 meters) from the
Detector Unit.
•Hold the rope, and roll the test simulator into the pool. Both the Detector Unit and the
Remove Unit alarms should sound.
If the alarms do not sound, it may be necessary to change the location of the Detector
Unit.
Reset the System
•Press any key on the Detector Unit keypad to turn the alarm off.
•Remove the test simulator from the pool.
•Wait 6 to 10 minutes to allow the unit to automatically “re-arm.” When the water has
stabilized and the unit is “armed”, the “ARMED” LED will blink and the beep sequence
will repeat.
Perform Test Two
•Make sure both the “ARMED” LED on the Detector Unit and the “green” LED on the
Remote Unit are on.
If the LEDs are not on, the system is not “armed”. Allow additional time for the water in
the pool to settle enough to allow the Detector Unit to “arm.”
•Place the test simulator on the edge of the pool, at the point farthest from the Detector
Unit, not to exceed 22 feet (6.7 meters).
•Hold the rope, and roll the test simulator into the pool. Both the Detector Unit and the
Remote Unit alarms should sound.
If the alarms do not sound, it may be necessary to change the location of the Detector
Unit.
RJE Technologies, Inc. AquaGuard Owner’s Guide
9
Reset the System
•Press any key on the Detector Unit keypad to turn the alarm off.
•Remove the test simulator from the pool.
•Press 1234*99 on the Detector Unit keypad to turn the system “off.”
The Detector Unit's "anti-theft" alarm will sound if the Unit is dismantled while the system is
on. Enter 1234 on the Detector unit keypad to deactivate the "anti-theft" alarm.
STEP 6 - Mount the Detector Unit Base Plate
•Mark the location of the Detector Unit on the pool deck. Remove the Detector Unit from
the pool.
•Remove the two screws at the rear of the Detector Unit, and slide the base plate off the
Detector Unit housing. Remove the batteries from the Detector Unit to prevent the "anti-
theft" alarm from activating.
•Place the base plate at the previously marked position. Use a permanent marker to
mark the locations of the three holes in the base plate. Set the base plate aside.
•Use a drill and ¼”(7 mm) masonry bit to drill three holes, ¾” (19 mm) deep, at the
marked locations.
Be sure to drill the holes straight and perpendicular to the surface of the pool deck. If the
hoes are drilled at an angle, the base plate may not secure properly.
•Install one plastic insert (provided) into each of the drilled holes.
•Place the base plate on the pool deck over the drilled holes. Secure the base plate to
the pool deck with the three screws provided.
•Re-install the batteries in the Detector Unit. Place the Detector Unit housing over the
base plate. Lift up slightly on the rear of the housing. Slide the tab on the front of the
base plate into the slot in the nose of the Detector Unit housing; then lower the housing
onto the base plate.
•Re-install the two screws at the rear of the Detector Unit.
STEP 7 - Confirm the System is On and Armed
•Wait 6 to 10 minutes to allow the unit to automatically “arm.” When the water has
stabilized and the unit is “armed”, the “ARMED” LED will blink and the beep sequence
will repeat.
•Establish the radio link as described in step 4.
•Repeat the tests described in step 5.
