RLH Industries 1+1 PORT SLIMLINE User manual

!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com!Page 1
Ethernet Over Fiber Converter
1+1 PORT SLIMLINE DIN MOUNT
Introduction
The RLH 1+1 Port SlimLine Ethernet Over Fiber system is a
hardened, DIN mountable multifunction converter that supports
10/100M Ethernet communications over fiber optic cable. Fiber
optics not only provide the long distance Ethernet transmission
capability up to 74 miles (120km), but also provide immunity to
EMI/RFI and transient surges. They are ideal for data
communications near large electrical equipment or where radio
interference can be an issue.
The SlimLine converter is a compact unit that requires only
32mm of DIN rail space, and requires a local 12~36VDC power
to operate.
Key Features
• Ideal for critical, high voltage, remote or un-manned
locations that must remain operating 24/7/365
• IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
• RJ45 UTP port with 10/100 auto-negotiation
• MDI-II/MDI-X auto detection
• Extends network span up to 1.2 miles (2km) on multimode and
up to 74 miles (120km) on single-mode fiber
• Convenient LED status indicators
• Dual and Single (bi-directional) fiber models available
• Environmentally hardened to operate in -40˚F to +167˚F
(-40˚C to +75˚C) environments
• DIN rail mount
• Covered by our 5 year warranty
2013A-0724
Specifications subject to change without notice.
Contents
_________________________Introduction !1
_________________General Safety Practices!2
____________Special Handling Requirements!2
___________________________Acronyms !3
_________________________Applications !4
__________________________Installation !4
_______________________LED Indicators !5
______________________Troubleshooting !6
__________________Ordering Information !6
_________________________Specifications!7
___________________________Warranty !8
_____________________Technical Support !8
&-) )
RLH Ethernet over fiber converter with DIN rail mount
The leader in
rugged fiber optic
technology.
USER GUIDE
RLH Industries, Inc.

General Safety Practices
Intended Audience
This guide is intended for use by knowledgeable telco/network installation, operation and repair
personnel. Every effort has been made to ensure the accuracy of the information in this guide is accurate.
However, due to constant product improvement, specifications and information contained in this
document are subject to change without notice.
Conventions
Symbols for notes, attention, and caution are used throughout this manual to provide readers with
additional information, advice when special attention is needed, and caution to prevent injury or
equipment damage.
The equipment discussed in this document may require tools designed for the purpose being described.
RLH recommends that service personnel be familiar with the correct handling and use of any installation
equipment used, and follow all safety precautions including the use of protective personal equipment as
required.
Caution - Severe Shock Hazard
• Never install during a lightning storm or where unsafe high voltages are present.
• Copper network wires may carry high DC voltages. Use caution when handling copper wiring.
Warning
The intra-building port(s) of the equipment or subassembly is suitable for connection to intrabuilding or
unexposed wiring or cabling only. The intra-building port(s) of the equipment MUST NOT be metallically
connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as
intra-building interfaces only (Type 4 ports as described in GR-1089-CORE, Issue 4) and require isolation
from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to
connect these interfaces metallically to OSP wiring.
Special handling requirements
Be careful when handling electronic components
ATTENTION
ELECTROSTATIC
SENSITIVE
DEVICES
• This product contains static sensitive components.
• Do not open the enclosure, there are no user serviceable parts.
• Follow proper electrostatic discharge procedures.
This product utilizes circuitry that can be damaged by static electricity. Before installing, discharge static
electricity on your body by physically making contact with earth ground. Failure to follow ESD precautions
may cause damage to the unit and prevent proper operation.
Page 2!!!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com

Guidelines for handling terminated fiber cable
• Do not bend fiber cable sharply. Use gradual and smooth bends to avoid damaging glass fiber.
• Keep dust caps on fiber optic connectors at all times when disconnected.
• Do not remove dust caps from unused fiber.
• Keep fiber ends and fiber connectors clean and free from dust, dirt and debris. Contamination will cause signal loss.
• Do not touch fiber ends.
• Store excess fiber on housing spools or fiber spools at site
Acronyms
Commonly used acronyms and abbreviations
Acronym/Abbreviation
Description
UTP
Unshielded Twisted Pair (commonly used in Ethernet networks)
TP
Twisted Pair (same as UTP)
TX
Transmit
RX
Receive
PWR
Power
LED
Light Emitting Diode
GRN
Green
ORG
Orange
Applications
Network equipment in high voltage areas can be at risk due to Ground Potential Rise (GPR). A copper
network cable referenced to a remote ground can become a path for high voltages during a ground fault.
Use of all-dielectric fiber optic cable instead of copper completely eliminates the presence of a remote
ground, which dramatically increases safety of personnel and reliability of equipment. By utilizing fiber
optic cable, the 10/100M Ethernet over fiber converter provides absolute electrical isolation between both
ends of the network.
Copper twisted pair Ethernet is limited to 100m/328ft without extenders. Using fiber optic cable provides
long distance service up to 120km/74mi. without any additional equipment. Optical fiber is immune to
EMI/RF interference, ground loops, and high voltage surges from lightning or ground faults, and is ideal in
electrically noisy environments such as near large power sources, electrical motors, and radio
communications equipment.
!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com!Page 3

RLH Ethernet over
Fiber Converter
RLH Ethernet over
Fiber Converter
12~36VDC Power Supply 12~36VDC Power Supply
Network
or
Ethernet
Device
Network
or
Ethernet
Device
Ethernet Ethernet
Fiber Optic Cable
Up to 120km/74 mi.
Typical Ethernet System Diagram
Installation
Prior to installation:
• Check for shipping damage
• Check the contents to ensure correct model and fiber type
• Have a clean, dry, DIN rail or wall mount installation environment ready
Required for installation:
•12~36VDC local power source
Note: In order to maintain high voltage isolation, Units at each end must be powered from separate
isolated power sources.
Connect fiber optic cable
Multimode and single-mode Ethernet cards are equipped with dual ST, SC or FC female optical
connectors, or a single bi-directional connector, depending on the model.
Connect fibers to the TX (Transmit) and RX (Receive) optical connectors. For dual fiber models, the TX
connector must go to the RX connector on the unit at the other end. The other end of the fiber may be
connected to another SlimLine 10/100 Ethernet converter or any compatible 100Base-FX FIber Optic
Ethernet device.
For bi-directional, single fiber models, there is only one connector used for transmitting and receiving.
Bi-directional units must be used in pairs.
Note: Fiber cable should always be routed loosely avoiding tight bends.
Connect Ethernet cable
The 10/100/Base-T copper connection is made via the RJ45 port. The TP port is auto-negotiating and
requires no additional settings.
Connect Power
Attach a FG ground wire to the ground screw on the housing. Alternately, attach a ground wire to the FG
terminal on the power connector. Connect a local 12~36VDC power supply to the power input terminals.
Note: The power terminals are polarity sensitive. Attach the Positive DC wire to the V+ terminal.
Page 4!!!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com

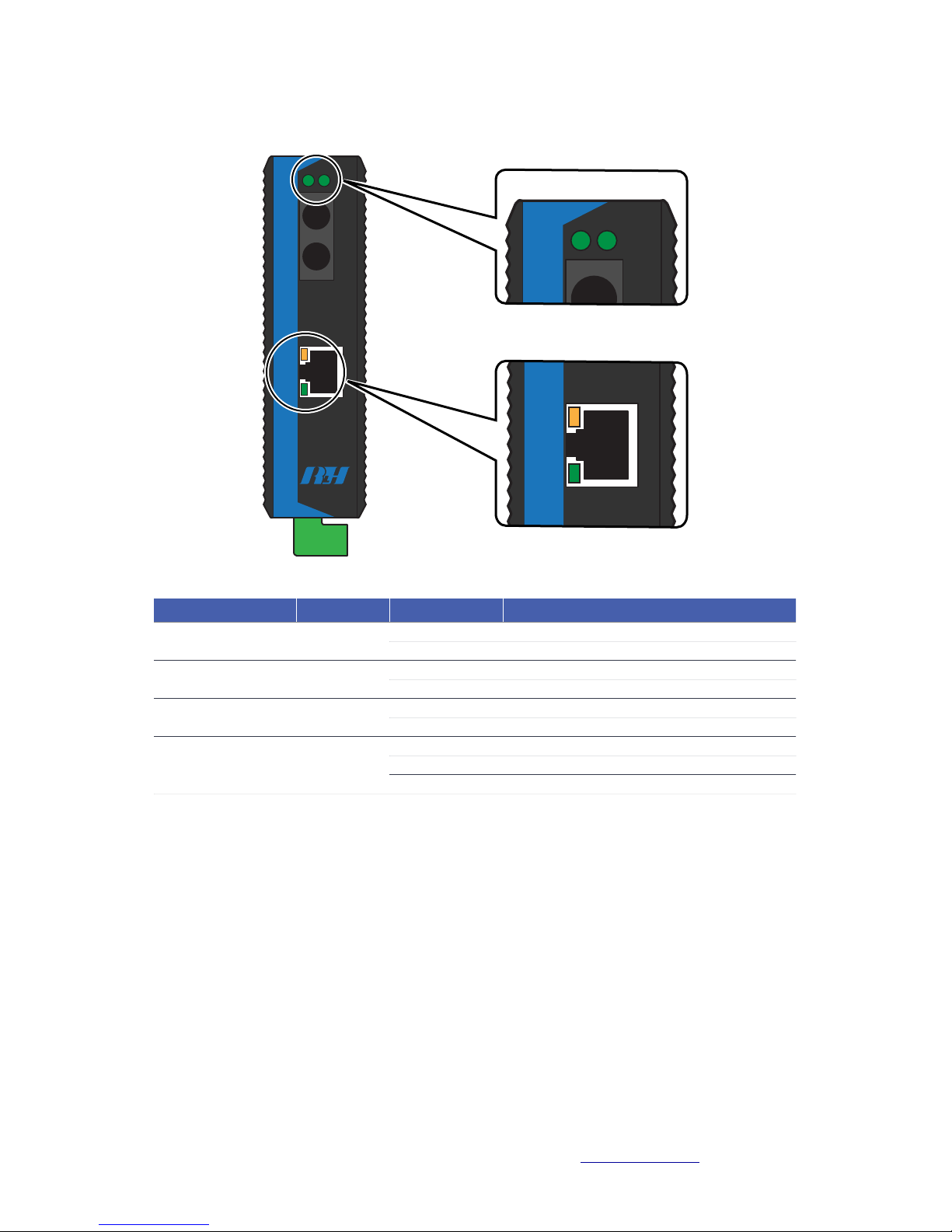

LED Indicators
TX RX
10/100M
Industrial Media Converter Link/ACT
PWR FLNK
TX RX
10/100M
Industrial Media Converter Link/ACT
PWR FLNK
TX RX
10/100M
Industrial Media Converter Link/ACT
PWR FLNK
Indicator
Color
LED
Description
PWR
GRN
PWR
GRN
FLNK
GRN
FLNK
GRN
10/100M
ORG
10/100M
ORG
LINK/ACT
GRN
LINK/ACT
GRN
LINK/ACT
GRN
ON
System power is present
OFF
System power is disconnected
ON
Fiber link OK
OFF
Fiber link FAIL
ON
TP port speed is 100M
OFF
TP port speed is 10M
ON
Established network connection
Blinking
TP port activity
OFF
No network connection established
Troubleshooting
If trouble is encountered, verify all copper and fiber connections. Refer to the LED Indicators on of the
unit. They show availability of power, modes of operation, and data being received by the fiber and TP
ports.
If trouble persists, replace the unit and retest. If technical assistance is required, contact the RLH
Industries, inc. technical support department:
800-877-1672 (6 am to 6 pm- PST),
or call our 24/7 Technical/Customer Service: [phone] or [phone]
!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com!Page 5

Ordering Information
Code
Distance Range
Distance Range
Distance Range
Distance Range
Distance Range
Code
01
02
03
04
05
10
11
12
13
14
15
20
21
22
23
24
25
30
31
32
33
34
35
40
41
42
50
51
52
60
61
62
SC Connector 2km/1.25mi. 20km/12.4 mi. 40km/24.9 mi.
60km/37 mi.
ST Connector Single Fiber
Bi-Directional
Dual Fiber
120km/74 mi.
Multimode Single Mode FC Connector
FXO/CO Side FXS/Sub Side Either Side
ES2 - 00 -1
Product Designation
Model Designation
Configuration Code
Bidirectional single fiber models require a TX unit and a RX unit for a complete system
Please contact your RLH sales representative for pricing and delivery information
Page 6!!!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com
Specifications subject to change without notice.

General Specifications
Protocols
100Base-FX, 10Base-T, or 100Base-TX
100Base-FX, 10Base-T, or 100Base-TX
100Base-FX, 10Base-T, or 100Base-TX
100Base-FX, 10Base-T, or 100Base-TX
100Base-FX, 10Base-T, or 100Base-TX
Standards
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
IEEE 802.3, IEEE 802.3x, IEEE 802.3u compliant
Copper
Connector
RJ45 UTP
RJ45 UTP
RJ45 UTP
RJ45 UTP
RJ45 UTP
Copper Distance
100m / 328 feet
100m / 328 feet
100m / 328 feet
100m / 328 feet
100m / 328 feet
Fiber Connector
ST. SC OR FC*
ST. SC OR FC*
ST. SC OR FC*
ST. SC OR FC*
ST. SC OR FC*
Fiber Connector
Dual fiber or single bidirectional fiber connectors
Dual fiber or single bidirectional fiber connectors
Dual fiber or single bidirectional fiber connectors
Dual fiber or single bidirectional fiber connectors
Dual fiber or single bidirectional fiber connectors
Dual Fiber Optics
Fiber Type
Multimode
Single-mode
Single-mode
Single-mode
Dual Fiber Optics
Wavelength TX/RX (nm)
1310
1310
1310
1310
Dual Fiber Optics
Distance
2km / 1.2 mi.
20km / 12 mi.
60km / 36 mi.
120km / 74 mi.
Dual Fiber Optics
Min. TX PWR (dBm)
-18
-15
-6
0
Dual Fiber Optics
Max. TX PWR (dBm)
-10
-8
-3
+5
Dual Fiber Optics
RX Sensitivity (dBm)
-31
-34
-34
-34
Dual Fiber Optics
Link Loss Budget (dBm)
13
19
28
34
Single Fiber
Optics
(Bi-directional)
Fiber Type
Multimode
Single-mode
Single-mode
Single-mode
Single Fiber
Optics
(Bi-directional)
Wavelength (nm)
1550
1550
1550
1550
Single Fiber
Optics
(Bi-directional)
Distance
2km / 1.2 mi.
20km / 12 mi.
40km / 25 mi.
60km / 36 mi.
Single Fiber
Optics
(Bi-directional)
Min. TX PWR (dBm)
2-17
-14
-9
-5
Single Fiber
Optics
(Bi-directional)
Max. TX PWR (dBm)
-10
-8
-5
-3
Single Fiber
Optics
(Bi-directional)
RX Sensitivity (dBm)
-31
-34
-34
-34
Single Fiber
Optics
(Bi-directional)
Link Loss Budget (dBm)
14
20
25
29
LED Indicators
PWR
System power - ON: power OK, OFF: no power
System power - ON: power OK, OFF: no power
System power - ON: power OK, OFF: no power
System power - ON: power OK, OFF: no power
LED Indicators
FLNK
Fiber port link - ON:Link OK, OFF: link fail
Fiber port link - ON:Link OK, OFF: link fail
Fiber port link - ON:Link OK, OFF: link fail
Fiber port link - ON:Link OK, OFF: link fail
LED Indicators
10/100M
10/100 TP port speed - ON: 100M, OFF: 10M
10/100 TP port speed - ON: 100M, OFF: 10M
10/100 TP port speed - ON: 100M, OFF: 10M
10/100 TP port speed - ON: 100M, OFF: 10M
LED Indicators
LINK/ACT
TP link - ON: Connection is OK, Blink: Port Activity,
OFF: No network connection present
TP link - ON: Connection is OK, Blink: Port Activity,
OFF: No network connection present
TP link - ON: Connection is OK, Blink: Port Activity,
OFF: No network connection present
TP link - ON: Connection is OK, Blink: Port Activity,
OFF: No network connection present
Power Input
12~36VDC, 0.5W, Screw-down terminal block
12~36VDC, 0.5W, Screw-down terminal block
12~36VDC, 0.5W, Screw-down terminal block
12~36VDC, 0.5W, Screw-down terminal block
12~36VDC, 0.5W, Screw-down terminal block
Dimensions
H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
H4.1” x W1.3” x D3.1” (103mm x 32mm x 78mm) not including DIN mount bracket
Temperature
Operating
-40˚F to +167˚F (-40˚C to +75˚C)
-40˚F to +167˚F (-40˚C to +75˚C)
-40˚F to +167˚F (-40˚C to +75˚C)
-40˚F to +167˚F (-40˚C to +75˚C)
Temperature
Storage
-49˚F to +185˚F (-45˚C to +85˚C)
-49˚F to +185˚F (-45˚C to +85˚C)
-49˚F to +185˚F (-45˚C to +85˚C)
-49˚F to +185˚F (-45˚C to +85˚C)
Humidity
10~95% non-condensing
10~95% non-condensing
10~95% non-condensing
10~95% non-condensing
10~95% non-condensing
* Multimode bidirectional sing fiber optics available with SC connectors only
!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com!Page 7

Warranty
RLH is recognized throughout the U.S. in the telecommunications industry for our experience and we
stand with total confidence in our quality. This product is warranted to be free of defects in material and
workmanship for up to 5 years of service.
RLH Industries, Inc. will repair or replace these products that fail provided the defective part is returned to
RLH freight prepaid.
To make a warranty claim, or schedule repair or replacement of your RLH product, please
contact us for an RMA number. You will be promptly assisted by one of our warranty specialists. All
returns must have an RMA number before we can receive any items.
Technical Support
Email:
support@fiberopticlink.com
24/7 technical support:
Toll Free 1-855-RLH-24X7
Toll Free 1-855-754-2497
Contact Information
Corporate Headquarters:
RLH Industries, Inc.
936 N. Main Street
Orange, CA 92867 USA
Phone:
[phone]
Toll Free 1-800-877-1672
Toll Free 1-866-DO-FIBER
Fax:
[phone]
Email:
info@fiberopticlink.com
Web site:
www.fiberopticlink.com
RLH Industries, Inc.
936 N. Main Street, Orange, CA 92867 USA
T: [phone]
F: [phone]
Please contact your RLH sales representative
for pricing and delivery information.
Specifications subject to change without notice.
Page 8!!!RLH Industries, Inc. • Tel. 866-DO-FIBER • Fax [phone] • www.fiberopticlink.com
