RM FTH-704 E User manual

INSTRUCTIONS FOR INSTALLATION AND USE
DIE GEBRAUCHS-, UND INSTALLATIONSANWEISUNG
NOTICE D’INSTALLATION ET D’EMPLOI
www.rmgastro.com
ELECTRIC GRIDDLE PLATES
FTH – 704 E / FTH – 708 E / FTHR - 708 E / FTR - 708 E
FTR - 704 E / FTH-C - 704 E / FTH-C - 708 E
FTHR-C - 708 E / FTR-C - 704 E / FTR-C - 708 E
FTH – 740 E / FTH – 780 E / FTHR – 780 E / FTR – 740 E
FTR-C - 780 E / FTR-C - 740 E / FTRH-C - 780 E
FTH-C - 780 E / FTH-C - 740 E / FTR - 780 E

DECLARATION OF A STANDARDS CONFORMITY
The producer confi rms that the devices agree with 2004/108/ES, 2006/95/ES standards, rule nr. 616/2006
sb., 17/2003 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards.
Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due
to wrong instalation, incorrect intervention or modifi cation, insuffi cient maintenance, incorrect use and also
possibly caused by other reasons presented by items in sale conditions. This appliance is set only for skilled
use and must be operated by qualifi ed persons only. Parts set and secured by the producer or accredited
person must not be rebuilt by user.
TECHNICAL DATA
Label with technical data is placed on the back side of the device. Study the electrical diagram of connection
and all following information before instalation.
3
6
7
8
12
13
14
18
19

DECLARATION OF A STANDARDS CONFORMITY
The producer confi rms that the devices agree with 2004/108/ES, 2006/95/ES standards, rule nr. 616/2006
sb., 17/2003 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards.
Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due
to wrong instalation, incorrect intervention or modifi cation, insuffi cient maintenance, incorrect use and also
possibly caused by other reasons presented by items in sale conditions. This appliance is set only for skilled
use and must be operated by qualifi ed persons only. Parts set and secured by the producer or accredited
person must not be rebuilt by user.
TECHNICAL DATA
Label with technical data is placed on the back side of the device. Study the electrical diagram of connection
and all following information before instalation.
3
MODEL VOLTAGE
(V) WATTAGE (KW) TOP DIMENSIONS (MM) DIMENSIONS (MM)
FTH-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTR-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTH-C-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTR-C-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTH-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTR-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTHR-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTH-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTR-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTHR-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTH-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTR-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTH-C-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTR-C-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTH-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTR-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTHR-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTH-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTR-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTHR-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v

4
PLACEMENT
The device must be instalated in well ventilated room what is necessary for regulation of the function of the
device (technician must go by valid standard (EN....). If the device is situated close to the wall or if it is in
contact with the furniture walls, these walls must resist the temperatures ranging to 90°C. Instalation, setting,
putting into operation must be done by qualifi ed person who is competent for this and according to the valid
standards.
Wrap up the device and check whether it was not damaged during transport. Settle the device on horizontal
surface (max imbalance 2°).Settle the device under the fumehood to eliminate water steam and bad smell.
The device can be instalated separately or in a set with devices of our production. Min. distance 10 cm
from other subjects must be kept.It is also necessary to prevent our product from contact with combustible
materials. In this case you must make corresponding changes to secure heat izolation of combustible parts.
Safety measures from the standpoint of the fi re protection according to EN 061008čl. 21:
TECHNICAL INSTRUCTIONS FOR INSTALATION AND REGULATION
Important:
The manufacturer does not provide warranty for defects caused by improper use, failure to instructions
contained in the attached instructions for use and mistreatment of the appliances.
Installation, adjustment and repair of appliances for kitchens, as well as their removal because of possible
damage to the gas can be carried out only under a maintenance contract, this contract may be signed with an
authorized dealer, and must be complied with regulations and technical standards and regulations regarding
the installation, power supply, gas connection and health & safety system.
These instructions are intended for the qualifi ed technician who must perform the installation, put it into
operation and test the appliance.
Any activity as settings, placement, rebalancing etc, must be made only when is device disconnected from
electricity. If it is necessary to have the device connected to the electricity you must keep the highest attention
to avoid any injuries.
DEVICE INSTALATION
Instalation, setting, rebuilding for another gas type, putting into operation must be done by qualifi ed person
whois competent for this and according to the valid standards. The device can be instalated in good ventilated
room. When it is possible place the device under the fumehood to suck off the products of combustion. Air
needy to the burning is 2m/3/h/kW ot the performance of the instaled device. The device can be instalated
separately or in a set with devices of our production. Min. distance 10 cm from other subjects must be kept.It
is also necessary to prevent our product from contact with combustible materials. In this case you must make
corresponding changes to secure heat izolation of combustible parts (for example:place between the device
and combustible material azbestos plate).
PACKING AND DEVICE CHECK
The device leaves our stocks properly packed with appropriate symbols and labels. There are also appropriate
instructions for use. In case the packing shows bad handling or damage, it must be reclaimed at transporter
immediately by writing and signing of a damage protocol.
Important notice:
• only for proff esional use
• this instructing guide must be read properly and carefully because it contains important information about
safety elements, installation, use
• these recommendations refer to this product
• this product corresponds with valid standards
• this guide must be properly deposited for future use
• keep the children away from manipulation with the product
• when selling or moving the product to another place it is necessary top make yourself sure that the staff
or the professional service has got acquainted with control and installation instructions from enclosed guide
• only authorised person can operate the product
• it can not be switched on without supervision
• we recommend to have the product checked by professional service min. once a year
• only original spare parts can be used for repairs
• the product can not be cleaned by the water jet or pressure shower
• by damage or break down disconnect all the feeders (water, gas, electricity) and call professional service
• producer refuses any responsibility in case of damages caused by wrong installation, by disobserving of
above mentioned recommendations or by other use etc.

SAFETY MEASURES FROM THE STANDPOINT OF THE FIRE
PROTECTION ACCORDING TO EN 061008 ČL. 21
• only adults can operate the device
• device must be safely used in common surroundings according to EN 332000-4-462; EN 332000-4-42. You
must switch the gas device off under the circumstances leading: to the danger of the temporary rise of the
combustion gas or steam or during works when there is a big possibilityof rise ot the temporary fi re danger
or explosion (for example: to stick linoleum, PVC etc.).
• before you start to instal the device you must get the licence for connection to the gas feeder from the
gasworks
• device must be placed so as to stand or hang on the noncombustible surface which is on each side 10
cm larger than the device. No subjects from combustible materials can be placed directly on the device
or in distance which is shorter than safety distance (the shortestdistance is 50 cm in the direction of the
heat emission and 10 cm in other directions).- safety distances from various materials of diff erent degree of
combustion and information about the degree of comb. of common building materials - see chart:
Chart:
Combustion degree of building materials classifi ed according to the combustion degree of materials and
products (EN 730823)
A noncombustible granit, sandstone, concretes,bricks, ceramic wallfacing tiles, plaster
B uneasily combustible akumine, heraklite, lihnos, itavere
C1 hardly combustible leafy wood, plywood, sirkoklit, rare paper formica
C2 middle combustible fi breboards, solodure, cork boards, rubber,fl oor-coverings
C3 easily combustible wood-fi breboards, polystyrene,polyurethane, PVC
Devices must be instalated in a safe way. When instaling you must respect corresponding project, safety and
hygienic orders according to:
• EN 061008 fi re protection of local devices and sources of heat
• EN 332000 (33 2000-4-482; 33 2000-4-42) surrounding for electric devices ČSN EN 1775 Gas supplying
• Gas fi ttings in the buildings - the highest operational pressure < 5 bar - operation demands
• § 10 law nr. 185/2001 Sb. about waste
CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY
Instalation of electric feeder - This feeder must be separetely protected by a safety fuse according to the
specifi c electric stream which depends on the wattage of the instaled device. Check the wattage on the label
at the back of the device. Connect the device directly to the electricity but you must put the switch between
the device and electric net. The switch must be placed in min. distance 3 mm between the particular contacts
according to the standards and loading. The feeder of grounding (yellow-green) cannot be interrupted by this
switch. In every case feeding cable must be placed so that no point of the cable will reach the temperature
which is 50°C higher than the temperature of the surrounding. Before connecting the device check that:
• safety fuse of the feeder and inner mains can stand the loading of the device (see label of the matrix)
• mains are equipped with eff ective grounding according to standards (ČSN) and conditions given by law
• socket or switch of the feed is well accessible from device
We refuse any responsibility in case of not respecting above mentioned rules. Before the fi rst use it is
necessary to remove all the protection foil and to clean the device - see chapter „cleaning and maintenance“.
Maintenance: We recommend to have the device checked once a year by the proff esional service. Only
qualifi ed or competent persons can do interventions in the product.
5

6
CLEANING AND MAINTENANCE
ATTENTION! The device cannot be cleaned by direct or pressure water. Clean it daily. Daily maintenance
keeps longer useful life and effi ciency of the device. Before cleaning make sure to have disconnected the
device from electricity. Always switch off the main feeder to the device. Stainless parts wash with moist
cleaning cloth and non abrasive detergent than dry it by the cloth. Do not use abrasive and corrosive
detergents. All food residues must be removed from the surface, you can use scraper.
!!! YOU MUST LUBRICATE THE TOP WITH VEGETABLE OIL AFTER EACH CLEANING !!!
WHAT TO DO IN CASE OF BREAK-DOWN
Switch off the electric feeder and call seller´s professional service.
INDICATION
Guarantee does not cover all consumption parts succumable to common wear (rubber seals, bulbs, glass and
plastic parts etc.). The guarantee does not refer to the devices which were not installed in correspondence with
instructions - by qualifi ed worker, in conformity with standards and when somebody handled incompetently
the device (interventions into inner equipment) or the device was operated by non qualifi ed staff or at variance
with instructions for use. Guarantee does not also cover the damages caused due to infl uence of nature or
other outer intervention.
INSTRUCTION FOR USE
Attention!
Before the fi rst use of the device wash the device with water containing detergent and than dry with the
cleaning cloth. Never leave the device on without supervision!!!
!!! YOU MUST LUBRICATE THE TOP WITH VEGETABLE OIL AFTER EACH CLEANING !!!
Drawer for superfl uous fat
You must check the drawer regularly and empty it in time. You must clean the drawer after each switching
the device off .
Comments and recommendation

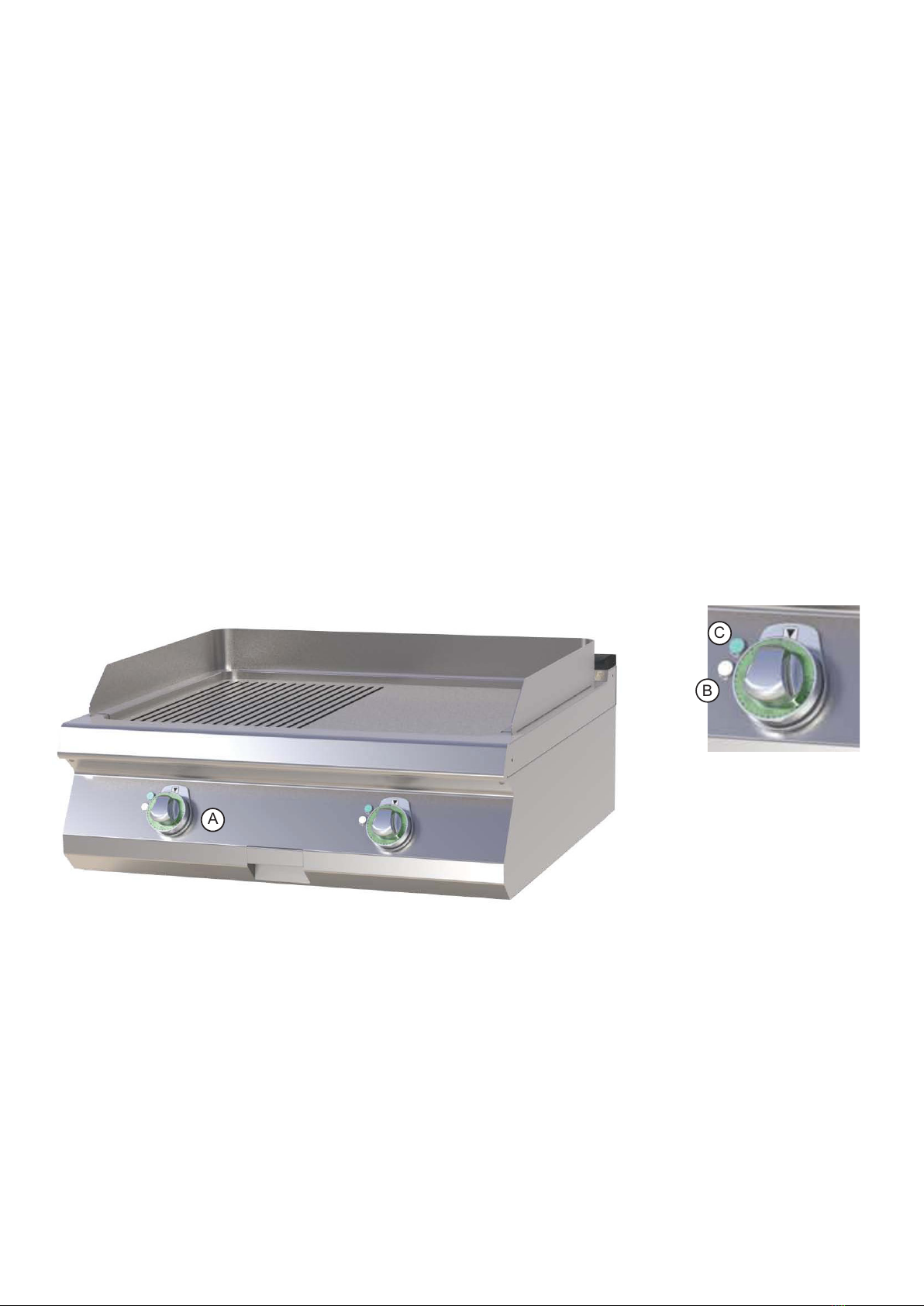

The devices with separated surface into 2 halves (FT-60) can be adjusted for diff erent temperatures on both
of the halves. You can also use only one half. Turn the knob (A) and adjust required performance. Pilot lamps
(B) and (C) will light. Pilot lamp (B) lights when the device is connected to the electricity. Pilot lamp (C) lights
when the heating spirals are on. Pilot lamp (C) goes out when the device reaches adjustedtemperature.
Switch the device off by turning the knob (A) into position „0“.
Maintenance
We recommend to have the device checked once a year by the professional service. Only qualifi ed or
competent persons can do interventions in the product.
Comments and recommendation
Use the device only under supervision.
A
A
C
B

7
CLEANING AND MAINTENANCE
ATTENTION! The device cannot be cleaned by direct or pressure water. Clean it daily. Daily maintenance
keeps longer useful life and effi ciency of the device. Before cleaning make sure to have disconnected the
device from electricity. Always switch off the main feeder to the device. Stainless parts wash with moist
cleaning cloth and non abrasive detergent than dry it by the cloth. Do not use abrasive and corrosive
detergents. All food residues must be removed from the surface, you can use scraper.
!!! YOU MUST LUBRICATE THE TOP WITH VEGETABLE OIL AFTER EACH CLEANING !!!
WHAT TO DO IN CASE OF BREAK-DOWN
Switch off the electric feeder and call seller´s professional service.
INDICATION
Guarantee does not cover all consumption parts succumable to common wear (rubber seals, bulbs, glass and
plastic parts etc.). The guarantee does not refer to the devices which were not installed in correspondence with
instructions - by qualifi ed worker, in conformity with standards and when somebody handled incompetently
the device (interventions into inner equipment) or the device was operated by non qualifi ed staff or at variance
with instructions for use. Guarantee does not also cover the damages caused due to infl uence of nature or
other outer intervention.
INSTRUCTION FOR USE
Attention!
Before the fi rst use of the device wash the device with water containing detergent and than dry with the
cleaning cloth. Never leave the device on without supervision!!!
!!! YOU MUST LUBRICATE THE TOP WITH VEGETABLE OIL AFTER EACH CLEANING !!!
Drawer for superfl uous fat
You must check the drawer regularly and empty it in time. You must clean the drawer after each switching
the device off .
Comments and recommendation
The devices with separated surface into 2 halves (FT-60) can be adjusted for diff erent temperatures on both
of the halves. You can also use only one half. Turn the knob (A) and adjust required performance. Pilot lamps
(B) and (C) will light. Pilot lamp (B) lights when the device is connected to the electricity. Pilot lamp (C) lights
when the heating spirals are on. Pilot lamp (C) goes out when the device reaches adjustedtemperature.
Switch the device off by turning the knob (A) into position „0“.
Maintenance
We recommend to have the device checked once a year by the professional service. Only qualifi ed or
competent persons can do interventions in the product.
Comments and recommendation
Use the device only under supervision.
A
A
C
B

DIE NORMENÜBEREINSTIMMUNGSDEKLARATION
DerProduzent erklärt,daßdie Geräteineiner Übereinstimmungmitden Vorschriftender 2004/108/ES,2006/95/
ES dem Gesetz Nr. 616/2006 sb., 17/2003 sb. der Sammlung und zugehörigen Regierungsverordnungen
stehen. Die Installation muss mit der Absicht auf geltende Normen durchgeführt werden. Vorsicht, im Falle
einer direkten oder indirekten Beschädigung, die sich auf falsche Installation, unrichtigen Eingriff oder
Anpassungen, ungenügende Instandshaltung, unrichtige Verwendung beziehen, und welche eventuell durch
andere Ursachen, als in Punkten der Verkaufsbedingungen angeführt ist, so verzichtet der Importeur auf
jegliche Verantwortung. Dieses Gerät ist nur für fachliche Verwendung bestimmt und muß durch qualifi zierte
Person bedient werden. Teile, die nach der Einstellung durch den Hersteller oder durch befugte Person
gesichert wurden, dürfen vom Benutzer keineswegs umgestellt werden.
DIE TECHNISCHEN DATEN
Das Schild mit technischen Angaben ist auf der Rückseite des Gerätes angebracht. Studieren sie vor der
Installation das elektrische Schema der Einschließung und alle folgende Informationen durch.
8
TYPE DE
PRODUIT TENSION (V/HZ) NOMBREDETHER- MOSTATS(UNITÉS)
PUISSANCE
MAX. (KW) DIMENSION (CM) DIMENSION DE LA CHAMBRE (CM)
B - 4 400 V, 3N, 50 Hz 2 4,8 95 x 91 x 41 v 70 x 70 x 15 v
B - 6 400 V, 3N, 50 Hz 2 7,2 95 x 121 x 41 v 70 x 105 x 15 v
B - 8 400 V, 3N, 50 HZ 4 9,6 95 x 91 x 76 v 2x 70 x 70 x 15 v
B - 12 400 V, 3N, 50 HZ 4 14,4 95 x 121 x 76 v 2x 70 x 105 x 15 v
B - 4/50 400 / 3N / 50 Hz 2 4 77,5 x 71 x 38 52 x 52 x 15 v
B - 8/50 400 / 3N / 50 Hz 4 6 77,5 x 71 x 51 2x 52 x 52 x 15 v
MODEL SPANNUNG
(V) ANSCHLUSSWERT (KW) PLATTEABMESSUNG (MM) ABMESSUNG (MM)
FTH-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTR-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTH-C-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTR-C-740 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 936 v
FTH-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTR-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTHR-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTH-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTR-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTHR-C-780 E 400 / 3N / 50 9 720 x 485 800 x 730 x 936 v
FTH-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTR-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTH-C-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTR-C-704 E 400 / 3N / 50 4,5 320 x 485 400 x 730 x 353 v
FTH-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTR-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTHR-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTH-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTR-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v
FTHR-C-708 E 400 / 3N / 50 9 720 x 485 800 x 730 x 353 v

DIE VERPACKUNGS-, UND VORRICHTUNGSKONTROLLE
Die Vorrichtung verlässt unsere Lager in ordentlicher Verpackung, auf deren die entsprechenden Symbole
und Bezeichnungen stehen. In der Verpackung befi ndet sich entsprechende Bedienungsanweisung. Falls die
Verpackung eine schlechte Behandlung oder Anzeichen der Beschädigungen vorweist, muß dieses sofort
beim Transporteur reklamiert werden und zwar durch Unterzeichnung eines Schadensprotokolles.
Wichtige Hinweise
• Nur für professionellen Verbrauch geeignet
• Diese Bediennungsanleitung muss ordentlich und bedächtig gelesen werden, weil sie wichtige Informationen
über Sicherheitsmerkmale, Installation und Anwendung beinhaltet
• Diese Empfehlungen beziehen auf diesen Produkt
• Der Produkt entspricht geltenden Normen
• Diese Anleitung muß ordentlich für die zukünftige Verwendung hinterlegt werden
• Hindern Sie den Kinder an Vorrichtungsmanipulation
• Beim Verkauf oder Verlegung ist es notwendig sich zu überzeugen, daß die Bedienstperson oder Fachservis
sich mit der Behherrschung und Installationsanweisung in beiligender Anleitung, anvertraut gemacht haben.
• Das Produkt darf nur eingeschulte Bedienung bedienen
• Das Produkt darf nicht ohne Aufsicht ins Betrieb gesetzt sein
• Es ist empfohlen, minimal einmal pro Jahr eine Fachkontrolle durchführen zu lassen
• Bei eventueller Reparatur der Teilenumtauschungen müssen ausschließlich Originalteile angewendet
werden
• Das Produkt darf nicht durch einen Wasserstrahl oder Druckbrause gereinigt werden
• Schalten Sie alle Leitungen (Wasser, Elektrizität, Gas) bei einer Störung oder beim schlechten Lauf aus und
rufen Sie authorisierten Service an
• Der Hersteller verzichtet auf jegliche Verantwortung bei Störungen, die durch fehlerhafte Installation,
Nichteinhaltung o.a. Empfehlungen, andere Verwendung u.ä, verursacht wurden
DIE PLATZIERUNG
Es ist unbedingt notwendig, zu der Regulation der Gerätetätigkeit, daß das Milieu - der Küche -, wo das Gerät
installiert wird, sehr gut belüftbar ist (im Hinblick darauf: sei der Techniker sich mit geltenden Normen (EN)
richtet). Wenn die Einrichtung so plaziert wird, daß sie im Mobiliarwandkontakt stehen wird, so müssen diese
einer Temperatur von 90°C wiederstehen. Die Installation, Herrichtung, Inbetriebsnahme müssen durch
qualifi zierte Person, die zu solchen Vorkehrungen eine Befugnis hat und dies laut geltenden Normen nach,
durchgeführt werden.
Packen Sie das Gerät aus und kontrollieren Sie , ob sich das Gerät während des Transportes nicht beschädigt
hat. Platzieren Sie das Gerät auf eine waagrechte Fläche (maximalle Unebenheit bis 2°). Stellen Sie das
Gerät unter den Haubenabzug, damit Sie die Wasserdämpfe und den Geruch eliminieren. Das Gerät kann
selbständig oder in einer Reihe mit Geräten unserer Herrstellung installiert werden. Es ist notwendig die
minimale Entfernung von 10 cm zu anderen Gegenständen einzuhalten, so dass die Wärmeisollierung der
brennbaren Teilen gewährleistet wird.
Das Gerät kann selbständig oder in einer Reihe mit Geräten unserer Herrstellung installiert werden. Es
ist notwendig die minimale Entfernung von 10 cm zu anderen Gegenständen einzuhalten, so dass die
Wärmeisollierung der brennbaren Teilen gewährleistet wird.

10
TECHNISCHE HINWEISE ZUR INSTALLATION UND REGELUNG
Wichtig:
Zur Benützung AUSSCHLIEßLICH nur für spezialisierte Techniker
Instruktionen, die folgen, wenden sich an den Techniker, der für die Installation qualifi ziert ist, damit er alle
Operationen mit der korrektesten Weise und laut der gültigen Normen durchführt.
Wichtig
Jeweils irgendeine Tätigkeit, die mit der Regulation verbunden ist u.ä, muß nur mit der aus dem Netz
ausgezogenen und abgeschalteten Einrichtung vollgezogen sein.
Solange das Gerät unter der Spannung notwendig zu halten ist, eine höchste Vorsicht zu beachten vorliegt.
DIE SICHERHEITSVORRICHTUNGEN AUS DER SICHT DES
FEUERSCHUTZES LAUT EN. 061008 ČL. 21
Die Einrichtungsbedienung dürfen nur Erwachsene ausführen
• Das Gerät darf sicher in gewöhnlicher Umgebung laut EN 332000-4-482; EN 332000-4-42
verwendet werden.
• Es ist notwendig das Gerät so platzieren, daß es auf einer unbrennbaren Grundlage steht oder hängt.
• Es dürfen, auf und in eine Entfernung, die kleinerermase als sicher vom Gerät bezeichnet wird, keine
Gegenstände aus brennbaren Materilien (die kleinste Entfernung vom Brennbarem ist 10 cm) aufgestellt
werden.
• Die sicheren Entfernungen von Massen der einzelnen Brenngra
Tabelle:
Baumassefeuerbrenngrad ins Brenngrad (EN) der Massen und Produkte eingegliedert
A Unbrennbar Granit, Sandstein, beton, Ziegel, Keramikbekleidung, Putz
B nicht einfach brennbar Akumin, Heraklit, Lihnos, Itaver
C1 schwer brennbar Holz, Laubbaum, Furnier Sirkoklit, Festpapier, Umakart
C2 mittel brennbar Holzspanplatten, Solodur, Korkplatten, Hartgummi, Bodenbeläge
C3 leicht brennbar Holzfaserplatten, Polystyren, Polyureten, PVC
Die Bedarfsartikel müssen sicher installiert werden und sind mit regulierenbaren Beinchen - zur Ausgleichen
der Höhe und der Unebenheiten eingestattet.
Die Geräte müssen in einer sicheren Weise installiert werden. Bei der Installation müssen weiter betreff ende
Projekt-, Sicherheits-, und Hygienevorschriften respektiert werden.
• EN 06 1008 Feuerschutz der örtlichen Geräte und der Wärmquellen
• EN 33 2000 (33 2000-4-482; 33 2000-4-42) Umgebung für elektrische Geräte
Gasversorgung -Gasleitunge in Gebäuden - Höchste Verkehrsdruck ≤ 5 BarVerkehrsansprüche,
• § 10 des Gesetzes Nr.185/2001 Sb., der Abfälle betriff t.
