THANK YOU FOR CHOOSING ROAD ANGEL HALO
06 07
With ‘crash for cash’ scams on the increase and payouts worth £400m a year, it’s never
been more important to record your journeys on the road and be prepared for any
incidents that may occur along the way. Crash for cash claims add on average £14 to
each of our premiums, but if you’re unlucky enough to be personally victimised,
not only is your health at risk but your insurance premium could rise by up to 30%.
ROAD ANGEL Halo is specifically designed to fight back against fraudulent claims as
a simple, discreet accident camera suitable for use in any vehicle. Halo continuously
records and saves footage as you drive, and in the event of an accident uses G-Force
sensors to capture the footage in an event file. This footage is then saved separately
and can later be used as evidence in a claim.
With built-in GPS technology and Google Maps, Halo is able to pin-point where
your vehicle was and the GPS speed it was travelling at the time of an accident*.
The optional sound recording feature also means, if switched off, you can retain your
privacy as you drive. Both cameras allow for clear, reliable footage with viewing
angles of 150°, a HD resolution of 1280p x 720p in the forward facing camera and
640p x 480p in the rear.
* UV/solar reflective screens block GPS signals from entering the vehicle and may affect
the operation of your ROAD ANGEL Halo. Heated screens can also affect GPS signal
strength.

Halo Features.................................................................................. 10
Package Contents ........................................................................... 12
01. Before you start
Product registration ........................................................................ 14
Preparing for use ............................................................................ 14
Anatomy of Halo............................................................................. 15
Camera installation ........................................................................ 16
02. Using Halo
Start-up sequence........................................................................... 19
Micro SD card ................................................................................. 19
Real time recording......................................................................... 20
Manual recording............................................................................ 21
Event recording............................................................................... 22
Parking mode recording ................................................................. 23
Micro SD card removal.................................................................... 25
Power removal ................................................................................ 25
03. Using Halo Player
Installing Halo Player....................................................................... 29
Halo Player operation ..................................................................... 30
Halo device setup ........................................................................... 33
04. Other Information
Control button overview ................................................................. 35
LED guide ....................................................................................... 36
Voice / audible alert guide ............................................................. 37
CONTENTS
08 09

HD resolution, high quality video recording
Front camera includes CMOS imaging sensor allowing high quality HD (1280 x 720)
recording at 20 fps
Rear camera allows (640 x 480) recording at 10fps
Wide angle
150 Horizontal wide angle camera lens
Built-in high sensitivity microphone
Voice recording along with video recording
Optional privacy button
Multiple recording modes
Real time recording, Event recording, Manual recording, Motion sensor recording
(enabled when in Parking mode, Parking mode only available when used with Halo
hardwire kit)
Built-in 3 axis acceleration sensor
Detects external impact using 3 axis sensor and activates Event recording
Built-in back-up battery
In the event of an incident, the Road Angel Halo will use its small internal battery to
continue the event file recording*.
Built-in GPS
Video recording with accurate location, date and time
Instructive User Interface
Provides LED indications, sound effects, and voice prompts
PC Application
Allowing product configuration and video playback
* Please note: If power is removed the length of the clip recorded will be determined by battery charge at the time
of event.
HALO FEATURES HALO FEATURES
10 11

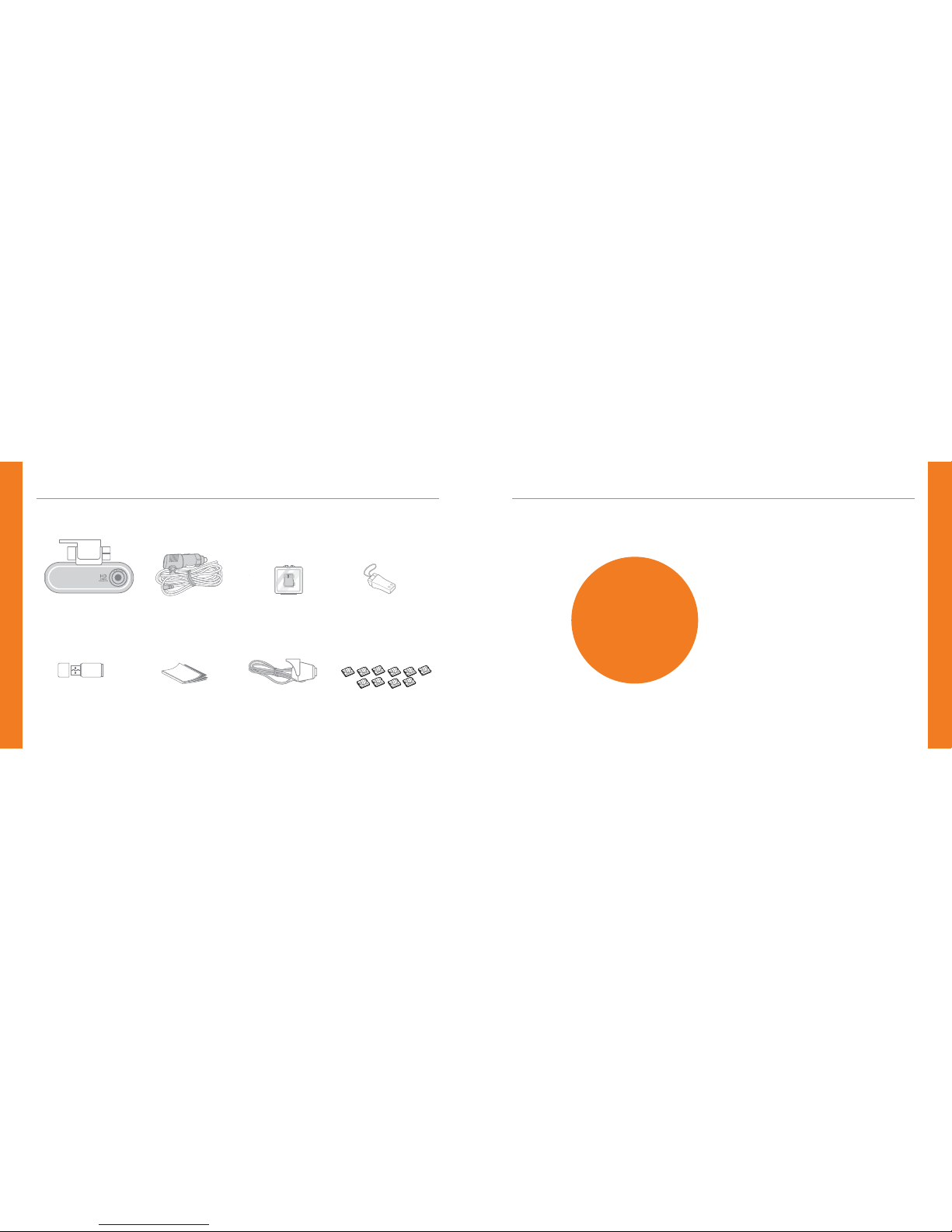

Halo Front Camera
USB Stick Containing
User Manual and Halo
Player Software
Quick-Start Guide Rear Camera
(with connection lead) 10 x Adhesive Wire Clips
In-Car Power Cable 16GB Micro SD Card USB Micro SD Card Reader
PACKAGE CONTENTS
Product registration
Preparing for use
Anatomy of Halo
Camera installation
1
BEFORE YOU START
12 13

BEFORE YOU START
Product Registration
Before operating Halo please visit our website at www.roadangelgroup.com to register
your product and activate your 12 month warranty.
Preparing for use
Remember to check the camera position and angle before operation.
Video quality may degrade with severe backlight, at night or when
you enter dark environments such as tunnels, car parks etc.
Excessive window tinting may affect the quality and colour balance
of video.
Ensure that your windscreen is clean (inside and out) for the best
possible video quality.
14 15

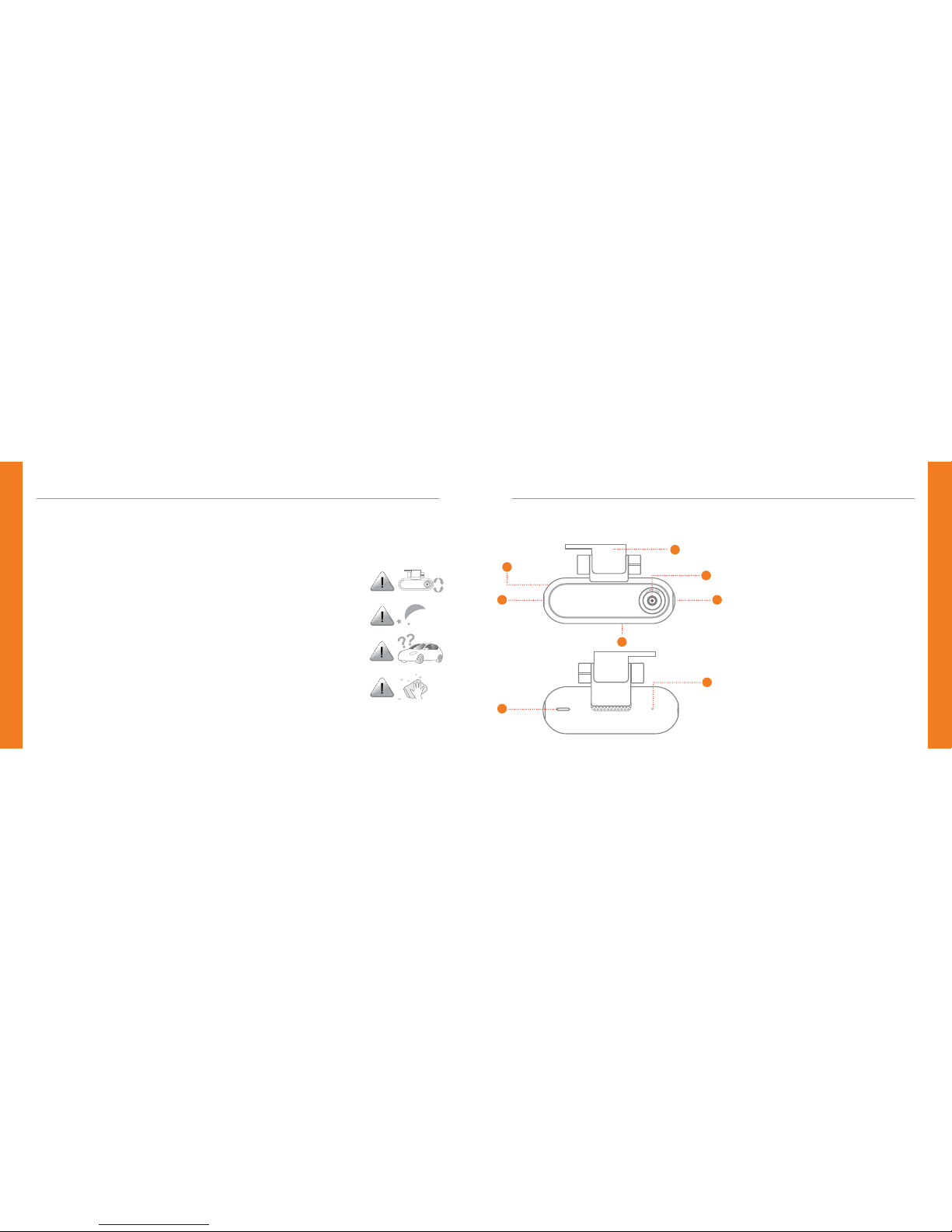

1. Power connector
2. Micro SD card slot
3. Control button
4. Camera lens
5. Mounting bracket
6. LED indicator
7. Microphone
8. Rear camera port
Anatomy of Halo
1
8
6
3
5
4
7
2

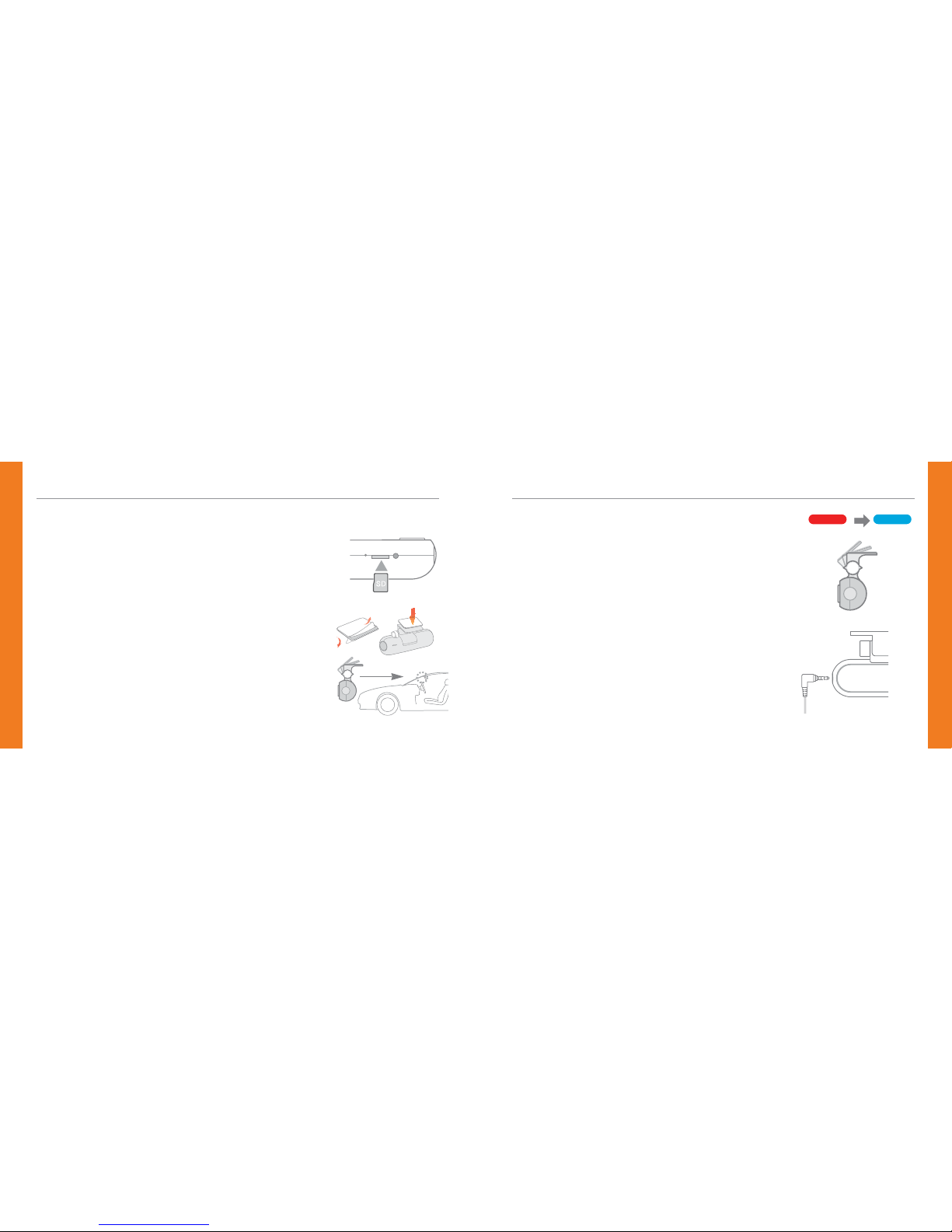

Camera Installation
1. Inserting the memory card
Insert the supplied Micro SD card into the slot as per the
illustration on the right, being careful to insert it the correct
way around. Inserting the Micro SD card will automatically
format the card for use with Halo.
2. Installing Halo in your vehicle
It is recommended that Halo is mounted in an elevated
position in your vehicle, with a location between the rear
view mirror and the windscreen being particularly effective.
Halo is affixed to the windscreen using the sticky pad
supplied. Simply remove the backing material and apply
pressure to ensure a secure fix.
16 17
BEFORE YOU START
3. Powering Halo
Using the power lead supplied, plug Halo into your vehicle’s
cigarette lighter socket. A red LED will illuminate and an
audible alarm will sound. The red LED will then change to
blue, signifying that Halo has commenced recording.
4. Camera angle and cable management
Pay particular attention to the angle of the camera to
ensure that it has an unobstructed line of sight and is angled
correctly to cover the widest possible viewing area.
Use the self-adhesive wire retention clips supplied to
channel any visible cables away from your field of view
and to maintain a tidy interior. Alternatively cables can be
hidden in the vehicle by a professional installer.

USING HALO
18 19
Start-up sequence
Micro SD card
Real time recording
Manual recording
Event recording
Parking mode recording
Micro SD card removal
Power removal
2
Start-Up Sequence
Apply power to Halo, a red LED will illuminate and an audible alarm will sound to
denote that Halo is powering-up. The red LED will then change to blue, signifying that
Halo has commenced Real time Recording mode.
Micro SD Card
If no SD card is detected, Halo will alternately illuminate the RED and BLUE LEDs.
A voice alert will instruct you to insert a Micro SD card.

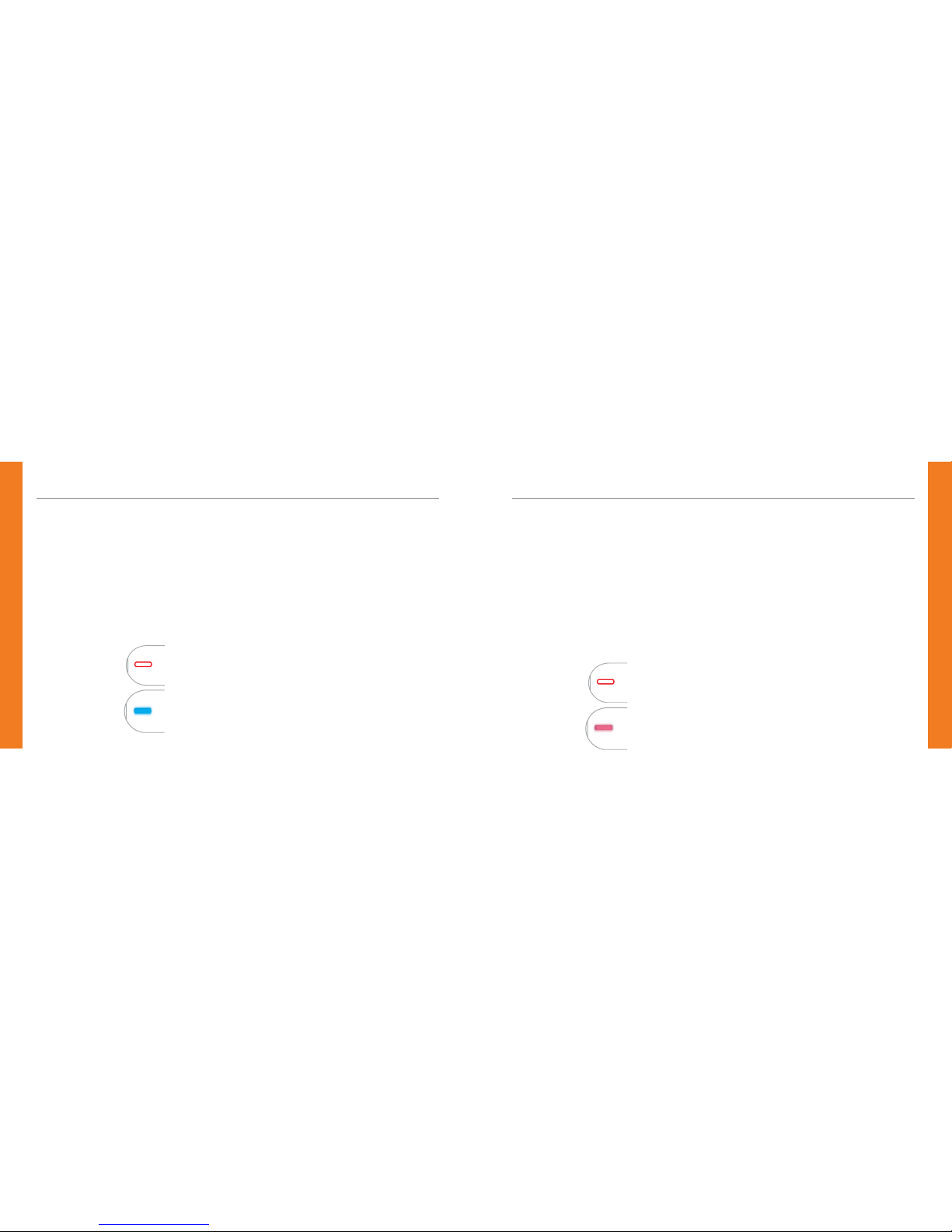

ALTERNATE RED and BLUE LEDs: No Micro SD Card in device
BLUE: RecordingRED: Powering Up

USING HALO
Real time recording:
Halo begins real time recording automatically on power-up,
this is indicated with a BLUE LED.
During real time recording:
Pressing Control Button once turns the microphone on/off
Pressing Control Button twice activates Manual Recording mode
Pressing and holding the Control Button formats the Micro SD
card.
During real time recording:
In Real time Recording mode Halo will continue to save individual
files (each 60 seconds in length) and starts to overwrite the oldest
files when the folder on the SD card reaches maximum capacity.
BLUE: Recording
20
BLINKING RED: Manual Recording mode engaged
BLUE: Real time Recording mode engaged
Start Manual Recording
Pressing the Control Button twice when in Real time Recording mode will activate
Manual Recording mode.
Manual Recording will save a 30 second video clip - combining 15 seconds from before
mode activation with 15 seconds of footage from after mode activation.
When in Manual Recording mode Halo’s LED indicator will flash RED.
Halo will automatically revert back to Real time Recording after 15 seconds, signified
by the LED returning to constant a BLUE.
21

USING HALO
Start Event Mode Recording
If Halo’s shock sensor detects impact during Real time Recording or Parking Mode,
Event Recording mode will automatically engage.
Event Recording will save a 30 second video clip - combining 15 seconds from before
mode activation with 15 seconds of footage from after mode activation.
When in Event Recording mode Halo’s LED indicator will flash RED.
Halo will automatically revert back to Real time Recording after 15 seconds, signified
by the LED returning to constant a BLUE.
When using Halo’s optional hardwire kit, Halo will automatically recognise when the
car’s ignition has been switched off and will enter Parking Mode after a short period of
time.
While in Parking Mode, Halo will constantly monitor for either movement in the
camera’s viewing area, or for impacts via the shock sensor.
When camera movement is detected, Parking Mode will save a 30 second video
clip - combining 15 seconds from before mode activation with 15 seconds of footage
from after mode activation. Halo’s LED indicator will flash RED during Parking Mode
recording, thereafter Halo will automatically revert back to its standby Parking Mode
condition, signified by the LED turning constant RED.
22 23
BLINKING RED: Manual Recording mode engaged
BLUE: Real time Recording mode engaged
BLINKING RED: Parking Mode Recording in progress
RED: Parking Mode engaged

USING HALO
End Parking Mode Recording
Halo will automatically revert back to Real time Recording when the vehicle’s ignition is
switched on.
Removing the Micro SD card during operation
Should the Micro SD card be removed at any time during normal operation, Halo will
reset and then wait for another Micro SD to be inserted.
ATTENTION:
Removing the Micro SD card during recording may permanently damage the card.
Removing power during operation
If power is removed while Halo is in Real time Recording mode or Parking Mode,
recording will be discontinued and Halo will power-down.
24 25
BLINKING RED: Powering-down
OFF

USING HALO
Removing power during operation (cont)
If power is removed while Halo is in Event Mode, recording of the incident will
continue until the end of the 15 second period before your device automatically
powers down*.
* Please note: If power is removed the length of the clip recorded will be determined
by battery charge at the time of event.
26 27

Installing Halo Player
Halo Player operation
Halo device setup
3
USING HALO PLAYER
Installing Halo Player
Software for configuration and video playback (known as “Halo Player”) is included on
the USB stick supplied with Halo.
Insert the USB stick into your computer and double click the “Halo Player” file to install
the software in your preferred location. Please be aware Halo Player also installs a third
party decoder called FFDshow.
ATTENTION:
Before installation please check that you are in possession of the latest software version
by visiting www.roadangelgroup.com.
28 29
The Road Angel Halo Player is compatible and supported on the following operating
systems:
Windows 7 (32/64 bit)
Windows 8 (32/64 bit)
Windows 8.1 (32/64bit)

Halo Player OperationHalo Player Operation
30 31
USING HALO PLAYER

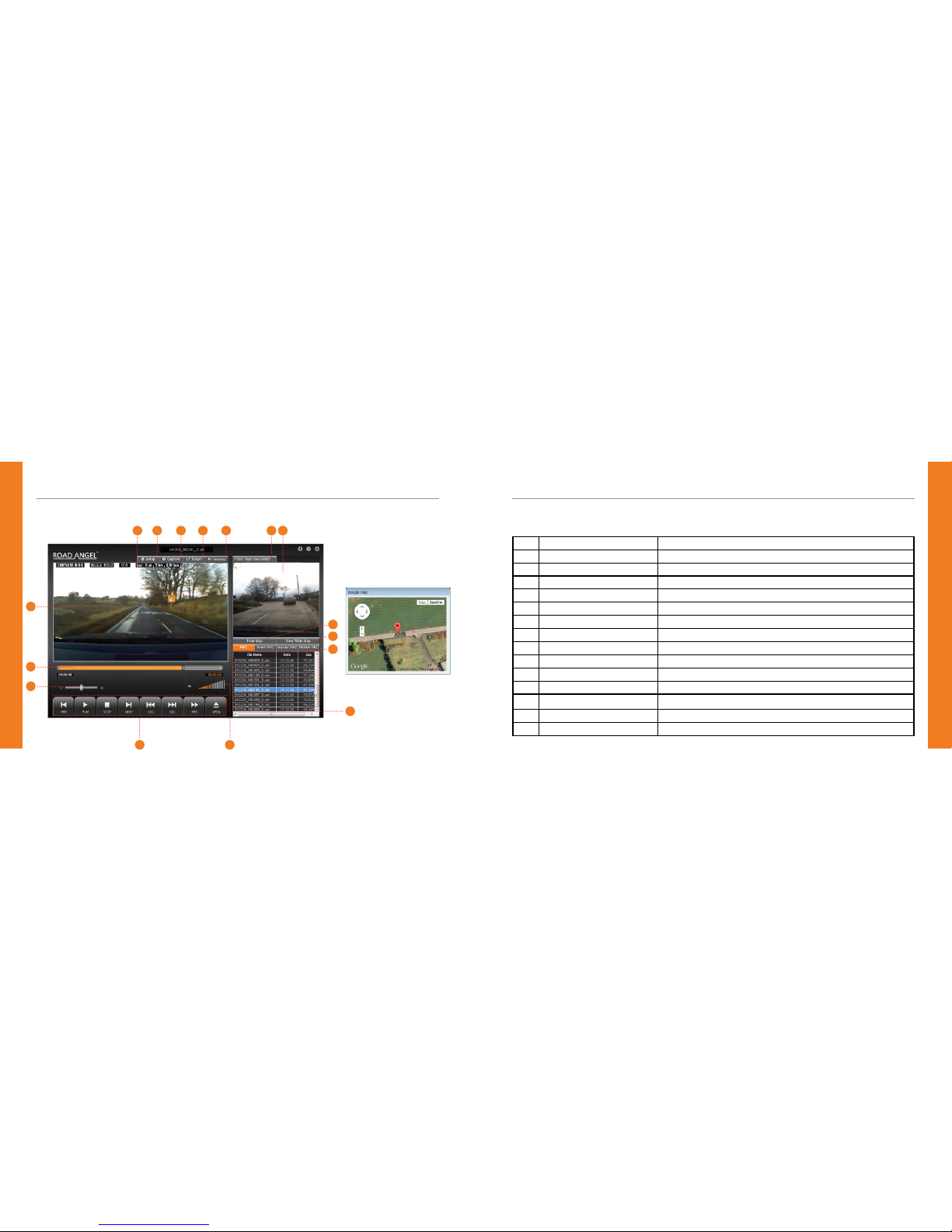

1. Video Playback Screens Front and rear video footage is played back in these areas
2. On-Board Display Displays detailed real time information about the journey
3. G-Sensor Graph Click here to view real time G-Sensor information
4. Reverse Footage Inverts video image
5. Capture Images Captures a screenshot of the current video frame
6. Setup Options Opens the camera setup screen - see page 32
7.
Toggle Footage Switches video playback between front and rear footage
8.
Google Map Show/Hide Shows or hides the Google map window
9. View Wide/Small Map Increases the size of the Google map window
10. Video Category Tabs Filters between all recorded files
11. Recorded Video Lists Displays all recorded videos
12. Timeline Shows duration of clip, allowing you to explore in detail
13.Volume Volume control for audio playback
14. Playback Speed Control the playback speed of the video
15. Video Control Bar Various controls for video playback
11
8
9
10
14
12
1
15 13
417356
2

Halo Device Setup
3332
Halo Device Setup
USING HALO PLAYER
1.
Tabs Toggle between configuration, memory info & version info
2.
Time Manual time set (click padlock to access). Not required when using Halo with GPS
3.
Time Zone Set the time zone in which you are driving
4.
Daylight Saving Turn On/Off daylight saving time
5.
Sound Recording Turn On/Off sound recording (can also be controlled from Halo device)
6.
Beep Sound Turn On/Off ‘beep’ alerts generated by event mode activation
7.
Voice Messages Turn On/Off voice alerts
8.
Viewing Angle Increase or decrease the camera viewing angle
9.
Cut-Off Voltage For use with hardwire kit, select the voltage at which Halo powers-down
10.
Cut-Off Time For use with hardwire kit, select the cut-off time at which Halo powers-down
11.
Storage Allotment Set how much memory space is given to each recording mode on the SD card
12.
G-Sensor Control Parking Mode, Control the G-Sensor sensitivity for Event recording activation
13.
G-Sensor Control Real time, Control the G-Sensor sensitivity for Event recording activation
1
4
2
6
8
10
3
5
7
8
11
12
13

Control button overview
LED guide
Voice / audible alert guide
4
OTHER INFORMATION
34
Mode Press Button Once Press Button Twice Press and Hold Buton
Real time recording Turn microphone on & off Start manual recording Format SD card
Manual recording No action No action No action
Event mode recording No action No action No action
Parking mode recording No action No action Format SD card
Control Button Overview
35

OTHER INFORMATION
Front Camera Rear Camera
Action Rear LED Front LED LED
Boot Up RED ON OFF ON
Real time recording BLUE ON OFF ON
Manual recording RED FLASH OFF ON
Event recording RED FLASH OFF
(Real time recording)
BLUE FLASH
(0.5 SEC - Parking mode)
ON
Parking mode standby RED ON BLUE FLASH (1 SEC) ON
Parking mode recording RED FLASH BLUE FLASH (0.5 SEC) ON
No micro SD card inserted RED/BLUE FLASH OFF ON
Mode Voice Message / Sound Effect Remark
Boot Up Long Beep Sound Effect
Start Real time recording Short Beep Sound Effect
Real Time Recording Event
Mode Activation
Short Beep Sound Effect
Start Parking Mode Recording “Parking Mode is on” Voice Message
Notify of event while parked ”Video was recorded during parking
mode”
Voice Message
No micro SD card inserted ”Please insert memory card. Not
recording”
Voice Message
SD Card Format “Memory card is formatting. Please
wait”
Voice Message
Before power off Short Beep Sound Effect
LED Guide Voice / Audible Alert Guide
37
36
