TitanGPS TT8900 Ai Cam User manual

CERTIFIED TRACKING SOLUTIONS
1.780.391.3800
TOLL FREE 1.855.287.4477 (CTS4GPS)
PACKAGE CONTENTS
Installation Options
12V
GUIDE
QUICK INSTALL
TT8900AiCam
OBD ADAPTER CABLE
(OPTIONAL)
TT8900 CAMERA WINDOW MOUNTING KIT
POWER CABLE
STEP 1 DETERMINE REQUIRED INSTALLATION OPTIONS
CALL TO TEST THE DEVICE BEFORE CLOSING UP
DASH. FAILURE TO FOLLOW INSTRUCTIONS MAY
DAMAGE EQUIPMENT AND VOID WARRANTY
Depending upon the requirements, the camera can be installed in the following ways. Your package
should include the required optional parts.

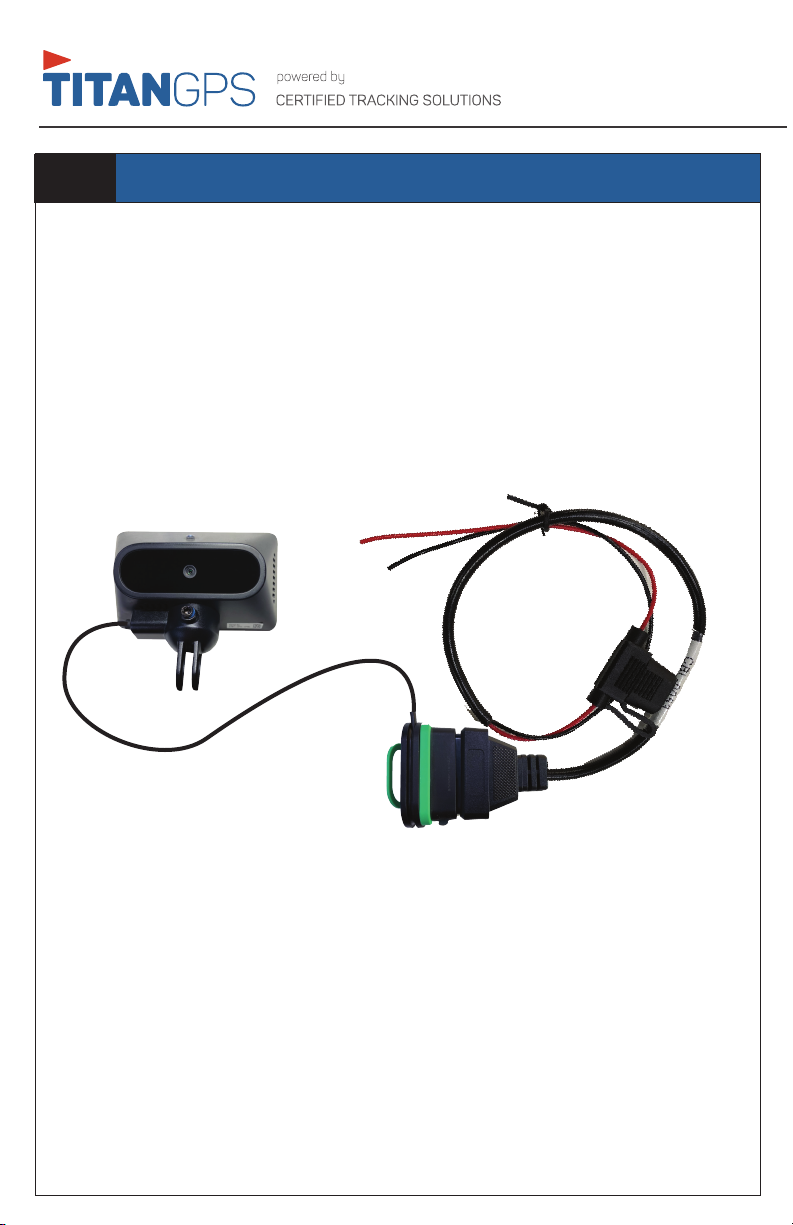

Type 1: Device with Hardwired Connection (Requires OBD Adapter Cable)
Type 2: Device with Diagnostics Cable (Requires OBD/JBUS Y Cable)
Type 3: Device Only (Direct to OBD Port)
Optional Hardware: OBD/JBUS Y Cable, OBD Adapter Cable
STEP 2 ATTACH WINDOW MOUNT TO CAMERA
It is important to securely attach the window mount to the Camera. Using the included Window
Mount Kit;
a) Place the included “L” bracket from the Window Mount Kit onto the camera power connection
and tighten the security screw using the included tool.

L Bracket
Screw
Window Bracket
b) Attach the window mount bracket to the “L” bracket using the included bolt and security tool.
STEP 3 SECURE MOUNT TO WINDSHIELD
The TT8900AiCam includes a forward and driver facing camera. The mount will need to be adjusted
to the correct angle for the windshield. Please follow the guidelines below;
a) Clean the glass using the included wipes
b) Ensure glass has fully dried
c) IMPORTANT: Glass temperature should not be too hot or cold (between 50F (10C) and
80F (27C).
Window Preparation
a) Adjust the mounting bracket to an angle where the camera is horizontal to the road when
the base of the bracket is on the window
-Ensure larger screen side is facing the driver
b) Attach the provided 3M adhesive pad to the bracket and press firmly. Hold firm pressure for
at least 30 seconds
c) Secure mount to windshield
Initial Mounting
Tighten the screw with the key(comes with package)
Tighten the screw with the key(comes with package)

QUICK INSTALL
TT8900AiCam GUIDE
FRONT VIEW INTERIOR VIEW
SIDE VIEW BOTTOM VIEW
IMPORTANT
-Should be mounted under rear-view mirror (if applicable) or as high on the windshield as
possible
-Camera view should be within the windshield wiper zone (so view is cleaned when wipers operate)
-Must be mounted so Forward view and Driver Facing view are not obstructed
-Once in a good position, hold firm pressure for 30 seconds
-Remove the protective film from both Driver and Forward facing cameras

STEP 4 COMPLETE WIRING FOR REQUIRED INSTALL TYPE
The TT8900AiCam can be installed in several ways depending upon your requirements. Please see
the wiring details below for each type. The included Window Mount Kit includes a panel pry tool and
zip ties to help with this process.
a) Run the wire from the camera through the headliner and down the A-pillar
-Ensure the wire is fully hidden and cannot move from its position
-Use included panel pry tool
b) Route and Complete additional cable connections
Type 1: Device with Hardwired Connection (Requires OBD Adapter Cable)
i) Plug OBD Adapter Cable into OBD Camera Cable
ii) Connect Constant Power
-Device requires a minimum 12v constant (Battery Power) on this line to function.
-DO NOT remove/bypass the fuse
-Connect the Red wire of the OBD Adapter Cable to this constant source
iii) Connect Ground
-For best results, create a new connection to bare-metal chassis ground
-Do not use a shared ground or supplied ground from any other module or device
-Connect the Black wire of the OBD Adapter Cable to this ground
12V
GND

QUICK INSTALL
TT8900AiCam GUIDE
Type 2: Device with Diagnostics Cable (Requires OBD/JBUS Y Cable)
1) Unclip/unscrew vehicle OBD/JBUS port from the factory mounted position.
2) Plug the male end of the Y-Cable to the unmounted vehicle OBDII/JBUS port.
3) Mount female OBDII/JBUS end of the Y-Cable to factory mounting position.
4) Plug the Camera OBDII connector into the Y-Cable and secure all wiring in a hidden location.
Type 3: Device Only (Direct to OBD Port)
1) Plug Camera OBDII connector into the factory OBDII connector
2) Secure all wiring.
STEP 5 CALL TO TEST
IMPORTANT: Camera must be tested to ensure proper camera angle and set up.
-Adjustments to the angle of the camera may be needed. Be sure to have the necessary tools to
adjust the angle.
STEP 6 ADMINISTRATIVE
Give any extra parts (bolts, 3M etc) to the fleet owner/administrator.
VEHICLE OBD PORT
VEHICLE OBD PORT
OPEN PORT
VEHICLE JBUS PORT
Or
Or
Y CABLE

1.780.391.3800
TOLL FREE 1.855.287.4477 (CTS4GPS)
powered by: Certified Tracking Solutions
