Roadefend RDT401P User manual

Instruction Book of
ROADEFEND RDT401P
Driver State Analysis Warning System
Roadefend Vision Technology(shanghai) Co.,Ltd

Instructions for use of RDT401P 2018-RDT401P-R001
1
I. Product Synopsis
Roadefend RDT401P is a bran-new Driver ADAS Safety Monitor System based on the fifth
generation of video based driver state analysis technology, which gives a warning of fatigue drive
and kinds of dangerous driving behaviors by means of image recognition and driver’s mental state
analysis to decrease accidents caused by fatigue drive. Furthermore, RDT-401P-WH is also
capable of sending abnormal data and videos via 4G network to an end-user platform management
center to avoid occurrence of accidents by immediately taking effective measures.
The product performance meets the relevant national standards of "GB/T 19056-2012", "JT/T794-
2011" and "GB/T 26773-2011".
1. Value of Fatigue Warning
Fatigue has long been an inevitable problem that is controlled to an extent for drivers, for example,
when driving two hours at a speed of 100km/h, the driver has to struggle to stay awake on account
of his lower levels physiological functions followed by inattention. In general, accident rates are
extremely high when the driver drives more than 6 hours a day or is lack of proper rest, for example,
only having a rest of less than four or five hours last night. In addition, with the popularity of smart
phones, more and more drivers are used to playing his cellphone while driving, it also will cause a
popularity of accidents.
A set of terrible statistics has already been reported, indicating that 72% of all accidents occur due
to drivers themselves and 25~30% thereof are caused by fatigue drive; that 40% of all serious and
fatal accidents are fatigue related; that 70% of all drivers will fall asleep at the wheel on the highway
and specially happens to those who likes playing their cellphones while driving.
Therefore, it is a great value to eliminate fatigue at driving for sake of the drivers, families,
companies, as well as the society.
2. Host introduction
Power supply and signal harness
It works when power connectors are
connected to corresponding power
interfaces on the RDT-401P-WH device;
the main harness contains the power cable,
video cable, communication cable, network
cable, and GPS antenna etc.
SD card slot
SIM card slot
MIC input
Base holder

Instructions for use of RDT401P 2018-RDT401P-R001
2
3. Product specifications
Table 1
RDT-401P-WH product specifications
Basic
info.
Type
RDT401P
Functional
information
Fatigue
warning
function
Working
-
hours
Daylight
Night
●Yes
●Yes
Product
Size
(mm)
95x90x35
Glasses
support
Near-
sighted
eyeglass
Sun-
glass
●yes
●yes
Weight
(g)
400
Sensitivi
ty
settings
Automatic adaptability
Camera
High-
sensitive
night
vision
camera
(capture)
Volume
adjustm
ent
SD card configuration
/platform remote
adjustment
Analog
output
Yes
Other
functions
4G
Commu
nication
s
Alarm picture upload
Alarm video upload
Power
supply
DC
9V~36V
Power
4W
GPS
Vehicle localization
Ethernet
Communicates with

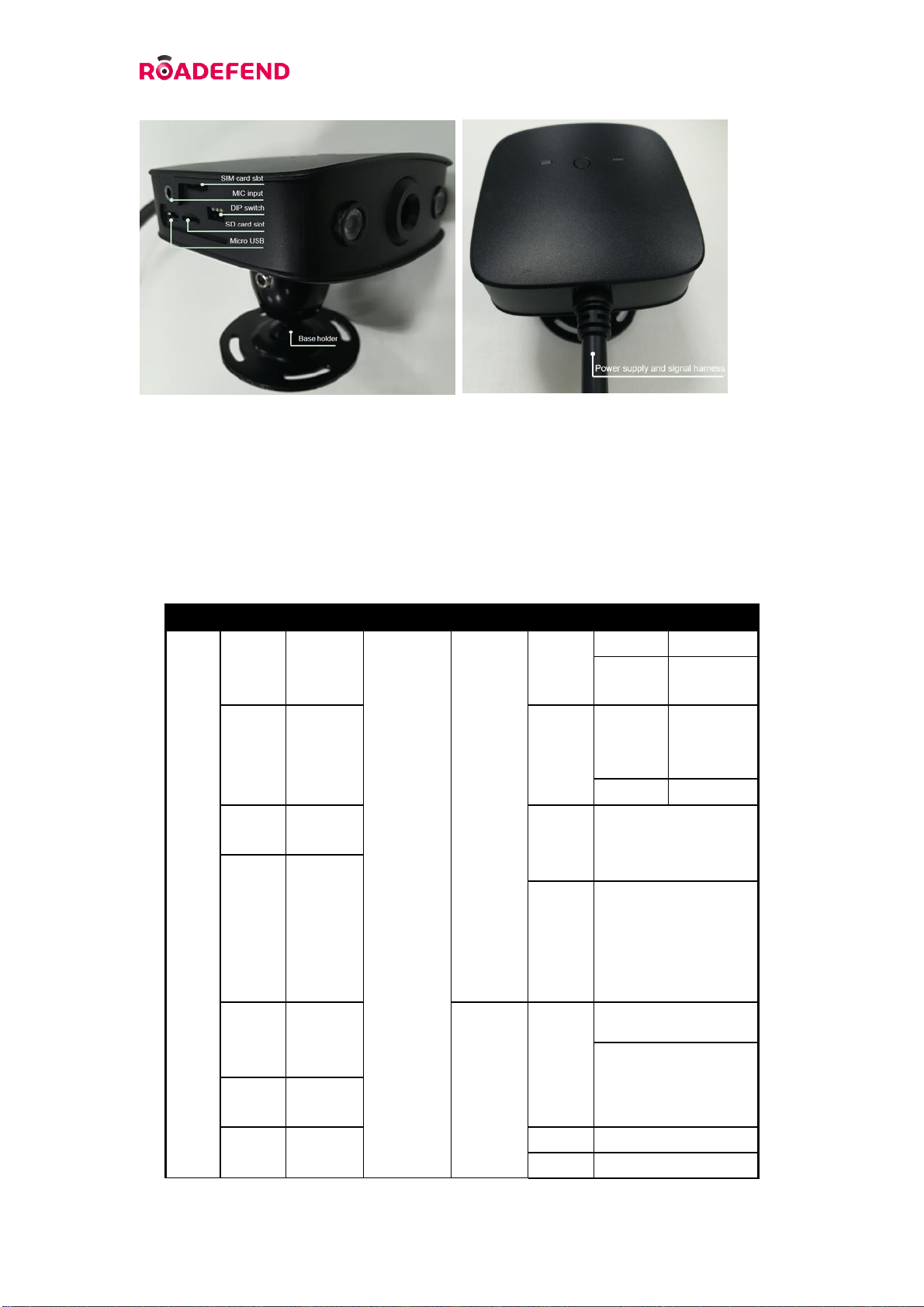

Figure 1. Schematic Diagram of Appearance of RDT401P
Driver State Analysis Warning System

Instructions for use of RDT401P 2018-RDT401P-R001
3
port
RDT402P or other
Ethernet devices
RS232-
1
communicating with
RDT402
RS232-
2/RS485
communicating with
external devices
CAN
supporting CAN
communications
4Function Instruction
1) All Kinds of Warning
The default starting speed is 15km/h for all below kinds of warning (except for the speeding
warning)
Table 2
Warning Types
Description
Voice Reminder
Evidence
Documents
Default Voice
Switch
Distraction
(level 1)
When the driver is
found in the drowsiness
state, or found bowing
to look at the mobile
phone and taking other
actions, the device will
issue a distraction
warning.
“Attention ”
ON
Dangerous
driving (level 2)
If the driver does not
restore the normal
driving posture after the
distraction warning is
triggered, a dangerous
driving warning will be
triggered.
“Take care, take
care! du-du-du-du!”
Picture and
small videos
ON
Cover Warning
Once the system is
covered by some
obstructions such as a
towel, it will send a
cover warning after 10s.
“Ding-ding”
Picture and
small videos
ON
Face Missing
Warning
When the driver's face
departures or is terribly
covered for more than
10s, it will trigger the
“Ding-ding”
Picture and
small videos
ON

Instructions for use of RDT401P 2018-RDT401P-R001
4
off-site warning.
Look-Aside
Warning
When the driver looks
at the left or right side
for more than 5s, it will
trigger the looking-
around warning.
"Do onot look aside"
Picture and
small videos
ON
Smoking
Warning
When the driver smokes
while driving, it will
trigger the smoking
warning.
"Do not smoke"
OFF
Calling
Warning
When the driver holds a
phone and keeps talking
for more than 6s, it will
trigger the phone
warning.
"Please concentrate
on driving"
OFF
Yawn Warning
When the driver yawns
while driving, it will
trigger the yawn
warning.
"Please have a rest"
ON
Speeding
Warning
When the vehicle’s
speed exceeds the set
value, it will trigger the
speeding warning.
"Your speed is over
the limit, please slow
down"
OFF
2) Sensitivity
Sensitivity is defined as the response time to trigger the distraction alarm.
a) In Test Model
After entering into the test model, the sensitivity will be fixed as 1 second.
b) In Normal Model
RDT401P can make a comprehensive judgment and adjust the sleepiness warning
sensitivity automatically according to the vehicle speed, driving time period and the
driver’s driving behaviors etc., and the adjustment is made at an interval of [1s, 3s].
3) Driver Characteristics and Posture Self-calibration
After RDT401P is started and the vehicle speed exceeds 30km/h (which can be set), the
system will enter a period of 45-second self-calibration (the calibration time is 10s in test
mode). During this period, core parameters of the system will be calibrated according to
individual characteristics and driving posture of the driver. Please keep a normal driving
state in the process, please do not simulate fatigue and sleepiness. Furthermore, the device

Instructions for use of RDT401P 2018-RDT401P-R001
5
will not issue a looking around warning before the calibration is completed. After the
calibration is completed, the device will send a reminder voice like “beep~beep” and the
system can normally trigger a posture warning.
4) Analog Image Output
RDT401P provides real-time analog image output in NTSC or PAL format. The signal
can be used to calibrate the orientation of installation, and can also be connected with
almost all the popular Car DVRs (Digital Video Record) on the market to store the videos
about the driver’s driving. The standard output can be adjusted through a DIP switch 4#;
the PAL system is default; and by dialing down, you can switch to the NTSC system.
5) Video Storage
RDT401P can store the driver’s real-time driving behaviors into a high-speed TF (higher
than Class 10) card by 3 minutes as a unit and the default is standard definition; for
example, a 8G card can store videos for about 3 days’ driving behaviors; its resolution can
be configured as high definition storage (720P); and the SD card can support up to 256G.
6) 4G communications
RDT401P can transmit alarm information, alarm videos and other related data to the
fatigue monitoring management platform via 4G communications for easy supervision
and management.
7) Input/Output Interface
RDT401P supports one-way PWM speed signal inputs Meanwhile, it also support one-
way switching signal outputs, which can control some accessory devices like the vibration
cushion or refreshing smell generator to trigger relevant actions when the sleepiness
warning happens.
8) Communication Interface
a) RS232/485
RDT-401P-WH supports one-way RS232 or one-way RS485, realizes the data
communication with the video terminal by RS232 or RS485 interface.
b) CAN
RDT401P supports one-way CAN communication, supports sending alarm messages to
the CAN bus, and supports obtaining vehicle information from the CAN bus, such as time,
speed and braking etc.
c) Ethernet Port

Instructions for use of RDT401P 2018-RDT401P-R001
6
RDT401P supports 100M Ethernet communication and realizes data communication with
RDT402P or video terminals, supporting remote updating of devices and video
transmission.
9) Alarm Events Recording
RDT401P can make a record for each alarm information, including the position, event,
alarm type and the relevant file name of alarm video, etc.
10) Local Storage of Alarm Images
RDT401P will create folders with year.month.day in an SD card and store the alarm
images of the day sorted according to types of fatigue warming (sleepiness, calling,
smoking, etc.).
11) System Upgrade
The device is started by placing the upgrade package file in the TF card; and once you
hear a voice like “beep, beep, beep” and the device is restarted, it means the device
upgrade operation has been done.
II. Installation Instruction
1. Installation requirements
Fix RDT-401P-WH by screws to lean to the right side (within a range of 30 degrees) in front of the
driver and tilt up at an angle of 5~30 degrees; connect the lead terminal with the power supply
wiring harness; and connect GPS antenna as well as 4G antenna.
RDT-401P-WH can be adapted to a distance range of 60 cm~120 cm, and it is advised that RDT-
401P-WH should be installed at about 80 cm.
0032 x`1
On right-side in
front of the driver
5~30°
Horizontal

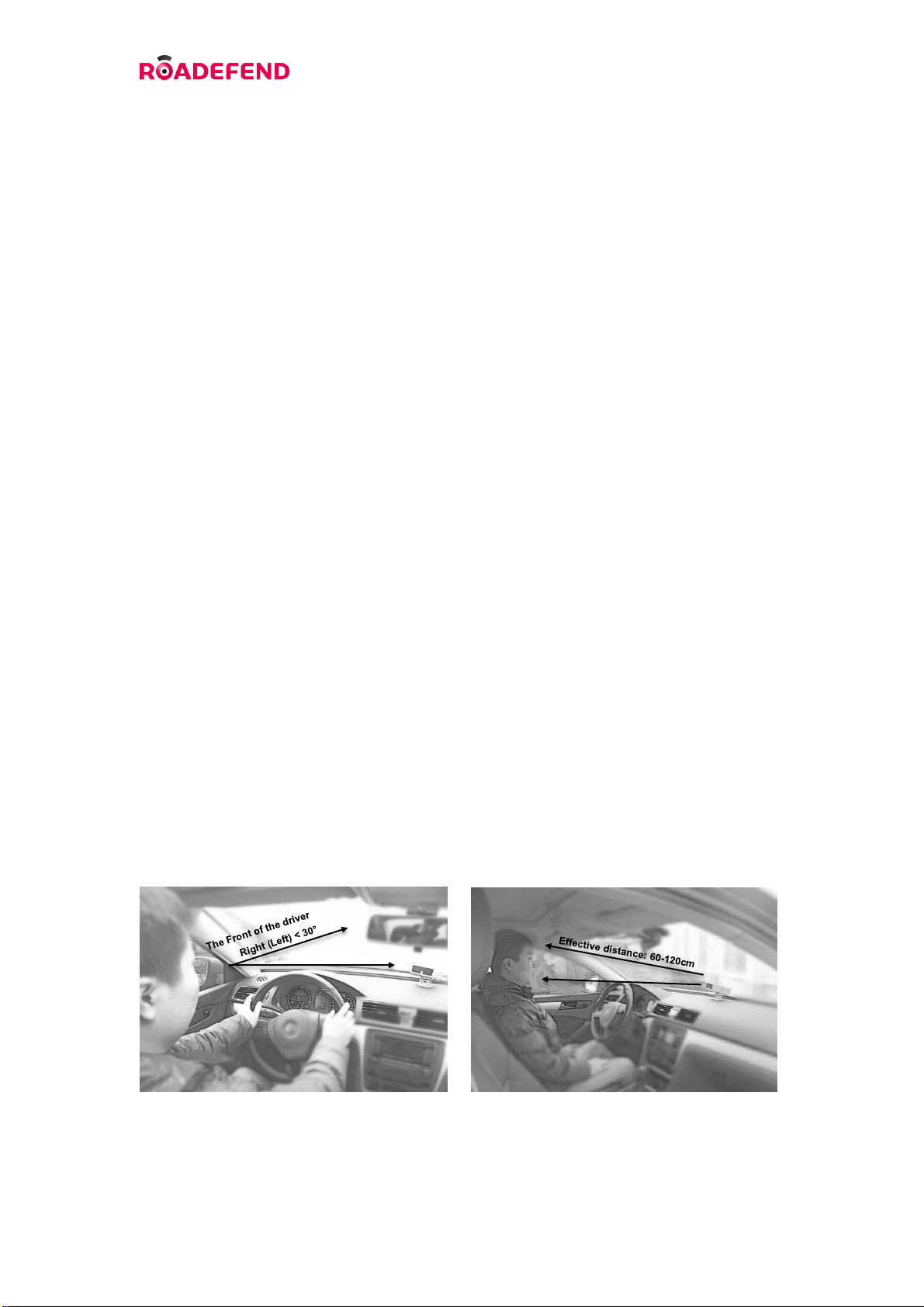

Figure 2. Top view of Installation
Figure 3. Side view of Installation

Instructions for use of RDT401P 2018-RDT401P-R001
7
2. Quick Installation
2.1. Main harness description: RDT401P main harness is 1 to 5, the schematic diagrams and
functions of each joint are as follows:
Figure 4.Main Harness Joints
● GPS Connection Cable - Used for connecting an external GPS antenna to position the
device, calculate the speed of the vehicle by GPS data, etc.
● P2-five-core Plug (male) - power supply +IO - connect device power and IO communication
● P3-six-core Plug (female) - Ethernet communication - Communication with RDT402P or
ethernet video terminal equipment
● P4-four-core Plug (female) - analog video - analog video output, can connect the external display
to view the camera image
● P5- five--core plug (female) -CAN+RS232/485-support RS232 or RS485 communication
protocol to realize data communication with the video terminal
2.2. Connect one end of the randomly-assigned P2 extension cord to the P2 main harness, and the
other end of the VIN, ACC, and GND lines (the VIN, ACC, and GND labels are attached to the line)
to the car power supply, if power is on, the device will automatically start up. The user can select
VIN to connect to ACC and ACC to the ignition signal of the vehicle. In this way, the device can
realize delayed shutdown after the vehicle is turned off. It can also connect the VIN and ACC to the
vehicle ignition signal to take power at the same time. If the vehicle is turned off, the device will be
automatically turned off.

Instructions for use of RDT401P 2018-RDT401P-R001
8
Figure 5. P2 power extension harness
Figure 6. Harness connection diagram
2.3.If you need to debug or check the video, connect the CVBS display by P4 cable.

Instructions for use of RDT401P 2018-RDT401P-R001
9
3. Product list
Table 3
Product List
Serial No.
Parts Name
Quantity
①
Host
1 pcs
②
Bracket
1 pcs
③
Bracket screw
4 pcs
④
Power harness P2-five-core plug (female)
1 pcs
⑤
GPS Antenna
1pcs
⑥
Microphone (optional)
1pcs
⑦
Instruction book
1pcs
4. Calibration
Adjust the angle of RDT401P up and down to ensure that the driver's face is in the center of the
screen of an external display.
5. Work status
1) After the vehicle starts, RDT401P will start immediately; after about 8 seconds, it will make a
sound indicative of start-up completion, indicating that the product is ready for work.
2) After the vehicle’s speed reaches the set speed value, the product will enter the monitoring state,
monitor the driver in real time, and issue fatigue warning; according to factory default settings,
when the speed exceeds 15km/h, the device will start a state detection function (except for the type
of posture warning) and when the speed exceeds 30km/h or more, posture calibration will be
performed.
After the posture calibration is completed, all warnings can be triggered.
Notes: the starting speed of fatigue warning function for RDT401P is 15km/h.
6. Parameters Configuration for SD (TF) card
Through the system upgrade, you can adjust parameters of the device, such as volume, sensitivity,
time zone.
Bracket
Bracket screw
Host
Figure 7. A schematic diagram of parts

Instructions for use of RDT401P 2018-RDT401P-R001
10
III. Electrical Properties
Table 4
RDT-401P-WH Electrical Properties
Operating Voltage
+9V ~ +36V
Rated Power
4W
Max Power
5W
Operating Temperature Range
-20℃~ 70℃
Storage Temperature Range
-30℃~ 85℃
Working Humidity
0 ~ 90 RH%±5%
IV. Failures and Solutions thereof
If you experience the following problems when using the product, please resolve the failures with
the aid of the following countermeasures.
The general problems that may have an impact on this product are as follows:
Table 5
Failures
Possible Causes
Solutions
No warning sounds when eyes
are closed for a long time.
The driver's face is
out of the visible
scope of the camera
or beyond the
effective distance.
Referring to the Instruction Book,
adjust the position or angle of the
device placement.
The vehicle is in a
stopped state.
The fatigue warning function will be
activated only when the vehicle’s
speed exceeds the set speed value.
GPS satellite search
fails.
Make sure that the GPS antenna is in
good contact and that the top of the
antenna or the location of the vehicle
is not covered.
The device cannot boot up
The ACC and power
supply are not well
connected.
Make sure that the power supply
wiring harness is reliably connected.
The fatigue warning is not
sensitive.
The black Plexiglas
in front of this
product is too dirty.
Clean front lens
The installation
Install the product at an appropriate

Instructions for use of RDT401P 2018-RDT401P-R001
11
distance is too close.
distance.
No warning is triggered when
the driver looks around.
Calibration is not
completed.
Maintain a correct posture for 10s in
test mode and when hearing a beep-
beep tone, you can test the posture
warning.
The device is not on the line.
The SIM card is not
inserted, or in arrears
state.
Check the SIM card, start the device
to hear a tone indicative of the
successful network connection, when
the device can be on the line.
1. Precautions:
1) Clean the black Plexiglas in front of this product for sake of the video capture and the product
performance;
2) Make sure that the product is located at appropriate angle and is fixed firmly for the sake of the
product performance.
V. Applicable Vehicles
Passenger and cargo transport vehicles, dangerous goods transport vehicles, mining vehicles, taxis
and school buses and other vehicles.
VI. Friendly Reminder
1. Will you drive when you are in fatigue?
Fatigue driving is different from drunk driving, and people always choose to or have to drive even
though they feel tired because they claim they are alert to fatigue or they are in a hurry sometimes.
Therefore, there is inevitably the following problems:
The first problem: people will still choose to drive even though they are tired because they have
to do so;
The second problem: the drivers think that they can control the fatigue. When having a sense of
fatigue, a driver may argue that he can eliminate it through conventional methods such as, having a
cup of coffee and other refreshing drinks, smoking, turning music volume up, opening windows,
scratching his head, twisting his neck.
However, we should accept the fact that fatigue cannot be eliminated by means of relying on
subjective thoughts of the driver with the aid of applying the above-mentioned methods to avoid
falling asleep. Those irritating behaviors, such as smoking, increasing the volume of the radio,
drinking coffee, opening windows cannot actually prevent “drowsiness–induced substance" from

Instructions for use of RDT401P 2018-RDT401P-R001
12
influencing the brain, and conversely, they cause paralysis to the driver.
Do you know? Drinking excessive coffee can cause insomnia, headaches, allergies and anxiety.
Do you know? It takes more than 10 minutes for caffeine to get into your blood system to finally
generate a stimulus, so a cup of coffee would not have such a quick play as required but you have
already fallen asleep. Also, if you have become accustomed to effects of caffeine, stimulating
effects will be weaker.
Do you know? Opening the window and increasing the volume of the radio can indeed increase
your alertness in a short time, but it will not last long.
2. RDT401P Benefits
RDT401P employs the method of combining the image recognition with the driving behavior
analysis to give a well-intentioned warning when you are tired and inattentive. Once serious
fatigue occurs, the system will give you a wake-up call in time, which is a critical moment between
life and death.
What a critical moment between life and death, seizing this moment, the wife can give her rushing
husband a reminder;
What a critical moment between life and death,
seizing this moment, the driver will not worry about his safety;
What a critical moment between life and death,
seizing this moment, the passenger will not worry about his safety.
Hindsight is not our aim, what is important is to reduce tragedy.
VII. Security Warning
Before using the product, please be sure to carefully read the following precautions to ensure safety.
Warning 1: In order to put the fatigue warning system to be in good account, users of this product
are responsible for the proper installation and the safe utilization of the system so as to ensure this
product will not interfere with the normal operation of the vehicle and other vehicle safety devices,
for example, this product shall not obstruct the driver's driving vision, which may cause accidents
and injury.
Do not install this product in a position where the driver's driving vision is obstructed.
Do not install this product on top of airbag dashboard or at the area where the airbag deploys.
Do not install this product in the position where passengers are prone to bumping into the
product.
Warning 2: This fatigue warning system is just an ancillary product for safety aiming to reduce
probability of accidents caused by driver fatigue, thereby reducing losses caused by driver fatigue.
Drivers themselves are still responsible for the normal operation of the vehicle, so they shall not
rely on this product to keep driving in the case of severe fatigue.

Instructions for use of RDT401P 2018-RDT401P-R001
13
VIII. User Notice
The product is powered on; and after the vehicle travel speed reaches the speed value (default
15Km/h) for triggering the fatigue warning function, the product will enter the normal working
condition.
The product can effectively reduce the probability of accidents caused by driver fatigue, but
cannot eliminate the symptoms of driver fatigue, so the driver needs to consciously have a rest
in order to completely eliminate fatigue symptoms.
The user needs to cooperate and know that our product needs to access the signal, such as
power supply, GPS antenna, and 4G antenna.
