Rober Limited NoDec Airstream 3 Operator's manual

Version 1.0 May 2016 Pg. 1
User Instruction Manual
NoDec®AIRSTREAM 3
AIRSTREAM3

Version 1.0 May 2016 Pg. 2
User Instruction Manual
NoDec®AIRSTREAM 3

Version 1.0 May 2016 Pg. 3
User Instruction Manual
NoDec®AIRSTREAM 3
INSTRUCTIONS FOR USE
Version 1.0
May 2016
AIRSTREAM3

Version 1.0 May 2016 Pg. 4
User Instruction Manual
NoDec®AIRSTREAM 3
Version History
Version
Implemented
By
Revision
Date
Approved
By
Approval
Date
Reason
1.0
Ben Smith
N/A
M Hutson
May ‘16
Original copy

Version 1.0 May 2016 Pg. 5
User Instruction Manual
NoDec®AIRSTREAM 3
Contents
Introduction .................................................................................................................7
Further Information.....................................................................................................8
Contraindications ............................................................................................................... 9
Descriptions of Symbols.................................................................................................... 9
List of Components ..................................................................................................10
General Cautions / Warnings ...................................................................................12
Installation.................................................................................................................14
Display Screens / Operation Modes ........................................................................18
Turning On ........................................................................................................................ 18
Initial Inflation ................................................................................................................... 19
Automatic Alternating Mode............................................................................................ 20
Unlocking .......................................................................................................................... 20
User Settings..................................................................................................................... 22
Alternating Mode .......................................................................................................... 23
Static Mode ................................................................................................................... 25
Changing Pressure Settings............................................................................................ 26
Maximum Inflation Mode.................................................................................................. 27
Mattress Construction..............................................................................................28
NoDec®AIRSTREAM 3 (Single Cell)................................................................................ 28
NoDec®AIRSTREAM 3 (Integrated Cell) ......................................................................... 29
Alarms........................................................................................................................30
High Pressure Alarm ........................................................................................................ 31
Low Pressure Alarm ......................................................................................................... 31
Power Failure Alarm ......................................................................................................... 32
CPR Emergency ........................................................................................................33
Transportation Mode ................................................................................................34
Preparation........................................................................................................................ 34

Version 1.0 May 2016 Pg. 6
User Instruction Manual
NoDec®AIRSTREAM 3
Storage (and Shipping).............................................................................................34
Further Screen Options............................................................................................35
Options Menu Screen....................................................................................................... 35
Display Brightness....................................................................................................... 36
Silent Mode ................................................................................................................... 36
Changing Language..................................................................................................... 37
Cleaning and Maintenance.......................................................................................38
Cleaning Procedures........................................................................................................ 38
Cleaning the mattress..................................................................................................... 38
Cleaning the Pump Unit.................................................................................................. 39
Maintenance...................................................................................................................... 39
Technical Parameters...............................................................................................40
Power Unit......................................................................................................................... 40
Mattress............................................................................................................................. 40
NoDec® AIRSTREAM 3 (Integrated Cell).................................................................... 40
NoDec® AIRSTREAM 3 (Single Cell) .......................................................................... 41

Version 1.0 May 2016 Pg. 7
User Instruction Manual
NoDec®AIRSTREAM 3
Introduction
Congratulations on purchasing the NoDec® AIRSTREAM 3 three-
cell cycle alternating pressure air mattress system. This high
quality medical product, if installed and cared for in accordance
with these instructions, will provide many years of trouble free
service and outstanding clinical performance.
The NoDec® AIRSTREAM 3 is an alternating pressure mattress
replacement system designed for the prevention and treatment of
pressure ulcers. It is suitable for high risk patients and pressure
sores up to Grade V.
This mattress system is manufactured to conform with international
standards, EN 60601-1, EN 60601-1-2, and is registered to CE
Mark.
Please read this Instruction Manual thoroughly before using
the NoDec® AIRSTREAM 3.

Version 1.0 May 2016 Pg. 8
User Instruction Manual
NoDec®AIRSTREAM 3
Further Information
The NoDec® AIRSTREAM 3 replaces the mattress on any hospital,
style bed frame. This mattress replacement system is quiet,
comfortable and simple enough for a single caregiver installation.
The frequent removal of contact (interface) pressure has been
demonstrated to reduce the risk of pressure injury which is caused
by reduced capillary blood flow in the tissue surrounding the bony
prominences. The NoDec® AIRSTREAM 3 is also a valuable aid in
the treatment of existing pressure injuries up to Grade V.
The objective of the NoDec® AIRSTREAM 3 is to remove the
contact pressure created by the patient lying on the mattress. This
is achieved by sequentially inflating and deflating the air cells of
the mattress. This regularly reduces the contact pressure which
restores blood flow and tissue oxygenation in the deep tissues
about the vulnerable bony prominences.
The system consists of an air filled mattress that is placed on top
of a conventional bed frame and is connected via an air supply
hose (umbilical) to a separate control unit. This mattress consists
of individual cells, protected by a Gerroderm cover.
The control unit is software driven which gives the capability to
maintain the air pressure in the cells at the required level and to
automatically alter the air pressure depending on the weight of the
patient and their position in bed. Air pressure can also be changed
depending on required care.
The additional presence of a CPR valve located at the side of the
power unit permits the rapid deflation of the mattress in an
emergency.

Version 1.0 May 2016 Pg. 9
User Instruction Manual
NoDec®AIRSTREAM 3
Contraindications
As with all alternating mattress systems, the
NoDec® AIRSTREAM 3 is contraindicated for use where patients
have unstable fractures or spinal injuries.
Descriptions of Symbols
Throughout this user manual and on the pump unit itself, the
NoDec® AIRSTREAM 3 has numerous symbols:
Symbol Explanation
Type B –Applied Part
Class II Medical Device
I / O On / Off
Refer to Instruction Manual
General Warning

Version 1.0 May 2016 Pg. 10
User Instruction Manual
NoDec®AIRSTREAM 3
List of Components
Unpack your NoDec® AIRSTREAM 3 mattress system and check
that you have the following:
·NoDec® AIRSTREAM 3 Pump Unit:
Please note the Name, Model and the Serial Number of your
pump in case you need to reference these when contacting
Rober or your local distributor.
Model
Name
NODEC AIRSTREAM 3
NDA3 0000:2015
Serial
Number
NODEC AIRSTREAM
3
NDA
3
0
000:2015
230V~ ±10% 50/60Hz 0.35A

Version 1.0 May 2016 Pg. 11
User Instruction Manual
NoDec®AIRSTREAM 3

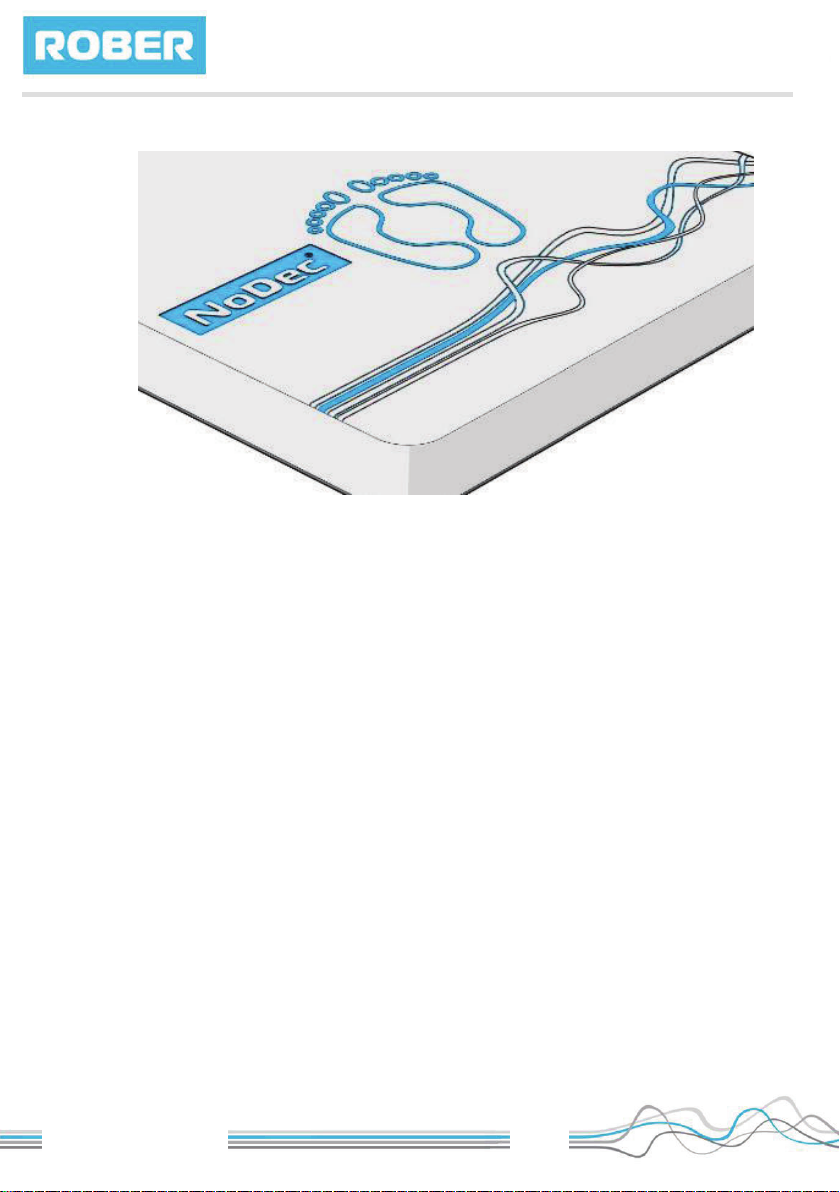

·NoDec®AIRSTREAM 3 Mattress:
The top cover is made from Dartex™which is an antimicrobial,
mutli-stretch, vapour permeable, PU coated fabric. The bottom
cover is made from durable PVC coated Nylon.
·Power Cord:
The power plug should be appropriate to your country or
region.

Version 1.0 May 2016 Pg. 12
User Instruction Manual
NoDec®AIRSTREAM 3
General Cautions / Warnings
Before setting up the mattress, it is important to read all
the safety instructions below. Any actions or operations
performed outside the guidance of this manual are
carried out at the user’s risk. Rober and/or the supplier
are not liable for any such actions.
·Inspect before use. If any faults are discovered, the mattress
system should not be used and the supplier immediately notified.,
·Check the power cord is positioned so there is no risk of obstruction
or potential injury.
·Risk of explosion:
Do not use in the presence of flammable chemicals or gases.
·Risk of fire:
Do not place near heat sources or naked flames.
·Risk of electrocution:
Ensure that the mains power is fully earthed.
Never partially or fully submerge electrical equipment in fluids.
Check the power cord is free from any damage.
Never handle the plug with wet hands.
Do not open the case.Any repairs should be made by qualified
service engineers.
Do not spill food or liquids on the pump unit. If spillage occurs,
disconnect from the mains and allow to dry before re-use.
·Do not use phenol based cleaning solutions on the mattress or
cover.
·Do not place any components of the mattress system in either heat
or steam autoclaves.

Version 1.0 May 2016 Pg. 13
User Instruction Manual
NoDec®AIRSTREAM 3
·Risk of Suffocation:
The cover is not air permeable. Ensure the patient can use the
product safely.
·Do not drop the pump unit and do not drop objects onto it.
·Never use sharp objects on or near the mattress.
·Never insert objects into the pump.

Version 1.0 May 2016 Pg. 14
User Instruction Manual
NoDec®AIRSTREAM 3
Installation
Please follow these instructions to install your
NoDec® AIRSTREAM 3 mattress replacement safely and
appropriately.

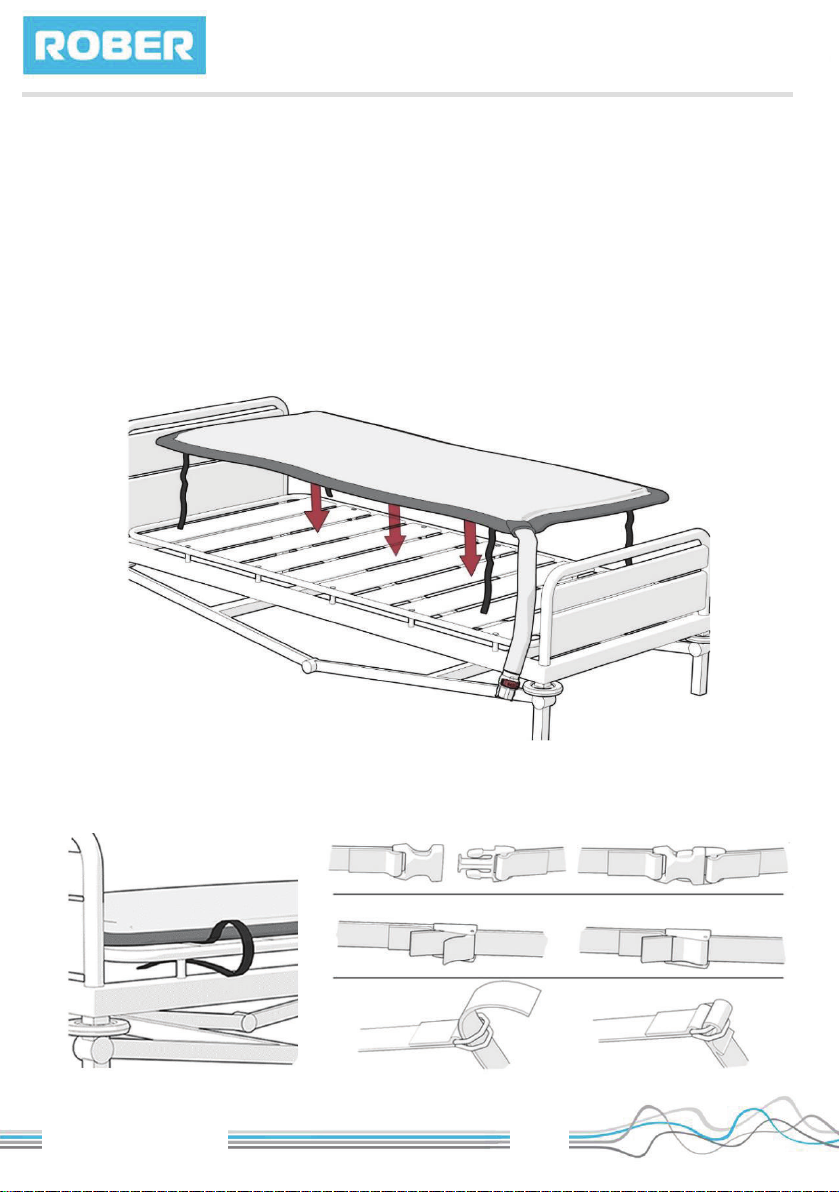

1. Place the mattress onto the bed frame, ensuring the light grey top
cover is facing upwards and the air supply hose (umbilical) is
positioned at the foot end of the bed.
2. Secure the mattress to the bed using the straps and fasteners
provided.

Version 1.0 May 2016 Pg. 15
User Instruction Manual
NoDec®AIRSTREAM 3

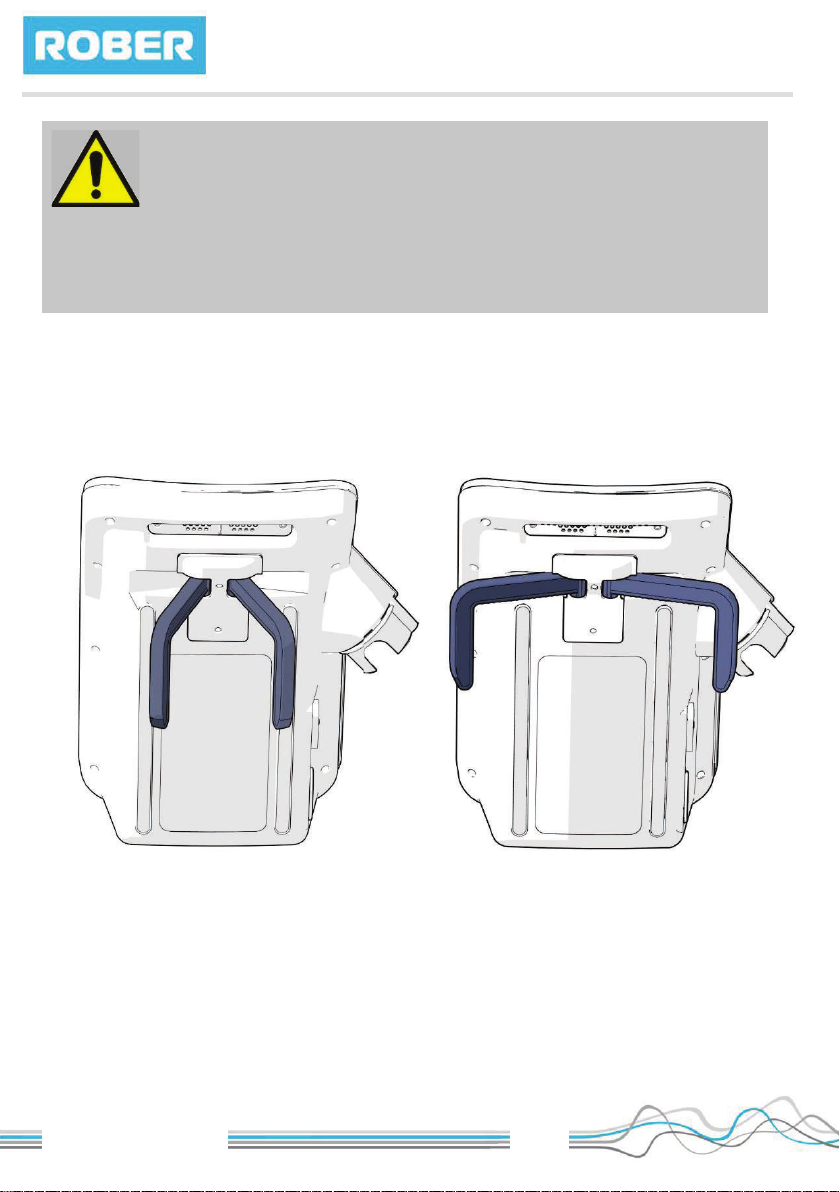

3. The hooks on the back of the NoDec® AIRSTREAM 3 have been
designed to accommodate a variety of bed frames and can be
adjusted easily by pushing down on the hooks and rotating.
Ensure that fastened straps do not restrict the operation of any
moving parts of the the hospital bed. Straps attached around
both moving parts and fixed parts of a bed frame will cause
severe damage to the mattress. After installation carefully test
the functions of the bed to ensure the mattress moves freely
with the bed platorm.

Version 1.0 May 2016 Pg. 16
User Instruction Manual
NoDec®AIRSTREAM 3
4. Hang the unit onto the bed frame at the foot end of the bed with the
control panel facing outwards.
5. Check that the CPR clip is in the closed position and plug the
umbilical hose into the dock.
6. Plug the power cable into the pump using the international
connector and then plug the other end (the main disconnection
device) into an easily accessible mains supply socket. Turn the
unit on using the switch to the right of the unit’s international plug
socket.

Version 1.0 May 2016 Pg. 17
User Instruction Manual
NoDec®AIRSTREAM 3

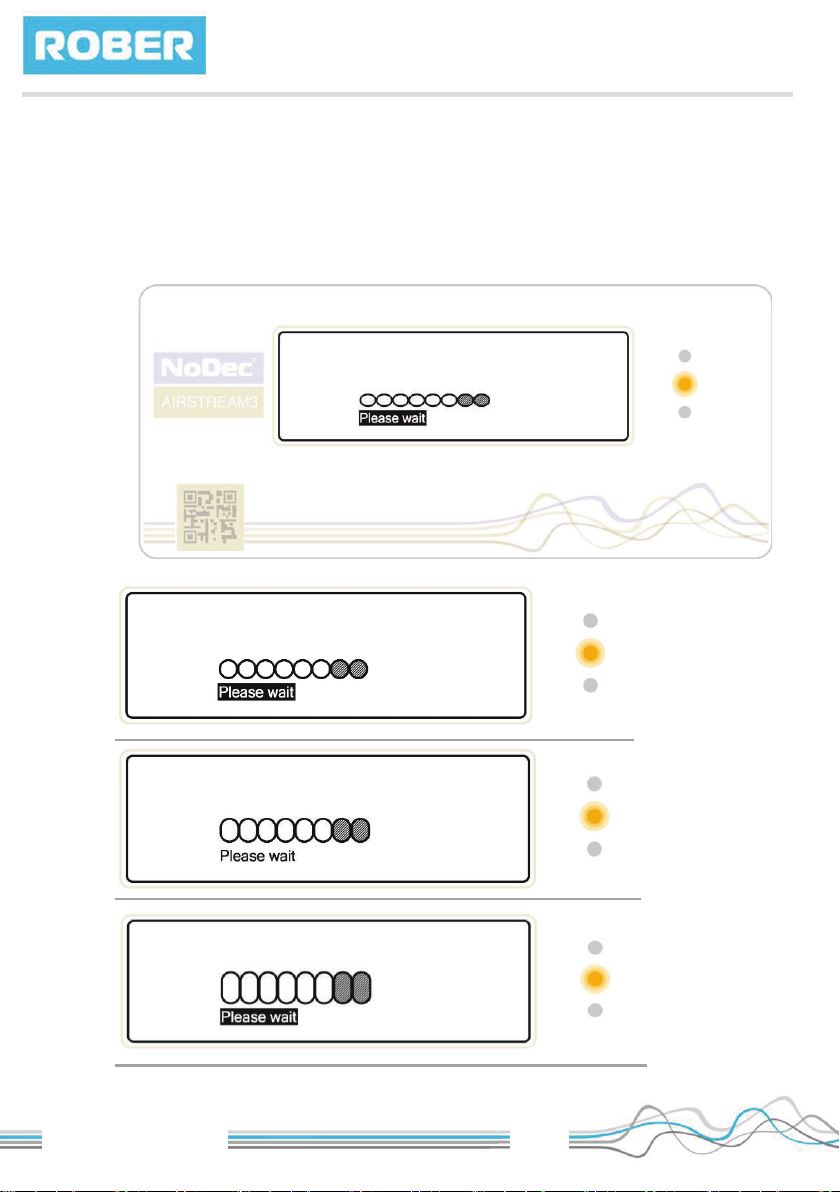

7. Wait for approximately 30 minutes and your NoDec® AIRSTREAM
3 Mattress Replacement System is ready for use.
Ensure that the power cable is safely guided through the
loops located under the skirt (waterfall). This will help reduce
any hazards in relation to the power cable.
Due to the special design on the power cable’s connection, it
cannot be pulled out without pushing the yellow button.
Ensure that the pump unit is positioned so this button is
accessible.

Version 1.0 May 2016 Pg. 18
User Instruction Manual
NoDec®AIRSTREAM 3
Display Screens / Operation Modes
Before using your NoDec® AIRSTREAM 3 it is important to
understand the touch screen display on the front panel of the pump
unit and how to navigate through the various operation modes of
the system.
Turning On
As soon as the control unit is turned on the screen will light up and
display the NoDec splash screen.

Version 1.0 May 2016 Pg. 19
User Instruction Manual
NoDec®AIRSTREAM 3
Initial Inflation
Automatically the system will begin to inflate the mattress and the
screen will show 8 cells inflating simultaneously as ‘Please wait’
flashes. An amber LED illuminates continuously until the mattress
is ready to use.
N.B.
During this
inflation
period it is
not
possible to
change any
settings.

Version 1.0 May 2016 Pg. 20
User Instruction Manual
NoDec®AIRSTREAM 3
Automatic Alternating Mode
Once the unit has inflated the mattress it will automatically default
to Alternating Mode and calibrate to the patients weight. The
following screen will be displayed and the LED will turn green.
Unlocking
If the user wishes to change the mode or settings they must
unlock the display screen first. By pressing gently and holding
down on the touch screen a padlock is displayed. To unlock the
touch screen press and hold until the padlock is fully open. Upon
releasing the screen, the User Settings menu is then shown.
