Roberts Gorden Vantage TF Series User manual

Roberts-Gordon, LLC
1250 William Street
P. O . B o x 4 4
Buffalo, New York 14240-0044
Telephone: [phone]
Fax: [phone]
Toll Free: 800.828.7450
www.rg-inc.com
www.radiantheaters.com
www.robertsgordon.com
© 2012 Roberts-Gordon LLC
TF-120
TF-160
TF-200
TF-250
TF-300
TF-350
TF-380
P/N 290100NA Rev. C 06/12
Vantage®TF
Fuel Conversion
Kit Instructions
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches.
4. DO NOT use any telephone in
your building.
5. Extinguish any open flame.
6. Leave the building.
7. Immediately call your local gas
supplier after leaving the building.
Follow the gas supplier’s
instructions.
8. If you cannot reach your gas
supplier, call the Fire Department.
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clear-
ances to combustibles away from
heater.
Some objects will catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property
damage.
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can result in death, injury or
property damage. Read the Installation, Operation
and Service Manual thoroughly before installing or
servicing this equipment.
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place in order to provide
your serviceman with necessary information.

© 2012
Roberts-Gordon LLC
All rights reserved. No part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Roberts-Gordon LLC.
TABLE OF CONTENTS
SECTION 1: Heater Safety...................................................... 1
1.1 Manpower Requirements ............................................. 1
1.2 Safety Labels and Their Placement .............................1
1.3 California Proposition 65 ..............................................1
SECTION 2: Installer Responsibility ..................................... 4
2.1 Wall Tag ....................................................................... 4
2.2 Corrosive Chemicals.................................................... 4
2.3 National Standards and Applicable Codes .................. 4
SECTION 3: For Natural to Propane Conversions Only....... 5
3.1 Contents of Fuel Conversion Kits (Natural to Propane).......5
SECTION 4: For Propane to Natural Conversions Only....... 6
4.1 Contents of Fuel Conversion Kits (Propane to Natural).......6
SECTION 5: Fuel Conversion Instructions ........................... 7
5.1 Burner Removal........................................................... 7
5.2 Door Assembly Removal ............................................. 7
5.3 Burner Cup Assembly Removal................................... 9
5.4 Regulator Replacement............................................... 9
5.5 Adjust Regulator ........................................................10
5.6 Inlet Gas Pressure Checks........................................ 10
5.7 Burner Conversion Label Information ........................ 12
5.8 Attach Burner Conversion Label................................ 12
SECTION 6: Clearances to Combustibles........................... 13
6.1 Required Clearances to Combustibles....................... 13
SECTION 7: Operation and Maintenance............................ 18
7.1 Sequence of Operation .............................................. 18
7.2 To Shut Off Heater...................................................... 18
7.3 To Start Heater ........................................................... 18
7.4 Pre-Season Maintenance and Annual Inspection....... 18
7.5 Maintenance Checklist ............................................... 19
SECTION 8: The ROBERTS GORDON®VANTAGE® TF
Warranty............................................................ 21
Printed in U.S.A.

TABLE OF FIGURES
Figure 1: Top and Bottom Panel Label Placement .................... 2
Figure 2: Side Panel Label Placement......................................3
Figure 3: Conversion Kit Regulator Installation in Valve
(Natural to Propane)................................................... 5
Figure 4: Conversion Kit Regulator Installation in Valve
(Propane to Natural)................................................... 6
Figure 5: Burner Assembly Overview .......................................7
Figure 6: Burner (External View From Below)........................... 8
Figure 7: Burner, Top View (Internal Assembly)........................8

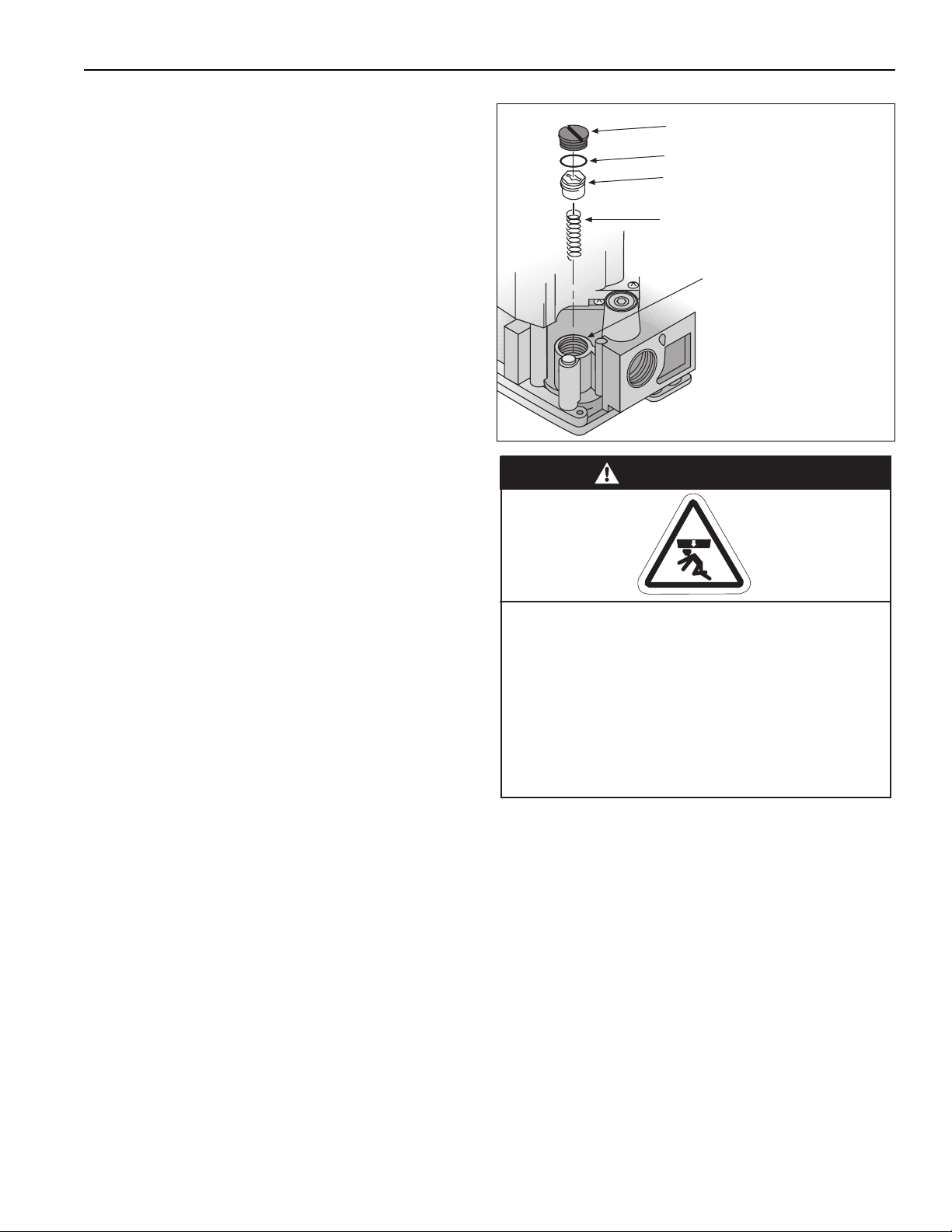

Figure 8: Pressure Regulator................................................... 9

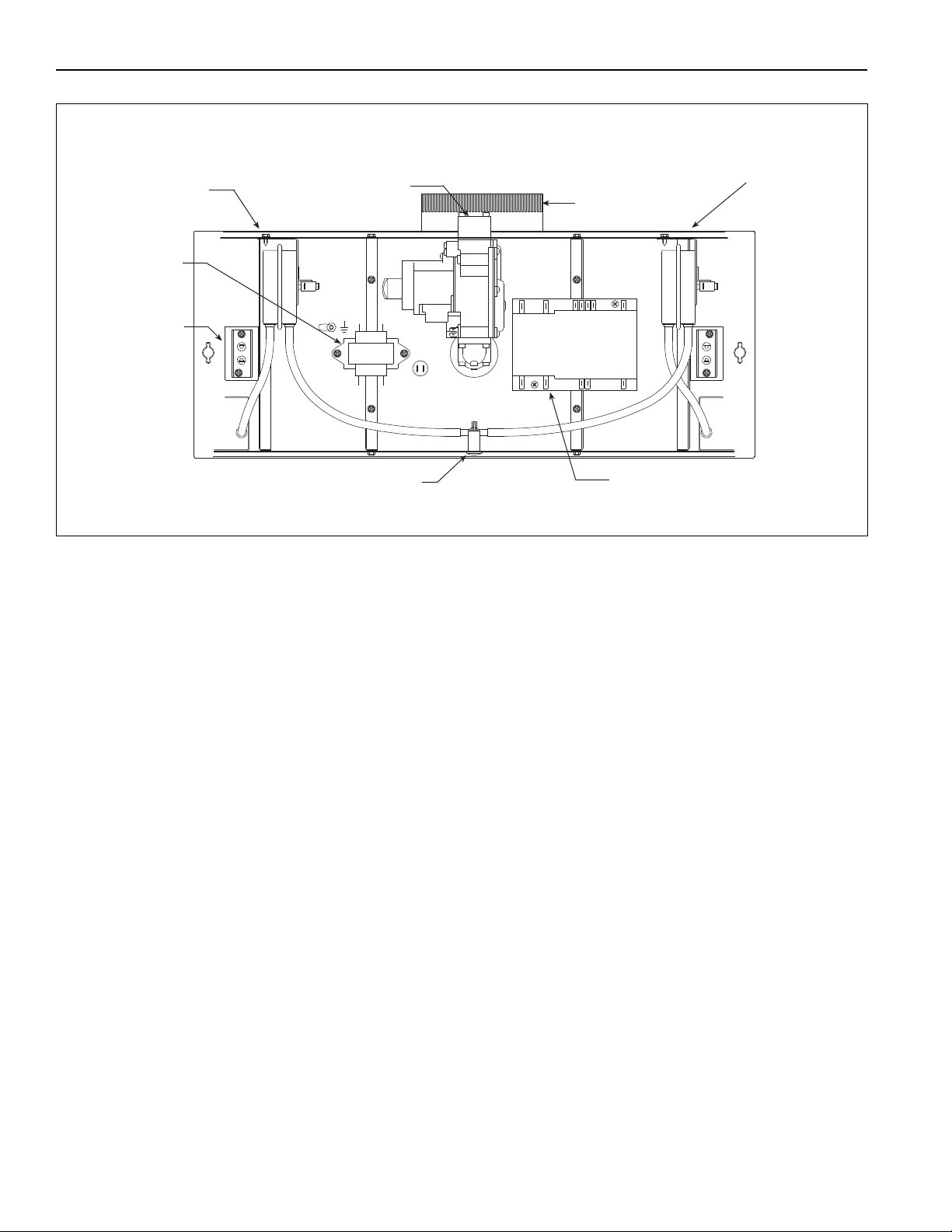

Figure 9: Burner, Side View (Internal Assembly) .................... 10

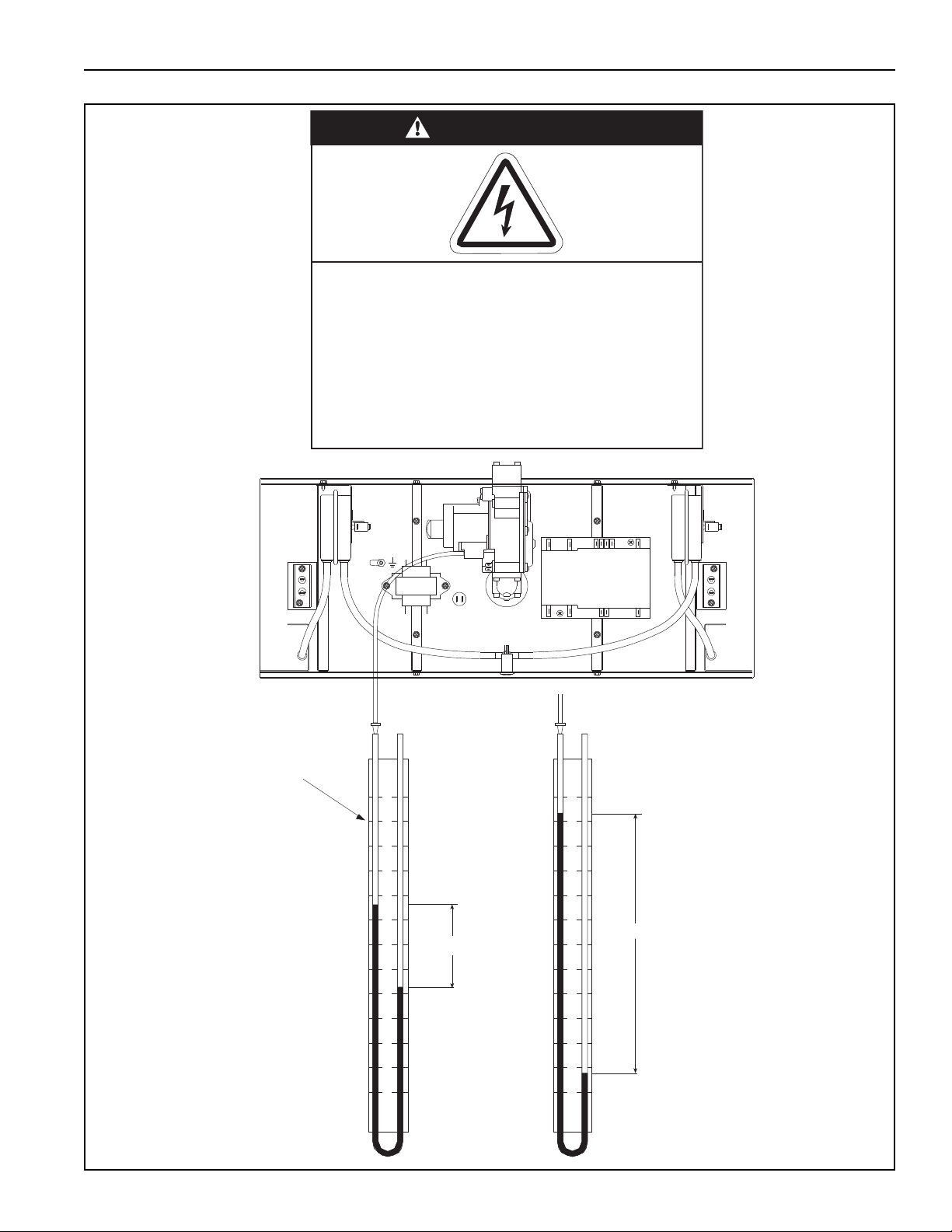

Figure 10: Manometer Reading............................................... 11

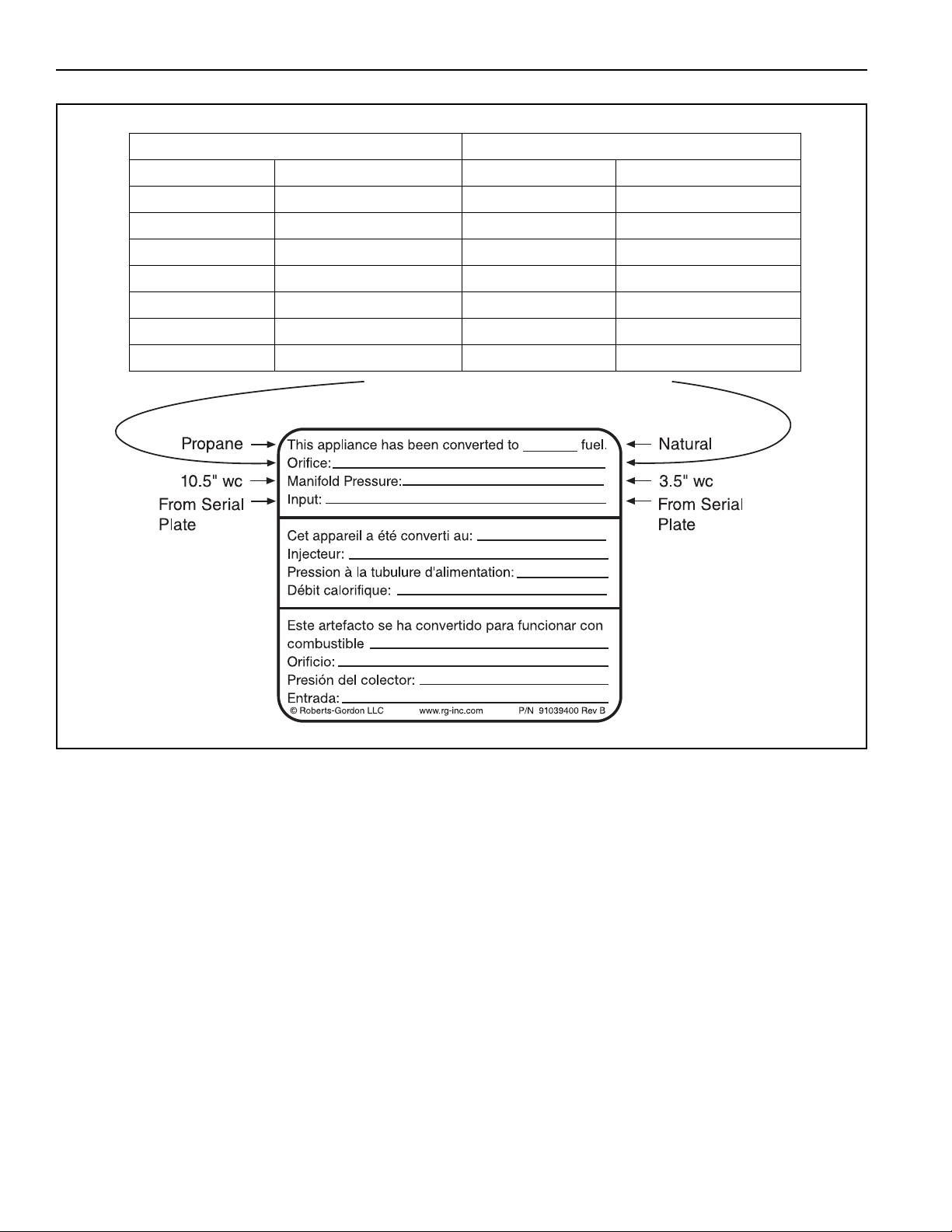

Figure 11: Label P/N 91039400............................................... 12
Figure 12: Standard Reflector ................................................ 14
Figure 13: One Side Reflector................................................ 14
Figure 14: Two Side Reflectors............................................... 14
Figure 15: 45° Tilt Reflector.................................................... 15
Figure 16: U-Tube, Standard Reflector................................... 15
Figure 17: U-Tube, 45° ........................................................... 15
Figure 18: U-Tube, Opposite 45° Reflector............................. 16
Figure 19: 2-Foot Deco Grille and Protective Grille ................ 16
Figure 20: Lower Clearance Shield* ...................................... 16
Figure 21: Venting .................................................................. 17

SECTION 1: HEATER SAFETY
1
SECTION 1: HEATER SAFETY
Your Safety is Important to Us!
This symbol is used throughout
the manual to notify you of
possible fire, electrical or burn
hazards. Please pay special
attention when reading and
following the warnings in these
sections.
Installation, service and annual inspection of heater
must be done by a contractor qualified in the
installation and service of gas-fired heating
equipment.
Read this manual carefully before installation,
operation or service of this equipment.
Due to the nature of gas conversions, it is important
you use the correct conversion kit for the heater
model and gas you are converting to. Use only
genuine ROBERTS GORDON®conversion kits.
This heater is designed for heating nonresidential
indoor spaces. Do not install in residential spaces.
These instructions, the layout drawing, local codes
and ordinances, and applicable standards that apply
to gas piping, electrical wiring, venting, etc. must be
thoroughly understood before proceeding with the
installation.
Protective gear is to be worn during installation,
operation and service. Thin sheet metal parts, includ-
ing the aluminum reflector portion of the heater and
the various venting components, have sharp edges.
To prevent injury, the use of work gloves is recom-
mended. The use of gloves will also prevent the
transfer of body oils from the hands to the surface of
the reflector.
Before installation, check that the local distribution
conditions, nature of gas and pressure, and adjust-
ment of the appliance are compatible.
This heater must be applied and operated under the
general concepts of reasonable use and installed
using best building practices.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do no play with the
appliance.
For additional copies of the Installation, Operation
and Service Manual, please contact Roberts-Gordon
LLC.
1.1 Manpower Requirements
To prevent personal injury and damage to the heater,
two persons will be required for installation.
1.2 Safety Labels and Their Placement
Product safety signs or labels should be replaced by
the product user when they are no longer legible.
Please contact Roberts-Gordon or your ROBERTS
GORDON®independent distributor to obtain
replacement signs or labels. See Page 2, Figure 1
through Page 3, Figure 2.
1.3 California Proposition 65
In accordance with California Proposition 65 require-
ments, a warning label must be placed in a highly
visible location on the outside of the equipment (i.e.,
near equipment’s serial plate). See label placement
drawing on Page 2, Figure 1 for label location. Avoid
placing label on areas with extreme heat, cold, corro-
sive chemicals or other elements. To order additional
labels, please contact Roberts-Gordon LLC or your
ROBERTS GORDON®independent distributor.

TF-SERIES FUEL CONVERSION INSTRUCTIONS
2
FIGURE 1: Top and Bottom Panel Label Placement
Logo Label
Rating Plate Label
Bottom
Panel
Gas Connection Label
Lighting Instruction Plate Label
Top Panel
Printed in the U.S.A/Imprimé aux Etats-Unis P/N91018124 Orig.
www.rg-inc.com
WARNING Risque d’incendie
Serrez et installez les raccords de canalisation de gaz pour
relier la source de gaz selon l'exemple.
Le ligne de gaz de câble peut se ssurer une fois tordue.
Le ligne de gaz se déplace pendant l'exécution normale.
Utilisez seulement un connecteur de ½" ou de ¾" en
diamètre interne nominal et d’une longeur de 36" (91 cm).
Le connecteur est fourni avec le chauffage pour les
modèles américains (Pas avec les modèles canadiens).
Le non-respect de ces consignes peut causer la mort, les
blessures ou le dommage matériel.
© 2009 Roberts-Gordon LLC
INCORRECT POSITIONS / POSITION INEXACT
Horizontal/
Vue de côte
End View/Vue arrière
Vertical
(as shown left)/
(montrée à gauche)
Alternate
positions okay/
Positions
alternatives
sont bien
Fire Hazard
Tighten and install gas hose ttings to connect gas
supply according to example below.
Gas hose can crack when twisted.
Gas hose moves during normal operation.
Use only 36" (91cm) long connector of 1/2" or 3/4"
nominal ID.
Connector supplied with heater for U.S. models (not with
Canadian models).
Failure to follow these instructions can result in death,
injury or property damage.
CORRECT POSITIONS / POSITION EXACT
Heater Movement/
Mouvement d'appareil de
chauffage
Heater Movement/
Mouvement d'appareil de
chauffage
Heater Movement/
Mouvement d'appareil de
chauffage
Heater Movement/
Mouvement d'appareil de
chauffage
ATTENTION
Shut-Off Valve must be parallel to burner
gas inlet. The 3" (8 cm) displacement
shown is for the cold condition.This
displacement may reduce when the system
is fired.
Le Robinet d’arrêt doit être parallèle au
tube d'admission de gaz du brûleur. Le
déplacement de 3"(8 cm) montré est quand
le système est froid. Ce déplacement peut
diminuer quand le système est activé.
Shut-Off Valve (Included With Gas Hose)/
Robinet d’arrêt (Fournie avec le raccordement)
Heater Movement/Mouvement d'appareil de chauffage
Flexible Gas Hose 36"
(91 cm) length/
Flexible de Raccordement
de Gaz en Acier Inoxydable
de longuer 36" (91 cm)
12"
(30 cm)
3" (8 cm)
max. displacement/
déplacement maximum
Side View/Vue de côté
45°
45°
3/4" NPT
Pipe/Tuyau
90° Pipe Elbow (Not Included)/
Coude á 90° (Non Inclus)
Printedin the U.S.A/Imprimé aux Etats-Unis P/N91018124 Orig .
www.rg-inc.com
WARNING
Risque d’incendie
Serrezet installez les raccords de canalisation de gaz pour
relierla source de gaz selon l'exemple.
Leligne de gaz de câble peut se ssurer une fois tordue.
Leligne de gaz se déplace pendant l'exécution normale.
Utilisezseulement un connecteur de ½" ou de ¾" en
diamètreinterne nominal et d’une longeur de 36" (91 cm).
Leconnecteur est fourni avec le chauffage pour les
modèlesaméricains (Pas avec les modèles canadiens).
Lenon-respect de ces consignes peut causer la mort, les
blessuresou le dommage matériel.
©2009 Roberts-Gordon LLC
INCORRECT POSITIONS / POSITION INEXACT
Horizontal/
Vuede côte
EndView/Vue arrière
Vertical
(asshown left)/
(montréeà gauche)
Alternate
positionsokay/
Positions
alternatives
sontbien
Fire Hazard
Tightenand install gas hose ttings to connect gas
supplyaccording to example below.
Gashose can crack when twisted.
Gashose moves during normal operation.
Useonly 36" (91cm) long connector of 1/2" or 3/4"
nominalID.
Connectorsupplied with heater for U.S. models (not with
Canadianmodels).
Failureto follow these instructions can result in death,
injury or property damage.
CORRECT POSITIONS / POSITION EXACT
HeaterMovement/
Mouvementd'appareil de
chauffage
HeaterMovement/
Mouvementd'appareil de
chauffage
HeaterMovement/
Mouvementd'appareil de
chauffage
HeaterMovement/
Mouvementd'appareil de
chauffage
ATTENTION
Shut-OffValve must be parallel toburner
gasinlet. The 3" (8 cm) displacement
shownis for the cold condition. This
displacementmay reduce when the system
isfired.
LeRobinet d’arrêt doit être parallèle au
tubed'admission de gaz du brûleur. Le
déplacementde 3"(8 cm) montré est quand
lesystème est froid. Ce déplacement peut
diminuerquand le système est activé.
Shut-OffValve (IncludedWith Gas Hose)/
Robinetd’arrêt (Fournie avec le raccordement)
HeaterMovement/Mouvement d'appareil de chauffage
FlexibleGas Hose 36"
(91cm) length/
Flexiblede Raccordement
deGaz en Acier Inoxydable
delonguer 36" (91 cm)
12"
(30cm)
3"(8 cm)
max.displacement/
déplacementmaximum
SideView/Vue de côté
45°
45°
3/4"NPT
Pipe/Tuyau
90°Pipe Elbow (Not Included)/
Coudeá 90° (Non Inclus)
Proposition 65 Label
Description Part Number
Logo Label 91013202
Rating Plate Label 91010401
Gas Connection Label 91018124
Lighting Instruction Plate Label 91029602
Proposition 65 Label 91070016

SECTION 1: HEATER SAFETY
3
FIGURE 2: Side Panel Label Placement
Vent Length Label
Control Side Panel
Side Panel
Control Side Panel (Inside)
Wiring Label
Clearances to Combustibles Label
Description Part Number
Clearances to Combustibles Label 91013407
Wiring Label 91013302
Vent Length Label 91039500

TF-SERIES FUEL CONVERSION INSTRUCTIONS
4
SECTION 2: INSTALLER RESPONSIBILITY
The installer is responsible for the following:
• To install the heater, as well as the gas and electri-
cal supplies, in accordance with applicable specifi-
cations and codes. Roberts-Gordon recommends
the installer contact a local Building Inspector or
Fire Marshal for guidance.
• To use the information given in a layout drawing
and in the manual together with the cited codes
and regulations to perform the installation.
• To install the heater in accordance with the
clearances to combustibles.
• To furnish all needed materials not furnished as
standard equipment.
• To plan location of supports.
• To provide access to burners for servicing on all
sides for burner removal.
• To provide the owner with a copy of this installa-
tion, operation and service manual.
• To never use heater as support for a ladder or
other access equipment and never hang or sus-
pend anything from heater.
• To ensure there is adequate air circulation around
the heater and to supply air for combustion, venti-
lation and distribution in accordance with local
codes.
• To safely and adequately install heater using
materials with a minimal working load of 75 lbs
(33 kg).
• To ensure the heater is placed in a approved
application.
2.1 Wall Tag
A laminated wall tag is available for the heater as a
permanent reminder of the safety instructions and
the importance of the required clearances to com-
bustibles. Please contact Roberts-Gordon or your
ROBERTS GORDON®independent distributor to
obtain the wall tag. Affix the tag by peeling off the
backing of the adhesive strips on the rear surface
and position the tag on a wall near the heater (e.g.
thermostat or ROBERTS GORDON®Controller).
A copy of the wall tag (P/N 91037912) is illustrated on
the back cover. For an immediate solution, you may
affix this copy on the wall near the heater.
Know your model number and installed configuration.
Model number and installed configuration are found
on the burner and in the Installation, Operation and
Service Manual. Write the proper clearance dimen-
sions in permanent ink according to your model num-
ber and configuration in the open spaces on the tag.
2.2 Corrosive Chemicals
Roberts-Gordon cannot be responsible for ensuring
that all appropriate safety measures are undertaken
prior to installation; this is entirely the responsibility of
the installer. It is essential that the contractor, the
sub-contractor, or the owner identifies the presence
of combustible materials, corrosive chemicals or
halogenated hydrocarbons* anywhere in the
premises.
* Halogenated Hydrocarbons are a family of chemical
compounds characterized by the presence of halogen
elements (fluorine, chlorine, bromine, etc.). These com-
pounds are frequently used in refrigerants, cleaning
agents, solvents, etc. If these compounds enter the air
supply of the burner, the life span of the heater compo-
nents will be greatly reduced. An outside air supply must
be provided to the burners whenever the presence of
these compounds is suspected. Warranty will be invalid if
the heater is exposed to halogenated hydrocarbons.
2.3 National Standards and Applicable Codes
All appliances must be installed in accordance with
the latest revision of the applicable standards and
national codes. This refers also to the electric, gas
and venting installation. Note: Additional standards
for installations in Public Garages, Aircraft Hangars,
etc. may be applicable.
CAUTION
Product Damage Hazard
Do not use heater in area containing
corrosive chemicals.
Refer to appropriate Material Safety Data
Sheets (MSDS).
Failure to follow these instructions can result
in product damage.

SECTION 3: FOR NATURAL TO PROPANE CONVERSIONS ONLY
5
SECTION 3: FOR NATURAL TO PROPANE CONVERSIONS ONLY
FIGURE 3: Conversion Kit Regulator Installation in Valve (Natural to Propane)
3.1 Contents of Fuel Conversion Kits (Natural to Propane)
All kits include this manual and the Installation, Operation and Service Manual.
Spring Kit (P/N 90032600)
Gas Conversion Label (P/N 91039400)
Orifice (P/N See table below)
Cap Screw (black)
O Ring (black)
Pressure Regulator
Adjusting Screw (white)
Spring (red)
Pressure
Regulator
Housing
Kit Number Model TF Orifice P/N Label Spring Kit
TF120NP 120 91910443 (Qty 2) 91039400 90032600
TF160NP 160 91910437 (Qty 2) 91039400 90032600
TF200NP 200 91910432 (Qty 2) 91039400 90032600
TF250NP 250 91910430 (Qty 2) 91039400 90032600
TF300NP 300 91910428 (Qty 2) 91039400 90032600
TF350NP 350 91910424 (Qty 2) 91039400 90032600
TF380NP 380 91910422 (Qty 2) 91039400 90032600

TF-SERIES FUEL CONVERSION INSTRUCTIONS
6
SECTION 4: FOR PROPANE TO NATURAL CONVERSIONS ONLY
FIGURE 4: Conversion Kit Regulator Installation in Valve (Propane to Natural)
4.1 Contents of Fuel Conversion Kits (Propane to Natural)
All kits include this manual and the Installation, Operation and Service Manual.
Fire Hazard
Check conversion kit part number before proceeding.
Kit part number must match the corresponding
model number.
Failure to follow these instructions can result
in death, injur or propert damage.
WARNING
Spring Kit (P/N 90032700)
Gas Conversion Label (P/N 91039400)
Orifice: (P/N See table below)
Cap Screw (silver)
O Ring (black)
Pressure Regulator
Adjusting Screw (white)
Spring (silver)
Pressure
Regulator
Housing
Kit Number Model TF Orifice P/N Label Spring Kit
TF120PN 120 91910426 (Qty 2) 91039400 90032700
TF160PN 160 91910418 (Qty 2) 91039400 90032700
TF200PN 200 91910411 (Qty 2) 91039400 90032700
TF250PN 250 91910403 (Qty 2) 91039400 90032700
TF300PN 300 91910498 (Qty 2) 91039400 90032700
TF350PN 350 91910499 (Qty 2) 91039400 90032700
TF380PN 380 91910500 (Qty 2) 91039400 90032700

SECTION 5: FUEL CONVERSION INSTRUCTIONS
7
SECTION 5: FUEL CONVERSION INSTRUCTIONS
NOTE: It may be easier to remove the burner to a
workbench; however, it can be converted in place. If
you are converting the burner in place, skip to
Step 5.2.
Step 5.1 Burner Removal
1. Turn off gas supply valve, disconnect gas from
burner.
2. Turn off power supply and disconnect wires from
burner.
3. Unplug thermostat wires from burner.
4. If outside air is installed, disconnect.
5. Remove the bolts which hold the burner on the
transition tube using a 1/2" wrench.
6. Remove the burner. See Figure 5.
7. Save the gasket (P/N 02568200) or re-install a
new one after conversion.
Step 5.2 Door Assembly Removal
Remove the thumbs screws and set the control side
door aside. See Page 8, Figure 6.
FIGURE 5: Burner Assembly Overview
WARNING
Severe Injury Hazard
Secure burner to burner tube with bolts and
lockwashers.
Hang heater with materials with a minimum
working load of 75 lbs (33 kg).
Failure to follow these instructions can result
in death, injury or property damage.
ock Washer
Gasket
Burner
Bolt

TF-SERIES FUEL CONVERSION INSTRUCTIONS
8
FIGURE 6: Burner (External View From Below)
FIGURE 7: Burner, Top View (Internal Assembly)
( )
Gas Valve
Blower with
Screen and Gasket
Burner Cup
Viewer Window
Electrode
Pressure
Switch
Pressure
Switch
Blower with
Screen and Gasket
Door
Switch
Burner
Tube
Gasket

SECTION 5: FUEL CONVERSION INSTRUCTIONS
9
Step 5.3 Burner Cup Assembly Removal
1. Remove the two electrodes: Remove the elec-
trode securing screws with 1/4" nutdriver or phil-
lips (+) screwdriver. Use care in handling the
electrodes. Carefully remove the electrodes and
set them aside.
2. Remove the blower side door: Remove the four
thumb screws and set the door aside. See Page
8, Figure 6.
3. Remove the burner cup assembly: Unscrew the
burner cup and set aside. See Page 8, Figure 7.
4. Remove and replace the gas orifices: Use a 1/2"
open end wrench (spanner) to remove the two
orifices. Replace it with the one included with
this kit.
CAUTION: Do not over-tighten the orifices. The
torque value for the orifice is 15 in/lbs; contact
your factory representative for more details.
Step 5.4 Regulator Replacement
1. Be sure gas supply to heater is off.
2. Replace the burner cups. Insure the large
external tooth washer is in place then tighten the
burner cup.
3. Replace the blower side door.
4. Replace the electrodes.
5. Replace the regulator spring. Using a flat head
screwdriver, remove the cap from the regulator
adjusting screw, remove the screw and remove
and replace the spring. NOTE: Silver spring for
Natural, red spring for Propane. See Page 5,
Section 3 and Page 6, Section 4 to verify spring
kit components.
6. Replace the adjusting screw and turn down
approximately 1/2".
7. If the burner is removed, re-install the gaskets
and the burner on the transition tubes by
inserting lockwashers and bolts, torque to 120
in/lbs. Reconnect outside air, gas and electrical
supplies. For proper installation procedures, see
venting, gas piping and electrical sections of the
Installation, Operation and Service Manual
included in this Conversion Kit.
FIGURE 8: Pressure Regulator
Cap Screw (black)
O Ring (black)
Pressure Regulator
Adjusting Screw (white)
Spring(Silver for Natural Gas)
(Red for Propane Gas)
Pressure
Regulator
Housing
WARNING
Severe Injury Hazard
Secure burner to burner tube with bolts and
lockwashers.
Hang heater with materials with a minimum
working load of 75 lbs (33 kg).
Failure to follow these instructions can result
in death, injury or property damage.

TF-SERIES FUEL CONVERSION INSTRUCTIONS
10
FIGURE 9: Burner, Side View (Internal Assembly)
Step 5.5 Adjust Regulator
1. Using a 3/16" hex key, remove the plug at the
valve outlet and install a test tap and hose. Con-
nect the hose to a liquid filled manometer. See
Page 11, Figure 10.
2. Turn on gas and power. Turn up thermostat.
3. When unit comes on, adjust the regulator by
turning the adjusting screw to set the pressure
to:
Natural: 3.5" wc
Propane: 10.5" wc
4. Turn off power and gas.
5. Remove test tap and replace plug at valve
outlet. Replace O Ring and cap screw.
Step 5.6 Inlet Gas Pressure Checks
The gas inlet pressure to the heater must be checked
as follows:
1. Turn off electrical supply to heater.
2. Turn off gas supply to heater.
3. Remove the plug at the valve inlet and install a
test tap and hose. Connect the hose to a liquid
filled manometer. See Page 11, Figure 10.
4. Turn on gas supply to heater.
5. The manometer should read a maximum gas
pressure of 14.0" wc for Natural or L.P. gas.
6. Turn on electrical supply to heater.
7. With heater in operation, manometer should
read a minimum inlet pressure of 4.5" wc for
Natural gas or 11.0" wc for L.P. gas.
8. If in steps 5 and 7, the recommended maximum
and minimum pressures are not obtained, the
main gas supply pressure to the heater must be
adjusted as necessary for compliance.
9. Turn off main gas supply to heater.
10.Turn off electrical supply to heater.
11. Remove manometer and insert pipe plug into
valve inlet.
12.Turn on main gas supply to heater.
13.Leak test plug in tapping using soap solution.
14.Turn on electrical supply to heater.
Gas Valve
Ignition Module
Pressure
Switch
Electrode
Gasket
Indicator ight
Transformer
Pressure
Switch
Air Collar

SECTION 5: FUEL CONVERSION INSTRUCTIONS
11
FIGURE 10: Manometer Reading
0
1
2
3
4
5
6
1
2
3
4
5
6
0
1
2
3
4
5
6
1
2
3
4
5
6
Manometer
Natural Propane
3.5"
10.5"
Control Side View of Heater
WARNING
Electrical Shock Hazard
Disconnect electrical and gas before
servicing.
This appliance must be connected to a
properly grounded electrical source.
Failure to follow these instructions can result
in death or electrical shock.

TF-SERIES FUEL CONVERSION INSTRUCTIONS
12
FIGURE 11: Label P/N 91039400
Step 5.7 Burner Conversion Label Information
Print the requested information in the fields of the
burner conversion label as shown in See Page 12,
Figure 11.
Step 5.8Attach Burner Conversion Label
1. Attach the small yellow gas label (included in
conversion kit) to the gas valve. Attach the con-
version label (P/N 91039400) to the side of the
burner housing top. See Page 8, Figure 6.
2. Replace the burner housing door.
Enter Data for Natural to Propane Conversions Enter Data for Propane to Natural Conversions
Model Propane Orifice Size Model Natural Orifice Size
TF-120 #43 TF-120 #26
TF-160 #37 TF-160 #18
TF-200 #32 TF-200 #11
TF-250 #30 TF-250 #03
TF-300 #28 TF-300 "B"
TF-350 #24 TF-350 "G"
TF-380 #22 TF-380 "J"

SECTION 6: CLEARANCES TO COMBUSTIBLES
13
SECTION 6: CLEARANCES TO COMBUSTIBLES
6.1 Required Clearances to Combustibles
Clearances are the required distances that
combustible objects must be away from the heater to
prevent serious fire hazards. Combustibles are
materials, that may catch on fire and include common
items such as wood, paper, rubber, fabric, etc.
Maintain clearances to combustibles at all times
for safety.
Clearances for all heater models are located on the
burner of the heater and on Page 14, Figure 12
through Page 17, Figure 21 in this manual. Check the
clearances on each burner for the model heater
being installed to make sure the product is suitable
for your application and the clearances are
maintained. Read and follow the safety guidelines
below:
• Keep gasoline or other combustible materials
including flammable objects, liquids, dust or
vapors away from this heater or any other appli-
ance.
• The stated clearances to combustibles represent
a surface temperature of 90° F (50° C) above
room temperature. Building materials with a low
heat tolerance (such as plastics, vinyl siding, can-
vas, triply, etc.) may be subject to degradation at
lower temperatures. It is the installer’s responsibil-
ity to assure that adjacent materials are protected
from degradation.
• Maintain clearances from heat sensitive
equipment and workstations.
• Maintain clearances from vehicles parked below
the heater.
• Maintain clearances from swinging and overhead
doors, overhead cranes, vehicle lifts, partitions,
storage racks, hoists, building construction, etc.
• In locations used for the storage of combustible
materials, signs must be posted to specify the
maximum permissible stacking height to maintain
required clearances from the heater to the com-
bustibles. Signs must be posted adjacent to the
heater thermostat. In the absence of a thermo-
stat, signs must be posted in a conspicuous
location.
• Consult local Fire Marshal, Fire Insurance Carrier
or other authorities for approval of proposed
installation when there is a possibility of exposure
to combustible airborne materials or vapors.
• Hang heater in accordance to the minimum sus-
pension requirements in the heater’s Installation,
Operation and Service Manual.
• If the radiant tubes must pass through the building
structure, be sure that adequate sleeving and fire
stop is installed to prevent scorching and/or fire
hazard.
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to
combustibles away from heater.
Some objects will catch fire or explode when
placed close to heater.
Failure to follow these instructions can result
in death, injury or property damage.

TF-SERIES FUEL CONVERSION INSTRUCTIONS
14
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 12: STANDARD REFLECTOR
(inches) (centimeters)
Model ABCDABCD
TF-120 635 63 35 16 89 161 89
TF-160 6 386638169716897
TF-200 640 71 40 16 102 181 102
TF-250 6 46 77 46 16 117 196 117
TF-300 650 80 50 16 127 204 127
TF-350 8 52 82 52 21 133 209 133
TF-380 852 82 52 21 133 209 133
FIGURE 13: ONE SIDE REFLECTOR
(inches) (centimeters)
Model ABCDABCD
TF-120 6 9 63 47 16 23 161 120
TF-160 6 9 70 54 16 23 178 138
TF-200 6 9 77 59 16 23 196 150
TF-250 6 9 83 65 16 23 211 166
TF-300 6 9 86 69 16 23 219 176
TF-350 8 9 88 73 21 23 224 186
TF-380 8 9 88 73 21 23 224 186
A
C
D
B
FIGURE 14: TWO SIDE REFLECTORS
(inches) (centimeters)
Model ABCDABCD
TF-120 623 66 23 16 59 168 59
TF-160 6 25 72 25 16 64 183 64
TF-200 627 78 27 16 69 199 69
TF-250 6 328432168221482
TF-300 635 88 35 16 89 224 89
TF-350 8 40914021102232102
TF-380 840 91 40 21 102 232 102
A
C
D
B
