Haverland ECO-DRY GPS Series Parts list manual

Instructions & installation manual
ECO-DRY GPS
ECODRY_GPS_V1_15MAY2019_MISA_ESUKFP2019
NOT SUPPLIED
SMARTBOX
HAVERLAND
APP
works with the
Google is a trademark of Google LLC.
Voice Control
Dry Stone technology
IF YOU HAVE ANY DIFFICULTY WITH
THIS PRODUCT, INSTEAD OF TAKING
IT BACK TO THE RETAILER, TRY:
1. The instruction booklet
2. Refer to [email protected]
3. Or call our helpline:
UK: 0330 365 1940

ES
P
4 1. GENERAL WARNINGS
62. INSTALLATION
93. OPERATION
9 3.1 CONTROL PANEL
9 3.2 START - FIRST CONNECTION
10 3.3 OPERATING MODES
10 3.4 OFF MODE
11 3.5 AUTO MODE (PRO)
11 3.5.1 TIME PROGRAMMING
12 3.5.2 SETTING THE TIME
12 3.5.3 WEEKLY PROGRAMMING
15 3.5.4 HOW DO I CONFIGURE PRE-SET TEMPERATURES?
17 3.6 MANUAL MODE
18 3.7 LOCKING THE KEYPAD
18 3.8 BOOST FUNCTION - 2 HOUR FUNCTION
19 3.9 “OPEN WINDOWS” SAVE FUNCTION
19 3.10 INTELLIGENT ITCS FUNCTION

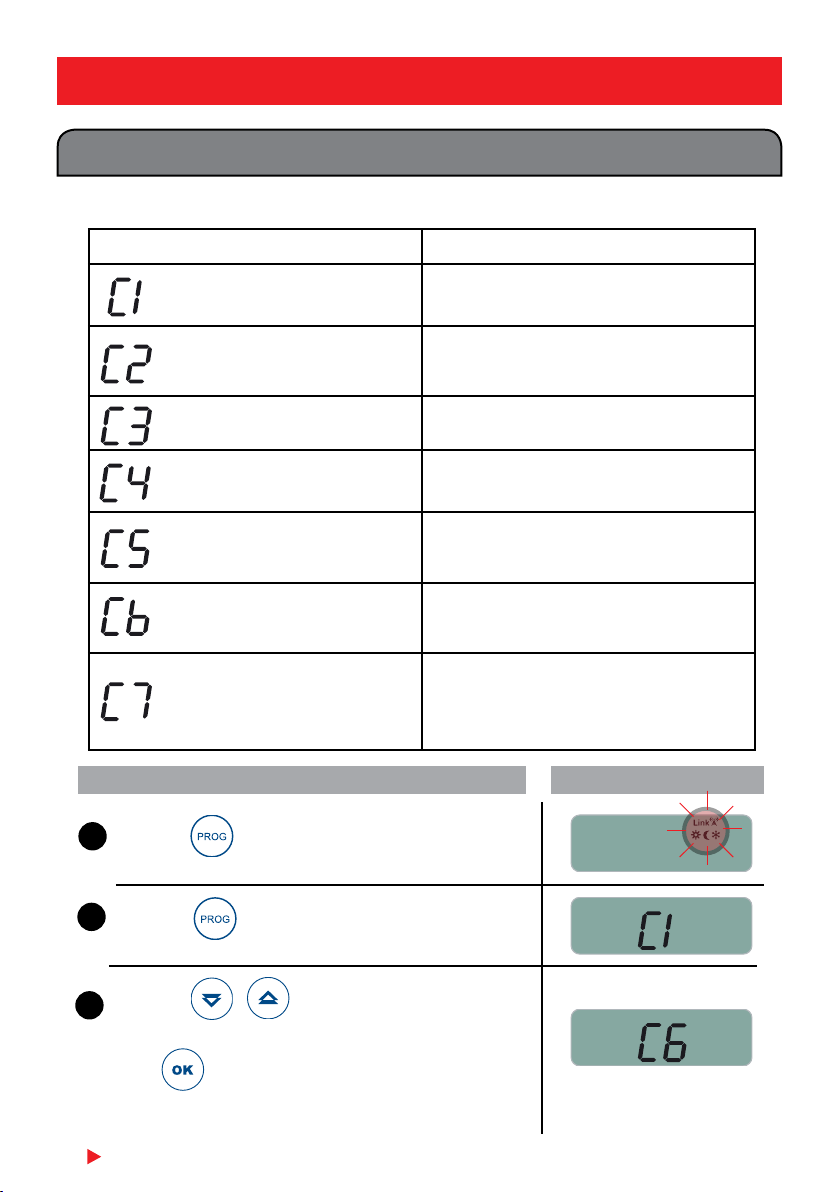

20 3.11 ADVANCED FUNCTIONS
21 3.12 DISCONNECTION FROM THE ELECTRICITY / POWER CUT
22 3.13 GEOLOCATION - CONTROL “VIA APP”
22 3.13.1 HOW DO I CONFIGURE THE SMARTBOX?
23 3.13.2 GEOLOCATION
23 4. MAINTENANCE
24 5. GUARANTEE
INDEX
PAGE

4 ECODRY GPS
• Please read these instructions carefully.
• To disconnect mains power from the radiator remove the
plug from the wall socket, but never pull on the cable.
• Do not leave the mains cable in contact with the radiator
when it is switched on.
• During operation, the radiator must be kept well away from
combustible materials, such as curtains, carpets and furniture
etc.
• The warranty for the radiator does not cover any damage
caused by not reading these instructions.
WARNING: In order to avoid overheating, do not
cover the heater.
• WARNING: If the mains power cable is damaged, it must
be replaced by the manufacturer, with their after-sales
service or similar qualied persons, in order to prevent
any danger.
• WARNING: If the heater is to be installed in a bathroom,
it must be positioned so that it cannot be touched by
anybody in the bath or shower.
• The installation should be carried out with consideration
to the manufacturer’s instructions and in accordance to
the relevant National Wiring Regulations BS7671.
• It is very important that radiator has a good Electric Earth
connection.
• The radiator shall be installed so that its mains plug is always
accessible.
• The radiator must not be installed below or in front of a mains
socket.
• This radiator cannot be surface-mounted with a wall.
Safety distances shall always be respected.
1. CAUTION

ECODRY GPS 5
• The radiator has a keyboard blockage option to prevent
children from changing the programming.
• This unit is not designed to be handled by persons (including
children) with physical, sensorial or mental handicaps, with
little experience or knowledge unless they are under the
supervision of an adult responsible for their safety with the
instructions on its use. Children shall always be supervised to
ensure they do not play with the unit.
• Children under three shall be kept well away from the heater
unless they are continually supervised.
• Children between three and eight shall only switch the unit o
or on providing it is positioned or installed in its nal operating
location and be supervised or have received instructions on
how to use the unit in a safe manner and understand the risks
involved.
• Children between three and eight shall not plug in, adjust or
clean the heater or carry out any maintenance operations.
• This unit may be used by children older than eight and by
persons with physical, sensorial or mental handicaps, with
little experience or knowledge, provided they have been duly
trained and are supervised by an adult that understands the
risks involved.
• Cleaning and maintenance shall be performed by adults not
children. Children must not play with the unit.
• WARNING: Certain parts of this product can become
very hot and cause burns. Special attention shall be paid
when children and other vulnerable persons are present.
• Do not touch the external parts of the radiator when it is
operating.
• It is quite normal that, with the rst switch-on, the unit
produces a “new” smell. Allow your heater to operate in a
well-ventilated place for two or three hours.
1. CAUTION

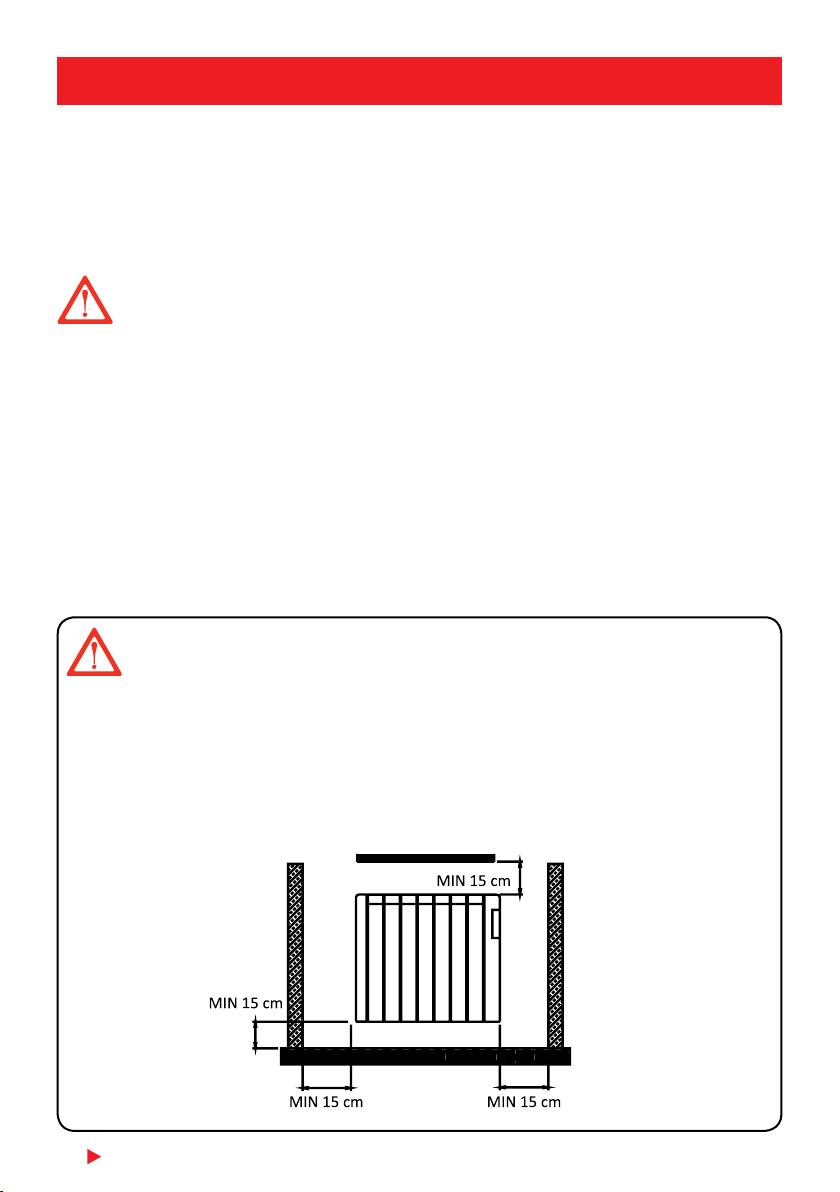

6 ECODRY GPS
• It is important that the radiator IS FIXED FIRMLY TO A SOLID AND LEVELLED WALL.
• Make sure that there is a socket near the area where you are going to place it.
• Take out the wall pattern from the box to see the exact positions of the necessary drill
holes.
• You must keep a minimum distance of 15 cm between the radiator and any object, wall
or combustible material.
IMPORTANT
2. INSTRUCTIONS FOR INSTALLATION
• Before the rst switch on for the coming winter or when the
heater has not been used for several days, the unit should be
cleaned (follow the steps given in the “maintenance section”.This
cleaning operation will avoid burning the accumulated dust and
other remains.
• This radiator CAN’T OPERATE with external programmable
controllers or any other exterior control device.
• CAUTION: Keep bags and other accessories well out of the
reach of children.
• The convection eect, together with other ambient factors, can
cause discolouring to metal surfaces and to plastics.
• Temperature dierences can cause crackling and other noises in
the unit. This does not indicate any failure in the radiator.
• When the radiator is disposed of, the requirements established
by current legislation on waste processing and recycling shall be
taken into account.

ECODRY GPS 7
1
3
5
1
3
2
4
2
2. INSTRUCTIONS FOR INSTALLATION
Cardboard template
4 Screws
5.5 x 50 mm
Place the screw
but don’t
screw it fully.
(M. 6 x 40 mm)
Slide the
radiator up,
Place over top
tang and lower
gently into
position
Place
the radiator

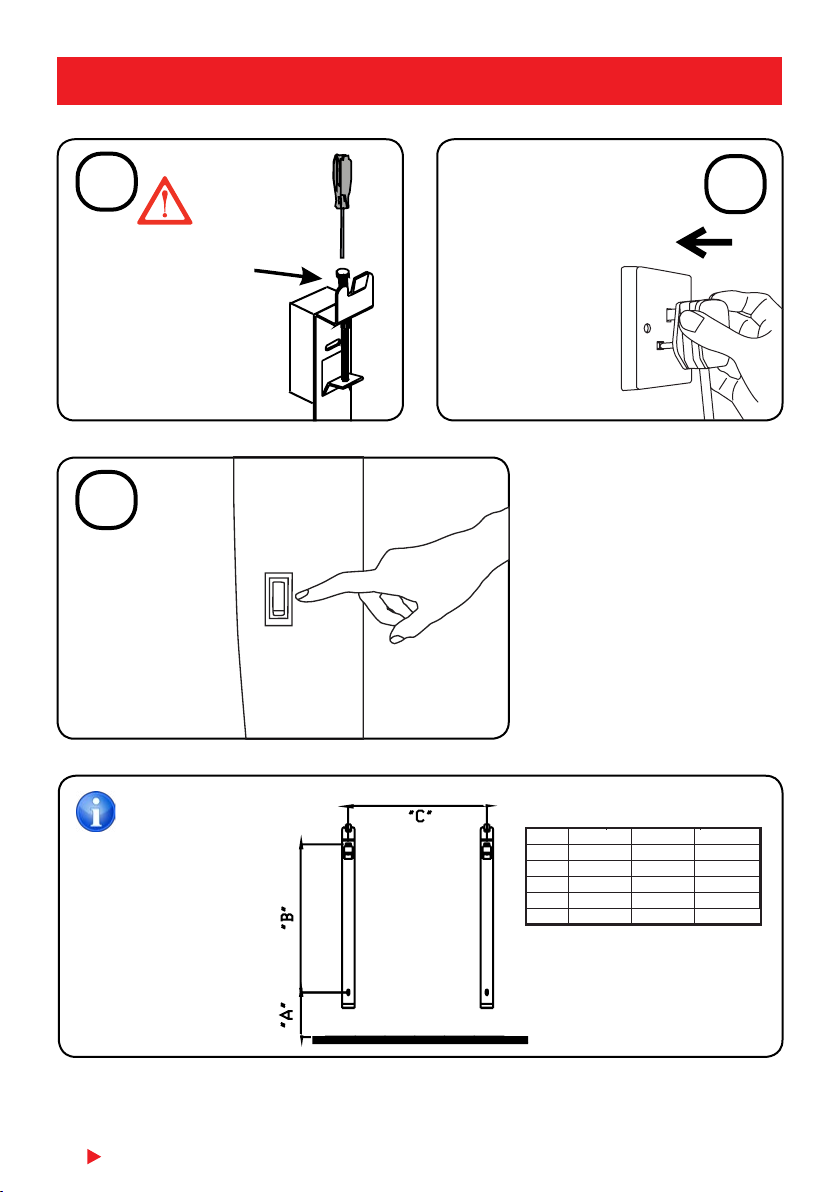

8 ECODRY GPS
7
6
Press ON /
OFF switch
located at the
right rear part
of the unit.
8
2. INSTRUCTIONS FOR INSTALLATION
Screw down
FULLY to lock
the radiator
INFORMATION
IMPORTANT:
(W)
600
900
1200
1500
1800
“A” (mm)
420
420
420
420
420
“B” (mm)
246
246
246
246
246
“C” (mm)
159
319
478
638
638
Plug in
3 pin 13 amp
plug

ECODRY GPS 9

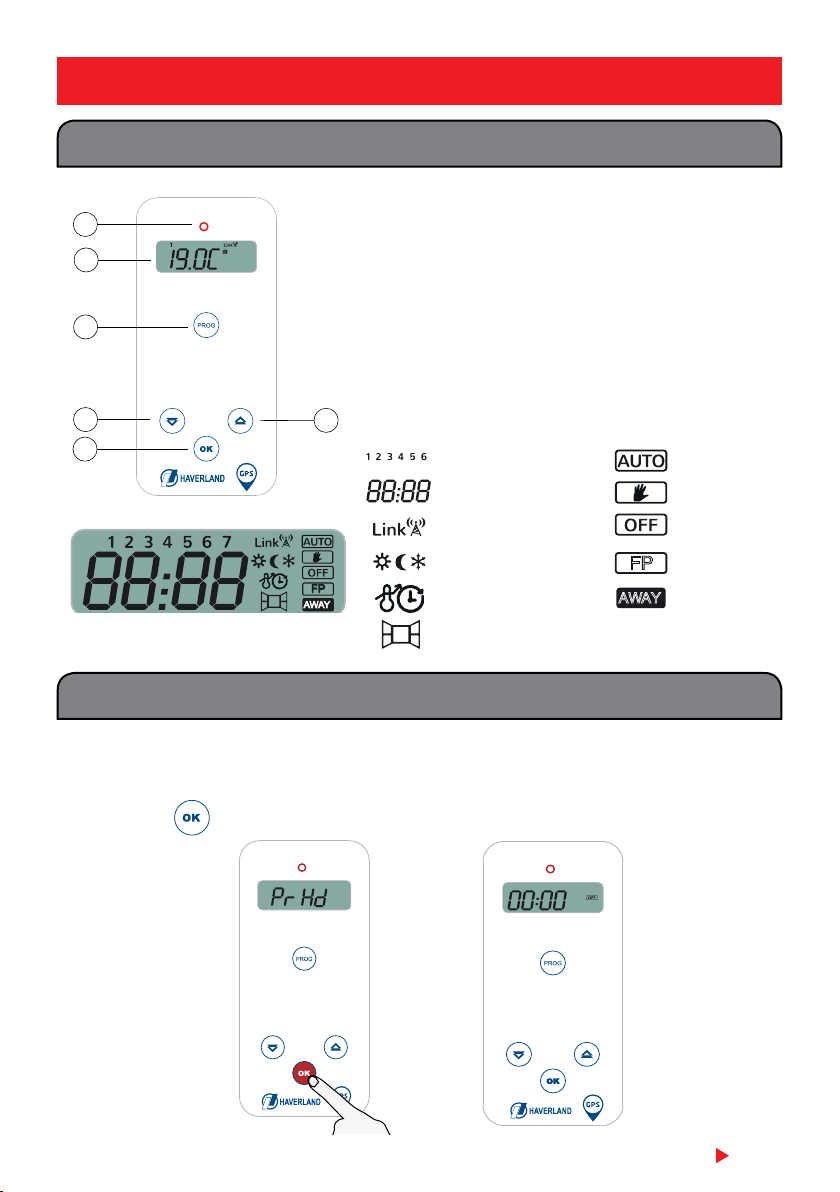

3. OPERATION
3.1 CONTROL PANEL
1
2
3
4
5
6
1. Change mode / OK buttons
2. Decrease button
3. Congure / Programme button
4. Screen
5.“In operation” indicator LED
6. Increase button
As soon as the radiator is connected to electricity, press the switch located on the right side:
1. if this is the rst time you are connecting the radiator, “Pr:Hd” will appear on screen.
2. Press the button. Then, the clock will display and it will switch to “OFF”.
PROG
3.2 START - FIRST CONNECTION
FP
AWAY
Day of the week Auto
Temp/Time Manual
Associated radiator Stand-by
Temperatures Pilot wire
ITCS Function GPS
Open windows
function
Screen Icons
FP
AWAY

10 ECODRY GPS
3. OPERATION

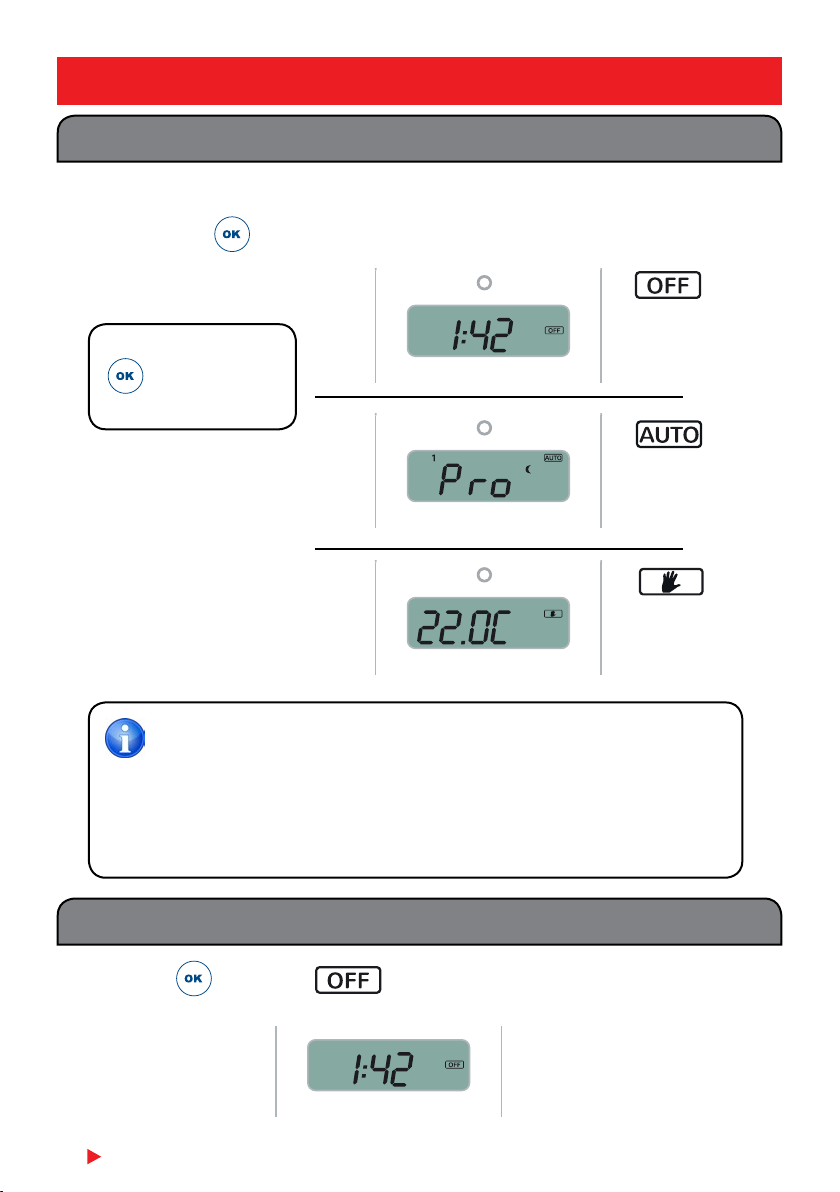

The device has 3 operating modes: OFF, AUTO (PRO) or MANUAL.
By pressing the button successively, the transmitter changes from “OFF” mode to
“AUTO mode” (PRO) and to “MANUAL” mode.
3.3 OPERATING MODES
Successively press the
button to change
the operating mode.
The background colour of the screen will change when the pre-set
temperature is modied or changed, indicating the selected temperature
range to the user by showing:
• Red if the temperature is over 24ºC
• Yellow if it is higher than 19º and up to 24ºC
• Green if it is equal to or lower than 19ºC
3.4 MODO OFF
Press the button until appears on screen. The device ALWAYS remains
switched o.
OFF
Mode
Auto
Mode
Manual
Mode

ECODRY GPS 11
3. OPERATION
3.5 AUTO MODE (PRO)
Press the button until y appear on screen.
The pre-set temperature will change automatically according to the bespoke programming,
based on 3 pre-set temperatures (Comfort, Eco, Anti-freeze) or the OFF status.
In Auto mode, the temperature can be temporarily raised or lowered. This
temporary modication is maintained until the next programming cycle
or until midnight.
You can choose a temperature between 5 and 30 ºC
3.5.1 TIME PROGRAMMING:
For an ecient use of your radiator, we recommend using the AUTO (PRO) mode. Programme
your device with the specic hours you require heating in the room.
The radiator can be assigned one of the 3 possible temperatures for each hour or can be set
to OFF. The programming can be dierent every day.
- Comfort temperature for the hours you spend at home.
- Economy temperature: for night hours or short periods of absence from your home.
- Anti-freeze temperature : for periods of prolonged absence.
- OFF : When you want to program periods of disconnection (switch the radiator o).

12 ECODRY GPS

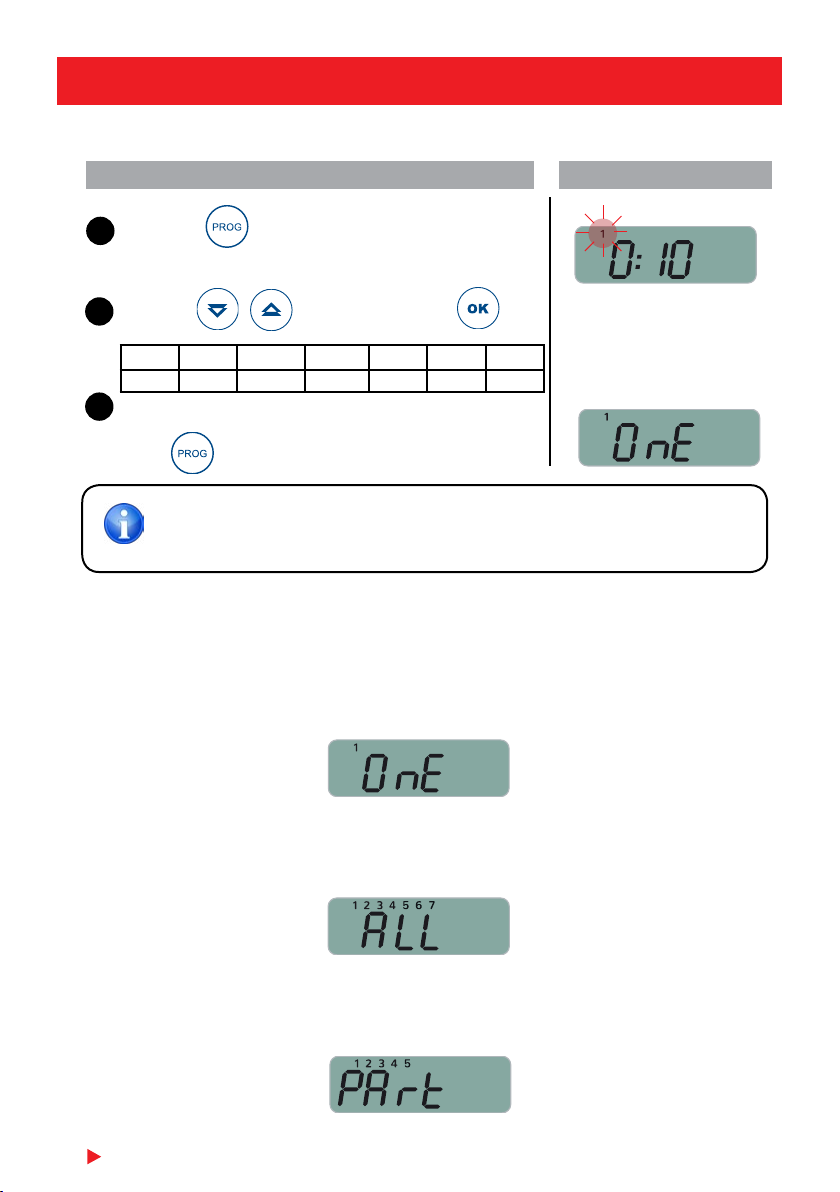

3.5.2 SETTING THE CLOCK:
Press the button for 3 seconds. The day will
ash.
1
Press the buttons to set. Press to
validate.
2
ACTION SCREEN
Then, set the hour and minutes in the same way.
Press to exit the “Setting the clock” menu.
3
3.5.3 WEEKLY PROGRAMMING:
If the radiator is linked with a HAVERLAND SMARTBOX (not supplied), the
“time” will automatically change via the internet (see point 3.13 GEOLOCATION
- CONTROL “VIA APP”).
1 2 3 4 5 6 7
MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY SUNDAY
Depending on your needs, the radiator has 4 options for setting a weekly programme.
OPTION 1: EVERY DAY WITH A DIFFERENT PROGRAMME.
Set each day of the week to have a dierent program.
OPTION 2: SAME PROGRAMME FOR EACH DAY OF THE WEEK.
The programme set for Monday is repeated on each other day of the week.
OPTION 3: WEEKDAYS AND WEEKENDS PROGRAMME.
The same programme is rstly scheduled for Monday through to Friday, and then the weekend
has a dierent programme.
3. OPERATION

ECODRY GPS 13
3. OPERATION

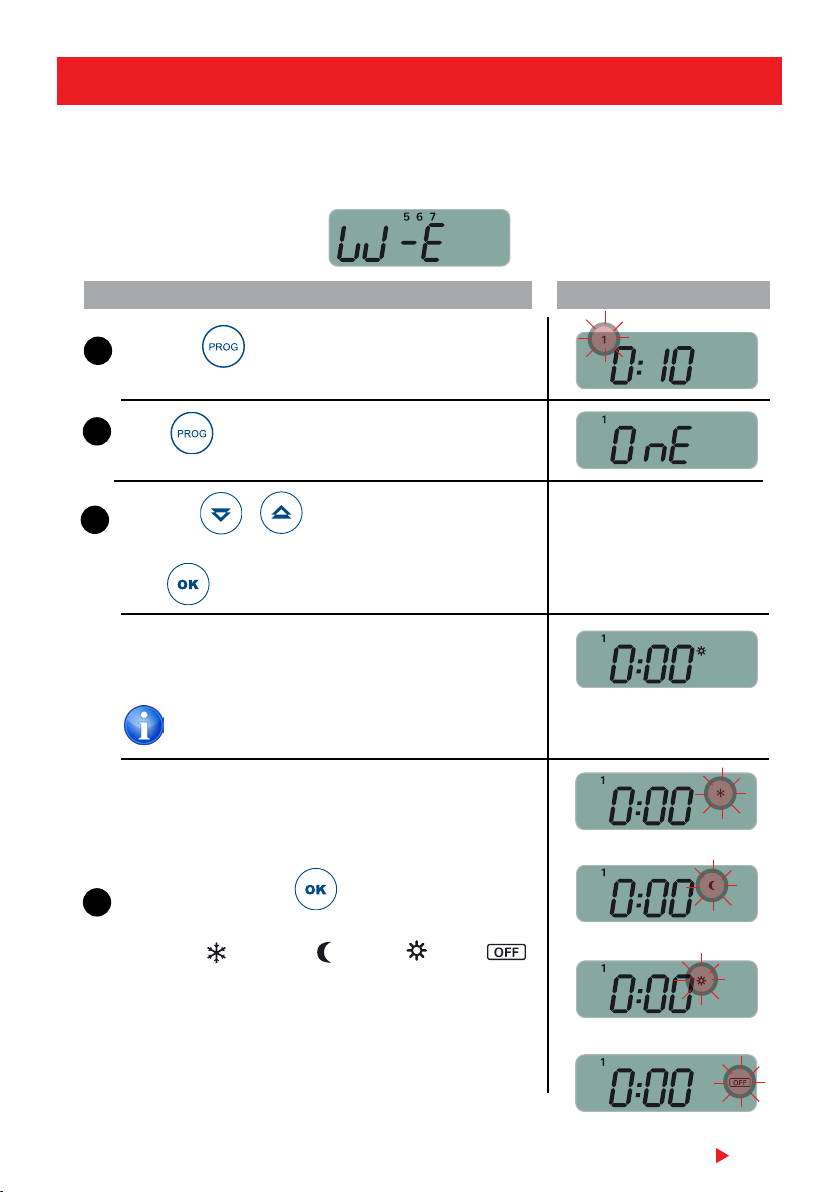

OPTION 4: WEEKEND PROGRAMMING. IDEAL FOR SECOND HOMES.
The programme is automatically set to OFF from Monday to Thursday, and then the same
programme is set for Friday, Saturday and Sunday
Press the button for 3 seconds. The day will
ash.
1
Press the keys to choose the desired
programming option: ONE, ALL, PART or WE.
Press to conrm.
The time 00:00 and day 1 is selected. If the programme
has been previously congured, the last change will be
displayed.
The default factory programme is all days and
hours in economy.
2
ACCIÓN PANTALLA
Press to exit the “Setting the clock” menu and
enter the “Programming option” selection menu.
3
4Successively press the key to choose the desired
mode for this hour of day 1:
Anti-freeze , economy , comfort or OFF .
Comfort
Economy
Anti-freeze
OFF

14 ECODRY GPS
5
ACTION SCREEN
Press the keys to progress or go back to
the next hour.
6Successively press the key to choose the desired
mode for hour 1:00 of day 1:
Anti-freeze , economy , comfort or OFF .
Repeat the process for each hour and day to congure
according to the chosen programming option.
By holding the or , buttons, the
hours change quickly without modifying the
programming.
By pressing the button, you can go foward a day and exit the
programming menu..
By holding the button for 3 seconds, you can copy the chosen
mode (comfort, economy, anti-freeze or standby) from the previous hour.
The LED located above the screen will
switch on when the radiator is heating.
In AUTO mode (PRO), the screen will
alternatively display the word PRO and the
chosen pre-set temperature, according to
whether it is in comfort, economy or anti-
freeze.
3. OPERATION

ECODRY GPS 15
3. OPERATION
3.5.4 HOW DO I CHANGE THE PRE-SET TEMPERATURES?
In AUTO mode (PRO), the pre-set temperatures (comfort, economy and anti-freeze) will
automatically change according to the programming established by the user, who will assign of
the four possibilities to each hour:
Anti-freeze , economy , comfort or OFF .
To establish the values of the three temperatures:
1
ACTION SCREEN
Press the . button. The following symbols will
appear on screen:
By default, the option to dene temperatures is already
selected (ashing).
Press the button.
2Once in the temperature selection screen, the comfort
icon will appear next to the currently pre-set value.
Press the buttons to choose the desired
comfort temperature.
Press the button to choose the economy
temperature
Press the buttons to choose the
desired economy temperature.
Press the button to choose the anti-freeze
temperature.
Press the buttons to choose the
desired anti-freeze temperature.
The anti-freeze temperature can be adjusted
between 5 and 7ºC.
Press the button to conrm.
To exit the menu, press the button.

16 ECODRY GPS
The background colour of the screen will change when the pre-set
temperature is modied or changed, indicating the selected temperature
range to the user by showing:
• Red if the selected temperature is over 24ºC
• Yellow if it is higher than 19º and up to 24ºC
• Green if it is equal to or lower than 19ºC
The adjustment of the comfort and economy temperatures can be set
between 7ºC and 30ºC, taking into account that the economy temperature
WILL ALWAYS BE 2ºC LOWER than the selected comfort temperature,
and the economy temperature WILL ALWAYS BE 2ºC HIGHER than the
selected anti-freeze temperature.
3. OPERATION

ECODRY GPS 17
3. OPERATION
3.6 MANUAL MODE
In manual mode, the radiator works like a room thermostat.
Choose the manual mode by pressing the key until
the “hand” symboL appears on screen.
The temperature shown on screen is the temperature that
was previously selected in manual mode.
The pre-set factory temperature, in manual mode, is
19ºC.
1
2
ACTION SCREEN
Press the buttons to choose the desired
temperature, for example, 21ºC.
The LED located above the screen will
switch on when the radiator is heating.
The temperature selected in manual mode is not related to the comfort
temperature. They are independent temperatures and, therefore, must
be congured separately.

18 ECODRY GPS
3.7 LOCKING THE KEYPAD
Simultaneously press the and buttons
until the word LocH appears on screen.
The same operation must be performed to unlock
the keypad.
3 seconds
This function puts the device into operation at full power for two hours, regardless of the
operation mode that is selected. This function has priority over any other.
To activate this function, simultaneously press and buttons until the “bSt”
appears on screen.
3.8 BOOST FUNCTION - 2 HOUR FUNCTION
3 seconds
You can deactivate the Boost function before the 2 hours have elapsed by pressing any button.
By activating this function, “bST”
appears on screen.
“LocH” will appear on screen if the
keypad is locked.
3. OPERATION

ECODRY GPS 19
3. OPERATION
3.9 “OPEN WINDOWS” SAVE FUNCTION
This function activates when there is a sudden drop in the room’s temperature.
When closing the window, the radiator will detect a rise in temperature and this function will
deactivate.
The device will switch on again, returning to the status it was in before it disconnected.
By activating this function, the symbol
appears on screen. The device will
disconnect, preventing an unnecessary
consumption of energy.
3.10 INTELLIGENT ITCS FUNCTION
The radiator incorporates an innovative intelligent temperature control system (ITCS).
This system activates the start-up of the device before the programmed time (2 hours
maximum), to ensure that the desired temperature is achieved at the indicated time and by
following the established weekly programme.
By activating this function, the symbol
appears on screen.
This intelligent function is activated as standard. This can be deactivated by the
user; consult point 3.11 “Advanced functions”.
This intelligent function is deactivated as standard. This can be activated by the
user; consult point 3.11 “Advanced functions”.

20 ECODRY GPS
This radiator incorporates the following functions:
Function Setting
This allows you to change from degrees
Celsius to degrees Fahrenheit.
This function is for users with knowledge
in electronics. Please do not enter this
function, it could recongure the device.
This allows you to calibrate and adjust the
temperature measured by the thermostat.
Version number of the device’s rmware.
This allows you to activate or deactivate
the open windows function. The function is
activated by default.
This allows you to activate or deactivate the
ITCS function. The function is deactivated
by default.
This allows you to activate or deactivate
the “Pilot wire” function. The function is
deactivated by default. This function is only
available in France.
3.11 ADVANCED FUNCTIONS
Adjustment of ºC or ºF
Adjustment of the control type
(PID, hysteresis, etc.).
Temperature measurement
adjustment
Firmware version.
Open windows activation/
deactivation function
ITCS activation/deactivation
function
“Pilot wire” activation/deactivation
function
Press the button.
1
Press the buttons to choose the setting
you wish to modify (C1 to C7), for example, C6.
Press to enter the setting you wish to modify.
2
ACTION SCREEN
Press the button again for 5 seconds.Then, the
rst setting, C1, appears on screen.
3
3. OPERATION
