Roberts Gorden CoRayVac B-2 User manual

Fuel Conversion Kit Instructions
B-2
B-4
B-6
B-8
B-9
B-10
B-12
B-12a
E-9
E-12
E-12a
Models:
P/N 227102NA Original Issue 03/00
Roberts-Gordon
1250 William Street
P.O. Box 44
Buffalo, New York 14240-0044
Telephone: [phone]
Fax: [phone]
Toll Free: 800.828.7450
http://www.rg-inc.com
Roberts-Gordon Canada Inc.
241 South Service Road West
Grimsby, Ontario L3M 1Y7 Canada
Telephone: [phone]
Fax: [phone]
Custom-Engineered Gas-Fired Low-Intensity
Infrared Heating Systems
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, ad ustment, alteration, service
or maintenance can result in death, in ury or property
damage. Read the installation, operation and service
manual thoroughly before installing or servicing
this equipment.
DO NOT store or use petrol or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. DO NOT try to light any
appliance.
3. DO NOT use electrical
switches.
4. DO NOT use any telephone
in your building.
5. Leave the building.
6. Immediately call your local
gas supplier after leaving
the building. Follow the gas
suppliers instructions.
7. If you cannot reach your gas
supplier, call the Fire
Department.
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place to provide your
serviceman with information should it become
necessary.
© Copyright 2000 Roberts-Gordon
Quality in Any Language™

ROBERTS-GORDON
Table of Contents
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Questions, Comments or Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
HEATER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Your Safety Is Important To Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
FUEL CONVERSION KITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
For Natural -to- Propane Conversions Only (FIGURE 1, TABLE 1.) . . . . . . . . . . . . .3
Contents of Fuel Conversion Kits (Natural -to- Propane) . . . . . . . . . . . . . . . . . . . . . .3
For Propane -to- Natural Conversions Only (FIGURE 2, TABLE 2.) . . . . . . . . . . . . .4
Contents of Fuel Conversion Kits (Propane -to- Natural) . . . . . . . . . . . . . . . . . . . . . .4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUEL CONVERSION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
General Instructions/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Step 1 (TABLE 3.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
FIGURE 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Step 3 (FIGURE 4.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Step 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Step 5 (FIGURE 5.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
FIGURE 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

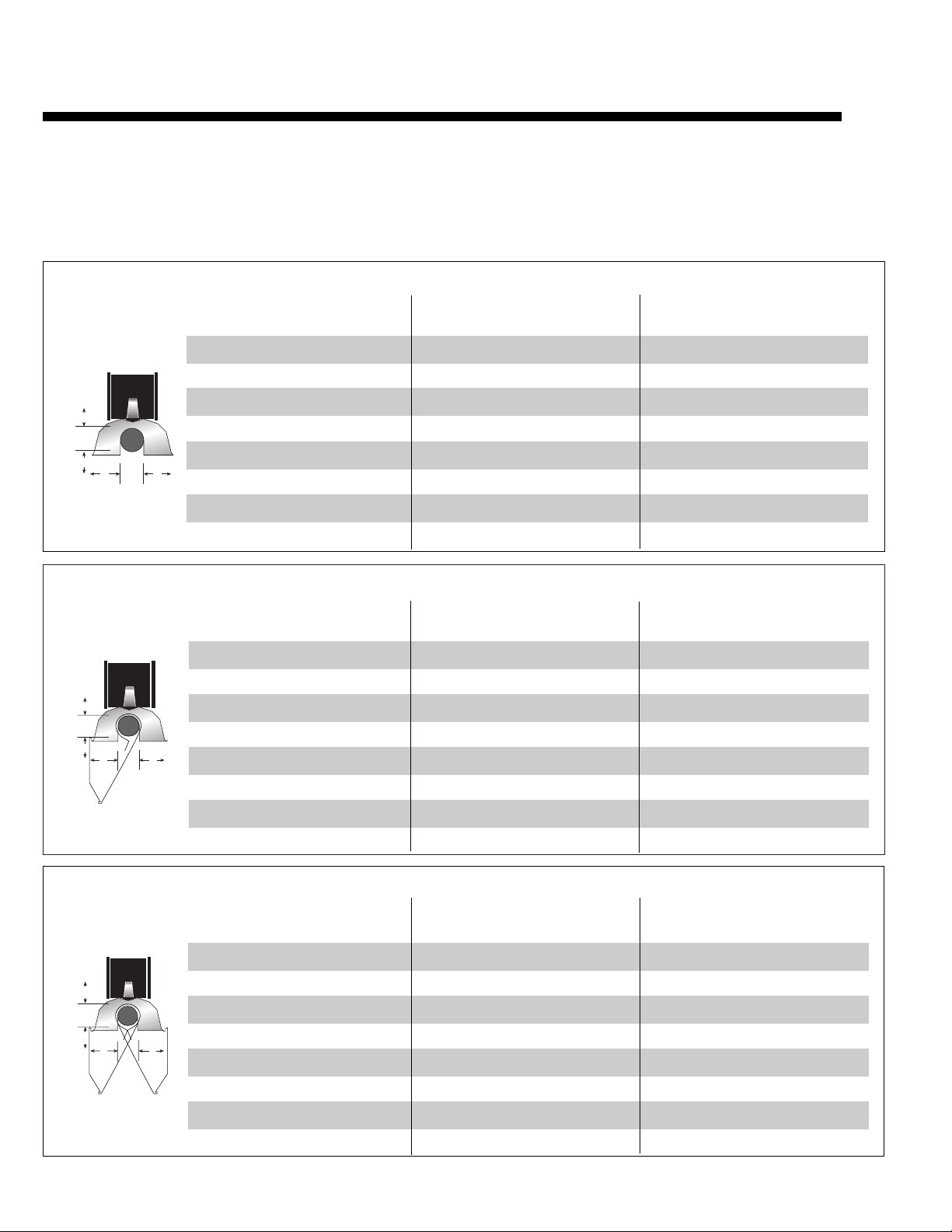

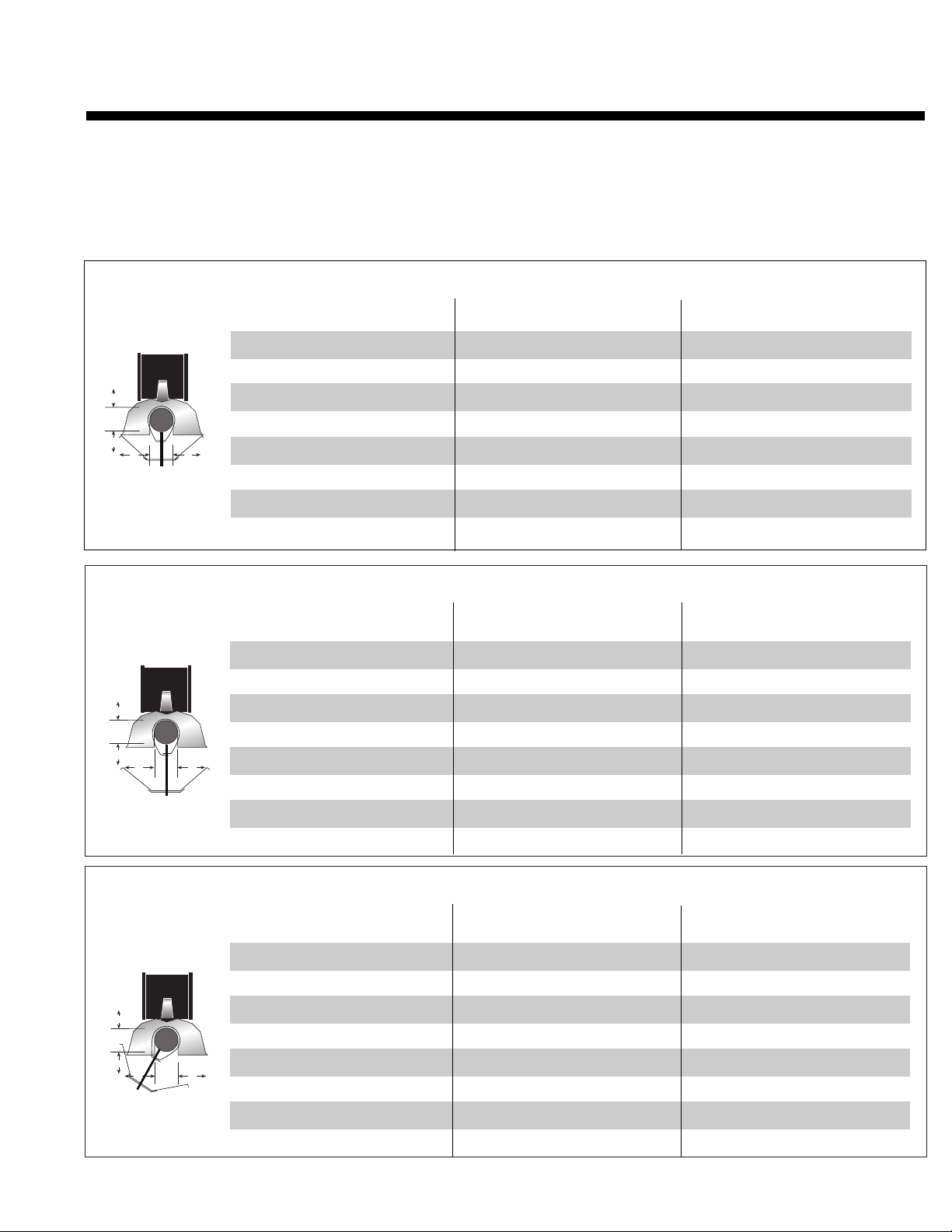

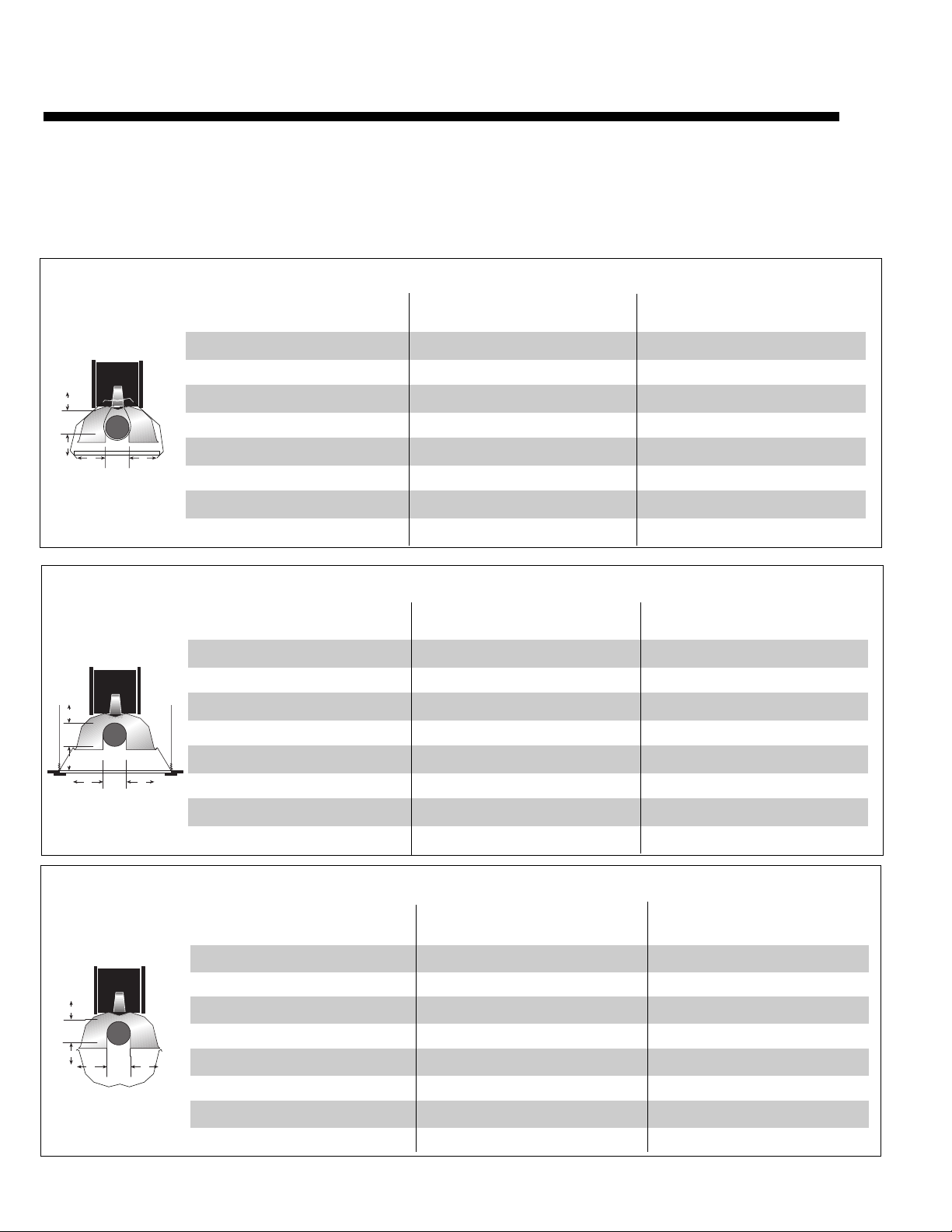

CLEARANCES TO COMBUSTIBLES . . . . . . . . . . . . . . . . . . . . . . . . . . .13
FIGURES 7, 8, 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
FIGURES 10, 11, 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FIGURES 13, 14,15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
OPERATION AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Sequence of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Pre-Season Maintenance and Annual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Remember to Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Printed in U.S.A.
© 2000
All rights reserved. o part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Roberts-Gordon.

1
ROBERTS-GORDON
BEFORE YOU BEGIN
Read this
Manual
Read these instructions carefully before servicing this equipment.
Improper installation, servicing or maintenance can cause death,
injury or property damage. Installer must be a contractor qualified
in the installation and service of gas-fired heating equipment or
your gas supplier. After the installation is complete, check product
operation as provided in these instructions.
For additional copies of the CORAYVAC®Installation, Operation
and Service Manual, please contact Roberts-Gordon.
Questions,
Comments or
Suggestions
Please direct any questions, comments or suggestions to:
In the United States:
Roberts-Gordon
1250 William Street
P.O. Box 44
Buffalo, New York 14240-0044
USA
Telephone: [phone]
Toll Free: 800.828.7450
Fax: [phone]
Home Page: www.rg-inc.com
In Canada:
Roberts-Gordon Canada Inc.
241 South Service Road West
Grimsby, Ontario L3M 1Y7
Canada
Telephone: [phone]
Fax: [phone]
Home Page: www.rg-inc.com

2
This symbol is used throughout the manual to notify
you of possible fire, electrical or shock hazards.
Please pay special attention when reading and follow-
ing the warnings in these sections.
Due to the nature of gas conversions, it is important
you use the correct conversion kit for the heater model
and the gas you are converting to.
Heater Safety
Your Safety
is Important
to Us
Important
Notice
WARNING
Service and annual inspection must be done by a contractor
qualified in the installation and service of gas-fired heating
equipment.
Failure to follow these instructions can result in death, injury or
property damage.
WARNING
Use only genuine ROBERTS GORDON®conversion kits.
Failure to follow these instructions can result in death, injury or
property damage.
The conversion shall be carried out in accordance with
the requirements of the provincial authorities having
jurisdiction and in accordance with the requirements of
the CAN1-B149.1 and .2 installation codes.
CORAYVAC®HEATING SYSTEMS
In Canada:

3
ROBERTS-GORDON

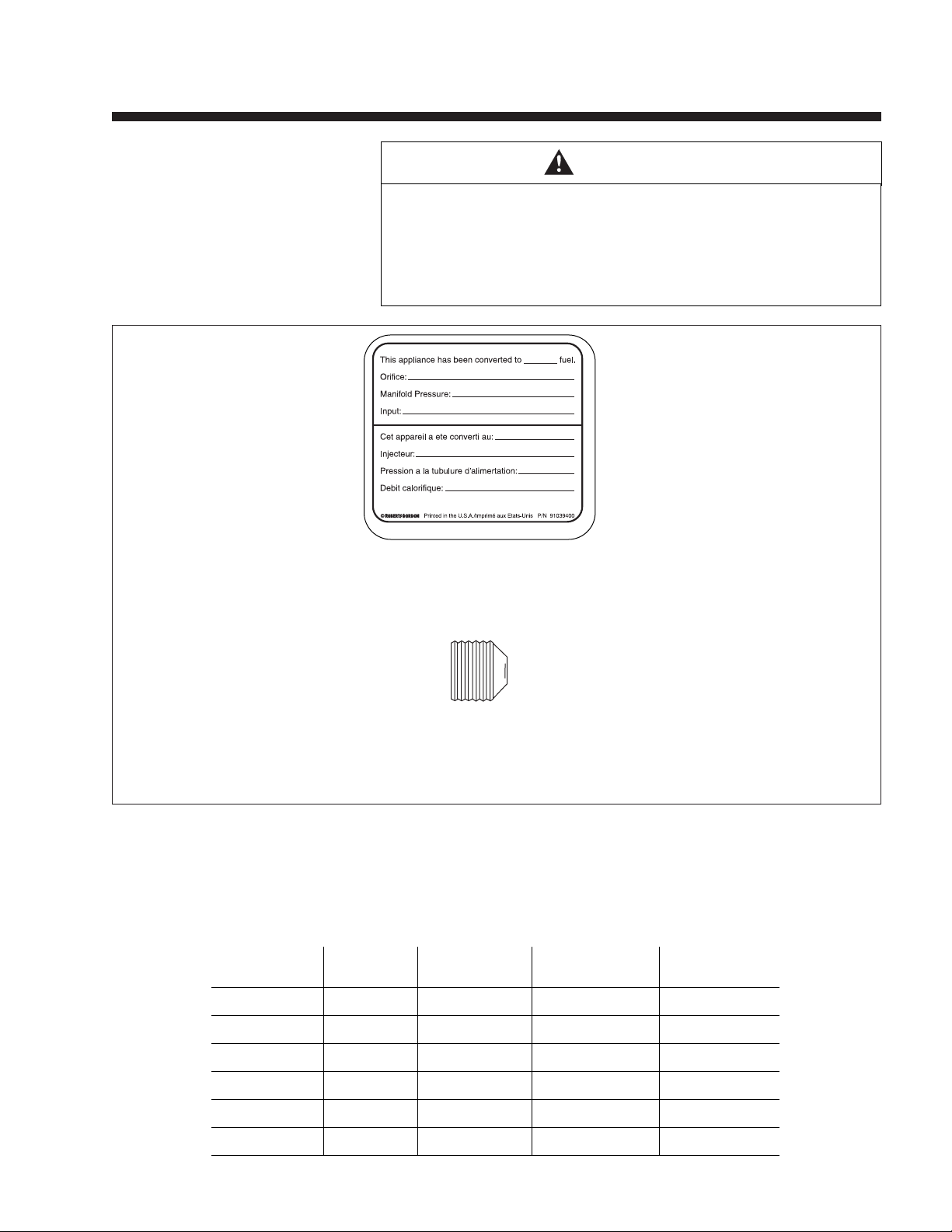

Contents of Fuel Conversion Kits
(Natural -to- Propane)
Orifice
P/N (see Table below)
Gas Conversion Label:
P/N 91039400
For
Natural -to-
Propane
Conversions Only
Fuel Conversion Kits Configuration
WARNING
Natural -to- Propane Conversion
Check Conversion Kit Part Number before proceeding. Kit Part
Number must match the corresponding model number.
Failure to follow these instructions can result in death, injury
or property damage.
Model
Kit Number CRV-B/E Orifice P/N Shutter Label
CRVB04NP 4 02791039 - 91039400
CRVB06NP 6 02791030 - 91039400
CRVB08NP 8 02791026 - 91039400
CRVB09NP 9 02791019 - 91039400
CRVB10NP 10 02791021 - 91039400
CRVB12NP 12 02791012 02753212 91039400
FIGURE 1 - Natural -to- Propane Kit Components
All kits include this manual (P/N 227102NA) and the CORAYVAC®
Installation, Operation and Service Manual (P/N 127102US).
TABLE 1.

4
CORAYVAC®HEATING SYSTEMS
Model
Kit Number CRV-B/E Orifice P/N Shutter Label
CRVB04PN 4 02791030 - 91039400
CRVB06PN 6 02791021 - 91039400
CRVB08PN 8 02791016 - 91039400
CRVB09PN 9 02791006 & 02791004 - 91039400
CRVB10PN 10 02791007 & 02791003 - 91039400
CRVB12PN 12A 02791001 02753211 91039400
Contents of Fuel Conversion Kits
(Propane -to- Natural)
Fuel Conversion Kits Configuration
Gas Conversion Label:
P/N 91039400
For Propane -to-
Natural
Conversions Only
WARNING
Propane -to- Natural Conversion
Check Conversion Kit Part Number before proceeding. Kit Part
Number must match the corresponding model number.
Failure to follow these instructions can result in death, injury
or property damage.
Orifice
P/N (see Table below)
FIGURE 2 - Propane -to- Natural Conversion Kit Components
All kits include this manual (P/N 227102NA) and the CORAYVAC®
Installation, Operation and Service Manual (P/N 127102US).
TABLE 2.

5
ROBERTS-GORDON
WARNING
Electrical Shock Hazard
Unplug the electrical cord
from the outlet before per-
forming any service or
maintenance.
Failure to follow these
instructions can result in
death, injury or property
damage.
Explosion Hazard
Turn off the gas supply to
the heater before perform-
ing any service or mainte-
nance.
Failure to follow these
instructions can result in
death, injury or property
damage.
WARNING
Warnings

6
CORAYVAC®HEATING SYSTEMS
Fuel Conversion Instructions
The CORAYVAC®burners operate with a "zero" regulator for both
propane and natural gas; they are factory set on a special flow
bench. Since each unit uses the same regulator, no spring changes
or adjustments are necessary when converting a CORAYVAC®burn-
er. Do Not Adjust The Zero Regulator.
Three separate conditions exist for converting between gases:
1. The CRV-B/E series, with the exception of the CRV-B/E-12 and
CRV-B/E-12A, are converted by changing the orifice only.
2. The CRV-B/E-12 and CRV-B/E-12A require a change of the
primary air shutter in addition to the orifice.
3. The CRV-B-2 is not convertible.
NOTE: There have been two different zero regulators used in the
CRV-B/E-9 and CRV-B-10 burners. The type of zero regula-
tor used will determine the orifice needed. If you are convert-
ing a CRV-B/E-9 or CRV-B-10 from propane to natural gas,
determine which regulator is being used in your burner (see
below).
The smaller Maxitrol R-400 regulator was in use beginning in
1991 and ending in March 1996 and was replaced exclusive-
ly by the R-500 at this time. The R-400 measures approxi-
mately 2" x 2" x 3"; the R-500 measures 3" x 3" x 4 1/2".
Each is clearly marked with the model number. See
Page 8,

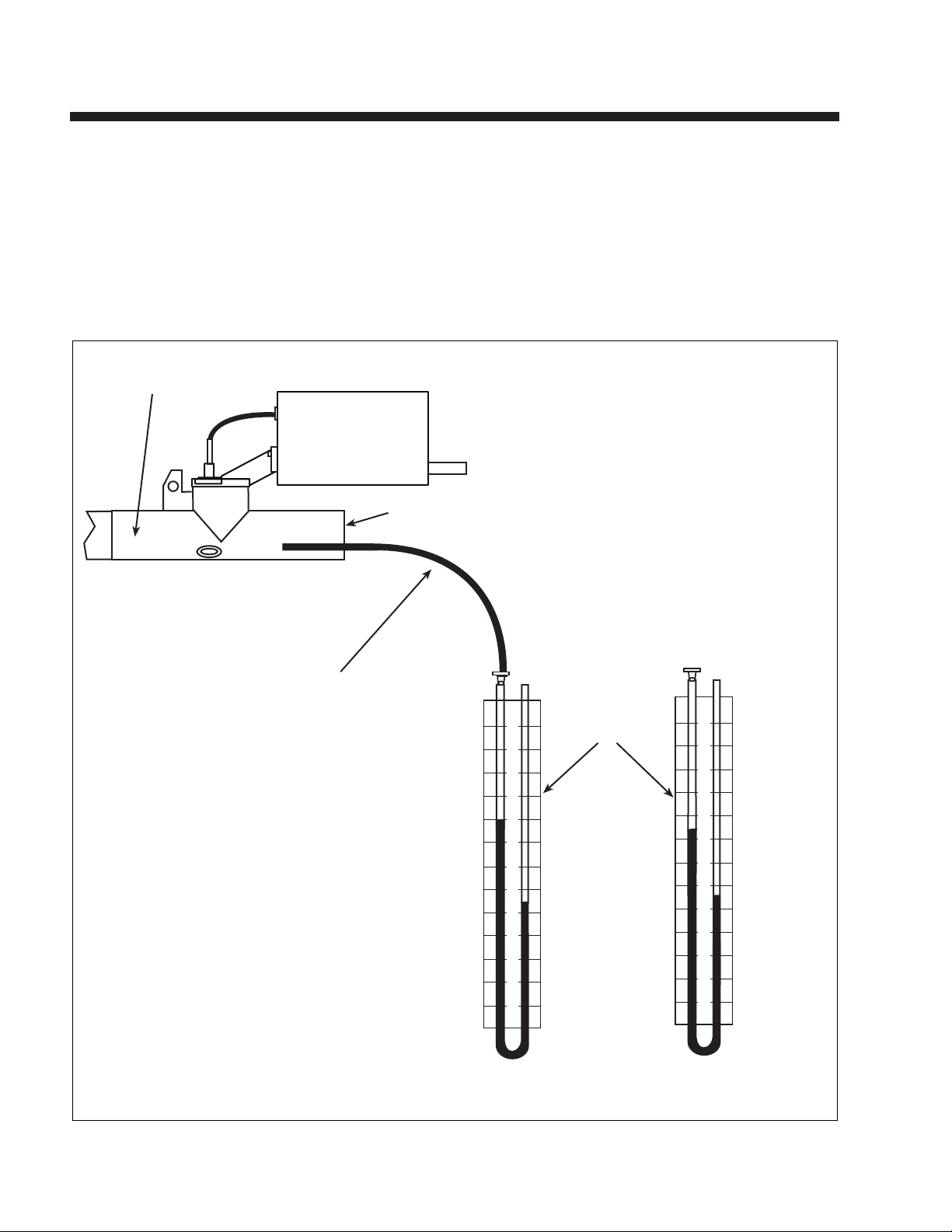

Figure 3,
for regulator location.
Use burner type and regulator type to determine the orifice
needed (See
Page 7, Table 3 ).
1. Insure that the gas supply and power are off before starting the
conversion.
2. Insure that power is shut off to the system/pump before
proceeding.
3. The installer is responsible to insure that the unit is gas tight
when returning the system to operation.
4. The CRV unit can easily be converted without removing the
burner unit from the combustion chamber. If the orifice falls off of
the hex key into the mixing chamber, it will be necessary to
remove the unit to get the orifice out. It is best to use a sharp
(new) hex key which will fit tightly into the orifice.
Introduction
General
Instructions/
Precautions

CRV-B/E Model Natural Propane
2 brass not available
4 yellow red
6 green yellow
8 blue pink
9 w/R400 brown red
9 w/R500 silver red
10 w/R400 dark green green
10 w/R500 white green
12A (see note) gray (also need #11 shutter) -
12 (see note) - black (also need #12 shutter)
7
ROBERTS-GORDON
Change the gas orifice as shown on Page 8, Figure 3 by performing the fol-
lowing steps:
a. Turn off gas and electrical power to the unit and system.
b. Remove the doors from the CORAYVAC®unit by removing the wing
screws, two for each door.
c. Remove the plug in the mixing chamber with a 7/16" open end wrench
and set aside for replacement.
d. Remove and discard the gas orifice using a 1/4" hex key.
e. Apply a small amount of pipe sealant to the threads of the replacement
orifice included with this kit (See
Page 7, Table 3 to verify orifice color). Be
aware that over application of sealant may cause blockage of the orifice.
Insert and tighten the replacement orifice.
CAUTION: Do not over-tighten the gas orifice.The torque value for the
gas orifice is 15in/lbs; contact your factory representative for
more details.
NOTE: Insure that the gas orifice color matches the color chart below for the
model and gas of the unit you are converting.
Step 1
Fuel Conversion Instructions
TABLE 3.

8
CORAYVAC®HEATING SYSTEMS
Mixing Chamber
Valve
Regulator
Plug
Orifice
Screw
Air Shutter
Fuel Conversion Instructions
FIGURE 3. CORAYVAC®Gas Conversion
WARNING
®
Use only genuine ROBERTS GORDON replacement parts.
Use of parts not specified by Roberts-Gordon voids warranty.
Failure to follow these instructions will result in death, in ury
or property damage.
f. When converting the CRV-B/E-12 or CRV-B/E-12A, the air shut-
ter must be changed: Using a 9/64" hex key, remove the screw
and shutter and replace with the new one supplied with the kit as
listed on
Page 7, Table 3 .
Step 1
(continued)

9
ROBERTS-GORDON
Fuel Conversion Instructions
After conversion, check operation of the unit:
a. Turn on gas and electrical power to system and unit.
b. Cycle thermostat.
c. When unit cycles, the spark ignitor should ignite the main flame
immediately.
NOTE: When converting from natural to propane gas, there may be a
delay until the gas is purged from the system.
d. Observe the flame quality: look for a steady even flame with no pull-off
from the burner face (indicating a lean condition) or a bushy green
flame (indicating rich mixture).
e. Replace doors and wing screws.
f. Do Not Adjust The Zero Regulator
NOTE: The manifold pressure, as listed on the serial plate and on the gas
conversion plate (
Page 10, Figure 4 ), for CORAYVAC®is always
-0.7” w.c. This is a nominal figure derived using a CRV-B-10
Natural Gas unit under laboratory conditions. The actual manifold
pressure will vary from 0” w.c. to -1.5” w.c. or more depending on
the system configuration, system vacuum and burner rate and
location. Manifold pressure, or vacuum at the orifice, is normally
less negative then the system or “end vent vacuum” while the unit
is operating.
If any step is unclear, please contact your ROBERTS GORDON®
independent distributor or Roberts-Gordon at [phone] or
[phone] in the U.S., [phone] Canada or
at www.rg-inc.com.
Step 2

10
CORAYVAC®HEATING SYSTEMS
Print the requested information in the fields of the burner conversion
label as shown below.
Step 3
Fuel Conversion Instructions
FIGURE 4 - Label (P/N 91039400)
Step 4
Attach label:
Attach the conversion label (P/N 91039400) to the top of the heater.
(Refer to Page 11, Figure 5) .
Conversion label must be attached to burner
after conversion.
Failure to follow these instructions can result
in death, injury or property damage.
WARNING
For Model No. Enter Orifice Size
for Propane
4 #39
6 #30
8 #26
9 #19
10 #21
12a #12
Enter following data for
Natural -to- Propane
Conversions
Enter following data for
Propane -to- Natural
Conversions
From Serial
Plate
Natural
Propane
From Serial
Plate
For Model No. Enter Orifice Size
for Natural
4 #30
6 #21
8 #16
9 #6(w/R500) or #4(w/R400)
10 #7(w/R500) or #3(w/R400)
12 #1
CRV-B
or
CRV-E
CRV-B
or
CRV-E
-0.7” w.c.

11
ROBERTS-GORDON
Fuel Conversion Instructions
This appliance has been converted to _______ fuel. Orifice: __________________________________ Manifold Pressure: __________________________ Input: ____________________________________ Cet appareil a ete converti au:
________________
Injecteur:
________________________________
Pression a la tubulure d'alimertation:
____________
Debit calorifique:
__________________________
Printed in the U.S.A./
Imprimé aux Etats-Unis
P/N 91039400
©
Install Label
Here
P/ 91039400
FIGURE 5. CORAYVAC®Label Placement
Setting the Vacuum
a. Set thermostats above room temperature. See that all burners are
operating properly.
b. Allow at least one-half hour operation for temperature to normalize,
then check system vacuum balance. Vacuum can be measured by
connecting a manometer to the end vent as shown on
Page 12, Figure
6 . Normal end vent vacuum should be set at approximately 2 1/2" w.c.
(hot).
Vacuum adjustments are made by means of the damper in the pump
inlet and the adjustable damper coupling(s) in the system. Check the
vacuum at all end vents and then adjust the damper coupling to obtain
equal vacuum readings of 3 1/2" w.c. or slightly above, then adjust the
pump inlet damper until vacuum readings are a minimum 2-3" w.c.
Step 5

12
CORAYVAC®HEATING SYSTEMS
Fuel Conversion Instructions
FIGURE 6. Manometer Reading
Step 5
(continued)
With systems designed to operate at maximum vacuum, it may not be
possible to obtain vacuum differential readings at slightly above 3 1/2"
w.c. If so, adjust damper coupling to maximum but equal vacuum read-
ings. Be sure to lock all dampers securely after adjustment.
c. Reset thermostats to desired room temperature.
d. If heat is not required, turn off main switch and close main gas valve.
Manometer 6
5
4
3
2
1
0
1
2
3
4
5
6
6
5
4
3
2
1
0
1
2
3
4
5
6
Remove button plug and insert tubing
about 6"(152mm). Replace plug after test.
End Combustion
Chamber
Approximate reading after adjusting
damper couplings. ( 3 1/2" w.c.) Approximate reading after adjusting pump inlet. ( 2" 3" w.c.)
~
~~
~
End Vent

13
ROBERTS-GORDON
Clearances are the required distances that
combustible objects must be away from the
heater to prevent serious fire hazards.
Combustibles are materials, vapors or liquids
which may catch on fire and include common
items such as wood, paper, rubber, fabric, etc.
Maintain clearances to combustibles at all
times for your safety.
Clearances for all heater models are located
on the burner and in the CORAYVAC®
Installation, Operation and Service Manual
(P/N 127102US). Check the clearances on
each burner for the model heater being
installed to make sure the product is suitable
for your application and the clearances are
maintained. Read and follow the safety guide-
lines below:
• Keep gasoline or other combustible materials
including flammable objects, liquids, dust or
vapors away from this heater or any other
appliance.
• Maintain clearances from heat sensitive
material, equipment and workstations.
• Maintain clearances from vehicles parked
below the heater.
• Maintain clearances from swinging doors,
overhead cranes, vehicle lifts, partitions, stor-
age racks, hoists, etc.
• In locations used for the storage of com-
bustible materials, signs must be posted to
specify the maximum permissible stacking
height to maintain required clearances from
the heater to the combustibles. Signs must
be posted adjacent to the heater thermostat.
In the absence of a thermostat, signs must
be posted in a conspicuous location.
• Consult local Fire Marshal, Fire Insurance
Carrier or other authorities for approval of
proposed installation when there is a possi-
bility of exposure to combustible airborne
materials or vapors.
Clearances to Combustibles
WARNING
Fire Hazard
Some ob ects will catch fire
or explode when placed
close to heater.
Keep all flammable ob ects,
liquids and vapors the
minimum required
clearances to combustibles
away from heater.
Failure to follow these
instructions can result in
death or in ury.
Burn Hazard
Keep all persons,
especially children, away
from heater.
Do not touch any part of
the heater.
Heater is very hot.
Failure to follow these
instructions can result in
severe in ury.
Risque dincendie
Certains ob ets placés près
du radiateur peuvent
senflammer ou exploser.
Tenir tous les ob ets,
liquides et vapeurs
inflammables à la distance
de sécurité requise du
radiateur.
Le non-respect de ces
consignes peut causer
mort, blessures ou
dommage matériel.
Risque de brûlure
Ne laisser personne, en
particulier des enfants,
sapprocher du radiateur.
Ne toucher aucune partie
du radiateur.
Le radiateur est brûlant.
Le non-respect de ces
consignes peut entraîner
des blessures graves.
ATTENTION

United States (inches)
Model A B C D
CRV-B-2 4 12 56 12
CRV-B-4 4 12 56 12
CRV-B-6 4 12 56 12
CRV-B-8 4 12 56 12
CRV-B-9 4 12 46 12
CRV-B-10 4 12 60 12
CRV-B-12 4 12 60 12
CRV-B-12A 4 12 60 12
Canada (inches)
Model A B C D
CRV-B-2 4 10 56 10
CRV-B-4 4 10 56 10
CRV-B-6 4 10 56 10
CRV-B-8 4 10 56 10
CRV-B-9 4 12 60 12
CRV-B-10 4 12 60 12
CRV-B-12 4 12 60 12
CRV-B-12A 4 12 60 12
Canada - (centimeters)
Model A B C D
CRV-B-2 10 25 142 25
CRV-B-4 10 25 142 25
CRV-B-6 10 25 142 25
CRV-B-8 10 25 142 25
CRV-B-9 10 30 152 30
CRV-B-10 10 30 152 30
CRV-B-12 10 30 152 30
CRV-B-12A 10 30 152 30
United States (inches)
Model A B C D
CRV-B-2 4 20 48 20
CRV-B-4 4 20 48 20
CRV-B-6 4 20 48 20
CRV-B-8 4 20 48 20
CRV-B-9 4 20 40 20
CRV-B-10 4 36 60 36
CRV-B-12 4 36 60 36
CRV-B-12A 4 36 60 36
Canada (inches)
Model A B C D
CRV-B-2 4 20 48 20
CRV-B-4 4 20 48 20
CRV-B-6 4 20 48 20
CRV-B-8 4 20 48 20
CRV-B-9 4 36 60 36
CRV-B-10 4 36 60 36
CRV-B-12 4 36 60 36
CRV-B-12A 4 36 60 36
Canada - (centimeters)
Model A B C D
CRV-B-2 10 51 122 51
CRV-B-4 10 51 122 51
CRV-B-6 10 51 122 51
CRV-B-8 10 51 122 51
CRV-B-9 10 91 152 91
CRV-B-10 10 91 152 91
CRV-B-12 10 91 152 91
CRV-B-12A 10 91 152 91
14
CORAYVAC®HEATING SYSTEMS
NOTE: 1. All dimensions are from the tube surface.
2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream
from where the burner and transition tube connect.
3. For Brooder Clearances, use United States clearances.
4. “-” indicates an unapproved application. Roberts-Gordon does not allow the installation of
unapproved applications.
Clearances to Combustibles
A
B
C
D
STANDARD REFLECTOR
FIGURE 7.
United States (inches)
Model A B C D
CRV-B-2 4 12 56 20
CRV-B-4 4 12 56 20
CRV-B-6 4 12 56 20
CRV-B-8 4 12 56 20
CRV-B-9 4 12 46 24
CRV-B-10 4 12 60 42
CRV-B-12 4 12 60 42
CRV-B-12A 4 12 60 42
Canada (inches)
Model A B C D
CRV-B-2 4 10 56 20
CRV-B-4 4 10 56 20
CRV-B-6 4 10 56 20
CRV-B-8 4 10 56 20
CRV-B-9 4 12 60 42
CRV-B-10 4 12 60 42
CRV-B-12 4 12 60 42
CRV-B-12A 4 12 60 42
Canada - (centimeters)
Model A B C D
CRV-B-2 10 25 142 51
CRV-B-4 10 25 142 51
CRV-B-6 10 25 142 51
CRV-B-8 10 25 142 51
CRV-B-9 10 30 152 107
CRV-B-10 10 30 152 107
CRV-B-12 10 30 152 107
CRV-B-12A 10 30 152 107
ONE SIDE REFLECTOR
FIGURE 8.
TWO SIDE REFLECTORS
FIGURE 9.
A
B
C
D
A
B D
C

United States (inches)
Model A B C D
CRV-B-2 4 12 56 30
CRV-B-4 4 12 56 30
CRV-B-6 4 12 56 30
CRV-B-8 4 12 56 30
CRV-B-9 — — — —
CRV-B-10 8 12 60 42
CRV-B-12 8 12 60 42
CRV-B-12A 8 12 60 42
Canada (inches)
Model A B C D
CRV-B-2 4 10 56 30
CRV-B-4 4 10 56 30
CRV-B-6 4 10 56 30
CRV-B-8 4 10 56 30
CRV-B-9 8 12 60 42
CRV-B-10 8 12 60 42
CRV-B-12 8 12 60 42
CRV-B-12A 8 12 60 42
Canada - (centimeters)
Model A B C D
CRV-B-2 10 25 142 76
CRV-B-4 10 25 142 76
CRV-B-6 10 25 142 76
CRV-B-8 10 25 142 76
CRV-B-9 20 30 152 107
CRV-B-10 20 30 152 107
CRV-B-12 20 30 152 107
CRV-B-12A 20 30 152 107
United States (inches)
Model A B C D
CRV-B-2 4 24 48 24
CRV-B-4 4 24 48 24
CRV-B-6 4 24 48 24
CRV-B-8 4 24 48 24
CRV-B-9 — — — —
CRV-B-10 4 36 48 36
CRV-B-12 4 36 48 36
CRV-B-12A 4 36 48 36
Canada (inches)
Model A B C D
CRV-B-2 4 24 48 24
CRV-B-4 4 24 48 24
CRV-B-6 4 24 48 24
CRV-B-8 4 24 48 24
CRV-B-9 4 36 48 36
CRV-B-10 4 36 48 36
CRV-B-12 4 36 48 36
CRV-B-12A 4 36 48 36
Canada - (centimeters)
Model A B C D
CRV-B-2 10 61 122 61
CRV-B-4 10 61 122 61
CRV-B-6 10 61 122 61
CRV-B-8 10 61 122 61
CRV-B-9 10 91 122 91
CRV-B-10 10 91 122 91
CRV-B-12 10 91 122 91
CRV-B-12A 10 91 122 91
ROBERTS-GORDON
NOTE: 1. All dimensions are from the tube surface.
2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream
from where the burner and transition tube connect.
3. For Brooder Clearances, use United States clearances.
4. “-” indicates an unapproved application. Roberts-Gordon does not allow the installation of
unapproved applications.
Clearances to Combustibles
15
UNIVERSAL SHIELD (POSITION 1)
UNIVERSAL SHIELD (POSITION 2)
UNIVERSAL SHIELD (POSITION 3)
FIGURE 10.
FIGURE 11.
FIGURE 12.
United States (inches)
Model A B C D
CRV-B-2 4 12 12 12
CRV-B-4 4 12 12 12
CRV-B-6 4 12 12 12
CRV-B-8 4 12 12 12
CRV-B-9 — — — —
CRV-B-10 8 18 24 18
CRV-B-12 8 18 24 18
CRV-B-12A 8 18 24 18
Canada (inches)
Model A B C D
CRV-B-2 4 12 12 12
CRV-B-4 4 12 12 12
CRV-B-6 4 12 12 12
CRV-B-8 4 12 12 12
CRV-B-9 8 18 24 18
CRV-B-10 8 18 24 18
CRV-B-12 8 18 24 18
CRV-B-12A 8 18 24 18
Canada - (centimeters)
Model A B C D
CRV-B-2 10 30 30 30
CRV-B-4 10 30 30 30
CRV-B-6 10 30 30 30
CRV-B-8 10 30 30 30
CRV-B-9 20 46 61 46
CRV-B-10 20 46 61 46
CRV-B-12 20 46 61 46
CRV-B-12A 20 46 61 46
A
B
C
D
A
B
C
D
A
B
C
D

FIGURE 15.
United States (inches)
Model A B C D
CRV-B-2 4 12 48 12
CRV-B-4 4 12 48 12
CRV-B-6 4 12 48 12
CRV-B-8 4 12 48 12
CRV-B-9 4 16 38 16
CRV-B-10 4 18 56 18
CRV-B-12 4 18 56 18
CRV-B-12A 4 18 56 18
Canada (inches)
Model A B C D
CRV-B-2 4 12 48 12
CRV-B-4 4 12 48 12
CRV-B-6 4 12 48 12
CRV-B-8 4 12 48 12
CRV-B-9 4 18 56 18
CRV-B-10 4 18 56 18
CRV-B-12 4 18 56 18
CRV-B-12A 4 18 56 18
Canada - (centimeters)
Model A B C D
CRV-B-2 10 30 122 30
CRV-B-4 10 30 122 30
CRV-B-6 10 30 122 30
CRV-B-8 10 30 122 30
CRV-B-9 10 46 142 46
CRV-B-10 10 46 142 46
CRV-B-12 10 46 142 46
CRV-B-12A 10 46 142 46
United States (inches)
Model A B C D
CRV-B-2 4 12 48 12
CRV-B-4 4 12 48 12
CRV-B-6 4 12 48 12
CRV-B-8 4 12 48 12
CRV-B-9 4 16 38 16
CRV-B-10 4 18 56 18
CRV-B-12 4 18 56 18
CRV-B-12A 4 18 56 18
Canada (inches)
Model A B C D
CRV-B-2 4 12 48 12
CRV-B-4 4 12 48 12
CRV-B-6 4 12 48 12
CRV-B-8 4 12 48 12
CRV-B-9 4 18 56 8
CRV-B-10 4 18 56 18
CRV-B-12 4 18 56 18
CRV-B-12A 4 18 56 18
Canada - (centimeters)
Model A B C D
CRV-B-2 10 30 122 30
CRV-B-4 10 30 122 30
CRV-B-6 10 30 122 30
CRV-B-8 10 30 122 30
CRV-B-9 10 46 142 46
CRV-B-10 10 46 142 46
CRV-B-12 10 46 142 46
CRV-B-12A 10 46 142 46
16
CORAYVAC®HEATING SYSTEMS
NOTE: 1. All dimensions are from the tube surface.
2. Clearances B, C and D can be reduced by 50% after 25’ (7 m) of tubing downstream
from where the burner and transition tube connect.
3. For Brooder Clearances, use United States clearances.
4. “-” indicates an unapproved application. Roberts-Gordon does not allow the installation of
unapproved applications.
1 FOOT DECO GRILLE
2 FOOT DECO GRILLE
BARRIER SHIELD
Clearances to Combustibles
FIGURE 13.
FIGURE 14.
A
B
C
D
A
B
C
D
A
B
C
D
United States (inches)
Model A B C D
CRV-B-2 4 12 12 12
CRV-B-4 4 12 12 12
CRV-B-6 4 12 12 12
CRV-B-8 4 12 12 12
CRV-B-9 — — — —
CRV-B-10 — — — —
CRV-B-12 — — — —
CRV-B-12A — — — —
Canada (inches)
Model A B C D
CRV-B-2 4 12 12 12
CRV-B-4 4 12 12 12
CRV-B-6 4 12 12 12
CRV-B-8 4 12 12 12
CRV-B-9 8 18 24 18
CRV-B-10 8 18 24 18
CRV-B-12 8 18 24 18
CRV-B-12A 8 18 24 18
Canada - (centimeters)
Model A B C D
CRV-B-2 10 30 30 30
CRV-B-4 10 30 30 30
CRV-B-6 10 30 30 30
CRV-B-8 10 30 30 30
CRV-B-9 20 46 61 46
CRV-B-10 20 46 61 46
CRV-B-12 20 46 61 46
CRV-B-12A 20 46 61 46
