PARTS
MANUAL
EH30 / EH34
ENGINES
Models
PUB-EP5505A
Rev. 01/00

© Copyright 2000 Robin America, Inc.
940 Lively Blvd.  Wood Dale, IL 60191  Phone: [phone]  ax: 630-350-8212
e-mail: [email protected] • www.robinamerica.com

- 3 - '00-01
HOW TO USE THIS MANUAL
Robin engines are identified by MODEL, SPECIFICATION, and CODE NUMBER. For each
model there may be many different versions called specifications. Each specification will be
unique in some way. The difference may only be the paint color or it may have a different
type of PTO or some other significant difference.
In order the identify the correct service part number, it is important to confirm the specifica-
tion and code numbers for your engine. The specification and code number together are
know as the PRODUCT NUMBER.
All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.
The Product Number Label has a 15 digit alphanumeric string that consists of the
SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please
note the illustration below:
PRODUCT NUMBER LABEL LOCATIONS
PRODUCT NUMBER LABEL
X X X X
SPEC NO. (11 digits) CODE NO. (4 digits)
PRODUCT NO. (15 digits)
E H 3 0 0

MANUAL LAYOUT
- 4 - '00-01
1. SECTIONNAME Parts are broadly classified according to their functions.
Refer to the Group Index (table of contents) for respective section name.
2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers
that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section
(i.e..:Electrical Device Group).
3. REF. No . The Reference number identifies the part illustration with the corresponding part number in the
part list.
4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly
part reference number is indicated by the number led by "-" such as "-1", "-2".
5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.
6. DESCRIPTION It is designation of the part.
7. QTY. Quantity of each part used for each product.
8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the specification,
and the part concerned. It also shows part number(s) interchangeable for the part.
9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts
have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.
being employed in the product concerned. See the examples below:
- The part is used in the product irrespective of CODE No.
2101- The part is used in the products with CODE No. of 2101 and after this number.
- 2100 The part is used in the products with CODE No. of 2100 and before this number.

GROUP INDEX
Group Name Page
CRANKCASE GROUP ............................................................................... 6
CRANKSHAFT GROUP............................................................................ 10
INTAKEand EXHAUSTGROUP ............................................................... 12
GOVERNORGROUP................................................................................ 18
COOLINGandSTARTINGGROUP ........................................................... 20
FUEL,LUBRICANTGROUP ..................................................................... 24
ELECTRIC DEVICE GROUP - RECOIL START........................................ 28
ELECTRIC DEVICE GROUP - ELECTRIC START ................................... 32
ELECTRIC DEVICE GROUP - 150 WATT CHARGING............................. 40
ELECTRIC DEVICE GROUP - OIL SENSOR............................................ 44
- 5 - '00-01
SYMBOL DESCRIPTION
AY .......................... ASSEMBLY
CP .......................... COMPLETE
EX .......................... EXPORT (from Japan)
FIG......................... FIGURE
FR. ......................... FRONT
" .............................. INCH
INCL.......................INCLUDE
~L ........................... LITER
L= ........................... LENGTH (in. mm)
L.H. (LH) ................LEFT-HAND SIDE
MECH ....................MECHANICAL
NO (NON) .............. NONE
OPT. ....................... OPTIONAL
O.S......................... OVER SIZE
SYMBOL DESCRIPTION
P= .......................... PITCH (in mm)
P.T.O. (PTO) ..........POWER TAKE OFF
REF. .......................REFERENCE
R.H. (RH) ...............RIGHT HAND SIDE
RR. .........................REAR
STD........................STANDARD
SW .........................SWITCH
T=........................... THICKNESS (in mm)
UN .......................... UNIT
U.S. ........................UNDER SIZE
~V .......................... VOLTAGE
~W .........................WATT
W/ .......................... WITH
W/O........................WITHOUT
INDEX OF DESCRIPTION SYMBOLS

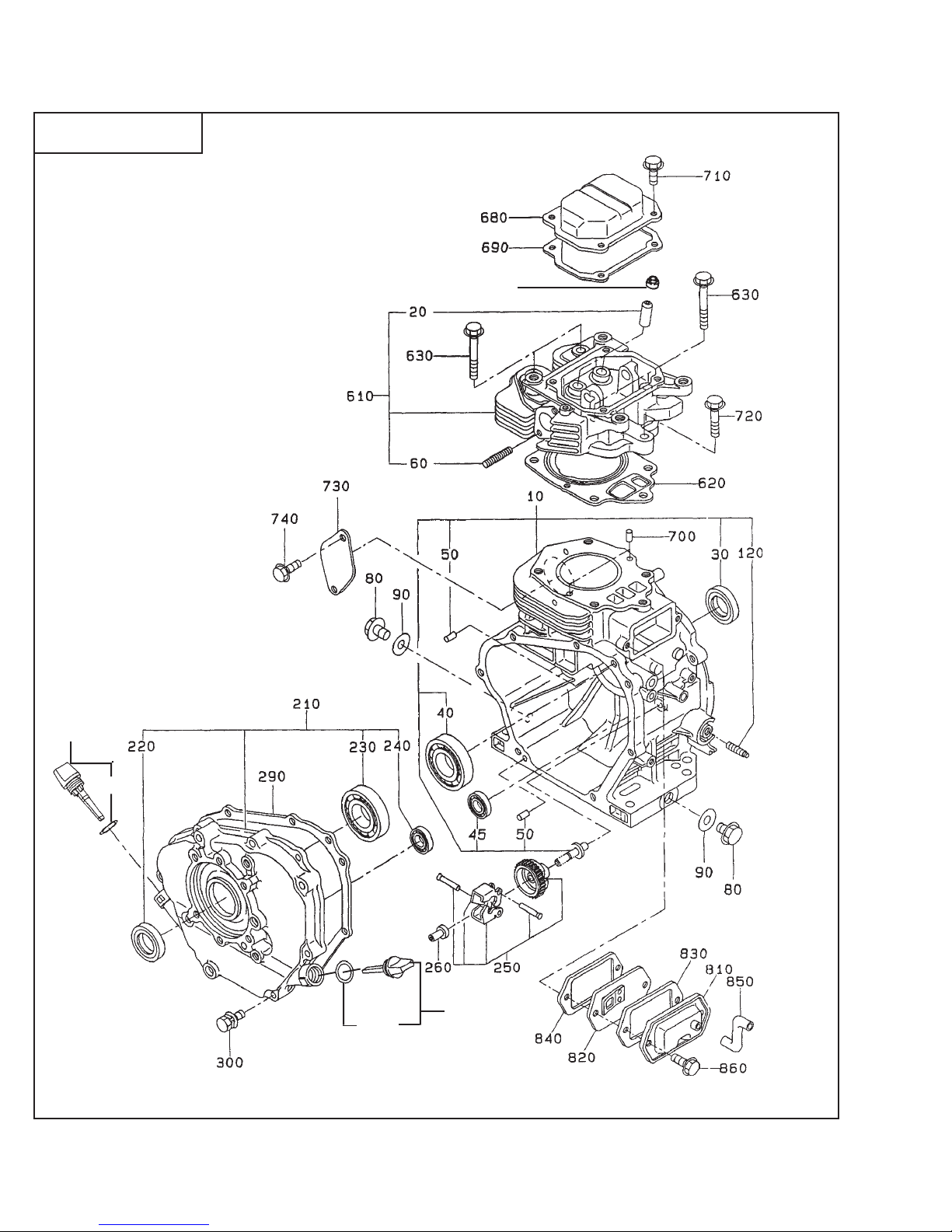

SECTION 1 CRANKCASE GROUP
EH30 & EH34 - 6 - '00-01
FIG. 100
270
270
-280
-280
670

SECTION 1 CRANKCASE GROUP
EH30 & EH34 - 7 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 246-10101-31 CRANKCASE 1 EH30, singlebalancer fromS/N1023377 100
246-10101-21 CRANKCASE 1 EH30,double balancer to S/N1023376 100
10 247-10101-31 CRANKCASE 1 EH34, singlebalancer fromS/N1029603 100
247-10101-21 CRANKCASE 1 EH34,double balancer to S/N1029602 100
20 246-14202-03 VALVE GUIDE 2 100
30 044-03500-90 OIL SEAL 1 Ø 35 X Ø 48 X 8 100
40 060-03500-10 BALLBEARING 1 100
45 060-01500-60 BALLBEARING 1 EH30 fromS/N1023377 100
060-01500-60 BALLBEARING 2 EH30 toS/N1023376 100
45 060-01500-60 BALLBEARING 1 EH34 fromS/N1029603 100
060-01500-60 BALLBEARING 2 EH34 toS/N1029602 100
50 031-00600-20 DOWEL PIN 2 100
60 010-50804-30 STUD 2 100
80 040-11400-30 PLUG 2 100
90 021-11400-20 GASKET 2 100
120 010-50801-20 STUD 1 100
210 246-11002-31 MAINBEARING COVER 1 EH30 fromS/N1023377 100
246-11002-21 MAINBEARINGCOVER 1 EH30 toS/N1023376 100
210 246-11002-31 MAINBEARING COVER 1 EH34 fromS/N1029603 100
246-11002-21 MAINBEARINGCOVER 1 EH34 toS/N1029602 100
220 044-03500-90 OIL SEAL 1 Ø 35 X Ø 48 X 8 100
230 060-03500-10 BALL BEARING 1 100
240 060-01500-60 BALL BEARING 1 EH30 fromS/N1023377 100
060-01500-60 BALLBEARING 2 EH30 toS/N1023376 100
240 060-01500-60 BALL BEARING 1 EH34 fromS/N1029603 100
060-01500-60 BALLBEARING 2 EH34 toS/N1029602 100
250 246-45001-01 GOVERNORGEAR 1 100
260 205-41901-03 GOVERNOR SLEEVE 1 100
270 224-63601-03 OILGAUGE 2 Includesitem-280 100
224-63601-03 OILGAUGE 1 W / OIL SENSOR 100
- 280 021-32000-10 GASKET 2 100
021-32000-10 GASKET 1 W / OIL SENSOR 100
290 246-15101-03 GASKET, bearing cover 1 100
300 001-13084-00 BOLT and WASHER 7 100
610 246-13001-31 CYLINDERHEAD 1 EH30 / Verticalsparkplug 100
247-13003-01 CYLINDERHEAD 1 EH34 / Verticalsparkplug 100
247-13101-11 CYLINDERHEAD 1 EH34/Inclinedsparkplug,shortstuds 100
620 247-15001-13 GASKET, cylinder head 1 100
630 011-01000-40 FLANGEBOLT 4 100
670 239-16302-13 OIL SEAL 1 EH30 toS/N1023376 100
239-16302-13 OIL SEAL 1 EH34 100
680 246-15501-02 ROCKERCOVER 1 100

SECTION 1 CRANKCASE GROUP
EH30 & EH34 - 8 - '00-01
FIG. 100
270
270
-280
-280

SECTION 1 CRANKCASE GROUP
EH30 & EH34 - 9 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
690 246-16002-13 GASKET, rocker cover 1 100
700 031-00600-20 DOWEL PIN 2 100
710 011-00600-20 FLANGEBOLT 4 100
720 011-01000-20 FLANGEBOLT 1 100
730 224-17101-03 BLINDCOVER 1 Recoil start 100
740 001-65081-20 BOLT 2 Recoil start 100
810 246-14301-01 BREATHERCOVER 1 100
820 246-14401-01 BREATHERPLATE 1 100
830 246-16006-03 GASKET, breathercover 1 100
840 246-16007-13 GASKET, breather plate 1 100
850 246-10801-03 RUBBER PIPE 1 100
860 011-00600-30 FLANGEBOLT 2 100

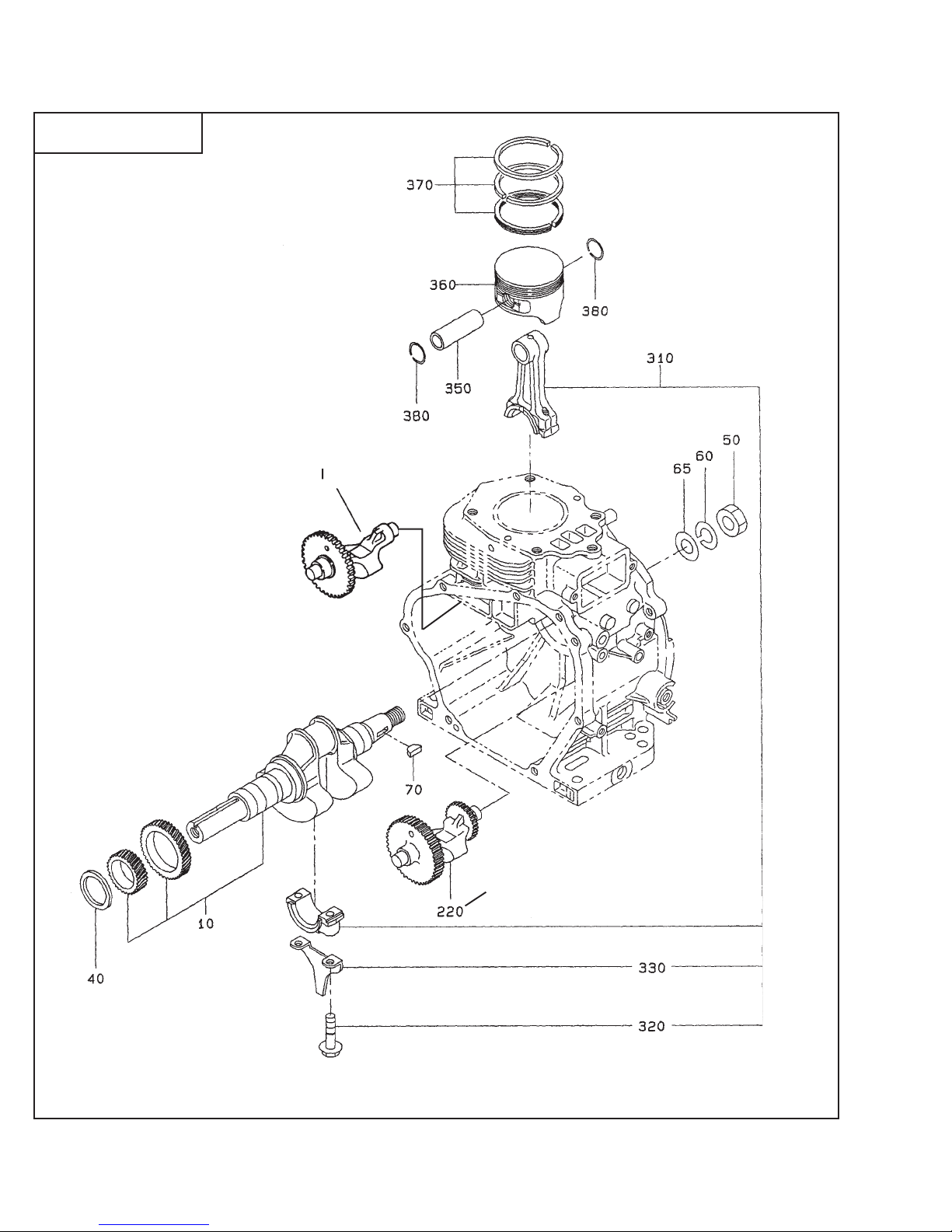

SECTION 2 CRANKSHAFT GROUP
EH30 & EH34 - 10 - '00-01
FIG. 200
210
BalancerShaft 1
BalancerShaft 2

SECTION 2 CRANKSHAFT GROUP
EH30 & EH34 - 11 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 246-20901-01 CRANKSHAFT 1 SAE 1 in. Keyway 200
246-20902-01 CRANKSHAFT 1 SAE 1.125 in. Keyway 200
246-21001-01 CRANKSHAFT 1 SAE PUMP 200
246-21201-01 CRANKSHAFT 1 SAE TAPER 200
246-20201-01 CRANKSHAFT 1 METRIC KEY 25mm 200
246-20903-01 CRANKSHAFT 1 METRICPUMP 200
246-20701-01 CRANKSHAFT 1 METRICTAPER 200
40 023-03501-60 SPACER ,T =0.6mm 1 Select 1 piece only 200
023-03501-70 SPACER ,T =0.8mm 1 Select 1 piece only 200
023-03501-80 SPACER ,T =1.0mm 1 Select 1 piece only 200
50 002-18180-00 NUT 1 200
60 003-20180-00 SPRING WASHER 1 200
65 003-10180-00 WASHER 1 200
70 005-32054-01 WOODRUFF KEY 1 200
210 246-24101-13 BALANCER SHAFT 1 1 EH30 toS/N1023376 200
246-24101-13 BALANCER SHAFT 1 1 EH34 toS/N1029602 200
220 246-24102-23 BALANCER SHAFT 2 1 EH30, with 1 balancer fromS/N1023377 200
246-24102-13 BALANCER SHAFT2 1 EH30, with 2 balancers toS/N1023376 200
246-24102-23 BALANCER SHAFT 2 1 EH34, with 1 balancer fromS/N1029603 200
246-24102-13 BALANCER SHAFT2 1 EH34, with 2 balancers toS/N1029602 200
310 246-22501-00 CONNECTINGRODAY 1 Includes 320, 330 200
320 246-23001-03 CONNECTIONRODBOLT 2 200
330 246-23101-13 OILSCRAPER 1 200
350 246-23301-03 PISTONPIN 1 200
360 246-23401-13 PISTON 1 EH30, STD 200
246-23402-13 PISTON 1 EH30, oversize 0.25mm 200
246-23403-13 PISTON 1 EH30, oversize 0.50mm 200
360 247-23401-13 PISTON 1 EH34, STD 200
247-23402-13 PISTON 1 EH34, oversize 0.25mm 200
247-23403-13 PISTON 1 EH34, oversize 0.50mm 200
370 246-23501-17 PISTONRINGSET 1 EH30, STD 200
246-23502-17 PISTONRINGSET 1 EH30, oversize 0.25mm 200
246-23503-17 PISTONRINGSET 1 EH30, oversize 0.50mm 200
370 247-23501-07 PISTONRINGSET 1 EH34, STD 200
247-23502-07 PISTONRINGSET 1 EH34, oversize 0.25mm 200
247-23503-07 PISTONRINGSET 1 EH34, oversize 0.50mm 200
380 056-52100-20 CLIP 2 200
*** The Balancer Shaft 1 was eliminated on the EH30 and EH34
starting with S/N 1023377 and S/N 1029603 respectively.

EH30 & EH34 - 12 - '00-01

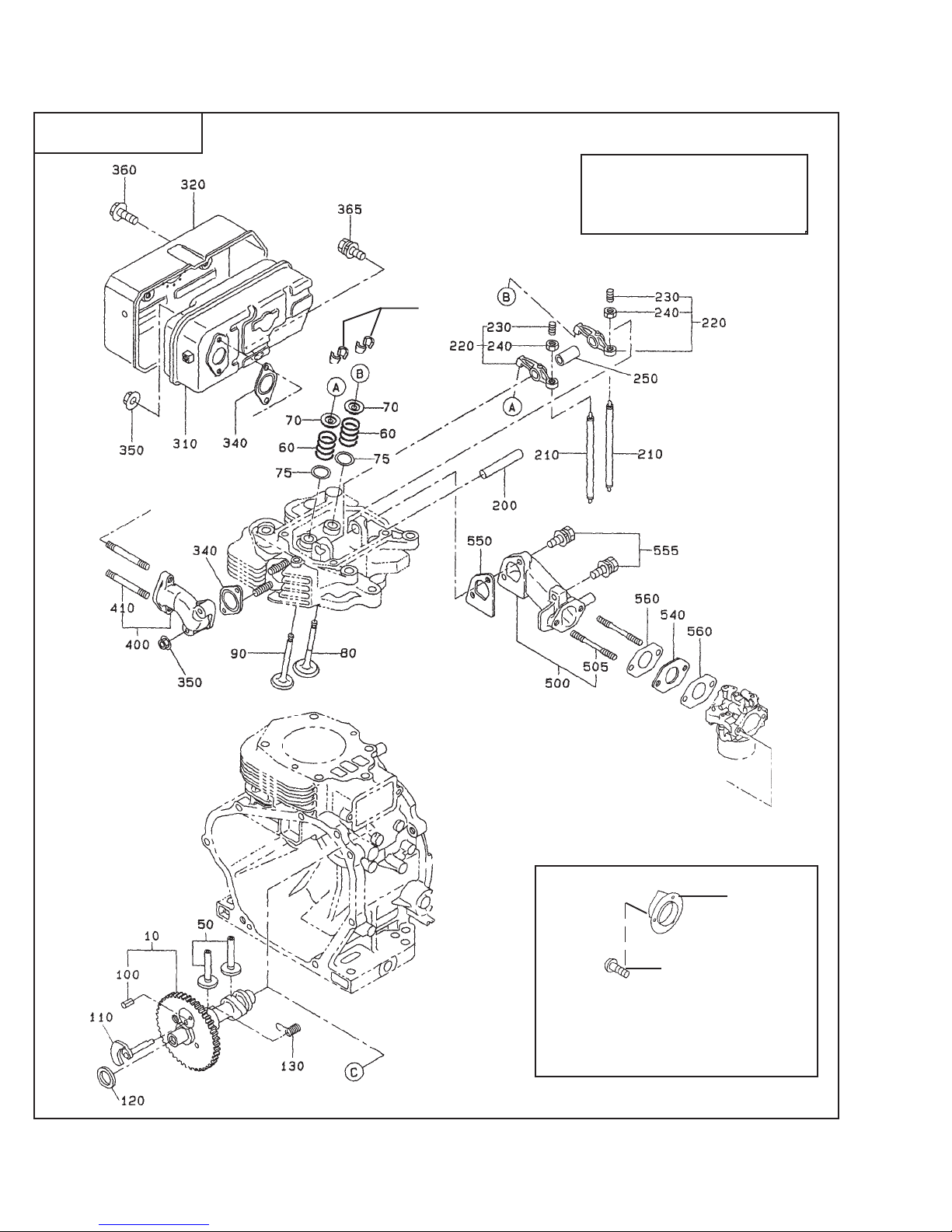

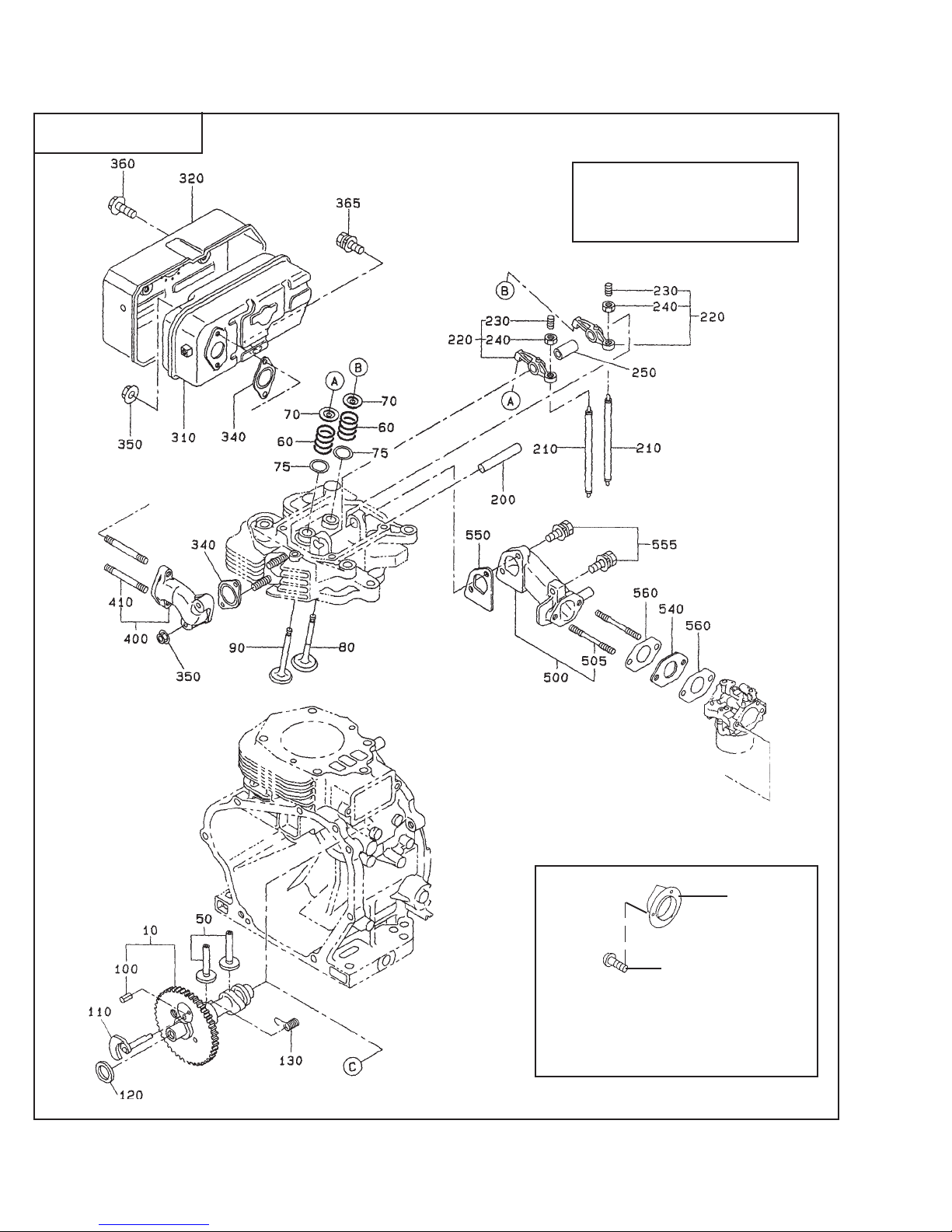

SECTION 3 INTAKE and EXHAUST GROUP
FIG. 300
580
590
DETAIL "C"
EXHAUST DEFLECTOR
î
C
55
NEW STYLE VALVE RETAINER Collet type
EH30 from S/N 1033819
EH34 from S/N 1053613

SECTION 3 INTAKE and EXHAUST GROUP
EH30 & EH34 - 13 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 246-31701-01 CAMSHAFT 1 300
50 246-33301-03 TAPPET 2 300
55 246-33501-03 COLLET 2 EH30 fromS/N1033819 300
246-33501-03 COLLET 2 EH34 fromS/N1053613 300
60 246-33611-03 VALVE SPRING 2 EH30 fromS/N1033819 300
246-33611-03 VALVE SPRING 2 EH34 fromS/N1053613 300
70 246-33711-03 SPRINGRETAINER 2 EH30 fromS/N1033819 300
246-33711-03 SPRINGRETAINER 2 EH34 fromS/N1053613 300
75 020-02000-10 WASHER 2 300
80 246-33411-03 INTAKE VALVE 1 EH30 fromS/N1033819 300
246-33411-03 INTAKE VALVE 1 EH34 fromS/N1053613 300
90 246-33511-03 EXHAUSTVALVE 1 EH30 fromS/N1033819 300
246-33511-03 EXHAUST VALVE 1 EH34 fromS/N1053613 300
100 005-19041-00 SPRINGPIN 1 300
110 246-36201-1 RELEASE LEVER 1 300
120 023-02200-50 SPACER T =0.6mm 1 Select 1 piece only 300
023-02200-60 SPACER T=0.7mm 1 Select 1 piece only 300
023-02200-70 SPACER T=0.8mm 1 Select 1 piece only 300
130 246-36701-03 RETURNSPRING 1 300
200 239-35001-03 ROCKERSHAFT 1 300
210 246-35301-11 PUSHROD 2 300
220 246-36101-10 ROCKER ARM AY 2 300
230 014-90800-21 ADJUSTINGSCREW 2 300
240 017-00800-90 NUT 2 300
250 246-36120-03 SPACER 1 300
310 246-30101-21 MUFFLER 1 300
320 246-34201-21 MUFFLERCOVER 1 300
340 246-35201-03 GASKET,muffler 2 300
350 018-00800-10 FLANGENUT 4 300
360 011-00600-10 FLANGEBOLT 3 300
365 001-11081-60 BOLT and WASHER AY 1 300
400 246-34001-01 EXHAUSTPIPE 1 300
410 010-50803-60 STUD 2 300
500 246-33001-01 INTAKEPIPE 1 300
505 010-50602-30 STUD 2 300
540 246-32901-03 INSULATOR 1 300
550 246-36001-13 GASKET, intake pipe 1 300
555 001-13082-80 BOLT and WASHER AY 3 300
560 234-35902-03 GASKET 2, insulator 2 300
580 015-00400-60 TAPPINGSCREW 3 300
590 246-37001-07 EXHAUSTDEFLECTOR 1 Includes item 580 300

SECTION 3 INTAKE and EXHAUST GROUP
EH30 & EH34 - 14 - '00-01
FIG. 310
580
590
DETAIL "C"
EXHAUST DEFLECTOR
î
C
OLD STYLE VALVE RETAINER
Non-Collet type
EH30 to S/N 1033818
EH34 to S/N 1053612

SECTION 3 INTAKE and EXHAUST GROUP
EH30 & EH34 - 15 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 246-31701-01 CAMSHAFT 1 310
50 246-33301-03 TAPPET 1 310
60 246-33601-03 VALVE SPRING 2 EH30 To S/N 1033818 310
246-33601-03 VALVE SPRING 2 EH34 To S/N 1053612 310
70 246-33701-03 SPRINGRETAINER 2 EH30 To S/N 1033818 310
246-33701-03 SPRINGRETAINER 2 EH34 To S/N 1053612 310
75 020-02000-10 WASHER 2 310
80 246-33401-03 INTAKE VALVE 1 EH30 To S/N 1033818 310
246-33401-03 INTAKE VALVE 1 EH34 To S/N 1053612 310
90 246-33501-03 EXHAUSTVALVE 1 EH30 To S/N 1033818 310
246-33501-03 EXHAUSTVALVE 1 EH34 To S/N 1053612 310
100 005-19041-00 SPRINGPIN 1 310
110 246-36201-11 RELEASE LEVER 1 310
120 023-02200-50 SPACER, T=0.6mm 1 Select 1 piece only 310
023-02200-60 SPACER, T=0.7mm 1 Select 1 piece only 310
023-02200-70 SPACER, T=0.7mm 1 Select 1 piece only 310
130 246-36701-03 RETURNSPRING 1 310
200 239-35001-03 ROCKERSHAFT 1 310
210 246-35301-11 PUSHROD 2 310
220 246-36101-10 ROCKER ARM AY 2 310
230 014-90800-21 ADJUSTINGSCREW 2 310
240 017-00800-90 NUT 2 310
250 246-36120-03 SPACER 1 310
310 246-30101-21 MUFFLER 1 310
320 246-34201-21 MUFFLERCOVER 1 310
340 246-35201-03 GASKET,muffler 2 310
350 018-00800-10 FLANGENUT 4 310
360 011-00600-10 FLANGEBOLT 3 310
365 001-11081-60 BOLT and WASHER AY 1 310
400 246-34001-01 EXHAUSTPIPE 1 310
410 010-50803-60 STUD 2 310
500 246-33001-01 INTAKEPIPE 1 310
505 010-50602-30 STUD 2 310
540 246-32901-03 INSULATOR 1 310
550 246-36001-13 GASKET 2, intake pipe 2 310
555 001-13082-80 BOLT and WASHER AY 3 310
560 234-35902-03 GASKET 2, insulator 2 310
580 015-00400-60 TAPPINGSCREW 3 310
590 246-37001-07 EXHAUSTDEFLECTOR 1 Includes item 580 310

SECTION 3 INTAKE and EXHAUST GROUP
EH30 & EH34 - 16 - '00-01
WISCONSIN ROBIN STANDARD
2-STAGE

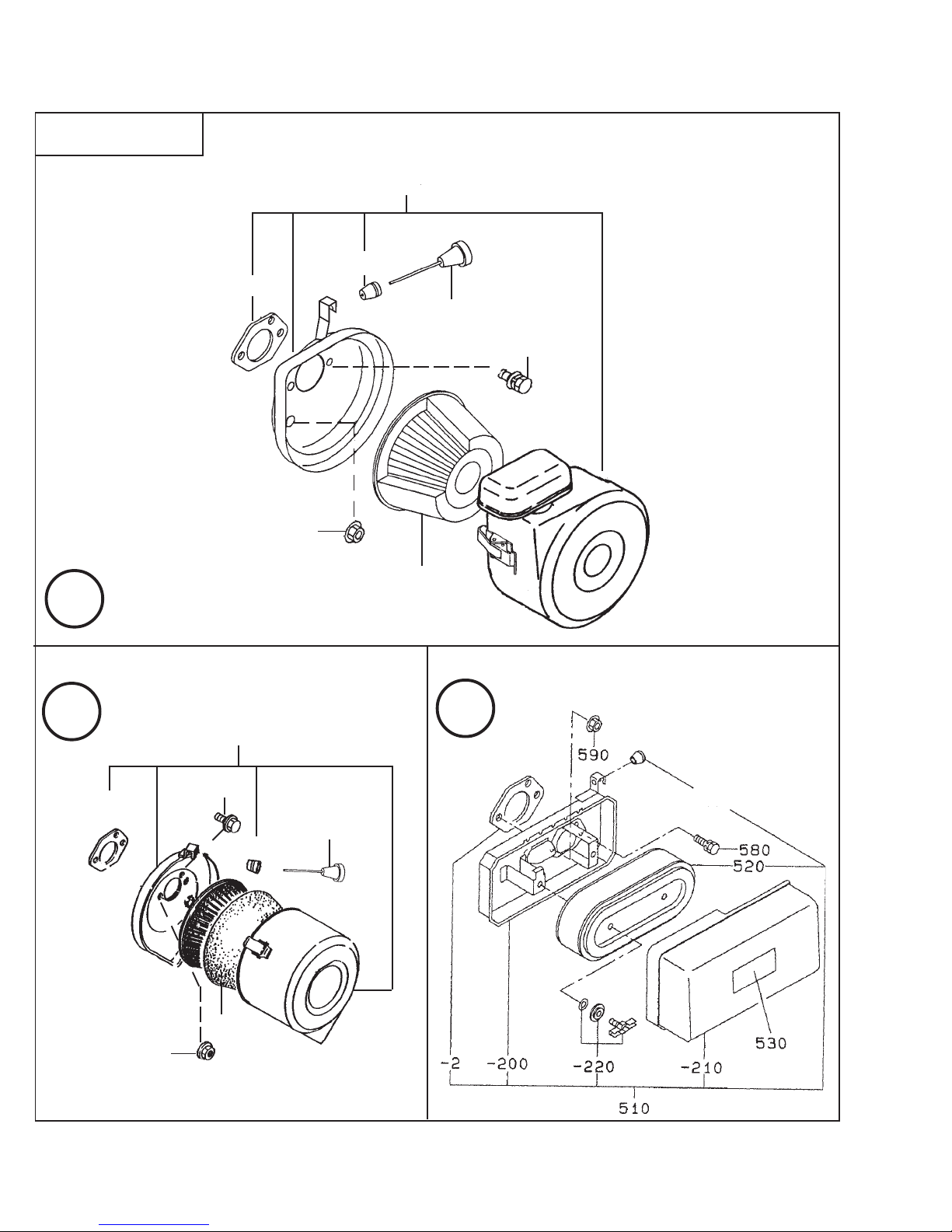

FIG. 320 STANDARD PREMIUM - TOP INLET CYCLONE
STANDARD - LOWER INLET CYCLONE
A
BC
600
-3
510
520
590
-2
580
510
580
600
520
590
-3
-2 -3

SECTION 3 INTAKE and EXHAUST GROUP
EH30 & EH34 - 17 - '00-01
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
510 246-32610-00 AIR CLEANER AY 1 STANDARDPREMIUM 320A
254-32612-10 AIR CLEANER AY 1 STANDARD 320B
246-32602-00 AIR CLEANER AY 1 WISCONSINROBIN 320C
-2 234-36003-03 PACKING 1 320
-3 207-32690-08 GROMMET 1 320
-220 246-32653-08 WINGBOLT 1 320C
520 234-32604-07 ELEMENTSET 1 STANDARDPREMIUM 320A
234-32604-07 ELEMENTSET 1 STANDARD 320B
246-32601-07 ELEMENTSET 1 WISCONSINROBIN 320C
580 001-10061-20 BOLT and WASHER 1 320
590 002-38060-00 FLANGENUT 2 320
600 246-45006-01 KNOB 1 STANDARDPREMIUM 320A
246-45006-01 KNOB 1 STANDARD 320B

SECTION 4 GOVERNOR GROUP
EH30 & EH34 - 18 - '00-01

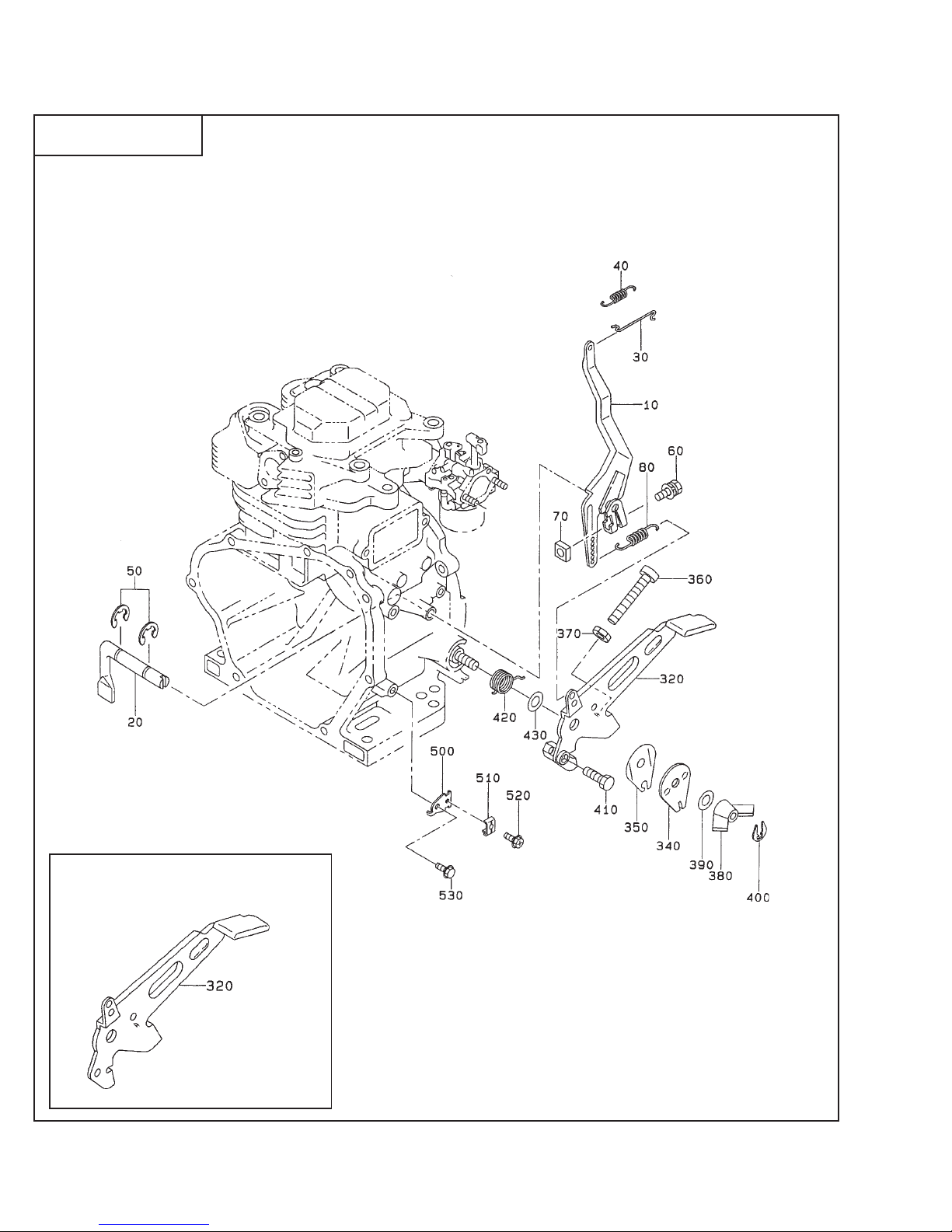

FIG. 400
MANUAL CONTROL ONLY
MANUAL WITH LOWER CABLE CONTROL

REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
10 246-42301-11 GOVERNOR LEVER, compl. 1 400
20 246-42201-23 GOVERNORSHAFT 1 400
30 234-42701-01 GOVERNORROD 1 400
40 246-42801-13 RODSPRING 1 400
50 003-13060-00 CLIP 2 400
60 001-14062-50 BOLT and WASHER, AY 1 400
70 018-60600-20 NUT 1 400
80 246-42501-23 GOVERNORSPRING 1 400
320 246-43302-11 SPEED CONTROL, compl. 1 STD 400
246-43303-11 SPEED CONTROL, compl. 1 lower cable control only 400
340 239-43501-01 STOP PLATE 1 400
350 239-45002-03 SPRING WASHER 1 400
360 004-31053-50 SCREW,panhead 1 400
370 002-27050-00 NUT 1 400
380 017-90800-12 WINGNUT 1 400
390 003-10080-00 WASHER 1 400
400 056-50400-10 CLIP 1 400
410 011-60400-10 BOLT 1 lower cable control only 400
420 246-45201-23 RETURNSPRING 1 lower cable control only 400
430 021-70800-10 FRICTIONWASHER 1 400
500 246-44201-13 WIRE BRACKET 1 lower cable control only 400
510 235-43901-01 CLAMP 1 lower cable control only 400
520 004-36051-60 SCREW and WASHER, AY 1 lower cable control only 400
530 011-00600-10 FLANGEBOLT 1 lower cable control only 400
SECTION 4 GOVERNOR GROUP
EH30 & EH34 - 19 - '00-01

SECTION 5 COOLING and STARTING GROUP
EH30 & EH34 - 20 - '00-01
FIG. 500 NEW STYLE RECOIL
