Robin SmartPAT 5500 User manual

52 Hurricane Way, Norwich, NR6 6JB
Telephone [phone] (Switchboard)
[phone] (Sales)
Facsimile [phone]
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 2

PORTABLE APPLIANCE TESTER
SmartPAT 5500
User Manual
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 3

SmartPAT 5500
INTRODUCTION 2
Warnings and Cautions 2
Technical Specifications 3
Test Summary 5
Controls and Accessories 6
Results 9
INSTALLATION 9
Power Requirements 9
Connections 9
Setting Up 10
OPERATING INSTRUCTIONS 12
TESTING 12
Visual Check 12
Auto Testing 12
Reviewing 16
Storing 16
Storage Type 16
Programming 20
IEC Lead Test 24
Manual Testing 24
FAULT FINDING AND REPAIR 25
Calibration 25
Basic Maintenance 25
GENERAL ENQUIRIES 25
INTRODUCTION
Thank you for purchasing Robin Portable Appliance
Tester. Please ensure you read and understand
these instructions fully before starting any testing.
The SmartPAT 5500 is a State of the Art Portable
Appliance Tester (PAT) with automatic testing
capability. It is capable of performing preset earth
bonding, insulation, fuse continuity, run/leakage and
flash voltage tests. The equipment is contained in
a high impact carrying case, see Figure 1. When
opened access is provided to the operating panel,
secured into the base of the case, this panel carries
all the operating switches, connectors, serial port,
floppy disc drive and the results display. The lid of
the case provides a storage space for the cables
associated with the appliance tester.
WARNINGS AND CAUTIONS
Although the equipment has been built to meet
the requirements of the IEC publication 1010,
Safety Requirements for Electronic Measuring
Apparatus, the following warnings and cautions
must be adhered to:
WARNINGS
LETHAL VOLTAGES. THE SmartPAT 5500
CONTAINS HAZARDOUS VOLTAGES,
CORRECT HIGH VOLTAGE HANDLING
PRECAUTIONS,AS LAID DOWN INTHE
ELECTRICITY AT WORK REGULATIONS
1989, MUST BE OBSERVED AT ALL TIMES.
CAUTIONS
EQUIPMENT DAMAGE.
The equipment has been set for a nominal
230V/110V operation, it must never be connected
to a higher voltage.
EQUIPMENT DAMAGE.
The mains supply is never to be connected to the
IEC lead test connection.
ABRASIVE MATERIALS.
Routine Maintenance. Do not use abrasive
materials, metal polish or furniture polish
during cleaning procedures.
TEMPERATURE CONTROL.
Operating and Storage Temperatures below -10°C
may cause permanent damage to the equipment.
DATA STORAGE.
This equipment has the ability to store test
records within an onboard memory.The data
within the memory should not be left to
accumulate over a period of time but should be
downloaded frequently (daily during normal
testing) to a secure storage medium e.g. PC hard
drive or floppy disc. Robin Electronics accepts no
responsibility for lost of stored data due to misuse
of the appliance tester or non-compliance with
the operating instructions.
Portable Appliance Tester
CONTENTS
2
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 4

Technical Specifications
The technical specifications of the SmartPAT 5500 are as follows:
Mains input supply
Voltage 100 V to 120 V rms at 50/60 Hz ±10%
207 V to 255 V rms at 50/60 Hz ±10%
Power consumption 30 W maximum (quiescent)
Earth leakage current 3 mA maximum
Display
Type 2 line, 20 characters per line Liquid Crystal Display (LCD)
Character Height 5.5 mm
Character width 3 mm
Viewing Angle ‘6 0’clock’
Contrast Adjustment Fixed
Communications
Format Serial
Data Rate 1200 to 9600 bps (user selectable)
Interface RS232/V24, support for IRDA adapter,
IBM keyboard (through adapter), HP Smartwand
and a Panasonic scanner
Environmental
Storage Temperature -10 to +50°C
Operating Temperature 0 to 40°C (results within calibrated limits)
-10 to 60°C (results may be outside calibrated limits)
Humidity 0 to 90% R-H non condensing
Pollution level II
IP Rating IP51 case closed, IP30 case open
SmartPAT 5500

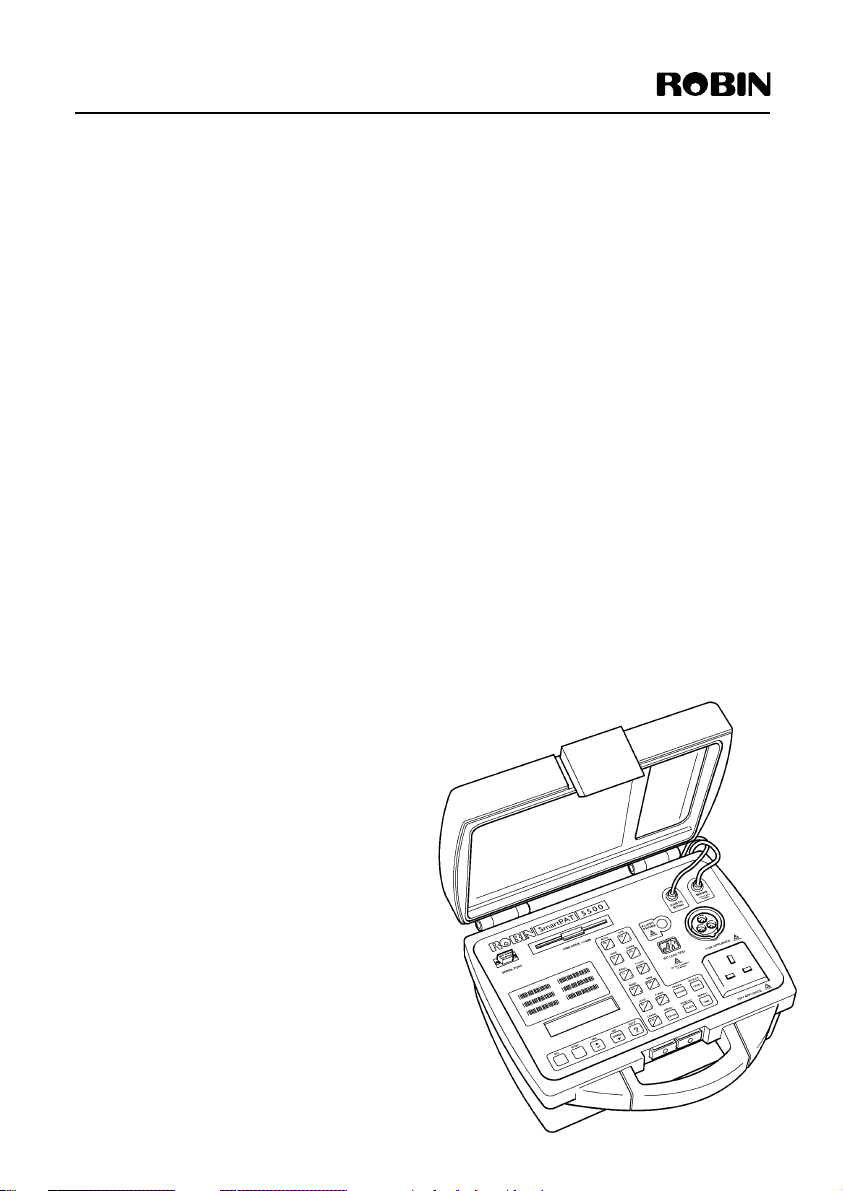

Figure 1 SmartPAT 5500 tester
3
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 5

SmartPAT 5500
The Technical Specifications of the Tests performed by the SmartPAT 5500 Portable Appliance Tester are
as follows:
Earth Bond
The earth bonding specifications are taken at a nominal mains input supply of 110 V or 235 V rms, unless
otherwise stated.
High Current
Open Circuit Voltage 3 V rms ±10%
Test Current 5 A, 8 A or 26 A ±15% into 0.1 ohm load.
(in-built intelligent current limit)
Display Resolution 0.01 ohm to 19.99 ohm, then shows >20 ohm.
Display Accuracy ±(3% + 4 digits)
Test Duration 10s or 15s to 1 minute, dependent on time test button held down
Business Equipment
Open Circuit Voltage 3 V rms ±10%
Test Current 100 mA +20% -0% at 230Vrms into 0.5 ohm load.
Display Resolution 0.01 ohm to 19.99 ohm, then shows >20 ohm.
Display Accuracy ±(3% + 4 digits)
Test Duration 10s or 15s to 1 minute, dependent on time test button held down
Pass Threshold 0.1 ohm steps up to 5 ohm then 0.5 ohm steps to 19.99 ohm
(user selectable)
Insulation Test
The earth bonding specifications are taken at a nominal mains input supply of 110 V or 235 V rms, unless
otherwise stated.
Open CircuitVoltage 560 V dc +16%, -0%
Short Circuit Current 3.5 mA ±10%
Current into 500k 1.0 mA minimum
Display Resolution 0 1 to 99.9 Mohm, then 1 to 299 Mohm, >300 Mohm
Display Accuracy ±(5% + 4 digits)
Test Duration 10s or 15s to 1 minute, dependent on time test button held down
Pass Threshold 0.1 Mohm steps to 0.9 Mohm
1 Mohm steps from 1 to 9 Mohm
10 Mohm steps from 10 to 300 Mohm
(user selectable)
Fuse/Load/Leakage Test
Leak
Earth Leakage Current 0.1mA to 9.9mA
Display resolution 0.1mA
Display accuracy ±(5% + 4 digits), capacitive/resistive leakage
Leakage threshold 0.5 to 10 mA in 0.5 mA steps
Abort on leakage > 15 mA
4
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 6

Load
Load Measurement 0.1kVA to 3.99kVA
Display Resolution 0.1kVA
Display Accuracy ±(5% + 4 digits), resistive or reactive load
Abort on Surge > 60 A exponential, time constant 50 ms
Abort on Run Current > 13 A (235 V), > 16 A (110 V)
Test Duration 5s to 60s,Terminating immediately
when STOP button pressed.
Flash Test
Open CircuitVoltage 1500Vrms (Class I), 3000vrms (Class II)
Short Circuit Current 5mA at normal mains input
Display Resolution 0.1mA
Display Accuracy ±(5% + 4 digits)
Test Summary
The following statements provide a brief summary of the tests performed by the SmartPat 5500.
Earth bond
Checks the resistance between the Earth pin of the appliance under test and any exposed metalwork on
the appliance.
Insulation
Checks the resistance of the insulation between the Earth pin of the appliance under test cable plug or
the earth bond crocodile clip, to the Live and Neutral pins of the appliance (pins are connected together
within the SmartPAT 5500 for this test).
Fuse/Load/Leakage
A low dc fuse test is performed first to check the continuity of the fuse in the appliance under test, by
checking the resistance between the Live and Neutral pins of the appliance cable plug. On completion of
the fuse test an earth leakage test and a VoltAmpere test is performed with the appliance under test being
powered up.
Flash
A 1.5kV rms voltage is applied between the earth and live/neutral pins of a class I appliance and 3 kV rms
voltage between the flash probe and the live/neutral pins of a class II appliance.
SmartPAT 5500
5
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 7

SmartPAT 5500
Controls and Accessories
The cables, connectors, controls and indicators of the SmartPAT 5500 are shown in Figure 2 and listed
below, together with a brief functional description:
Cables
Mains Captive mains cable to connect to the mains supply with either a
13A, 230V or a 16A, 110V plug (via adaptor). (See Figure 2 (6))
Earth Bond Captive cable, fitted with heavy duty crocodile clip, to connect to
appliance under test. (See Figure 2 (5))
Connectors
110 V Appliance Provides a socket to connect a 110V appliance to the test set for
testing. (See Figure 2 (8))
230 V Appliance Provides a socket to connect a 230V appliance to the test set for
testing. (See Figure 2 (7))
IEC Lead Test Enables IEC leads to be tested, used in conjunction with the 230 V
Appliance Input socket. (See Figure 2 (3))
Serial Port Allows an external computer/printer or any serial interface data
collector device to be connected to the Portable Appliance Tester.
(See Figure 2 (1))
Flash Probe Enables a probe to be inserted into the Portable Appliance Tester, to
allow high voltage insulation tests to be carried out. (See Figure 2 (4))
Disk Drive
Disk Drive 1.44Mb A 31/2” floppy disk drive to provide a means of storing the records
so that later they can be downloaded to a computer. (See Figure 2 (2))
WARNING
When transferring data to a floppy disk it is essential that the data is either
transferred to a computer or printed before the data is deleted from the tester.
6
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 8

Controls
The controls are all in the form of keys, there are two distinct sections:
Main executing keys
Test function and setting keys
Main Executing Keys
GO Initiates tests and confirms selections.
STOP Terminates tests and selections, when pressed returns display to show main
menu, see setting up section.
YES Allows a positive decision to be made, the key is also the up arrow for use
when scrolling through messages or lists.
NO Allows a negative decision to be made, the key is also the down arrow for use
when scrolling through messages or lists.
HELP When pressed will display a help message on the subject the SmartPAT 5500 is
currently employed in carrying out.
Test function and setting keys
These keys perform various functions, the alpha-numeric keys, half black and half yellow, provide the
keyboard function for the PAT together with the space key.The use of these keys is detailed in the
Installation section under setting up. The other four keys provide a means of amending the test
parameters, ie alter current used or time duration of test.
All the 16 keys have a black legend above them, these are the function which that key will control.
A brief description of the action controlled by each key is as follows:
AUTO Enables any autotest programmed in the SmartPAT 5500 to be selected
and run.
SITE Allows a code for each site testing is carried out at to be entered into the PAT
memory for storing on the records.
DATE Enables the date and time to be set in the PAT, this is automatically updated by
the PAT.
STORE Allows a test result to be stored in the PAT.
PROG Initiates the programming mode of the PAT, For some of the major modes the
access code is required. (For Access Code details see Programming section)
CLEAR Enables results to be erased from the memory.
BOND When pressed this key will initiate an earth bond test.
INSU When pressed this key will initiate an insulation test.
LOAD When pressed this key will initiate a load/leakage test.
FLASH When pressed this key will initiate a flash test.
LEADS When pressed this key will initiate an IEC lead test.
VISUAL When pressed will allow the results of a visual test to be entered into
the records.
REVIEW Enables the results of an auto test to be viewed before they are stored, or any
stored result may be viewed.
SEARCH Enables a search of the records to be carried out.
REPEAT Allows a search to be repeated.
PRINT/PC Enables the data on the display to be printed or data to be downloaded to PC
or disk. It also enables a disk to be formatted.
SmartPAT 5500
7
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 9

SmartPAT 5500
Indicators
Bleeper (internal) Sounds to indicate that a test has been completed or failed (double bleep).
Display Dot matrix Liquid Crystal Display, displays up to 40 characters at a time,
in two lines, to show the following:
Test type selected
Test in progress messages
Test results
Warning messages.
Help messages
Figure 2 Controls and Accessories
8
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 10

Results
The test results are displayed on the display screen, showing the actual measured values, or when necessary
the reason for failure, eg Fuse Blown. The result may also be stored internally in a non-volatile memory,
this data is instantly available for review, printing or data transfers if required. The displayed or stored
results may be printed out by an external printer. The records will contain the site, date and appliance
being tested as well as the type of test performed.The results may also be recorded in other mediums, by
entering them in a Portable Appliance Test Log Book (Robin Manual IRPI ) or downloading the results
into a computer with a compatable PAT database management software such as Robin PowerPAT Plus
Data Management software. Both the IRPI log book and PowerPAT Plus software are available as optional
accessories from Robin Electronics.
INSTALLATION
Power Requirements
WARNING
LETHAL VOLTAGES. THE SmartPAT 5500 CONTAINS HAZARDOUS VOLTAGES,
CORRECT HIGH VOLTAGE HANDLING PRECAUTIONS MUST BE OBSERVED
AT ALL TIMES.
The power requirements of the SmartPAT 5500 are detailed under the Technical Specifications.
The Appliance Tester is dispatched from the factory with a mains lead carrying a 230V plug. To power the
Test Set from 110V requires the use of an adaptor. The adaptor is available from Robin as:
AD 110V 110V Adaptor.
Connections
WARNING
ELECTRIC SHOCK. TO AVOID ELECTRIC SHOCK, ENSURE THAT ALL POWER IS OFF AND ALL
DEVICES ARE UNPLUGGED BEFORE CONNECTING OR REMOVING ANY OF THE TEST CABLES.
CAUTIONS
EQUIPMENT DAMAGE. The equipment has been set for a nominal 230V/110V operation, it must never
be connected to a higher voltage.
EQUIPMENT DAMAGE. The mains supply is never to be connected to the IEC lead test connector.
The only connection to be made prior to commencing testing is to plug the SmartPAT 5500 into the
correct power source.
SmartPAT 5500
9
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 11

Setting Up
The only requirement to set up the Test Set, is to find a suitable place to conduct the testing, adjacent to
the correct power source,(230V/110V 50Hz).
The Appliance Tester has no ON/OFF switch, it is ready for testing equipment as soon as power is
applied to it.
When the Tester is plugged in and power applied the Tester performs a short test of the mains supply voltage
and displays the version of the software within the unit.The following screens are displayed in quick succession:
Robin SmartPAT 5500 Robin SmartPAT 5500
Self Test VI.17 230V Operation
A quick self test is then performed to check the functioning of the Test Set, on completion of which the
following message is displayed:
Site ABC
19/08/1999 08:35:24
This screen is the main screen from which all operations are initiated.
NOTE
During any operation of the SmartPAT 5500, pressing the STOP button will automatically revert to the
above screen
Use of Alpha Numeric Keypad
The SmartPAT 5500 is accessed and controlled via the alpha numeric keypad. Therefore before installing
the equipment in the test position it is necessary to have a complete
understanding of how to use the keypad.
The following example shows how to enter alpha or numeric characters
KLM To enter the numeric 5 press key once, character K press key twice,
for L press key three times and for M press key four times.
If the data to be entered is numeric, ie. Date and time, then the
5 alpha function is inhibited.
DATE
When the function is required that is shown above a key, with the exception
of the five Executing keys, pressing the key will call up that function, unless the
equipment is in a mode that inhibits that function. The sixteen function keys
are shown on Figure 2 and listed on page 8.
The keys that have a word, with the exception of SPACE, enable
LEVEL alterations in the test instructions to be inserted. The four keys are:
CURRENT Allows the different current ratings to be set in a test
5A, 8A or 26A.
LEVEL Enables the user to change the Pass/Fail Level of selected tests
CLASS Selects the class of the equipment under test, Class 1/Class11
TIME Enables the time duration of each phase of a test to be amended
The keys and buttons are detailed in the Control and Accessories section
SmartPAT 5500
10
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 12

Setting the Date/Time
The date set will be the date recorded on all the result records. Once set the date and time is automati-
cally incremented, but should be checked on switch on before commencing any tests. To adjust the date
and time:
Press DATE button, the following is displayed:
Enter date, press GO
19/08/1999 08:40:25
If no change is required press GO button, display will return to the main screen
The cursor will be highlighting the first character of the date. If a change is required enter the date,
followed by the time in the following format, using the keypad.
dd/mm/yy hh:mm
On completion of the operation press GO button, display will return to the main screen.
Setting the Site
This allows a site to be identified and subsequent tests to be recorded for/under the site. A recognition
code is entered, so that the place of testing (site) is registered on all result records. Failure to set the
site recognition code will result in the code entered for the last site being recorded on all the result
records. Once a site as been allocated to a record it is not possible to amend the record, only to delete it.
If no change is required remain with the main screen, no further action is necessary. To set a new site
code:
Press SITE button, the following is displayed:
Enter site, press GO
…………
The cursor will be highlighting the first character of the code. Enter required site code using buttons on
the keypad as detailed in Use of Alpha Numeric Keypad at the start of the Installation section
On completion of the operation press GO button, display will return to the main screen
The SmartPAT 5500 is now ready to commence testing the appliances.
SmartPAT 5500
11
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 13

OPERATING INSTRUCTIONS
Prior to performing any test the following information is required.
The class of equipment to be tested, see Table 1;
Table 1
Class Typical Appliances
1 (Normal) Electric heaters, Fans, kitchen appliances, kettles etc.
1 (Business) Business machines - Fax machines, printers, personal computers etc.
II Double insulated appliances - Power tools, table lamps etc.
Business equipment usually contains electronic components and are therefore are susceptible to damage
from high current and voltage. For this reason the Earth Bond tests are carried out using the 100mA test
current
Fuse Continuity tests are valid for the more common conventional electrical equipment, but certain
appliances contain circuitry that is unlikely to give a positive reading eg; High input impedance of solid
state devices etc. Examples of the type of equipment which would indicate a failed test, even when the
equipment fuse is good are:
Personal computers
Monitors (VDU)
Fax machines
Photocopiers
Motor driven hand tools with electronic control.
WARNING
Before commencing any testing the user is strongly advised to make reference to the Electricity at Work
Regulations 1989 and any relevant publications from the Health and Safety Executive. It is important that
the user fully understands the various tests required and how they should be performed.The user should
also make reference to the Code of Practice for In Service Inspection and Testing of Electrical Equipment,
which is available from the Institute of Electrical Engineers. Robin Electronics also produce a useful video
guide to PAT testing. (Robin model RV20)
TESTING
NOTE
If during any operational actions further information on the test or action is required, pressing the HELP
control key will display a number of hints to assist in the correct operational procedure.
Visual Check
1 Check state of flex, ie. No cuts, cracks or any physical damage to the outer insulation layer.
2 Check state of the plug, cable securely attached, no signs of overheating and that the
correct value of fuse is fitted.
3 Check the equipment to be tested for any signs of damage, and that any mains or control switches will
physically switch on and off.
4 Check any sockets for signs of overheating or physical damage.
Auto testing
The list of tests pre-programmed into the SmartPAT 5500 are given in table 2 together with the limits and
time duration of each phase of the test.
The procedure to carry out an autotest is detailed after table 2, with a example of the type of display and
actions required to perform the tests.
SmartPAT 5500
12
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 14

Table 2 Automatic Tests
Test No Tests Time Pass/Fail point
101 Visual check
26A earth bond test 10s 0.1ohm
Insulation, Class 1 10s 2.0Mohm
Load: load 10s 3kVA
leakage 1.0mA
102 Visual check
26A earth bond test 10s 0.1ohm
Insulation, Class 1 10s 2.0Mohm
Flash 10s 1.0mA
Load: load 10s 3kVA
leakage 1.0mA
103 Visual check
100mA earth bond test 10s 0.1ohm
Insulation, Class 1 10s 2.0Mohm
Load: load 10s 3kVA
leakage 1.0mA
201 Visual check
Insulation, Class II 10s 7.0Mohm
Load: load 10s 3kVA
leakage 10s 1.0mA
202 Visual check
Insulation, Class II 10s 7.0Mohm
Flash 10s 1.0mA
Load: load 10s 3kVA
leakage 10s 1.0mA
301 Visual check
8A earth bond test 0.1ohm
Insulation test 7.0Mohm
Note
The results shown in the following tests have typical values for example purposes.
To perform an auto test the procedure is as follows:
Press AUTO key, the following is displayed:
Enter the Autotest
Number, press GO
After 2 seconds the display changes:
Autotest
Autotest number: 101
SmartPAT 5500
13
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 15

Press the key for the first number of the autotest, eg 1, the number on display will be removed and the 1
just entered will be displayed. Enter the next two numbers.
On completion press GO key
Check case exterior,
Cable and plug
After a few seconds the display changes to:
Visual inspection
YES/NO for PASS/FAIL
Check the appliance under test for any visible damage as detailed under the Visual Check heading. If no
damage found press YES key for PASS. If damage found press NO key for FAIL. The Visual inspection
screen will be redisplayed with either PASS result or FAIL result displayed.
After a few seconds the display changes to:
Earth bond 26A
Attach earth clip
After a few seconds the display changes to:
Earth bond 26A
Press GO to start
Press GO key, the following screen is displayed:
Earth bond 26A
Test in progress 10
The test is of 10 seconds duration, this is counted down by the numeric counter in the right hand corner
of display. The result of the test is then displayed:
Earth bond 26A
Resistance >0.08Ω
If the resistance is too high then the screen will show FAIL indicated by a double bleep and after a few seconds the
screen below is displayed.
Earth bond 26A
Fig 1 Re-test? Yes/No
This allows you to perform a re-test of the earth bond. Press YES key to re-test.You can
perform a re-test as many times as you wish but if the earth bond still fails or the NO key is pressed the
tester will not allow you to proceed with a subsequent test on the appliance as there is clearly a safety
fault. In this case the tester will ask you to review or store the failed fault.
If the resistance is low enough then PASS is displayed and the next screen, the Insulation test is displayed:
Insulation Class I
Remove earth clip
After a few seconds the screen changes to:
Insulation Class I
Press GO to start
SmartPAT 5500
14
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 16

Press GO key, the following screen is displayed:
Insulation Class I
Test in progress 10
The test is of 10 seconds duration, this is counted down by the numeric counter in the display. The result
of the test is then displayed. If the test fails you will then see a message similar to Fig 1.
Insulation Class I
Resistance >300MΩ
After a few seconds the test changes as shown on screen:
Load/Leakage 230V
Press GO to start
Press GO key to continue the following screen is displayed:
Load/Leakage 230V
Testing Fuse
If the fuse is OK the screen will display:
Fuse Intact
Press GO to continue
If the fuse is not OK the screen will display:
Fuse Appears Blown
or Low Load Rating
And after a few seconds the screen will display:
Continue? Or Re-Test Fuse?
GO/YES/NO
If the GO is pressed the unit will proceed to a Load/Leakage Test.This will flag the fuse test as a pass and
must only be done after the fuse has been checked manually. If the YES (UP) Key is pressed the unit will
re-test the fuse. If the NO key is pressed the unit will record the Load/LeakageTest as a fail result.The above
procedure allows you the option of checking or replacing the fuse if the tester identifies a problem with the
fuse.Any problem must be corrected prior to continuation of any testing if a fail result is to be avoided.
While the test is in progress for the 10 seconds, the 230V displayed is alternated with a WARNING sign.
Press GO key to continue.The unit will proceed to a Load/Leakage Test.
The user should exercise caution with the equipment as the appliance under test will power up during
the test sequence. On completion of the test the results are displayed:
Load/Leakage
VoltAmp 838VA
After a few seconds the screen changes to show the leakage current:
Load/Leakage
Leakage 0.0mA
After a few seconds the display changes to the screen below. If the test fails you will then see a
message similar to
Fig 1.
Autotest complete
Use REVIEW or STORE
SmartPAT 5500
15
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 17

Reviewing
To review the results of the test the procedure is as follows:
Press the REVIEW key, the display shows:
Reviewing autotest
results. Use REVIEW
Press REVIEW key, display then shows a series of screens running through the test just performed. The
first screen displays the result of the first part of the test being reviewed, to view the remainder of the
test results, press REVIEW key for each screen until all the tests have been reviewed. If the stop key is
pressed during the review process the screen will revert to the main menu and the results will be lost.
Storing
To store the results of the test:
Press STORE key, the display will show:
Use the Keypad, then press
GO, or use the wand
After a few seconds the screen changes to show:
Enter the appliance num:
……..….
Enter the appliance reference number using the keypad.This number is normally a unique reference
number for the appliance under test, typically the serial number. If you are using PowerPAT Plus this is
where the optional dummy test code would be entered. If available the code may be entered using the
barcode wand, see manual for instructions in the use of the barcode wand. On completion press GO
The following screen will be displayed:
Use Keypad, then GO
or just GO to skip
The screen then changes to display the following:
Enter a note
……………………………..
If required a note on the tests may be entered into the records at this stage. (At this point users that are
using the tester in conjunction with Robin’s PowerPAT Plus Software can enter the relevant appliance
description and location code. On completion, or if no note is required press GO.
The display shows:
Results stored in
record 2
On completion press STOP to return to main menu.
Storage Type
To print a record, download a record or format a disk the procedure is as follows:
Press the PRINT/PC key the following is displayed:
Print results
YES/NO ?
SmartPAT 5500
16
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 18

SmartPAT 5500
To select anything other than a print out on a printer requires the selection of NO. To print out on a
printer pressYES.The screen displays:
Fig 2 First result 1
Use the up/down arrow keys to select the first record number that is to be printed, then press GO. The
screen displays:
Fig 2a Last result 10
Use the up/down arrow keys to select the last result number that is to be printed, then press GO.
The selected records can then be printed out and the screen displays:
Print Complete
Press stop to revert to the main menu.
If NO is selected at the PRINT/PC screen the following is displayed:
Download to floppy
YES/NO
SelectingYES displays the following:
Please wait
Reading disk
After a short wait, if no disk has been inserted it will display insert a disk and press GO, the reading
disk screen is redisplayed. After a wait for the disk to be read the following screen is displayed
Enter File name, Go
Robin.rob
The unit will download from memory all the test results to a file called Robin.rob. If you wish to use
your own file name, press NO key and use the alphanumeric keys to set up your own file name. On
completion press GO, the screen displays: Note: PowerPAT Plus will only recognise files named Robin.rob.
Please wait
Downloading to disk
After a short wait the following is displayed:
Downloading complete
Press STOP and return to main menu.
When NO is selected at the Download to Floppy screen the following screen is displayed:
Download to Robin
PowerPAT Plus YES/NO
A screen similar to Fig 2 and Fig 2a will be displayed.
SelectingYES displays the following:
Please wait
Downloading
17
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 19

SmartPAT 5500
After a short wait the following is displayed:
Downloading complete
Press STOP and return to main menu.
When NO is selected at the Robin PowerPAT Plus screen the following screen is displayed:
Download to Robin PAT Test 5000
YES/NO
A screen similar to Fig 1 and Fig 2 will be displayed. Selecting YES displays the following:
Please wait
Downloading
After a short wait the following is displayed:
Downloading complete
Press STOP and return to main menu.
If NO was selected at the PAT Test 5000 screen the following is displayed:
Download to PC database
YES/NO
SelectingYES displays the following:
Please wait
Downloading
After a short wait the following is displayed:
Downloading complete
Press STOP and return to main menu.
If NO was selected at the download to PC database screen the following is displayed:
Downloading as industry
standard? YES/NO
Selecting YES displays the following:
Please wait
Downloading
After a short while the following is displayed:
Downloading complete
Press STOP and return to main menu.
If NO was selected at the download to Industry Standard the following is displayed:
Print Auto-Test
Sequences? YES/NO
18
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 20

SmartPAT 5500
Selecting YES allows the printing of newly programmed Auto-Test Sequences if a printer is connected.
If NO was selected at the print Auto-Test Sequences Screen the following is displayed:
Format a disk
YES/NO
If YES is selected then the following screen is displayed:
Please wait
Formatting a disk
On completion the following is displayed:
Formatting complete
Press STOP and return to main menu.
Press NO at the Format a Disk screen and the screen returns to the opening print results screen.
Clearing or Reviewing Stored Records
The stored test records can be reviewed by pressing the review button the screen displays:
Use UP/DOWN to select
a record
The UP/DOWN key can be pressed to select a record which can then be reviewed by subsequent
pressing of the review button.
Press STOP to return to the main menu.
Stored test records can be deleted individually or all at once.To delete records press the clear button, the
screen displays:
Select record with UP/DOWN
Press GO to
and then:
Clear record. Hold GO
down to clear all
Note: Once deleted, records cannot be retrieved.
19
7681 - 5500 PAT Manual 2002 7/26/02 11:14 AM Page 21
