R9V
Espresso Machine
User Instructions

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 2

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 3
Index Page
General data 3
Introduction 4
Important safeguards 5
Installation 7
Technical data 8
Installation diagram 9
Description of external components 10
Start-up 11
Switching off the machine 15
Proper care and maintenance 15
Disassembling / dismantling of the machine 17
THIS INSTRUCTION BOOKLET INCLUDES ALSO THE ONE GROUP VERSION OF R9 V
CALLED “R NINE ONE”.
PART OF THE INSTRUCTIONs ARE REPEATED IN THE “R NINE ONE” SECTION OF THIS
MANUAL.

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 4
GENERAL DATA
Rocket Milano s.r.l.
Via Curiel 13
20060 Liscate (Milano)
Italy
Phone [phone]
Email: [e-mail]

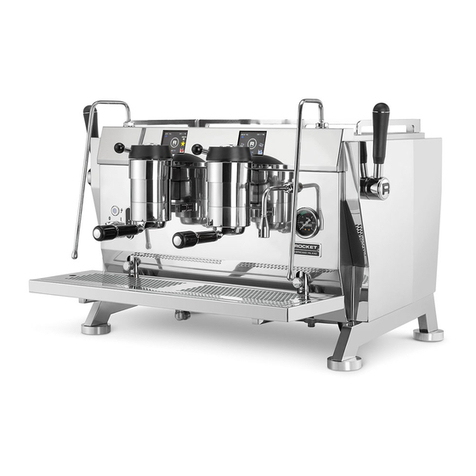

Rocket R9V series espresso machines
Rocket Espresso R9V/ 2 2 brewing heads –multiboiler
Rocket Espresso R9V/ 3 3 brewing heads –multiboiler
All machines come with:
• User instructions
• 1 one cup filter handle
• 1 one cup metal filter basket
• 1 blind filter basket (for cleaning/rinsing of brewing group)
• 1 bottomless filter holder
In addition, on two group machines only:
• 2 two cup filter handles with 2 two cup metal filter baskets
In addition, on three group machines only:
• 3 two cup filter handles with 3 two cup metal filter baskets

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 5
INTRODUCTION
Please read this user manual carefully since it provides important information on the correct installation, use
and maintenance of your coffee machine.
The user should be fully conversant with safety operating procedures contained in the manual and should
follow the instructions and advice provided with.
The information contained in this manual is necessary for the safe installation and operation of your coffee
machine.
It should be retained in a safe place for future reference. Copies are available from your local dealer.
The user must respect the safety regulations at the point of installation. The user must check the
surrounding areas to ensure safe and hygienic use is guaranteed.
The information contained in this manual relating to installation and operation is not a substitute for safety
instructions and technical data affixed to the machine and/or its packaging.
The manual provides information that is current at the time of publication. The information is subject to
amendment or alteration without notice.
Installation should only be carried out by technicians and service providers authorised by Rocket Espresso
Ltd.
To ensure maximum performance efficiency, it is essential that technical service and maintenance is carried
out exclusively by Rocket Espresso Ltd. authorized technicians.
Rocket Espresso Ltd. accepts no liability for injury and damage to person, persons or property caused by
incorrect installation, misuse, and user negligence, neglect of the machine or any other circumstances beyond
its control.
All spare parts fitted to the machine must be original Rocket Espresso Ltd. components.
It is the responsibility of the user to notify the manufacturer of any defects or damages that may affect the
safety of the original installation or future safe operation of the machine.
The machine component’s manufacturers are responsible for the parts supplied by them. The customer is
responsible for the personal use of the equipment.
It is the responsibility of the user to ensure that the location of the machine is hygienic, and that its
continued safe operation can be guaranteed.

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 6
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. This machine has been designed for the sole purpose of producing coffee, hot water and steam for hot
beverages.
All other uses are outside of the scope of this machine and, therefore, dangerous
and hazardous.
3. The machine has been designed from safe, accessible, durable components and materials and
manufactured to the highest standards for use only in professional environment.
4. The machine should only be operated in accordance with instructions contained in this manual and
verbal instructions and training provided by an authorised Rocket Espresso Ltd. dealer.
5. The machine must be operated by responsible adult persons who know the use of the equipment and
should not be used by children, minors or untrained persons.
6. Close supervision is necessary when any appliance is used by or near children.
7. Do not touch hot surfaces. Use handle or knobs. Coffee brewing groups, metal pipes, spouts, steam and
hot water valves and wands, metal part of filter holders are hot and will cause burns.
8. Never hold your hands under the brewing group, the filter handle, and the steam and hot water wands.
Hot drinks, hot steam and hot water are dispensed.
9. The machine should not be operated with temperatures lower than 6 °C and hotter than 36 °C.
10. Do not use outdoors.
11. The machine should not be exposed to elements such as sunlight, rain, snow, extreme temperatures
etc.
12. Do not use aerosol sprays near the machine.
13. Do not place heavy objects or climb on top of the coffee machine.
14. Do not place on or near a hot gas or electric burner. Do not allow liquids to get inside the coffee
machine.
15. Allow the machine to cool before putting on or taking off parts
16. To protect against electric shock do not immerse machine, cord and plugs in water or other liquid and
do never let machine’s internal parts get in touch with liquids.
17. Ensure that the machine is installed with a proper earth/ground in accordance to local safety practises,
codes and legislation.
18. Prevent the power cable from being stretched, or pulled tight.
19. Never use the machine with wet hands and / or with bare feet.
20. Never operate the machine without water.
21. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off
parts.
22. Do not let cord hang over edge of table or counter, or touch hot surfaces.

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 7
23. Do not place on or near a hot gas or electric burner or in a heated oven.
24. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
25. Before carrying out any maintenance operations turn the machine to “OFF”, disconnect it from the mains
and allow cooling.
26. Do not operate any appliance with a damaged cord, plugs, or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair,
or adjustment.
27. Accessory attachments are not recommended by the appliance manufacturer as they may may cause
injuries.
28. Do not use appliance for other than intended use.
29. Before any cleaning or maintenance, the machine should be disconnected from the electric supply.
30. When cleaning the machine never use caustic or abrasive cleaning chemicals.
31. To ensure efficient and correct operation it is essential to follow the manufacturer’s instructions
concerning the periodic maintenance carried out by the authorized service technician.
32. When the machine is not being used for long periods, the hydraulic systems should be drained completely
and the machine stored in a temperature above freezing (0°C or 32°F). This will prevent the hydraulic
system from freezing which could damage internal pipes and boiler.
33. The machine must be switched off whenever it is left unattended. The connection to the water mains
must be closed.
34. This appliance can be used by children aged from 8 years and above and persons with reduced physical
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
35. Save these instructions.

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 8
INSTALLATION
This espresso machine is to be installed with adequate backflow protection to comply with
applicable federal, state, and local codes.
All machines are designed to ensure maximum possible user safety. It is, however, an important responsibility
of the user to observe the following safety codes to further enhance safe installation and operation.
1. Always ensure that hazardous packing items such as plastic bags, Styrofoam, nails, etc. are properly
disposed of to prevent accidental injury to children or other persons.
2. If there is evidence of defect or damage to the machine an authorised Rocket Espresso Ltd. dealer or
technician should be notified immediately so that remedial action can be taken.
3. This machine is safe only when it has been correctly connected to an efficient earthing/grounding
system. This should conform to local safety standards and legislation in force at the time of installation.
4. Installation of any Rocket Espresso Ltd. product should only be undertaken by duly authorised, properly
trained and qualified personnel
5. Protect the user by fitting a circuit breaker to electric supply feeding the machine.
6. A residual current device (RCD) having a rated residual operating current not exceeding 30mA must be
installed.
7. The machines with electrical input over 16 A, must be connected to a net with impedance = or < than
0,37 Ω.
8. Dangerous or improper electrical connections are extremely hazardous and should never occur.
9. Always check the integrity of the component content of the machine. Never fit defective or damaged
spare parts. Always request replacement spare parts from Rocket Espresso Ltd.
10. Before connecting the machine to electric supply, always check that capacity and power rating at least
equals the power requirement of the machine.
11. The machine has to operate with clean soft drinking water. Never attempt to run the machine with
water that is harder than 7°F. The manufacturer recommends use of an in line filter.
12. Check the efficiency of the machine’s water drain. Drain tray is located under the drip tray
13. This equipment must be installed on a flat, level and stable surface. The minimum height of this surface
is 1025 mm
14. Handle the machine with care.

© Rocket Milano s.r.l. - R9V Instructions –Ed. 10.2019 –Subject to change without notice.
ùù series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 9
TECHNICAL DATA
Voltage: Please refer to the technical data plate on the machine
Wattage Please refer to the technical data plate on the machine
Temperature The machine should not be operated with temperatures under 6°C
and over 36 °C.
Water The machine must be operated with soft, clean drinking water. If the
local water supply has a has a high mineral content use a water
softener. A build up of mineral deposit may restrict the flow of water
within the hydraulic systems causing damage to the machine and
risking personal injury. Rocket Espresso recommends installation of
an in line filter.
Water pressure from the mains Maximum water inlet pressure is 6 Bar (0,6 MPa –600 KPa). Please
install a pressure reducing valve if water pressure from the mains is
higher.
The minimum water pressure is 1.5 Bar (0.15MPa-1500 KPa)
Hydraulic connections Water inlet 3/8” gas
Machine ventilation Please make sure that there is an open area of at least 100 mm on
each side and behind the machine to allow adequate ventilation
Brew boiler capacity 1,9 litre/each (incl. neck and saturated group)
Service boiler capacity 2 group: 9,0 litre
Service boiler capacity 3/4 group: 12,0 litre

© Rocket Espresso Ltd. R9 series. User Manual Ed. 02.2016. Specifications subject to change without notice.
Page 9

© Rocket Milano s.r.l. R9V series. User Manual Ed. 10.2019. Specifications subject to change without notice.
Page 10
DESCRIPTION OF EXTERNAL COMPONENTS
2
Fig. 1
1. Steam tap lever
2. Steam wand for steaming milk. Caution: Can become hot and cause burns.
3. Group display
4. Group control paddle
5. Saturated group head
6. Hot water wand. Caution: Can become hot and cause burns
7. On/Off switch: “0” = Off “1” = On
8. Boiler pressure gauge
9. Filter handle
6
2
8
1
9
3
7
n
/
o
f
f
:
4
5

© Rocket Milano s.r.l. R9V series. User Manual Ed. 10.2019. Specifications subject to change without notice.
Page 11
Start up
We assume the machine has been properly installed.
Open the water tap and switch on the main electrical switch (not included to delivery).
Turn the on/off switch (Fig. 1 –pos. 7) from position 0 to position 1.
Wait until the boiler pressure gauge (fig. 1-pos.8) reads the working pressure (app. 0.9 bar) and group
display (fig. 1 –pos. 3)reads app. 103°C.
Open the steam handle (Fig. 1 - pos. 1) for some seconds and then close it. This operation avoids milk
resuction into the boiler. Wait until the working pressure has been reached again .
Your machine is now ready to work.

© Rocket Milano s.r.l. R9V series. User Manual Ed. 10.2019. Specifications subject to change without notice.
Page 12
SWITCHNING OFF THE MACHINE
Turn the main switch (Fig.1-1) to position 0.
The machine must be disconnected from the mains (switch off external main switch) whenever it is left
unattended. The connection to the water mains must be closed.
PROPER CARE AND MAINTENANCE
Simple, routine care of your espresso machine is your best defence against poor quality shots, as well as
preventing breakdowns or, even worse, personal injuries.
After each use:
• Wipe the steam wand (Fig. 1 - 2) immediately after using with a non abrasive clean damp towel without
touching it directly with any part of the body to avoid injury or damage due to the hot surface of steam
wand end nozzle.
• Do not let the milk bake onto the steam wand.
• Clogged wands and steam valves can be expensive to repair or to replace.
• Burp your steam wand (Fig. 1 -2) immediately after using opening and closing immediately after the
steam valve (Fig. 1 -3).
Caution: Hot steam will come out of steam wand (Fig. 1-2).
Burping the wand will remove the milk residue from the inside of the nozzle.
• Knock used coffee grounds from filter holder and rinse. Re-use or store in brewing head (group) to keep
the filter holder warm. (Please remember to take out filter holders when machine is not operating for
some hours (i.e. at night).
Throughout the day:
Wipe the screens inside your group head with a damp clean towel to remove excess grounds.

R9 V Instruction Manual_v12.indd 1
8/07/19 20:21

R9 V Instruction Manual_v12.indd 1
8/07/19 20:21

R9 V Instruction Manual_v12.indd 1
8/07/19 20:21
User instructions of Rocket R9 V (see here below for one group version
R NINE ONE)
Preliminary instructions
From left side group (seen from operator)
Set the machine to OFF (= display reads OFF).
How to enter the technician’s programming area
Press key “19” (please see below image) to enter the technician’s programming area.
Please digit the password (999999)
Now the display reads:
____________________________________________________________________________
How to access factory settings
Press the key with the symbol of a factory to access factory settings.
1. Calibration of potentiometer (setting of the minimum and then setting of the maximum)
2. PID coffee (KP KI KD KB)
3. Offset coffee
4. PID steam (KP KI KD KB)
5. Offset steam
6. PID pump (KP KI KD KB)
7. Change of password

R9 V Instruction Manual_v12.indd 1
8/07/19 20:21
Press the wrench key symbol on the display to access other settings by the technician.
1) Priority of heating (steam / coffee)
2) Time out boiler filling (after how much time the machine turns off if the boiler isn’t filled.
3) Boiler sensivity
4) Change of password
These settings are copied automatically to all groups of the machine.
Setting individually the other groups
The display must read “Off”, the same screen is displayed. Digit the password.
The factory symbol key is displayed.
Press this key to get access to the following settings:
Calibration of potentiometer (setting of the minimum and then setting of the maximum)
PID coffee (KP KI KD KB)
Offset coffee
PID pump (KP KI KD KB)
Password change
Changes are effective only for the group you are setting while changes on left side group are copied
automatically also to the other groups.

R9 V Instruction Manual_v12.indd 1
8/07/19 20:21
Congratulations on purchasing a Rocket Espresso machine –one of the finest
domestic espresso machines in the world. Here below the detailed instructios
related to model R NINE ONE.
Your machine is a Certified Authentic Rocket Espresso machine.
This User Manual covers the Rocket Espresso R9 V / R NINE ONE model.
ROCKET ESPRESSO - REGISTRATION AND WARRANTY
To initiate your warranty and register your machine, please go to www.rocket-
espresso.com/register.html and enter the following details:
• Name:
• Country:
• Place of purchase:
• Serial number of themachine:
• Email address:
JOIN THE ROCKET ESPRESSO MOVEMENT FOR BETTER
ESPRESSO IN THE HOME.

Pg 1
R9 V Instruction Manual_v12.indd 1
8/07/19 20:21
CONTENTS
THEFOUR‘M’s MACCHINA
How to use your Rocket Espresso machine
• General and safety information 4
• Technical specifications 8
• Accessories and parts 10
• Machine description 11
• Machine installation 13
• Digital display glossary 15
• Factory settings of your machine 18
• Pressure profile settings 19
• Personalise your R9 V 20
• How to programAuto on/off 24
• Setting the coffee volume portions 26
• Hot water tempering valve 27
• Pressure profiles 28
• Machine operation 30
MISCELA
Selecting a coffee blend to suit your espresso machine 32
MACINATURA
Our recommendations on a good grinder
and the correct grinding of the coffee 33
MANO
The skilled hand of the barista
• What is espresso? 34
• How to make beautiful espresso 35
• How to texture & pour milk 38
• Preventative maintenance & cleaning 42
• Troubleshooting 45
• Preparing your Rocket for transportation and/or servicing 47

Pg 1
R9 V Instruction Manual_v12.indd 1
8/07/19 20:21
CONTACT DETAILS
MANUFACTURER
Rocket Milano S.R.L. Via Curiel
13
20060 Liscate Milano
Italy
