Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
to the Installation Section of this manual or refer to the icons listed
below.OtherinformationcanbelocatedbyusingtheTableofContents.
We, at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding
newways to improve our product, thisinformationissubject to change
without notice.
GETTING STARTED

INTRODUCTION
Rockford engineers designed the Punch 40x2, 60x2, 100x2 and
200x2 amplifiers to withstand the rugged automotive environment
while delivering superior sound quality in a flexible, reliable, and
efficientpackage.TRANS•ANAisalowvoltagecircuitinthepreamp
stageofallPunchx2amplifiersthatletsthemusicsoundcrystalclear
and very real, even when played at high volume levels. This is
matched with TOPAZ, a unique grounding circuit used to eliminate
noise problems associated with car audio systems and their installa-
tion. Flexibility is accomplished with the use of a built-in XCard.
Reliability is all but guaranteed with the use of a protection circuit
called NOMAD, while MOSFET and DSM (Discrete Surface Mount)
technologyimproveamplifier efficiency. The result of these compo-
nents give the Punch amplifier awesome sound quality in a “Bullet
Proof”package.Anexplanationofthesetechnologies,mostofwhich
areexclusivelydesigned andpatentedbyRockford,aredescribedin
the Technical Design Features.
– 1 –
PUNCH AMPLIFIER ACCESSORY PACK
The accessory pack shipped with the Punch 2-channel amplifiers
includes the mounting hardware necessary to secure the amp to the
vehicle as well as attaching the end caps.
Installation & Operation Manual
Punch Verification Certificate
(6) Allen Head screws for speaker and power connectors
(4) Mounting Screws for end caps
(4) Mounting Screws for amplifier
(1) Allen Wrench 7/64"
(1) Allen Wrench 3/32"
(1) ATC Inline Fuseholder (Punch 40x2, 60x2, 100x2)
(1) AGU Inline Fuseholder (Punch 200x2)
(1) ATC 20 Amp Fuse (Punch 40x2)
(1) ATC 30 Amp Fuse (Punch 60x2)
(1) ATC 40 Amp Fuse (Punch 100x2)
(1) AGU 50 Amp Fuse (Punch 200x2)

TECHNICAL DESIGN FEATURES
– 2 –
◆TRANS•ANA
(TRANSconductance Active Nodal Amplifier)
The TRANS•ANA (TRANSconductance Active Nodal Amplifier) is a
circuitthatallowstheaudiosignaltopassthroughtheamplifieratlow
voltage. The signal is directly level-shifted to the fixed high voltage
rails via a pair of driver transistors. Signal linearity is assured by an
active node formed by the drive transistors at ultrasonic frequencies.
This allows amplifier performance similar to trans• nova which is
highly stable and linear while utilizing the advantages of a non-
floating power supply.
THERESULT:Anextendedfrequencybandwidthaccuratelysupplied
to the output stages of the amplifier.
◆TOPAZ (Tracking Operation Pre-Amplifier Zone)
The TOPAZ (TrackingOperationPre-AmplifierZone)circuitrysolves
groundloopnoiseproblemscommontoautomotiveamplifierdesign.
Thisinnovativenewdevelopmentallowsvastlyimprovedisolationof
the input signal grounds from the power supply ground of the
amplifier.Thisisaccomplishedbyallowingthesourceunittocontrol
the potential “environment”of the entire input structure or “zone”of
the amplifier. This process improves the noise rejection of the ampli-
fier by 30-40dB –an astounding 30-100 times better than amplifiers
without TOPAZ.
THERESULT:Eliminationoftroublesomegroundloopnoisebetween
source and amplifier.

◆DSM (Discrete Surface Mount) Technology
The DSM (Discrete Surface Mount) manufacturing process combines
the advantages of both discrete components and integrated circuitry.
RockfordFosgateistheonlyAmericanamplifiermanufacturertohave
invested millions into this process. DSM components differ from
conventional discrete components in different ways. They are more
compact, more rugged, and they efficiently dissipate generated heat.
Using them wherever appropriate allows the advantages associated
with discrete circuitry to be retained while also providing room for
both highly advanced processing features and generous PC board
copper paths where needed. Their short lead-out structures allow
maximumaudioperformanceandhighestsignal-to-noiseratios tobe
obtained in amplifiers of desirable package size without resorting to
“amplifier-on-a-chip”shortcuts. These advantages are shown below
in Figure 1.

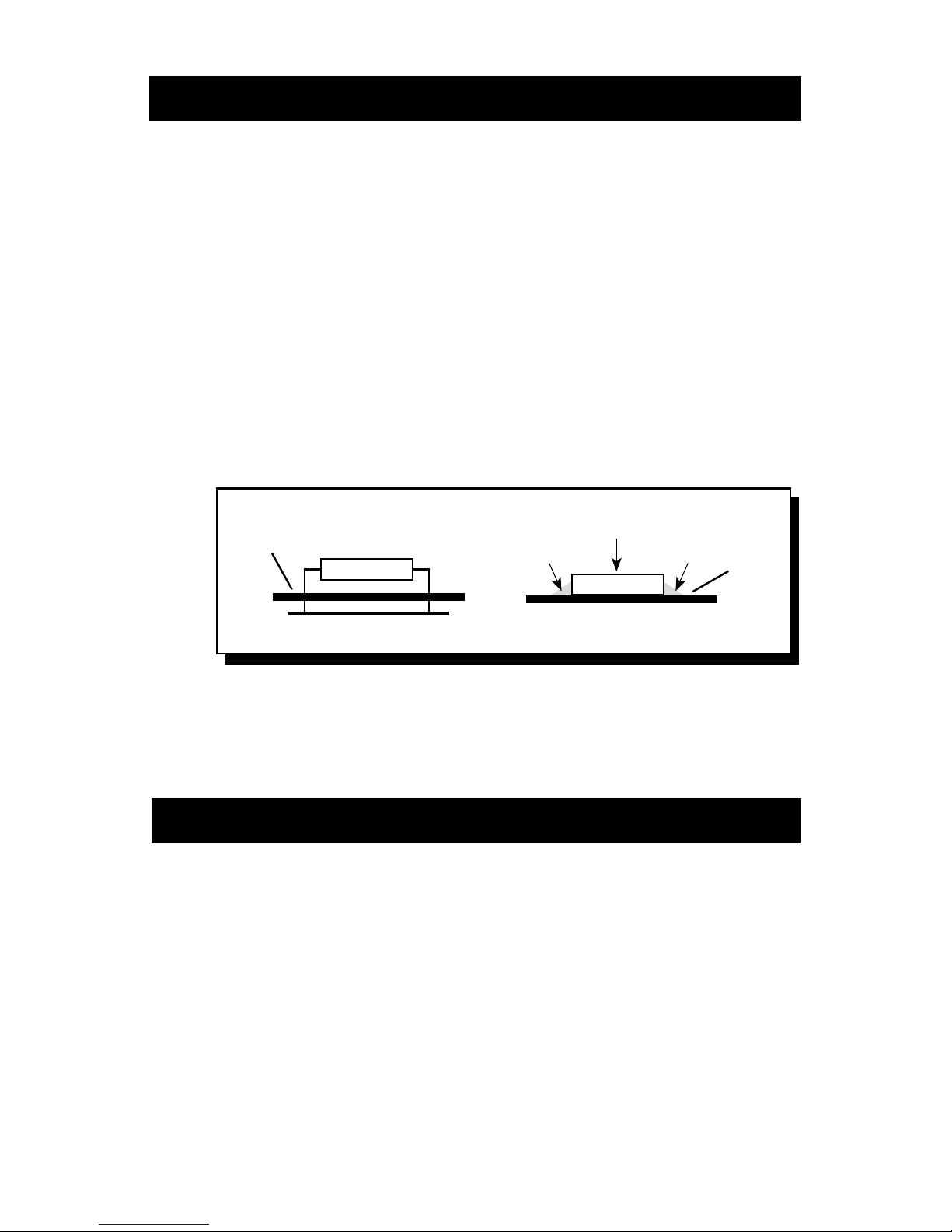

Figure 1
THE RESULT: Fewer connections, improved reliability, shorter signal
paths,superiorsignal-to-noiseratioandawesomesonicperformance.
◆XCard (Internal Crossover)
The Punch and Power amplifiers utilize internal active crossovers.
These crossovers have many performance advantages such as using
discrete components for exact frequency adjustments which are far
superiortopotentiometers.Additionally,the XCard canbeconfigured
for high-pass, low-pass and full range operation. With slight modifi-
cations,manycrossoverfrequenciesandslopeconfigurationscanbe
achieved.
THE RESULT: Increased system design flexibility with a precise
electronic crossover without the limitations of conventional potenti-
ometer designs.
– 3 –
Solder Solder
Component
Thru-Hole Surface Mount
PC
Board PC
Board

◆MOSFET Devices
Rockford Fosgate is one of the few manufacturers in the sound
community to utilize MOSFET devices in both the power supply and
the output stages . MOSFET (MetalOxideSemiconductor FieldEffect
Transistor) devices offer several important inherent advantages over
the 30 year old technology of bi-polar design. These advantages
include: thermal stability, switching speed, ultra low output imped-
ance and wider bandwidth linearity. In addition, MOSFETs operate
verysimilarly to vacuumtubesin whichtheyare more linearthanbi-
polartransistors.However,MOSFETscandeliverthemidrangeclarity
without the limitations of transient response and high frequency
phase shifting normally associated with tube operation.
THE RESULT: Operational characteristics similar to vacuum tubes
without the performance limitations of tube design.
◆NOMAD (NOn-Multiplying Advanced Decision)
ThePunchand Poweramplifiers usean analogcomputer process to
maximize safe output power under all operating conditions. The
innovative NOMAD (NOn-Multiplying Advanced Decision) system
isthemostsophisticatedversionofthistechniqueeverused,bringing
previously unavailable levels of accuracy, stability, temperature
immunity and reliability to this critical process. NOMAD makes
advanceddecisionsbasedondevicevoltagestopreciselycontrolthe
awesome levels of current available in the output MOSFETs to safe
values –but only when absolutely needed.
THE RESULT: Extremely fast protection system that always protects
the amplifier and never degrades the sound.
– 4 –

DESIGN FEATURES
1. Cast Aluminum Heatsink –The cast aluminum heatsink of the
Punch amplifier dissipates heat generated by the amplifier's
circuitry. The inherent advantage of casting provides a 30%
improvement of cooling over conventional extrusion heatsink
designs.
2. End Caps –Interchangeable end caps conceal the wiring and
input cables, giving the amplifier a clean “stealth”look.

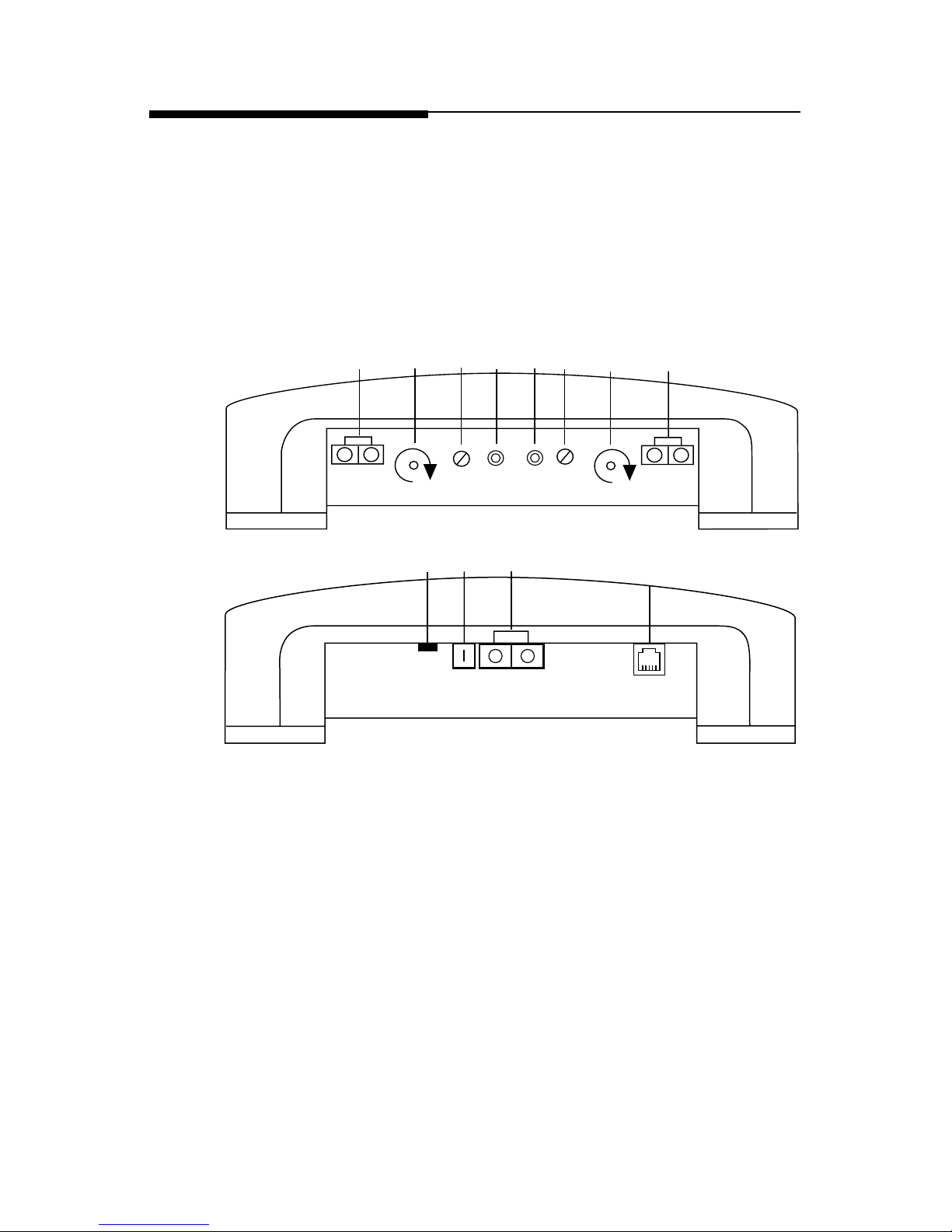

+R–+L–Bass
Right
Gain
Right
Input
Left
Input
Left
Gain
Treble
Speaker Speaker
3 8 7 7
6 6 83
3. Speaker Terminals –Theheavy duty, gold-plated terminal block
connectors (+ and –) will accept wire sizes from 8 AWG to 18
AWG. These gold-plated connectors are immune to corrosion
that can cause signal deterioration.
4. Power Terminals –The power and ground connectors on the
Punchamplifieraregold-platedandwillaccommodateupto8AWG
wire maximizing the input current capability of the amplifier.
5. REM Terminal –This gold-plated spade terminal is used for the
auto power/remote turn on of the Punch amplifier.
6. RCAInputJacks–TheindustrystandardRCAjacksprovide easy
connections for signal level input. They are gold-plated to resist
the signal degradation caused by corrosion.
Punch Status
Display
49 5
GNDB+
LED
REM
11
– 5 –

7. Input Sensitivity Controls –The input level controls are preset
for 500mV which will match the output of most source units.
Theycanbeadjustedtomatchinputlevelsrangingfrom150mV
to 3V.
8. Punch Equalization Controls –ThePunchEQhelpscorrect for
acoustical deficiencies of the listening environment. The Bass
control allows a narrow band adjustment of up to 18dB
centered at 45Hz. The Treble control is a wide band hinged
adjustment with a maximum of 12dB at 20kHz. The Punch EQ
can be bypassed by turning the controls to their minimum or
counterclockwise position.
9. LED Power Indicator –The LED illuminates when the unit is
turned on.
10. XCard (Internal Crossover) –This built-in crossover card is
configurable for a multitude of operating frequencies. The
orientation of the card in its socket determines the function of
high-pass, low-pass, or full range operation.
11. PunchStatusDisplay–TheRJ11interfaceallowsconnectionof
an LED display used to monitor amplifier performance.
®
Front
XCard
10
Low-Pass Full RangeHigh-Pass
HP
➝
➝
LP
HP
➝
➝
LP FULL
↕
®
AMPLIFIER
100 Watts RMS continuous power per
channel into 4 Ohms with less than 0.05%
Total Harmonic Distortion from 20-20kHz.
ROCKFORD CORPORATION
®
XCard
MADE IN THE USA
– 6 –

INSTALLATION CONSIDERATIONS
The following is a list of tools you will need for installing the Punch
amplifier:
Allen wrenches 7/64" & 3/32" (included) Voltmeter
Wire strippers Battery post wrench
Electric hand drill w/assorted bits Wire cutters
17' (518.16cm) Red Power Wire Assorted connectors
12' (365.76cm) Remote Turn-On Wire Wire crimpers
1.5' (45.72cm) Black Grounding Wire
– 7 –
This section focuses on some of the vehicle considerations for
installing your new Punch amplifier. Checking your battery and
presentsoundsystem,aswellaspre-planningyoursystemlayoutand
best wiring routes will save installation time. When deciding how to
lay out your new system, be sure that each component will be easily
accessible for making adjustments.
Beforebeginninganyinstallation,besuretofollowthesesimplerules:
1. Be sure to carefully read and understand the instructions before
attempting to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to
beginning the installation.
3. For easier assembly, we suggest you run all wires prior to
mounting your amplifier in place.
4. RoutealloftheRCAcablesclosetogetherandawayfromanyhigh
current wires.
5. Use high quality connectors for a reliable installation and to
minimize signal or power loss.
6. Thinkbeforeyoudrill! Becarefulnottocutordrillintogastanks,
fuel lines, brake or hydraulic lines, vacuum lines or electrical
wiring when working on any vehicle.
7. Neverrunwiresunderneaththevehicle. Runningthewiresinside
the vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or
plastic grommets to protect any wires routed through metal,
especially the firewall.
9. ALWAYS protect the battery and electrical system from damage
with proper fusing. Install a fuseholder and appropriate fuse on
the+12Vpowerwirewithin18”(45.7cm)ofthebatteryterminal.
10. When grounding to the chassis of the vehicle, scrape all paint
from the metal to ensure a good, clean ground connection.
Groundingconnectionsshouldbeasshortaspossibleandalways
beconnectedtometalthatisweldedtothemainbody,orchassis,
of the vehicle.

MOUNTING LOCATION
The mounting location and position of your amplifier will have a
greateffectonitsabilitytodissipatetheheatgeneratedduringnormal
operation.The design of ourcastaluminumheatsink serves to easily
dissipate the heat generated over a wide range of operating condi-
tions.However,tomaximizetheperformanceofyouramplifier,care
should be taken to ensure adequate ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves
running up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but
provides less cooling capability than vertical mounting.
Mountingtheamplifierupsidedowntothereardeckofthetrunkwill
not provide proper cooling and will severely affect the performance
of the amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as
longasyouprovideasufficientamountofairfortheamplifiertocool
itself. If you are going to mount the amplifier under the seat of the
vehicle, you must have at least 1" (2.54cm) of air gap around the
amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around
the amplifier's heatsink in the passenger compartment will not
provide proper cooling and will severely affect the performance of
the amplifier and is strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine
compartment.Notonlywillthisvoidyourwarrantybutcouldcreate
an embarrassing situation caused by the ridicule from your friends.
– 8 –

BATTERY AND CHARGING
– 9 –
Amplifiers will put an increased load on the vehicle's battery and
charging system. We recommend checking your alternator and
battery condition to ensure that the electrical system has enough
capacity to handle the increased load of your stereo system. Stock
electrical systems which are in good condition should be able to
handle the extra load of any Rockford amplifier without problems,
although battery and alternator life can be reduced slightly. To
maximize the performance of your Rockford Fosgate amplifier, we
suggesttheuseofaheavydutybattery,highoutputalternatorandan
energy storage capacitor.

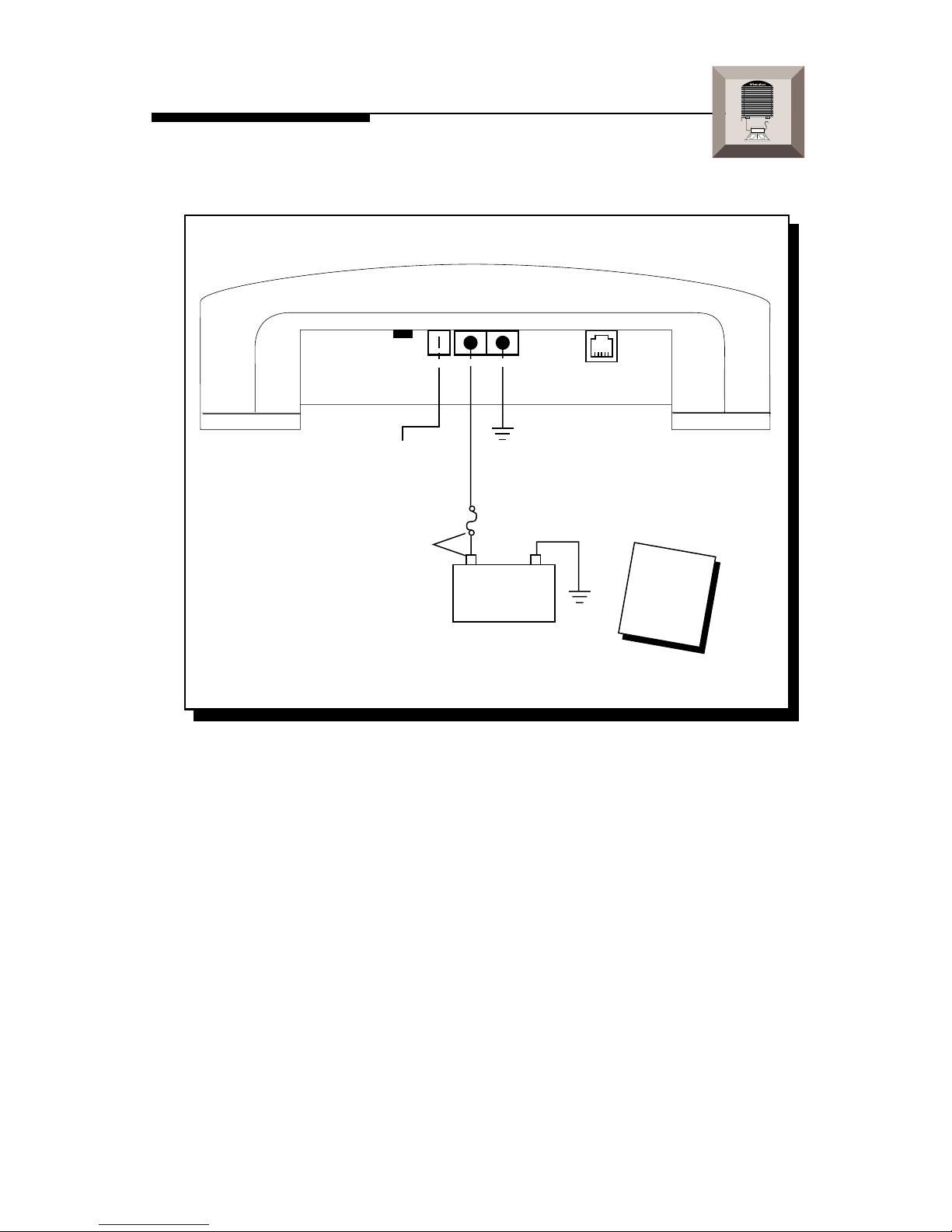

WIRING THE SYSTEM
CAUTION: Avoid running power wires near the low level input
cables,antenna,powerleads,sensitiveequipmentorharnesses.The
power wires carry substantial current and could induce noise into
the audio system.
•For safety, disconnect the negative lead from the battery prior to
beginning the installation.
1. ConfiguretheinternalXCardcrossoverspriortoinstallation.Refer
to “Using the XCard”(page 12) for further information.
2. Plan the wire routing. Take care when running signal level RCA
cablestokeepthemclosetogetherbutisolatedfromtheamplifier's
power cables and any high power auto accessories, especially
electric motors. This is done to prevent coupling the noise from
radiated electrical fields into the audio signal. When feeding the
wires through the firewall or any metal barrier, protect them with
plastic or rubber grommets to prevent short circuits. Leave the
wires long at this point to adjust for a precise fit at a later time.
3. Prepare the Power cable for at-
tachmenttotheamplifierbystrip-
ping 5/8" of insulation from the
end of the wire. To prevent the
wirefromfraying,striptheinsula-
tionata45°angle.Insertthebared
wireinto the B+ terminal with the
long side of the insulation on the
top.Bendthecabledownata90°
angle. Tighten the set screw to secure the cable in place.
><
5/8"
INSULATION
STRIP WIRE
>
>
AMP
>

– 10 –
Punch 40x2, 60x2, 100x2
Trim the power cable to within 18" of the battery and install the
protectiverubber boot, which is packed with the fuseholder, over
theendofthewire.Strip3/8"ofinsulationfromthewireandinsert
into the end of the fuseholder, then crimp it in place. Slide the
rubberboot into placetocover the connection.Usethe section of
cable that was trimmed earlier and connect it to the other end of
the fuseholder.
Punch 200x2
Mount the fuseholder within 18" of the battery using two (2) #8
screws. Disassemble the fuseholder. You should have 2 black
plastic end caps, 2 gold-plated fuse clips, a plastic spacer and the
fuseholder body. Trim the amplifier power cable to reach the
fuseholder and strip the wire 3/8". Slide one of the end caps over
the wire (narrow end first) and insert the wire into one of the fuse
clips. Tighten the set screw. Screw the black end cap to the
fuseholder body to secure the cable. Use the section of cable that
was trimmed earlier and connect it to the other end of the
fuseholder. Install the plastic spacer in the fuseholder and attach
the cable to the fuseholder body.
NOTE: TheB+cableMUSTbefused18"orlessfromthevehicle's
battery. Install the fuseholder under the hood and prepare the
cable ends as stated above. Connections should be water tight.
4. Strip3/8"fromthebatteryendofthepowercableandcrimpalarge
ring terminal to the cable. Use the ring terminal to connect to the
battery positive terminal. Do not install the fuse at this time.
5. Prepare a length of cable to be used for the ground connection.
Strip 5/8" of insulation from the end of the cable as described
previously and connect to the appropriate terminal of the ampli-
fier. Prepare the chassis ground by scraping any paint from the
metal surface and thoroughly clean the area of all dirt and grease.
Strip the other end of the wire and attach a ring connector. Fasten
the cable to the chassis using a non-anodized screw and a star
washer.

6. Prepare the REM turn-on wire for connection to the amplifier by
stripping 5/8" of insulation from the wire end and crimping an
insulated spade connector in place. Slide the connector over the
REMterminal onthe amplifier.Connectthe otherendof theREM
wire to a switched 12 volt positive source. The switched signal is
usuallytakenfromthesourceunit'sautoantennaortheaccessory
lead. If the source unit does not have these outputs available, the
recommendedsolutionistowireamechanicalswitchinlinewith
a 12 volt source to activate the amplifier.
7. Securelymounttheamplifier(withsuppliedscrews)tothevehicle
or amp rack. Be careful not to mount the amplifier on cardboard
orplasticpanels.Doingsomayenablethescrewstopulloutfrom
the panel due to road vibration or sudden vehicle stops.
8. Connect the source signal to the amplifier by plugging the RCA
cables into the input jacks at the amplifier.
9. Connect the speakers. Strip the speaker wires 5/8" and insert into
the appropriate terminal on the amplifier. Insert the bared wire
into the speaker terminal and tighten the set screw to secure into
place. Be sure to maintain proper speaker polarity. DO NOT
chassis ground any of the speaker leads as unstable operation
may result.
10. Perform a final check of the completed system wiring to ensure
that all connections are accurate. Check all power and ground
connectionsfor frayed wires and loose connections which could
cause problems.
11. After the final inspection is complete, install the power fuse and
enjoy listening. During the initial listening period, you may need
to“finetune”anyphasingandlevelsettingswithinyourparticular
vehicle. To aid in this procedure, play a track with high musical
content and cruise around your neighborhood. After fully evalu-
ating the transient response of your system and making any final
adjustments,allyourneighborswithina1mileradiuswillassume
thatyouhavejustsuccessfullycompletedanotherupgradetoyour
audio system for which they will probably spill thumbtacks on
your driveway.
– 11 –

– 12 –
3386
fo= R (in kΩ) for .047µµ
µµ
µf cap
= R (in kΩ) for .022µf cap
7234
fo
Where: R = Ω
fo= desired crossover frequency
c = capacitor in farads
ex: .047 x 10-6 for .047mf cap
Crossover Card
High Pass
Low Pass
Full Range
R1 R2 R1 R2
FULL
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n
▲
Thecrossoverpointcanbealteredbychangingtheresistorvalue.Use
the following formula to select the appropriate resistor value to be
placed on the XCard.
USING THE XCARD
1
2πfoc
The actual formula is:
R =
Low-Pass Full RangeHigh-Pass
FULL
↕
HP
➝
➝
LP
HP
➝
➝
LP
The crossover functions are controlled through the use of an XCard
and can be set for high-pass, low-pass or full range operation. The
100Hz XCard shipped with your amplifier is set for Full Range. Each
crossover card has two faces: one face operates Full Range, the other
hasarrowstoindicatetheedgeforselectingHP(high-pass)orLP(low-
pass) operation. Orient the card with the desired operating edge,
indicated by the arrow, toward the socket terminals inside the ampli-
fier. Firmly, but carefully, plug the card into the socket.

RESISTOR CHART
– 13 –
Frequency R1 R2
21Hz 160kΩ160kΩ
26Hz 130kΩ130kΩ
30.8Hz 110kΩ110kΩ
37Hz 91kΩ91Ω
41Hz 82kΩ82kΩ
45Hz 75kΩ75kΩ
49.8Hz 68kΩ68kΩ
54.6Hz 62kΩ62kΩ
60.5Hz 56kΩ56kΩ
66.4Hz 51kΩ51kΩ
72Hz 47kΩ47kΩ
N/A N/A N/A
78.7Hz 43kΩ43kΩ
86.8Hz 39kΩ39kΩ
94Hz 36kΩ36kΩ
212Hz 16kΩ16kΩ
308Hz 11kΩ11kΩ
413Hz 8.2kΩ8.2kΩ
498Hz 6.8kΩ6.8kΩ
605Hz 5.6kΩ5.6kΩ
720Hz 4.7kΩ4.7kΩ
787Hz 4.3kΩ4.3kΩ
940Hz 3.6kΩ3.6kΩ
1kHz 3.3kΩ3.3kΩ
1.2kHz 2.7kΩ2.7kΩ
2.1kHz 1.6kΩ1.6kΩ
3kHz 1.1kΩ1.1kΩ
4.1kHz 820Ω820Ω
5kHz 680Ω680Ω
6kHz 560Ω560Ω
7.2kHz 470Ω470Ω
7.9kHz 430Ω430Ω
Frequency R1 R2
20Hz 169kΩ169kΩ
25Hz 133kΩ133kΩ
30Hz 110kΩ110kΩ
35Hz 95.3kΩ95.3Ω
40Hz 84.5kΩ84.5kΩ
45Hz 75kΩ75kΩ
50Hz 68.1kΩ68.1kΩ
55Hz 61.9kΩ61.9kΩ
60Hz 56.2kΩ56.2kΩ
65Hz 52.3kΩ52.3kΩ
70Hz 48.7kΩ48.7kΩ
75Hz 45.3kΩ45.3kΩ
80Hz 42.2kΩ42.2kΩ
84Hz 40.2kΩ40.2kΩ
90Hz 37.4kΩ37.4kΩ
200Hz 16.9kΩ16.9kΩ
300Hz 11.3kΩ11.3kΩ
400Hz 8.45kΩ8.45kΩ
500Hz 6.65kΩ6.65kΩ
600Hz 5.62kΩ5.62kΩ
700Hz 4.75kΩ4.75kΩ
800Hz 4.22kΩ4.22kΩ
900Hz 3.74kΩ3.74kΩ
1kHz 3.40kΩ3.40kΩ
1.2kHz 2.80kΩ2.80kΩ
2kHz 1.69kΩ1.69kΩ
3kHz 1.10kΩ1.10kΩ
4kHz 845Ω845Ω
5kHz 665Ω665Ω
6kHz 562Ω562Ω
7kHz 487Ω487Ω
8kHz 422Ω422Ω
Butterworth Alignment Q = .707
1% resistors used with 0.047µµ
µµ
µF caps Butterworth Alignment Q = .707
5% resistors used with 0.047µµ
µµ
µF caps
Use the resistor charts below to modify the factory shipped 100Hz XCard.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n
▲

– 14 –
INSTALLATION
*Keep grounds as short as possible
LED
Connect to remote
turn-on lead of
source unit
Connect to chassis
ground of vehicle*
Connect to B+ of battery with
appropriate fuse value
Less than 18"
GNDB+
P40x
2
P60x
2
P100x
2
P200x
2
- 20A
- 30A
- 40A
- 50A
Punch Status
Display
REM
Power Connections
I
N
S
T
A
L
L
A
T
I
O
N
® ®

– 15 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Stereo Operation
Bass
Right
Gain
Right
Input
Left
Input
Left
Gain
Treble
–
+
+L–
Speaker +R– Speaker
–
+
RCA Input
2Ωmin. 2Ωmin.
•RCA inputs are connected to both left and right channels
•Gain for left and right channels operate independently
•Impedance for each channel should be 2 Ω minimum
•XCard can be set for High-Pass, Low-Pass or Full Range

– 16 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Bass
Right
Gain
Right
Input
Left
Input
Left
Gain
Treble
+–
+L–
Speaker +R– Speaker
RCA Input
4Ωmin.
Mono Operation
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance
the subwoofer
•Impedance for mono channel should be 4 Ω minimum
•XCard can be set for High-Pass, Low-Pass or Full Range

– 17 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
•RCA inputs are connected to both left and right channels
•Gain for left and right channels are set equally to balance
the subwoofer
•Impedance for each channel should be 2 Ω minimum
•Impedance for mono channel should be 4 Ω minimum
•XCard are set for Full Range
Bass
Right
Gain
Right
Input
Left
Input
Left
Gain
Treble
+L–
Speaker
RCA Input
+–
4Ωmin.
–
+
–
+
+R–
Speaker
2Ωmin. 2Ωmin.
Stereo/Mono Operation
