Rockler 66595 Manual

Review full instructions prior to use for important safety information.
Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
Perfect Miter Setup Block Instructions
Effective March 2021

2BP1219
GENERAL SAFETY WARNINGS
This product is designed only for specific applications as defined in the instructions and should not be modified or used for any
manner not described in these instructions. Use only recommended accessories. Before using the Perfect Miter Setup Blocks:
READ, UNDERSTAND and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS. KEEP THESE INSTRUCTIONS
READILY AVAILABLE FOR FUTURE REFERENCE.
>Always confirm that you are using the most recent version of
the Instructions and safety warnings for your product (see the
Instructions link on the product page at Rockler.com).
>Before using another tool with this product, always read,
understand and follow the instructions and safety warnings
in the owner’s manual for that tool. If you do not have the
owner’s manual, obtain one from the tool’s manufacturer
before using it with this product.
>Before using any chemical with this product, always read,
understand and follow all safety warnings and guidelines in
the manufacturer’s Safety Data Sheet (SDS; formerly called
“MSDS”), especially regarding:
• How to safely use the chemical, including potential hazards
and recommended first aid measures;
• Personal safety equipment required to safely use the
chemical (e.g. gloves, eye protection, mask/respirator, etc.);
• Proper and safe handling, storage and disposal of
the chemical.
>Before using this product, review and verify that all tools to be
used with it have safety equipment installed and are in proper
working order as defined by the tool’s owner’s manual.
>Do not use this product until you have read and are
confident you understand:
• Product Specific Safety Warnings (p. 3);
• Using the Perfect Miter Setup Blocks (p. 3);
• Saw Setup and Tips for Making Cuts (p. 4).
>The user assumes all risk and responsibility for the proper and
safe use of this product and for ensuring product suitability for
the intended application.
>It is the sole responsibility of the purchaser of this product to
ensure that any anyone you allow to use this product reads
and complies with all instructions and safety precautions
outlined in this manual prior to use.
>Follow all standard shop safety practices, including:
• Keep children and bystanders away from the tool
operating area;
• Do NOT use power tools in explosive environments, or in
the presence of flammable liquids, fumes or dust;
• TURN OFF AND UNPLUG all power tools BEFORE
making any adjustments or changing accessories;
• Remain alert and use good judgment. Do not use this
product if you are in any way impaired by medications,
alcohol, drugs or fatigue;
• Keep your work area well lit and clean;
• Dress appropriately. Secure loose clothing, remove all
jewelry and tie up long hair before using this product;
• ALWAYS wear safety glasses, hearing protection
and respiratory protection that complies with
NIOSH/OSHA/ANSI safety standards;
• Use dust collection tools and dust face masks to
reduce exposure to dust;
• Use safety equipment such as featherboards, push
sticks and push blocks, etc., when appropriate;
• Maintain proper footing at all times and do not overreach;
• Do NOT force woodworking tools.
>These warnings and instructions do NOT represent the total
of all information available regarding tool safety, use and
technique. Always seek out opportunities to learn more
and improve your skills and knowledge.
Drilling, sawing, sanding or machining wood
products can expose you to wood dust, a substance known
to the State of California to cause cancer. Avoid inhaling
wood dust or use a dust mask or other safeguards for
personal protection. For more information go to
www.P65Warnings.ca.gov/wood.
Danger indicates a hazardous situation that, if not avoided, will result in death or serious injury.
Warning indicates a hazardous situation that, if not avoided, could result in death or serious injury.
Caution indicates a hazardous situation that, if not avoided, may result in minor or moderate injury
or property damage.
Notice indicates important or helpful information and/or user tips.

3
PRODUCT SPECIFIC SAFETY WARNINGS
Using the Perfect Miter Setup Blocks
1. Note how many sides the segmented object you are making
will have and locate the Perfect Miter Setup Block for that
number of sides.
2. Prepare your miter gauge so that you will be able to adjust
the angle of the face or fence. You must be able to rotate
the face or fence.

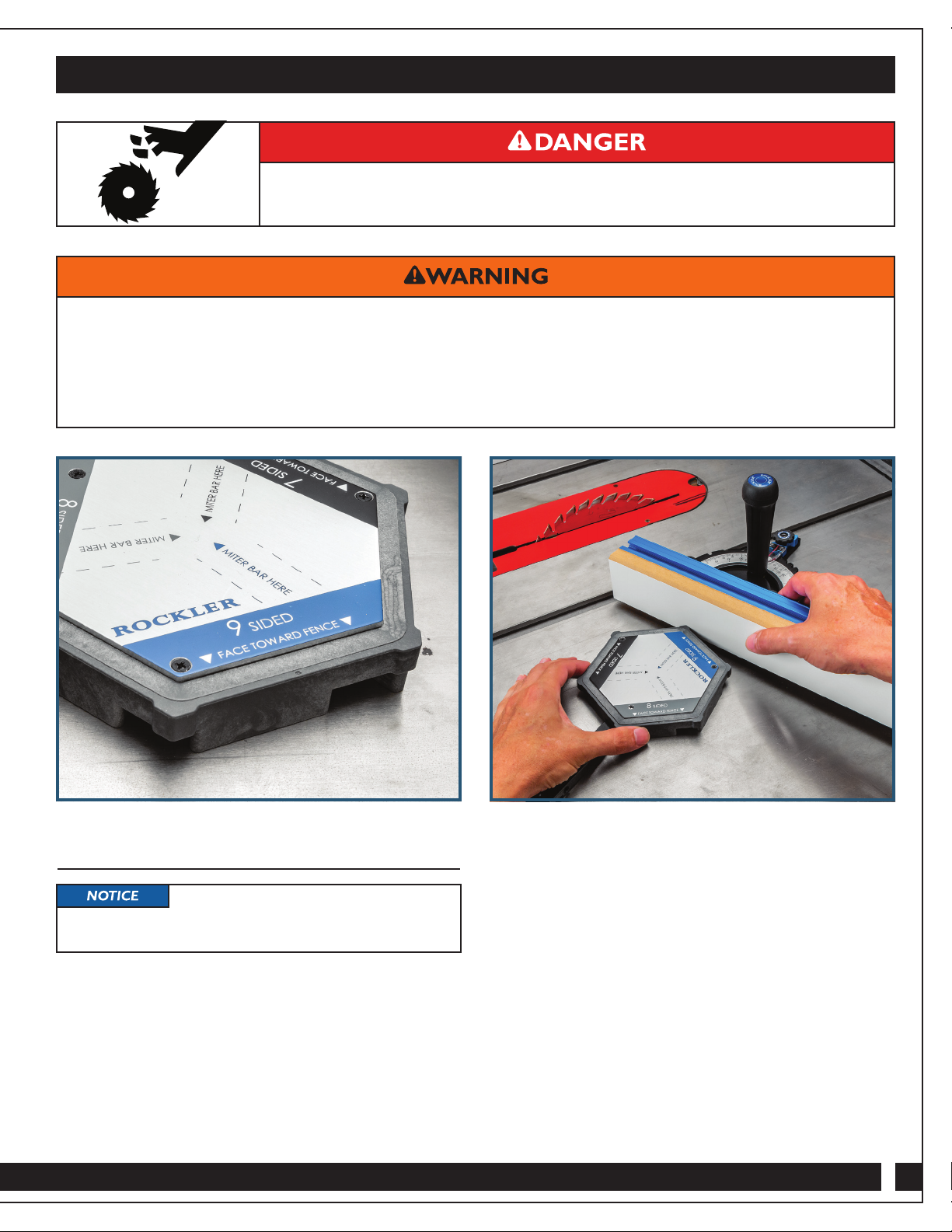

3. Position the Perfect Miter Setup Block so that the face with
the mark for the number of sides you want will be up against
the face or fence of the miter gauge and press the block onto
the miter bar of your miter gauge. (Guidelines for the correct
positioning on the miter bar are printed on the top of each
Perfect Miter Setup Block). Fig. 1.
4. Slide the Perfect Miter Setup Block on the miter bar toward
the face or fence of the miter gauge until both of the contact
points on the block contact the face or fence. Fig. 2.
5. Tighten the miter gauge to lock in the setting, making sure
that both contact points are tight against the face or fence
and the Perfect Miter Setup Block is on the gauge’s miter bar.
6. Remove the Perfect Miter Setup Blocks from the miter gauge.
The angle for the number of segments you want should be set.
>To avoid serious injury, keep hands and fingers away from the spinning saw blade. Maintain
awareness of the blade at all times.
> ALWAYS follow manufacturers’ guidelines and instructions
for all tools used in conjunction with the Perfect Miter
Setup Blocks.
>Before beginning any sawing operation, ALWAYS make
sure that ALL knobs on your miter gauge have been
tightened and the gauge will not shift during use.
>Always remove the Perfect Miter Setup Blocks from your
miter gauge before attempting to make a cut.
The Perfect Miter Setup Blocks are
designed for use ONLY with miter gauges that have a
3/4" x 3/8" miter bar.
Fig. 1 Fig. 2

4Distributed by Rockler Companies, Inc.
4365 Willow Dr. Medina, MN 55340
66595
Rev 03/21
1-800-279-4441
www.rockler.com
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or [e-mail]

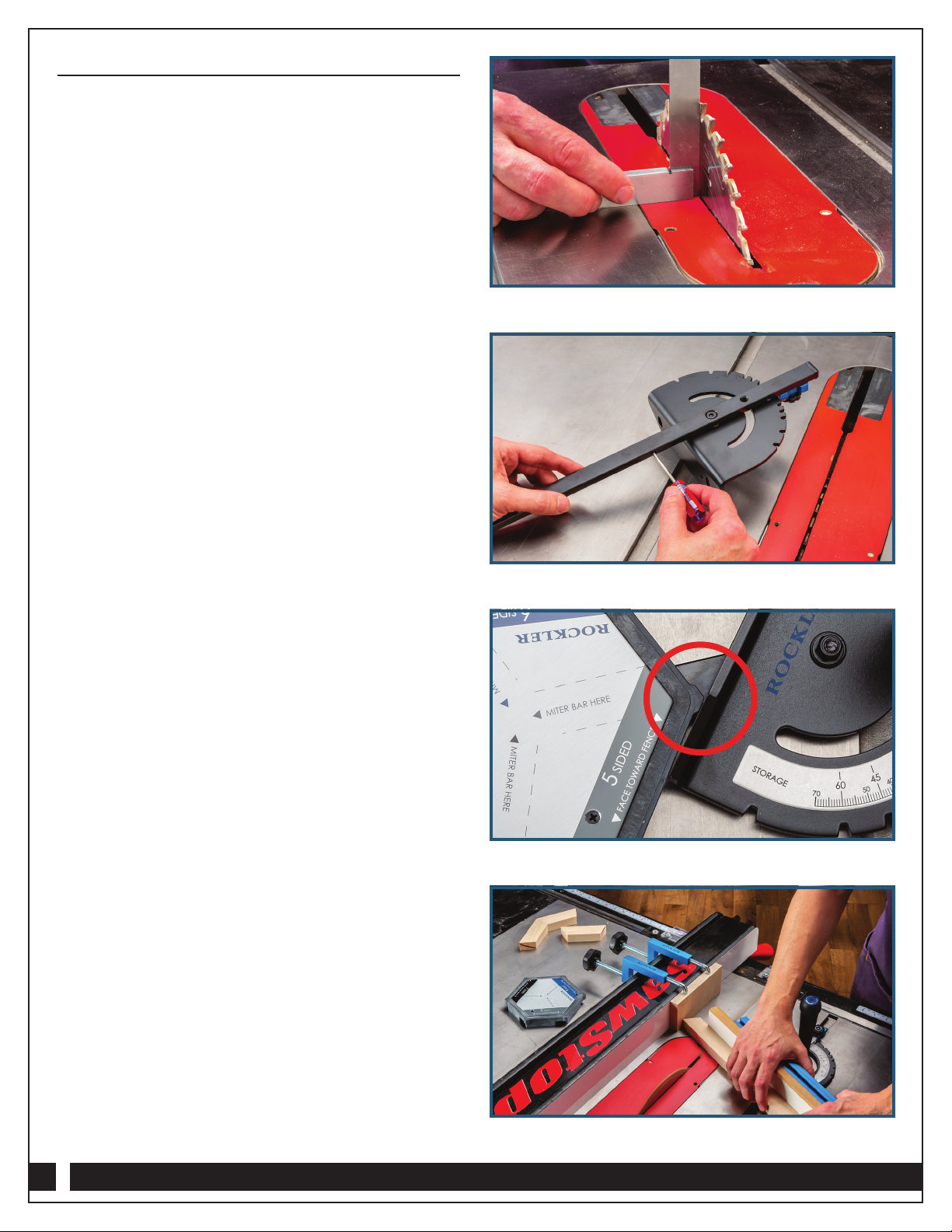

Saw Setup and Tips for Making the Cuts
1. With your table saw turned off and unplugged, raise the blade
as high as it will go and use a small machinist’s square or
combination square to check whether the blade is square to
the table. If it is not, follow the directions in the owner’s manual
for your saw to adjust the blade so that it is square. Any tilt in
the blade will negatively affect your results. Fig. 3.
2. Check that your miter gauge slides smoothly and easily in the
miter slot on your table saw, without catching, and with no
side-to-side play. Many miter gauges have adjustment features
that allow you to fine-tune the fit in the miter slot. If your miter
gauge has such a feature and if there’s excessive side-to-side
play, or “slop,” in the fit, follow the instructions for your miter
gauge to remove the play. Never use a miter gauge if you
have to force it. Fig. 4.
3. Check that your miter gauge’s face locks securely in place
and doesn’t pivot at all during use. Any looseness or pivoting
will change the cutting angle, negatively affecting results. Note
also that the cut will always be made in the trailing end of the
workpiece when the miter gauge is in the left miter slot of
the table saw.
4. Use of an auxiliary fence on your miter gauge is highly
recommended. In fact, depending on the miter gauge, use
of an auxiliary fence might be required for setting the angle
with the 4-Sided and 5-Sided faces of the Setup Blocks. The
faces of some miter gauges might not be wide enough for
both touchpoints on the Setup Block to make contact,
altering the angle. Fig. 5.
5. Be sure to fit the bar of the miter gauge into the correct slot
for the number of sides you want to cut. The markings for the
correct miter bar positioning will be in the same color as the
indicator for the number of sides.
6. Make sure that workpieces can’t slide along the face or fence
of your miter gauge as you make the cut. If this is a problem,
it can be helpful to add adhesive-backed sandpaper to the face
or fence of your miter gauge to increase friction and provide
a better hold. Extend the sandpaper along the entire face
of the miter gauge face or fence.
7. During the cut, make sure that you apply even forward
pressure when advancing the workpiece past the blade.
Take care not to apply greater pressure to either side
of the miter gauge; applying uneven pressure could
alter the angle of the cut.
8. Make sure that your stock is machined straight and square.
Miters are a crosscut application, and any curves, cups or
twists in the workpiece can be dangerous and lead to
unacceptable results.
9. To help ensure that all pieces you are cutting for a frame are
the same length, it is best to use a stop block clamped to the
rip fence of your table saw. Universal Fence Clamps (31373,
sold separately) provide a quick and easy way of securing a
stop block to most rip fences. Once the block is clamped in
place, set the fence to the desired distance from the blade
and use it to register each workpiece for the cut. Fig. 6.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
