Rockwell Automation Allen-Bradley 1606-XLE480EP User manual

Power Supply - 24V, 20 A,
480 W, Single-phase Input
Catalog Numbers 1606-XLE480EP, 1606-XLE480EPC,
1606-XLE480EL, 1606-XLE480EH, 1606-XLE480EM,
1606-XLE480EP-D
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Power Supply - 24V, 20 A, 480 W, Single-phase Input Reference Manual Original Instructions
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may
lead to personal injury or death, property damage, or economic loss.
ATTENTION: ?Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or
economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may
be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach
dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc
Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements
for safe work practices and for Personal Protective Equipment (PPE).
July

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 3
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DC OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote ON/OFF Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connection Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Daisy chaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mean Time Between Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety and Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fulfilled Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Wall/Panel Mount Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1606-XLSBUFFER24 Buffer Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1606-XLSRED40 Redundancy Module . . . . . . . . . . . . . . . . . . . . . . . . . 26
1606-XLSRED4HE Redundancy Module . . . . . . . . . . . . . . . . . . . . . . . 27
1606-XLSREDS40HE Redundancy Module . . . . . . . . . . . . . . . . . . . . . 27
Peak Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Output Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Use the Power Supply to Charge Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 30
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parallel Use to Increase Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Parallel Use for Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1+1 Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
N+1 Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation on Two Phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Use in a Tightly Sealed Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mounting Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Notes:

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 5
Terminology and
Abbreviations
All parameters that are listed in this document are typical values that are
specified under the following conditions unless otherwise noted: 230V AC,
50 Hz input voltage, 24V, 20 A output load, 25 °C (77 °F) ambient temperature,
after a 5 minutes run-in time.
Product Overview Bulletin 1606-XLE power supplies are cost optimized without compromising
quality, reliability, and performance. Bulletin XLE power supplies offer high
efficiency, electronic inrush current limitation, active power factor correction
(PFC), wide operational temperature range, and compact size.
The 1606-XLE480EPC is equipped with conformal coated printed circuit
boards that are preferred for applications in harsh areas.
The 1606-XLE480EP-D is equipped with quick-connect spring-clamp terminals
that are preferred for applications that are exposed to mechanical vibration.
The 1606-XLE480EH has push-in terminals that are optimized for easy cabinet
wiring.
The 1606-XLE480EM is equipped with a remote ON/OFF feature and the 1606-
XLE480EP-D features an enhanced DC input voltage range.
The devices have a power reserve of 20% included, which may even be used
continuously up to +45 °C (113 °F).
Bulletin 1606-XLE480 power supplies have the features and approval ratings to
meet the needs of a wide range of applications. Features include a high
resistance to transients and power surges, low electromagnetic emission, and
DC OK relay contact.
Term, Abbreviation,
or Symbol Definition
PE PE is the abbreviation for Protective Earth and has the same meaning as the symbol in the
following row.
The symbol for Protective Earth. This symbol has the same meaning as PE.
Earth, Ground This document uses the term ‘earth’ which is the same as the U.S. term ‘ground.’
PELV Protection by extra-low voltage.
SELV Safety by extra-low voltage.
AC 230V A value that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example: DC 12V describes a 12V
battery disregarding whether it is full (13.7V) or flat (10V)
230V AC A figure with the unit (V AC) at the end is a momentary figure without any additional
tolerances included.
50 Hz versus 60 Hz As long as not otherwise stated, AC 230V parameters are valid at 50 Hz mains frequency.
typ A typical value.
nom A nominal value.
— (alone in a table
cell) A single dash alone in a table cell indicates that there is no information to be included in that cell.

6Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Power supply features:
• AC 100…240V wide-range input
• Width only 48 mm (1.89 in.)
• Efficiency up to 95.6%
• Excellent partial load efficiency
• 20% output power reserves
• Easy fuse breaking – 3 times nominal current for 12 ms
• Safe HiccupPLUS overload mode
• Active power factor correction (PFC)
• Minimal inrush current surge
• Full power between -25…+60 °C (-13…140 °F)
•DCOKrelaycontact
• Current-sharing feature for parallel use
Figure 1 - 1606-XLE480EP Figure 2 - 1606-XLE480EPC Figure 3 - 1606-XLE480EL
Figure 4 - 1606-XLE480EH Figure 5 - 1606-XLE480EM Figure 6 - 1606-XLE480EP-D

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 7
Specifications
Catalog Numbers
Attributes Values Notes
Output voltage DC 24V Nominal
Adjustment range 24…28V Factory setting 24.1V
Output current
24.0…20.6 A Below +45 °C (113 °F) ambient
20.0…17.1 A At +60 °C (140 °F) ambient
15.0…13.0 A At +70 °C (158 °F) ambient
Derate linearly between 45…70 °C (113…158 °F)
Input voltage AC AC 100…240V -15%/+10%
Mains frequency 50…60 Hz ±6%
Input current AC 4.26 / 2.23 A At 120 / 230V AC
Power factor 0.99 / 0.98 At 120 / 230V AC
Input voltage DC DC 110…150V±20% For 1606-XLE480EP (-xx)
DC 110…300V±20% For 1606-XLE480EP-D
Input current DC 4.64 A / 1.66 A At 110 / 300V DC
AC Inrush current 10.0 / 4.5 A pk At 120 / 230V AC
Efficiency 94.2 / 95.6% At 120 / 230V AC
Losses 29.6 / 22.1 W At 120 / 230V AC
Hold-up time 32 / 32 ms At 120 / 230V AC
Temperature range -25…+70 °C (-13…158 °F) —
Size (W x H x D) 48 x 124 x 127 mm
(1.89 x 4.88 x 5.00 in.) Without DIN rail
Weight 830 g (1.83 lb) —
Component Types Catalog Numbers Descriptions
Power supplies
1606-XLE480EP Standard version of power supply
1606-XLE480EPC With conformal coated PC-boards
1606-XLE480EP-D With quick-connect spring-clamp terminals
1606-XLE480EH With push-in terminals
1606-XLE480EM With remote ON/OFF feature
1606-XLE480EP-D Enhanced DC input
1606-XLE480ERL With built-in redundancy
1606-XLE480ERZ With built-in redundancy
Mount bracket 1606-XLA-XLE Wall/Panel mount bracket
Buffer module 1606-XLSBUFFER24 Buffer module
Redundancy modules
1606-XLSRED40 Dual redundancy module
1606-XLSRED4HE Dual redundancy module
1606-XLSREDS40HE Single channel redundancy module

8Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
AC Input The device is suitable to be supplied from TN-, TT-, and IT mains networks
with AC voltage. For suitable DC supply voltages, see DC Input on page 9.
Attribute Value Notes
AC input Nom AC 100…240V —
AC input range Min 85…264V AC Continuous operation
Min 264…300V AC Occasionally for maximal 500 ms
Allowed voltage L or N to earth Max 300V AC Continuous, according to IEC 60664-1
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 82V AC Steady-state value, see Figure 7 on page 8
Shut-down voltage Typ 72V AC Steady-state value, see Figure 7 on page 8
Attribute Values Notes
AC 100V AC 120V AC 230V
Input current Typ 5.15 A 4.26 A 2.23 A At 24V, 20 A, see Figure 9 on page 8
Power factor Typ 0.996 0.996 0.980 At 24V, 20 A, see Figure 10 on page 8
Crest factor Typ 1.65 1.63 1.63 At 24V, 20 A, The crest factor is the mathematical ratio of the peak
value to RMS value of the input current waveform.
Start-up delay Typ 450 ms 450 ms 450 ms See Figure 8 on page 8
Rise time
Typ 145 ms 145 ms 145 ms At 24V, 20 A constant current load, 0 mF load capacitance, see
Figure 8 on page 8
Typ 160 ms 160 ms 160 ms At 24V, 20 A constant current load, 20 mF load capacitance, see
Figure 8 on page 8
Turn-on overshoot Max 200 mV 200 mV 200 mV In single use mode, see Figure 8 on page 8

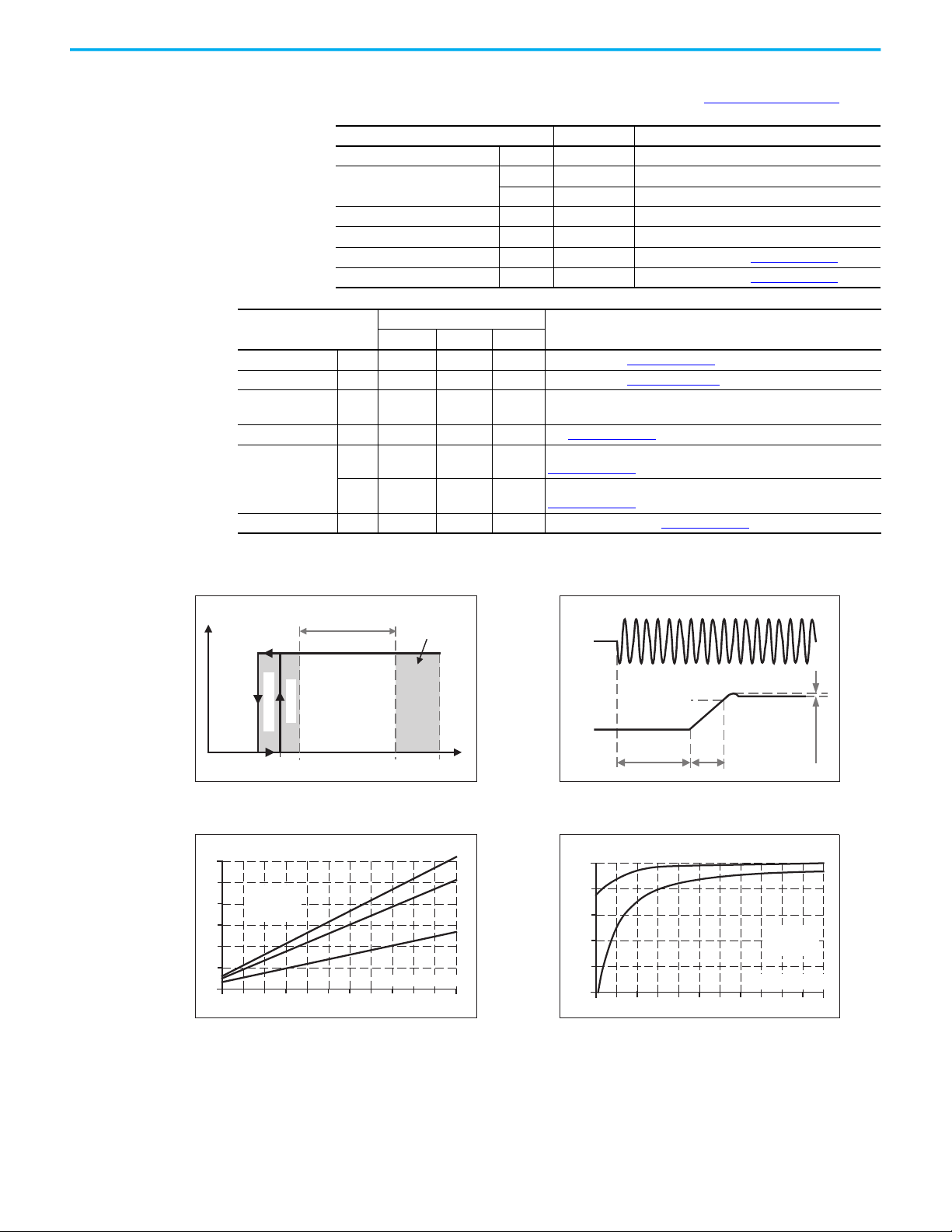

Figure 7 - Input voltage range Figure 8 - Turn-on behavior, definitions
Figure 9 - Input current versus output current at 24V
output voltage Figure 10 - Power factor versus output current at 24V output voltage
Turn-on
85V
Rated
input range
max.
500ms
V
IN
P
OUT
300V AC264V
Shut-down
Start-up
delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
24A
24681012141618
0
1
2
3
4
5
6A
Input Current, typ.
20 22
a) 100V AC
b) 120V Ac
c) 230V Ac
b
a
c
Output Current
Power Factor, typ.
2 4 6 8 10 12 14 16 18 24A
0.75
0.8
0.85
0.9
0.95
1.0
20 22
a) 100V AC
b) 120V AC
c) 230V AC
a, b
c
Output Current

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 9
DC Input The device is suitable to be supplied from a DC input voltage. Use a battery or a
similar DC source. A supply from the intermediate DC bus of a frequency
converter is not recommended and can cause a malfunction or damage the
unit.
Connect +pole to L, –pole to N and the PE terminal to an earth wire or to the
machine ground.
Figure 11 - Wiring for DC Input
Attribute Value Notes
DC input Nom DC 110…150V ±20% For 1606-XLE480EP, 1606-XLE480EPC, 1606-
XLE480EP-D, 1606-XLE480EH, 1606-XLE480EM
DC 110…300V ±20% For 1606-XLE480EP-D
DC input range Min 88…180V DC Continuous operation for 1606-XLE480EP, 1606-XLE480EPC,
1606-XLE480EP-D, 1606-XLE480EH, 1606-XLE480EM
88…360V DC Continuous operation for 1606-XLE480EP-D
DC input current Typ 4.64 A At 110V DC, at 24V, 20 A
1.66 A At 300V DC, at 24V, 20 A
Allowed Voltage (+)
or (-) input to Earth Max 375V DC Continuous according to IEC 60664-1
Turn-on voltage Typ 80V DC Steady state value
Shut-down voltage Typ 70V DC Steady state value
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N

10 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Input Inrush Current An active inrush limitation circuit limits the input inrush current after turn-on
of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
Figure 12 - Typical turn-on behavior at nominal load and 25 °C (77 °F) ambient
Attributes Values Notes
AC 100V AC 120V AC 230V
Inrush current Max 15 A pk 12 A pk 5.5 A pk Temperature independent
Typ 12 A pk 10 A pk 4.5 A pk Temperature independent
Inrush energy Max 1 A2s 1 A2s 1 A2s Temperature independent

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 11
Output The output provides a SELV/PELV/ES1 rated voltage, which is galvanically
isolated from the input voltage.
The device is designed to supply any kind of load, including capacitive and
inductive loads. If extremely large capacitors are connected to the output, the
unit might charge the capacitor in an intermittent mode. An example of an
extremely large capacitor for use with this power supply is an electric double
layer capacitor (EDLC or “UltraCap”) with a capacitance > 1 F.
The output is electronically protected against overload, no-load, and short-
circuits. If there is a protection event, audible noise may occur.
Attributes Values Notes
Output voltage Nom 24V —
Adjustment range
Min 24…28V Guaranteed value
Max 30V The max output voltage that can occur at the clockwise end position of the potentiometer due to tolerances. It is
not guaranteed that this value can be achieved.
Factory setting output
voltage
Typ 24.1V ±0.2% in “single use” mode at full load, cold unit
Typ 24.1V ±0.2% in “parallel use” mode at 20 A, cold unit (results to 23.9V ±0.2% at 24 A and 25.1V ±0.2% at no load)
Line regulation Max 10 mV Between 85…300V AC input voltage change
Load regulation Max 100 mV Between 0…24 A in “single use” mode, static value
Typ 1000 mV Between 0…20 A in “parallel use” mode, static value, see Figure 14 on page 12.
Ripple and noise voltage Max 50 mVpp Bandwidth 20 Hz to 20 mHz, 50 Ω
Output current
Nom 24 A(1) At 24V and an ambient temperature below 45 °C (113 °F)
Nom 20 A At 24V and 60 °C (140 °F) ambient temperature
Nom 15 A At 24V and 70 °C (158 °F) ambient temperature
Nom 20.6 A(1) At 28V and an ambient temperature below 45 °C (113 °F)
Nom 17.1 A At 28V and 60 °C (140 °F) ambient temperature
Nom 13 A At 28V and 70 °C (158 °F) ambient temperature
— Derate linearly between 45…70 °C (113…158 °F)
Fuse-breaking current Typ 60 A Up to 12 ms once every 5 seconds, see Figure 16 on page 12. The fuse-breaking current is an enhanced transient
current that helps to trip fuses on faulty output branches. The output voltage stays above 20V.
Overload behavior
—Continuous
current For output voltage above 13V DC, see Figure 13 on page 12
—Intermittent
current(2) For output voltage below 13V DC, see Figure 13 on page 12
Overload/ short-circuit
current
Max 29.8 A Continuous current, see Figure 13 on page 12
Typ 29 A Intermitted current peak value for 2 s typ
Load impedance 10 mΩ, see Figure 15 on page 12. Discharge current of output capacitors is not included.
Max 9.8 A Intermitted current average value (R.M.S.) Load impedance 10 mΩ, see Figure 15 on page 12.
Output capacitance Typ 8 500 μF Included inside the power supply
Back-feeding loads Max 35V The unit is resistant and does not show malfunctioning when a load feeds back voltage to the power supply. It does not matter whether the power supply is on or off. The absorbing energy can be calculated according to the
built-in large sized output capacitor.
(1) This current is also available for temperatures up to +70 °C (158 °F) with a duty cycle of 10% and/or not longer than 1 minute every 10 minutes.
(2) At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2 s. Next, the output is switched off for approximately 18 s. Next, a new
start attempt is automatically performed. This cycle is repeated as long as the overload exists. If the overload has been cleared, the device operates normally. See Figure 15 on page 12.

12 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Hold-up Time The hold-up time is the time during which the output voltage of a power supply
remains within specification following the loss of input power. The hold-up
time is output load dependent. At no load, the hold-up time can be up to
several seconds. The green DC OK lamp is also on during this time.
Figure 13 - Output voltage versus output Current, typ Figure 14 - Output voltage in parallel use mode, typ
Figure 15 - Short-circuit on output, HiccupPLUS® mode,
typ Figure 16 - Dynamic overcurrent capability, typ
Output Voltage (Single Use, typ.)
0
025
4
8
12
28V
16
20
24
40
A
155 10 20 30 35
Adju stment
Ra nge
Output Current
A: continuous current
B: intermitted current
A
B
Output Voltage (Parallel Use, typ.)
22V
0816
23V
24V
25V
29V
26V
27V
28V
24 A
20124
Adju stment
Ra nge
Factory
setting
Output Current
Output
Current
0
29 A
18 s 18 s
18 s 2 s 2 s
2 s
t
Short -circuit Normal
operation
Normal
operation
Output Voltage (dynamic behavior, < 12 ms)
0
0
4
8
12
28V
16
20
24
70 A3010 40 5020 60
Adju stment
Ra nge
Output Current
Type of Hold-up Time AC 100V AC 120V AC 230V Figure References
Typ 65 ms 65 ms 65 ms At 24V, 10 A, see Figure 17
Minimum 54 ms 54 ms 54 ms At 24V, 10 A, see Figure 17
Typ 32 ms 32 ms 32 ms At 24V, 20 A, see Figure 17
Minimum 24 ms 24 ms 24 ms At 24V, 20 A, see Figure 17
Figure 17 - Hold-up time versus input voltage Figure 18 - Shut-down behavior, definitions
0
10
20
30
40
80 ms
85 120 155 190 230V AC
Input Voltage
50
60
Hold-up Time
24V, 20 A, typ.
24V, 10 A, min.
24V, 10 A, typ.
70
24V, 20 A, min.
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 13

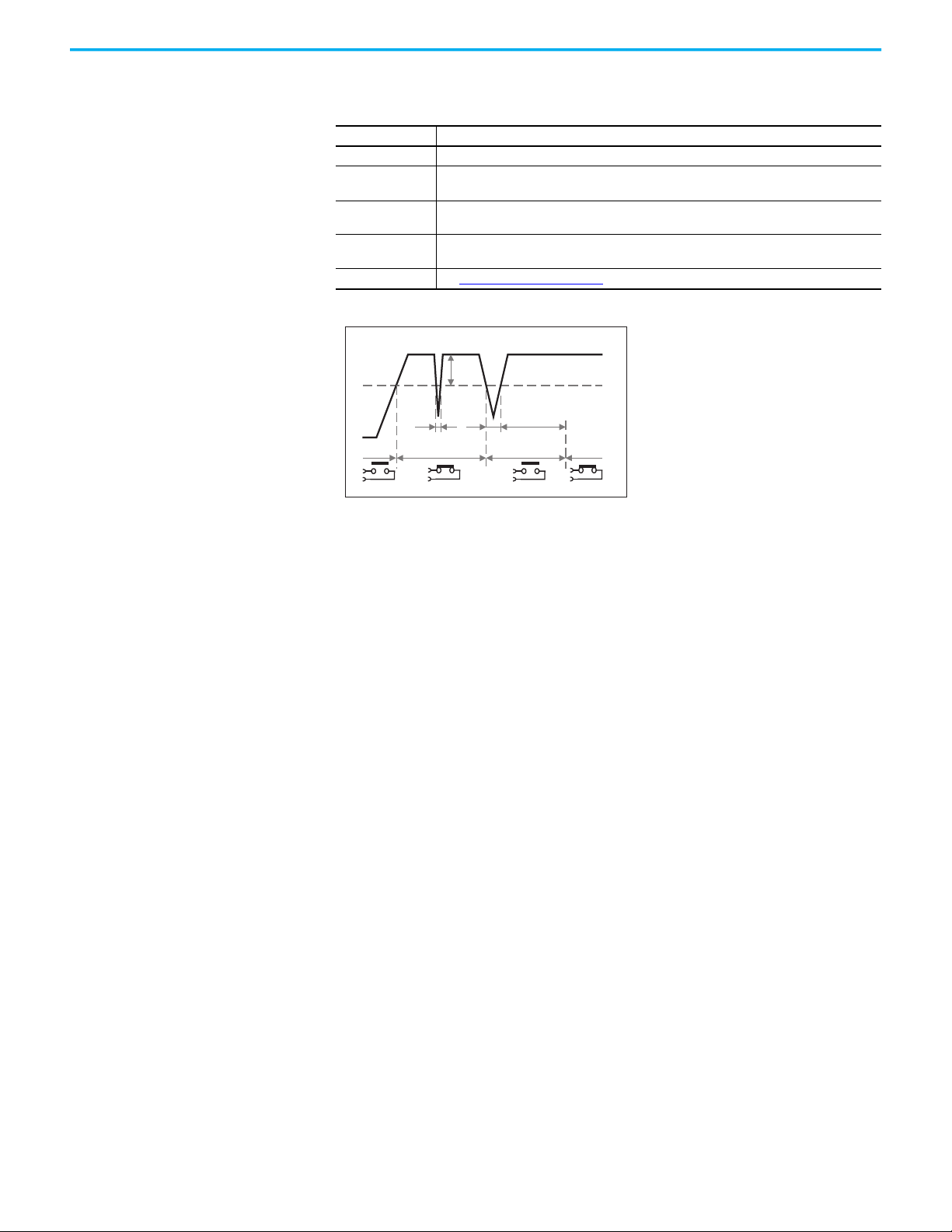

DC OK Relay Contact This feature monitors the output voltage on the output terminals of a running
power supply.
Figure 19 - DC OK relay contact behavior
Attributes Descriptions
Contact closes As soon as the output voltage reaches 90% typ of the adjusted output voltage level.
Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage. Short
dips are extended to a signal length of 100 ms. Dips shorter than 1 ms are ignored.
Switching
hysteresis 1V
Contact ratings Maximal 60V DC 0.3 A, 30V DC 1 A, 30V AC 0.5 A, resistive load
Minimal permissible load: 1 mA at 5V DC
Isolation voltage See Dielectric Strength on page 22.
100 ms
0.9* V
ADJ
<
1 ms
10%
open
V
OUT
= V
ADJ
openclosed closed
>
1...4 ms

14 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Remote ON/OFF Function This feature is available only for the 1606-XLE480EM and allows to switch-off
the power supply output with a signal switch or transistor. A link between pin
15 and 16 turns on the power supply. Pin 15 is referenced to the (-) output
voltage.
The open-loop voltage between pin 16 and pin 15 can be up to 18V. The
maximum current, when in remote ON mode, can be up to 2.5 mA.
The threshold level to switch-off the output is typically 5V and the turn-on
threshold is typically 9V.
When multiple power supplies are connected in parallel, pin 15 and pin 16 are
also allowed to be paralleled to control all units with the same switch or
transistor.
Efficiency and Power
Losses
IMPORTANT The remote ON/OFF function has no safety feature included.
Figure 20 - The switch-off and the turn-on timing Figure 21 - Remote ON/OFF
switch
A: Turn-on delay according to Figure 8 on page 8
B: Rise time according to Figure 8 on page 8
C: No active discharge of the output after switch-off
Time
Output
Voltage
Remote
ON/OFF <1 s
1s
ABAB
Pulses shorter than 1 s
will be extended to 1 s
CC
>1 s
15-16 linked
15-16 open
16
15
Remote
ON/OFF
16
15
Remote
ON/OFF
Attributes Values Notes
AC 100V AC 120V AC 230V
Efficiency Typ 93.6% 94.2% 95.6% At 24V, 20 A
Typ 93.5% 94.1% 95.5% At 24V, 24 A (Power Boost)
Average
efficiency(1)
(1) The average efficiency is an assumption for a typical application where the power supply has the following load:
25% of the nominal load for 25% of the time
50% of the nominal load for 25% of the time
75% of the nominal load for 25% of the time
100% of the nominal load for 25% of the time
Typ 93.2% 93.8% 95.0% 25% at 5 A, 25% at 10 A,
25% at 15 A. 25% at 20 A
Power losses
Typ 0.4 W 0.5 W 0.9 W 1606-XLE480EM in “Remote OFF”
mode
Typ 2.5 W 2.2 W 2.2 W At 24V, 0 A
Typ 16.0 W 15.0 W 12.5 W At 24V, 10 A
Typ 32.8 W 29.6 W 22.1 W At 24V, 20 A
Typ 40.0 W 36.1 W 27.1 W At 24V, 24 A (Power Boost)

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 15
Functional Diagram
Figure 22 - Functional diagram 1606-XLE480EP, 1606-XLE480EPC, 1606-XLE480EP-D, 1606-
XLE480EP-D
Figure 23 - Functional diagram 1606-XLE480EH
Figure 24 - Functional diagram 1606-XLE480EM
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectier
Active Inrush Limiter
V
OUT
L
N
DC-ok
Contact
DC-ok
LED
Link for
Para llel
Use
DC-ok
Relay
+
+
-
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectier
Active Inrush Limiter
VOUT
L
N
DC-ok
Contact
DC-ok
LED
Link for
Para llel
Use
DC-ok
Relay
+
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectier
Active Inrush Limiter
V
OUT
L
N
DC-ok
Contact
DC-ok
LED
DC-ok
Relay
+
+
-
-
-
Remote
ON/OFF
Remote
ON/OFF
Link for
Para llel
Use

16 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Front Side and User
Elements Figure 25 - Front Side and User Elements
1606-XLE480EP,
1606-XLE480EPC 1606-XLE480EL 1606-XLE480EH 1606-XLE480EM
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
7
1606-XLE480EP-D User
Element Description
1 Input Terminals
N, L Line input, PE (Protective Earth) input
2OutputTerminals
1606-XLE480EH: one + pole and two identical - poles
All other units: two identical + poles and three identical - poles
+ Positive output
– Negative (return) output
3 Output Voltage Potentiometer
Open the flap to adjust the output voltage. The factory setting is 24.1V.
4 DC OK status indicator
(green) On, when the output voltage is >90% of the adjusted output voltage
5 Parallel Use, Single Use Link
Link the two terminal poles when power supplies are connected in parallel. To achieve a sharing of the
load current between the individual power supplies, Parallel Use regulates the output voltage in such a
manner that the voltage at no load is approx 4% higher than at nom load. See also Parallel Use to
Increase Output Power on page 31.
6 DC OK Relay Contact
The DC OK relay contact is synchronized with the DC OK status indicator. See DC OK Relay Contact on
page 13 for details.
7 Remote ON/OFF Input
Pin 15 and 16 must be connected to turn off the power supply. See Remote ON/OFF Function on page 14
for details.
1
2
3
4
5
6

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 17
Connection Terminals The terminals are IP20 fingersafe-constructed and suitable for field and
factory wiring.
Daisy chaining
Daisy chaining (jumping from one power supply output to the next) is not
allowed. Use a separate distribution terminal block as shown in Figure 26.
Figure 26 - Using distribution terminals
1606-XLE480EP, 1606-XLE480EPC,
1606-XLE480EM, 1606-XLE480EP-D Input Output Signal Terminals
Type Screw termination Screw termination Push-in termination
Solid wire 6.0 mm2max (0.0093 in² max) 6.0 mm2max (0.0093 in² max) 1.5 mm2max (0.0023 in² max)
Stranded wire 4.0 mm2max (0.0062 in² max) 4.0 mm2max (0.0062 in² max) 1.5 mm2max (0.0023 in² max)
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max (including ferrules) 2.8 mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Recommended tightening torque 1 N•m max, 9 lb•in 1 N•m max, 9 lb•in —
Wire stripping length 7.0 mm (0.28 in.) 7.0 mm (0.28 in.) 7.0 mm (0.28 in.)
Screwdriver 3.5 mm (0.14 in.) slotted or cross-head
No 2 3.5 mm (0.14 in.) slotted or cross-head No 2 3.0 mm (0.12 in.) slotted to open the spring
1606-XLE480EP-D Input Output Signal Terminals
Type Quick-connect spring-clamp
termination Quick-connect spring-clamp termination Push-in termination
Solid wire 6.0 mm2max (0.0093 in² max) 6.0 mm2max (0.0093 in² max) 1.5 mm2max (0.0023 in² max)
Stranded wire 4.0 mm2max (0.0062 in² max) 4.0 mm2max (0.0062 in² max) 1.5 mm2max (0.0023 in² max)
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max (including ferrules) 2.8 mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Wire stripping length 10.0 mm (0.4 in.) 10.0 mm (0.4 in.) 7.0 mm (0.28 in.)
Screwdriver — — 3.0 mm (0.12 in.) slotted to open the
spring
1606-XLE480EH Input Output Signal Terminals
Type Push-in termination Push-in termination Push-in termination
Solid wire 2.5 mm2max (0.0039 in² max) 10.0 mm2max (0.0155 in² max) 1.5 mm2max (0.0023 in² max)
Stranded wire 2.5 mm2max (0.0039 in² max) 6.0 mm2max (0.0093 in² max) 1.5 mm2max (0.0023 in² max)
Stranded wire with ferrules 1.5 mm2max (0.0023 in² max) 4.0 mm2max (0.0062 in² max) 1.5 mm2max (0.0023 in² max)
American Wire Gauge AWG 24…12 AWG 24…8 AWG 24…16
Wire diameter max (including ferrules) 2.3 mm (0.09 in.) 3.3 mm (0.13 in.) 1.6 mm (0.06 in.)
Wire stripping length 10.0 mm (0.40 in.) 15.0 mm (0.60 in.) 7.0 mm (0.28 in.)
Screwdriver 3.0 mm (0.12 in.) slotted to open the
spring 3.0 mm (0.12 in.) slotted to open the spring 3.0 mm (0.12 in.) slotted to open the spring
Distribution
Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output

18 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Lifetime Expectancy The power supply lifetime expectancies in the table indicate the minimum
operating hours (service life). The lifetime expectancies of the built-in
electrolytic capacitors determine the power supply lifetime expectancies.
Lifetime expectancy is specified in operational hours and is calculated
according to the manufacturer specification of the capacitor. The
manufacturer of the electrolytic capacitors only guarantees a maximum life of
up to 15 years (131,400 h). Any number that exceeds 131,400 h is a calculated
theoretical lifetime, which can be used to compare devices.
Mean Time Between Failure Mean Time Between Failure (MTBF) is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to
fail. For example, an MTBF figure of 1,000,000 h means that statistically one
unit fails every 100 hours if 10,000 units are installed in the field. However, it
cannot be determined if the failed unit has been running for 50,000 h or only
for 100 h.
The Mean Time To Failure (MTTF) of the power supply is the same value as the
MTBF value of the power supply.
Lifetime Expectancies Conditions
AC 100V AC 120V AC 230V
48,000 h 60,000 h 94,000 h At 24V, 20 A and 40 °C (104 °F)
123,000 h 149,000 h 173,000 h At 24V, 10 A and 40 °C (104 °F)
23,000 h 31,000 h 54,000 h At 24V, 24 A and 40 °C (104 °F)
136,000 h 169,000 h 265,000 h At 24V, 20 A and 25 °C (77 °F)
348,000 h 422,000 h 488,000 h At 24V, 10 A and 25 °C (77 °F)
64,000 h 88,000 h 152,000 h At 24V, 24 A and 25 °C (77 °F)
Type of MTBF MTBF Conditions
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC 61709 422,000 h 445,000 h 590,000 h At 24V, 20 A and 40 °C (104 °F)
790,000 h 832,000 h 1,060,000 h At 24V, 20 A and 25 °C (77 °F)
MTBF MIL HDBK 217F
186,000 h 191,000 h 226,000 h At 24V, 20 A and 40 °C (104 °F); Ground Benign GB40
256,000 h 263,000 h 313,000 h At 24V, 20 A and 25 °C (77 °F); Ground Benign GB25
40,000 h 42,000 h 50,000 h At 24V, 20 A and 40 °C (104 °F); Ground Fixed GF40
53,000 h 55,000 h 67,000 h At 24V, 20 A and 25 °C (77 °F); Ground Fixed GF25

Rockwell Automation Publication 1606-RM102A-EN-P - July 2020 19
Electromagnetic
Compatibility
The electromagnetic compatibility (EMC) behavior of the device is designed
for applications in industrial, residential, commercial, and light industry
environments. The output is allowed to be grounded or floating.
The device is investigated according to EN 61000-6-1, EN 61000-6-2, EN 61000-
6-3, and EN 61000-6-4.
For the power supply to supply a local DC power network in residential,
commercial, and light-industrial environments, it requires additional
measures to reduce the conducted emissions on the output. An example
additional measure is using a filter. No restrictions apply for local DC power
networks in industrial environments.
EMC Immunity Attributes Standards Values Criteria(1)
(1) Criterion A: Device shows normal operation behavior within the defined limits.
Criterion C: Temporary loss of function is possible. The device may shut down. If it shuts down, it restarts by itself. No
damage or hazards for the device occur.
Electrostatic discharge EN 61000-4-2 Contact discharge 8 kV Criterion A
Air discharge 15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4
Input lines 4 kV Criterion A
Output lines 2 kV Criterion A
Signal lines (coupling clamp) 2 kV Criterion A
Surge voltage on input EN 61000-4-5 L N2 kV Criterion A
L PE, N PE 4 kV Criterion A
Surge voltage on output EN 61000-4-5 + - 1 kV Criterion A
+ / - PE 2 kV Criterion A
Surge voltage on DC OK EN 61000-4-5 Signal lines PE 1 kV Criterion A
Conducted disturbance EN 61000-4-6 0.15…80 MHz 20V Criterion A
Mains voltage dips EN 61000-4-11
0% of 100V AC 0V AC, 20 ms Criterion A
40% of 100V AC 40V AC, 200 ms Criterion C
70% of 100V AC 70V AC, 500 ms Criterion A
0% of 200V AC 0V AC, 20 ms Criterion A
40% of 200V AC 80V AC, 200 ms Criterion A
70% of 200V AC 140V AC, 500 ms Criterion A
Voltage interruptions EN 61000-4-11 0% of 200V AC (=0V) 5000 ms Criterion C
Powerful transients VDE 0160 Over entire load range 750V, 0.3 ms Criterion A
EMC Emission Attributes Standards Notes
Conducted emission input lines EN 55011, EN 55022, FCC Part 15,
CISPR 11, CISPR 22 Class B
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current EN 61000-3-2 Fulfilled for Class A equipment Fulfilled for Class C equipment in the load
range from 8…24 A
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled, tested with constant current
loads, non-pulsing
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.

20 Rockwell Automation Publication 1606-RM102A-EN-P - July 2020
Environment
Switching Frequency Attributes Values Notes
PFC converter 100 kHz Fixed frequency
Main converter 80…140 kHz Output load dependent
Auxiliary converter 60 kHz Fixed frequency
Attribute Values Notes
Operational temperature -25…+70 °C
(-13…+158 °F)
The operational temperature is the ambient or
surrounding temperature and is defined as the air
temperature 2 cm (0.79 in.) below the device.
Storage temperature -40…+85 °C
(-40…+185 °F) For storage and transportation
Output derating
6.4 W/1 °C (6.4 W/ 1.8 °F) Between 45…60 °C (113…140 °F)
12 W/1 °C (12 W/ 1.8 °F) Between 60…70 °C (140…158 °F)
1.33 A/1000 m (1.33 A/ 3281 ft) or
5 °C/1000 m (9 °F/ 3281 ft) For altitudes >2000 m (6560 ft), see Figure 28 on page 20
The derating is not hardware-controlled. You must pay attention to ensure that derating
stays below the derated current limits in order not to overload the unit.
Humidity 5…95% r.h. According to IEC 60068-2-30
Atmospheric pressure 110…47 kPa See Figure 28 on page 20 for details
Altitude Up to 6000 m (19,685 ft) See Figure 28 on page 20 for details
Overvoltage category
III According to IEC 60664-1 for altitudes up to
2000 m (6560 ft)
II According to IEC 60664-1, for altitudes above
2000 m (6560 ft)
Degree of pollution 2 According to IEC 62477-1, not conductive
Vibration sinusoidal 2…17.8 Hz: ±1.6 mm 17.8…500 Hz: 2 g
2 hours / axis According to IEC 60068-2-6
Shock
30 g 6 ms,
20 g 11 ms
3 bumps / direction
18 bumps in total
According to IEC 60068-2-27
Shock and vibration are tested in combination with DIN rails according to EN 60715 with
a height of 15 mm (0.59 in.), a thickness of 1.3 mm (0.05 in.), and a standard orientation.
LABS compatibility As a rule, only non-silicon precipitating materials are used. The unit conforms to the
LABS criteria and is suitable for use in paint shops.
Corrosive gases Tested according to ISA-71.04-1985, Severity Level G3 and IEC 60068-2-60 Test Ke
Method 4 for a service life of 10 yr min in these environments.
Audible noise Some audible noise may be emitted from the power supply during no load, overload, or
short circuit.
Figure 27 - Output current versus ambient temp. Figure 28 - Output current versus altitude
Allowed Output Current at 24V
0-25 0 45 70°C
15 A
20 A
24 A
60
B
A
Ambient Temperature
A...85 to 264V AC, continuous
B... short term
(max. 60 s every 10 minutes)
2000 m 6000 m
14.7 A
20 A
24 A
Altitude
Allowed Output Current at 24V
B
A
D
AP
*)
80 kPa 47 kPa110 kPa
0 m
*) Atmospheric pressure
A... Tamb < 60°C
B... Tamb < 45°C
C... Short term
