Rockwell Automation Allen-Bradley 1606-XLSCAP24-6 User manual

Capacitor-based DC Uninterruptible Power Supplies
Catalog Numbers 1606-XLSCAP24-6, -XLSCAP24-12
Reference Manual
Original Instructions

Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to
familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws,
and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are
required to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may
be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from
the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 3
Table of Contents
Additional Resources These documents contain additional information concerning related products
from Rockwell Automation.
You can view or download publications at
http://www.rockwellautomation.com/global/literature-library/overview.page.
To order paper copies of technical documentation, contact your local
Allen-Bradley distributor or Rockwell Automation sales representative.
Topic Page Topic Page
Additional Resources 3 Ready and Buffer Relay Contact 15
Terminology and Abbreviations 4 Inhibit Input 16
Product Overview 5 PC-mode 16
Front Side and User Elements 6 Efficiency and Power Loss 17
Accessories 7 Lifetime Expectancy and Mean Time Between
Failure 17
Protection Features 7 Functional Diagram 19
Safety Features 8 EMC 20
Installation Notes 8 Application Notes 21
Terminals and Wiring 10 Troubleshooting 26
Input 11 Specifications 26
Output 12 Environment 27
Charging 14 Standards Compliance and Certifications 28
Buffer Time 14 Approximate Dimensions and Weight 29
Resource Description
Switched Mode Power Supply Technical Data, publication
1606-TD002 Provides specifications and approximate dimensions
for full line of switched mode power supplies.
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1 Provides general guidelines forinstalling a Rockwell Automation industrial system.
Product Certifications website, http://
www.rockwellautomation.com/global/certification/
overview.page
Provides declarations of conformity, certificates, and
other certification details.

4Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Terminology and
Abbreviations Term Definition
Normal mode Describes a condition where the capacitor is charged,
the input voltage is in range, and the output is loaded
within the allowed limits.
Buffer mode Describes a condition where the input voltage is below
the transfer threshold level, the unit is running on
capacitor (buffering) and the output is loaded within
the allowed limits.
Charging mode Describes a condition where the capacitor is being
charged, the input voltage is in range and the output is
loaded within the allowed limits.
Inhibit mode Describes a condition where buffering is disabled on
purpose (service actions)
AC 24V A figure displayed with the AC or DC before the value
represents a nominal voltage with standard tolerances
included. For example, DC 12V describes a 12V battery
disregarding whether it is full (13.7V) or flat (10V)
24V AC A figure with the unit (V AC) at the end is a momentary
figure without any additional tolerances included.
DC-UPS Direct Current- Uninterruptible Power Supplies
ELDC Electrochemical Double Layer Capacitors
EMC Electromagnetic Compatibility
VRLA Valve-regulated Lead-acid
PELV Protected Extra-low Voltage
SELV Separated Extra-low Voltage

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 5
Capacitor-based DC UPS Power Supplies
Product Overview Bulletin 1606 DC- Uninterruptible Power Supplies (DC-UPSs) use
electrochemical double-layer capacitors (EDLC), commonly known as
ultracapacitors or supercapacitors, that are installed inside. They can bridge
power failures or voltage fluctuation and supply voltage to the DC 24V bus for
a certain period, which allows for a controlled shut-down of the system.
Expensive downtimes, long restart cycles, and loss of data can be avoided.
The power supply provides sufficient voltages, the DC-UPS stores energy in
the capacitors. If there is a mains voltage fault, this energy is released to the DC
bus in a regulated process.
The DC-UPSs require no maintenance and have a similar lifetime expectancy
as standard power supplies. No regular replacement of the capacitors is
necessary as is required for battery-based DC-UPS systems. The wide
temperature range makes the unit suitable for many applications.
Two versions of the DC-UPSs are available and differ by the size of the
installed capacitor.
• Built-in capacitors as energy source, EDLC
• Wide temperature range: -40…+60 °C (-40…+140 °F)
• Typically >10 years operational lifetime expectancy
•RegulatedoutputvoltageinBuffermode
• No ventilated cabinets required, no generation of hydrogen as valve-
regulated lead-acid (VRLA) batteries do
• Active balancing for longest life and buffer times
• Short charging time, unit is rapidly back in Ready mode
• Output is decoupled from the input to separate load
• Circuits into buffered and non-buffered sections
• Supports PC-mode function
• One year warranty

6Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Front Side and User Elements
Figure 1 - Front Side of DC-UPS A. Input Terminals (quick-connect spring-clamp terminal)
B. Output Terminals (quick-connect spring-clamp terminal)
Minus-pole has the same reference as the minus-pole of the input terminals
C. Signal Connector (plug connector)
• Ready: contact is closed when status indicator shows ready
• Buffering: contact is closed during buffering
• Inhibit: a voltage applied on this input signal disables buffering (during
service)
• PC-mode: To activate the PC-mode connect the two pins of the signal
connector together (See PC-mode on page 16)
D. Status Indicator (green) Figure 2
• Ready: capacitors are fully charged, no failures detected.
• Charging: capacitors are being charged
• Buffering: capacitors are being discharged
Figure 2 - Updating pattern for the green
status indicator
E. Diagnosis status indicator (yellow) Figure 3
Helps troubleshooting and indicates the following:
• Current Overload: output voltage below 20V DC due to a too high
output current, ready contact is open
• High Temperature: signals capacitor temperature is too high(>65 ºC),
charging and buffering is still possible, ready contact is open
• Buffer Time Expired: buffering stopped due to discharged capacitors -
Inhibit Active: buffering is blocked by the inhibit signal
Figure 3 - Updating Pattern for the Yellow
Diagnosis Status Indicator:
F. Warning status indicator (red) Figure 4
• Check Input Voltage: Indicates a too low or too high input voltage. The
input voltage must be between 23V DC and 30V DC to turn-on the
output and to start charging of the capacitors.
• PC-mode activated indicates, that the PC-mode (See PC-mode on
page 16) is activated.
Figure 4 - Updating pattern for the Red
Warning Status Indicator: G. Chassis Ground (screw)
Use a M4 ring-type terminal to connect the housing to ground, when required
1
0
Ready
1
0Charging
1
0Buering
1
0
Current
Overload
1
0
High
Temperature
1
0
Buer time
expired
1
0
Inhibit
active
Check input
voltage
1
0
1
0PC-Mode
activated

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 7
Capacitor-based DC UPS Power Supplies

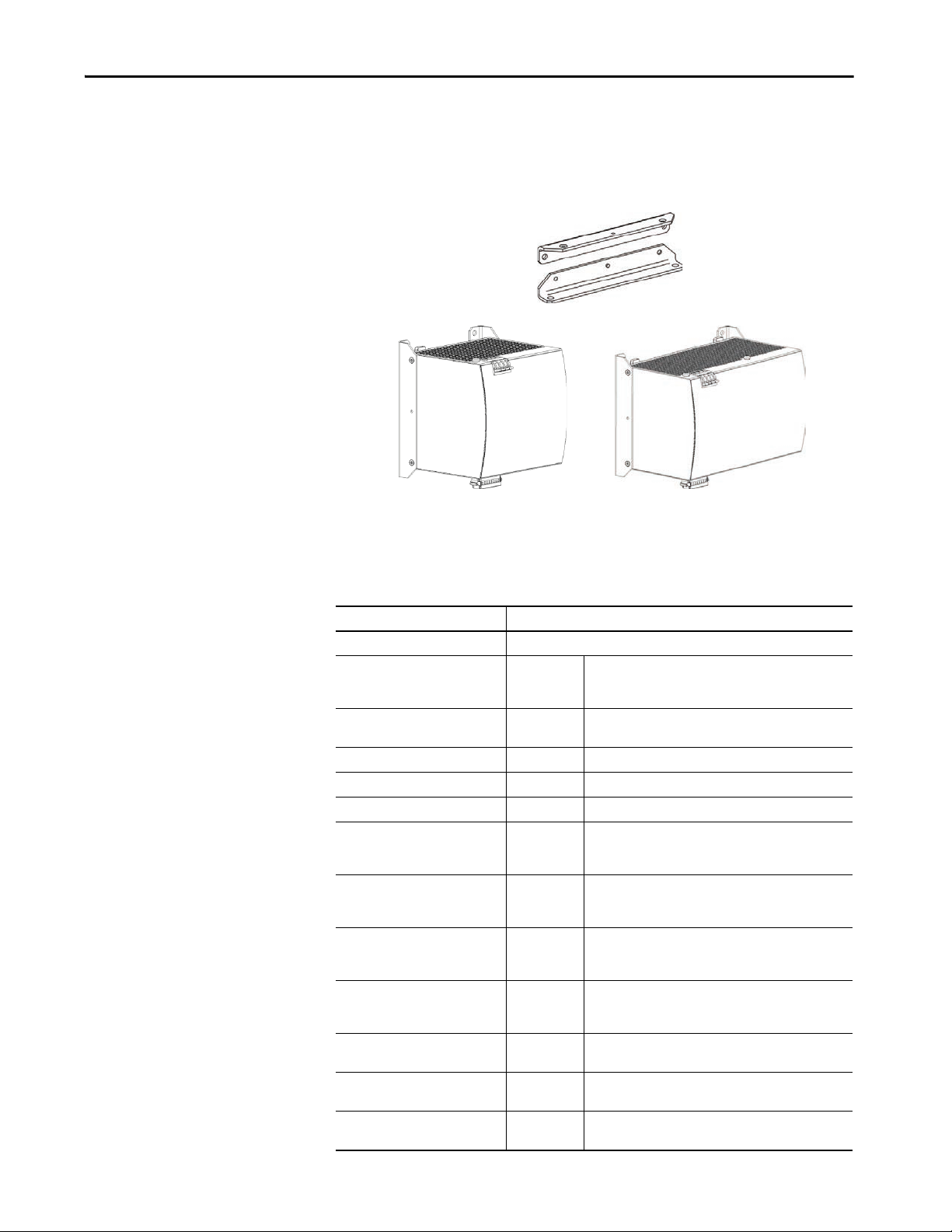

Accessories Wall Mounting Bracket
This bracket is used to mount the DC-UPS on to a flat surface without using a
DIN rail.
Protection Features
With Cat. No. 1606-XLSCAP24-6 With Cat. No. 1606-XLSCAP24-12
Cat. No. 1606-XLC
Feature Description
Output protection Electronically protected against overload, no-load and Short Circuits(1)
Output Overvoltage protection in
buffer mode typ 32V DC
max 35V DC
In case of an internal DC-UPS Anomaly, a redundant circuit
limits the Maximum output voltage. The output shuts down
and automatically attempts to restart.
Degree of protection IP 20 EN/IEC 60529 For use in a controlled environment according
to CSA 22.2 No 107.1-01.
Penetration protection > 3.5 mm screws, small parts
Over-temperature protection included Output shuts down with automatic restart
Input Overvoltage protection - Max. 35V DC, no harm or Anomaly of the unit
Internal input fuse Included Non-user replaceable The tripping of this fuse is caused by
an internal Anomaly. In such cases, send unit to the factory
for inspection.
Internal capacitor fuse Included Non-user replaceableThe tripping of this fuse is caused by
an internal Anomaly. In such cases, send unit to the factory
for inspection.
Overcharging of capacitors Included The capacitors are permanently monitored. In case of a too
high charging voltage, the charger will be switched off with
redundant protection measures.
Balancing of capacitors Included An active balancing circuit Confirms uniform capacitor
voltages. If necessary, the charging current will be reduced
to a safe value.
Failing of one or more capacitors in
the capacitor-string Included Ready contact open, moving light pattern on the three Status Indicators
Temperature of capacitors Included Indicated by the diagnosis Status Indicator, ready contact
open
Internal errors (broken wires, …) Included Charging is stopped, ready contact open, moving light
pattern on the three Status Indicators
(1) In case of a protection event, audible noise may occur.

8Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Safety Features
Installation Notes • The DC-UPS can only be installed and put into operation by qualified
personnel.
• The input must be powered from a Separated Extra-low Voltage (SELV)
or Protected Extra-low Voltage (PELV) power source.
• The DC-UPS does not contain serviceable parts. The tripping of an
internal fuse is caused by an internal anomaly. If damage or malfunction
occurs during installation or operation, immediately turn power off and
send unit to the factory for inspection.
• Mount the unit on a DIN rail so that the power terminals are on the top
of the unit.
• The DC-UPS is designed for convection cooling and does not require
an external fan. Do not obstruct airflow and do not cover ventilation
grid (cable conduits) by more than 15%.
• Keep the following installation clearances: 40 mm (1.57 in.) on top,
20 mm (0.79 in.) on the bottom, 5 mm (0.20 in.) on the left and right
sides are recommended when the DC-UPS is loaded permanently with
more than 50% of the rated power. Increase this clearance to 15 mm
(0.59 in.) in case the adjacent device is a heat source, such as a power
supply.
Figure 5 - Typical Wiring Diagram
Attribute Value
Output voltage SELV IEC/EN 60950-1, The input must be powered from a SELV power source.
PELV IEC/EN 60204-1, EN 50178, IEC 62103, IEC 60364-4-41, The input must be
powered from a PELV power source.
Class of protection III PE (Protective Earth) connection not required
Isolation
resistance > 5 MOhm
> 800 kOhm
> 5 MOhm
Power port to signal port
Power port to housing
Signal port to housing
Dielectric strength 500V AC
500V AC
Power port to signal port
Power port / signal port to housing
Touch current
(leakage current) The leakage current which is produced by the DC-UPS itself depends on the input voltage ripple and need to be investigated in the final application. For a smooth DCinput voltage, the produced
leakage current is less than 100 µA.
buffered branches
non-buffered branches
L N PE
+ +
- -
Power
Supply
+
-
24V Output
DC-UPS
IN
+
-
OUT
Ready
Buffering
Inhibit
PC-Mode
Input
+
-

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 9
Capacitor-based DC UPS Power Supplies
The EDLC (storage capacitors) contains Acetonitrile and
Tetraethylammonium-tetrafluoroborate. These components are declared as
non-dangerous goods regarding shipment.
Hazardous Location Information
The DC-UPS is suitable for use in Class I Division 2 Groups A, B, C, D
locations and for use in Group II Category 3 (Zone 2) environments and are
evaluated according to EN 60079-0 and EN 60079-15.
SHOCK HAZARD: Turn power off before working on the power supply.
Avoid inadvertent repowering.
• Make sure that the wiring is correct by following all local and
national codes.
• Do not modify or repair the unit.
• Do not open the unit as hazardous energy can be present inside. Info
for service personnel: Before opening the unit, wait at least 45
minutes after disconnecting the unit from input power so that the
remaining capacitor charge has been fully discharged.
• Use caution so that foreign objects cannot enter the housing.
• Do not use in wet locations or in areas where moisture or
condensation can be expected.
BURN HAZARD: Do not touch components during power-on, and
immediately after power-off. Hot surfaces can cause burns.
WARNING: Explosion Hazard. Substitution of components can impair
suitability for this environment. Do not disconnect the unit or change unit
settings unless power has been switched off or the area is known to be non-
hazardous. A suitable enclosure must be provided for the end product that
has a minimum protection of IP54 and fulfills the requirements of the
EN 60079-15.

10 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Terminals and Wiring The terminals are IP20 fingersafe constructed and suitable for field and factory
wiring.
• Use appropriate copper cables that are designed for minimum operating
temperatures of:
– 60 °C (140 °F) for ambient temperatures up to 45 °C (113 °F)
– 75 °C(167 °F) for ambient temperatures up to 60 °C (140 °F)
– 90 °C (194 °F) for ambient temperatures up to 70 °C (158 °F)
• Follow national installation codes and installation regulations
• Confirm that all strands of a stranded wire enter the terminal
connection
• Unused terminal compartments should be securely tightened or closed
• Ferrules are allowed
Figure 6 - Connecting a Wire
Attribute Input and Output Signals
Type Bi-stable quick-connect spring-clamp terminals Pluggable spring-clamp terminals
Solid wire, max 6 mm max1.5 mm
Stranded wire, max 4 mm max1.5 mm
American wire gauge AWG 20-10 AWG 24-14
Wire diameter, max 2.8mm (including ferrules) 1.5 mm (including ferrules)
Wire stripping length 10mm (0.4 in.) 8 mm (0.3 in.)
Screwdriver - 2.5 mm slotted
1. Insert the wire 2. Close the lever
To disconnect wire:
reverse the procedure

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 11
Capacitor-based DC UPS Power Supplies
Input
Figure 7 - Input Voltage Range
Figure 8 - Current Budget

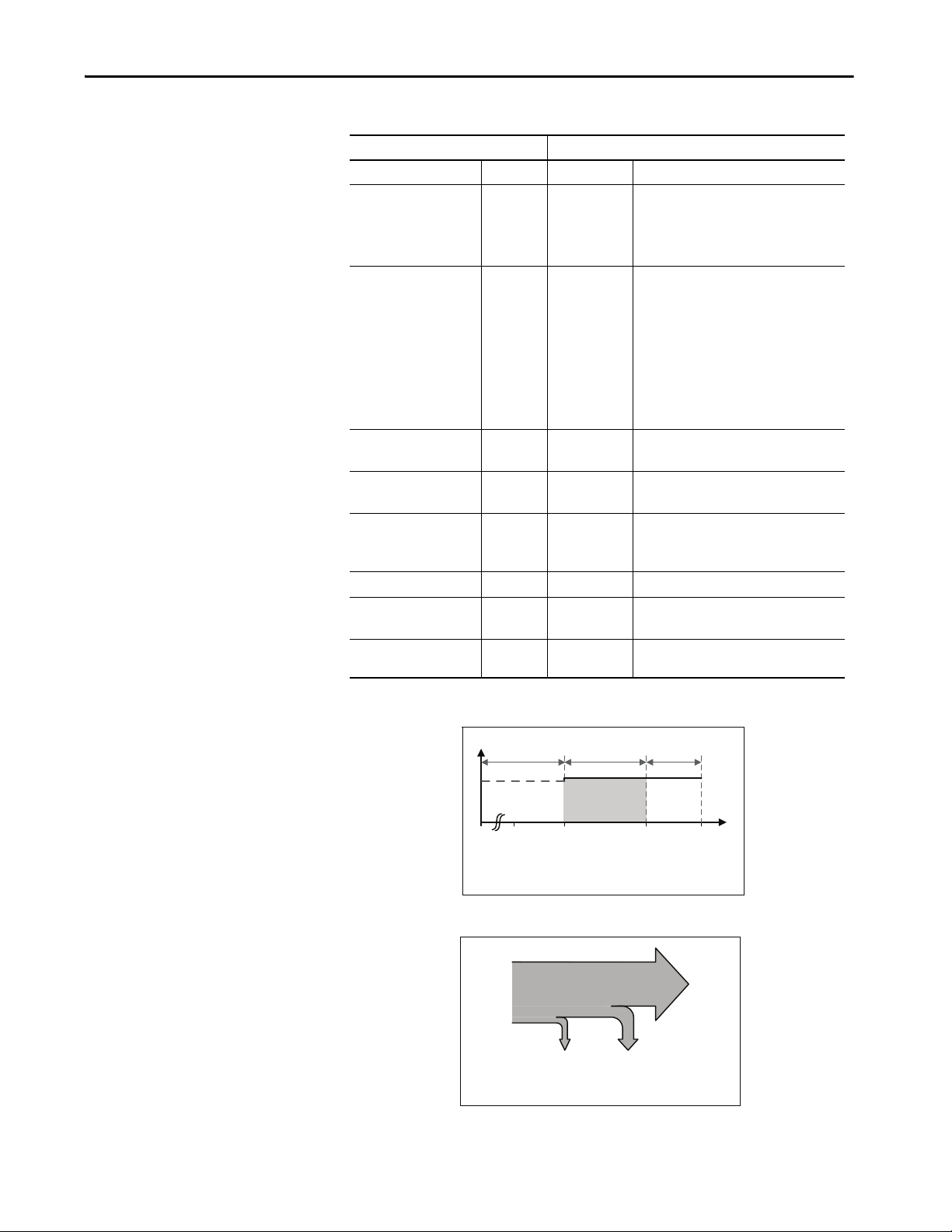

Attribute Value
Input voltage nom DC 24V -20%/+25%
Input voltage ranges typ
max
22.5…30V DC
30…35V DC
Continuous operation temporarily allowed, no
damage to the unit between 3035V DC
buffering is not possible, the unit indicates
“Check Input Voltage” with the red status
indicator on the front
Transfer threshold voltage
typ
typ
max
22.45V ±1%
22.55V
22.60V
22.88V
At no load
At 10A buffer current
At 15A buffer current
At 15A buffer current
The transfer threshold voltage describes the
input voltage, where the unit switches into
buffer mode and delivers output voltagefrom
the capacitors if the input was above the turn-
on level before and all other buffer conditions
are fulfilled.
Turn-on voltage typ
max
22.8V DC
23.0V
The output does not switch on if the input
voltage is below this level.
Allowed voltage between
input and earth (chassis) max 60V DC or
42.4V AC
Continuous, IEC 62103
Current consumption typ
typ
max
0.09 A
1. 1A
1.3 A
Capacitors charged, output current not
included
During charging, output current not included
Input current max 17 A During charging a full output current
Return current typ
max
-9 mA
-11 mA
Leakage current to input in buffer mode
Suitable power sources on
input No limitation in the maximum power supply current
V
OUT
A: Buffer mode
B: Normal mode
C: Short-term, no harm to the unit
V
IN
18 30 35V22.50
ABC
Internal
current
consumption
Current
consumption
for capacitor
charging
Output
Current
Input
Current

12 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Output The output section of the DC-UPS is fully controlled and is equipped with an
electronic current limitation. A current overloading of the DC-UPS cannot
happen, independent of which sizes of power supplies are used on the input of
the DC-UPS. The current limitation works in a switching mode which reduces
the power losses and heat generation to a minimum.
Output in normal mode:
In normal mode (and also in charging mode), the output voltage is slightly
lower as the input voltage. The output voltage follows the input voltage
reduced by the input to output voltage drop.
Output in buffer mode:
The output voltage is fully regulated in buffer mode. The unit switches into
buffer mode, when the input voltage falls below the transfer threshold input
voltage level. The buffer voltage is slightly lower than this threshold input
voltage. The unit switches back to normal mode, as soon as the input voltage
exceeds the transfer threshold voltage, which is specified in the input section.
Attribute Value
Input to output voltage drop max 0.3V
0.45V
At 10 Aoutput current
At 15 Aoutput current
Ripple & noise voltage max 30 mVpp At 20 Hzto 20 MHz, 50 Ohm measurement. This figure
indicates the ripple & noise voltage which is produced
by the DC-UPS. It can be higher if the supplying source
has a higher ripple and noise voltage
Output current nom 15 A Continuously allowed for the entire voltage range
Output power nom 360 W At 24V
Overload behavior Continuous
current See Figure 10 on page 13
Current limitation typ
min
16 A
15 A
See Figure 10 on page 13
Short circuit current min 17.9 A Load impedance 100 m Ohm, See Figure 10 on
page 13
max 21.0 A
Output capacitance typ 1 500 F Included inside the DC-UPS
Capacitive and inductive loads No limitation
Attribute Value
Output voltage typ 22.45V ±1%
22.25V ±1%
22.12V ±1%
At no load
At 10 A buffer current
At 15 A buffer current
Ripple & noise voltage max 30 mVpp At 20 Hz to 20 MHz, 50
Ohm measurement
Output current nom 15 A Continuously allowed
Output power nom 360 W At 24V
Overload behavior Continuous current See Figure 10
Current limitation typ
min
16 A
15 A

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 13
Capacitor-based DC UPS Power Supplies
Short circuit current min 17.9 A Load impedance 70m
Ohm, See Figure 10
max 21.0 A Load impedance 50m
Ohm, See Figure 10
Capacitive and inductive loads No limitation
Attribute Value

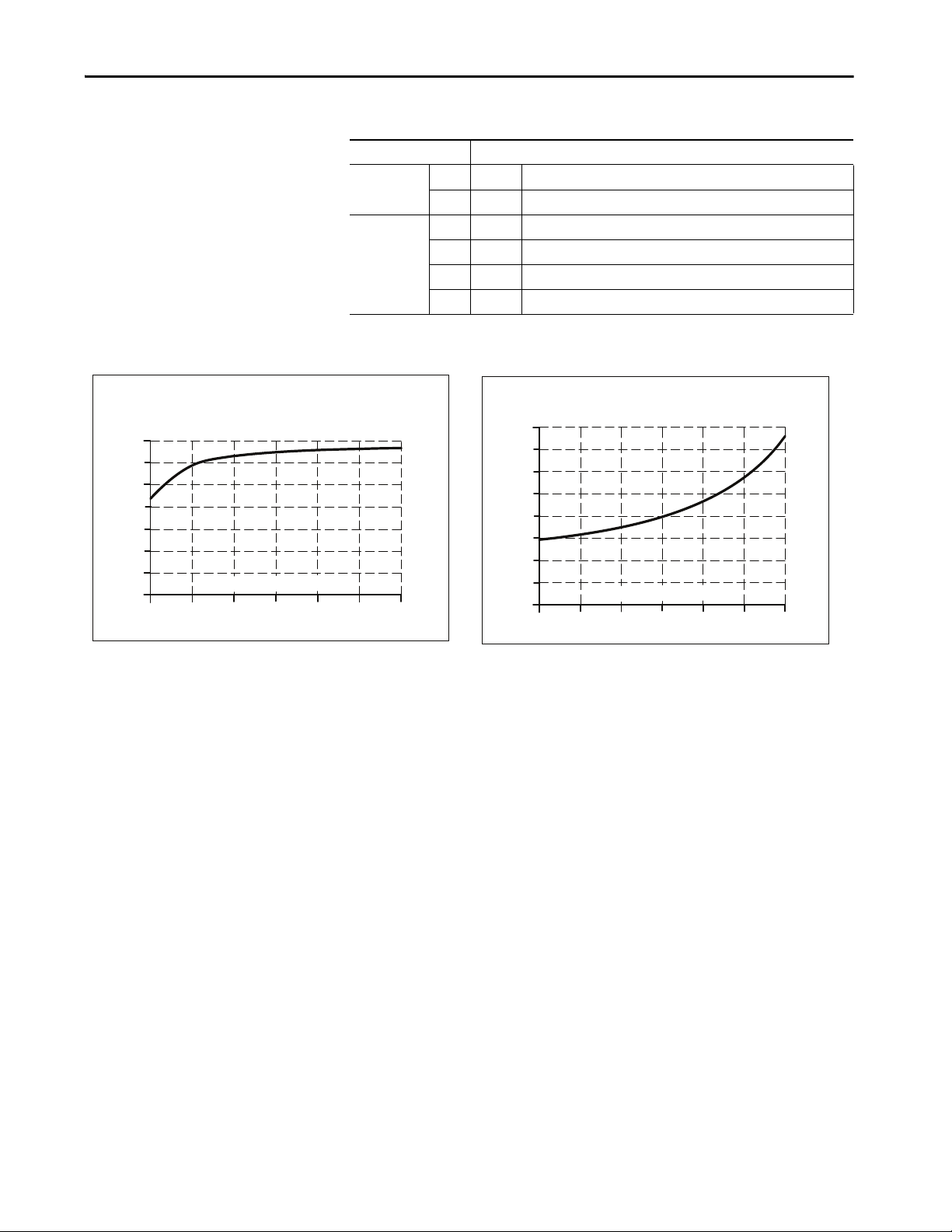

Figure 9 - Input to Output Voltage Drop in Normal Mode, typ Figure 11 - Output Characteristics and Overload Behavior in
Normal and Buffer Modes, typ
Figure 10 - Transition from Normal to Buffer Mode and Vice Versa,
Definitions
Figure 12 - Input to Output Voltage Drop in Normal Mode
0
02 10
100mV
16A
400mv
Output Current
46812 14
200mv
300mv
Voltage drop
Output Voltage
0
05101520
4
8
12
28V
16
20
24
25
A
Output Current
Buer
Output
voltage
24V
mode
Input
voltage
t
t
Transfer threshold
24V
Normal
mode Normal mode
500ms/DIV
0V
Output Voltage
Input Voltage
24V
22.25V at 10A
24V

14 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Charging During charging, the DC-UPS consumes additional current from the input.
Refer to Input on page 11.
When charging is completed, the Ready status indicator stops updating and is
on solid and the Ready relay contact closes.
Buffer Time The following times are typical values for a new product and the aging effect
during operation is not included. More information about the reduction of the
buffer time over the life of the product can be found in “Lifetime Expectancy
and MTBF”
Attribute 1606-XLSCAP24-6 1606-XLSCAP24-12 Notes
Charging time—
initial charging(1)
(1) Initial charging means that no input voltage was applied for several hours or longer and the capacitor is fully discharged by the
internal electronics.
typ 16 minutes 32 minutes When capacitor is fully
discharged.
Charging time —
recharging(2)
(2) Recharging means that the electronics inside the DC-UPS has not fully discharged the capacitor. The values in the table apply
when the input voltage is applied immediately after buffering has stopped.
typ 1 minute 50s 1 minute 50s After discharging with
10 A for 10s
typ 3 minutes 50s 7 minutes 40s After discharging with 10 A until buffering
stops
typ 4 minutes 40s 9 minutes 40s After discharging with 5
A until buffering stops
typ 5 minutes 40s 11 minutes 15s After discharging with 1
A until buffering stops
Allowed number of charging/
discharging cycles No limitation No limitation
IMPORTANT At the end of the charging process the active balancing circuit reduces the
charging current periodically, which can be seen as current oscillations on
the input current.
Buffer Current [A] Buffer Time [s]
1606-XLSCAP24-6 1606-XLSCAP24-12
0 typ 1650 3300
0.5 340 680
1 200 400
3 68 136
5 39 78
7 26 53
10 16.5 33
15 9 18

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 15
Capacitor-based DC UPS Power Supplies
Figure 13 - Buffer Times vs. Buffer Current
Ready and Buffer Relay
Contact

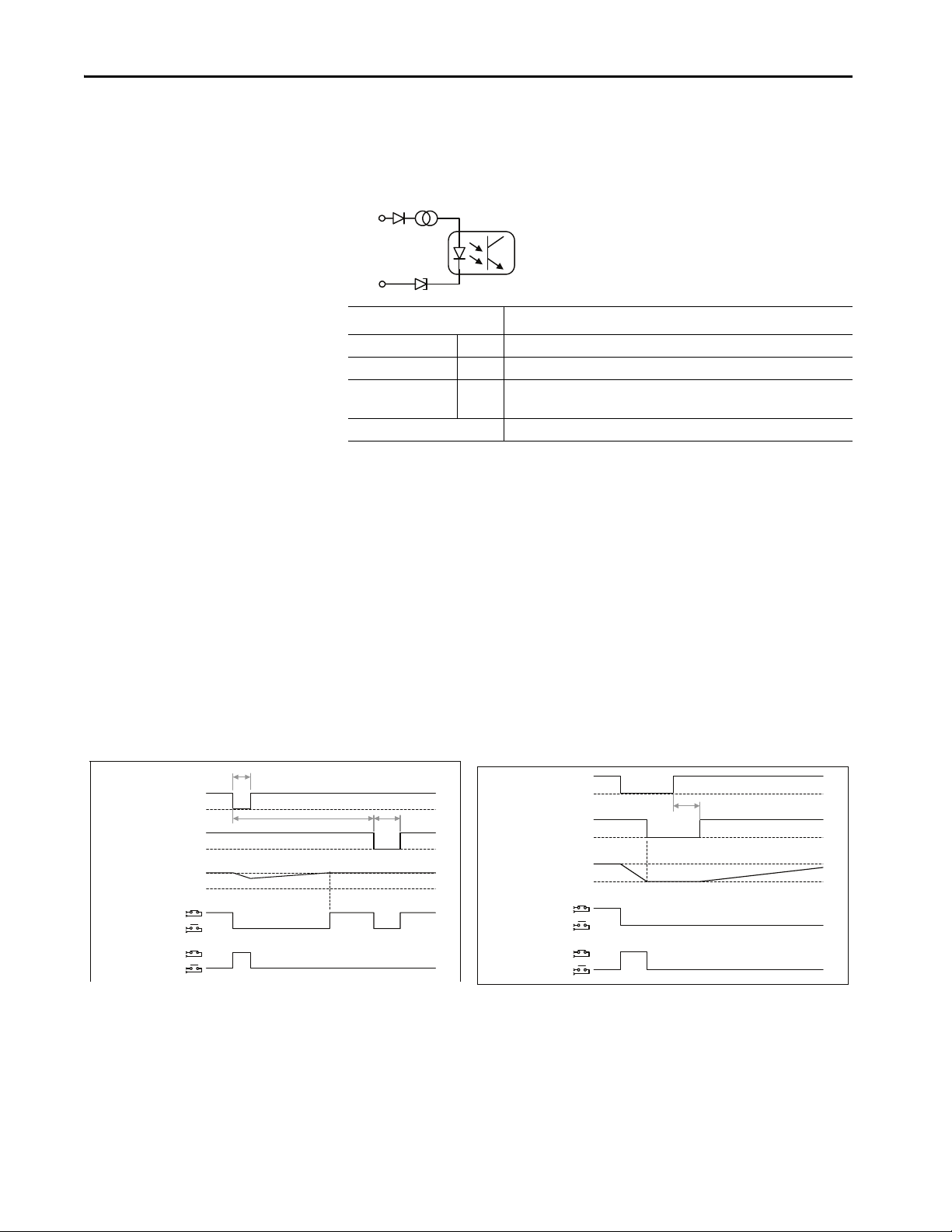

The DC-UPSs are equipped with two independent relay contacts for remote
monitoring and controlling of the unit.
Relay Contact
Contact is closed when capacitor is fully charged, input voltage is sufficient and
inhibit signal is not active.
Buffering Contact
Contact is closed when unit is buffering.
Buer Current
0 20 200s40 60 80 100 120 140 160 180
Buer Times
ab
0
6A
4A
16A
8A
2A
10A
12A
14A 1606-XLSCAP24-6
1606-XLSCAP24-12
a
b
Attribute Value
Contact ratings
max
60V DC – 0.3A
30V DC – 1A
30V AC – 0.5A
Resistive load
min 1 mA at 5V DC Minimum permissible load
Isolation voltage 500V AC, signal port to power port
Attribute Value
Contact ratings
max
60V DC, 0.3 A
30V DC , 1 A
30V AC , 0.5 A
Resistive load
min 1 mA at 5V DC Minimum permissible load
Isolation voltage 500V AC, signal port to power port

16 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
Inhibit Input The inhibit input disables buffering. In normal mode, a static signal is required.
In buffer mode, a pulse with a minimum length of 250 ms is required to stop
buffering. The inhibit is stored and can be reset by cycling the input voltage.
Figure 14 - Inhibit Input
PC-mode The PC-mode turns the output off for at least 5 seconds after a buffer event
lasting longer than 1 second, independent of whether the 24V input power has
recovered during this time. This function verifies that the personal computer
receives a restart signal. To enable a proper shutdown of the system, the forced
turn off of the output is delayed with a constant time of 70 seconds.
To activate the PC-mode, connect the two pins marked with “PC-mode”
together on the signal connector together. If the personal computer, not the
DC-UPS, controls the reset, a wiring option called 'external controlled delayed
shutdown' is available.
Attribute Value
Signal voltage max 35V DC
Signal current max 6 mA, current limited
Inhibit threshold min
max
6V DC, buffering is disabled above this threshold level
10V DC
Isolation voltage 500V AC, signal port to power port
7 +
5.1V
3mA
Inhibit
8
-
Figure 15 - PC-mode, Buffer Event Ends Before Buffer Capacitors are
Discharged and Buffer Event is Shorter than 70 seconds
Figure 16 - PC-mode, Buffer event discharges the buffer capacitors
before the input recovers.
Example A: The buffer event is longer than 1s and ends beforethe buffer capacitors are
fully discharged. After 70 seconds of the beginning of the buffer event, the output of the
DC-UPS will be switched off for 5 seconds
Example B: The buffer event lasts longer than the buffercapacitors can supply the
output. The buffer capacitors are fully discharged before the input voltage recovers. The
DC-UPS output will turn on at the earliest 5 seconds after the power supply output
voltage has recovered.
>1s
Power Supply Output
DC-UPS Output
full
empty
Capacitor
Ready
Contact
closed
open
Buering
Contact
closed
open
5s
70s
Power Supply Output
DC-UPS Output
full
empty
Capacitor
Ready
Contact
closed
open
Buering
Contact
closed
open
5s

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 17
Capacitor-based DC UPS Power Supplies
Efficiency and Power Loss
Lifetime Expectancy and
Mean Time Between Failure
The lifetime expectancy of the DC-UPS is predominantly affected by the
storage capacitors. The biggest influence in lifetime is a combination of
operating voltage and operating temperature of these capacitors. To gain
longest lifetimes, Rockwell Automation does not use the full allowed working
voltage for these capacitors and therefore accepts a slightly shorter buffer time.
The EDLC’s do not experience a true End of Life, rather the capacitance
continually degrades over the life of the DC-UPS. The typical degradation
behavior resembles that of a exponential decay in the first couple of 1000 hours
followed by a linear degradation. The majority of the capacitance reduction
occurs during the initial use of the DC-UPS and this change in performance
then levels off over time. When working with the specified lifetime numbers,
the remaining capacity must always be taken into account. The buffer time
correlates linearly to the capacity.
The ultracapacitors have an almost unlimited shelf life (unlike batteries) when
stored uncharged at 25 °C (44 °F).
Attribute Value
Efficiency typ 97.8% Normal mode, 10 A output current, capacitor fully charged.
typ 97.8% Normal mode, 15 A output current, capacitor fully charged.
Power losses typ 2.9 W Normal mode, 0 A output current, capacitor fully charged.
typ 4.6 W Normal mode, 10 A output current, capacitor fully charged.
typ 7.7 W Normal mode, 15 A output current, capacitor fully charged.
typ 5.0 W During charging, 0 A output current
Figure 17 - Efficiency vs. Output Current Figure 18 - Power Losses vs. Output Current
Eciency vs. output
current in normal mode
94.5
39
95.5
96.0
97.0
15A
95.0
96.5
97.5
98%
O u tputCurrent
5 7 11 13
Power losses versus output
current in normal mode
0
07.5
2
5
15A
3
4
7
8W
OutputCurrent
2.5 5 10 12.5
1
6

18 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
The number of charge/discharge cycles does not have an impact on the lifetime
as long as the number of cycles does not exceed 100 000. This should not be
the case for a typical backup operation.
Lifetime
Cat. No. 1606-XLSCAP24-6 1606-XLSCAP24-12 Notes
Remaining
capacity
85% 75% 85% 75%
Lifetime
expectancy (1)
(1) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the
lifetime expectancy of the built-in electrolytic capacitors and storage capacitors (ultracapacitors). Lifetime expectancy is
specified in operational hours and is calculated according to the capacitor’s manufacturer specification.
186 000 h 324 000 h 186 000 h 324 000 h At 24V, 10 A, 25 °C
155 000 h 270 000 h 155 000 h 270 000 h At 24V, 15 A, 25 °C
66 000 h 115 000 h 66 000 h 115 000 h At 24V, 10 A, 40 °C
55 000 h 96 000 h 55 000 h 96 000 h At 24V, 15 A, 40 °C
23 000 h 40 000 h 23 000 h 40 000 h At 24V, 10 A, 55 °C
19 000 h 34 000 h 19 000 h 34 000 h At 24V, 15 A, 55 °C
MTBF(1)
(1) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability
of a device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a
product.
The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF of for example, 1 000 000h means that
statistically one unit will fail every 100 hours if 10 000 units are installed in the field. However,it cannot be determined if the
failed unit has been running for 50 000h or only for 100h.
MTBF SN 29500,
IEC 61709 1 519 000 h 1 515 000 h At 24V, 10 A, 25 °C
1 443 000 h 1 439 000 h At 24V, 15 A, 25 °C
899 000 h 895 000 h At 24V, 10 A, 40 °C
854 000 h 850 000 h At 24V, 15 A, 40 °C
MTBF MILHDBK 217F 525 000 h 524 000 h At 24V, 10 A, 25 °C, Ground Benign GB25
498 000 h 497 000 h At 24V, 15 A, 25 °C, Ground Benign GB25
385 000 h 384 000 h At 24V, 10 A, 40 °C, Ground Benign GB40
365 000 h 364 000 h At 24V, 15 A, 40 °C, Ground Benign GB40
125 000 h 125 000 h At 24V, 10 A, 25 °C, Ground Fixed GF25
118 000 h 118 000 h At 24V, 15 A, 25 °C, Ground Fixed GF25
95 000 h 95 000 h At 24V, 10 A, 40 °C, Ground Fixed GF40
90 000 h 90 000 h At 24V, 15 A, 40 °C, Ground Fixed GF40

Rockwell Automation Publication 1606-RM054A-EN-P - September 2016 19
Capacitor-based DC UPS Power Supplies
Figure 19 - Lifetime Expectancy vs. Ambient Temperature at 10 A Output Current
Figure 20 - Lifetime Expectancy vs. Ambient Temperature at 15 A Output Current
Functional Diagram
Lifetime hours
035 40 45 55°C
20 000 2.3
Ambient Temperature
40 000
60
000
80
000
100
000
120
000
Lifetime years
4.6
6.9
9.2
11.6
13.9
50
A
Remaining capacity:
A: 85%
B: 75%
B
10A Output Current
Lifetime hours
035 40 45 55°C
20 000 2.3
Ambient Temperature
40 000
60
000
80
000
100
000
120
000
Lifetime years
4.6
6.9
9.2
11.6
13.9
50
A
Remaining capacity:
A: 85%
B: 75%
B
15A Output Current
-
+
24V
Power
Supply
Boost
Converter
(Step-up
Converter)
Charger
Balancing
&
Safety
Circuits
Input
Electronic
Current
Limiter
+
-
Buered
Load
Output
Diagnosis LED (yellow)
Status LED (green)
+
Controller
Warning (red)
Buering
Contact
Ready Contact
(5)
-
(6)
(1)
(2)
(3)
(4)
Storage
Capacitors
Input Fuse,
Reverse Polarity Protection,
Return Current Protection
Temp
Input
Voltage
Monitor
Inhibit
(7)
(8)
PC-Mode
Chassis
Ground

20 Rockwell Automation Publication 1606-RM054A-EN-P - September 2016
Capacitor-based DC UPS Power Supplies
EMC The DC-UPS is suitable for applications in industrial environment as well as in
residential, commercial and light industry environment without any
restrictions.
EMC Immunity - According to generic standards: EN 61000-6-1 and EN 61000-6-2
Electrostatic discharge
(1)
(1) Chassis ground connection earthed (grounded)
EN 61000-4-2 Contact discharge
Air discharge
8 kV
15 kV
Criterion
A(3)
(3) Criterion A: DC-UPS shows normal operation behavior within the defined limits.
Electromagnetic RF
field EN 61000-4-3 80 MHz…2.7 GHz 10 V/m
Fast transients (Burst) EN 61000-4-4 Input lines output lines
signals(2)
(2) Tested with coupling clamp
2 kV
2 kV
2 kV
Surge voltage on input EN 61000-4-5 + -
+/ -chassis ground
500V
1kV
Surge voltage on
output EN 61000-4-5 + -
+/ -chassis ground
500V
1 kV
Surge voltage on
inhibit input, ready-
and buffering contacts
and PC-mode selector
EN 61000-4-5 Signals chassis ground 1 kV
Conducted disturbance EN 61000-4-6 0.15…80 MHz 10V
EMC Emission
Conducted
emission IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Input lines Limits for DC power ports acc.
EN 61000-6-3 fulfilled
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Output lines
Radiated emission EN 55011, EN 55022 Class B
This device complies with FCC Part 15 rules. Operation is subjected to following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Switching Frequencies The unit has two converters with two different switching frequencies and
one switch-mode current limiter included.
100 kHz Boost Converter (active only in buffer mode) Switching frequency 1
78 kHz Electronic output current limitation Switching frequency 2
19.5 kHz Charger Switching frequency 3
