Rockwell Automation Allen-Bradley 1606-XLE240E User manual

Power Supply - 24V, 10 A,
240 W, Single-phase Input
Catalog Numbers 1606-XLE240E, 1606-XLE240EC,
1606-XLE240EL, 1606-XLE240EH, 1606-XLE240ED
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Power Supply - 24V, 10 A, 240 W, Single-phase Input Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential
Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory
requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 3
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instructions for DC Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DC OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Efficiency and Power Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mean Time Between Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Terminals and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Daisy Chaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Front Side User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Other Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wall/Panel Mount Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Side Mount Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Redundancy Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Redundancy Module with Automated Load Sharing . . . . . . . . . . . . . . . . 25
Peak Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Back-feeding Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
External Input Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Output Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Parallel Use to Increase Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parallel Use for Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1+1 Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
N+1 Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Inductive and Capacitive Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Charging Of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation On Two Phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Use in a Tightly Sealed Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mounting Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Notes:

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 5
Terminology and
Abbreviations
Unless otherwise noted, all values in this document are typical values under
the following conditions: 24V, 10 A, 230V AC, 50 Hz, 25 °C (77 °F) ambient
temperature, and after a 5 minute run-in time.
Product Overview The 1606-XLE units are high-end power supplies in a medium price range that
do not compromise quality, reliability, and performance. The XLE Series is
part of the Bulletin 1606 power supply family. The most outstanding features of
XLE240 series are the high efficiency, advanced inrush current limitation,
active PFC, and wide operational temperature range.
The XLE Series includes all essential basic functions. The devices have a power
reserve of 20% included, which may even be used continuously at
temperatures up to 45 °C (113 °F). Additionally, the 1606-XLE240 can deliver
three times the nominal output current for at least 12 ms, which helps to trip
fuses on faulty output branches.
This unit is suitable for nearly every situation because of its high immunity to
transients and power surges, low electromagnetic emission, DC OK relay
contact, and a large international approval package for various applications.
Power supply features:
• AC 100…240V Wide-range Input
• Width only 39 mm (1.54 in.)
• Efficiency up to 95.2%
• Excellent Partial Load Efficiency
• 20% Output Power Reserves
• Safe HiccupPLUS Overload Mode
• Easy Fuse Breaking due to High Overload Peak Current
• Active Power Factor Correction (PFC)
• Minimal Inrush Current Surge
• Full Power From -25…+60 °C (-13…+140 °F)
• DC OK Relay Contact
Term, Abbreviation,
or Symbol Definition
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol.
The symbol for Protective Earth. This symbol has the same meaning as PE.
Earth, Ground This document uses the term ‘earth’which is the same as the U.S. term ‘ground.’
4000V AC A value with the unit (V AC) at the end is a momentary value without any additional tolerances
included.
50 Hz vs. 60 Hz As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50 Hz mains frequency.
AC 120V parameters are valid for 60 Hz mains frequency.
typ A typical value.
nom A nominal value.
— (alone in a table
cell) A dash alone in a table cell indicates that there is no information to be included in that cell.

6Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Specifications
Catalog Numbers
Attributes Values Notes
Output voltage DC 24V Nominal
Adjustment range 24…28V Factory setting 24.1V
Output current
12.0…10.3 A Below +45 °C (113 °F) ambient
10.0…8.6 A At +60 °C (140 °F) ambient
7.5…6.5 A At +70 °C (158 °F) ambient
Derate linearly from 45…70 °C (113…158 °F)
Input voltage AC AC 100…40V -15% / +10%
Mains frequency 50…60 Hz ±6%
Input current AC 2.15 / 1.13 A At 120 / 230V AC
Power factor 0.99 / 0.97 At 120 / 230V AC
Input voltage DC DC 110…150V ±20%
For power supplies:
1606-XLE240E,
1606-XLE240EC
1606-XLE240EL
1606-XLE240EH
DC 110…300V ±20% For power supply 1606-XLE240EP
Input current DC 2.35 A At 110V DC
2.35 / 0.84 A At 110 / 300V DC
Input inrush current 6 / 9 A pk At 40 °C (104 °F) 120 / 230V AC
Efficiency 93.6 / 95.2% At 120 / 230V AC
Losses 16.4 / 12.1 W At 120 / 230V AC
Hold-up time 37 / 37 ms At 120 / 230V AC
Temperature range -25…+70 °C (-13…+158 °F) —
Size (w x h x d) 39 x 124 x 117 mm
(1.54 x 4.88 x 4.61 in.) Without DIN rail
Weight 600 g (1.3 lb) —
Catalog Number Description
1606-XLE240E Power supply, screw terminals
1606-XLE240EC Power supply, screw terminals, conformal coated printed circuit boards
1606-XLE240EL Power supply, spring-clamp terminals
1606-XLE240EH Power supply, push-in terminals
1606-XLE240EP Power supply, screw terminals, extended DC input range
1606-XLA-XLE Wall/panel mount bracket
1606-XLA-S44 Side mount bracket

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 7
AC Input
Attributes Values Notes
AC input Nom AC 100…240V Suitable for TN-, TT-, and IT mains networks
AC input range Min 85…264V AC Continuous operation
Min 264…300V AC For 500 ms max
Allowed voltage L or N to earth Max 300V AC Continuous according to IEC 62477-1
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 80V AC Steady-state value, see Figure 1
Shut-down voltage Typ 70V AC Steady-state value, see Figure 1
Typ 55V AC Dynamic value for 250 ms max
External input protection — See recommendations in External Input Protection on page 27.
Attributes Values Notes
100V AC 120V AC 230V AC
Input current Typ 2.60 A 2.15 A 1.13 A At 24V, 10 A, see Figure 3
Power factor(1)
(1) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
Typ 0.99 0.99 0.97 At 24V, 10 A, see Figure 4
Crest factor(2)
(2) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
Typ 1.5 1.5 1.65 At 24V, 10 A
Start-up delay Typ 300 ms 290 ms 240 ms See Figure 2
Rise time
Typ 30 ms 30 ms 30 ms At 24V, 10 A constant current load, 0 mF load capacitance,
see Figure 2
Typ 75 ms 75 ms 75 ms At 24V, 10 A constant current load, 10 mF load capacitance,
see Figure 2
Turn-on
overshoot Max 200 mV 200 mV 200 mV See Figure 2
External input
protection —SeerecommendationsinExternal Input Protection on page 27.

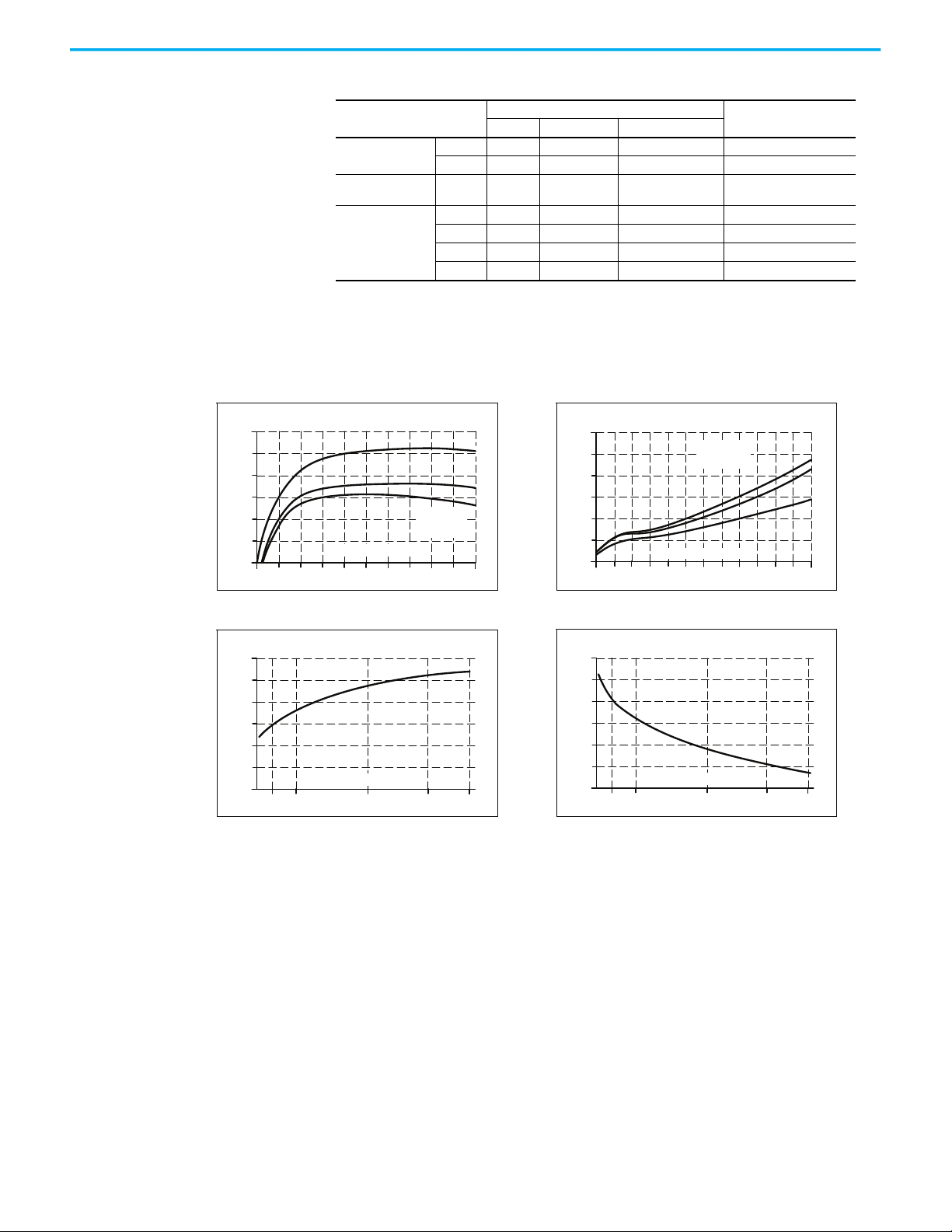

Figure 1 - Input Voltage Range Figure 2 - Turn-on Behavior, Definitions
Figure 3 - Input Current vs. Output Current at 24V Output Voltage Figure 4 - Power Factor vs. Output Current at 24V Output Voltage
Turn-on
85V
Rated
input range
500 ms max
V
IN
P
OUT
300V AC264V
Shut-down
Start-up
delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
12 A
123456789
0
0.5
1.0
1.5
2.0
2.5
3A
Input Current, typ.
10 11
a) 100V AC
b) 120V AC
c) 230V AC
b
a
c
Output Current
Power Factor, typ
123456789 12A
0.75
0.8
0.85
0.9
0.95
1.0
10 11
Output Current
(a) 100V AC,
(b) 120V AC,
(c) 230V AC
(a)
(b)
(c)

8Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
DC Input

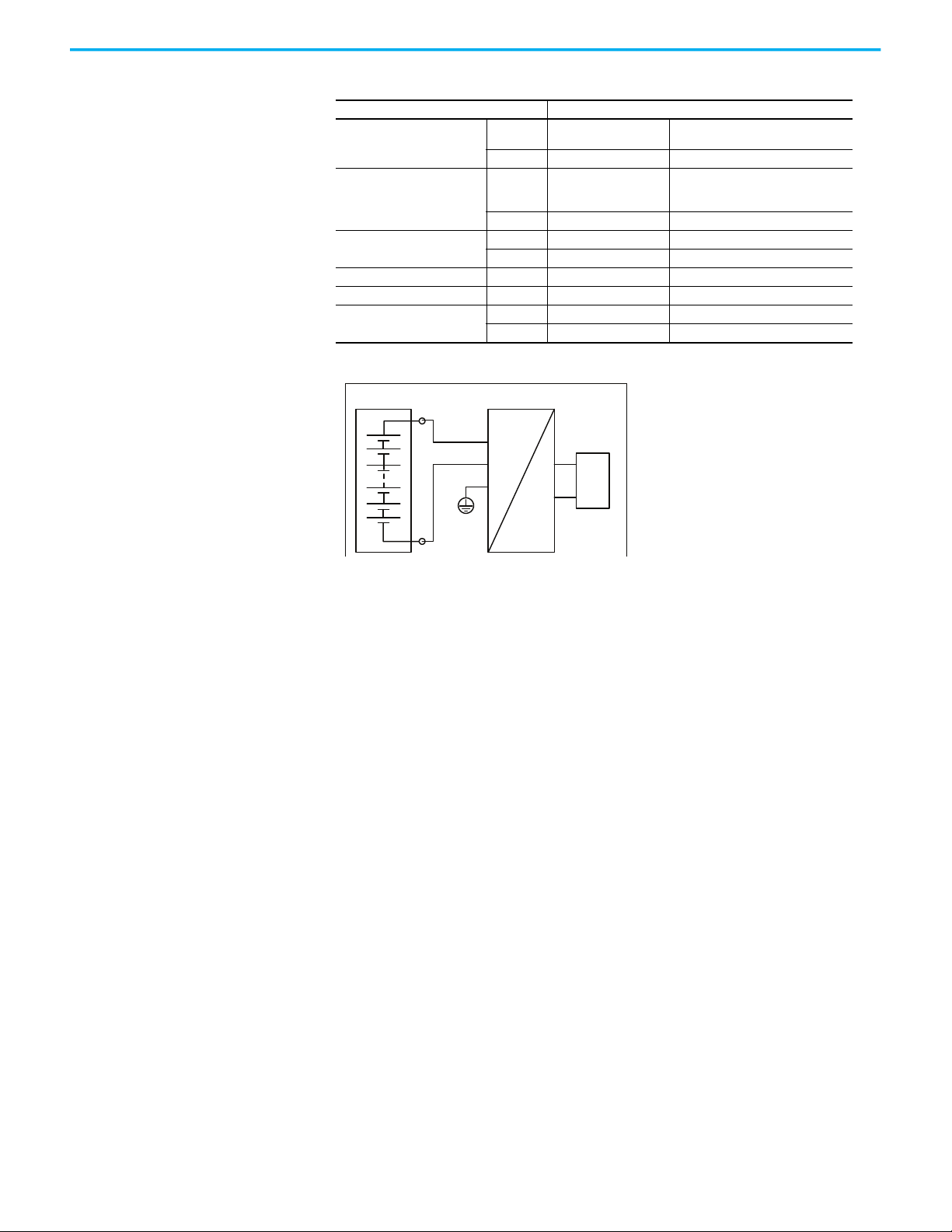

Figure 5 - Wiring for DC Input
Instructions for DC Use
1. Use a battery or a similar DC source. A supply from the intermediate DC-
bus of a frequency converter is not recommended and can cause a
malfunction or damage the unit.
2. Connect +pole to L and –pole to N.
3. Connect the PE terminal to an earth wire or to the machine ground.
Attributes Values Notes
DC input Nom DC 110…150V ±20% For 1606-XLE240E, 1606-XLE240EC,
1606-XLE240EL, and 1606-XLE240EH
Nom DC 110…300V ±20% For 1606-XLE240EP
DC input range Min 88…180V DC For 1606-XLE240E, 1606-XLE240EC,
1606-XLE240EL, and 1606-XLE240EH,
continuous operation
Min 88…360V DC For 1606-XLE240EP
DC input current Typ 2.35 A At 110V DC, at 24V, 10 A
Typ 0.84 A At 300V DC, at 24V, 10 A
Allowed Voltage L/N to Earth Max 375V DC Continuous, according to IEC 62477-1
Turn-on voltage Typ 80V DC Steady state value
Shut-down voltage Typ 70V DC Steady state value
Typ 55V DC Dynamic value for 250 ms max
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 9
Input Inrush Current An active inrush limitation circuit (NTCs, which are bypassed by a relay
contact) limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
Attributes Values
100V 120V 230V Notes
Inrush current
Max 11 A pk 7 A pk 11 A pk At 40 °C (104 °F), cold start
Typ 9 A pk 6 A pk 6 A pk At 25 °C (77 °F), cold start
Typ 9 A pk 6 A pk 9 A pk At 40 °C (104 °F), cold start
Inrush energy Max 0.1 A²s 0.1 A²s 0.4 A²s At 40 °C (104 °F), cold start
Figure 6 - Typical Turn-on Behavior at Nominal Load,
120V AC Input, and 25 °C (77 °F) Ambient Figure 7 - Typical Turn-on Behavior at Nominal Load, 230V AC Input, and 25 °C (77 °F) Ambient
50 ms/DIV
Input current
2 A/DIV
Input voltage
250V/DIV
Output voltage 20V/DIV
6 A
50 ms/DIV
Input current
2 A/DIV
Input voltage
500V/DIV
Output voltage 20V/DIV
6 A

10 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Output
Figure 10 - Short-circuit on Output, HiccupPLUS Mode, Typ
Attributes Values Notes
Output voltage Nom 24V —
Adjustment range
Min 24…28V Guaranteed value
Max 30.0V This is the max output voltage that can occur at the clockwise end position of the potentiometer due to tolerances. It is
not guaranteed that this value can be achieved.
Factory settings Typ 24.1V ±0.2%, at full load and cold unit
Line regulation Max 10 mV 85…300V AC
Load regulation Max 50 mV 0…12 A, static value, see Figure 8
Ripple and noise voltage Max 50 mVpp Bandwidth 20 Hz…20 MHz, 50 Ω
Output current
Nom 12 A(1) At 24V and an ambient temperature below 45 °C (113 °F), see Figure 22 on page 18.
Nom 10 A At 24V and 60 °C (140 °F) ambient temperature, see Figure 8
Nom 7.5 A At 24V and 70 °C (158 °F) ambient temperature, see Figure 8
Nom 10.3 A(1) At 28V and an ambient temperature below 45 °C (113 °F), see Figure 22 on page 18
Nom 8.6 A At 28V and 60 °C (140 °F) ambient temperature, see Figure 8
Nom 6.45 A At 28V and 70 °C (158 °F) ambient temperature, see Figure 22 on page 18
Typ 30 A For minimal 12 ms once every 5 seconds, see Figure 9.The output voltage stays above 20V. See Peak Current Capability
on page 26 for more peak current measurements. For AC 100V mains, the pulse length is shorter than 12 ms.
Overload behavior — Continuous current Output voltage above 13V DC, see Figure 8
—Hiccup
PLUS mode(2) Output voltage below 13V DC, see Figure 8
Short-circuit current
Min 12.5 A(3) Load impedance <45 mΩ, see Figure 10
Max 15.5 A(3) Load impedance <45 mΩ, see Figure 10
Max 5 A Average (R.M.S.) current, load impedance 50 mΩ, see Figure 10
Min 28 A Up to 12 ms, load impedance <45 mΩ, see Figure 9
Typ 30.5 A Up to 12 ms, load impedance <45 mΩ, see Figure 9
Output capacitance Typ 4400 μF Included inside the power supply
(1) Power Boost: This power/ current is continuously allowed up to an ambient temperature of 45 °C (113 °F). Above this temperature, do not use this power or current longer than a duty cycle
of 10% and/or not longer than 1 minute every 10 minutes.
(2) HiccupPLUS Mode: At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2 s. After this, the output is switched off for
approximately 18 s before a new start attempt is automatically performed. This cycle is repeated as long as the overload exists. If the overload has been cleared, the device operates
normally. See Figure 10.
(3) Discharge current of output capacitors is not included.
Figure 8 - Output Voltage vs. Output Current, Typ Figure 9 - Dynamic Output Current Capability, Typ
Output Voltage
0
0 12.5
4
8
12
28V
16
20
24
20 A7.52.5 5 10 15 17.5
Adjustment
Range
Output Current
Continuous
current
Factory
setting
Hiccup
PLUS
mode
Output Voltage (dynamic behavior, < 12 ms)
0
0
4
8
12
28V
16
20
24
50 A2010 30 405 15253545
Adjustment
Range
Output Current
Output
Current
0
14 A
18 s 18 s
18 s 2 s 2 s
2 s
t
Short -circuit Normal
operation
Normal
operation

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 11
Hold-up Time
DC OK Relay Contact This feature monitors the output voltage on the output terminals of a running
power supply.
Figure 13 - DC OK Relay Contact Behavior
Attributes Values Notes
100V AC 120V AC 230V AC
Hold-up Time
Typ 73 ms 73 ms 73 ms At 24V, 5 A, see Figure 11
Min 55 ms 55 ms 55 ms At 24V, 5 A, see Figure 11
Typ 37 ms 37 ms 37 ms At 24V, 10 A, see Figure 11
Min 28 ms 28 ms 28 ms At 24V, 10 A, see Figure 11
Figure 11 - Hold-up Time vs. Input Voltage Figure 12 - Shutdown Behavior, Definitions
0
10
20
30
40
80 ms
90 120 155 190 230V AC
Input Voltage
50
60
Hold-up Time
70
a
b
c
d
a) 24V 5 A typ
b) 24V 5 A min
c) 24V 10 A typ
d) 24V 10 A min
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage
Attributes Descriptions
Contact closes As soon as the output voltage reaches 90% typ of the adjusted output voltage level.
Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage. Short dips are
extended to a signal length of 100 ms. Dips shorter than 1 ms are ignored.
Switching hysteresis 1V
Contact ratings Maximal 60V DC 0.3 A, 30V DC 1 A, 30V AC 0.5 A, resistive load
Minimal permissible load: 1 mA at 5V DC
Isolation voltage See Dielectric Strength on page 20.
100 ms
0.9* V
ADJ
<
1 ms
10%
open
V
OUT
= V
ADJ
openclosed closed
>
1 ms

12 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Efficiency and Power Loss
Attributes Values Notes
100V AC 120V AC 230V AC
Efficiency Typ 92.9% 93.6% 95.2% At 24V, 10 A
Typ 92.5% 93.4% 95.1% At 24V, 12 A (Power Boost)
Average Efficiency(1)
(1) The average efficiency is an assumption for a typical application where the power supply is loaded with the following:
25% of the nominal load for 25% of the time
50% of the nominal load for 25% of the time
75% of the nominal load for 25% of the time
100% of the nominal load for 25% of the time
Typ 92.5% 93.0% 94.3% 25% at 2.5 A, 25% at 5 A,
25% at 7.5 A. 25% at 10 A
Power losses
Typ 2.5 W 2.1 W 1.8 W At 24V, 0 A
Typ 9.8 W 8.9 W 7.1 W At 24V, 5 A
Typ 18.3 W 16.4 W 12.1 W At 24V, 10 A
Typ 23.4 W 21.7 W 14.8 W At 24V, 12 A (Power Boost)
Figure 14 - Efficiency vs. Output Current at 24V, Typ Figure 15 - Power Losses vs. Output Current at 24V, Typ
Figure 16 - Efficiency vs. Input Voltage at 24V, 10 A, Typ Figure 17 - Power Losses vs. Input Voltage at 24V, 10 A, Typ
Eciency
234567 910 12A
90
91
92
93
94
95
96%
Output Current
811
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
Power Losses
01 34 67 12A
5
0
10
15
20
30W
910
25
2 5 8
Output Current
11
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
Eciency
120 180 230 264V AC
90
91
92
93
Input Voltage
94
95
96%
100
Power Losses
120 180 230 264V AC
10
12
14
16
Input Voltage
18
20
22W
100

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 13
Lifetime Expectancy The lifetime expectancies that are shown in the table indicate the minimum
operating hours (service life) and are determined by the lifetime expectancies
of the built-in electrolytic capacitors. Lifetime expectancy is specified in
operational hours and is calculated according to the manufacturer
specification of the capacitor. The manufacturer of the electrolytic capacitors
only states a maximum life of up to 15 years (131,400 h). Any number that
exceeds this value is a calculated theoretical lifetime, which can be used to
compare devices.
Mean Time Between Failure Mean Time Between Failure (MTBF) is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.
The MTBF value is a statistical representation of the likelihood of a device to
fail. An MTBF value of, for example, 1,000,000 h means that statistically one
unit fails every 100 hours if 10,000 units are installed in the field. However, it
cannot be determined if the failed unit has been running for 50,000 h or only
for 100 h.
For these types of units, the MTTF (Mean Time To Failure) value is the same
value as the MTBF value.
Attributes Values Notes
100V AC 120V AC 230V AC
Lifetime Expectancy
128,000 h 141,000 h 176,000 h At 24V, 5 A and 40 °C (104 °F)
61,000 h 75,000 h 120,000 h At 24V, 10 A and 40 °C (104 °F)
47,000 h 59,000 h 101,000 h At 24V, 12 A and 40 °C (104 °F)
363,000 h 399,000 h 499,000 h At 24V, 5 A and 25 °C (77 °F)
173,000 h 211,000 h 338,000 h At 24V, 10 A and 25 °C (77 °F)
132,000 h 166,000 h 286,000 h At 24V, 12 A and 25 °C (77 °F)
Attributes Values Notes
100V AC 120V AC 230V AC
MTBF SN 29500,
IEC 61709
550,000 h 560,000 h 661,000 h At 24V, 10 A and 40 °C (104 °F)
1,003,000 h 1,017,000 h 1,176,000 h At 24V, 10 A and 25 °C (77 °F)
MTBF MIL HDBK 217F
188,000 h 188,000 h 213,000 h At 24V, 10 A and 40 °C (104 °F);
Ground Benign GB40
252,000 h 252,000 h 290,000 h At 24V, 10 A and 25 °C (77 °F);
Ground Benign GB25
40,000 h 40,000 h 47,000 h At 24V, 10 A and 40 °C (104 °F);
Ground Fixed GF40
51,000 h 51,000 h 61,000 h At 24V, 10 A and 25 °C (77 °F);
Ground Fixed GF25

14 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Terminals and Wiring The terminals are IP20 fingersafe constructed and suitable for field wiring and
factory wiring.
Table 1 - 1606-XLE240E, -XLE240EC, -XLE240EP
Table 2 - 1606-XLE240EL
Table 3 - 1606-XLE240EH
Attributes Values
Input Output DC Signal
Type Screw termination Screw termination Push-in termination
Solid wire 6 mm2max 6 mm2max 1.5 mm2max
Stranded wire 4 mm2max 4 mm2max 1.5 mm2max
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max
(including ferrules) 2.8 mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Recommended tightening torque 1 N•m max (9 lb•in max) 1 N•m max (9 lb•in max) —
Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.) 7 mm (0.28 in.)
Screwdriver 3.5 mm (0.14 in.) slotted or
cross-head No 2 3.5 mm (0.14 in.) slotted or cross-head No 2 3 mm (0.12 in.) slotted to open the spring
Attributes Values
Input Output DC Signal
Type Quick-connect spring-
clamp termination Quick-connect spring- clamp termination Push-in termination
Solid wire 6 mm2max 6 mm2max 1.5 mm2max
Stranded wire 4 mm2max 4 mm2max 1.5 mm2max
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max
(including ferrules) 2.8 mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Wire stripping length 10 mm (0.4 in.) 10 mm (0.4 in.) 7 mm (0.28 in.)
Screwdriver — — 3 mm (0.12 in.) slotted to
open the spring
Attributes Values
Input Output DC Signal
Type Push-in termination Push-in termination Push-in termination
Solid wire 2.5 mm2max 2.5 mm2max 1.5 mm2max
Stranded wire 2.5 mm2max 2.5 mm2max 1.5 mm2max
Stranded wire with ferrules 1.5 mm2max 1.5 mm2max 1.5 mm2max
American Wire Gauge AWG 24…12 AWG 24…12 AWG 24…16
Wire diameter max
(including ferrules) 2.3 mm (0.09 in.) 2.3 mm (0.09 in.) 1.6 mm (0.06 in.)
Wire stripping length 10 mm (0.4 in.) 10 mm (0.4 in.) 7 mm (0.28 in.)
Screwdriver 3.0 mm (0.12 in.) slotted to
open the spring 3.0 mm (0.12 in.) slotted to open the spring 3 mm (0.12 in.) slotted to open the spring

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 15
Wiring Instructions
1. Use appropriate copper cables that are designed for minimum operating
temperatures of:
• 60 °C (140 °F) for ambient up to 45 °C (113 °F)
• 75 °C (167 °F) for ambient up to 60 °C (140 °F)
• 90 °C (194 °F) for ambient up to 70 °C (158 °F)
2. Follow national installation codes and installation regulations.
3. Ensure that all strands of a stranded wire enter the terminal connection.
4. Securely tighten unused terminal compartments.
5. Ferrules are allowed.
Daisy Chaining Daisy chaining (jumping from one power supply output to the next) is allowed
for catalog numbers: 1606-XLE240E, -XLE240EC, -XLE240EP, and -XLE240EL.
Daisy chaining is not allowed for 1606-XLE240EH.
Daisy chaining is allowed as long as the average output current through one
terminal pin does not exceed 25 A. If the current is higher, use a separate
distribution terminal block as shown in Figure 19.
Functional Diagram Figure 20 - Functional Diagram
Figure 18 - Daisy Chaining of Outputs Figure 19 - Using Distribution Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
max 25 A
continuous
Distribution
Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
+
+
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectier
Inrush Current Limiter
V
OUT
L
N
DC-ok
Contact
DC-ok
LED
DC-ok
Relay
-

16 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Front Side User Elements Figure 21 - Front Side User Elements
1606-XLE240E 1606-XLE240EC 1606-XLE240EL 1606-XLE240EH
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1606-XLE240EP User
Element Description
1 Input Terminals
1606-XLE240E, 1606-XLE240EC, 1606-XLE240EP: Screw terminals
1606-XLE240EL: Spring-clamp terminals
1606-XLE240EH: Push-in terminals
N, L Line input, PE (Protective Earth) input
2OutputTerminals
(two identical + poles and three identical - poles)
1606-XLE240E, 1606-XLE240EC, 1606-XLE240EP: Screw terminals
1606-XLE240EL: Spring-clamp terminals
1606-XLE240EH: Push-in terminals
+ Positive output
– Negative (return) output
3 Output Voltage Potentiometer
Open the flap to adjust the output voltage. The factory setting is 24.1V.
4 DC OK Status Indicator (green)
On when the output voltage is in range and the DC OK contact is closed.
5 DC OK Relay Contact (push-in terminals)
Monitors the output voltage of the running power supply. See DC OK Relay Contact on
page 11 for details.
1
2
3
4
5

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 17
Electromagnetic
Compatibility
The power supply is suitable for applications in industrial, residential,
commercial, and light industrial environments.
The following table provides electromagnetic compatibility (EMC) immunity
information according to generic standards EN 61000-6-1 and EN 61000-6-2.
The following table provides EMC Emissions information according to generic
standards EN 61000-6-3 and EN 61000-6-4.
The following table provides switching frequencies.
Attributes Standards Values Criteria(1)
(1) Criterion A: Power supply shows normal operation behavior within the defined limits.
Criterion C: Temporary loss of function is possible. Power supply may shut down and restart by itself. No damage or hazards
for the power supply occur.
Electrostatic discharge EN 61000-4-2 Contact discharge Air discharge 8 kV Criterion A
15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4
Input lines 4 kV Criterion A
Output lines 2 kV Criterion A
DC OK signal (coupling clamp) 2 kV Criterion A
Surge voltage on input EN 61000-4-5 L to N 2 kV Criterion A
L to PE, N to PE 4 kV Criterion A
Surge voltage on output EN 61000-4-5 + to - 1 kV Criterion A
+/- to PE 2 kV Criterion A
Surge voltage on Signals EN 61000-4-5 DC OK Signal to PE 1 kV Criterion A
Conducted disturbance EN 61000-4-6 0.15…80 mHz 20V Criterion A
Mains voltage dips EN 61000-4-11
0% of 100V AC 0V AC, 20 ms Criterion A
40% of 100V AC 40V AC, 200 ms Criterion C
70% of 100V AC 70V AC, 500 ms Criterion C
0% of 200V AC 0V AC, 20 ms Criterion A
40% of 200V AC 80V AC, 200 ms Criterion A
70% of 200V AC 140V AC, 500 ms Criterion A
Voltage interruptions EN 61000-4-11 0% of 200V AC (=0V) 5000 ms Criterion C
Voltage sags SEMI F47 0706
Dips on the input voltage according to SEMI F47 standard
80% of 120V AC (96V AC) 1000 ms Criterion A
70% of 120V AC (84V AC) 500 ms Criterion A
50% of 120V AC (60V AC) 200 ms Criterion A
Powerful transients VDE 0160 Over entire load range 750V, 0.3 ms Criterion A
Attributes Standards Notes
Conducted emission input lines EN 55011, EN 55015, EN 55022, FCC
Part 15, CISPR 11, CISPR 22 Class B
Conducted emission output lines(1)
(1) For information only, not mandatory for EN 61000-6-3.
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Limits for DC power port according to EN
61000-6-3 fulfilled
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current EN 61000-3-2 Class A fulfilled between 0…12 A load Class
C fulfilled between 6…12 A load
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled(2)
(2) Tested with constant current loads, non-pulsing.
This device complies with FCC Part 15 rules.
Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation
Converters Frequencies Notes
PFC converter 110 kHz Fixed frequency
Main converter 84…140 kHz Output load dependent
Auxiliary converter 60 kHz Fixed frequency

18 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Environment
Attributes Values Notes
Operational temperature(1)
(1) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2 cm
(0.79 in.) below the unit.
-25…+70 °C (-13...+158 °F) Reduce output power according to Figure 22.
Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation
Output derating 3.2 W/1 °C (3.2 W/1.8 °F) From 45…60 °C (113…140 °F)
6 W/1 °C (6 W/1.8 °F) From 60…70 °C (140…158 °F)
Humidity 5…95% r.h. According to IEC 60068-2-30. Do not energize while
condensation is present.
Vibration sinusoidal(2)
(2) Tested in combination with DIN rails according to EN 60715 with a height of 15 mm (0.59 in.) and a thickness of 1.3 mm (0.05 in.)
and standard orientation.
2…17.8 Hz: ±1.6 mm (0.06 in.);
17.8…500 Hz: 2 g 2 hours / axis According to IEC 60068-2-6
Shock(2) 30 g 6 ms, 20 g 11 ms,
3 bumps / direction,
18 bumps in total According to IEC 60068-2-27
Altitude 0…2000 m (0…6560 ft) Without any restrictions
2000…6000 m (6560…19,685 ft) Reduce output power or ambient temperature, see Figure 23.
Altitude derating 15 W/1000 m (15 W/ 3281 ft) or
5 °C/1000 m (9 °F/ 3281 ft) Above 2000 m (6500 ft), see Figure 23
Overvoltage category
III According to IEC 62477-1 for altitudes up to 2000 m (6560 ft)
II According to IEC 62477-1 for altitudes from 2000…6000 m
(6560…19685 ft)
Degree of pollution 2 According to IEC 62477-1, not conductive
LABS compatibility The unit does not release any silicone or other LABS-critical substances and is suitable for use in
paint shops.
Corrosive gases ISA-71.04-1985, Severity Level G3, IEC 60068-2-60 Test Ke Method 4
Audible noise Some audible noise may be emitted from the power supply during no load, overload, or short
circuit.
Figure 22 - Output Current vs. Ambient Temperature Figure 23 - Output Current vs. Altitude
Allowed Output Current at 24V
0
-25 0 20 40 70 °C
2 A
4 A
6 A
8 A
10 A
12 A
60
A
Ambient Temperature
A... 85 to 264V AC, continuous
B... short term
B
0
0 2000 m 4000 m 6000 m
2 A
4 A
6 A
8 A
10 A
12 A
Allowed Output Current at 24V
Altitude
B
C
A...Tamb<60 °C
B...Tamb<50 °C
C...Tamb<40 °C
D...Shortterm
A
D

Rockwell Automation Publication 1606-RM101A-EN-P - July 2020 19
Protection Features
Safety Features
Attributes Values Notes
Output protection Electronically protected against overload, no-load, and short-circuits. If there is a
protection event, audible noise may occur.
Output overvoltage
protection 30.5V DC typ, 32V DC max If there is an internal power supply anomaly, a redundant
circuit limits the max output voltage. The output shuts down
and automatically attempts to restart.
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 4 mm (0.16 in.) For example, screws, and small parts
Over-temperature
protection Yes
Output shuts down and the power supply automatically
restarts. The temperature sensor is installed on critical
components inside the unit and turns off the unit in safety
critical situations. Safety critical situations can include
when derating requirements are not observed, ambient
temperature is too high, ventilation is obstructed, or the
derating requirements for a mounting orientation are not
followed. There is no correlation between the operating
temperature and turn-off temperature since this is
dependent on input voltage, load, and installation methods.
Input transient protection MOV (Metal Oxide Varistor) For protection values, see Electromagnetic Compatibility on
page 17.
Internal input fuse Included Slow-blow high-braking capacity fuse that is not user
replaceable.
Attributes Values Notes
Input / output
separation
Double or reinforced galvanic isolation
SELV IEC/EN 60950-1
PELV IEC/EN 60204-1, EN 62477-1, IEC 60364-4-41
Class of
protection I PE (Protective Earth) connection required
Isolation
resistance
> 500 MΩ At delivered condition between input and output, measured with 500V DC
> 500 MΩ At delivered condition between input and PE, measured with 500V DC
> 500 MΩ At delivered condition between output and PE, measured with 500V DC
> 500 MΩ At delivered condition between output and DC OK contacts, measured with
500V DC
PE resistance < 0.1 Ω Resistance between PE terminal and the housing in the area of the DIN rail
mounting bracket.
Touch current
(leakage
current)
0.14 mA typ / 0.36 mA typ At 100V AC, 50 Hz, TN-,TT-mains / IT-mains
0.20 mA typ / 0.50 mA typ At 120V AC, 60 Hz, TN-,TT-mains / IT-mains
0.33 mA typ / 0.86 mA typ At 230V AC, 50 Hz, TN-,TT-mains / IT-mains
0.18 mA max / 0.43 mA max At 110V AC, 50 Hz, TN-,TT-mains / IT-mains
0.26 mA max / 0.61 mA max At 132V AC, 60 Hz, TN-,TT-mains / IT-mains
0.44 mA max / 1.05 mA max At 264V AC, 50 Hz, TN-,TT-mains / IT-mains

20 Rockwell Automation Publication 1606-RM101A-EN-P - July 2020
Dielectric Strength The output voltage is floating and has no ohmic connection to the ground. The
manufacturer conducts type and factory tests. Field tests may be conducted in
the field using the appropriate test equipment, which applies the voltage with
a slow ramp (2 s up and 2 s down). Connect all input-terminals together as well
as all output poles before conducting the test. When testing, set the cut-off
current settings to the value in the following table.
Figure 24 - Dielectric Strength
To fulfill the PELV requirements according to EN60204-1 § 6.4.1, we
recommend that either the + pole, the – pole, or another part of the output
circuit shall be connected to the protective earth system. This helps to avoid
situations in which a load starts unexpectedly or cannot be switched off when
unnoticed earth faults occur.
Test Type Time A B C D
Type Test 60 s 2500V AC 4000V AC 1000V AC 500V AC
Factory Test 5 s 2500V AC 2500V AC 500V AC 500V AC
Field Test 5 s 2000V AC 2000V AC 500V AC 500V AC
Cutoff Current Setting — >10 mA >10 mA >20 mA >1 mA
IMPORTANT When testing input to DC OK, ensure that the max voltage between
DC OK and the output is not exceeded (column D). We recommend
connecting DC OK pins and the output pins together when
performing the test.
AD
C
B
B
L
Input DC-ok
13
14
Earth, PE Output
+
-
N
