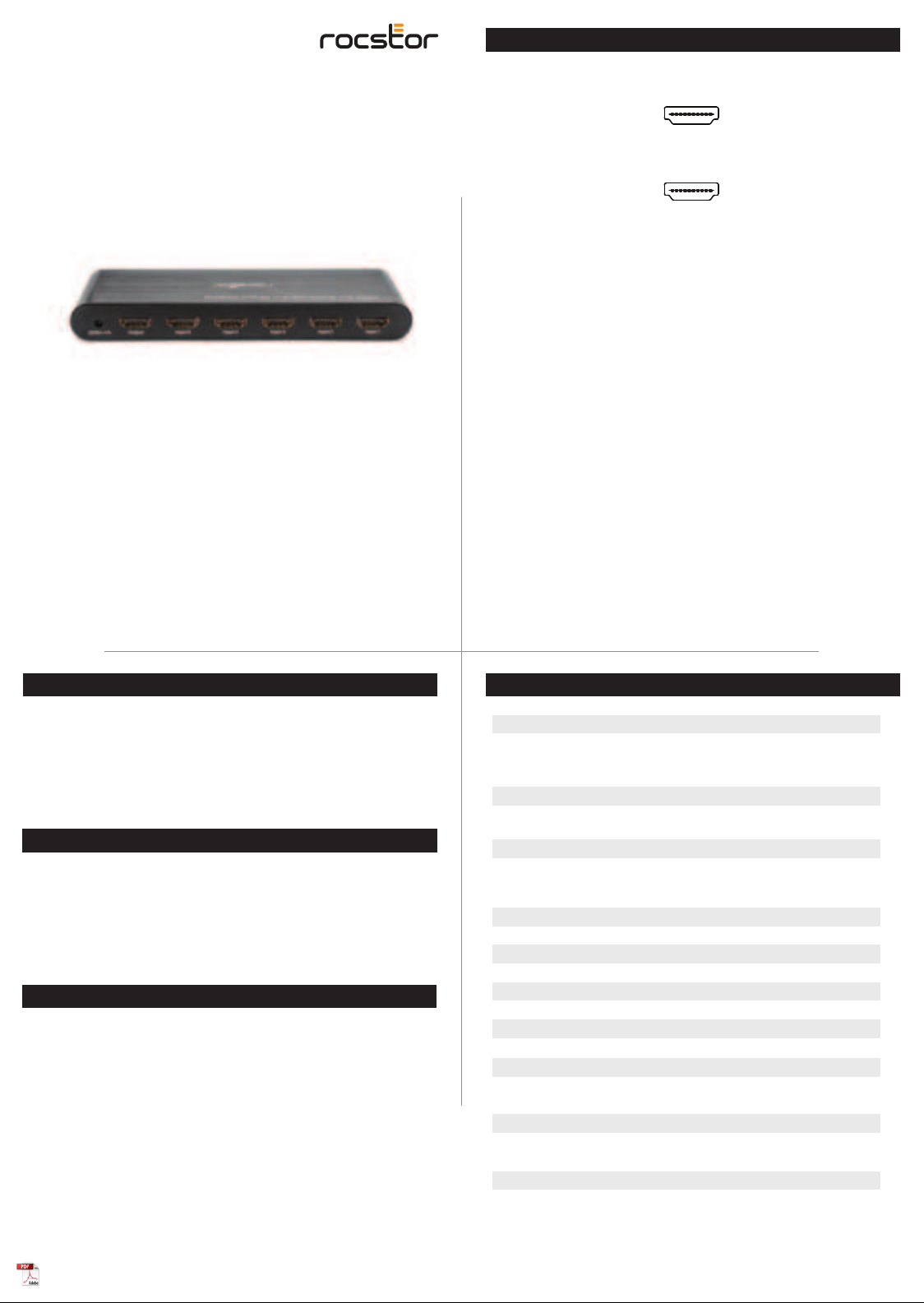

Rocstor Y10A267-A1 User manual

Features
Introduction
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
• Remote control
• 5V/1A Power Adapter
1. Connect the HDMI input source into the HDMI Switcher
*Please refer to connection diagram section
2. Press the button to select the inputs
3. It is recommended to give a 5V DC power supply to the switch unit.
Attention: Insert / Extract cable gently.
This is a premium Rocstor high-performance HDMI UHD Switcher. This HDMI UHD
Switcher not only has the key-press-switching function, but also has intelligent
function.
This HDMI UHD Switcher routes high definition video (in multiple resolutions up to
4kx2k@60Hz) and digital audio from any one of the several sources to display units. All
inputs accommodate the connections of the high definition video sources simultane-
ously, compatible well for DMR-BZT9600, BDP-LX88, SONY FMP-X10-001, nVidia
GTX970,GTX980 series, output sends the high definition audio/video signals to a high
HDMI x4
HDMI x1
• Supports to switch 5 HDMI sources to 1 HDMI display
• Multifunctional on switching: intelligent or mechanical
• Supports highest video resolution up to 4kx2k@60Hz
• Supports Full 3D
• HDCP Pass through
• EDID bypass
Input:
Output:
Specification
System Requirement
Input / Output Connector
Operating Frequency
Maximum Single Link Range
Vertical Frequency Range 24/30/50/60Hz
Video Amplifier Bandwidth 6Gbps/600MHz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p,
4kx2k@30HZ, 4kx2k@60HZ,
Input
Output HDMI 1x
HDMI x5
Warranty 2 Year
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
Regulatory Approvals
Certifications
Power Requirement
External Power Supply 5V/1A
Power Consumption 1.8W
Mechanical
Size(L-W-H) 158x60x18.5mm - (6.2”x2.3”x7.2”)
Weight(Net) 210.7g - (0.46Lbs)
Accessory
User Manual English Version
FCC, CE
Full 3D and 4kx2k@60Hz
®
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
5 Port HDMI® Splitter - 4K 60Hz - supports HDR & (EDID)
Includes 5V 1A power adapter - Gray
User Manual
Y10A267-A1

Technical Support / RMA
Hours: 9:00 am - 5:00 pm PST
Monday to Friday (except holidays)
Tell: [phone] (National and international)
Fax: [phone]
Email: [e-mail]
Support
Warranty Information
Technical support is available to all the registered users of Rocstor products.

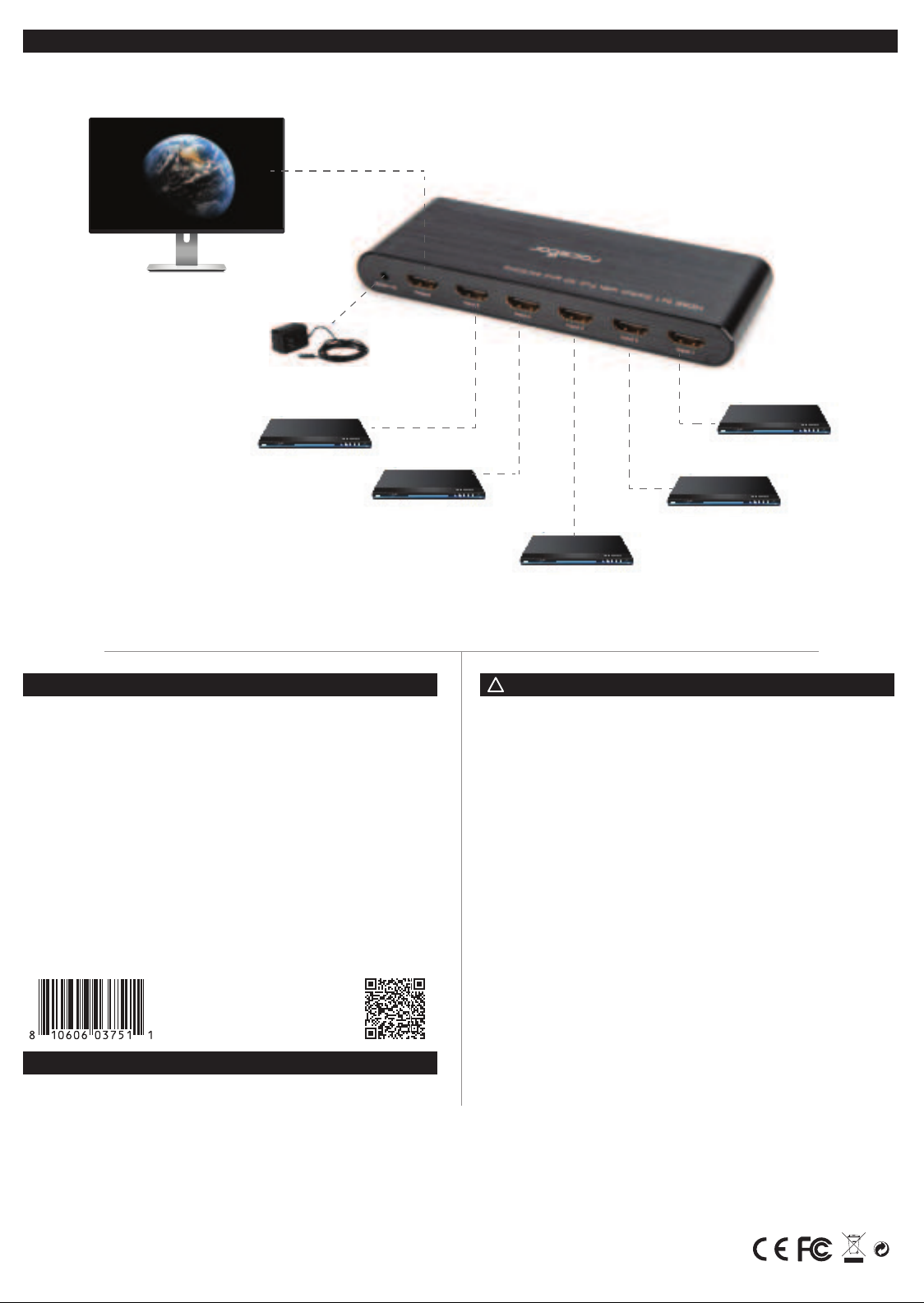

Connection Diagram
Safety Information:
©2021 Rocstroge, Inc. All rights reserved. Rocstor is registered trademark of Rocstorage, Inc.
Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®,
iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are
registered trademarks of Google, LLC. Microsoft® is registered trademarks of Microsoft corporation. Al
other product names and logos mentioned herein may be trademarks of their respective companies.
Thunderbolt is a trademark of Intel Corporation or its subsidiaries. USB Type-C® and USB-C® are
registered trademark of USB Implementers Forum. Feature and specification are subject to change
without notice. All trademarks and registered trademarks are the property of their respective. All
rights reserved.
HDMI Source
HDMI Source
HDMI Source
HDMI Source
HDMI Source
TIMELINE WORLDWIDE PROJECTIONS
M ANUFACTURING O PTIONS
NORTH AMERICA UNITED KINGDOM GERMANY CHINACHINA SOUTH KOREA JAPAN
TIMELINE MANUFACTURING CUSTOMERINTERATION GROWTHFORCAST WORLDWIDEDEVELOPMENT
This statistic showsthe year- over-year
growthof manufacturing and sales
Worldwide. Projections are from
2010to 2060.
Wedelivered $22.0 billion in revenue
and$10.3billion in operating
incomethis past fiscal year.
Wedelivered $26.0 billion in revenue
and$12.5billion in operating
incomethis past fiscal year.
Wedelivered $30.0 billion in revenue
and$16.5billion in operating
incomethis past fiscal year.
Wedelivered $36.0 billion in revenue
and$20.3 billion in operating
incomethis past fiscal year.
Wedelivered $42 billion in revenue
and$26.2 billion in operating
incomethis past fiscal year.
Wedelivered $48 billion in revenue
and$28.8 billion in operating
incomethis past fiscal year.
EXCELLENCEIN SERVICE GLOBALEXCHANGE PARTNERSHIP DIRECTSALES GLOBALCONNECTIONSEXPEDITEDEXECUTION
CUSTOMERSERVICE
Our timeline is a display of a list
of events in chronological order.
It is typically a graphic design
showinga long bar labelled with
dates alongside itself.
Our manufacturing is the production
of merchandise for use or sale
using labourand machines, tools,
chemical and biological processing,
or formulation.
Customer Interaction Management
(CIM) Customer interaction
management is the process followed
by companies to interact with its
customers.
Worldwide teamed up to conduct
a survey of more than 500
respondents focused on creating
effective leaders and preparing
the next generation.
The process of improving some
measure of an enterprise's success.
Business growth can be achieved
either by boosting the top line
or revenue of the business.
HDMI Display
WARNING: Please follow these safety instructions. Failure to do so may result damages or injury.
It is normal that the Rocstor adapter becomes very warm during use.
Please note that:
continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to
reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around
the Rocstor adapter and use care when handling it. Avoid instances where your skin is in extended
contact with the hub when plugged into the host computer. It is not recommended to sleep with the
adapter when plugged into a host computer. Avoid placing the hub adapter under a pillow, blanket,
or your body when connected to a host computer. If you have a medical condition that affects your
ability to detect heat against the body, extra care should be used. Never use the adapter in locations
with water, such as a sink, bathtub, or shower stall. Never connect or disconnect the adapter with wet
hands.
!
Limitation of Liability
In no event shall the liability of Rocstorage, Inc. and Rocstor (or their officers, directors, employees or
agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of
the product exceed the actual price paid for the product. Some states do not allow the exclusion or
limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Warranty Information
This product is backed by a (2) two-year warranty. Rocstor warrants its products against defects in
materials and workmanship for the periods noted, following the initial date of purchase. During this
period, the products may be returned for repair, or replacement with equivalent products at our
discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from
defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
