RODE Microphones HS1 User manual

INSTRUCTION MANUAL
www.rodemic.com

INTRODUCTION
- 3 -
Thank you for investing in the HS1 Headset microphone.
Whether you’re presenting for television or live on-stage, in a 20,000
seat auditorium or in a house of worship, has your needs
covered with the reliable and intuitive HS1.
Featuring the pure, clear audio and low handling noise that
is celebrated for, the HS1 Headset is built to deliver and to last.
Subtle, ergonomic design including three axes of mechanical
adjustment, malleable tube arm and ultra lightweight headband
ensure the perfect fit for each individual.
Knowing that versatility is paramount in any product, we at
have developed the MiCon™ connector system which provides
seamless integration between the HS1 Headset and a wide range
of wireless systems.
Please take the time to visit www.rodemic.com and register your
microphone for warranty.
Peter Freedman
Microphones
Sydney, Australia

FEATURES
- 4 -
ERGONOMIC DESIGN
• Ultra discreet appearance
• Three axes of mechanical adjustment for perfect fit
• Malleable tube arm and headband for fine adjustment
• Ultra lightweight construction for complete comfort
• Right or left side configuration
• Incorporated cable management system
HIGH QUALITY PERFORMANCE
• Ø3.4 mm (Ø0.144”) miniature microphone
• Corrosion resistant stainless steel tube arm
• Incorporated moisture control belt to minimise sweat
contacting the capsule
• Low handling noise
UNIVERSAL COMPATIBILITY
• RØDE MiCon™ connector system provides seamless
integration with a wide range of wireless systems while
maintaining discreet and unobtrusive appearance
• Gold plated connections

HS1 & ACCESSORIES
- 5 -
1. RØDE HS1 Headset
2. Anti-trauma water resistant storage case
3. Water resistant pop filter
4. Mini-furry for high wind protection
5. Shielded, detachable Kevlar® reinforced cable
6. Lapel-style cable management clip
7. Adjustment tools
8. Sanitary cleansing wipes
Compact, interchangeable MiCon™ adaptors available to suit
industry standard wireless systems*
*MiCon™ adaptors sold separately - see rodemic.com/hs1 for a full list of compatibility
1.
2.
3.
4.
6.
8.
7.
5.

SPECIFICATIONS
- 6 -
Acoustic Principle: Permanently polarised condenser
Directional Pattern: Omni-directional (see graph)
Frequency Range: 60 Hz ~ 18 KHz
(see graph)
Output Impedence: 3k ΩTypical
Signal To Noise Ratio: 69 dB
Equivalent Noise: 25 dBA SPL
(per IEC651)
Clipping SPL: 110 dB
Maximum Output: 189 mV**
Sensitivity: -33.5 dB re 1 V/Pa
(1.6 mV @ 94 dB SPL)
± 3 dB @ 1 kHz
Dynamic Range: 85 dB Typical**
Power Requirements: Min 2 V ~ Max 5 V through RØDE wireless
adaptors
P48 through RØDE XLR adaptor
Output Connection: RØDE MiCon™ connector

SPECIFICATIONS
- 7 -
** Calculated from maximum SPL peak before clipping.
All measurements are calculated when powered at 5 V or P48 (RØDE XLR adaptor)
-2.0
-20.0
-10.0
0.0
-2.0
-4.0
-6.0
-8.0
-10.0
-12.0
-14.0
-16.0
-18.0
-20.0
-22.0
-24.0 -25.0
dB rel. 1V/Pa
+5.0
Frequency:
500 Hz:
1000 Hz:
4000 Hz:

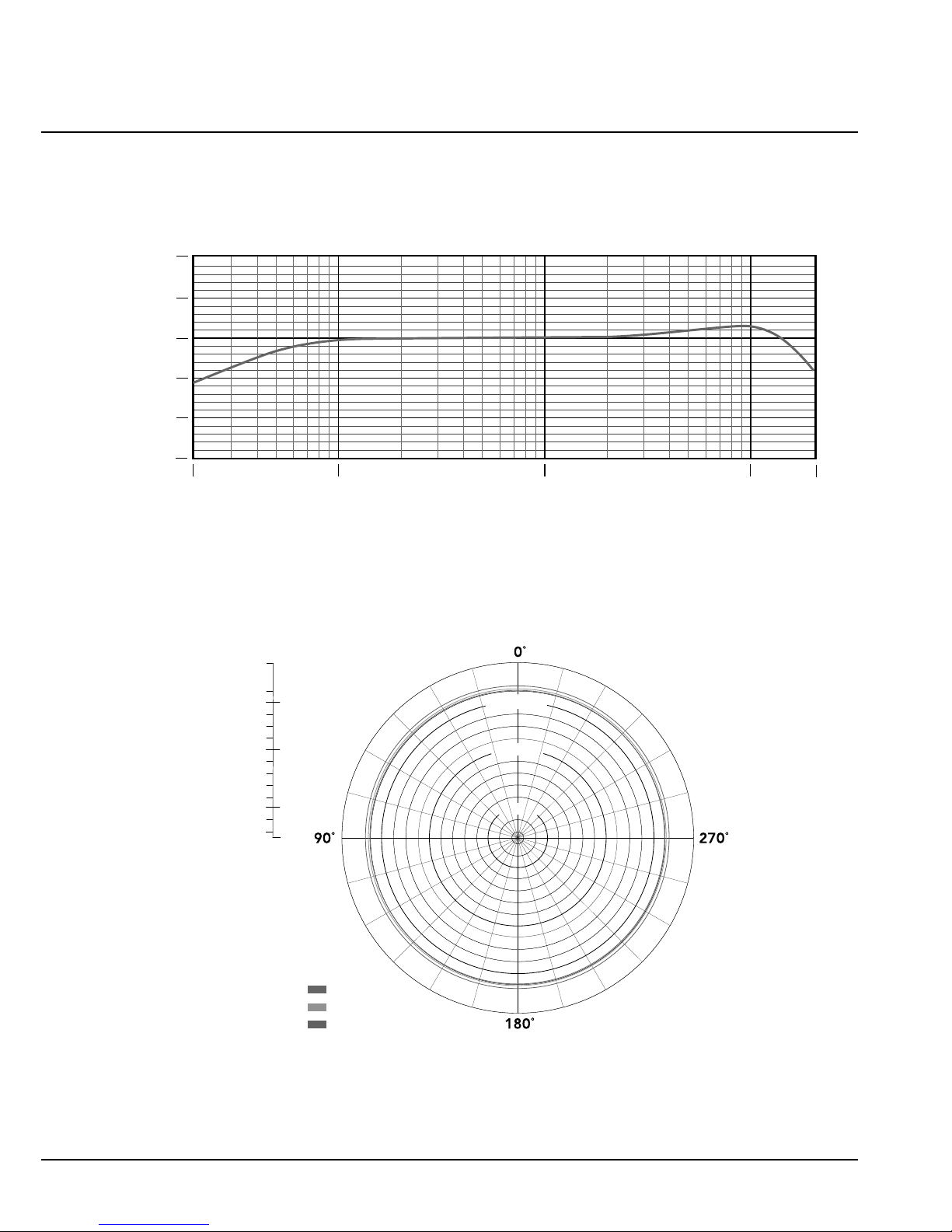

FREQUENCY RANGE
POLAR RESPONSE
dB re 1 V/Pa
20
10
0
-10
-20
-30
20Hz 100 1000 10 000 20 000

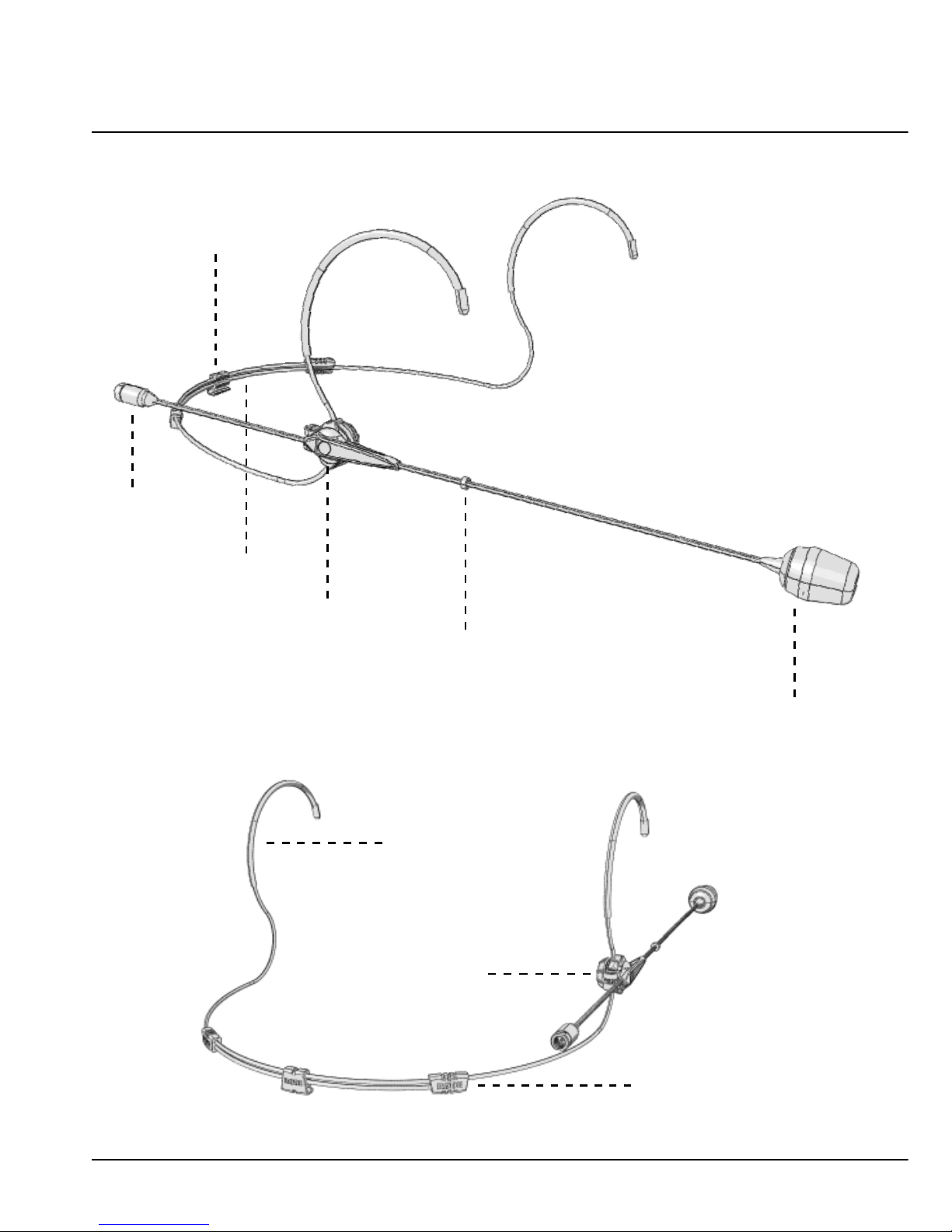

HS1 STRUCTURE
- 8 -
MiCon™
CONNECTION
HEADBAND
CABLE
CONTROL TAB
HEADBAND SIZE
ADJUSTMENT TAB
EAR HOOK
RETAINER
RETAINER
CAP
MOISTURE
CONTROL BELT
MICROPHONE
WITH POP FILTER

MIC PLACEMENT
- 9 -

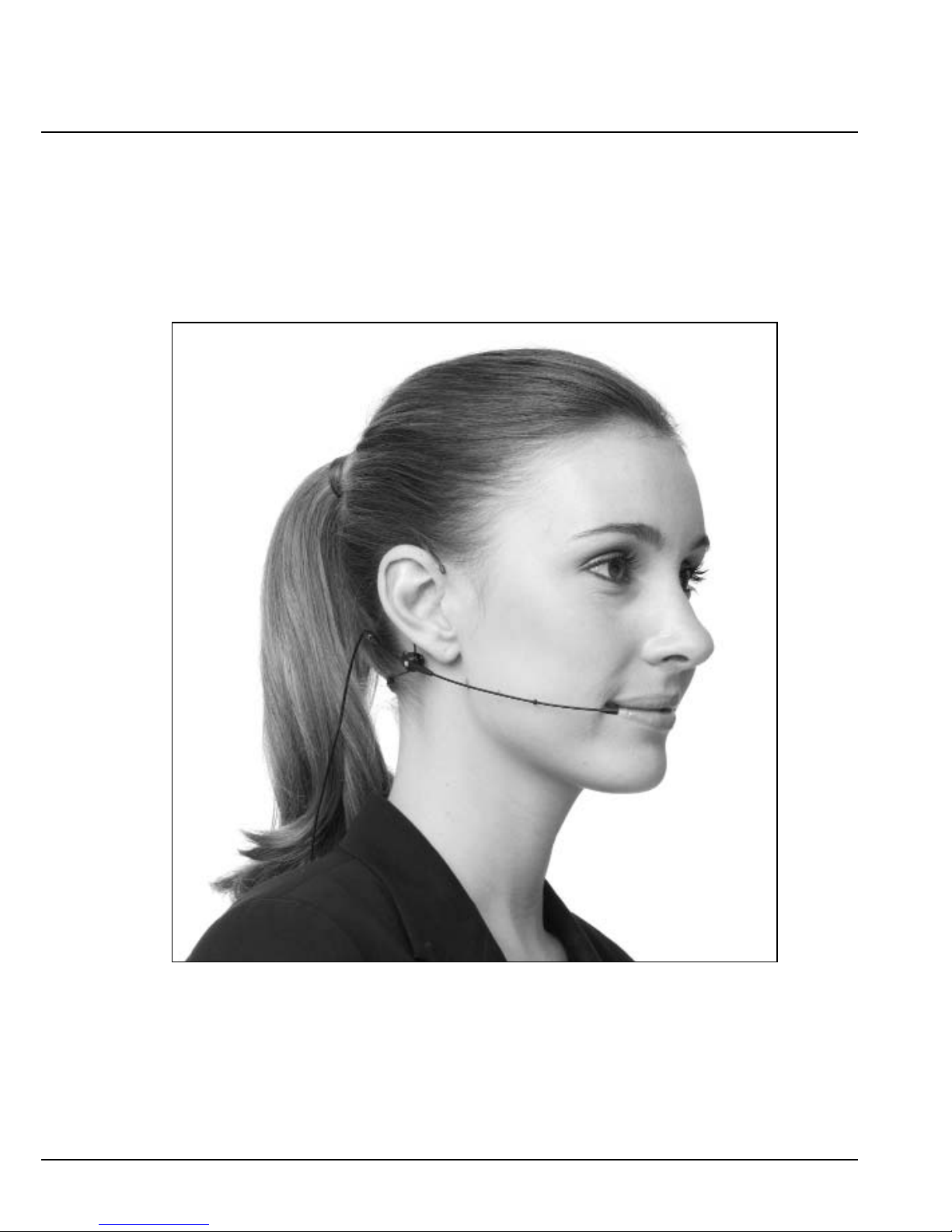

For the best performance, the HS1 microphone should be
positioned just at the corner of the mouth, as close as possible
without being in front of the user’s mouth.
This ensures that the mic is in close proximity to the sound source
without being exposed to possible plosives (gusts of wind noise
caused by hard sounds such as ‘p’ or ‘t’.)

The RODE HS1 has been designed with complete adjustability in
mind, ensuring maximum comfort and security of fit for each user.
Three axes of movement configure the microphone placement for
optimal audio quality.
To custom fit the HS1, you may wish to try on the microphone first.
Hook the headband over your ears and the size of the headband
can be controlled by pushing or pulling the left and right tabs along
the rear of the headset.
Once the current fit is assessed, make any of the following
alterations to the microphone as necessary.
FITTING YOUR HS1
- 10 -
HEADBAND SIZE
ADJUSTMENT TAB

ADJUST THE HEIGHT OF THE HS1
To place the retainer at the ideal position just below and behind
the ear lobe, change the position of the retainer on the headband
wire. To re-position, loosen the retainer cap using the screwdriver
provided in your HS1 case. You will not need to unscrew the
retainer cap completely to allow movement. Once satisfied with the
height of the retainer on the headband, tighten the retainer cap
back in place.
FITTING YOUR HS1
- 11 -
Loosening the retainer cap with provided RØDE screwdriver
RETAINER CAP

FITTING YOUR HS1
- 12 -
PIVOT THE HS1
You may adjust the proximity of the microphone to your mouth
by pivoting the mic. Push the microphone up or down at the
retainer to create a rotating movement until you find the angle that
positions the HS1 microphone closest to your mouth. 300 degrees
of rotation allows for the best possible positioning.
Pivot the HS1 in a rotating movement

FITTING YOUR HS1
- 13 -
ADJUST THE LENGTH OF THE HS1
If the HS1 is extending beyond your mouth, you may alter the
length by pushing the body back through the retainer. Adjust by
holding the mic at the connector and push or pull the microphone
through the retainer clasp. This movement is controlled by friction
so apply a little force if required.
Push or pull the body of the HS1 through the retainer clasp

FITTING YOUR HS1
- 14 -
LEFT/RIGHT CONFIGURATION OF HS1
Depending on personal preference, the HS1 can sit at either the left
or right hand side of the mouth. To change left/right configuration,
unscrew the retainer cap completely using the screwdriver
provided. (This is best done over a table or work surface to ensure
no parts are misplaced).
Remove the clamping plate inside the retainer. Then ease the
microphone to the left and right until it releases from the headband
wire completely.
On the opposite side of the headband, snap the microphone into
place, matching the curves of the retainer and inner screw to the
headband. Place back the clamping plate so that it sits within its
groove in the retainer. Return the retainer cap and screw back into
place.

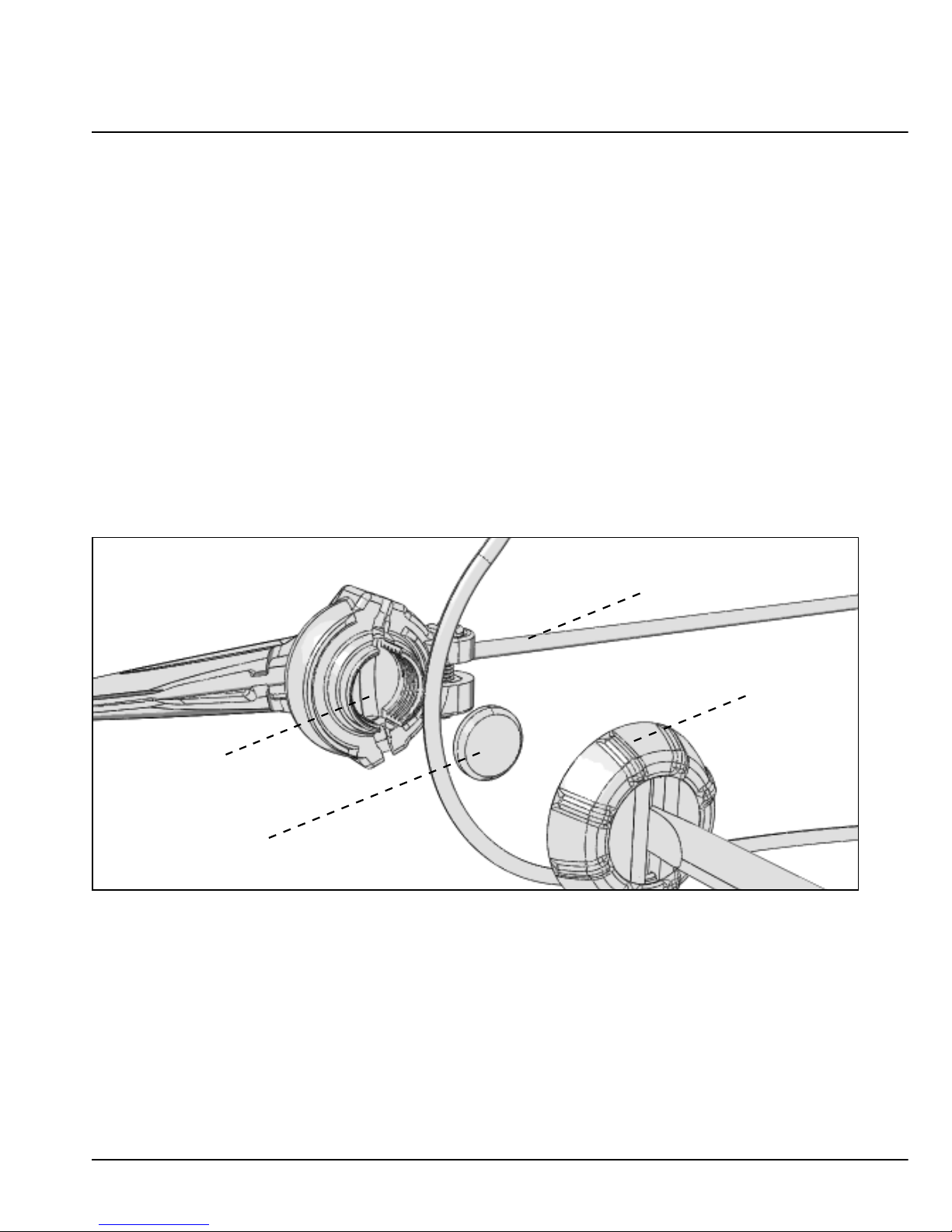

Completely unscrew the retainer cap
CLAMPING PLATE
RETAINER CAP
HEADBAND WIRE
RETAINER CURVE

FITTING YOUR HS1
- 15 -
ERGONOMIC ADJUSTMENT
For further ergonomic adjustment, you may bend the microphone
tube along the body and adapt its shape. This allows the
microphone to suit the contours of an individual face for complete
compatibility with the wearer.
Note: The HS1 tube arm is designed to be resilient and malleable
for optimal adjustment. However it is not recommended that the
microphone tube be bent using sharp objects or at extreme angles.
A smooth repetitive bend using the tips of your fingers to coax the
frame will be sufficient in contouring the microphone to your face.
Re-position the HS1, then return clamping plate and screw on retainer cap
RETAINER CAP

CONNECTOR AND CABLE
- 16 -
The HS1’s connections have been designed using the RØDE
MiCon™ connector system, which provides seamless integration
with a wide range of wireless systems for your convenience, while
maintaining the headset’s discreet appearance. (MiCon™ adaptors
sold separately – see rodemic.com/hs1 for a full list of compatibility)
To connect the HS1 to your MiCon™ cable, screw either end of the
cable to the MiCon™ connection at the end of the microphone
tube. To prevent tangling, clip the cable into the groove in the
cable control tab at the back of the headband.
Prevent tangling by clipping the cable into your cable control tab
CABLE CONTROL TAB

CONNECTOR AND CABLE
- 17 -
Then, attach the corresponding adaptor for your wireless system to
the remaining connection on your MiCon™ cable, and plug in to
your wireless system (MiCon™ adaptors sold separately).
For further management, excess cable can be threaded through the
groove in the cable management clip provided. Loop through the
peg as many times as necessary, and peg to the user’s clothing.

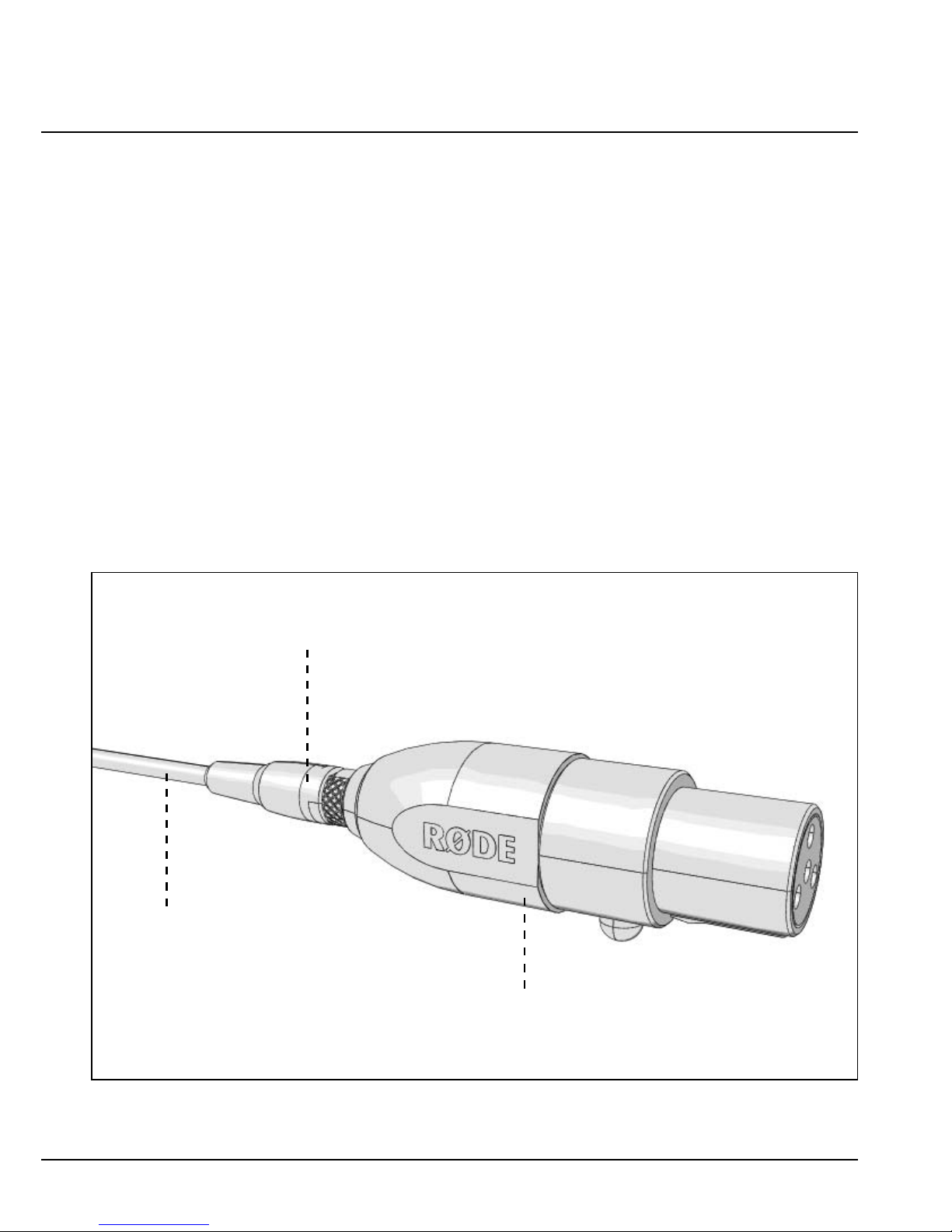

RØDE MiCon™ cable and adaptor
MiCon™ CABLE
MiCon™ CONNECTION
MiCon™ ADAPTOR

INCLUDED ACCESSORIES
- 18 -
WATER RESISTANT POP FILTER
The pop filter is an optional attachment to your HS1 which reduces
plosives (gusts of wind noise caused by hard sounds such as ‘p’
or ‘t’.) It is also strongly recommended you use your pop filter to
protect the HS1 in any extreme environments which are overly dusty
or moist to prevent damage to the mic.
To correctly fit your pop filter, slide the filter over the microphone
head until it reaches the first groove. Pushing the filter any further
down will result in decreased protection of the capsule.
Mic with pop filter
Mic with no wind protection

INCLUDED ACCESSORIES
- 19 -
MINI-FURRY
For increased wind protection, a mini-furry windshield is provided
with the HS1. The windshield is ideal for situations such as outdoor
performances, where wind noise may distort the audio quality of
the mic.
To fit, simply slide the mini-furry over the microphone head until it
reaches the first groove. Ensure the fur is fluffed up in all directions
for maximum effectiveness.
Mic with mini-furry

STORAGE AND CARE
- 20 -

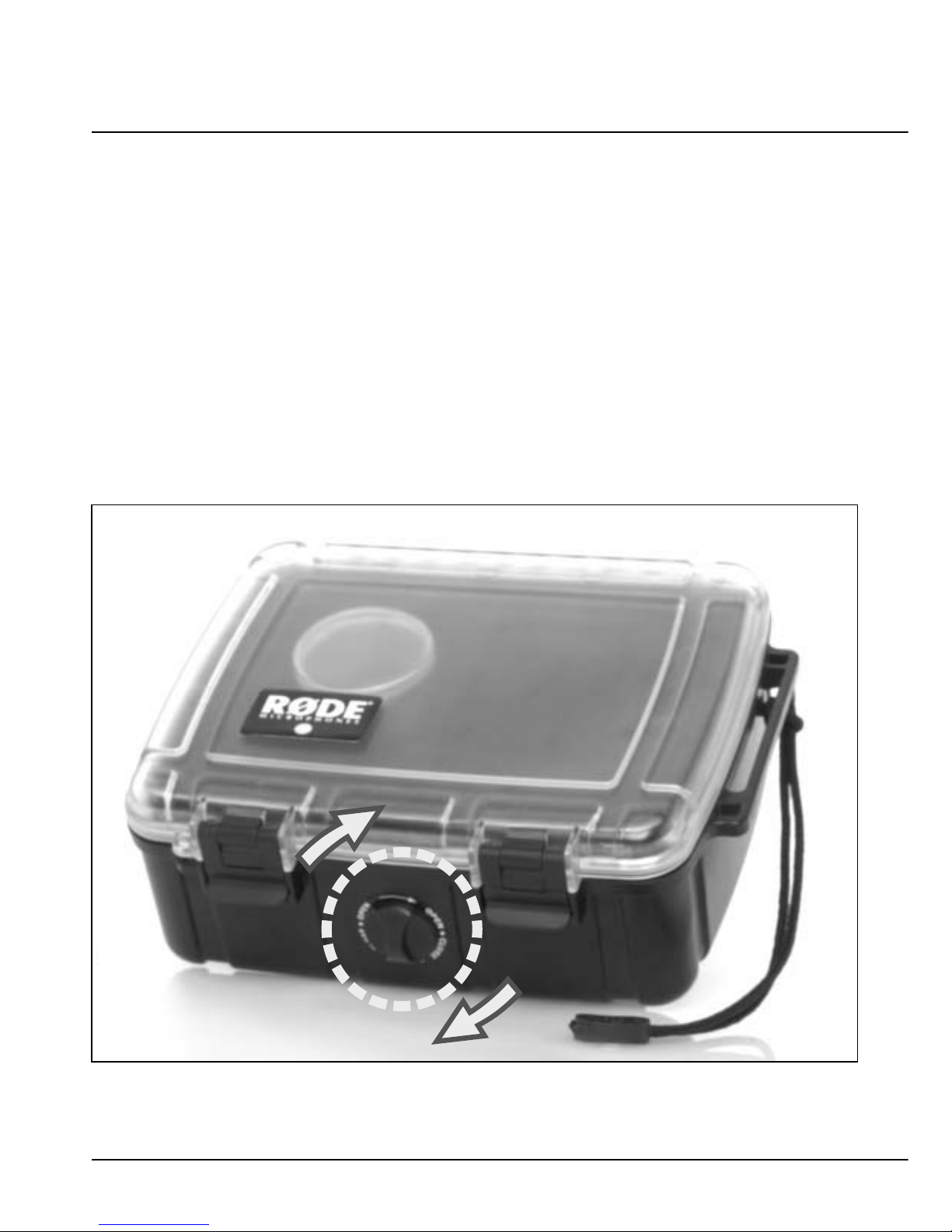

When not in use, always keep your HS1 in the storage case
provided. Close and snap the storage case for complete protection.
If you find you cannot open the case even after snapping open the
clips (for example following a flight), turn the dial at the front of the
case slowly, in the direction marked ‘open’. This will equalise the air
pressure in the case and allow it to open.
