INTRODUCTION
Thank you for investing in the PinMic™.
Whether you’re presenting for television or live on-stage,
in a 20,000 seat auditorium or in a house of worship,
has your needs covered with the intuitive and subtle PinMic™.
Featuring innovative, industry-leading design, the
PinMic™ is the first of its kind. The pin-on placement of the
microphone provides an ultra discreet appearance, while also
simplifying cable management.
The included mini-furry for high wind protection ensures
quality recordings in adverse environments, while the anti-
trauma water resistant case provides rugged and secure
protection for the microphone, cable and accessories.
Knowing that versatility is paramount in any product, we at
have developed the MiCon™ connector system
which provides seamless integration between the PinMic™
and a wide range of wireless systems.
Please take the time to visit www.rodemic.com and register
your microphone for warranty.
Peter Freedman
Microphones
Sydney, Australia
122-950-1-3_PinMic_manual_newspec.indd 3122-950-1-3_PinMic_manual_newspec.indd 3 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

FEATURES
- 4 -
INTUITIVE AND SUBTLE
• Ultra discreet appearance
• Lightweight and easy to position
• Pins through clothing up to approximately 1.5mm (0.006”)
thick (standard model) or approximately 1.5 ~ 3.5mm
(0.006 ~ 0.14”) thick (heavy duty model)
• Removable mesh head
HIGH QUALITY PERFORMANCE
• Low noise miniature microphone capsule
• Low handling noise
UNIVERSAL COMPATIBILITY
• RØDE MiCon™ connector system provides seamless
integration with a wide range of wireless systems while
maintaining discreet and unobtrusive appearance
122-950-1-3_PinMic_manual_newspec.indd 4122-950-1-3_PinMic_manual_newspec.indd 4 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

- 5 -
PINMIC™& ACCESSORIES
- 5 -

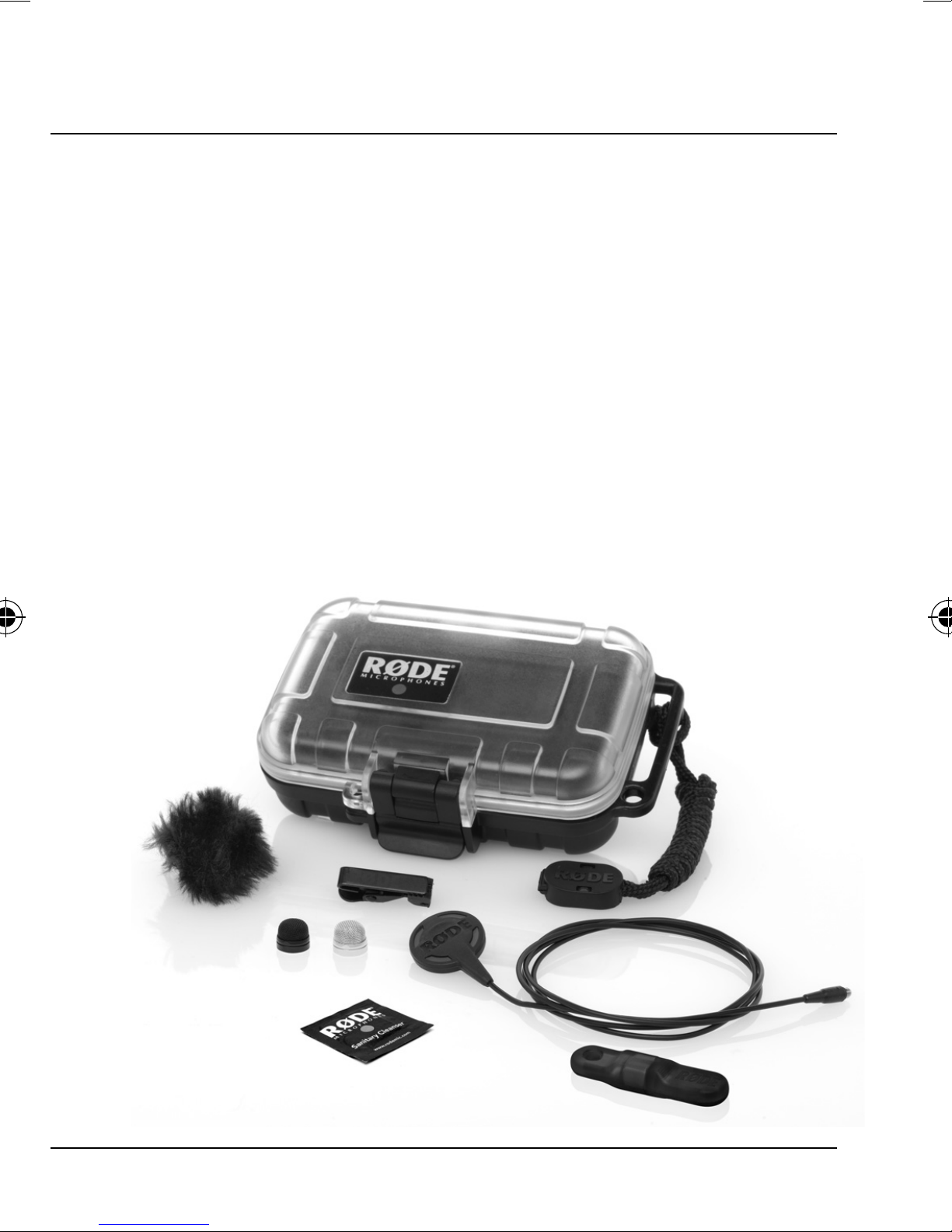

1. RØDE PinMic™
2. Supplementary mesh head (silver) suitable for
spray paint customisation to fully match clothing
3. Anti-trauma water resistant storage case
4. Mini-furry for high wind protection
5. Shielded Kevlar® reinforced cable with
moulded backplate
6. Lapel-style cable management clip
7. Adjustment tools
8. Sanitary cleansing wipes
Compact, interchangeable MiCon™ adaptors available to
suit industry standard wireless systems*
*MiCon™ adaptors sold separately -
see rodemic.com/pinmic for a full list of compatibility
1. 2. 5.
4.
8.
3.
7.
6.
122-950-1-3_PinMic_manual_newspec.indd 5122-950-1-3_PinMic_manual_newspec.indd 5 1/27/2011 3:14:15 PM1/27/2011 3:14:15 PM

SPECIFICATIONS
- 6 -
Acoustic Principle: Permanently polarised condenser
Directional Pattern: Omni-directional (see graph)
Frequency Range: 60 Hz ~ 18 kHz
(see graph)
Output Impedence: 3k Typical
Signal To Noise Ratio: 69 dBA
Equivalent Noise: 25 dBA SPL
(per IEC651)
Clipping SPL: 110 dB
Maximum Output: 189 mV*
Sensitivity: -33.5 dB re 1 V/Pa
(21 mV @ 94 dB SPL)
± 3 dB @ 1 kHz
Dynamic Range: 85 dB Typical*
Power Requirements: Min 2 V ~ Max 5 V through RØDE
wireless adaptors
P48 through RØDE XLR adaptor
Output Connection: RØDE MiCon™ connector
122-950-1-3_PinMic_manual_newspec.indd 6122-950-1-3_PinMic_manual_newspec.indd 6 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

- 7 -
SPECIFICATIONS
- 7 -
* Calculated from maximum SPL peak before clipping.
All measurements are calculated when powered at 5 V or P48 (RØDE XLR adaptor)

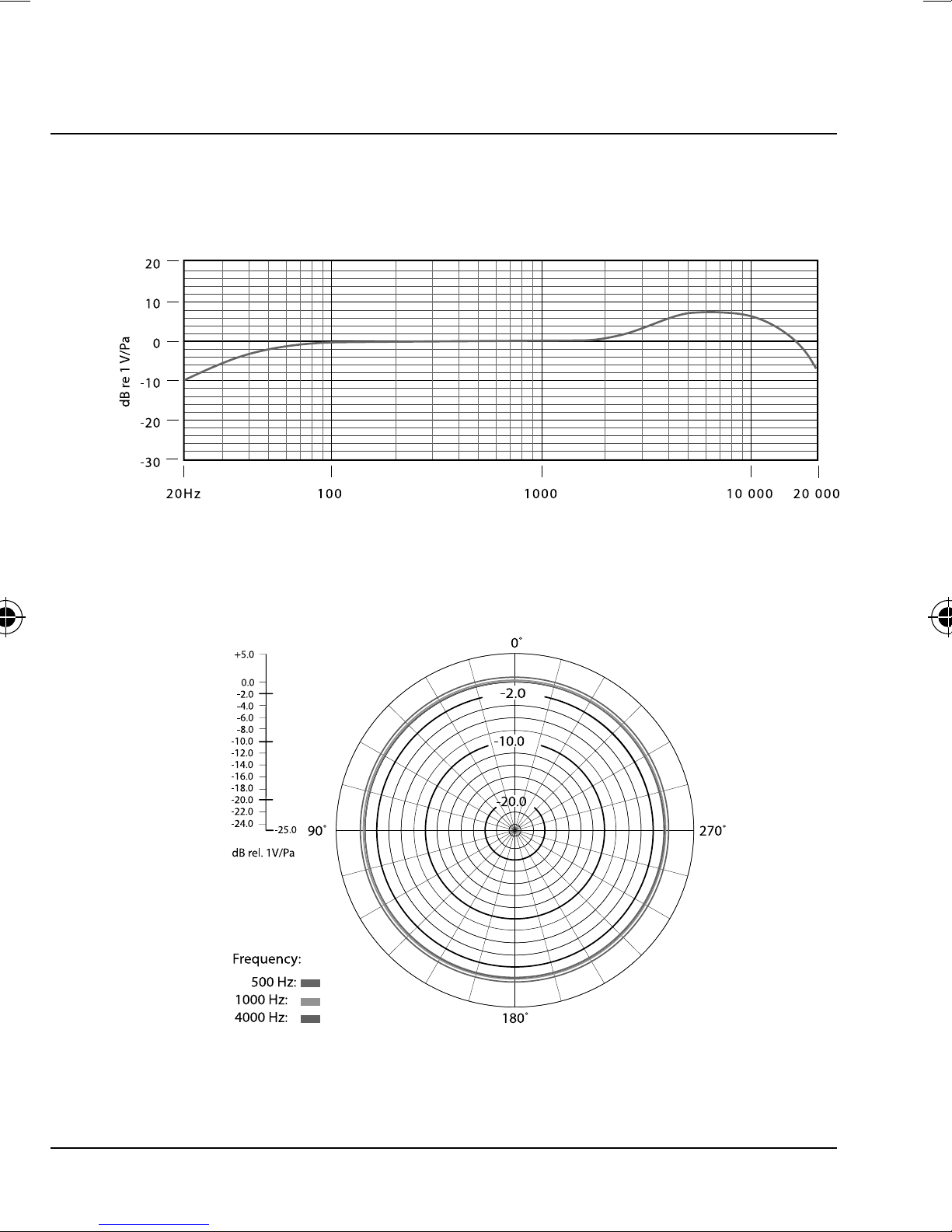

FREQUENCY RANGE
POLAR RESPONSE
122-950-1-3_PinMic_manual_newspec.indd 7122-950-1-3_PinMic_manual_newspec.indd 7 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

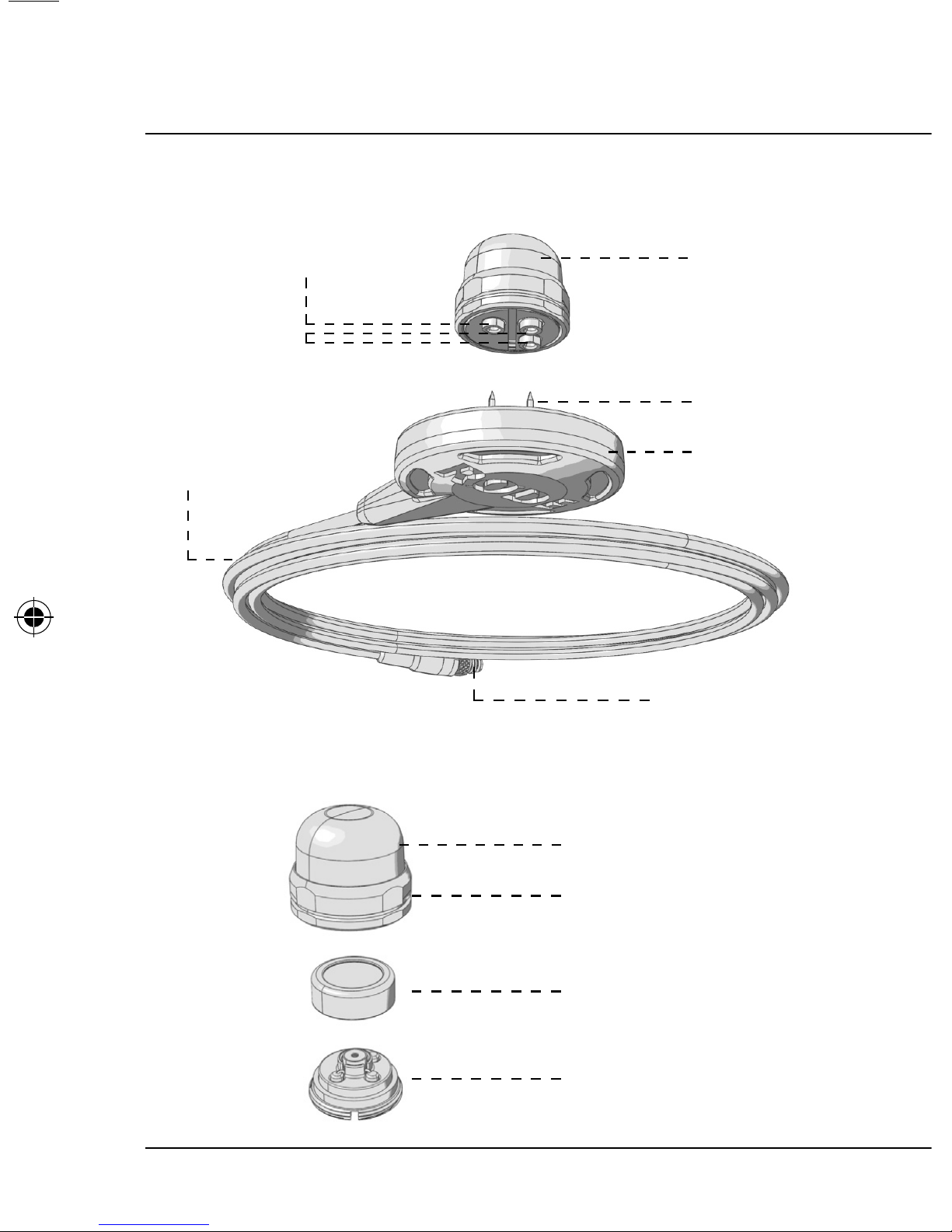

PINMIC™STRUCTURE
- 8 -
PinMic™
BACKPLATE
MESH HEAD GROOVE
MESH HEAD
CAPSULE CAP
PinMic™ CAPSULE
PINMIC™ CAPSULE
PINMIC™ ASSEMBLY
Kevlar®
REINFORCED
CABLE
PINS
RECEPTACLES
MiCon™
CONNECTION
122-950-1-3_PinMic_manual_newspec.indd 8122-950-1-3_PinMic_manual_newspec.indd 8 1/27/2011 3:14:16 PM1/27/2011 3:14:16 PM

- 9 -
MIC PLACEMENT
- 9 -
For the best performance, the PinMic™ should be
positioned as close as possible to the sound source, without
being subject to clothing rustle, gusts of air or dust.
At times it may be best to test different placements to
provide the optimal combination of sound quality and
discretion.

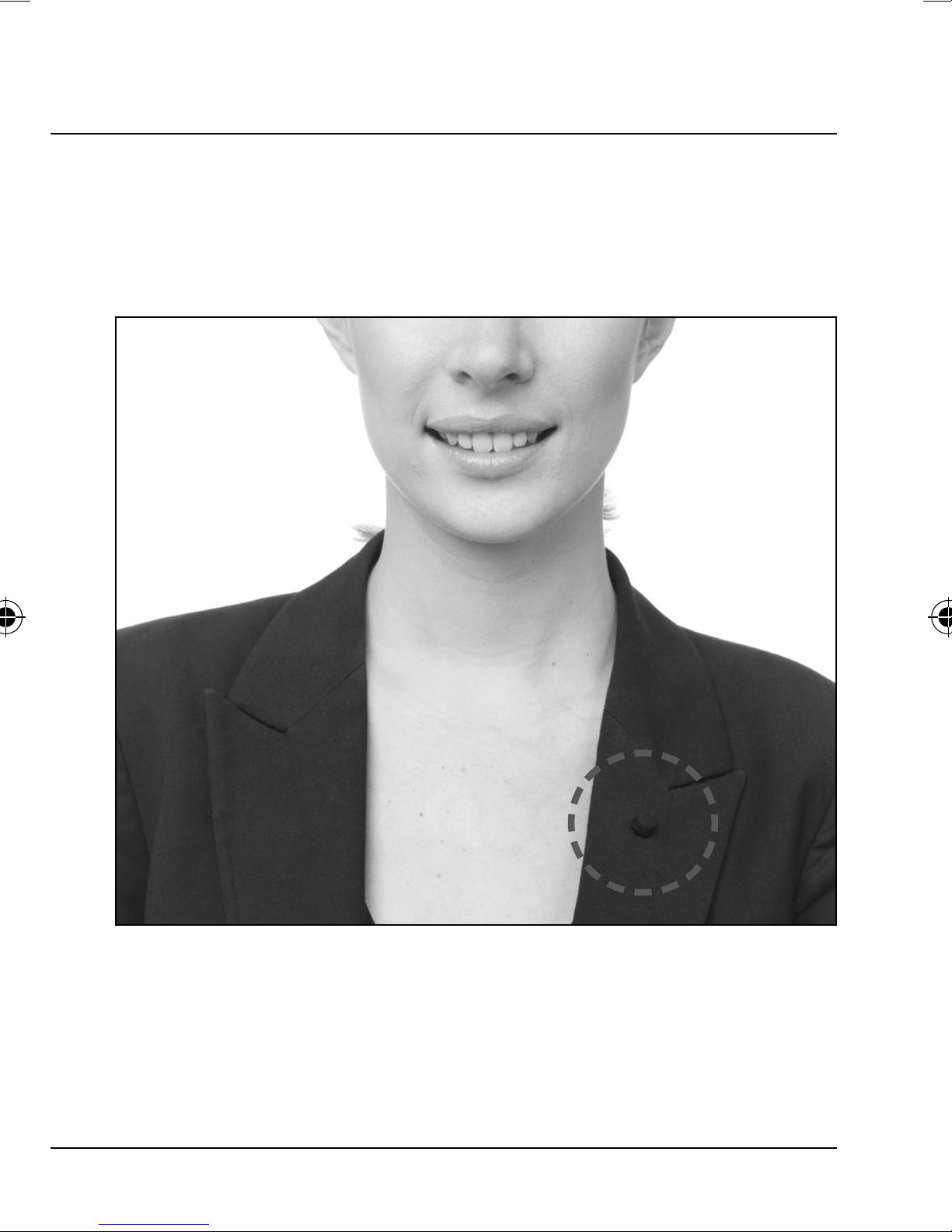

Position the microphone close to the sound source
122-950-1-3_PinMic_manual_newspec.indd 9122-950-1-3_PinMic_manual_newspec.indd 9 1/27/2011 3:14:17 PM1/27/2011 3:14:17 PM

To fit your PinMic™ and connect to your wireless system, first
pin the backplate of the microphone to your clothing, close
to the sound source.
You may do this by weaving the backplate and cable up from
underneath the user’s clothing, or placing it just behind the
lapel on a jacket. Ensure the backplate is hidden underneath
the fabric, then press through until the pins are exposed on
the other side.
(The standard PinMic™’s backplate pins are able to comfortably pin
through clothing up to approximately 1.5mm thick (0.006 ~ 0.14”).
The heavy duty model is recommended for fabric from around 1.5mm
up to 3.5mm (0.006 ~ 0.14”) thick.)
FITTING YOUR PINMIC™
- 10 -

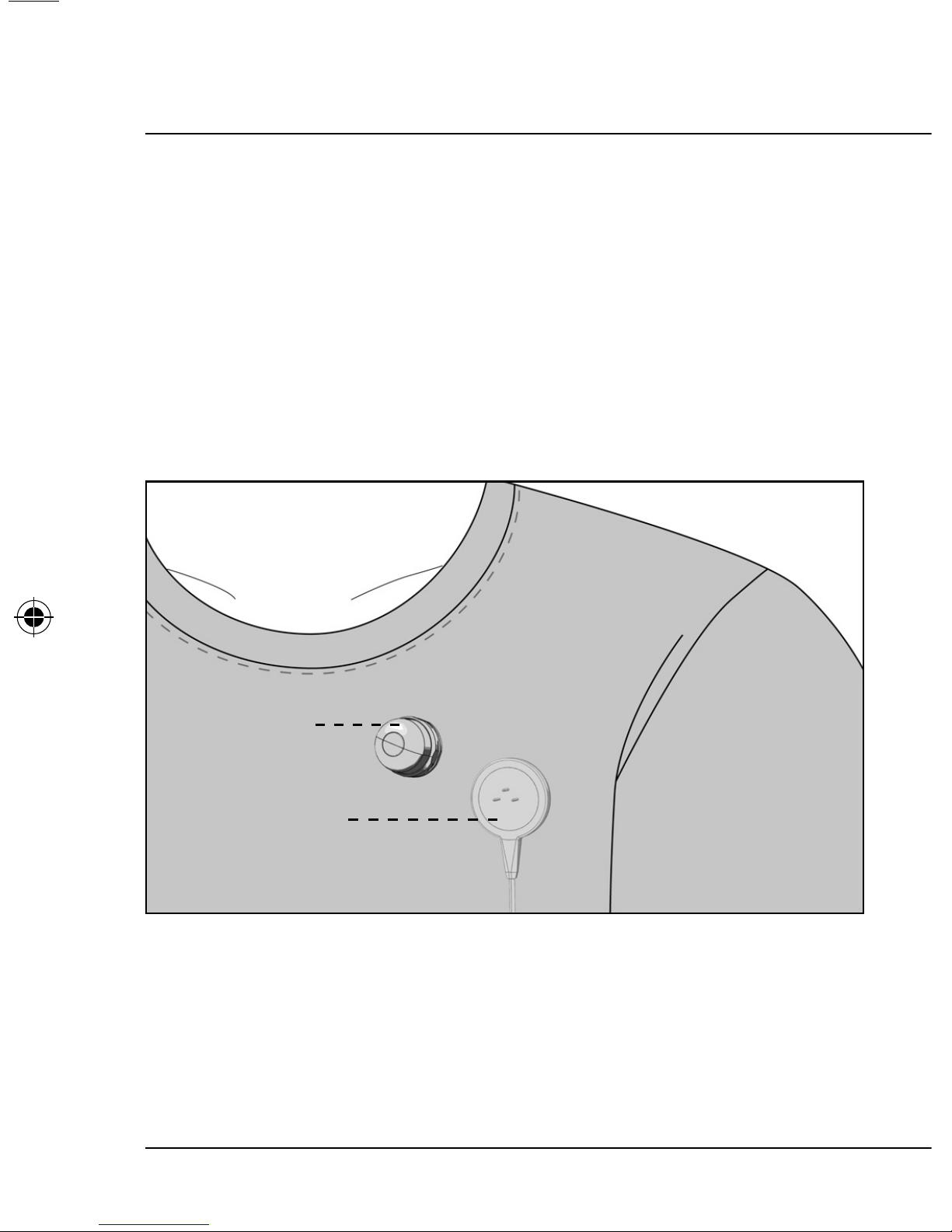

Bring the backplate up underneath the user’s clothing, then press the pins
through to the other side of the fabric
BACKPLATE
UNDERNEATH
CLOTHING
PinMic™
ABOVE
CLOTHING
122-950-1-3_PinMic_manual_newspec.indd 10122-950-1-3_PinMic_manual_newspec.indd 10 1/27/2011 3:14:19 PM1/27/2011 3:14:19 PM

- 11 -

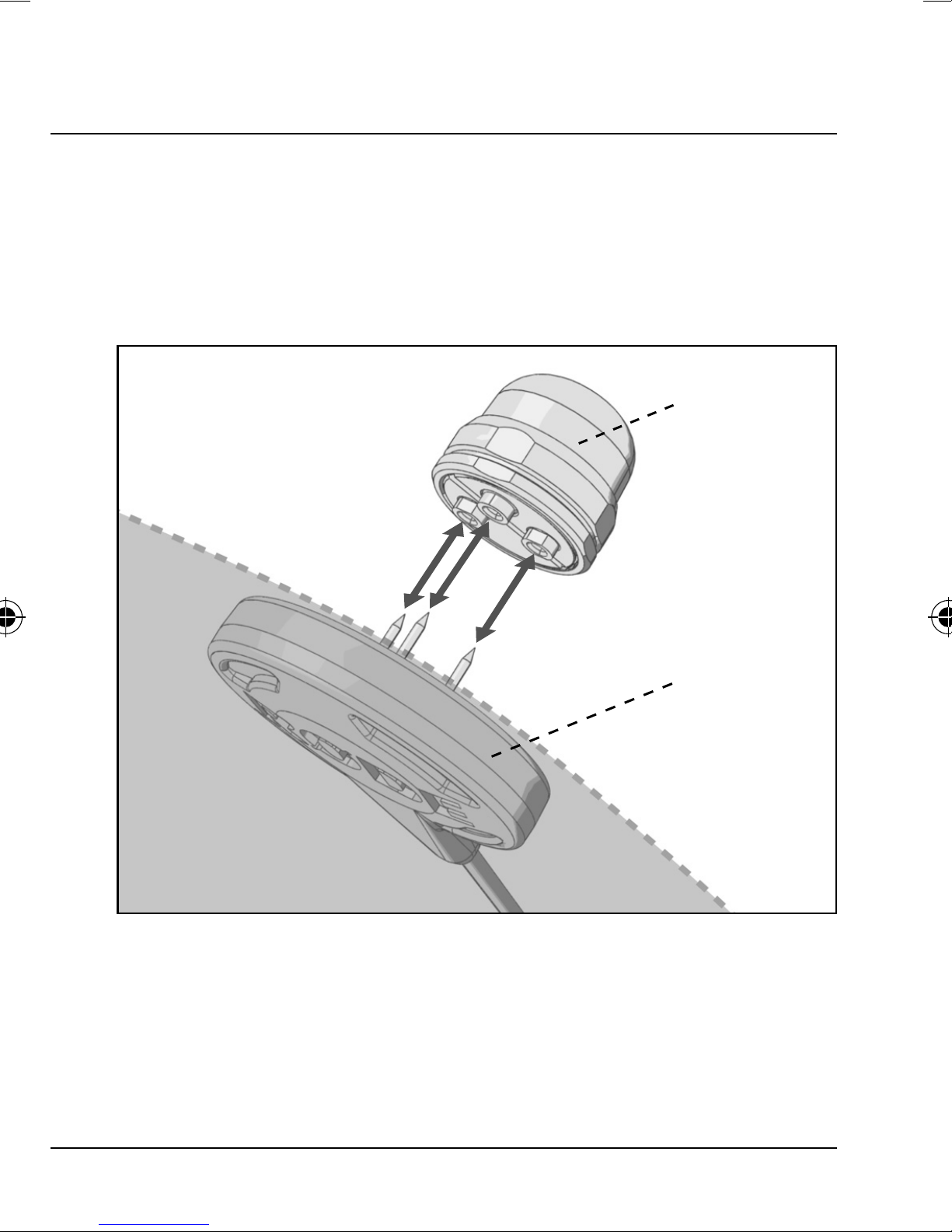

Once the pins are exposed, simply match the receptacles on
the PinMic™ to the pins on the backplate and press on.
After the ‘click’, the PinMic™ will be securely fastened.
There is no need to push the microphone down further.
- 11 -
FITTING YOUR PINMIC™
Match the backplate pins to the PinMic™ receptacles
BACKPLATE
UNDERNEATH
CLOTHING
PinMic™
ABOVE
CLOTHING
122-950-1-3_PinMic_manual_newspec.indd 11122-950-1-3_PinMic_manual_newspec.indd 11 1/27/2011 3:14:20 PM1/27/2011 3:14:20 PM

FITTING YOUR PINMIC™
- 12 -

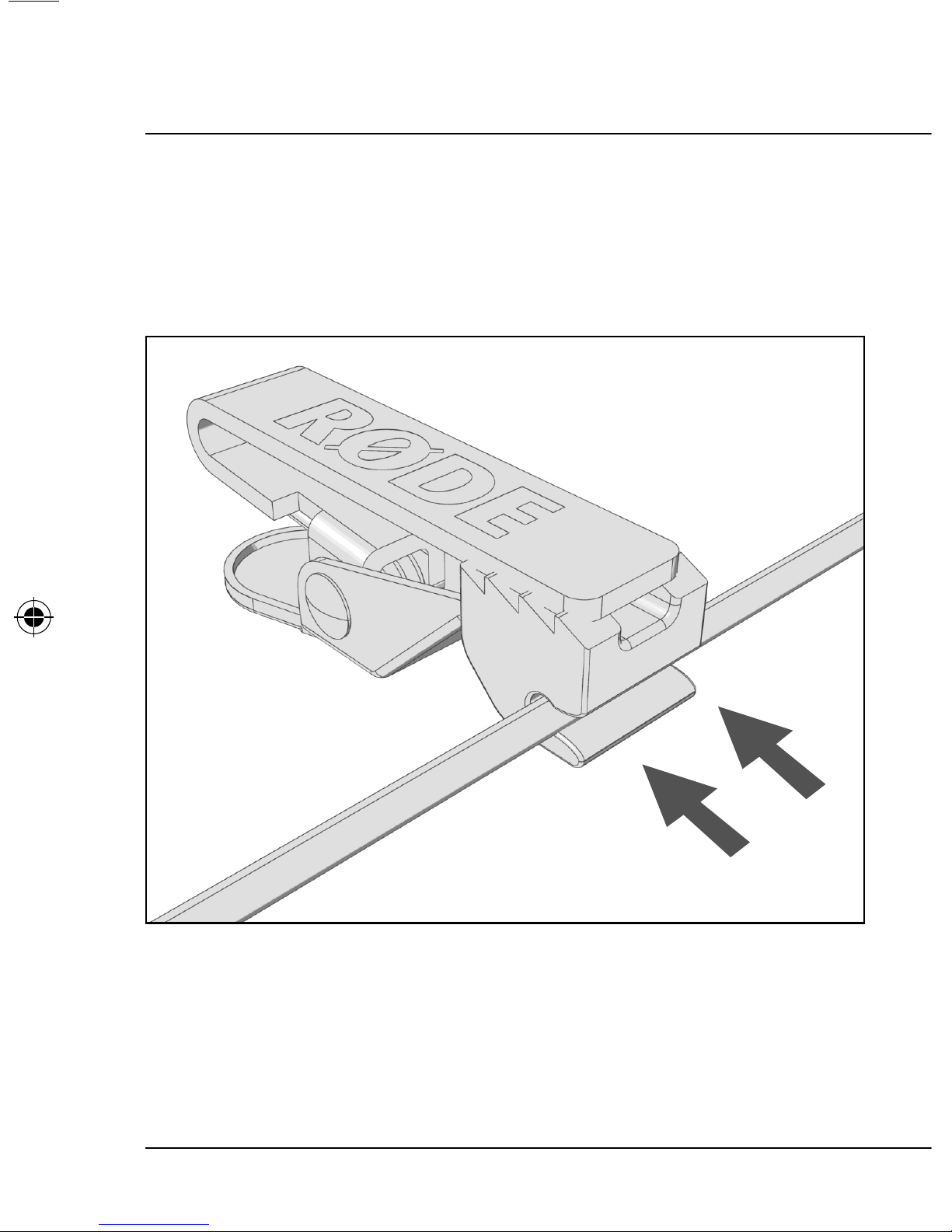

To prevent tangling, you may utilise the provided cable
management clip. Clip the cable into the groove on the
lapel clip, then loop through as many times as necessary and
attach to clothing.
Clip the cable into the groove on your lapel clip
122-950-1-3_PinMic_manual_newspec.indd 12122-950-1-3_PinMic_manual_newspec.indd 12 1/27/2011 3:14:22 PM1/27/2011 3:14:22 PM

- 13 -
FITTING YOUR PINMIC™
- 13 -
To connect your PinMic™ to your wireless system, securely
fasten the corresponding adaptor to the end of your
MiCon™ cable.
The PinMic™’s connections have been designed using the
RØDE MiCon™ connector system, which provides seamless
integration with a wide range of wireless systems, while
maintaining the mic’s discreet appearance.
(MiCon™ adaptors sold separately – see rodemic.com/
pinmic for a full list of compatibility.)
Plug the adaptor into your wireless system and you’re ready
to go.

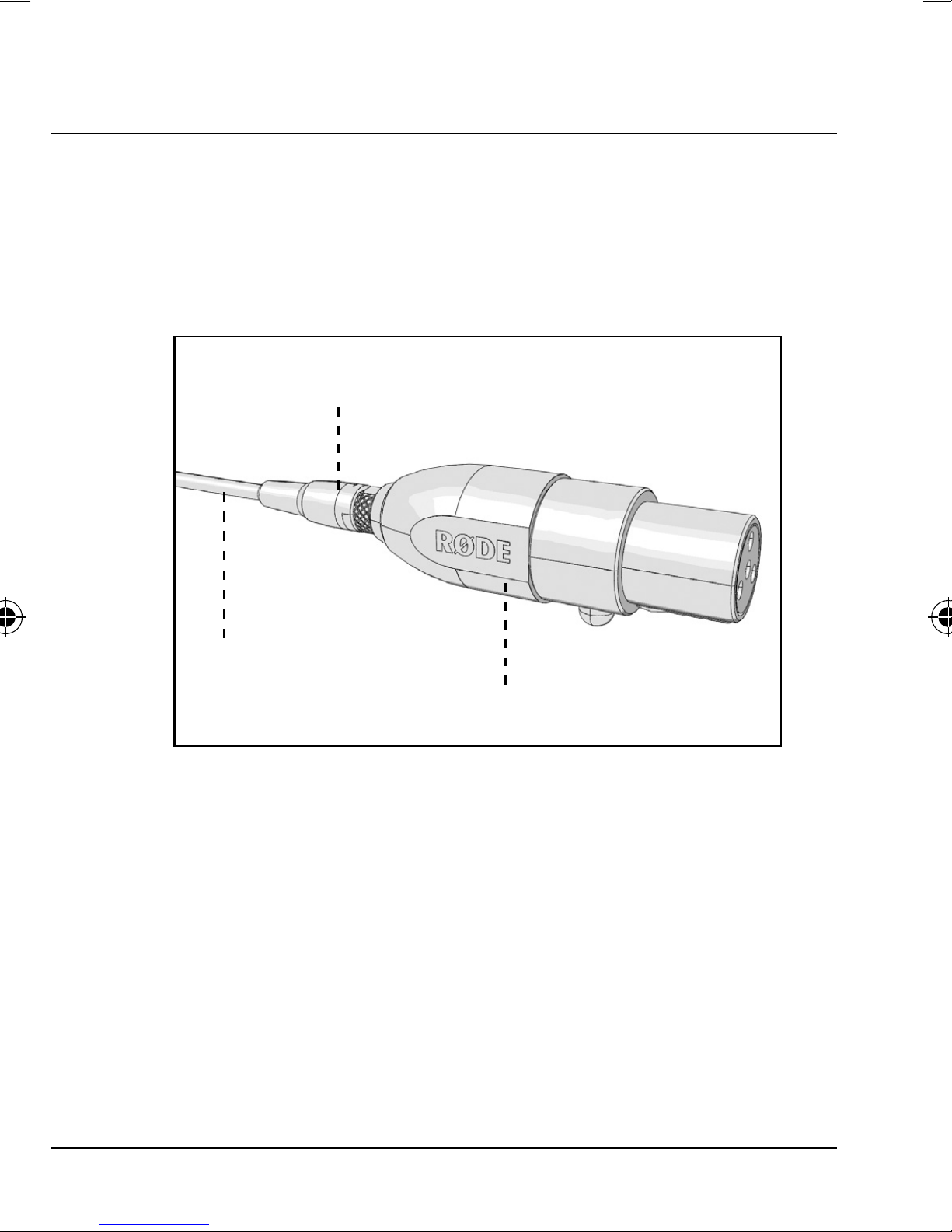

RØDE MiCon™ cable and adaptor
MiCon™ CABLE
MiCon™ CONNECTION
MiCon™ ADAPTOR
122-950-1-3_PinMic_manual_newspec.indd 13122-950-1-3_PinMic_manual_newspec.indd 13 1/27/2011 3:14:22 PM1/27/2011 3:14:22 PM

INCLUDED ACCESSORIES
- 14 -
SUPPLEMENTARY MESH HEAD
For instances in which the PinMic™ user is wearing a light-
coloured garment, RØDE have provided a supplementary
silver mesh head. This will maintain the PinMic™’s subtle
appearance on the clothing.
To switch from your pre-fitted black mesh head to the silver,
first disassemble your PinMic™ with your RØDE adjustment
tool. (This is best done over a desk or work surface to ensure
no parts are misplaced). Pull apart the two sections of the
adjustment tool to reveal the driver and socket sections.
Place your PinMic™ in the socket hole, mesh down, so that
the bottom of the microphone is visible. Match the flat
edges of the mesh head to the flat edges of the socket hole
to insert correctly. Then use the groove across the bottom of
the mic to unscrew the mic capsule from the mesh head.
Place microphone in the adjustment tool socket, mesh down
PinMic™
ADJUSTMENT TOOL
(DRIVER)
ADJUSTMENT TOOL
(SOCKET)
122-950-1-3_PinMic_manual_newspec.indd 14122-950-1-3_PinMic_manual_newspec.indd 14 1/27/2011 3:14:23 PM1/27/2011 3:14:23 PM

- 15 -
Once the microphone capsule is loose, remove it from the
mesh. Remove the black mesh head from the socket, using
the groove on the mesh ring as grip. Next, insert the silver
mesh head into the socket. Place the microphone capsule
into the silver mesh and tighten on securely with the driver.
Note: Please do not attempt to screw the mesh head onto the
PinMic™ by tightening while the microphone is attached to the
backplate. This may cause damage to the backplate pins. Always
remove your microphone from clothing and backplate before
changing mesh heads.
INCLUDED ACCESSORIES
- 15 -
Use the groove across the bottom of the mic to unscrew
Place the silver mesh in the socket, then the mic capsule, then tighten
SUPPLEMENTARY
SILVER MESH
PinMic™
CAPSULE
SOCKET
HOLE
122-950-1-3_PinMic_manual_newspec.indd 15122-950-1-3_PinMic_manual_newspec.indd 15 1/27/2011 3:14:23 PM1/27/2011 3:14:23 PM

INCLUDED ACCESSORIES
- 16 -
CUSTOMISING THE SILVER MESH HEAD
The supplementary silver mesh head can be custom painted
to match the colour of the user’s clothing, providing an even
higher level of microphone camouflage.
To colour your mesh, first use a pair of tweezers to remove
the inner foam (pop filter) from just under the mesh head.
(This foam reduces wind noise and moisture reaching the
microphone capsule, and must not be exposed to paint.)
Once the foam is removed, use a spray paint in the colour
of your choice to paint the mesh. Spray from a distance,
applying a thin, even coat over the surface.
Allow the mesh to dry completely before its next usage.
Once dry, return the inner foam to its place inside the mesh.
Follow the instructions on pages 14-15 to switch the mesh
heads on the PinMic™.
Always keep your unused mesh head in the provided
storage case for complete protection.
Note: When colouring, please be cautious not to block any of the
holes in the mesh head. This may reduce the acoustic transparency of
the PinMic™, resulting in compromised audio quality.
To check that the mesh head is clear, hold it up against a light and
ensure the light filters through the holes.
122-950-1-3_PinMic_manual_newspec.indd 16122-950-1-3_PinMic_manual_newspec.indd 16 1/27/2011 3:14:24 PM1/27/2011 3:14:24 PM

- 17 -
INCLUDED ACCESSORIES
- 17 -

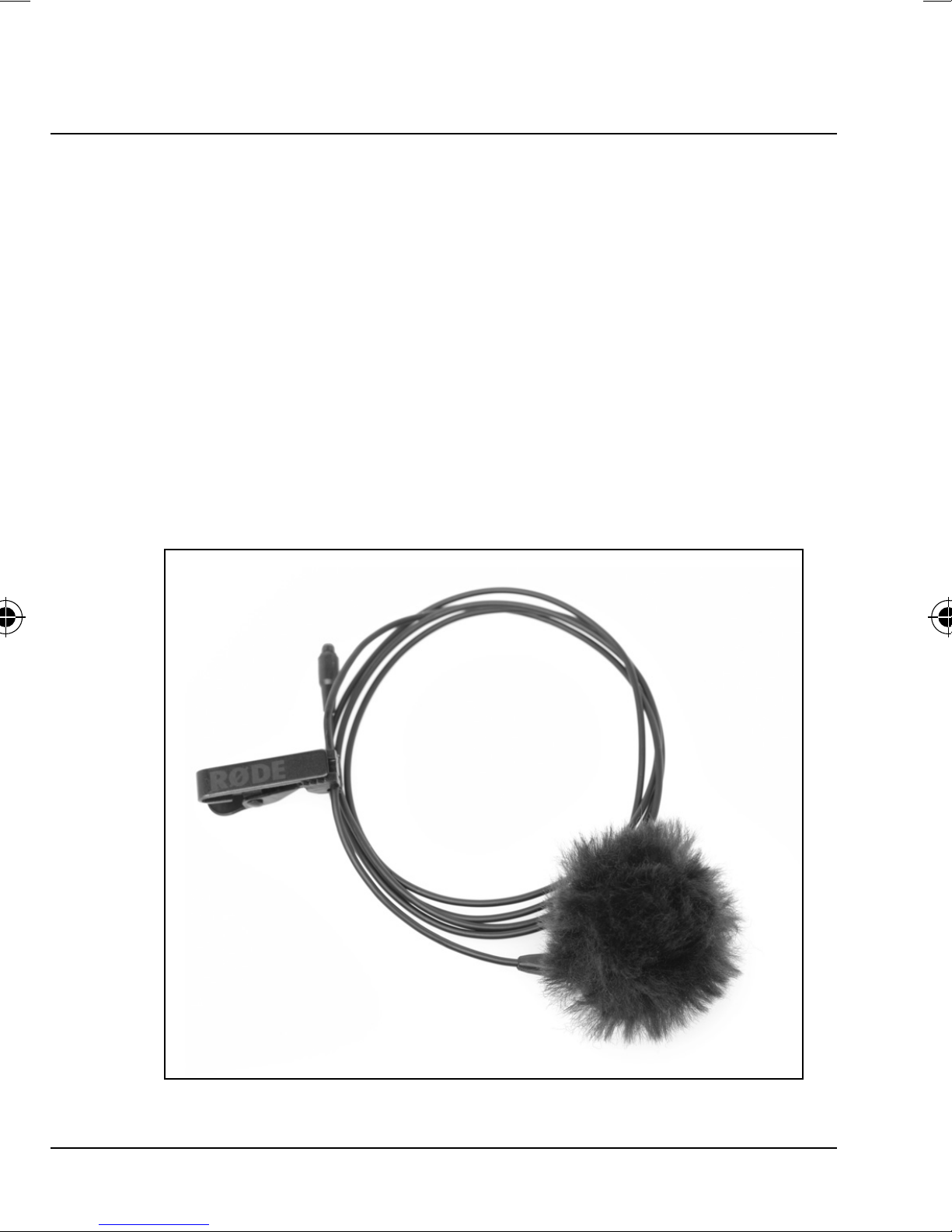

PinMic™ with mini-furry
MINI-FURRY
For increased wind protection, a mini-furry windshield is
provided with the PinMic™. The windshield is ideal for
situations such as outdoor performances, where wind noise
may distort the audio quality of the mic.
To fit, simply press on the mini-furry straight over the
PinMic™ until it is secured by the groove on the mesh head.
122-950-1-3_PinMic_manual_newspec.indd 17122-950-1-3_PinMic_manual_newspec.indd 17 1/27/2011 3:14:24 PM1/27/2011 3:14:24 PM

STORAGE & CARE
- 18 -
When not in use, always keep your PinMic™ in the storage
case provided. Close and snap the storage case for
complete protection.
Inside the case, you will find a sachet of moisture absorbent
crystals. Please retain these crystals and store with the
PinMic™ to keep the microphone in ideal condition.
Eventually this pack of crystals will need to be dried. This
is indicated by the crystals turning pink in colour. They can
easily be re-used by placing them in an oven at 100-150
degrees Celsius for approximately ten minutes. The crystals
will operate effectively again once they have turned blue.
In some cases, such as when there are multiple users of the
PinMic™, you may wish to sanitise the backplate and cable.
To do this, use the provided Sanitary Cleansing Wipes to
wipe down the PinMic™ surface. You may wish to detach the
microphone from the backplate and cable for easier access.
Please be mindful when cleaning the PinMic™ not to let any
dust or moisture into the microphone capsule.
122-950-1-3_PinMic_manual_newspec.indd 18122-950-1-3_PinMic_manual_newspec.indd 18 1/27/2011 3:14:25 PM1/27/2011 3:14:25 PM

- 19 -
SUPPORT
- 19 -
If you experience any problem, or have questions regarding
your microphone, first contact the dealer who sold it to you.
We have an extensive dealer network to assist you.
If you have difficulty getting the advice or assistance you
require from the dealer, do not hesitate to contact us directly
via the details below.
INTERNATIONAL
107 Carnarvon Street
Silverwater NSW 2128 Australia
Ph: [phone]
Fax: [phone]
USA
P.O. Box 4189
Santa Barbara, CA 93140-4189
Ph: 805 566 7777
Fax: [phone]
TECHNICAL SUPPORT
For information and technical support please visit
www.rodemic.com/support
122-950-1-3_PinMic_manual_newspec.indd 19122-950-1-3_PinMic_manual_newspec.indd 19 1/27/2011 3:14:25 PM1/27/2011 3:14:25 PM

122-950-1-3_PinMic_manual_newspec.indd 20122-950-1-3_PinMic_manual_newspec.indd 20 1/27/2011 3:14:25 PM1/27/2011 3:14:25 PM
