ROE Black OnyX3 User manual

- 1 -
User Manual
Black OnyX3

- 2 -
Control System
Contents
Safety Information 03
Specification 06
Connection 07
Physical Connection 13
Accessories
Header and Base bar Assembly
08
09
14
16Package
15
Service and Maintance

WARNING!
Safety hazard.
Risk of severe
injuty or death.
Refer to manual before
installing, powering
or servicing.
Hazardous voltage.
Risk of lethal or
severe electric shock.
Hot surface.
Do not touch.
Fire hazard. Emission hazardous
to eyesight.
This product is for professional use only. It is not for household use.
This product presents risks of severe injury or death due to fire hazards, electric shock and falls.
Read this manual before installing, powering or servicing this product, follow the safety precau-
tions listed below and observe all warnings in this manual and printed on the product.
If you have questions about how to operate the panel safely, please contact your ROE supolier.
PROTECTION FROM ELECTRIC SHOCK
Connect the product to AC mains power within the range 100-240V nominal at 50 or 60 Hz only
.
Disconnect the product from power when not in use.
Always ground (earth) the product electrically.
Before using the product, check that all power distribution equipment and cables are in perfect
condition and rated for the current requirements of all connected devices.
Do not use the product if the power cable or a power plug is in any way damaged, defective or
showing signs of overheating.
Do not attempt to open any cover.
Refer any service operation not described in this manual to a qualified technician.
- 3 -
01 Safety Information:
Read the safety precautions in this section before
installing, powering, operating or servicing this product.
The following sysmbols are used to identify important safety information on the product and in this manual:
WARNING! WARNING! WARNING! WARNING! WARNING! WARNING!

PROTECTION FROM FIRE
Do not stick filters, masks or other materials directly onto LED modules.
Do not modify the product in any way not described in this manual.
Install only genuine ROE parts in or on the product unless an alternative is described in this manual.
Create an installation by installing panels at the top and working downwards. Disassemble an
installation by removing panels at the bottom and working upwards.
Check that all external covers and rigging hardware are securely fastened.
Block access below the work area and work from a stable platform whenever installing, servicing
or moving the product.
- 4 -
Do not operate the product full load if the ambient temperature of power units (Ta) exceeds 45°C
(113° F) or less than -20°C(-4° F).
PROTECTION FROM INJURY
Important warnings
Maximum and minimum ambient temperature:
The maximum ambient temperature for the LED wall is 45 °C; the minimum temperature is (-20°C.)
High leakage current:
The combination of power boxes in an installation results in increased levels of Leakage current.
In order to avoid risk of electric shock due to high leakage current, proper grounding of the install-
ation is required.
Power system
Mains cords:
The power cords delivered with this system have special properties for safety. They are not user
Serviceable. If the power cords are damaged, replace them only with new ones. Never try to repair
a power cord.
This equipment MUST be earthed:
In order to protect against risk of electric shock, the installation should be properly grounded. Def-
eating the purpose of the grounding type plug will expose you to the risk of electric shock.

The data cables provided with this system have special properties for safety. They are not user serviceable.
If the data cables are damaged, replace them only with new ones. Never try to repair a data cable. Per req-
uirements of the National Electrical Code in the USA, the length of a data cable must not exceed 100 m
(332 feet). Avoid exposure of data cables to accidental contact with lightning or power conductors.
- 5 -
Data cables:
®
Black OnyX panels cannot be hot swapped:
Always disconnect the power cord from the control box before connecting or disconnecting the cable string
or one of Black OnyX panels.

- 6 -
Black OnyX3 Dimensions:
Black OnyX3 Specification:
Specification:
02
A. Horizontal Connector
B. Control Button
C. Handle
D. Assistant Position bead
E. Power In
F. Power Out
G. Data Out
H. Data In
I. Vertical Connector
J. LCD Screen
K. Function Button
L. Hole-Assisted for stacking system
Backside diagram:
Note:
The Black OnyX Panles is new high-performance indoor HD LED display incorporating professional
industrial design.Magnesium alloy panel makes it lightweight and strong. The module uses Multi-Color's
newest anti-glare black LEDs to get a high contrast ratio. The innovative and friendly design supports a
convenient installation for both hanging and stacking which makes it the ideal solution for large events,
concert tours and exhibitions. The finest pixel pitch and outstanding color processing ensures a high-end
performance in TV studios and lecture halls.
500.0mm
3.47mm
3.47mm
90.0mm
500.0mm
A
B
C
D
F G
H
I
L
J
K
E
Pixel Pitch 3.47mm
Black SMD 3-in-1
140°/140°
LED Configuration
Viewing Angle
Brightness
Driving IC
1500 cd/sqm(After calibration)
MBI5153
Pixel Density 82944/sqm
2340Hz
5000:1
16bit
Magnesium Alloy
Refresh Rate
Contrast
Gray Scale
1/12Scan
Cabinet Material
Cabinet Weight
Cabinet Dimension 500×500×90(mm)
7.70kg
Power Consumption(Max./average)
Operating Temp/Humidity
Storage Temp/Humidity
640/290W/sqm
-20°C~50°C, 10~90%RH
-40°C~60°C, 10~90%RH
8 cabinets
20 cabinets
Concave
Yes
Lifetime
Max. Stacking
Max. Hanging
Curve(optional)
3D Ready(optional)
50000h
BO-3

- 7 -
Connection:
03
Black OnyX3 Built in Power Supply
Hanging system
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
BO3
Evision
Stacking system
Evision
⑥ ⑦
⑥ ⑦

- 8 -
Accessories
04
Name
Part No.
Dimension
Weight
Material
Base bar(for hanging system)
207002C0007
L494×W158×D205mm
4.12kg
Cold Rolled Steel
:
:
:
:
:
Name
Part No.
Dimension
Weight
Max Current
Max Capacity
Power Cable
208001S0795
10m
0.96kg
16A
16 tiles of MC-H(AC 220V)
8 tiles of MC-H(AC 110V)
:
:
:
:
:
:
Name
Part No.
Dimension
Weight
Max Length
CAT-5
208004S0076
30m
1.42kg
100m
:
:
:
:
:
Name
Part No.
Dimension
Weight
Evision
201000S0009
L480×W240×H45mm
2.30kg
:
:
:
:
Name
Part No.
Dimension
Max Capacity
Flightcase
309003-00042
L1334×W600×H885mm
10 tiles of Black OnyX3
:
:
:
:
Name
Part No.
Dimension
Weight
CAT-5
208004S0206
0.75m
0.16kg
:
:
:
:
Name
Part No.
Dimension
Weight
CAT-5
208004S0207
0.35m
0.08kg
:
:
:
:
Name
Part No.
Dimension
Weight
Power Cable
208001S0796
0.30m
0.10kg
:
:
:
:

- 9 -
Header and base bar Assembly:
05
Hanging System
494mm
158mm
205mm
Standard Header:
Hanging Installation
Figure 1: Clamp Figure 2: Headers
1. Fix the header on the Truss

- 10 -
2. Connect BlackOnyX panels with the header
3. Panels installaon
①Panels will be aached to the header by magnets automacally.
②Press the red buon and lock the panels by vercal connector.
②①
Notes: (For Safety) Please do this by two persons.

- 11 -
Stacking System
Stacking Installation
Rear support truss Rear bridge
Base bar Base truss
Connect the Base bar and Base truss by Vercal Connector.
1. Base bar connecon with Base truss
Lock of Base truss Rotatable
Adjust the knob and make sure
the base truss horizontal.

- 12 -
2. Rear support truss and rear bridge installaon
3. Panel installaon

- 13 -
Physical Connection:
06
Straight installation
Curve Installation
Horizontal connector operation
Vertical connector operation
1. Press the red buon to loosen the handle.(pic2)
2. Pull the handle to turn the connecng bar.(pic3)
3. Connect two panels and align them.(pic 4)
4. Push handle back for locking.(pic5)
2. Press the red buon to loosen the handle.(pic2)
1. Panels will be aached together by magnets automacally.(pic1)
3. Pull the handle to turn the connecng bar.(pic3)
4. Connect two panels and align them.(pic 4)
5. Push handle back for locking.(pic5)
Picture 1 Picture 2 Picture 3 Picture 4 Picture 5
The range of curve: 0~10°(horizontally inner arc).
Picture 1 Picture 2 Picture 3 Picture 4 Picture 5

01234
56789
Black
DVI
HDMI
OK
Esc Fn
Menu
- 14 -
Software:
Please read software manual firstly,(download link as blow):
Http://www.roevisual.com/how-to-make-led-display
The control system of Black OnyX series consist of receiving card and sending card.
Receiving card is integrated with LED panels.
Control System:
07

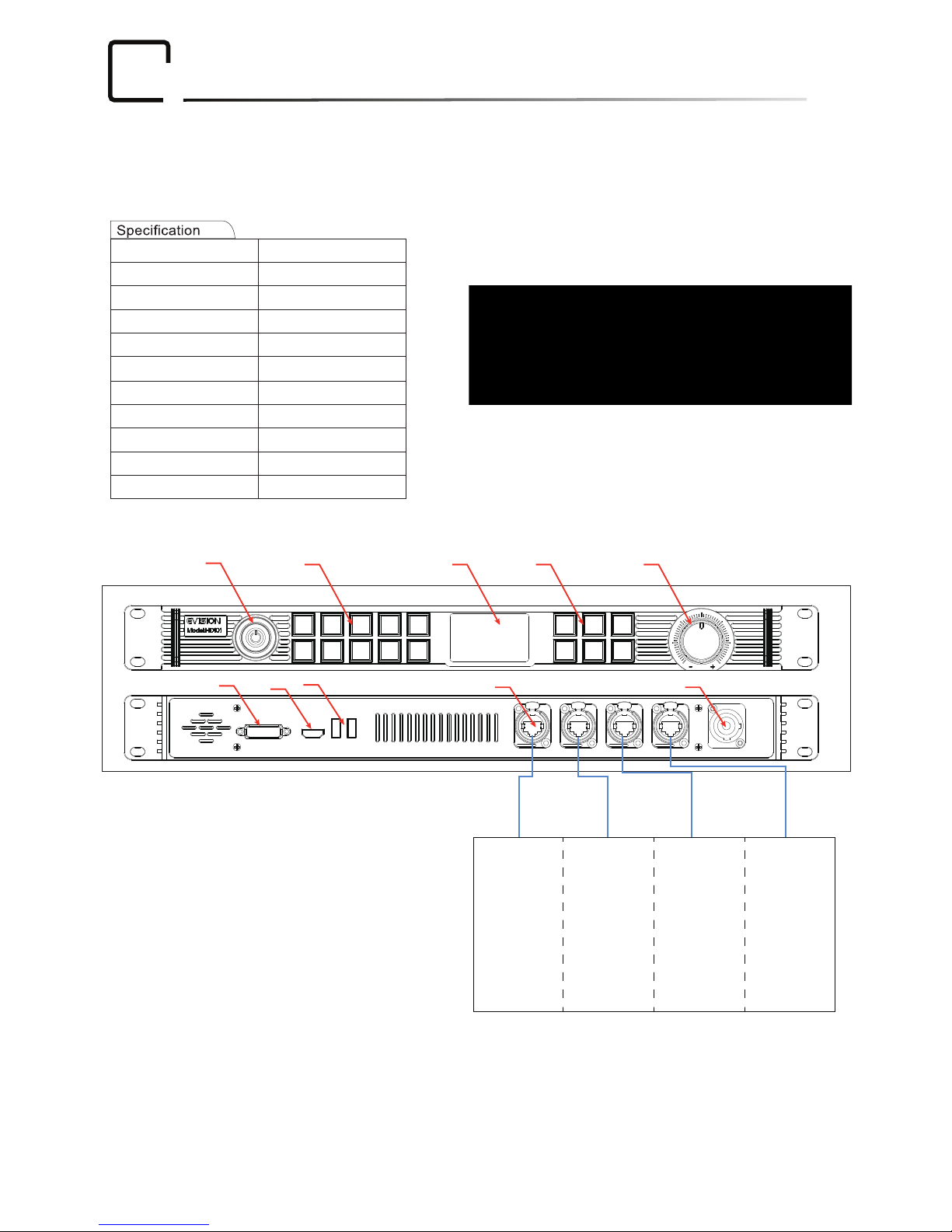

Evision(201000S0009)
Working v o ltage
Power
100-240V AC
＜20W
Working temperature -20°C to 45°C
Input port DVI
Output ports number 4 ports
Communication port USB/RJ45
Max resolution 2560 × 1024
2560
× 1024
1024
Data transmission port 1000M Ethernet
Material AL6061
Dimension L480×W240×H45mm
Weight 2.30kg
1. Power switch
2. Number keys
3. LCD screen
4. Function keys
5. Knob
6. DVI port
7. HDMI port
8. USB port
9. RJ45 data port
10. Power port
Front
Behind
INPUT 100-240V AC 50/60HZ
PORT 4PORT 3PORT 2PORT 1USB2USB1HDMIDVI
1
678910
2 3 4 5
640 640 640 640

Service and Maintance:
08
- 15 -
Picture 1 Picture 2 Picture 3 Picture 3
Maintance:
Application example
1. A single modules.(Picture 1)
2. Remove the screw in red.(Picture 2)
3. Hold the handle and push the module.(Picture 3)
Maintenance on overall installaon, just replace the bad modules.
Easy Maintenance with push-out module and all the modules are the same design.

Package
09
- 16 -
10 pcs LED panels per Flightcase
40*20 Bumper strip
12mm Board
10mm Shock resistance high
temperature resistant material
170KG Heavy Duty Caster
