Rohde & Schwarz SMCVB-KV17 User manual

R&S®SMCVB-KV17
Digital TV Interferers Waveforms
User Manual
1179282502
Version 01
(;ÝLI2)

This document describes the following software options:
●R&S®SMCVB-KV17 Digital TV Interferers Waveforms (1434.5557.xx)
© 2020 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1179.2825.02 | Version 01 | R&S®SMCVB-KV17
The following abbreviations are used throughout this manual: R&S®SMCV100B is abbreviated as R&S SMCV100B.

Contents
R&S®SMCVB-KV17
3User Manual 1179.2825.02 ─ 01
Contents
1 Welcome to the R&S SMCVB-KV17 Option......................................... 7
1.1 Key Features..................................................................................................................7
1.2 Installation..................................................................................................................... 7
1.3 Documentation Overview............................................................................................. 7
1.3.1 Getting Started Manual................................................................................................... 7
1.3.2 User Manuals and Help...................................................................................................7
1.3.3 Service Manual............................................................................................................... 8
1.3.4 Instrument Security Procedures......................................................................................8
1.3.5 Printed Safety Instructions.............................................................................................. 8
1.3.6 Data Sheets and Brochures............................................................................................ 8
1.3.7 Release Notes and Open Source Acknowledgment (OSA)............................................ 9
1.3.8 Application Notes, Application Cards, White Papers, etc................................................9
2 Available Waveform Files.................................................................... 10
2.1 8VSB.............................................................................................................................10
2.1.1 8VSB_Center.wv........................................................................................................... 10
2.1.2 8VSB_Pilot.wv...............................................................................................................11
2.2 DTMB............................................................................................................................ 11
2.2.1 dtmb_8MHz_MC_16QAM.wv........................................................................................11
2.2.2 dtmb_8MHz_SC_4QAM.wv...........................................................................................11
2.2.3 dtmb_8MHz_SC_16QAM.wv.........................................................................................11
2.2.4 dtmb_8MHz_SC_32QAM.wv........................................................................................ 12
2.2.5 dtmb_8MHz_SC_64QAM.wv........................................................................................ 12
2.2.6 dtmb_8MHz_SC_32QAM_PN595.wv........................................................................... 12
2.3 DVB-T........................................................................................................................... 12
2.3.1 DVB-T_5MHz.wv...........................................................................................................12
2.3.2 DVB-T_6MHz.wv...........................................................................................................13
2.3.3 DVB-T_7MHz.wv...........................................................................................................13
2.3.4 DVB-T_8MHz.wv...........................................................................................................13
2.3.5 DVB-T_8MHz_EN303340.wv........................................................................................13
2.3.6 2CH_DVB-T_5MHz.wv................................................................................................. 13
2.3.7 2CH_DVB-T_6MHz.wv................................................................................................. 13

Contents
R&S®SMCVB-KV17
4User Manual 1179.2825.02 ─ 01
2.3.8 2CH_DVB-T_7MHz.wv................................................................................................. 13
2.3.9 2CH_DVB-T_8MHz.wv................................................................................................. 14
2.4 DVB-T2......................................................................................................................... 14
2.4.1 DVBT2_VV003_SF2.wv................................................................................................14
2.4.2 2CH_DVB-T2_8MHz.wv............................................................................................... 17
2.4.3 DVB-T2_7MHz.wv.........................................................................................................17
2.4.4 DVB-T2_7MHz_ExtCarrier.wv.......................................................................................20
2.4.5 DVB-T2_6MHz.wv.........................................................................................................22
2.4.6 DVB-T2_5MHz.wv.........................................................................................................25
2.4.7 DVB-T2_1p7MHz.wv.....................................................................................................27
2.5 FM Jamer..................................................................................................................... 30
2.5.1 FM_JAMER_50KHZ.wv................................................................................................ 30
2.6 ISDB-T.......................................................................................................................... 30
2.6.1 ISDB-TSB_1SEG.wv.....................................................................................................30
2.6.2 ISDB-TSB_3SEG.wv.....................................................................................................30
2.6.3 ISDB-T.wv..................................................................................................................... 30
2.7 MediaFlo.......................................................................................................................31
2.7.1 MediaFLO_6MHz.wv.....................................................................................................31
2.8 T-DMB/DAB.................................................................................................................. 31
2.8.1 T-DMB_DAB_M1.wv..................................................................................................... 31
2.8.2 DAB_Interferer_Channel_1111.wv................................................................................ 31
2.8.3 DAB_Interferer_Channel_1110.wv................................................................................ 31
2.8.4 DAB_Interferer_Channel_1011.wv................................................................................32
2.8.5 DAB_Interferer_Channel_1101.wv................................................................................32
2.8.6 DAB_Interferer_Channel_1001.wv............................................................................... 32
2.8.7 DAB_Interferer_Channel_1010.wv............................................................................... 33
2.8.8 DAB_Interferer_Channel_1100.wv................................................................................33
2.9 CMMB........................................................................................................................... 34
2.9.1 cmmb_2M_QPSK.wv.................................................................................................... 34
2.9.2 cmmb_8M_QPSK.wv.................................................................................................... 34
2.10 ATSC 3.0.......................................................................................................................35
2.10.1 ATSC30_VV600_IP_6MHz.wv......................................................................................35
2.10.2 ATSC30_VV600_IP_7MHz.wv......................................................................................35

Contents
R&S®SMCVB-KV17
5User Manual 1179.2825.02 ─ 01
2.10.3 ATSC30_VV600_IP_8MHz.wv......................................................................................35
2.10.4 ATSC30_VV603_IP_6MHz.wv......................................................................................35
2.10.5 ATSC30_VV603_IP_7MHz.wv......................................................................................36
2.10.6 ATSC30_VV603_IP_8MHz.wv......................................................................................36
2.10.7 ATSC30_VV604_IP_6MHz.wv......................................................................................36
2.10.8 ATSC30_VV604_IP_7MHz.wv......................................................................................36
2.10.9 ATSC30_VV604_IP_8MHz.wv......................................................................................36
2.10.10 ATSC30_VV605_IP_6MHz.wv......................................................................................36
2.10.11 ATSC30_VV605_IP_7MHz.wv...................................................................................... 36
2.10.12 ATSC30_VV605_IP_8MHz.wv......................................................................................37
Index......................................................................................................38

Contents
R&S®SMCVB-KV17
6User Manual 1179.2825.02 ─ 01

Welcome to the R&S SMCVB-KV17 Option
R&S®SMCVB-KV17
7User Manual 1179.2825.02 ─ 01
1 Welcome to the R&S SMCVB-KV17 Option
The R&S SMCVB-KV17 is a waveform library that provides waveform files in accord-
ance with various digital TV standards.
This user manual contains a reference description of the functionality that the wave-
form library provides. All functions not discussed in this manual are described in the
R&S SMCV100B user manual. The latest version is available at:
www.rohde-schwarz.com/manual/SMCV100B
1.1 Key Features
The R&S SMCVB-KV17 features:
●Numerous waveform files in accordance with various digital TV standards
●Efficient use with dedicated waveforms as interferer signal
1.2 Installation
You can find detailed installation instructions in the supplement document of the
R&S SMCV100B user manual and in the R&S SMCV100B user manual describing
firmware versions later than FW 4.70.176.xx of the R&S SMCV100B.
1.3 Documentation Overview
This section provides an overview of the R&S SMCV100B user documentation. Unless
specified otherwise, you find the documents on the R&S SMCV100B product page at:
www.rohde-schwarz.com/manual/smcv100b
1.3.1 Getting Started Manual
Introduces the R&S SMCV100B and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general infor-
mation, e.g. safety instructions, etc. A printed version is delivered with the instrument.
1.3.2 User Manuals and Help
Separate manuals for the base unit and the software options are provided for down-
load:
●Base unit manual
Documentation Overview

Welcome to the R&S SMCVB-KV17 Option
R&S®SMCVB-KV17
8User Manual 1179.2825.02 ─ 01
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Software option manual
Contains the description of the specific functions of an option. Basic information on
operating the R&S SMCV100B is not included.
The contents of the user manuals are available as help in the R&S SMCV100B. The
help offers quick, context-sensitive access to the complete information for the base unit
and the software options.
All user manuals are also available for download or for immediate display on the Inter-
net.
1.3.3 Service Manual
Describes the performance test for checking compliance with rated specifications, firm-
ware update, troubleshooting, adjustments, installing options and maintenance.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
https://gloris.rohde-schwarz.com
1.3.4 Instrument Security Procedures
Deals with security issues when working with the R&S SMCV100B in secure areas. It
is available for download on the Internet.
1.3.5 Printed Safety Instructions
Provides safety information in many languages. The printed document is delivered with
the product.
1.3.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S SMCV100B. It also
lists the options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/smcv100b
Documentation Overview

Welcome to the R&S SMCVB-KV17 Option
R&S®SMCVB-KV17
9User Manual 1179.2825.02 ─ 01
1.3.7 Release Notes and Open Source Acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/smcv100b
1.3.8 Application Notes, Application Cards, White Papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/smcv100b
Documentation Overview

Available Waveform Files
R&S®SMCVB-KV17
10User Manual 1179.2825.02 ─ 01
2 Available Waveform Files
This chapter contains the description of the available waveform files sorted by stan-
dard.
The files of the following standards are decodable and seamless:
●8VSB (see Chapter 2, "Available Waveform Files", on page 10)
●DVB-T (see Chapter 2, "Available Waveform Files", on page 10)
●DVB-T2 (see Chapter 2.4, "DVB-T2", on page 14)
●FM Jamer (see Chapter 2.5, "FM Jamer", on page 30)
●T-DMB/DAB (see Chapter 2.8, "T-DMB/DAB", on page 31)
●CMMB (see Chapter 2.9, "CMMB", on page 34)
The files of the following standards are not seamless and therefore not decodable:
●DTMB (see Chapter 2.2, "DTMB", on page 11)
●ISDB-T (see Chapter 2.6, "ISDB-T", on page 30)
●MediaFlo (see Chapter 2.7, "MediaFlo", on page 31)
●ATSC 3.0 (see Chapter 2.10, "ATSC 3.0", on page 35)
The spectra comply with the corresponding standard. However, there could be errors in
the FEC i.e. a receiver locks but may show bit errors.
2.1 8VSB
The 8 VSB files play a signal compliant with the ATSC standard "Digital Television
Standard (A/53), Revision C; Annex D". The payload is null packets.
2.1.1 8VSB_Center.wv
All frequency adjustments are referenced to the center of the output spectrum (see Fig-
ure 2-1).

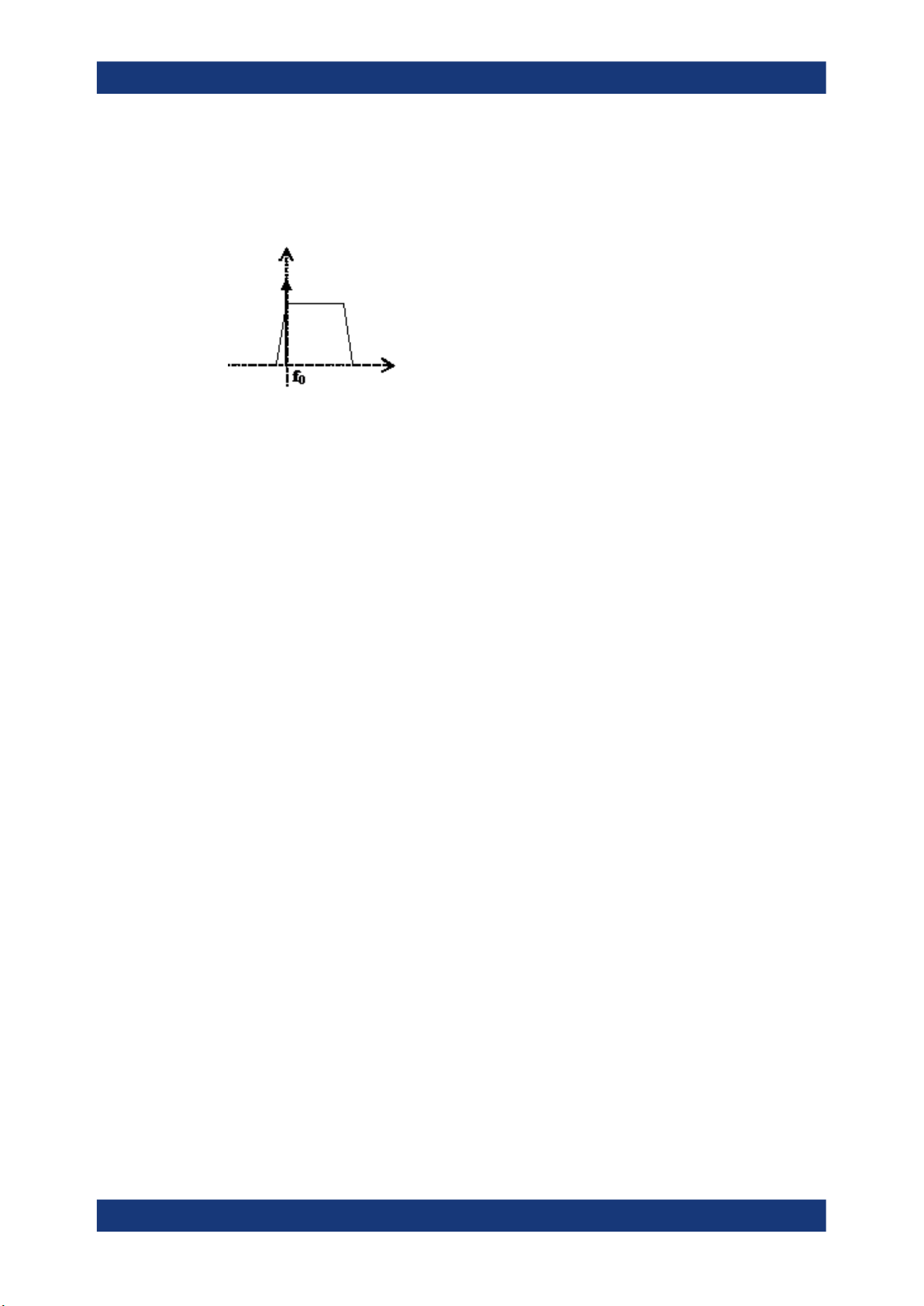

Figure 2-1: 8VSB_Center
8VSB

Available Waveform Files
R&S®SMCVB-KV17
11User Manual 1179.2825.02 ─ 01
2.1.2 8VSB_Pilot.wv
All frequency adjustments are referenced to the pilot of the output spectrum (see Fig-
ure 2-2)
Figure 2-2: 8VSB_Pilot
2.2 DTMB
2.2.1 dtmb_8MHz_MC_16QAM.wv
Not decodable DTMB signal:
●Multicarrier
●16QAM
●Channel bandwidth: 8 MHz
2.2.2 dtmb_8MHz_SC_4QAM.wv
Not decodable DTMB signal:
●Single-carrier
●4QAM
●Channel bandwidth: 8 MHz
2.2.3 dtmb_8MHz_SC_16QAM.wv
Not decodable DTMB signal:
●Single-carrier
●16QAM
●Channel bandwidth: 8 MHz
DTMB

Available Waveform Files
R&S®SMCVB-KV17
12User Manual 1179.2825.02 ─ 01
2.2.4 dtmb_8MHz_SC_32QAM.wv
Not decodable DTMB signal:
●Single-carrier
●32QAM
●PN420 header
●Channel bandwidth: 8 MHz
2.2.5 dtmb_8MHz_SC_64QAM.wv
Not decodable DTMB signal:
●Single-carrier
●64QAM
●Channel bandwidth: 8 MHz
2.2.6 dtmb_8MHz_SC_32QAM_PN595.wv
Not decodable DTMB signal:
●Single-carrier
●32QAM
●PN595 header
●Channel bandwidth: 8 MHz
2.3 DVB-T
The DVB-T signals are generated according to ETSI EN 300 744 as follows:
●Code rate: 3/4
●Constellation: 64QAM
●FFT mode: 2K
●Guard interval: 1/32.
The payload is null packets.
2.3.1 DVB-T_5MHz.wv
One DVB-T signal:
●Channel bandwidth: 5 MHz
DVB-T

Available Waveform Files
R&S®SMCVB-KV17
13User Manual 1179.2825.02 ─ 01
2.3.2 DVB-T_6MHz.wv
One DVB-T signal:
●Channel bandwidth: 6 MHz
2.3.3 DVB-T_7MHz.wv
One DVB-T signal:
●Channel bandwidth: 7 MHz
●According the international standard IEC 62002-1 pattern S2
2.3.4 DVB-T_8MHz.wv
One DVB-T signal:
●Channel bandwidth: 8 MHz
●According the international standard IEC 62002-1 pattern S2
2.3.5 DVB-T_8MHz_EN303340.wv
One DVB-T signal:
●Channel bandwidth: 8 MHz
●Settings are according to ETSI EN 303 340 V1.1.1, Table 2
2.3.6 2CH_DVB-T_5MHz.wv
Two DVB-T signals:
●Channel bandwidth: 5 MHz
2.3.7 2CH_DVB-T_6MHz.wv
Two DVB-T signals:
●Channel bandwidth: 6 MHz
2.3.8 2CH_DVB-T_7MHz.wv
Two DVB-T signals:
●Channel bandwidth: 7 MHz
●According the international standard IEC 62002-1 pattern L3
DVB-T

Available Waveform Files
R&S®SMCVB-KV17
14User Manual 1179.2825.02 ─ 01
2.3.9 2CH_DVB-T_8MHz.wv
Two DVB-T signals:
●Channel bandwidth: 8 MHz
●According the international standard IEC 62002-1 pattern L3
The two signals are grouped around the RF frequency with a spacing of one channel
(see Figure 2-3).
Figure 2-3: Two channel DVB-T signal
To make the measurements described in IEC 62002-1 "Mobile and portable DVB-T/H
radio access", the signals must be shifted using either "Signal Frequency Offset" or
"Modulation Frequency Offset" under Modulation.
2.4 DVB-T2
When playing these waveform files, the following applies:
●Playing this ARB file should get a DVB-T2 receiver locked.
●Framing will be continuous due to a whole number of super frames.
●Wrap around time of the ARB file might be too short for decoding of video and
audio.
2.4.1 DVBT2_VV003_SF2.wv
ARB file name DVBT2_VV003_SF2.wv
ARB file version 01.00
Date of generation 2009-01-16
ARB file play time (8 MHz CH BW) 0.867 seconds
ARB clock (8 MHz CH BW) 11.428570 MHz
Number of super frames 2
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
15User Manual 1179.2825.02 ─ 01
T2 Transmission Parameter
Table 2-1: Input Mode
Parameter Value Possible values
Input Mode A (single PLP) A (single PLP), B (multi PLP)
Number of PLP 1 1 to 255
Mode Adapt. Type CCM CCM, ACM
Table 2-2: Mode Adapt., Stream Adapt.
Parameter Value Possible values
PLP 0
PLP 0: Input Format TS TS, GSE, GCS, GFPS
PLP 0: PLP ID 0x00 0x00 to 0xFF
PLP 0: PLP Type Data Type 1 Data Type 1, Data Type 2, Com-
mon
PLP 0: Mode HEM HEM, NM
PLP 0: ISSY OFF On, Off
PLP 0: Null Packet Deletion Off On, Off
PLP 0: In-Band Signaling Off On, Off
PLP 0: Input Data Rate 40.2146452 Mbit/s
Table 2-3: BICM
Parameter Value Possible values
PLP 0
PLP 0: FEC Frame Normal Normal, Short
PLP 0: Code Rate 2/3 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
PLP 0: Constellation 256QAM QPSK, 16QAM, 64QAM, 256QAM
PLP 0: Const. Rotation On On, Off
PLP 0: Time Interl. Type Type 0 Type 0, Type 1
PLP 0: Frame Interv. (I Jump) 1 1 to 255
PLP 0: Time Interl. Length 3 0 to 255
Table 2-4: Framing
Parameter Value Possible values
T2 Frames per Super Frame
(N_T2)
2 2 to 255
OFDM Symbols per T2 Frame
(L_F)
60 4 to max. (max. -> EN302755)
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
16User Manual 1179.2825.02 ─ 01
Data Symbols per T2 Frame
(L_Data)
59 3 to max. (max. -> EN302755)
Subslices per T2 Frame
(N_Sub)
1 1 to 6480
Table 2-5: OFDM
Parameter Value Possible values
Channel Bandwidth 8 MHz 1.7 MHz, 5 MHz, 6 MHz, 7 MHz,
8 MHz, 10 MHz
FFT Size 32K 1K, 2K, 4K, 8K, 16K, 32K
Extended Carrier Mode On On, Off
Guard Interval 1/128 1/4, 19/128, 1/8, 19/256, 1/16,
1/32, 1/128
Pilot Pattern PP7 PP1, PP2, PP3, PP4, PP5, PP6,
PP7, PP8
Table 2-6: T2 System
Parameter Value Possible values
Transmission System SISO SISO, MISO
MISO Group --- 1, 2
PAPR Off On, Off
PAPR Function Tag ---
PAPR Function Length ---
PAPR Gain ---
PAPR Extension Limit ---
PAPR Clipping Threshold ---
FEF Off On, Off
FEF Type ---
FEF Length ---
FEF Interval ---
TFS Off On, Off
L1 Post Modulation 64QAM BPSK, QPSK, 16QAM, 64QAM
L1 Repetition Off On, Off
L1 Post Extension Off On, Off
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
17User Manual 1179.2825.02 ─ 01
Num. Aux. Streams 0 0 to 15
Cell ID 0x0000 0x0000 to 0xFFFF
Network ID 0x3085 0x0000 to 0xFFFF
T2 System ID 0x8001 0x0000 to 0xFFFF
TX ID State Off On, Off
TX ID --- 0x0000 to 0xFFFF
PLP Content
PLP 0: Pattern
2.4.2 2CH_DVB-T2_8MHz.wv
ARB file name 2CH_DVB-T2_8MHz.wv
ARB file version 01.00
Date of generation 2009-01-16
ARB file play time (8 MHz CH BW) 0.867 seconds
ARB clock (8 MHz CH BW) 11.428570 MHz
Number of super frames 2
This waveform file contains the same DVB-T2 signal as DVBT2_VV003_SF2, but shif-
ted by 8 MHz left and right to the center frequency (channel n-1 and n+1). For details
on the content refer to insert link"T2 Transmission Parameter" on page 15.
2.4.3 DVB-T2_7MHz.wv
ARB file name DVB-T2_7MHz.wv
ARB file version 01.00
Date of generation 2011-06-30
ARB file play time (7 MHz CH BW) 0.99635 seconds
ARB clock (7 MHz CH BW) 10.0 MHz
Number of super frames 2
T2 Transmission Parameter
Table 2-7: Input Mode
Parameter Value Possible values
Input Mode A (single PLP) A (single PLP), B (multi PLP)
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
18User Manual 1179.2825.02 ─ 01
Number of PLP 1 1 to 255
Mode Adapt. Type CCM CCM, ACM
Table 2-8: Mode Adapt., Stream Adapt.
Parameter Value Possible values
PLP 0
PLP 0: Input Format TS TS, GSE, GCS, GFPS
PLP 0: PLP ID 0x00 0x00 to 0xFF
PLP 0: PLP Type Data Type 1 Data Type 1, Data Type 2, Com-
mon
PLP 0: Mode HEM HEM, NM
PLP 0: ISSY Off On, Off
PLP 0: Null Packet Deletion Off On, Off
PLP 0: In-Band Signaling Off On, Off
PLP 0: Input Data Rate 31.989 401 Mbit/s
Table 2-9: BICM
Parameter Value Possible values
PLP 0
PLP 0: FEC Frame Normal Normal, Short
PLP 0: Code Rate 3/4 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
PLP 0: Constellation 256QAM QPSK, 16QAM, 64QAM, 256QAM
PLP 0: Const. Rotation On On, Off
PLP 0: Time Interl. Type Type 0 Type 0, Type 1
PLP 0: Frame Interv. (I Jump) 1 1 to 255
PLP 0: Time Interl. Length 3 0 to 255
Table 2-10: Framing
Parameter Value Possible values
T2 Frames per Super Frame
(N_T2)
2 2 to 255
OFDM Symbols per T2 Frame
(L_F)
54 4 to max. (max. -> EN302755)
Data Symbols per T2 Frame
(L_Data)
53 3 to max. (max. -> EN302755)
Subslices per T2 Frame
(N_Sub)
1 1 to 6480
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
19User Manual 1179.2825.02 ─ 01
Table 2-11: OFDM
Parameter Value Possible values
Channel Bandwidth 7 MHz 1.7 MHz, 5 MHz, 6 MHz, 7 MHz,
8 MHz, 10 MHz
FFT Size 32K 1K, 2K, 4K, 8K, 16K, 32K
Extended Carrier Mode Off On, Off
Guard Interval 1/8 1/4, 19/128, 1/8, 19/256, 1/16,
1/32, 1/128
Pilot Pattern PP2 PP1, PP2, PP3, PP4, PP5, PP6,
PP7, PP8
Table 2-12: T2 System
Parameter Value Possible values
Transmission System SISO SISO, MISO
MISO Group --- 1, 2
PAPR Off On, Off
PAPR Function Tag ---
PAPR Function Length ---
PAPR Gain ---
PAPR Extension Limit ---
PAPR Clipping Threshold ---
FEF Off On, Off
FEF Type ---
FEF Length ---
FEF Interval ---
TFS Off On, Off
L1 Post Modulation 64QAM BPSK, QPSK, 16QAM, 64QAM
L1 Repetition Off On, Off
L1 Post Extension Off On, Off
Num. Aux. Streams 0 0 to 15
Cell ID 0x0000 0x0000 to 0xFFFF
Network ID 0x3085 0x0000 to 0xFFFF
DVB-T2

Available Waveform Files
R&S®SMCVB-KV17
20User Manual 1179.2825.02 ─ 01
T2 System ID 0x8001 0x0000 to 0xFFFF
TX ID State Off On, Off
TX ID --- 0x0000 to 0xFFFF
PLP Content
PLP 0: Pattern
2.4.4 DVB-T2_7MHz_ExtCarrier.wv
ARB file name DVB-T2_7MHz_ExtCarrier.wv
ARB file version 01.00
Date of generation 2017-04-06
ARB file play time (7 MHz CH BW) 0.992 seconds
ARB clock (7 MHz CH BW) 16.0 MHz
Number of super frames 2
T2 Transmission Parameter
Table 2-13: Input Mode
Parameter Value Possible values
Input Mode A (single PLP) A (single PLP), B (multi PLP)
Number of PLP 1 1 to 255
Mode Adapt. Type CCM CCM, ACM
Table 2-14: Mode Adapt., Stream Adapt.
Parameter Value Possible values
PLP 0
PLP 0: Input Format TS TS, GSE, GCS, GFPS
PLP 0: PLP ID 0x00 0x00 to 0xFF
PLP 0: PLP Type Data Type 1 Data Type 1, Data Type 2, Com-
mon
PLP 0: Mode HEM HEM, NM
PLP 0: ISSY Off On, Off
PLP 0: Null Packet Deletion Off On, Off
PLP 0: In-Band Signaling Off On, Off
PLP 0: Input Data Rate 31.623 164 Mbit/s
DVB-T2
