Rohde & Schwarz R&S NGE100B User manual

R&S®NGE100B
Power Supply
Getting Started
5601133702
Version 09
(Æ1=U2)

This manual describes the following R&S®NGE100B models and options:
●R&S®NGE102B 2-Channel PSU (5601.3800.02)
●R&S®NGE103B 3-Channel PSU (5601.3800.03)
The contents of this manual correspond to firmware version 1.50 or higher.
© 2023 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
5601.1337.02 | Version 09 | R&S®NGE100B
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.
R&S®NGE100B is indicated as R&S NGE100B.

Contents
R&S®NGE100B
3Getting Started 5601.1337.02 ─ 09
Contents
1 Safety and regulatory information....................................... 5
1.1 Safety instructions................................................................................6
1.2 Labels on R&S NGE100B..................................................................... 9
1.3 Warning messages in the documentation........................................ 10
1.4 Korea certification class A................................................................. 11
2 Documentation overview.................................................... 12
2.1 Manuals................................................................................................12
2.2 Data sheet............................................................................................12
2.3 Calibration certificate......................................................................... 13
2.4 Release notes, open source acknowledgment (OSA)..................... 13
3 Welcome to R&S NGE100B.................................................14
4 Preparing for use................................................................. 15
4.1 Lifting and carrying............................................................................ 15
4.2 Unpacking and checking....................................................................15
4.2.1 Delivery package.................................................................................. 15
4.3 Choosing the operating site.............................................................. 16
4.4 Setting up the R&S NGE100B............................................................ 16
4.4.1 Placing the R&S NGE100B on a bench top..........................................17
4.4.2 Mounting the R&S NGE100B in a rack................................................. 18
4.5 Considerations for test setup............................................................ 19
4.6 Connecting to power.......................................................................... 21
4.7 Switching on or off............................................................................. 22
4.8 Connecting to LAN............................................................................. 23
4.9 Connecting USB devices................................................................... 25

Contents
R&S®NGE100B
4Getting Started 5601.1337.02 ─ 09
5 Instrument tour.................................................................... 26
5.1 Front panel.......................................................................................... 26
5.2 Rear panel............................................................................................29
6 Trying out the instrument................................................... 32
6.1 Selecting the channels....................................................................... 32
6.2 Setting the output voltage and current limit.................................... 32
6.3 Activating the channel output........................................................... 33
6.4 Storing/Recalling of instrument settings..........................................33
7 Instrument control............................................................... 34
7.1 Ways to operate the instrument........................................................ 34
7.2 Means of manual interaction............................................................. 34
7.2.1 Understanding the display information..................................................35
7.2.1.1 Status bar information...........................................................................35
7.2.1.2 Channel display area............................................................................ 37
7.2.1.3 Operating mode.................................................................................... 38
7.2.1.4 Additional display characteristics.......................................................... 39
7.2.2 Accessing the functionality....................................................................41
7.2.3 Entering data.........................................................................................42
7.2.3.1 Entering numeric parameters................................................................42
7.2.3.2 Entering alphanumeric parameters.......................................................43
7.3 Remote control....................................................................................44
8 Contacting customer support............................................ 45
Index..................................................................................... 46

Safety and regulatory information
R&S®NGE100B
5Getting Started 5601.1337.02 ─ 09
1 Safety and regulatory information
The product documentation helps you use the product safely and efficiently. Fol-
low the instructions provided here and in the following chapters.
Intended use
The product is intended for the development, production and verification of elec-
tronic components and devices in industrial, administrative, and laboratory envi-
ronments by personnel familiar with the potential risks of measuring electrical
quantities.
Use the product only for its designated purpose. Observe the operating conditions
and performance limits stated in the data sheet.
Target audience
Only connect, set up and use a power supply if you are an electrically skilled per-
son. Electrically skilled persons have the relevant education and experience to
enable them to perceive risks and to avoid hazards that electricity can cause.
This document targets at all users, including installers, operators, technicians,
maintenance and service personnel.
Follow the safety instructions provided in Chapter 1.1, "Safety instructions",
on page 6 and the additional information provided during setup or operation
procedures.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 1.1, "Safety instructions", on page 6. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Safety and regulatory information
R&S®NGE100B
6Getting Started 5601.1337.02 ─ 09
1.1 Safety instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed "Safety Instructions". If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Only people skilled in electrical work should connect, set up and use the product.
Such persons have the education and experience needed to recognize risks and
avoid hazards of working with electricity. These users also need sound knowl-
edge of at least one of the languages in which the user interfaces and the product
documentation are available.
Reconfigure or adjust the product only as described in the product documentation
or the data sheet. Any other modifications can affect safety and are not permitted.
Never open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. If any part of the product is
damaged or broken, stop using the product. Contact Rohde & Schwarz customer
service at https://www.rohde-schwarz.com/support.
Lifting and carrying the product
Look up the maximum weight in the data sheet. A single person can only carry a
maximum of 18 kg safely depending on age, gender and physical condition. If
your product is heavier than 18 kg, do not move or carry it by yourself.
To move the product safely, you can use lifting or transporting equipment such as
lift trucks and forklifts. Follow the instructions provided by the equipment manu-
facturer.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof. Water that
enters can electrically connect the casing to live parts, which can lead to electric
shock, serious personal injury or death if you touch the casing.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environ-
Safety instructions

Safety and regulatory information
R&S®NGE100B
7Getting Started 5601.1337.02 ─ 09
ments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the product
Always place the product on a stable, flat and level surface with the bottom of the
product facing down. If the product is designed for different positions, secure the
product so that it cannot fall over.
If the product has foldable feet, always fold the feet completely in or out to ensure
stability. The feet can collapse if they are not folded out completely or if the prod-
uct is moved without lifting it. The foldable feet are designed to carry the weight of
the product, but not an extra load.

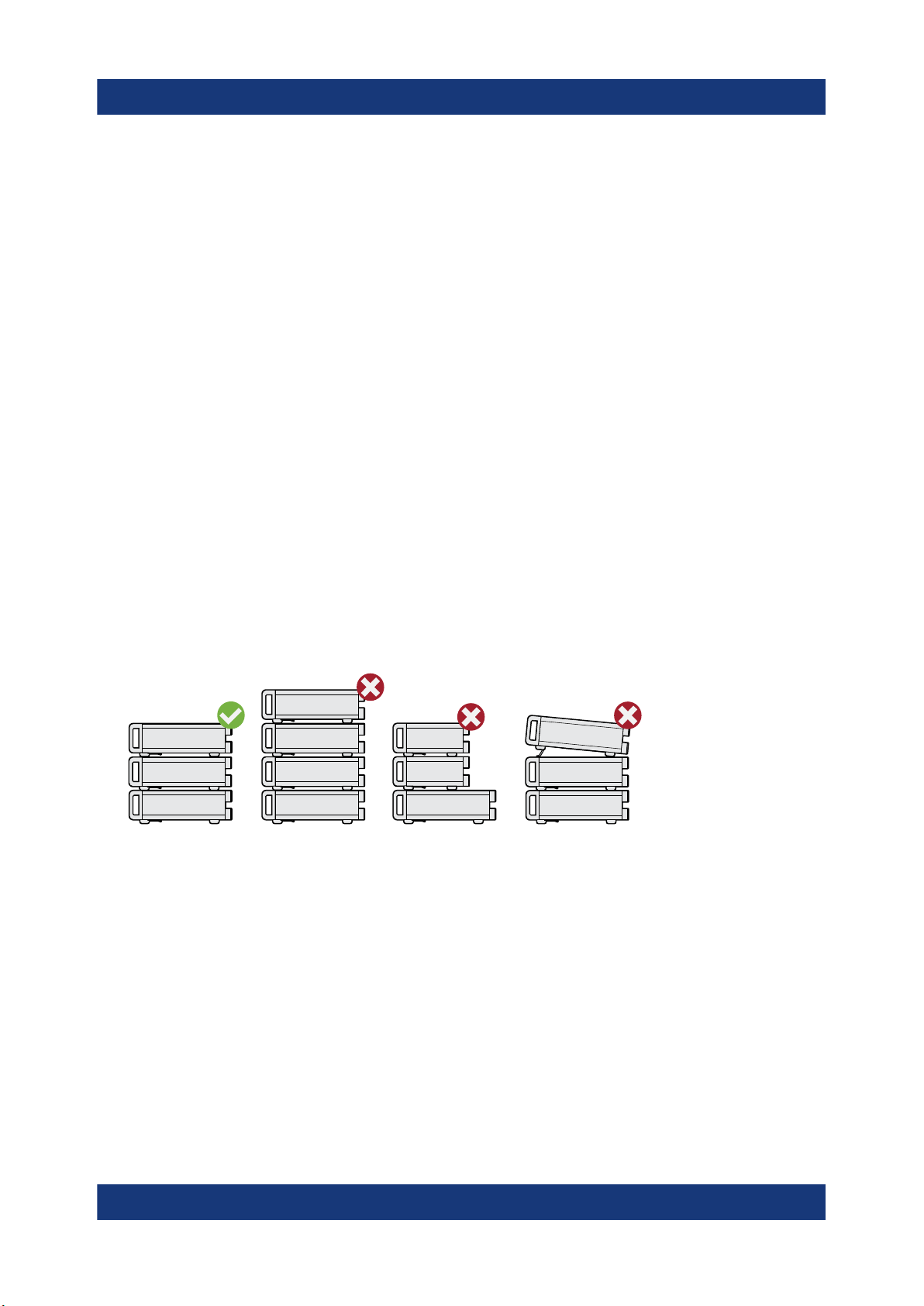

If stacking is possible, keep in mind that a stack of products can fall over and
cause injury.
If you mount products in a rack, ensure that the rack has sufficient load capacity
and stability. Observe the specifications of the rack manufacturer. Always install
the products from the bottom shelf to the top shelf so that the rack stands
securely. Secure the product so that it cannot fall off the rack.
Connecting to power
The product is an overvoltage category II product. Connect the product to a fixed
installation used to supply energy-consuming equipment such as household
appliances and similar loads. Keep in mind that electrically powered products
have risks, such as electric shock, fire, personal injury or even death. Replace
parts that are relevant to safety only by original parts, e.g. power cables or fuses.
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●If a product has an exchangeable fuse, its type and characteristics are indica-
ted next to the fuse holder. Before changing the fuse, switch off the product
and disconnect it from the power source. How to change the fuse is described
in the product documentation.
●Only use the power cable delivered with the product. It complies with country-
specific safety requirements. Only insert the plug into an outlet with protective
conductor terminal.
Safety instructions

Safety and regulatory information
R&S®NGE100B
8Getting Started 5601.1337.02 ─ 09
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
●Only connect the product to a power source with the safety fuse specified in
the data sheet.
●Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Working with hazardous voltages
Voltages higher than 30 V RMS, or 42 V peak, or 60 V DC are regarded as haz-
ardous contact voltages. Direct contact with them can cause serious injuries.
When working with hazardous contact voltages, use protective measures to pre-
clude direct contact with the measurement setup:
●Before each measurement, inspect all components for damage and replace
them if necessary.
●Do not touch exposed connections and components when power is applied.
●Casing, chassis and all measuring terminals are connected to a grounding
connection. Never disconnect a grounding connection on the product.
●Switch off the power before connecting or disconnecting the terminal block to
the rear panel connector. Tighten all wires connected to the terminal block.
●Only use the wires and terminal blocks delivered with the product.
●Only use insulated wires, not stripped wires, for the terminal connections.
●Turn the mains switch off when the product is not in use.
●When operating measuring accessories, only use the cables delivered with
the accessory. If you have to use cables from other manufacturers, make sure
that they are of the required overvoltage category.
Do not operate the product in series or parallel unless that setup is supported. If
accessories are provided for a product, only use them for that product. See the
data sheet.
In series or parallel setups, protect yourself against electric shock before connect-
ing access ports such as the Ethernet port or the USB port using one of the fol-
lowing measures:
Safety instructions

Safety and regulatory information
R&S®NGE100B
9Getting Started 5601.1337.02 ─ 09
●Ensure that all products are grounded by connecting them to the AC power.
●Disconnect all power connections to the product, including outputs.
Measurement categories
IEC 61010-2-030 defines measurement categories that rate products on their
ability to resist short transient overvoltages that occur in addition to the working
voltage.
This product is designed for measuring within measurement category 0 only.
Measurements in this category are performed on circuits not directly connected to
mains, such as electronics, battery powered circuits, and specially protected sec-
ondary circuits. This measurement category is also known as CAT I.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
connection protects you against electric shock if an electric problem occurs.
1.2 Labels on R&S NGE100B
Labels on the casing inform about:
●Personal safety, see "Meaning of safety labels" on page 9.
●Product and environment safety, see Table 1-1.
Labels on R&S NGE100B

Safety and regulatory information
R&S®NGE100B
10Getting Started 5601.1337.02 ─ 09
●Device information is provided on a sticker attached to the rear panel of R&S
NGE100B. The sticker contains a barcode and the device ID. The device ID is
a combination of the order number and the serial number.
Table 1-1: Labels regarding R&S NGE100B and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see the prod-
uct user manual, chapter "Disposal".
Grounding terminal (earth ground contact)
ON (supply voltage)
OFF (supply voltage)
Chassis grounding terminal
1.3 Warning messages in the documentation
A warning message points out a risk or danger that you need to be aware of. The
signal word indicates the severity of the safety hazard and how likely it will occur
if you do not follow the safety precautions.
DANGER
Imminently hazardous situation. Will result in death or serious injury if not avoi-
ded.
WARNING
Potentially hazardous situation. Could result in death or serious injury if not avoi-
ded.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if not
avoided.
Warning messages in the documentation

Safety and regulatory information
R&S®NGE100B
11Getting Started 5601.1337.02 ─ 09
NOTICE
Potential risks of damage. Could result in damage to the supported product or to
other property.
1.4 Korea certification class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하
시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
Korea certification class A

Documentation overview
R&S®NGE100B
12Getting Started 5601.1337.02 ─ 09
2 Documentation overview
This section provides an overview of the R&S NGE100B user documentation.
2.1 Manuals
You find the documents on the R&S NGE100B product page at:
www.rohde-schwarz.com/product/nge100b
Getting started
Introduces the R&S NGE100B power supply series and describes how to set up
and start working with the instrument. The printed document is delivered with the
instrument.
User manual
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance and
instrument interfaces. Includes the contents of the getting started manual.
The online version of the user manual provides the complete contents for immedi-
ate display on the internet.
Basic safety instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.2 Data sheet
The datasheet contains the technical specifications of the R&S NGE100B power
supply series. It also lists all options with their order numbers and accessories.
See www.rohde-schwarz.com/brochure-datasheet/nge100b
Data sheet

Documentation overview
R&S®NGE100B
13Getting Started 5601.1337.02 ─ 09
2.3 Calibration certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
2.4 Release notes, open source acknowledgment
(OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation. The open source
acknowledgment document provides verbatim license texts of the used open
source software. It can also be downloaded from the instrument.
See www.rohde-schwarz.com/firmware/nge100b.
Release notes, open source acknowledgment (OSA)

Welcome to R&S NGE100B
R&S®NGE100B
14Getting Started 5601.1337.02 ─ 09
3 Welcome to R&S NGE100B
The two or three-channel power supply series are based on a classical trans-
former concept with high efficiency electronic pre-regulators and secondary linear
regulators. This concept allows the instrument to achieve the high output power
within a minimum space, high efficiency and lowest residual ripple.
The R&S NGE100B power supply series feature galvanically isolated, floating
overload and short-circuit proof outputs with adjustable power ratings. The out-
puts can be connected in series or in parallel, thus making high currents and vol-
tages available.
Multi-purpose protection functions are available for each channel which you can
set separately, such as overcurrent protection (FUSE), overvoltage protection
(OVP), overpower protection (OPP) and overtemperature protection (OTP). If
such a limit is reached, the affected output channel is automatically turned off and
an indicator message (FUSE, OVP, OPP or OTP) is displayed. The overcurrent
protection can be linked to other channel (FuseLink function). In this case, all
linked channels are turned off when the set channel reaches its limit.
The EasyArb function allows channel 1 (Ch 1) to have freely definable voltage
and current sequences with a timeframe as short as 10 ms. It allows you to vary
the voltage or current limit during a test sequence, for example to simulate differ-
ent charging conditions of a battery. With EasyRamp function, the R&S NGE100B
provides the operating condition to simulate the continuous rise of the supply volt-
age within a defined timeframe of 10 ms to 10 s.
Four data lines of the digital I/O interface are mutually independent and can be
used as trigger input or trigger output separately. Various trigger conditions (e.g.
fuse tripped, voltage, current, indicator messages) can be used to turn off, on or
invert the output state when the trigger condition is met.
All R&S NGE100B power supply series are equipped with a color LCD display
(320 x 240 pixels resolution). The R&S NGE100B comes with a USB interface
and optional LAN (LXI) interface.
This user manual contains a description of the functionalities that the instrument
provides. The latest version is available for download at the product homepage
(http://www.rohde-schwarz.com/product/nge100b).

Preparing for use
R&S®NGE100B
15Getting Started 5601.1337.02 ─ 09
4 Preparing for use
Here, you can find basic information about setting up the product for the first time.
4.1 Lifting and carrying
See "Lifting and carrying the product" on page 6.
4.2 Unpacking and checking
1. Unpack the R&S NGE100B carefully.
2. Retain the original packing material. Use it when transporting or shipping the
R&S NGE100B later.
3. Using the delivery package list, check the equipment for completeness.
4. Check the equipment for damage and loose parts.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
4.2.1 Delivery package
The delivery package contains the following items:
●R&S NGE100B power supply preloaded with two 230 V fuses
●Four power cables
●Two 115 V fuses (replace the preloaded fuses with these fuses depending on
the mains voltage, see "Replacing the power fuse" on page 21 for more
information)
●One 5-pin plug (P/N: 3643.6463.00) for digital I/O port connections
●One Getting Started manual
●One document folder with multilingual safety instruction and CE certificate
Unpacking and checking

Preparing for use
R&S®NGE100B
16Getting Started 5601.1337.02 ─ 09
4.3 Choosing the operating site
Specific operating conditions ensure proper operation and avoid damage to the
product and connected devices. For information on environmental conditions
such as ambient temperature and humidity, see the data sheet.
See also "Choosing the operating site" on page 6.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate
the product. The EMC class of the product is given in the data sheet.
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and
radiated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
4.4 Setting up the R&S NGE100B
Adequate air circulation must be ensured during operation. For continuous opera-
tion, a horizontal or inclined position (integrated stand) is preferable.
See also:
●"Setting up the product" on page 7
●"Intended use" on page 5
Setting up the R&S NGE100B

Preparing for use
R&S®NGE100B
17Getting Started 5601.1337.02 ─ 09
4.4.1 Placing the R&S NGE100B on a bench top
To place the product on a bench top
1. Place the product on a stable, flat and level surface. Ensure that the surface
can support the weight of the product. For information on the weight, see the
data sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the product"
on page 7.
Always fold the feet completely in or out. With folded-out feet, do not place
anything on top or underneath the product.
3. WARNING! A stack of products can fall over and cause injury. Never stack
more than three products on top of each other. Instead, mount them in a rack.
Stack as follows:
● If the products have foldable feet, fold them in completely.
● All products must have the same dimensions (width and length).
● Do not exceed a total load of 50 kg placed on the product at the bottom of
the stack.
Left = Stacked correctly
Middle left = Stacked incorrectly, too many products
Middle right = Stacked incorrectly, different dimensions
Right = Stacked incorrectly, folded-out feet
4. NOTICE! Overheating can damage the product.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the prod-
uct and any object in the vicinity to provide sufficient airflow and ventila-
tion.
● Do not place the product next to heat-generating equipment such as radia-
tors or other products.
Setting up the R&S NGE100B

Preparing for use
R&S®NGE100B
18Getting Started 5601.1337.02 ─ 09
4.4.2 Mounting the R&S NGE100B in a rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the product"
on page 7.
2. NOTICE! Insufficient airflow can cause overheating and damage the product.
The heat produced inside the instrument is guided to the exterior via tempera-
ture-controlled fan. The R&S NGE100B has multiple temperature sensors
which check the heat generation in the instrument and control the fan speed.
It is necessary to ensure that there is sufficient space around the instrument
sides for heat exchange. Ensure that fan openings and ventilation holes are
unobstructed and airflow vents are unimpeded.
If the temperature inside the instrument increases more than the allowed limit,
over-temperature protection is triggered and the affected outputs are switched
off automatically.
To mount the R&S NGE100B in a rack
1. Use an adapter kit that fits the dimensions of the R&S NGE100B to prepare
the R&S NGE100B for rack mounting.
a) Order the rack adapter kit designed for the R&S NGE100B. For the order
number, see data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S NGE100B to shelf height.
3. Push the R&S NGE100B onto the shelf until the rack brackets fit closely to the
rack.
4. Tighten all screws at the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S NGE100B at the rack.
To unmount the R&S NGE100B from a rack
1. Loosen the screws at the rack brackets.
2. Remove the R&S NGE100B from the rack.
Setting up the R&S NGE100B

Preparing for use
R&S®NGE100B
19Getting Started 5601.1337.02 ─ 09
3. If placing the R&S NGE100B on a bench top again, unmount the adapter kit
from the R&S NGE100B. Follow the instructions provided with the adapter kit.
4.5 Considerations for test setup
The product is built in compliance with DIN EN 61010-1 (VDC 0411 part 1),
EN 61010-1 and IEC 61010-1. It is designed with the regulations of protection
class 1, for supplying power-on circuits that are only indirectly connected to the
low voltage mains or not connected at all.
The instrument is not intended for measurements within the measurement cate-
gories II, III or IV; the maximum potential against earth generated by the user
must not exceed 150 VDC in this application.
See also "Measurement categories" on page 9.
General instrument specification
See Table 4-1 for the general data on the instrument specification. Refer to the
instrument datasheet for details.
Table 4-1: General data on instrument specification
Mains nominal voltage AC 115 V / 230 V (±10 %) 50 Hz /
60 Hz
Power consumption Maximum input power 180 W
Mains fuses
(fuse size: 5 mm x 20 mm)
115 V AC IEC 60127-2/5 T 5 A 250 V
230 V AC IEC 60127-2/5 T 2.5 A 250 V
Temperature Operating temperature range 0 °C to + 40 °C
Storage temperature range - 20 °C to + 70 °C
Humidity Non-condensing 5 % to 80 %
Display 3.5 " (QVGA)
Rack mount capability ½ 19 "R&S HZC95 option
Dimensions W x H x D 222 mm x 88 mm x 280 mm
(8.74 in x 3.46 in x 11.02 in)
Weight NGE102B 4.9 kg (10.80 lb)
NGE103B 5.0 kg (11.02 lb)
Considerations for test setup

Preparing for use
R&S®NGE100B
20Getting Started 5601.1337.02 ─ 09
Operating limits
The R&S NGE100B is equipped with a protective overload feature. The protective
overload feature prevents damage to the instrument and is intended to protect
against a possible electrical shock. The maximum values for the instrument must
not be exceeded. The protection limits are listed on the front panel of the R&S
NGE100B to ensure safe operation of the instrument.
See Table 4-2 for protection limits of the R&S NGE100B.
Table 4-2: Protection limits for R&S NGE100B
Specification Limits
Maximum output voltage 32 VDC
Maximum output current 3 A (max 33.6 W per channel)
Maximum voltage against earth 150 VDC
Maximum reverse voltage 33 VDC
Maximum inverse voltage 0.4 VDC
Maximum permitted current in case of inverse
voltage
3.01 A
Power supply 115 VAC or 230 VAC (tolerance ± 10 %)
Frequency 50 Hz / 60 Hz
Maximum power output 100 W (NGE103B), 66 W (NGE102B)
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●Use high-quality shielded cables, for example double shielded USB and LAN
cables.
●Use at least a CAT6+ LAN cables with a length ≤ 3 m and passive USB cable
with a length ≤ 1m.
●Use insulated wires for output supply/terminal connections
●Always terminate open cable ends.
●Ensure that connected external devices comply with EMC regulations.
●Check regularly that all cables, including power cables are in perfect condi-
tions.
Considerations for test setup
