Rok 150-23-52350 User manual

750mm Pedestal Fan with Bonus Wall Mount Kit
Model No. 150-23-52350
750mm Pedestal Fan with Bonus Wall Mount Kit
INSTRUCTION MANUAL
Warning: For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

GENERAL SAFETY RULES
WARNING! Read all instructions. Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings
listed below refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current
device(RCD) protected supply.Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result in
serious personal injury.
b) Use safety equipment.Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that have
the switch on invite accidents.
d) Remove any adjusting key or wrench before turning the power tool on.Awrench or
a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce dust
related hazards.
h) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
i) Children should be supervised to ensure they do not play with the appliance.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tools operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of power tool, taking into
account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Thank you for purchasing this ROK 750mm Pedestal Fan with Bonus Wall Mount Kit
Model 150-23-52350. Please read this leaflet thoroughly and follow the instructions

carefully, in doing so you will ensure the safety of yourself and that of others around you,
and you can look forward to the product giving you long and satisfactory service.
SAFETY RULES FOR ELECTRIC FAN
WARNING: As with all machinery there are certain hazards involved with their operations
and use. Exercise respect and caution, this will considerably lessen the risk of personal
injury. However, if normal safety precautions are overlooked or ignored, personal injury to
the operator or damage to property may result.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.
WARNING- to reduce the risk of fire, electrical shock or injury to persons or property:
Always operate the product from a power source of the same voltage,
frequency and rating as indicated on the product identification plate.
To reduce the risk of electric shock, do not use this fan with any solid-state
speed control device.
Close supervision is nessecary when any product is used by or near children
or invalids. Do not allow children to use it as a toy.
Do not operate any product with a damaged cord or plug, after the product
malfunctions, is dropped or appears damaged in any way. Return the
complete product to the place of purchase for inspection, repair or
replacement.
To reduce the risk of electric shock, do not immerse or expose the product or
flexible cord to rain, moisture or any liquid.
This product should not be used in the immediate vicinity of water, such as
bathtub, washbowls, swimming pool etc. where the liklihood of immersion or
splashing could occur.
Switch off and unplug from outlet when not in use, before assembling or
disassembling parts and before cleaning. Fully assemble the fan before
switching on.
This appliance is not intended for use by person/s (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

Children should be
supervised to ensure that
they do not play with the
appliance.
Avoid contacting moving
parts. Do not insert any object
through the grill when the fan
is operating
Do not cover the grill, or
operate in close proximity to
curtains, etc
Always disconnect the fan when moving it from one location to another.
The use of attachments or accesories not recommended or sold by the
product distributor may cause personal or property hazards or injuries
This product is inteded for normal domestic/household or commercial use

Assembly Instruction

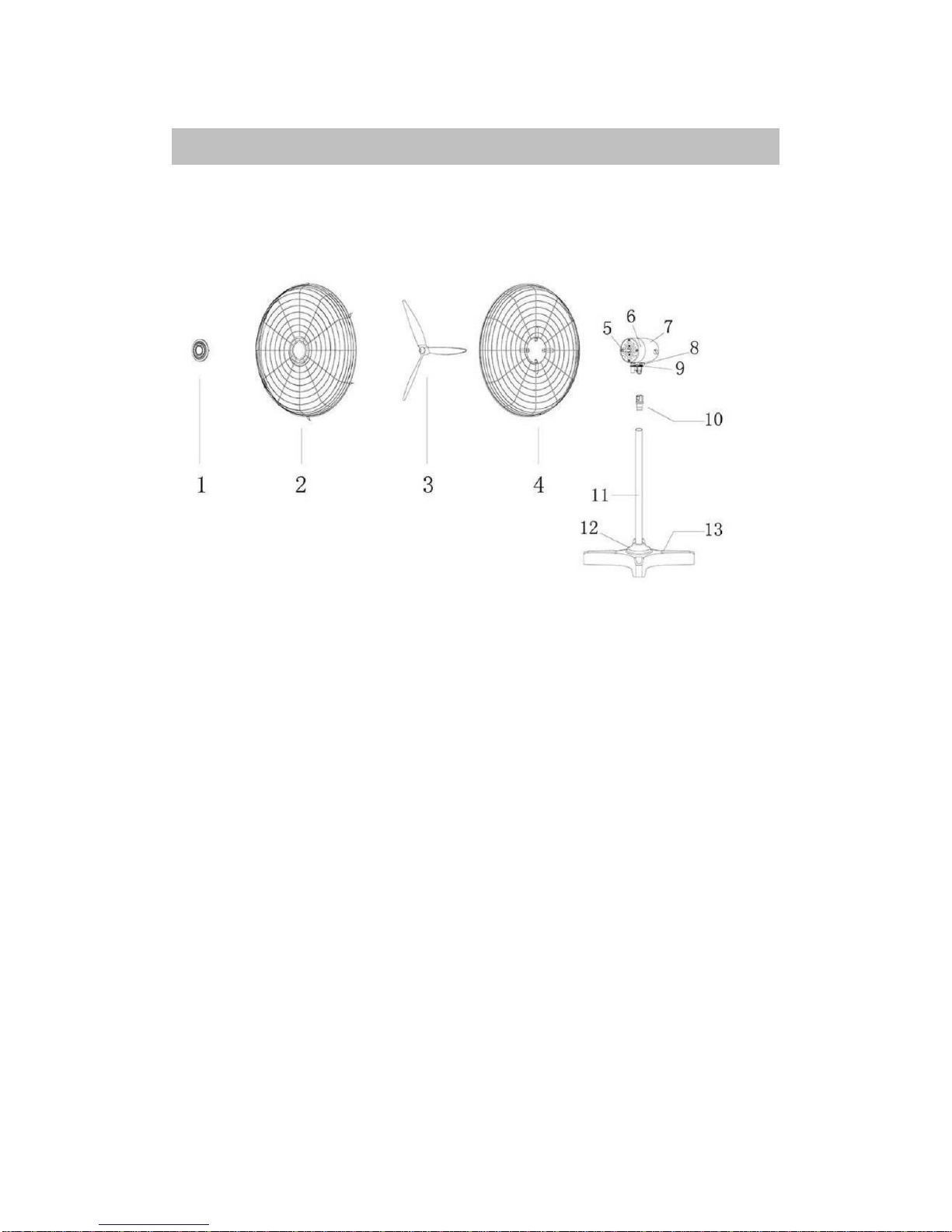

PEDESTAL FAN
1.Logo plate
2.Front grill
3.Blade
4.Rear grill
5.Motor axis
6.Front motor housing
7.Rear motor housing
8.Adjustable screw
9.Joint pole
10.Iron connector
11.Pipe
12.Decorative ring
13.Base

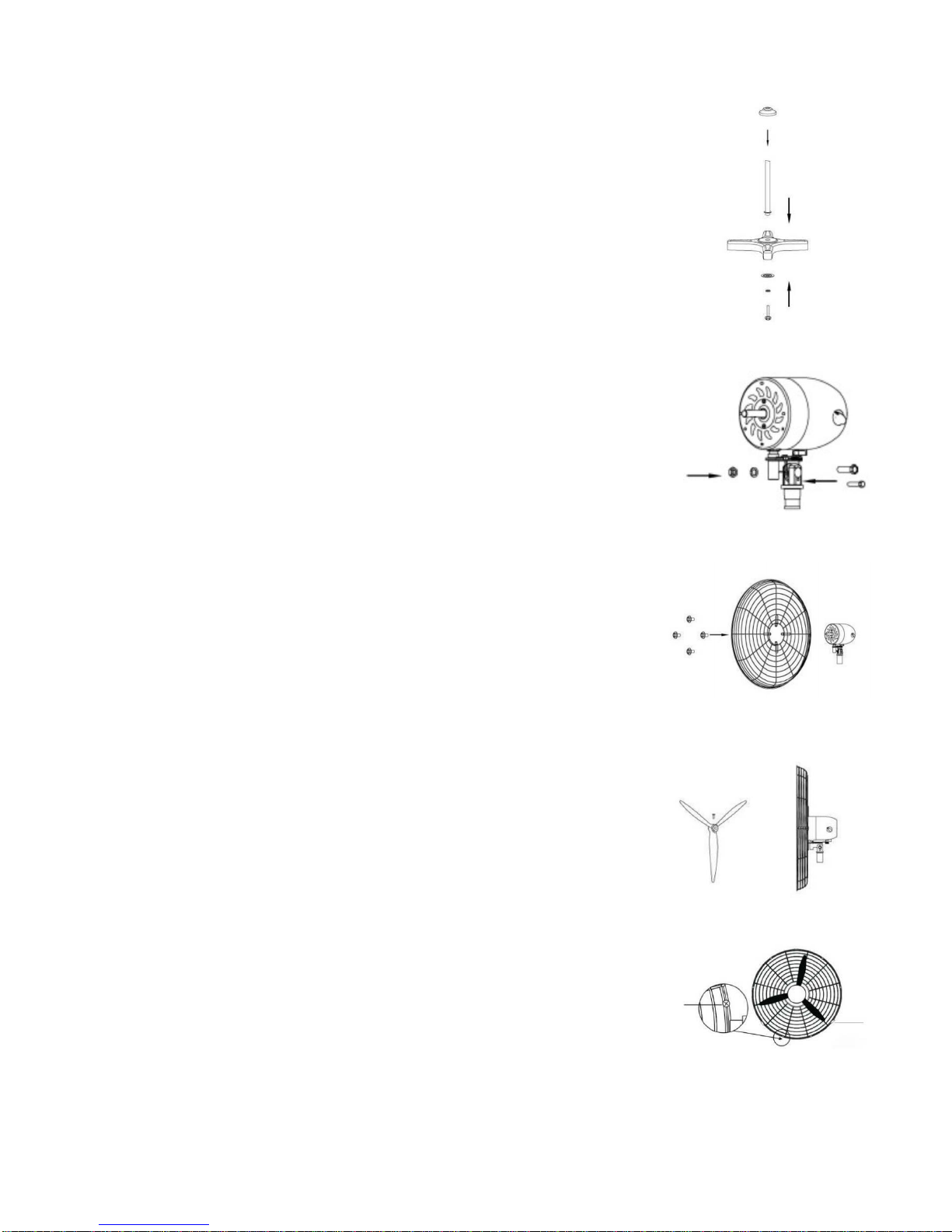

BASE ASSEMBLY
1.To loosen the screw from the pipe
2.Put the pole into the center hole of base
3.To tighten the screw
4.Put the decorative ring into the pipe and fix it
MOTOR ASSEMBLY
1.Unscrew the connecting and stopper screw of the pipe
2.Fix and lock the motor and the pipe by connecting the stopper screws
REAR GRILL ASSEMBLY
1.To loosen 4 screws which fixed on the front motor housing
2. 4 holes of rear grill need to be aligned with 4 screws holes
of front motor housing
3.Fix and lock the screws
FAN BLADE ASSEMBLY
1.Put the fan blade into the bottom of motor axis
2.Use screw to fix and lock the blade
FRONT GRILL ASSEMBLY
1.Put the front grill connect with rear grill, please attention that the screw
hole of front grill and rear grill must be aligned
2.Fasten the front and rear grill
7

WALL FAN
1.Logo plate
2.Front grill
3.Blade
4.Rear grill
5.Motor axis
6.Front grill motor
7.Rear grill motor
8.Adjustable screw
9.Joint pole
10.Iron connector
11.Wall support pipe
12.Wall bracket

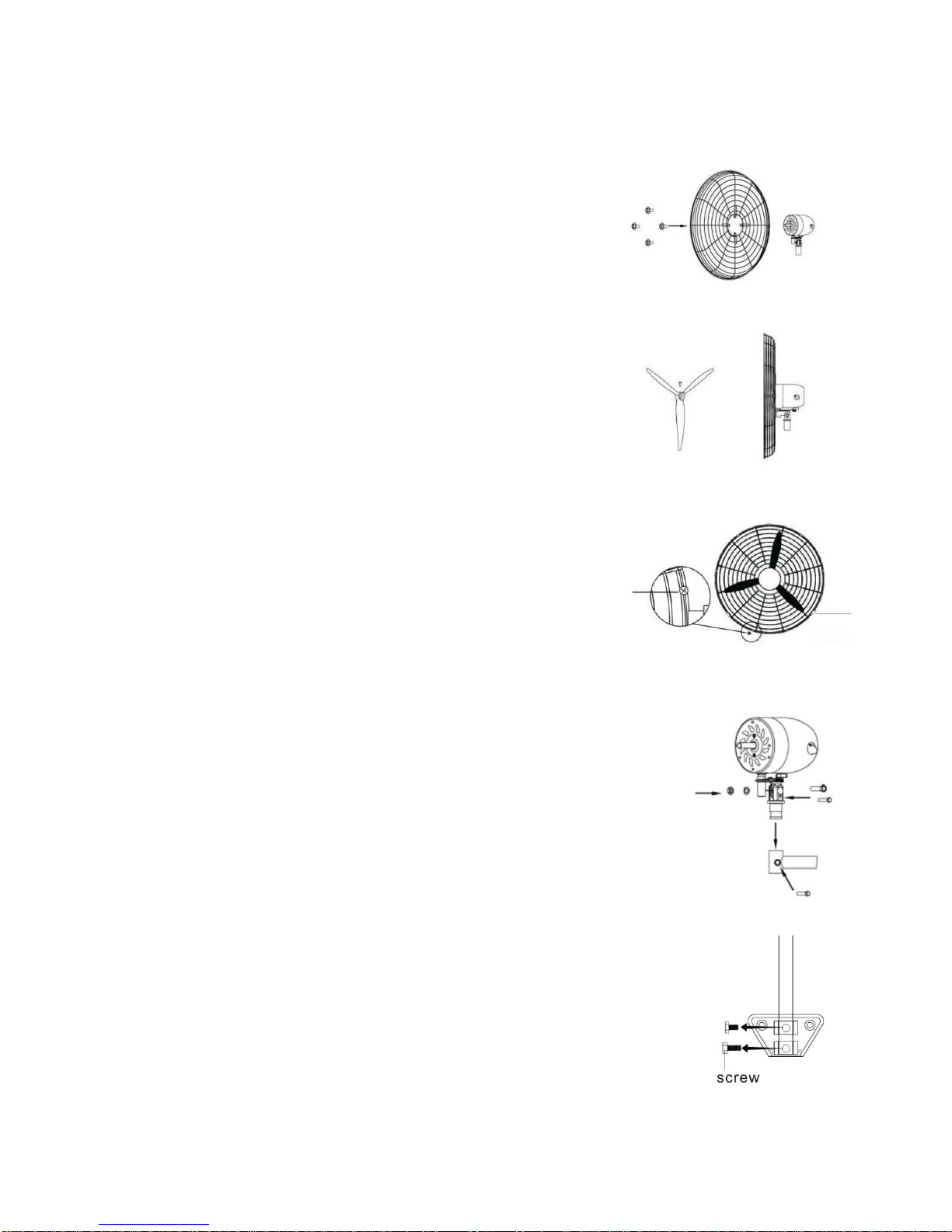

REAR GRILL ASSEMBLY
1.To loosen 4 screws which fixed on the front motor housing
2.4 holes of rear grill need to be aligned with 4 screws holes
of front motor housing
3.Fix and lock the screws
FAN BLADE ASSEMBLY
1.Put the fan blade into the bottom of motor axis
2.Use screw to fix and lock the blade
FRONT GRILL ASSEMBLY
1. Put the front grill connect with rear grill, please attention that
the screw hole of front grill and rear grill must be aligned
2.Fasten the front and rear grill
FAN ASSEMBLY
1.Motor need to be fixed and locked with connector
2.Use screw to lock the fixed motor and wall support pipe
LADDER ASSEMBLY
1.Wall bracket is installed on the wall
2.Wall support pipe is put into the wall bracket and locked by screws

Operating Instruction
1.Once the fan is assembled and installed, plug the cord into an acceptable power source.
2.The fan has 3 speed settings: 1-low, 2-medium, 3-high, 0-off.
3.To turn the fan “on”, turn the knob to the desired setting, to turn the fan “off”, turn the
knob to “0”.

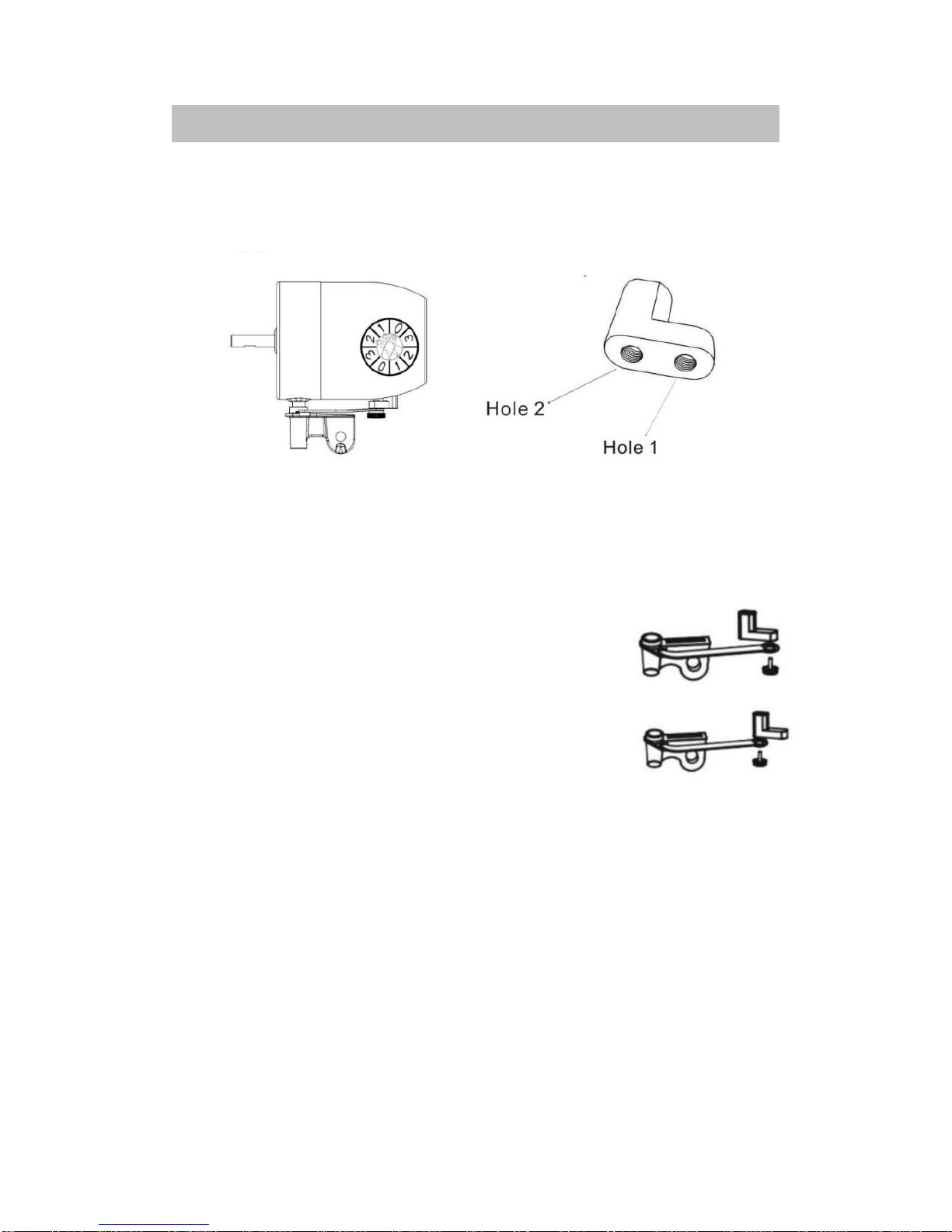

Oscillating function:
WARNING: Before using the oscillating function, always turn the fan
“off”and wait until the fan blade comes to a complete stop.
Oscillating- To turn the oscillating function
“on”fix the adjusting screw and joint pole into hole 1.
Non-oscillating- To turn the oscillating function
“off”fix the adjusting screw and joint pole into hole 2.

How to Change the Pedestal Fan to Wall Fan
1. Finished assembling the pedestal fan. 2. Loosen & remove the locking nut & bolt
in
red circle.
3. Pull out the head from the connector. 4. The stand of wall fan.
5. Insert the connector to the wall support pipe. 6. Tighten the locking nut & bolt.

750mm Pedestal Fan with Bonus Wall Mount Kit Exploded Drawing

Warranty Against Defect
Electrical Agencies Pty Ltd (“us”, “we” “wholesaler”or “our”) guarantees this product for a full
replacement for:
Home user domestic use;
Electrical & cordless/portable –24 months from date of purchase
Petrol driven products –12 months from date of purchase
Benchtop machinery –12 months from date of purchase
Fan–12 months from date of purchase
Trade and commercial use:
6 months on all ROK products.
This guarantee covers material and workmanship defects only.
In order for the guarantee to be acted on, the consumer must use the products strictly in
accordance with their operating manual and for the purpose for which they are intended to be
used. This guarantee does not apply to defects arising from abuse, alteration, unauthorised
or unreasonable use, nor does it cover general deterioration due to usage.
The product will be replaced if a defect is found in the product during the guarantee period,
subject to verification of the defect and the date, proof of purchase and purchase price.
Furthermore, in order for the guarantee to be claimed, the defective goods must be returned to
the point of purchase promptly from the point in time that the consumer becomes aware of the
defect in the goods and in any case within 7 business days.
The procedure for the consumer to claim the guarantee is that the product must be returned to
the point of purchase within 7 business days of the consumer becoming aware of the defect in
the product and subject to the point of purchase being satisfied that it is a genuine claim for
material and workmanship defects and within the time limits prescribed above, then the retailer
will contact the wholesaler for review and determination. The wholesaler reserves the right to
reject the guarantee claim if the goods have not been used in accordance with their intended
purpose or in accordance with the manual. Repair facilities are not available. Spare parts
may be available for some products.
The benefits of this guarantee are additional to any other rights and remedies you may have
under law.
Once we have received the product and you have complied with the guarantee requirements,
our costs associated with the guarantee claim will be borne by us.

No responsibility will be taken for products lost, damaged or mislaid whilst in transit.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensations for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
These terms and conditions supersede and exclude all former and other representations and
arrangements relating to any guarantees on this product. This includes any representations
not made by us relating to the performance of the product or the result that should to be
expected from using the product.
Address for the return of products: The Point of Purchase
Importer and organisation providing warranty:
Electrical Agencies Pty Ltd (trading as Electaserv Trading)
PO Box 842, Morningside QLD 4170.
Telephone: [phone]
Email: [e-mail]
