Roketa GK-06 User manual

CONTENT

Foreword -------------------------------------------------------------------------------------------- 1

1. The performance, technical parameters and structure of Go Kart--------------------------------------------2

1.1 Performance and Specifications

1.2 Parts and their locations

2.The use of Go Kart-----------------------------------------------------------------------------------------5

2.1 Caution and safety note

2.2 Instrument and control

2.3 Before riding

2.4 Basic operation

2.5 Grinding-in

2.6 Circuit diagram

3. Maintenance ---------------------------------------------------------------------------------------------10

3.1 Engine maintenance

3.2 Periodical maintenance

4. Trouble shooting------------------------------------------------------------------------------------------14

5. VIN number ------------- -----------------------------------------------------------------------------15

FOREWORD

Congratulations on having this new kart.

We recommend that you read this owner’s manual before you ride the kart. This manual contains the vehicle structure, operation instructions, safety

information and some helpful suggestion. The manual has a special section concerning maintenance. To protect your investment, we strongly recommend

you to keep your go-kart well maintained. In case of any problem on your Kart, please refer to the trouble-shooting section. We hope you enjoy riding

of your vehicle, and we would appreciate feedback or comments from you.

Our company reserves all the right to revise and explain this manual, and we reserve the right to improve, without notice beforehand,

the product after publishing this manual. Some pictures in this manual are sketch maps for reference. In case of any deviation from the material

objects, please refer to the actual items.

1. The performance, Technical parameter and Structure of Go Kart

Model GK-06 Displacement 244cc

length 2620mm (106.3 inches) Bore×stroke 72×60mm

Width 1820mm (70.9 inches) Compression ratio 10:1

Height 1600mm (66.9 inches) Rated power 12.5kw/7500±500r/min

Wheelbase 1980mm (78.7 inches) Max torque 17.6N.m/5500r/min

Front wheel track 1600mm (61.8 inches) ignition CDI

Rear wheel track 1460mm (56.7 inches) lubrication Forced lubrication & splash lubrication

Ground clearance 290mm (8.3 inches) Start Electronic

Max speed 50km/h Gear shift hand

Braking length <7m (30km/h) Spark plug C7HSA

Climbing capacity ≤45· Gross weight 535kg

Net weight 360kg Fuel type RQ93 (unleaded)

Loading capacity 2person or 175kg Engine oil type SAE15W40(summer) SAE10W/30(winter)

Oil mass 1.0 L Front wheel

Gear box oil 0.18 L

suspension

Rear wheel

Rocker arm ,independent suspension

Oleo-pneumatic damping shock absorber

Fuel tankage 11 L Front wheel

Cooling liquid 1.19L

Brake

Rear wheel

Hydraulic disc brake ,right foot control

Engine type Single cylinder,4 stroke, liquid cooling Front wheel 25×8-12

Battery 12V12Ah

Tire

Rear wheel 25×10-12

Head light 12V/55W Front wheel 200kpa

Fuse 15Ah

Tire pressure

Rear wheel 200kpa

Rear light and brake light 12V 5W/10W

2 Component location and structure

1.1Performance and Specifications

2. The use of Go Kart

2.1 Safety Note

Read this owner’s manual carefully and make sure you understand it completely before driving this kart.

People under age of sixteen are not allowed to drive this kart. This kart is designed and manufactured for off-road use only. Operation on public streets, roads or high ways is

illegal.

Please make sure to wear an approved motorcycle helmet and have the seat belt well fastened before driving the kart. Do not drive this kart at night. It’s dangerous to drive on

an unknown road. Keep a safe distance between your kart and other vehicles. Never risk drunken driving or drive the kart after taking medicine, which will endanger your driving

and result in injury even death. Check fuel level before the kart is used. Never refuel the tank while the engine is hot or running. Spilled gasoline should be wiped off prior to

starting the engine. Don’t drive your kart indoors. Exhaust contains a kind of tasteless, odorless and poisonous gas called carbon monoxide.

2.2 Instrument and control

(1) The ignition switch and light switch are located on the right side of steering wheel.

(2) Light

After the engine has started, turn on the light switch, both head lights and taillight will be on. When the brake pedal is stepped, the brake light will be on

(3) Fuel tank

Fuel tank is located close to the rear carrier of the kart. Turn the lid counterclockwise to open and then refuel. The tank capacity is 11 L.

(4) Fuel valve

Fuel valve is located under the fuel tank, and it has two positions, namely vertical (On) and level (Off).

Fig 5 Fig 6

Fuel valve lever (ON)

Fuel valve lever (OFF)

Ignition switch

Fig 4

Light switch

When the lever is vertical, fuel valve is open.

When the lever is horizontal, fuel valve is closed.

(5) The parking brake grip is located on the left side of seat. When you stop the cart, step on the brake pedal and pull up the parking-brake grip. If you want to release the kart,

just put down the parking-brake grip

(6) Brake pedal

Brake pedal is underneath the left side of steering wheel. It controls the front and rear brake discs, operated by left foot. For braking, step down the brake pedal; when you

release your foot from the brake pedal, it will automatically return to its normal position.

(7) Accelerator pedal

Accelerator pedal is below the right side of the steering wheel and is controlled by the right foot. To accelerate, step down the pedal ;when you release your foot from the

accelerator pedal, it will automatically return to its normal position.

(8) Forward and reverse control stick

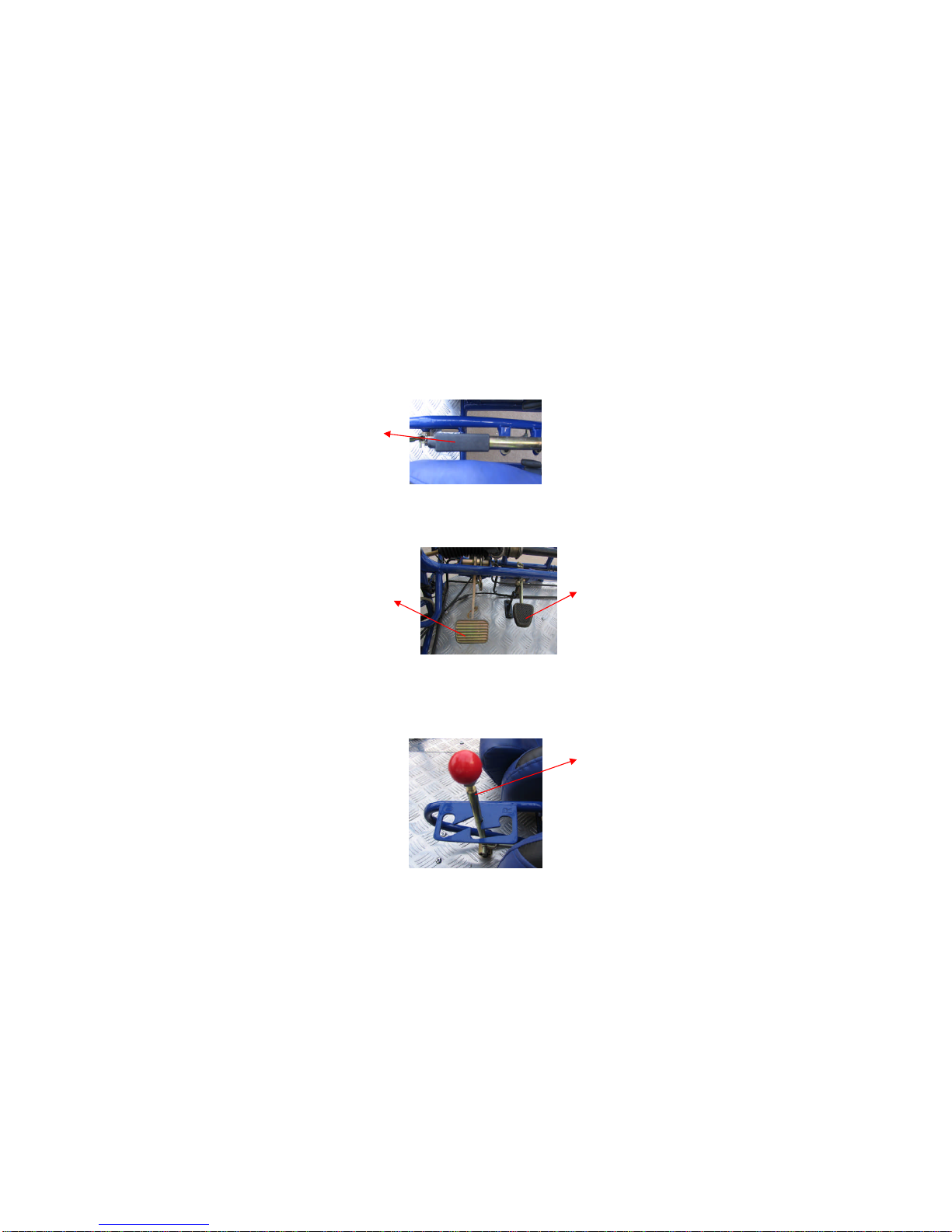

Fig 7

Fig 8

Fig 9

Gear shift leaver

Parking broke grip

Brake pedal Accelerator pedal

Forward and reverse of the vehicle is controlled by the control stick, push the stick into the slot D to make the kart move forward; keep the stick in slot N to park; pull back the

stick in slot R to reverse the vehicle.

Warning: Make sure the vehicle is completely stopped before changing shift, or it will damage the parts in gearbox.

(9) The seat back lock lever is underneath the seat, pull up the lever to adjust the seat, when satisfied, release the lever to lock the position.; seat location adjuster is in the inner

side of the seat, pull up to adjust , when satisfied, release the lever to lock

Fig 10

（10）The gearbox is a small advanced structure, its main function is to control the vehicle forward and backward.

Fig 11

The reverse ratio is 2.19; please use SAE10-30 engine oil. Drain all the oil in the gearbox before replace the oil .periodically change oil according to the maintenance table in

periodical maintenance section.

(11) Steering side rod

Front wheel alignment can be accomplished by actual use of steering side rod. (The angle of inner obliquity is 1o, normally no need to adjust)

Gearbox

Seat back lock switch

Fig 12

2.3 Before riding

Please check all the following items before driving.

Items Purpose

Steering (1) Smoothly (2) No obstacle (3) No clearance

Brake (1) Travel length of pedal is proper (2) No slippery.

Tire (1) Proper pressure (2) No crack or cut.

Fuel Keep enough fuel for intended driving distance

Light Check all the lamps –headlights, tail lamps, stop lamps.

Battery Check the electrolyte lever, fill some if necessary

2.4 Basic operation guide

Driving this Go Kart is the same as driving a car.

2.5.Grinding in

Proper grinding-in of new kart is very important to prolong the life span of the vehicle and achieve its best performance. During the initial 10 hours of your driving, limit the

driving speed to 25km/h to avoid early damage of parts due to high driving speed.

2.6.Circuit diagram

Steering side rod

3.Go Kart Maintenance

3.1 Engine maintenance

（1）#93 or above unleaded gasoline is recommended.

Note: using unleaded gasoline can extend the life of spark plug

（2）A. How to choose engine oil

User should choose proper type of engine oil according to the local temperature. Please refer to Fig16.

a 20W - 40

b 10W - 40

c 10W - 30

d 5W –30

e 5W –20

F°-30 -20 -10 0 10 20 30 40 50 60 70 80 90 100

C° -40 -30 -20 -10 0 10 20 30 40

B. Oil Level: The level of engine oil should be between upper scale and lower scale.

Fig 13

C. Oil Filling: Oil should be filled through filling port. After oil filling, let the engine run in idle for 3-5minutes and then check the oil level; add enough if it’s inadequate

D. Changing Oil: Unscrew the oil drain bolt to let out old oil ; screw down the bolt when all the old oil is let out before new oil is filled in.

Upper scale

Lower scale

Fig 14

E. Gear oil AP/GL— 4SAE75/85,85,80/90 or 90 are recommended for gearbox；the amount required is 2 L; and the oil level should be between upper scale and lower scale.

Fig 15

（3）Cooling liquid

A. Cooling system of the engine must be filled with adequate cooling liquid. Cooling liquid is a mixture of water and coolant. Water and coolant should be mixed by a

specific ratio (the ratio 60% water and 40% coolant in summer, water and coolant ratio 50% in winter). The water must be distilled water or boiled water. Do not use water

direct from well, river or other unclean water.

Filling port

The filling port of the radiator

Fig 16

Auxiliary tank

Oil drain bolt
